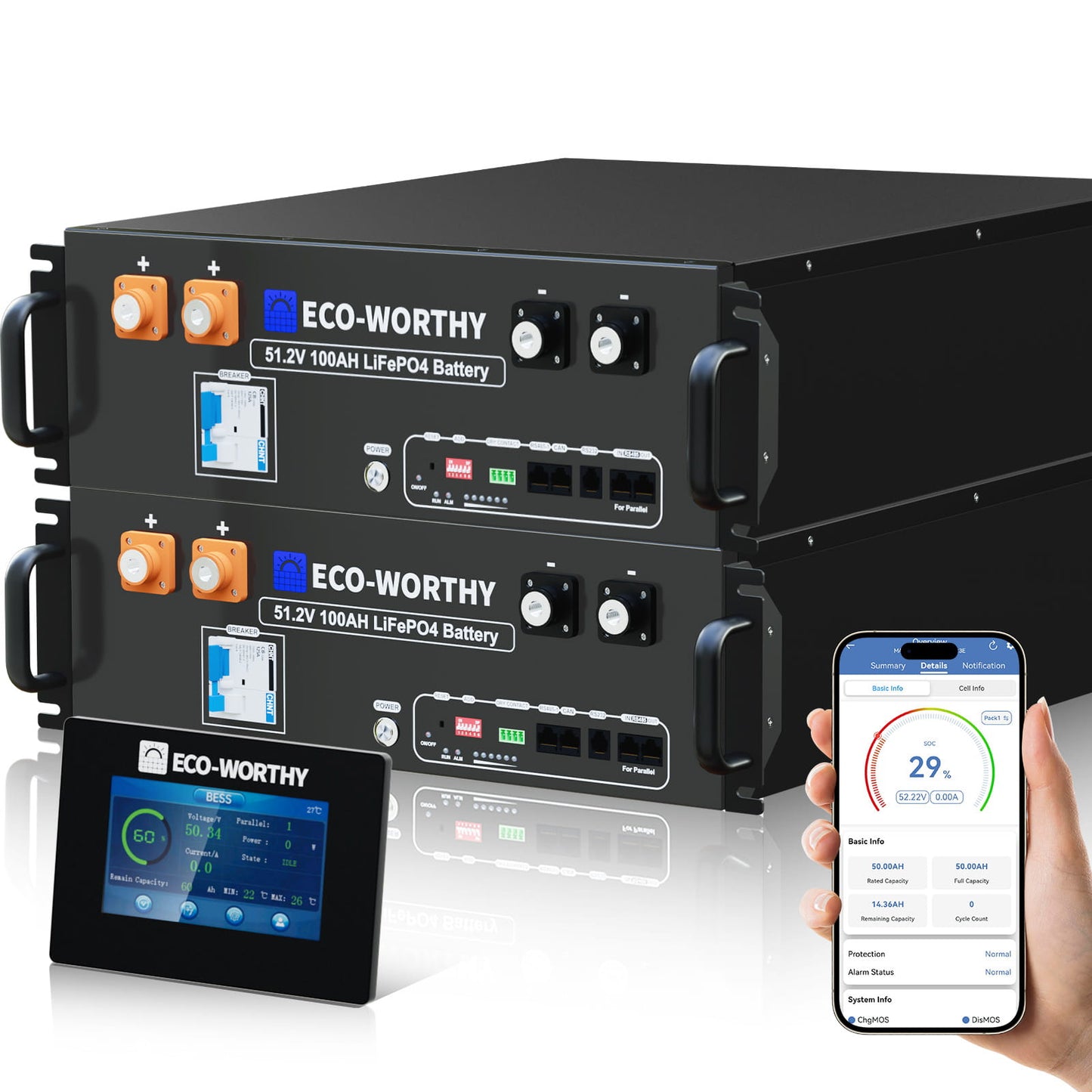

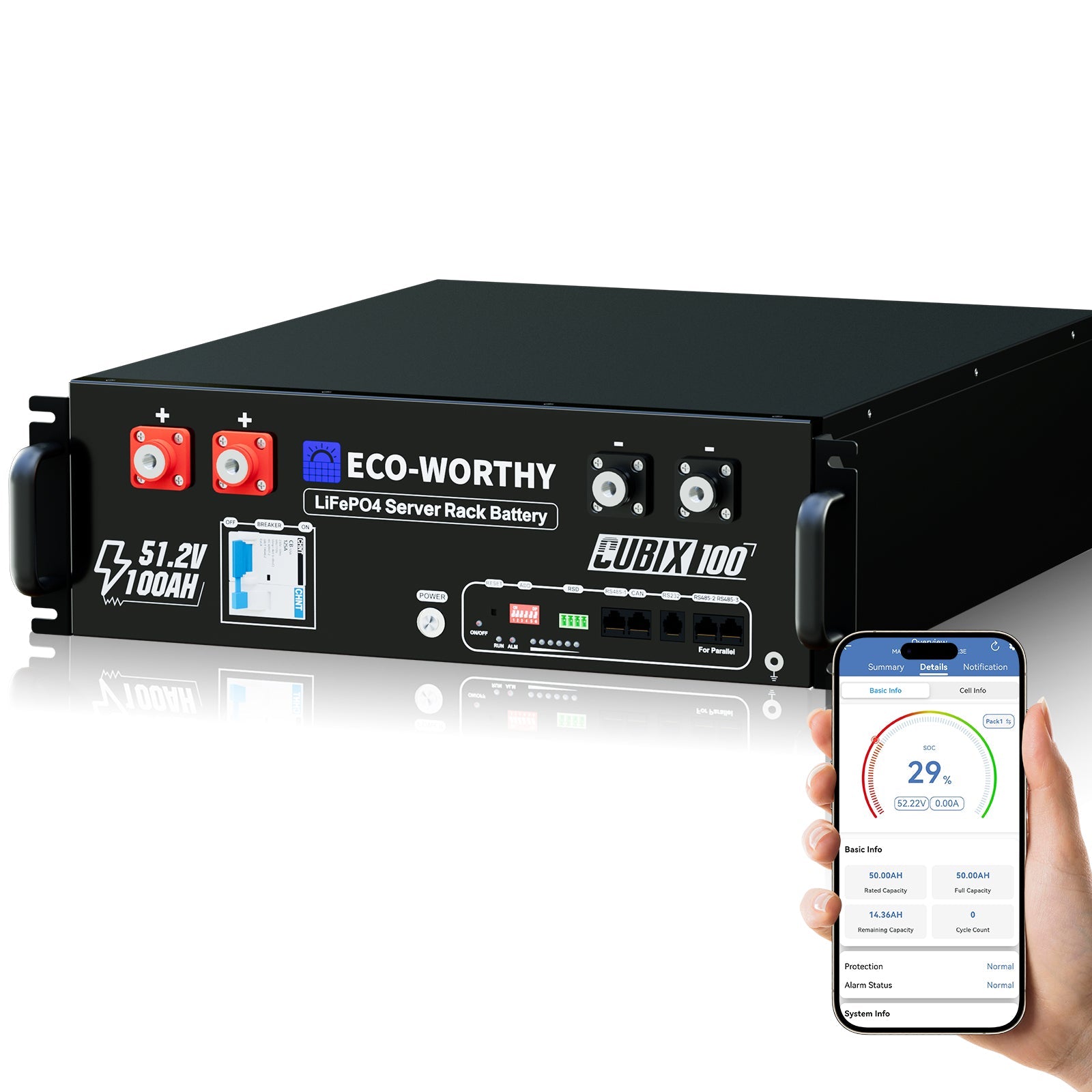

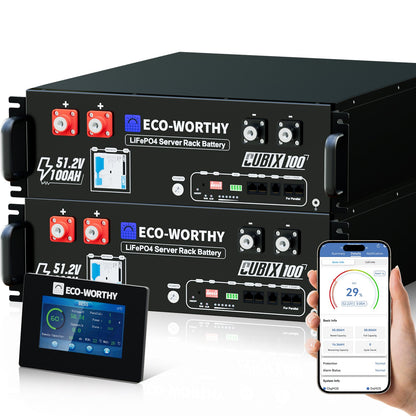

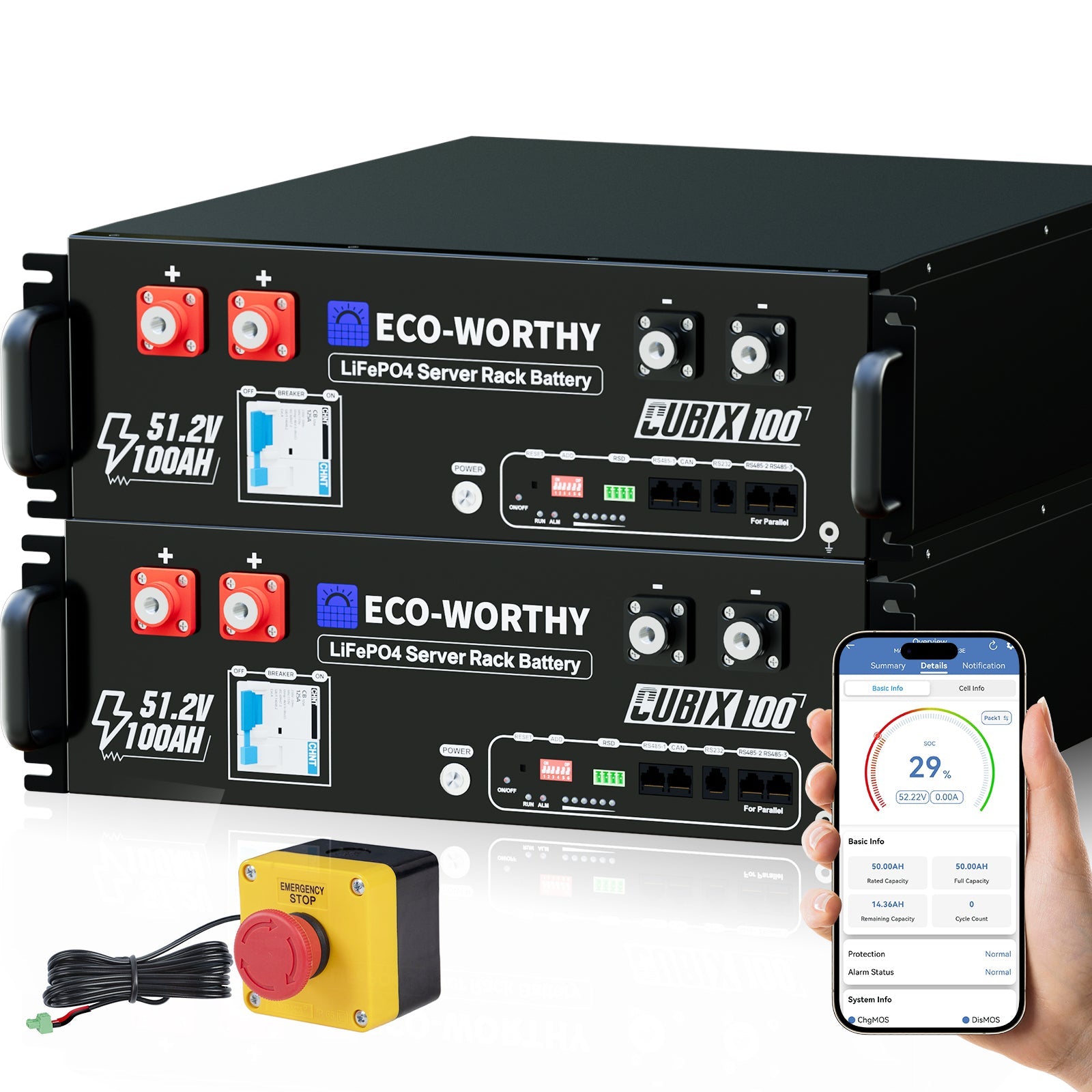

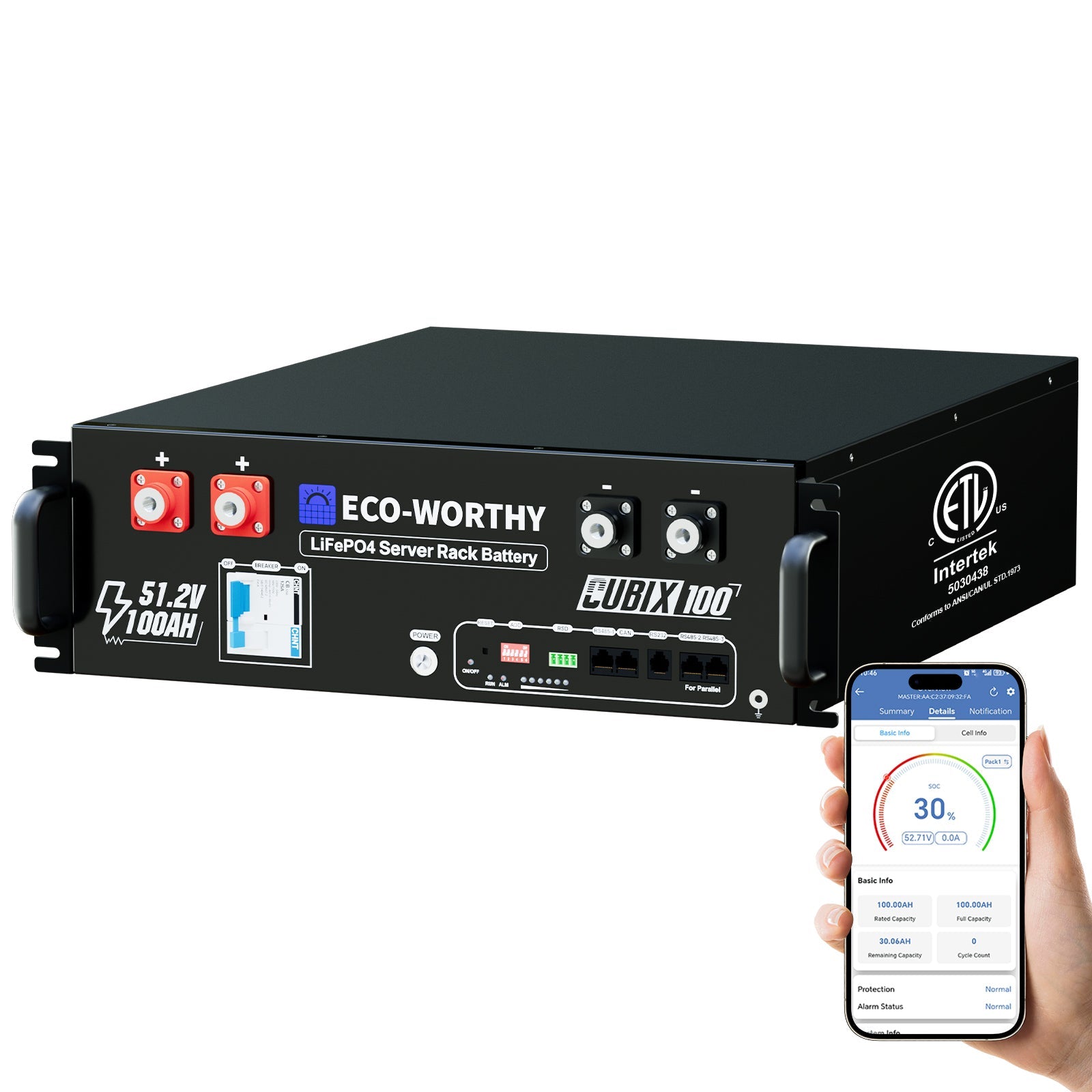

  • A black Eco-Worthy CUBIX100 51.2V 100Ah LiFePO4 server rack battery shown on a white background, with a hand holding a smartphone displaying a companion app screen in the lower right corner.

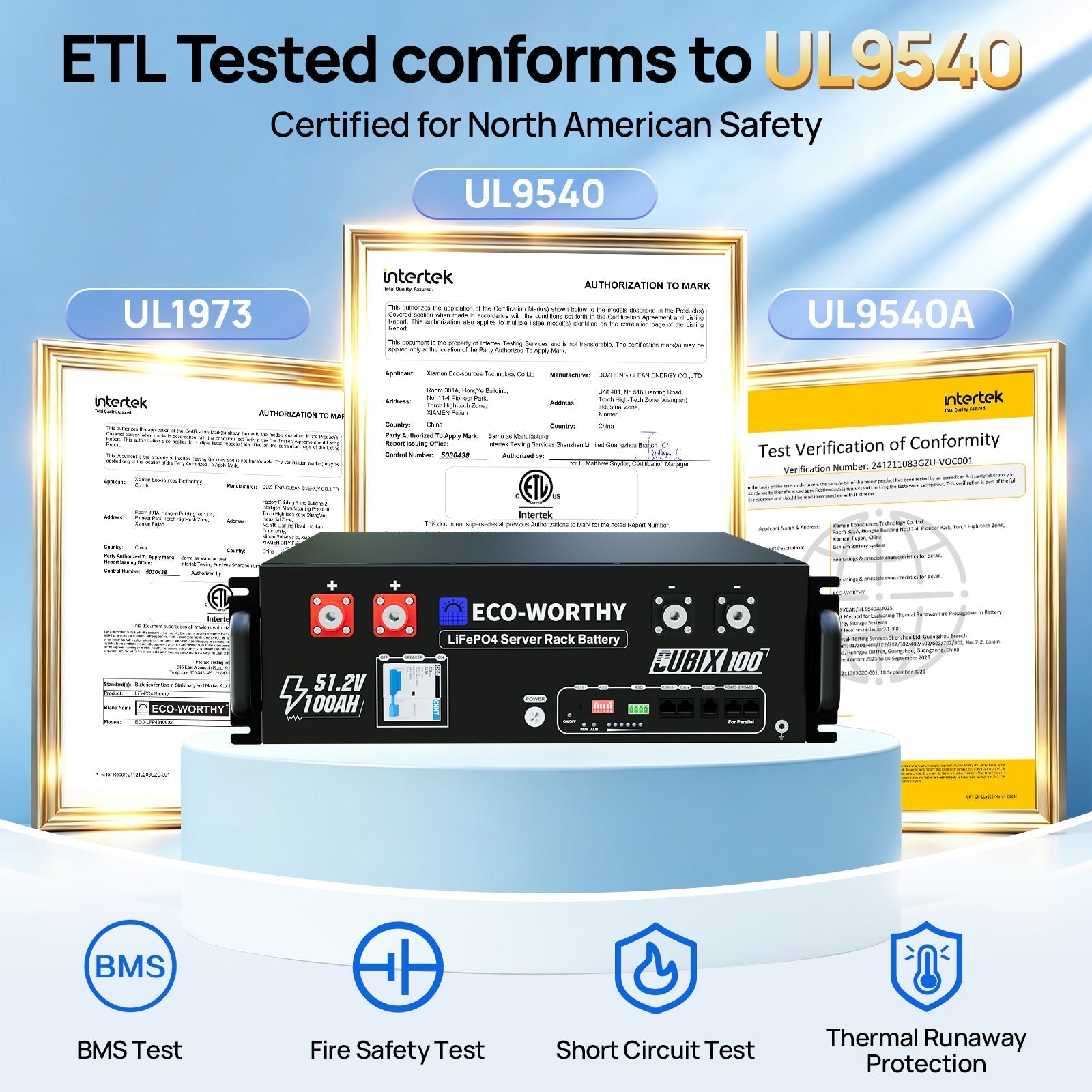

  • A black Eco-Worthy Lifepo4 100 server back battery shown on a light blue pedestal, with certification documents behind it and text stating ETL Tested conforms to UL9540. The image includes BMS, Fire Safety Test, Short Circuit Test, and Thermal Runaway Protection icons at the bottom.
  • A black Eco-Worthy UL 9540 home storage battery displayed on a white pedestal with promotional text, a blue performance line chart, coin graphics, and feature icons below.

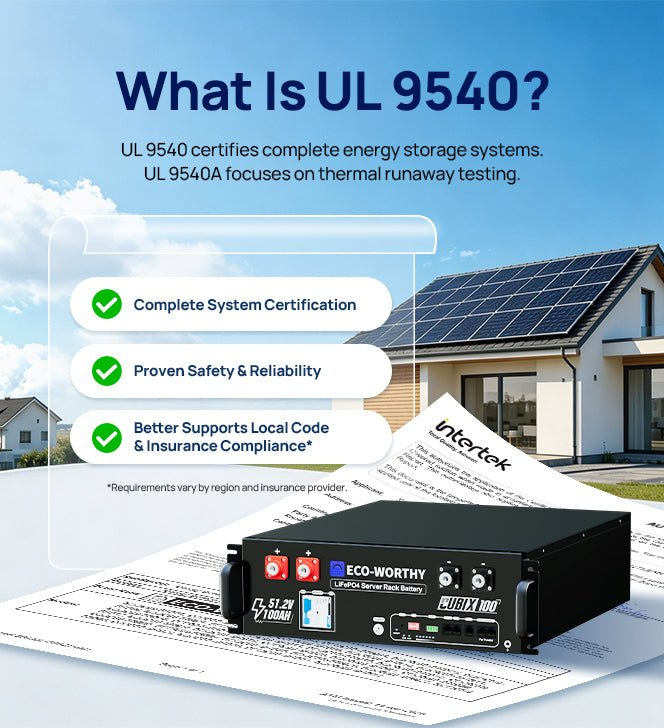

  • UL 9540-certified Eco-Worthy Solar Inverter Plus 48V battery system shown in front of a house with solar panels, with text explaining UL 9540 certification and three feature callouts.

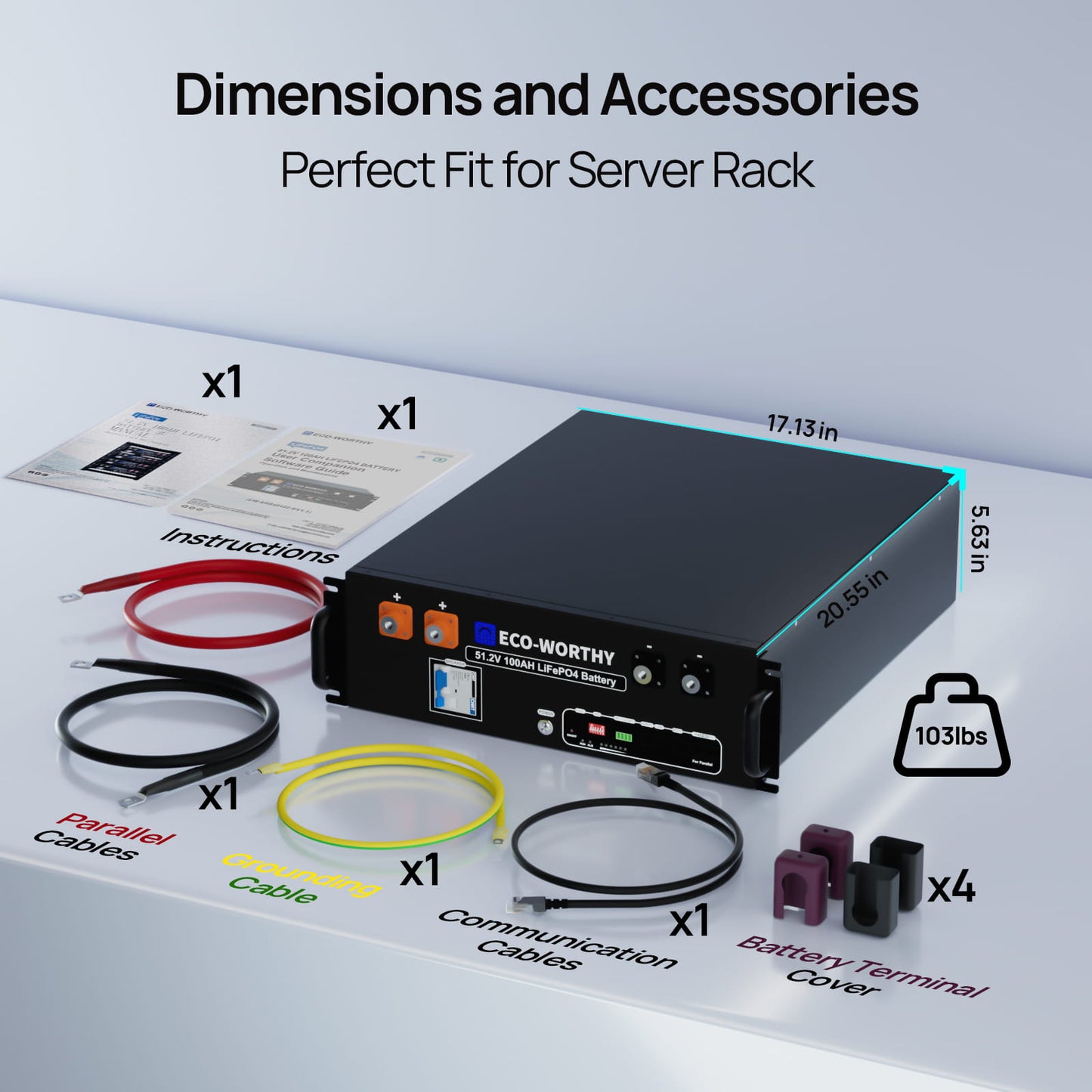

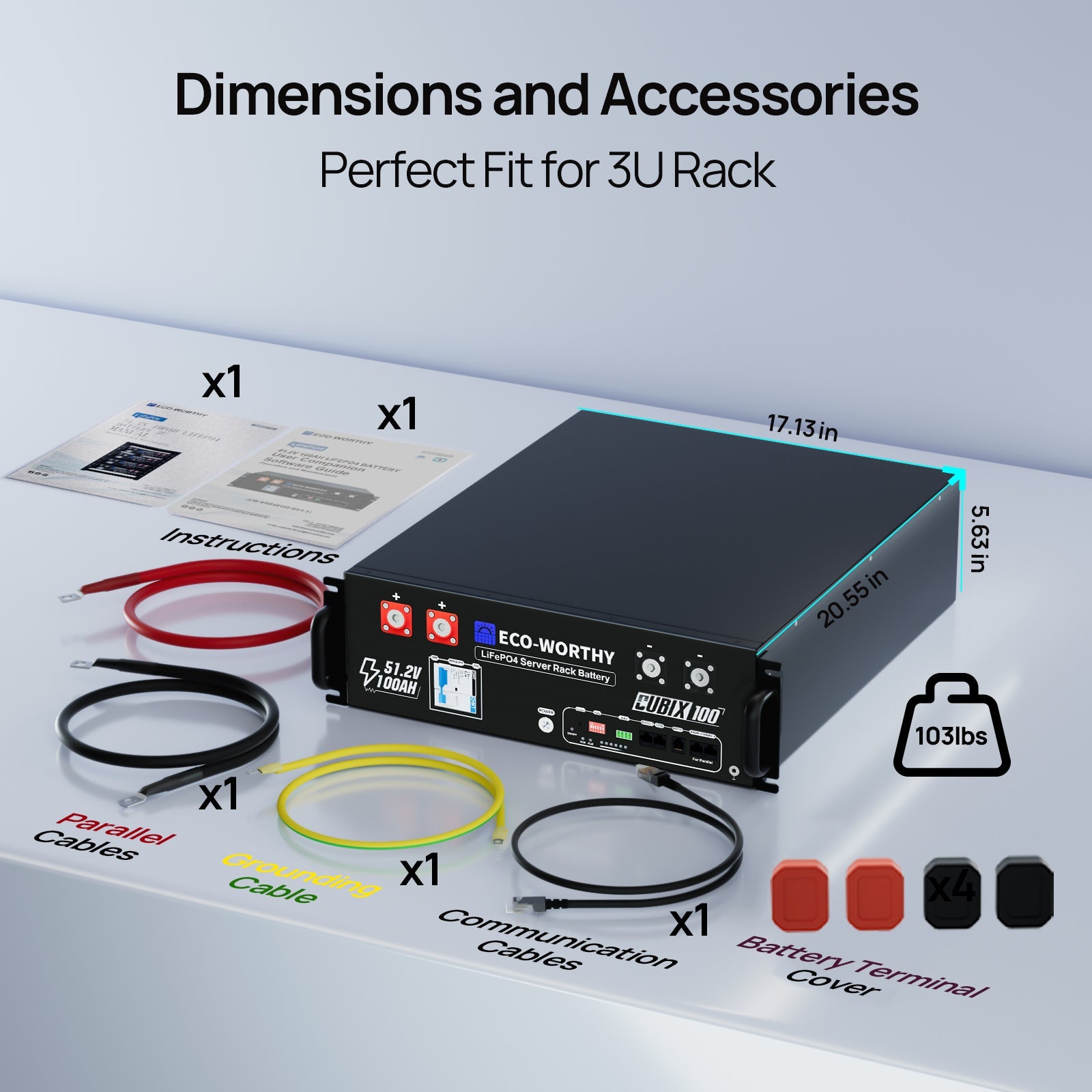

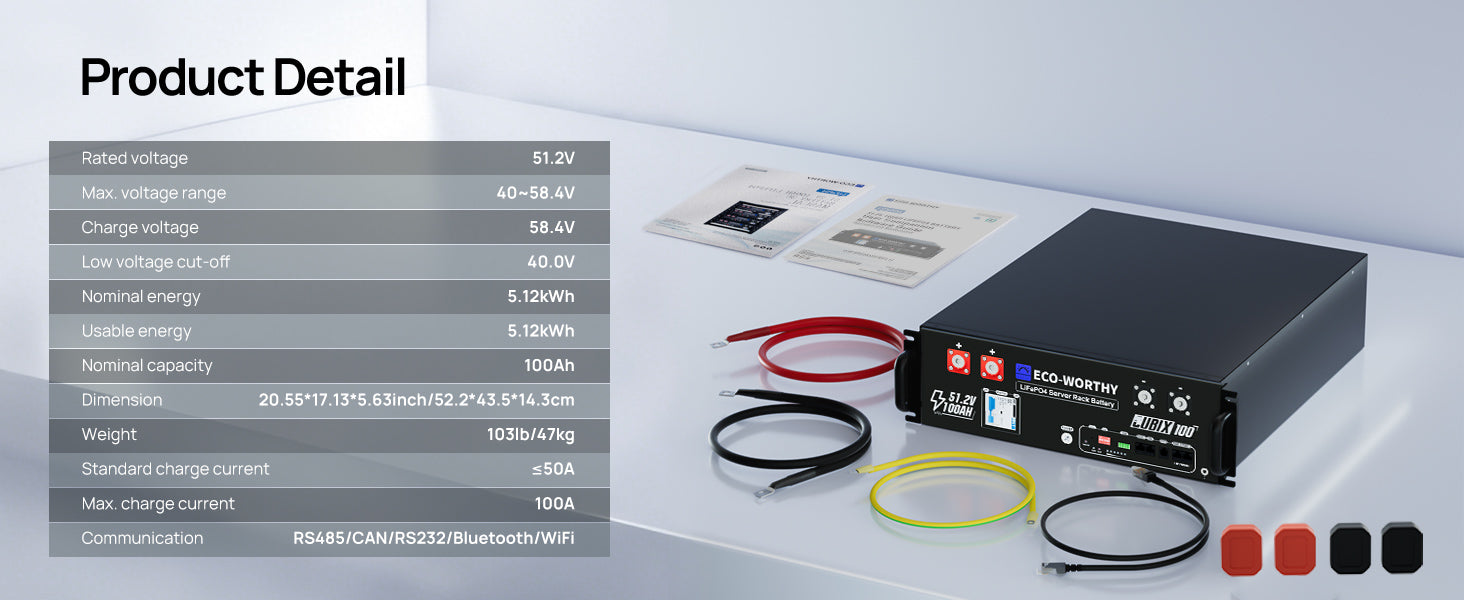

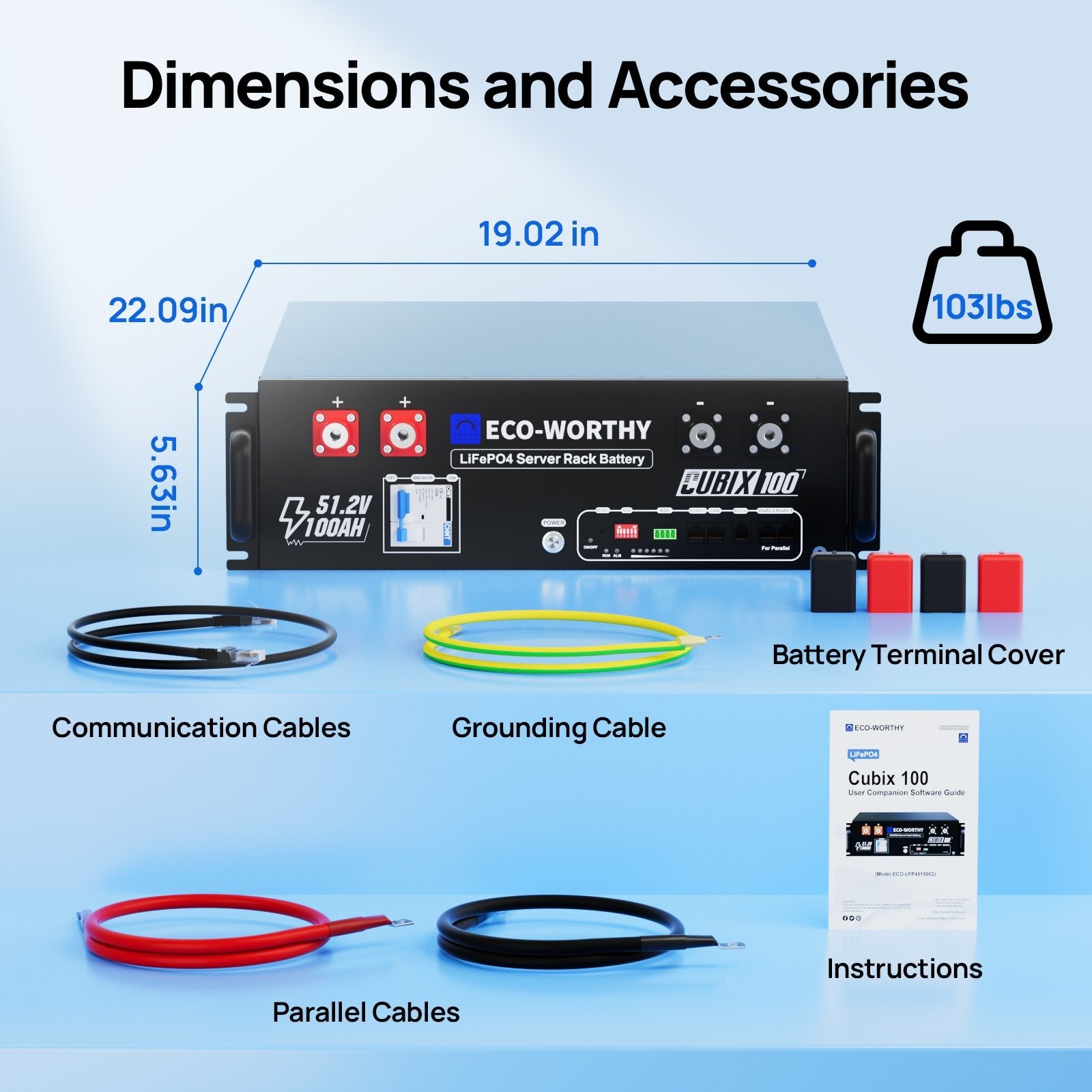

  • ECO-WORTHY server rack battery with dimensions, accessories, and packaging on a blue background

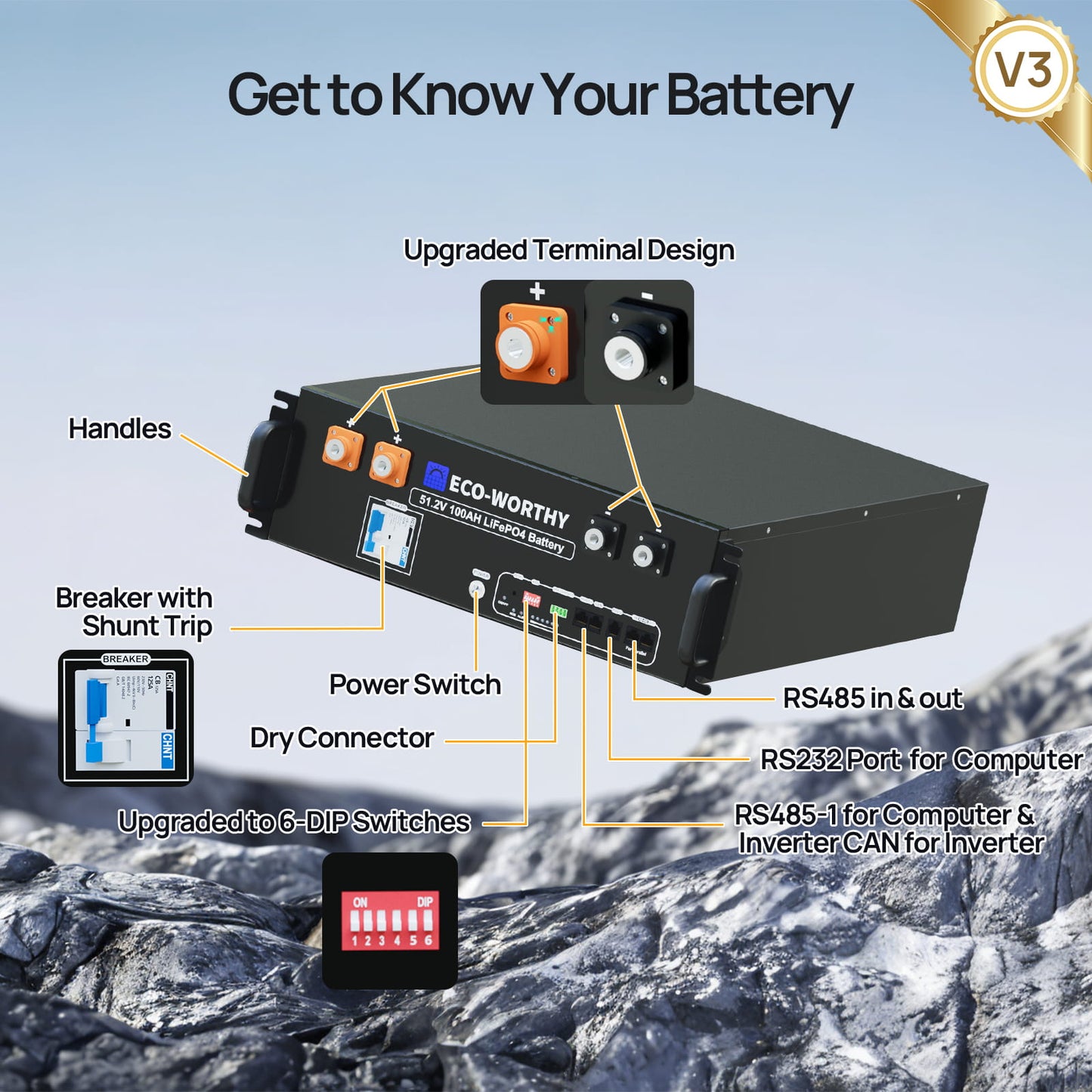

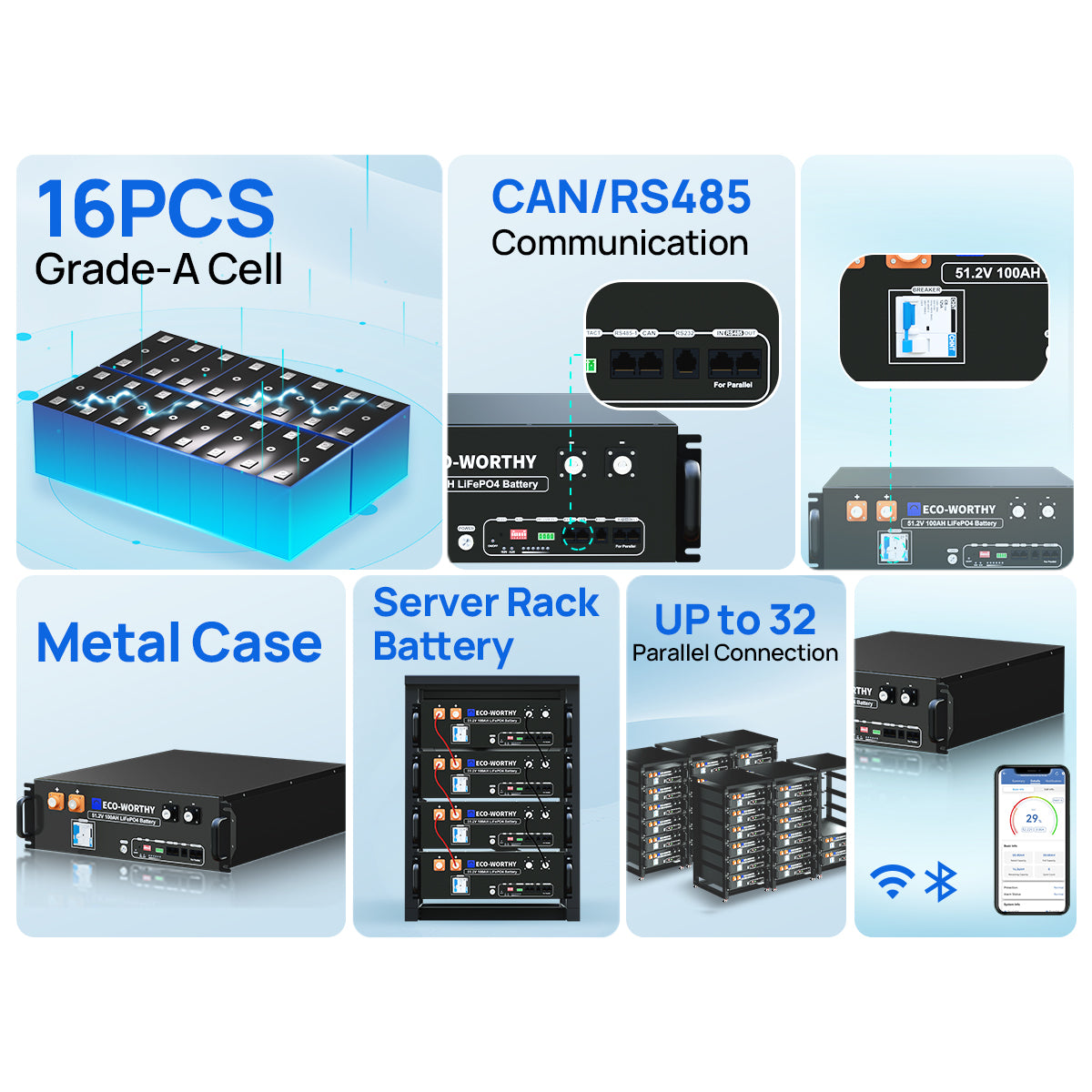

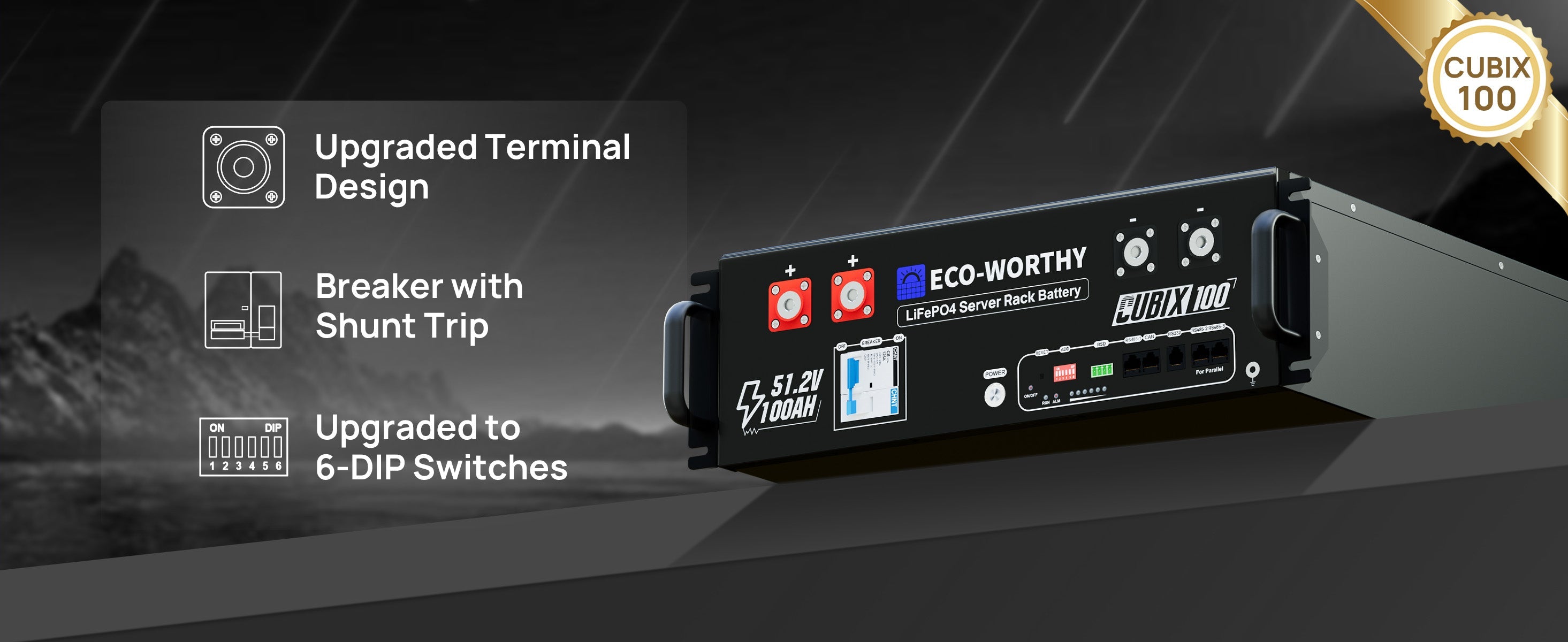

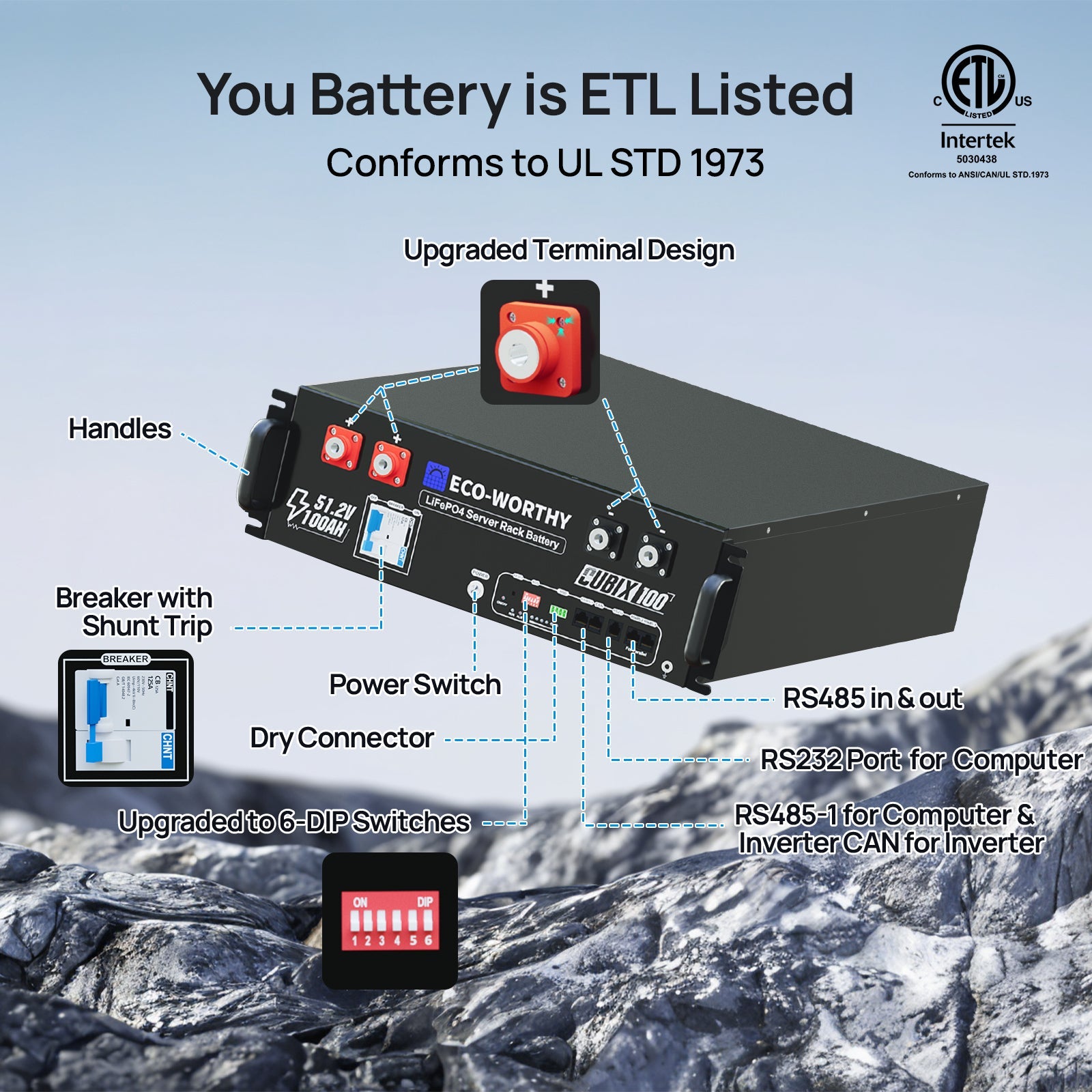

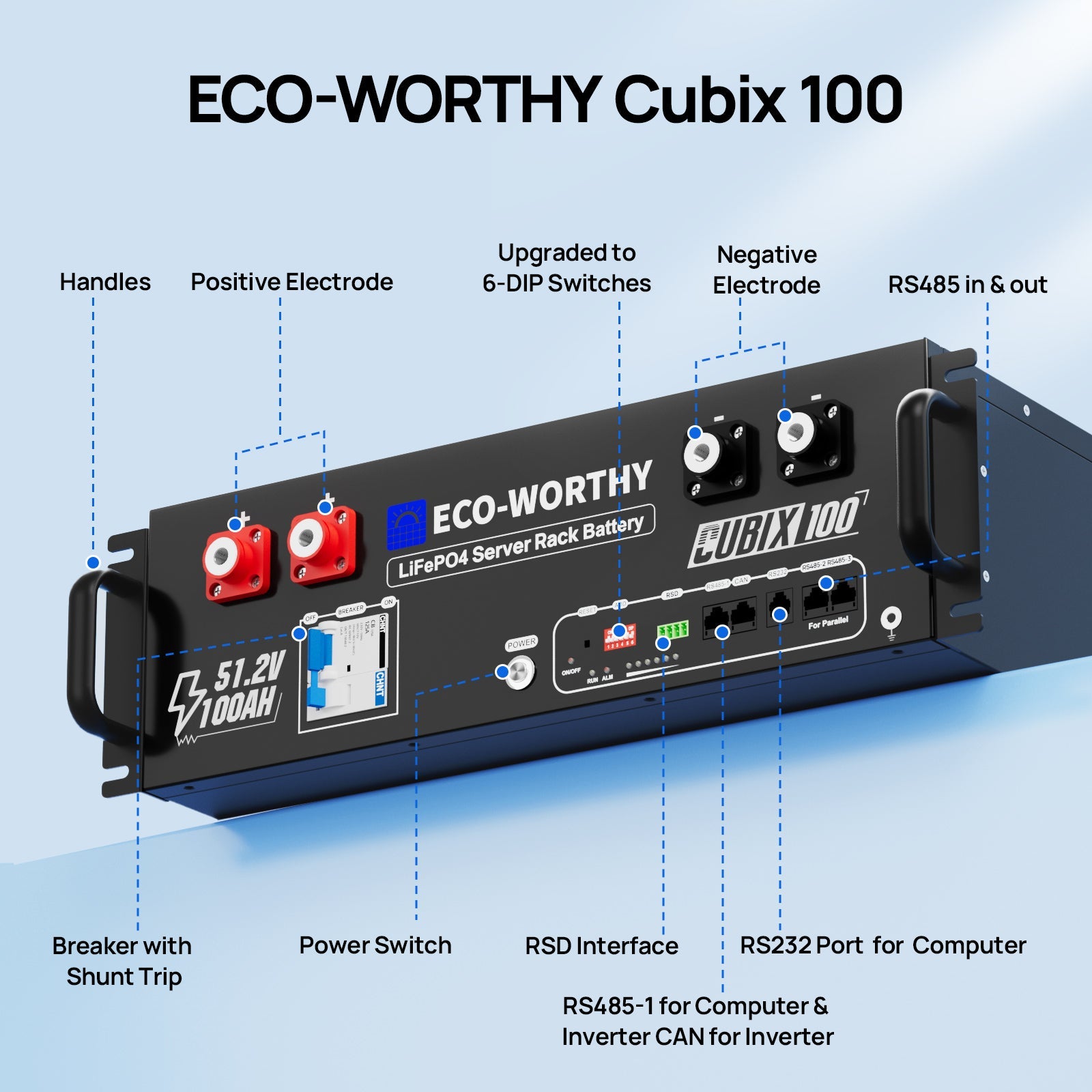

  • ECO-WORTHY Cubix 100 server rack battery with labeled features on a blue background

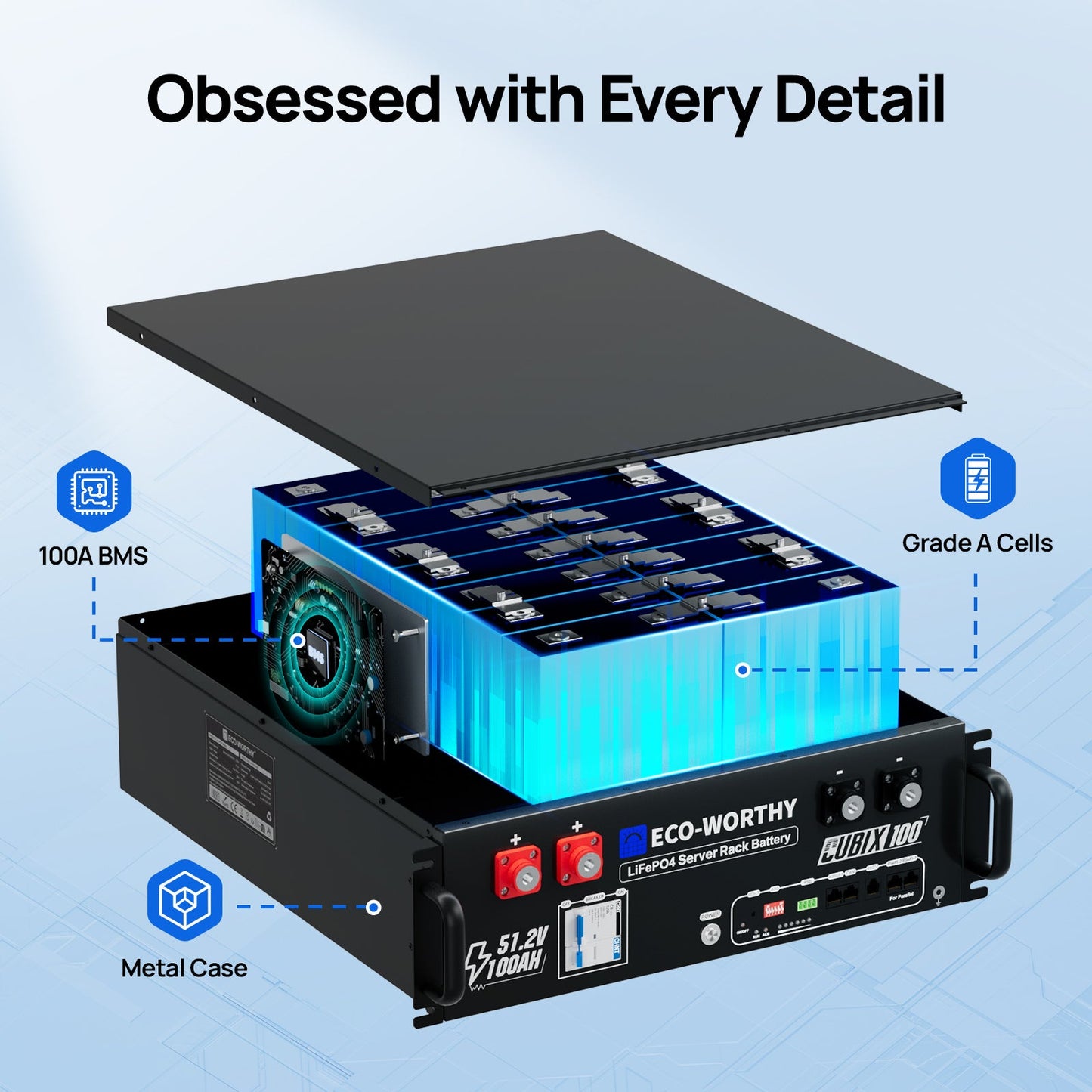

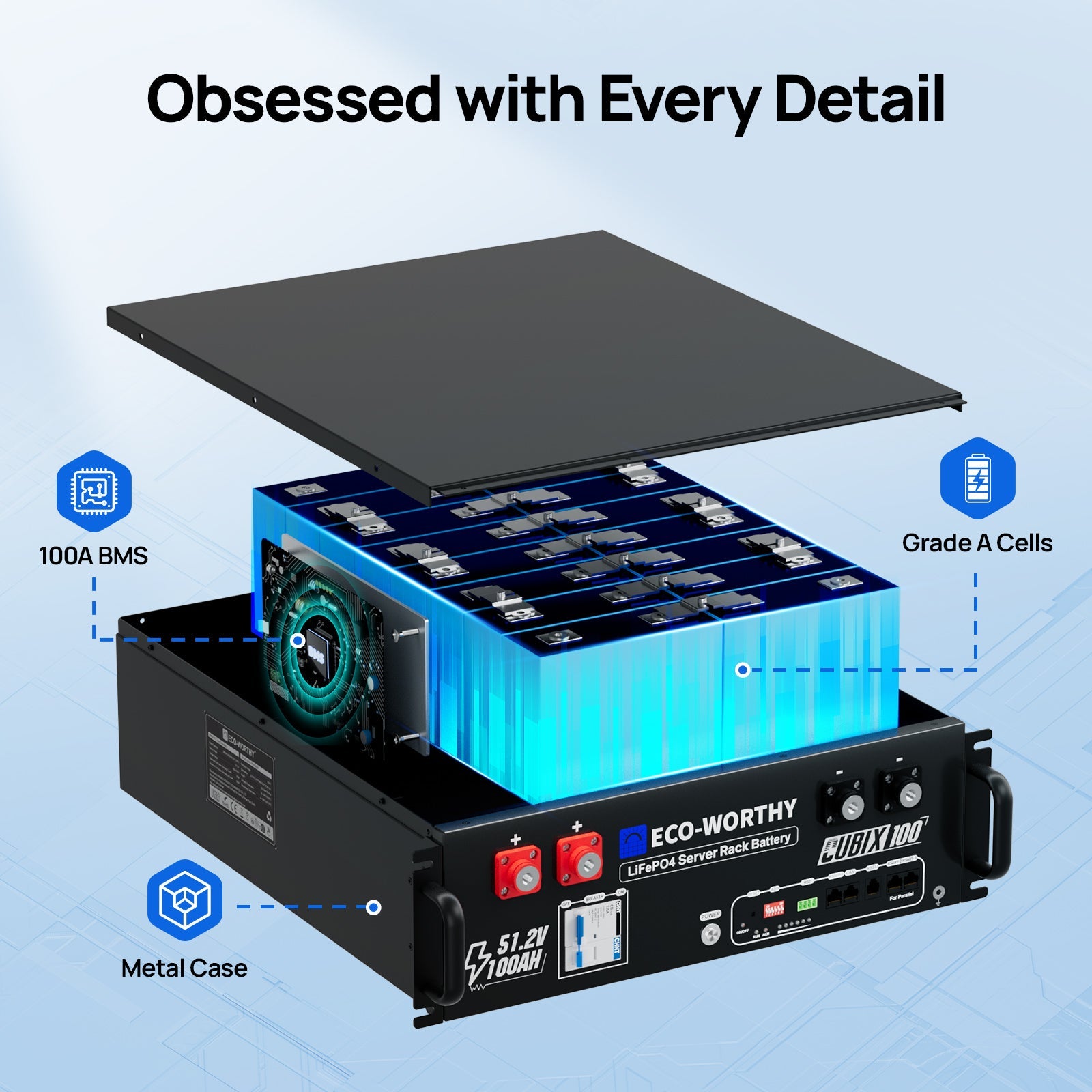

  • Battery pack with labeled features on a blue background

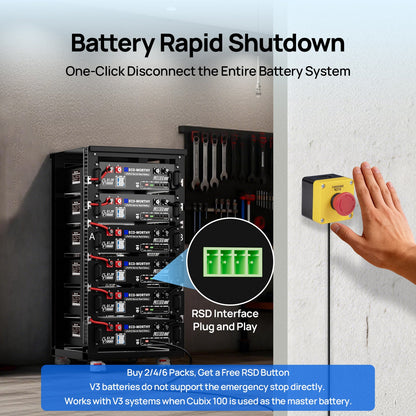

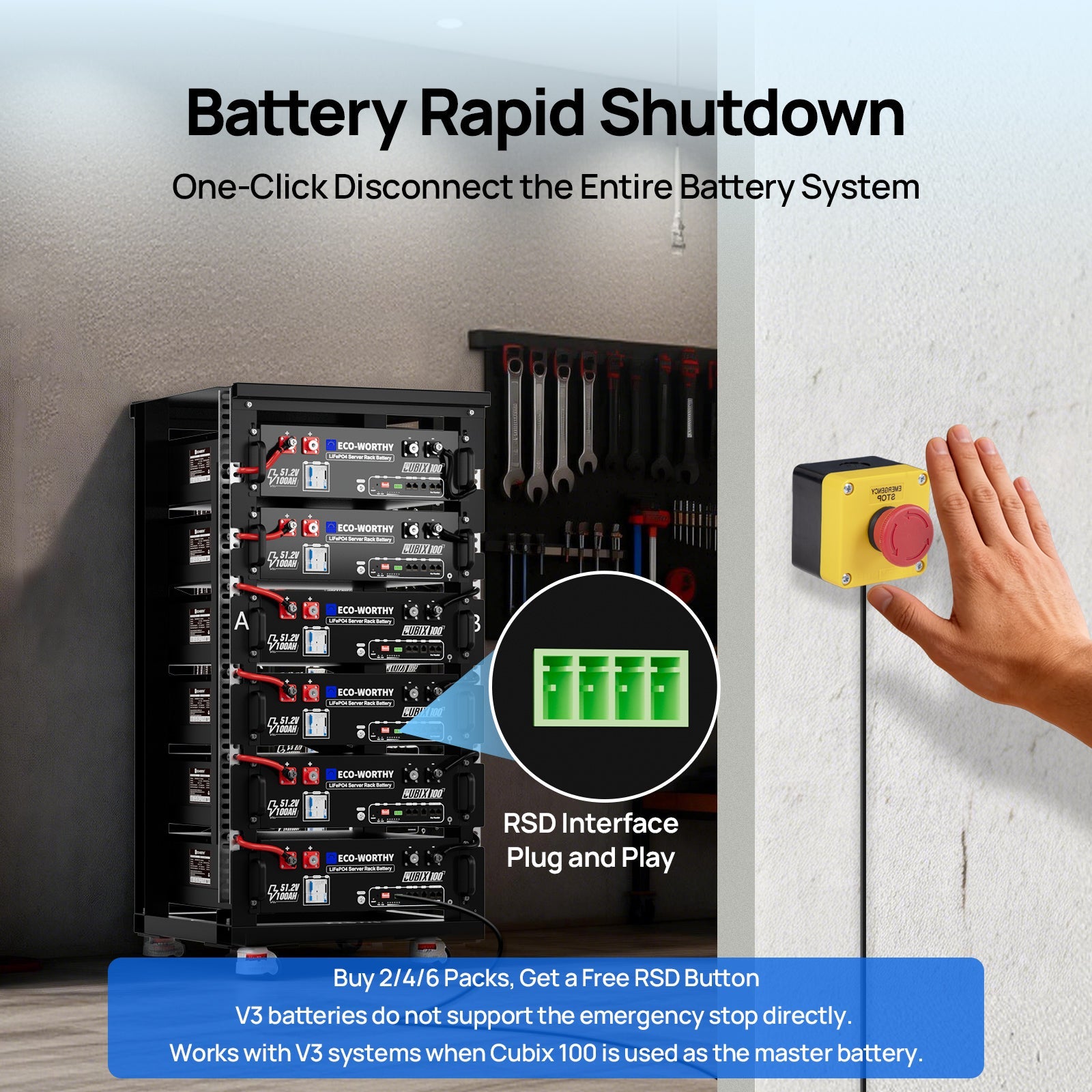

  • Battery system with a one-click shutdown button on a wall.
  • Solar off-grid inverter with compatibility logos on a blue background

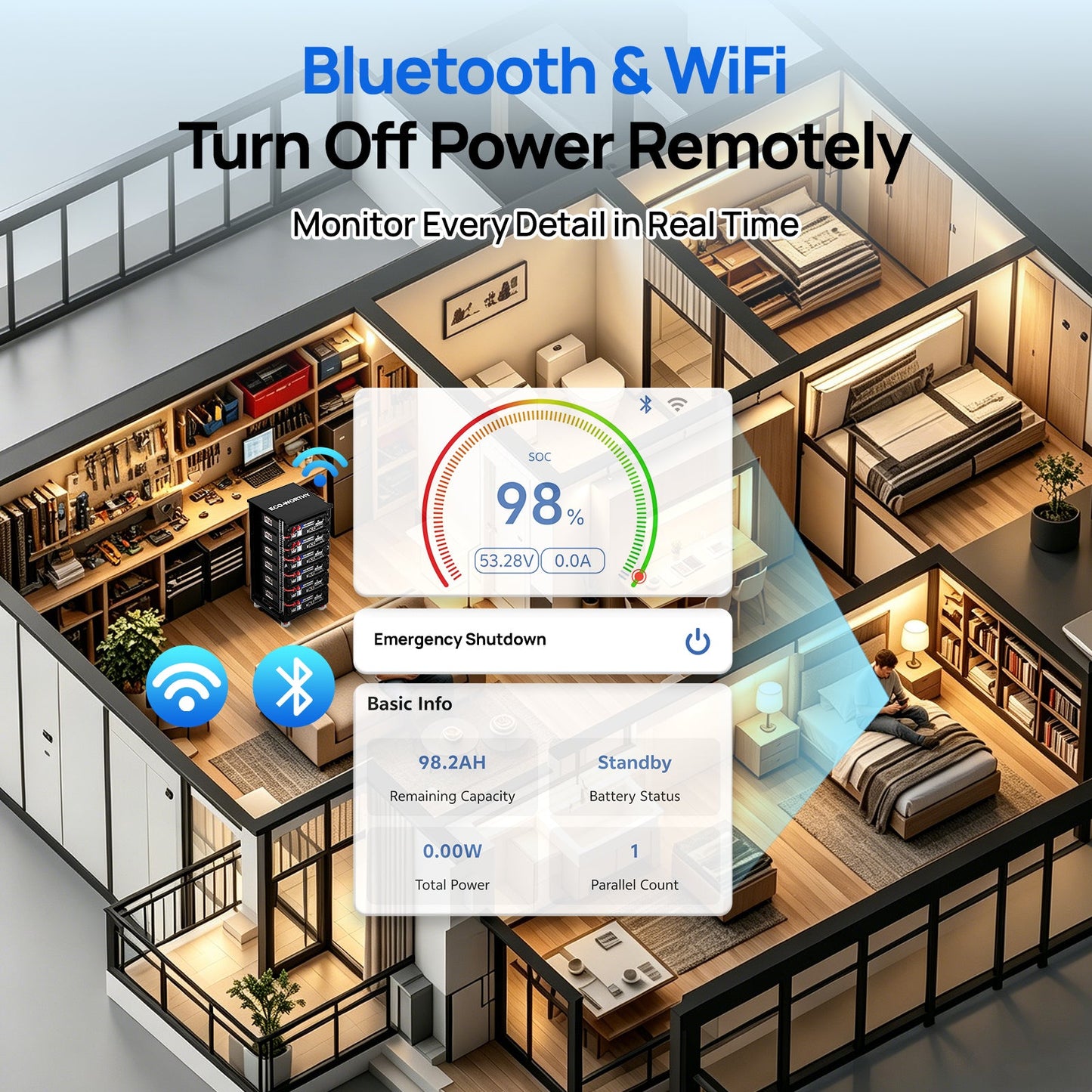

  • Smart home control interface with Bluetooth and WiFi icons over a modern house layout.
  • Eco-Worthy Cubix100 | 48V 100Ah LiFePO4 Server Rack Battery | UL9540 | UL1973 | UL9540A | CEC Listed - lithium battery
  • Stack of battery packs with capacity details and Intertek logo on a gray background
  • House with solar panels on roof, labeled 'Cubix 100' for home energy storage.
  • Multiple cardboard boxes on a sidewalk with text about battery packaging and tracking information.
  • Eco-Worthy Cubix100 | 48V 100Ah LiFePO4 Server Rack Battery | UL9540 | UL1973 | UL9540A | CEC Listed - lithium battery
Pictures
Videos
Monthly Sale

Eco-Worthy Cubix100 | 48V 100Ah LiFePO4 Server Rack Battery | UL9540 | UL1973 | UL9540A | CEC Listed

Eco-Worthy Cubix100 | 48V 100Ah LiFePO4 Server Rack Battery | UL9540 | UL1973 | UL9540A | CEC Listed

C$1,189.99
C$1,189.99 C$2,199.99
Sale Sold out

SKU:

CA-L13SR48100BV3.0-1

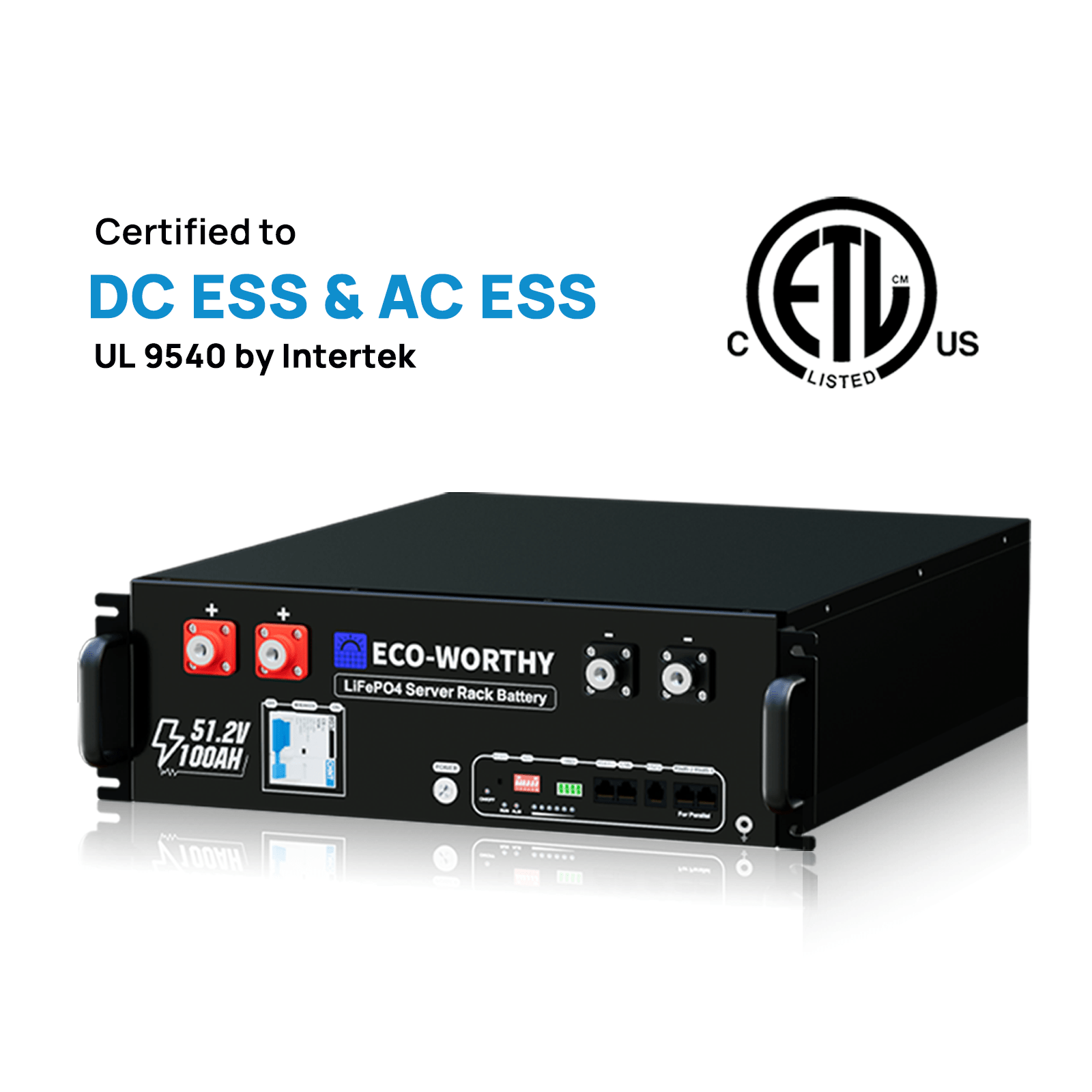

[UL9540 Safety Guarantee] This battery has successfully undergone system-level UL 9540 testing conducted by Intertek, covering both DC and AC systems.(For details, please contact Customer Support)

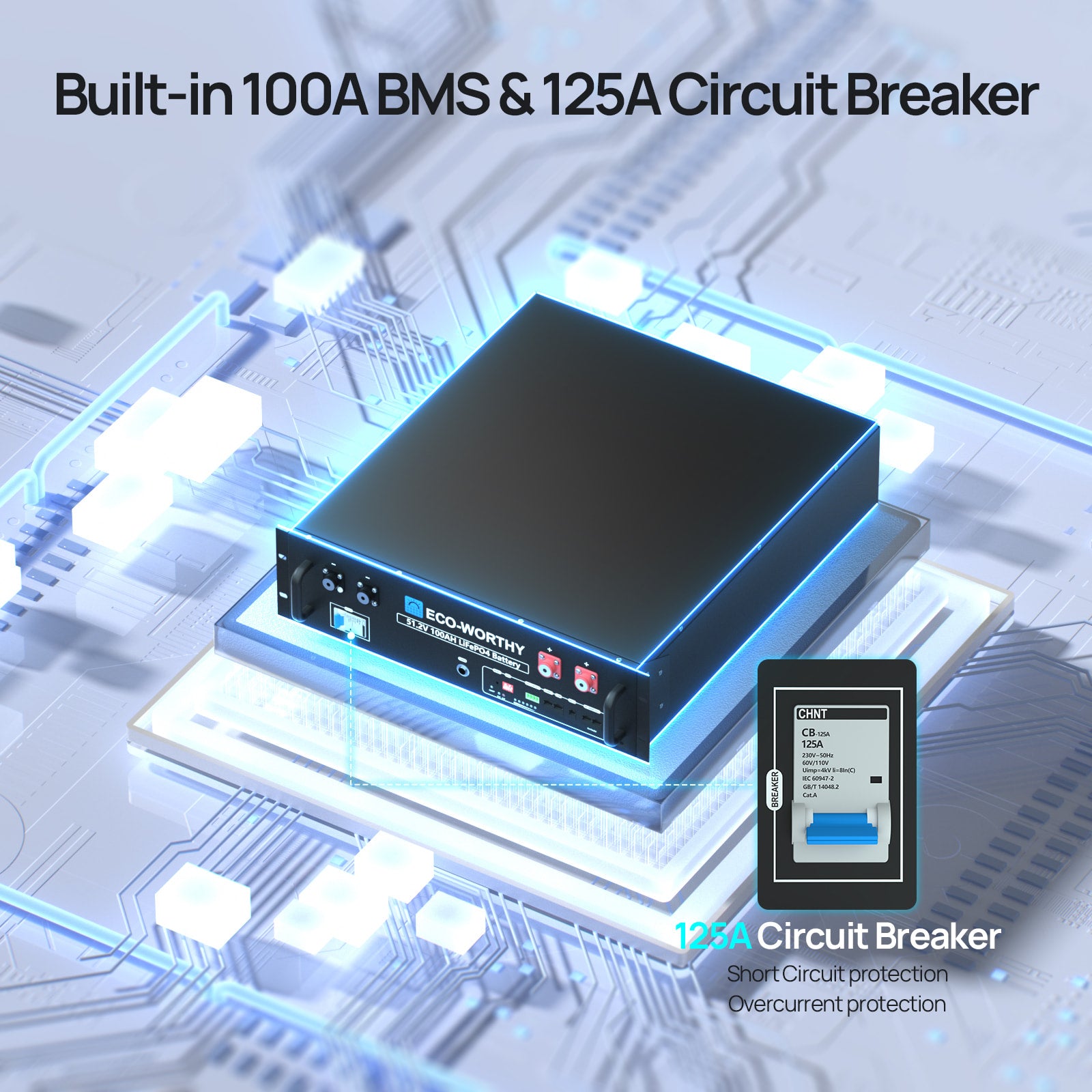

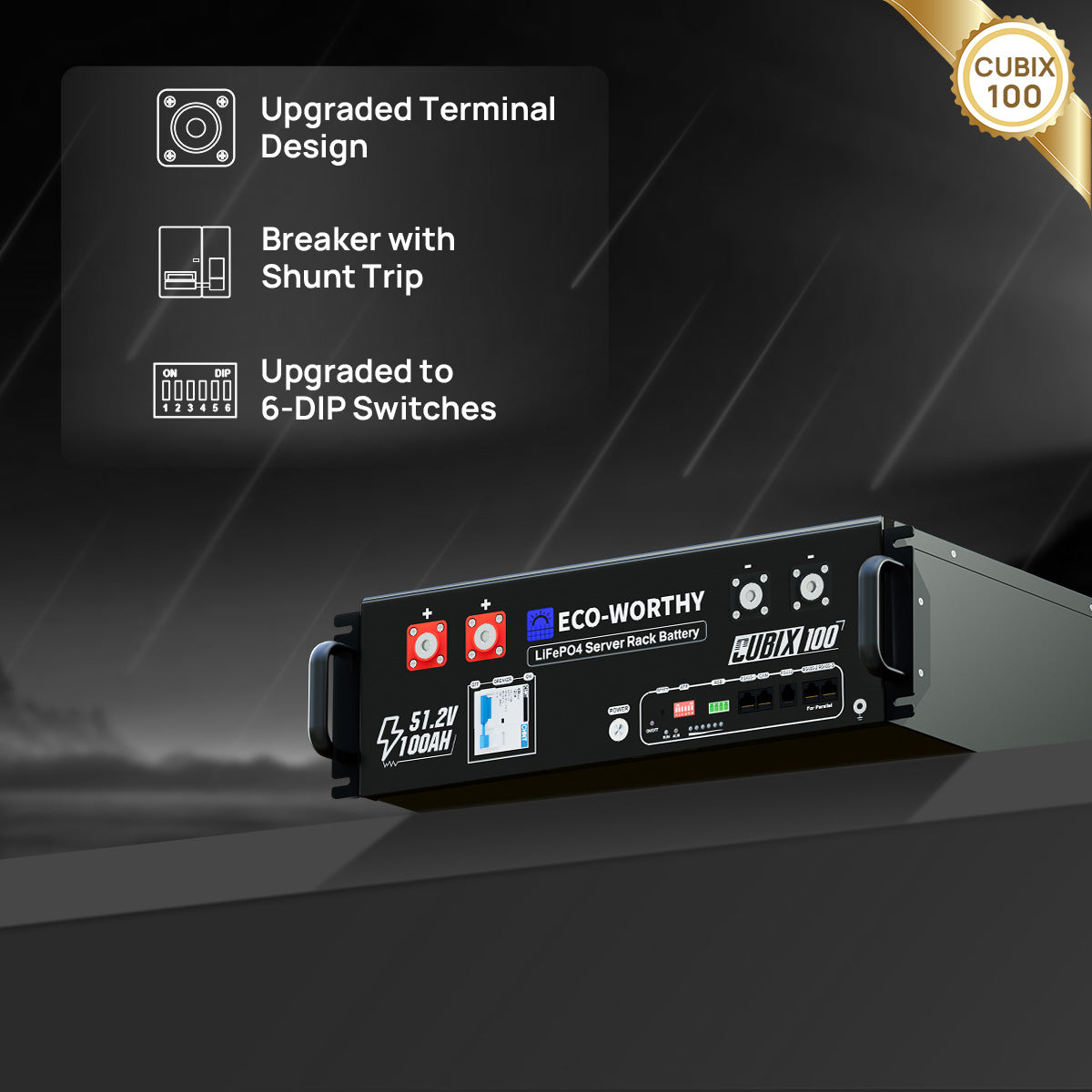

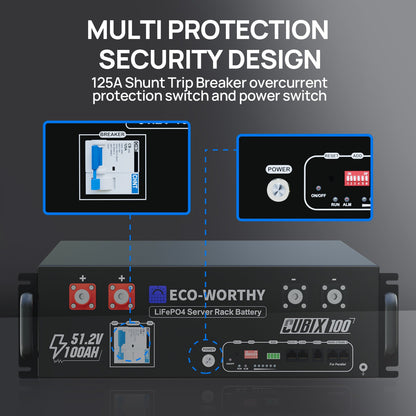

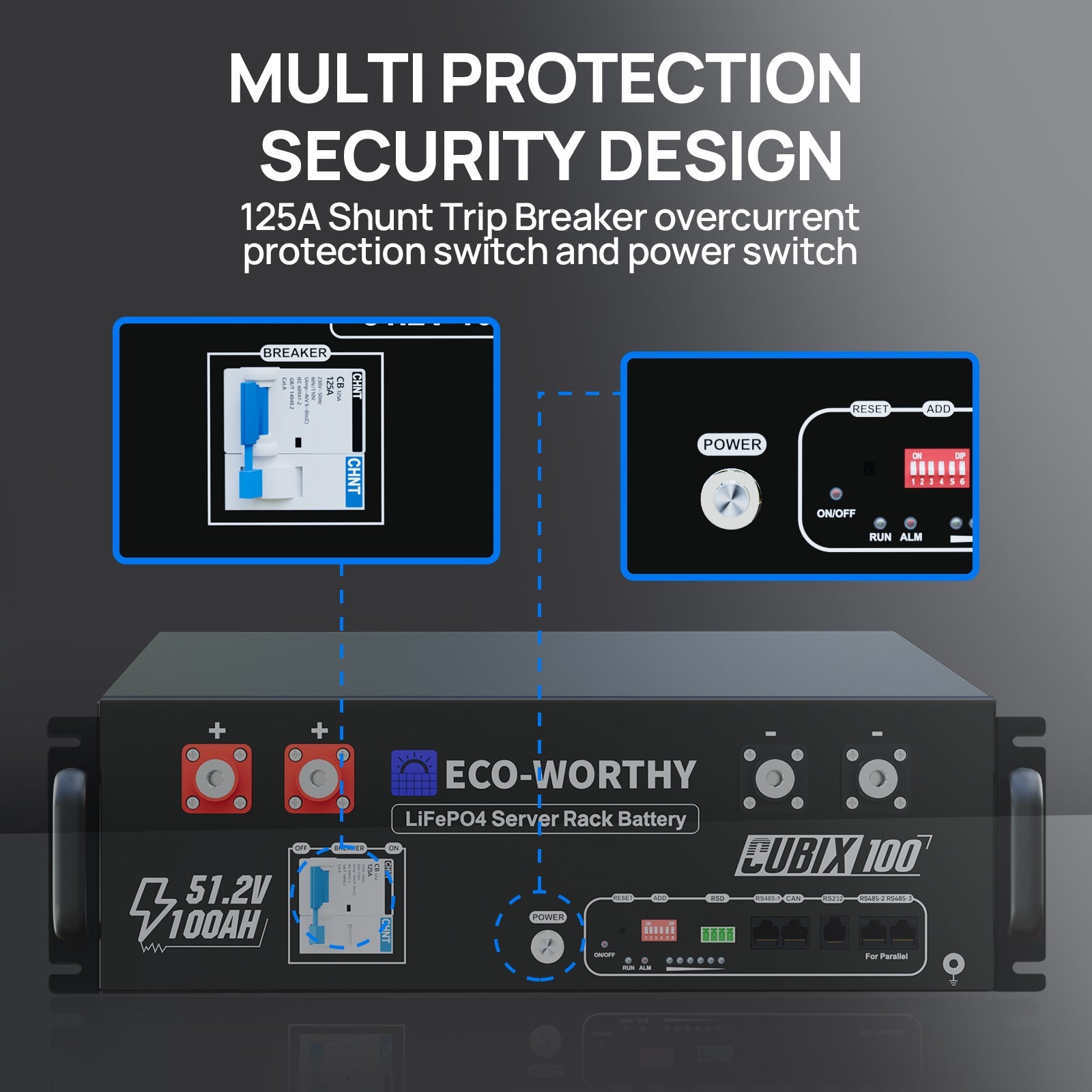

[Multiple Protection Functions] Built-in 100A BMS, 125A circuit breaker with shunt trip, and manual switch provide full protection against overvoltage, short circuits, overheating, and more. Low-temperature cutoff ensures safe charging below 0°C.

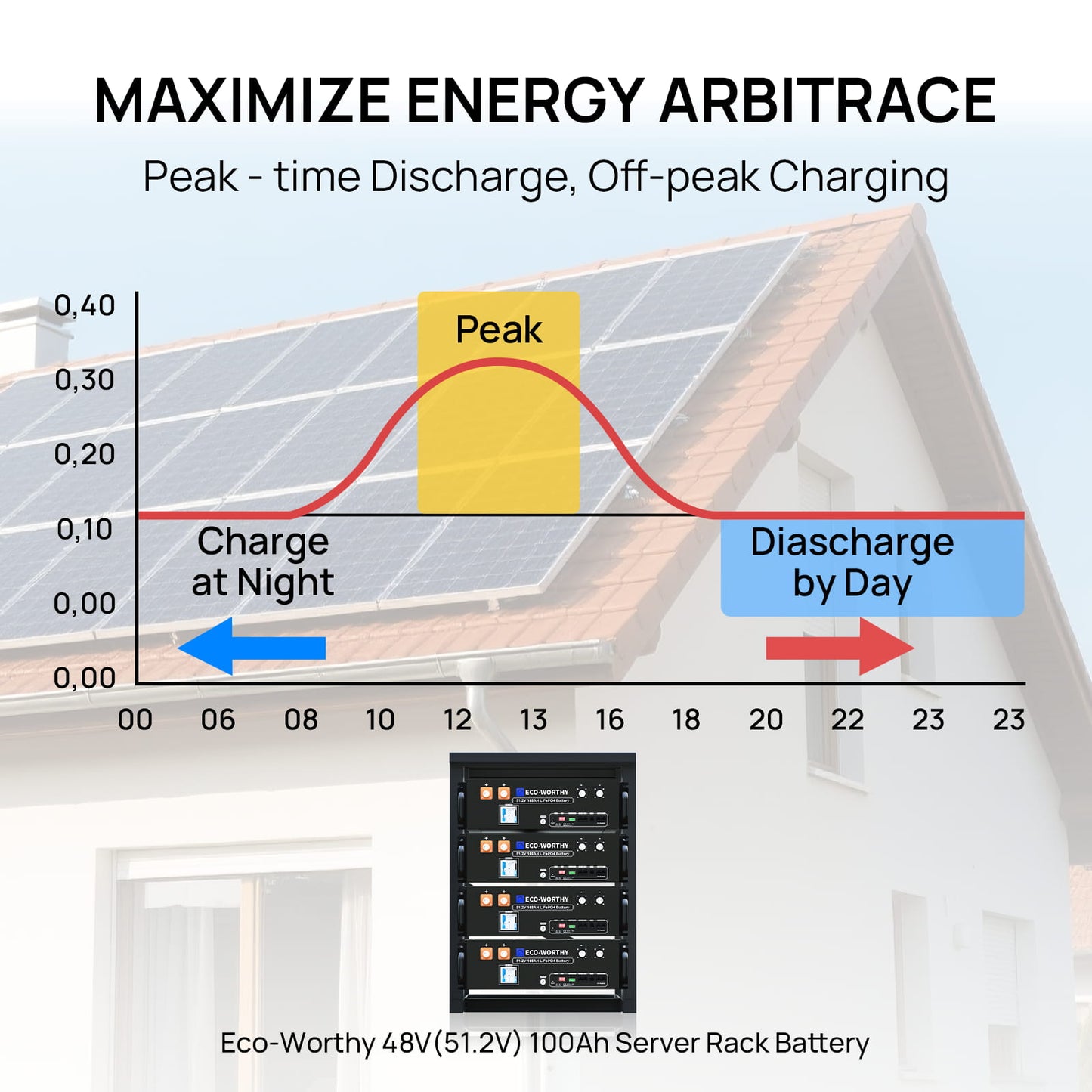

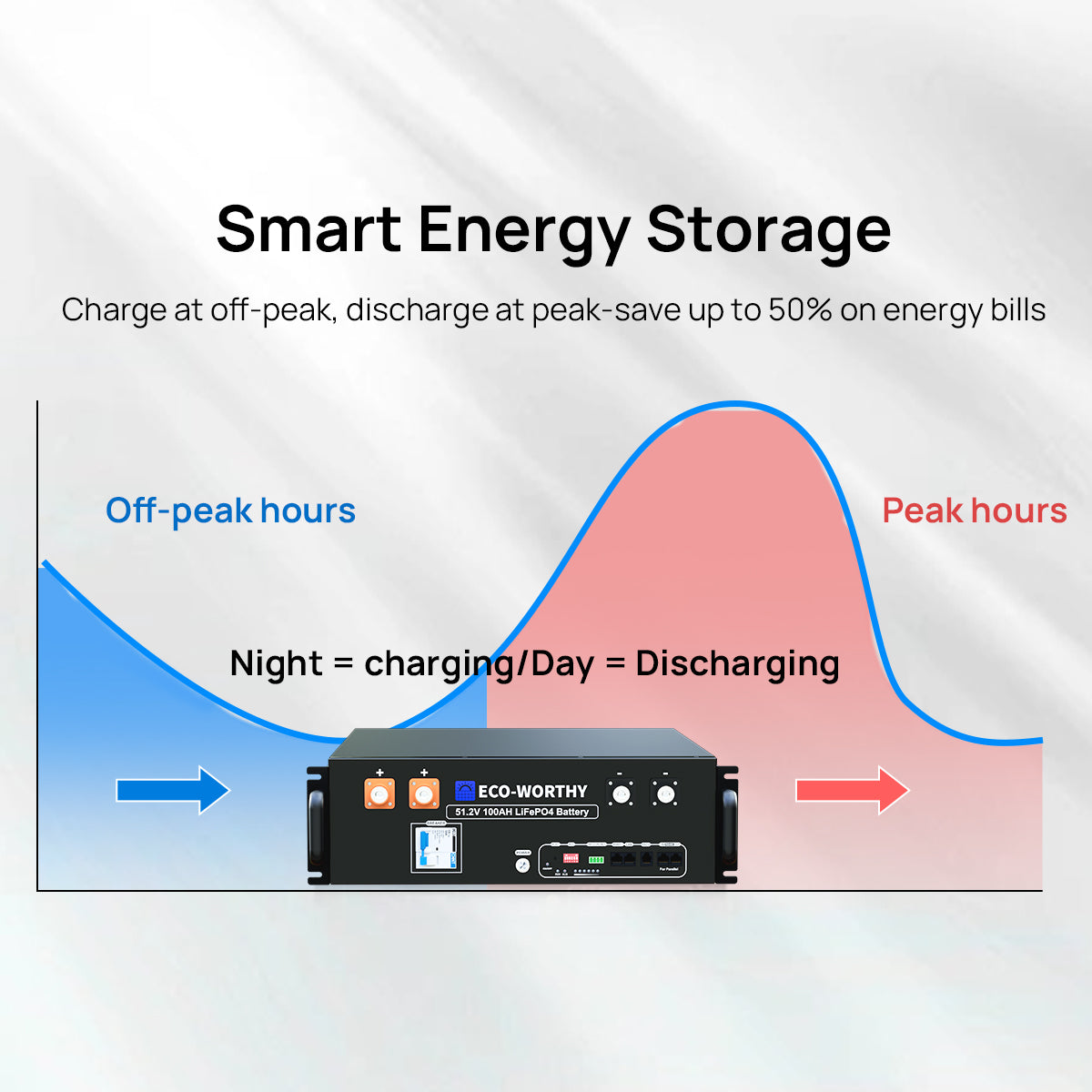

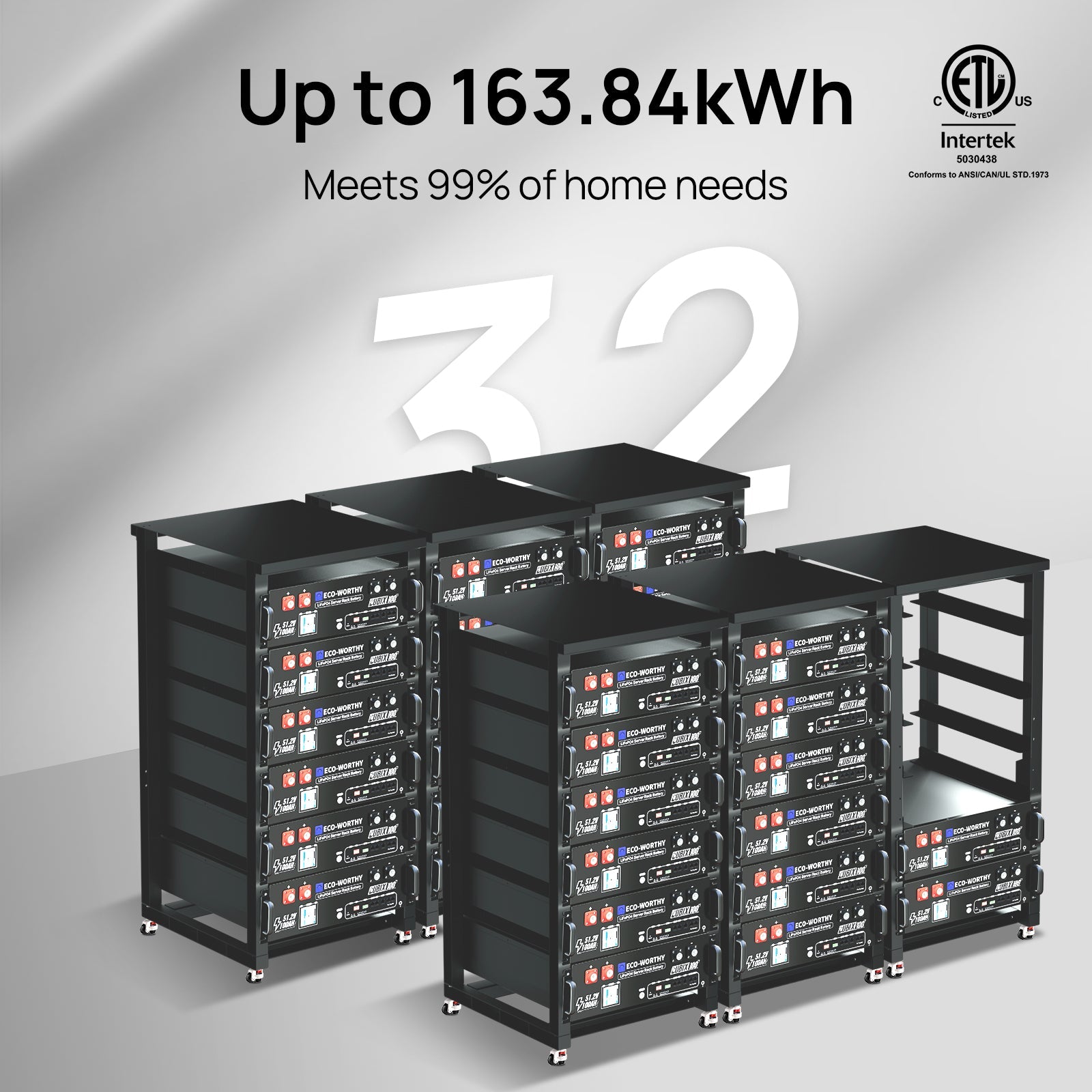

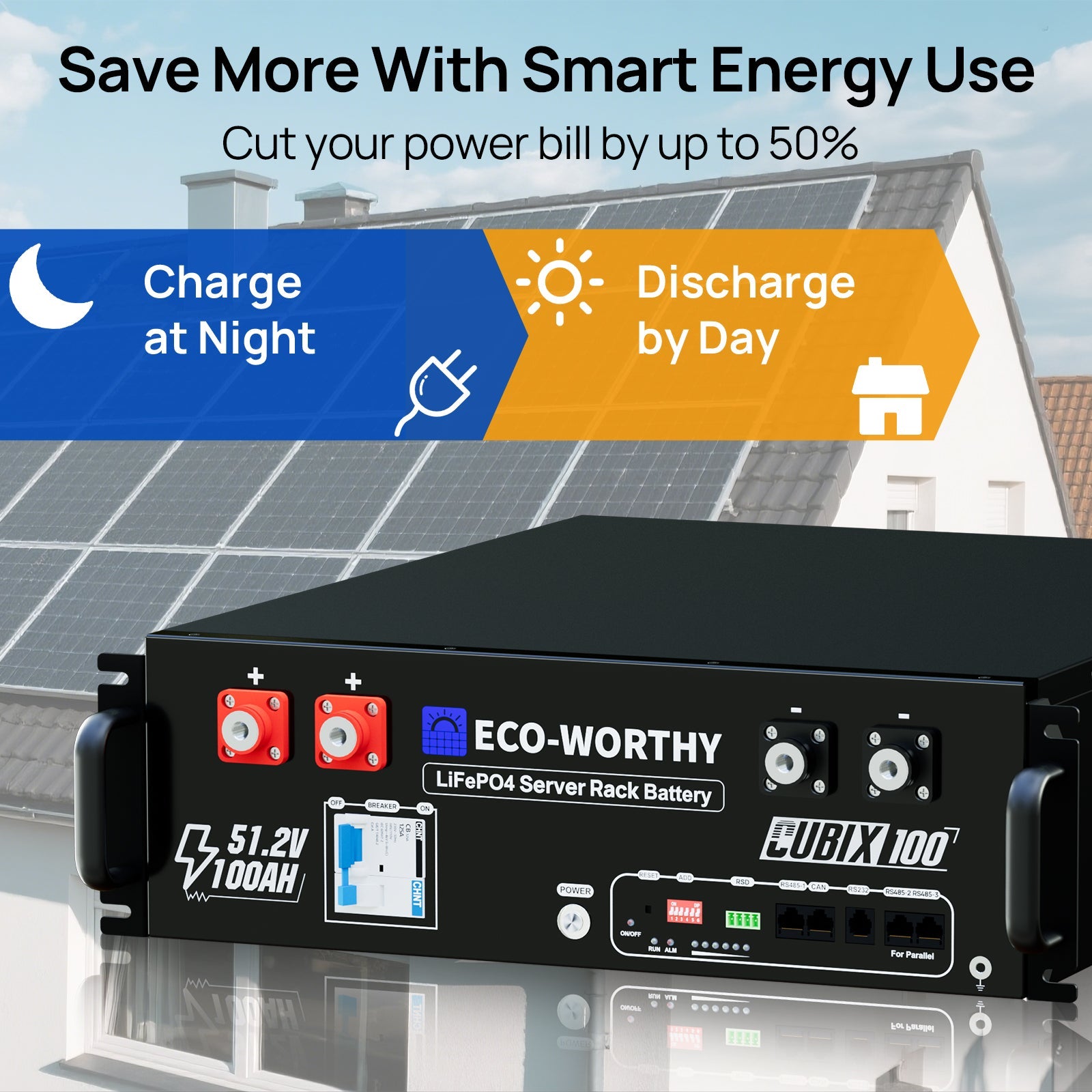

[Modular & Expandable up to 163.84kWh] Modular design supports up to 32 units in parallel, ideal for solar storage, off-grid, and backup power. Enables peak shaving and off-peak charging to reduce electricity costs and grid dependence.

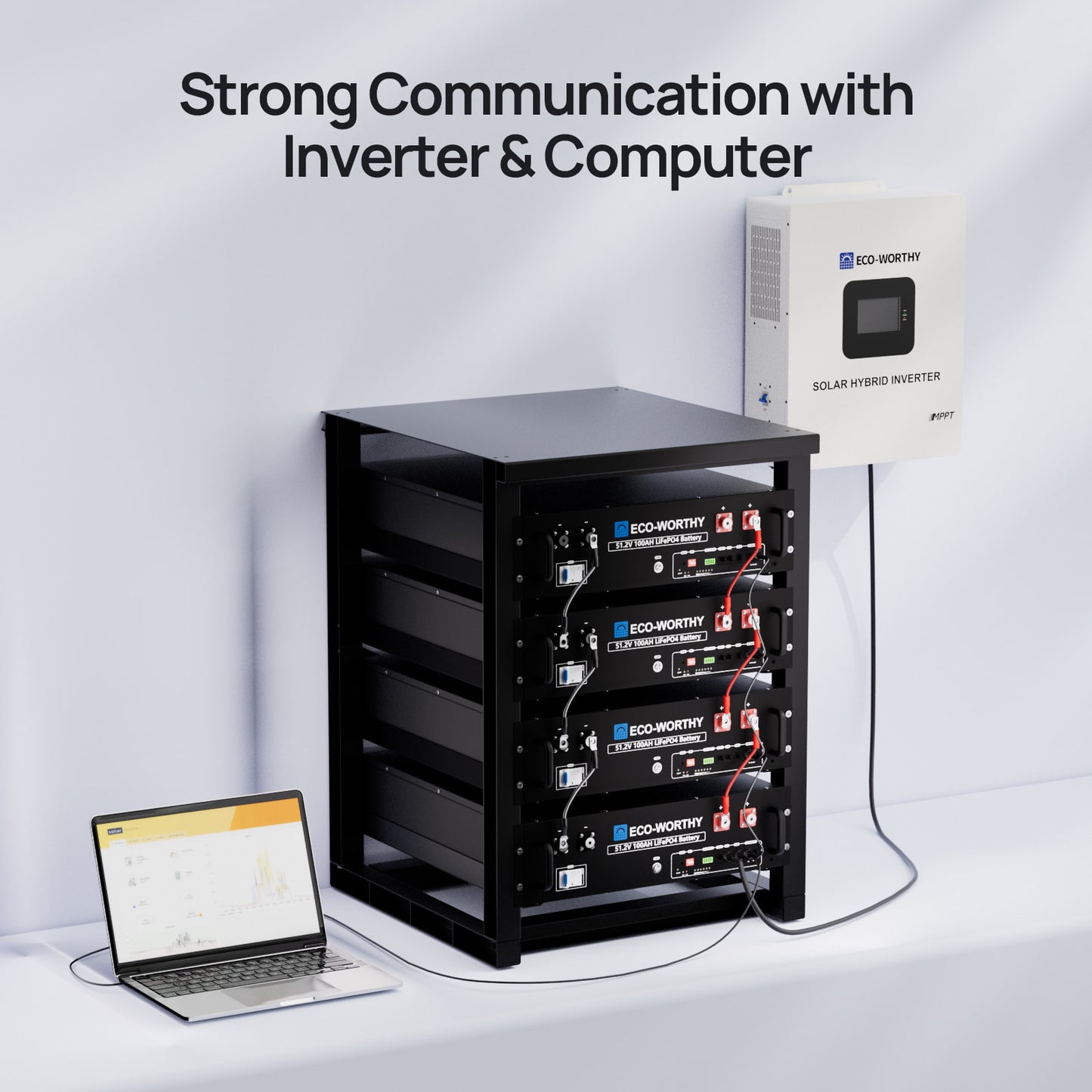

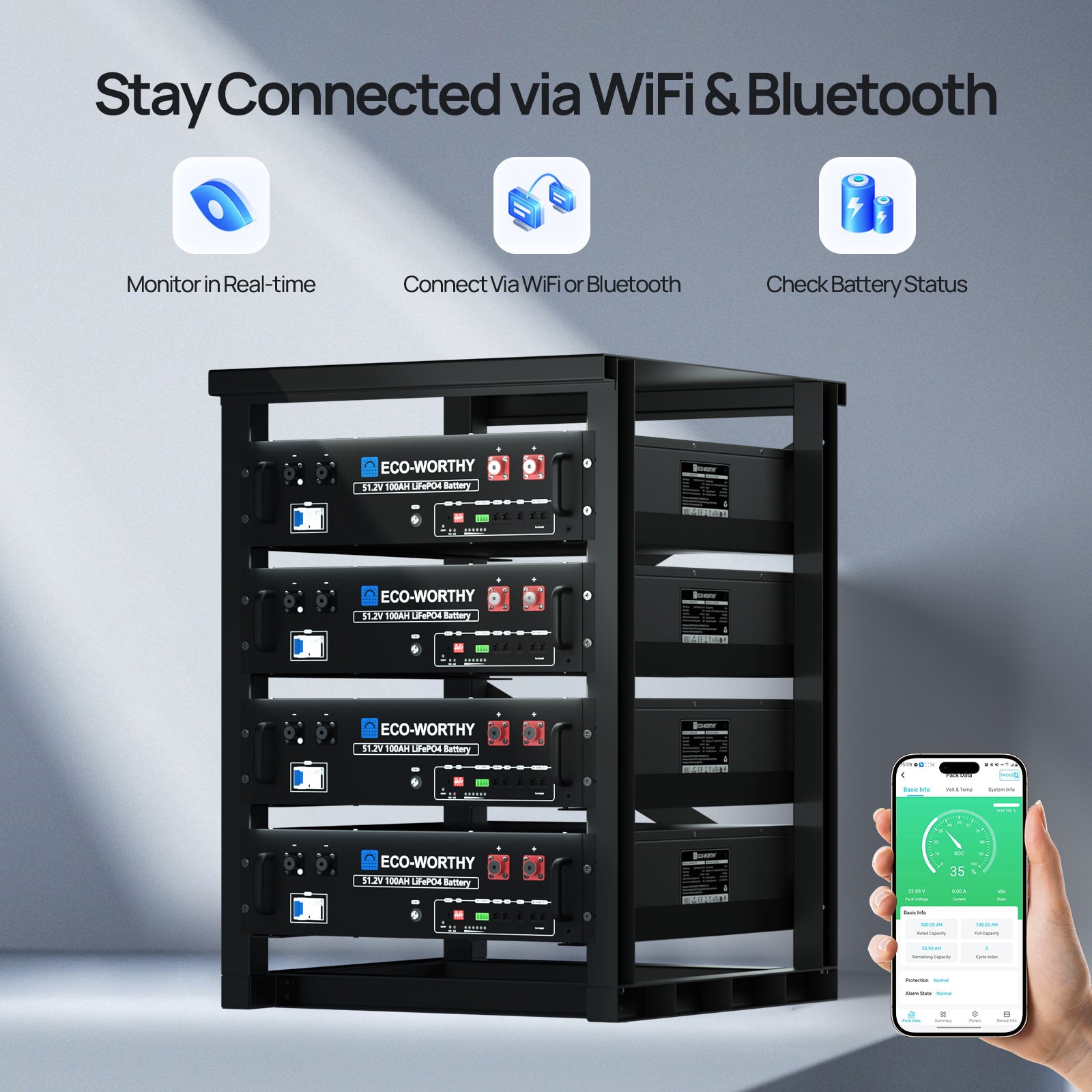

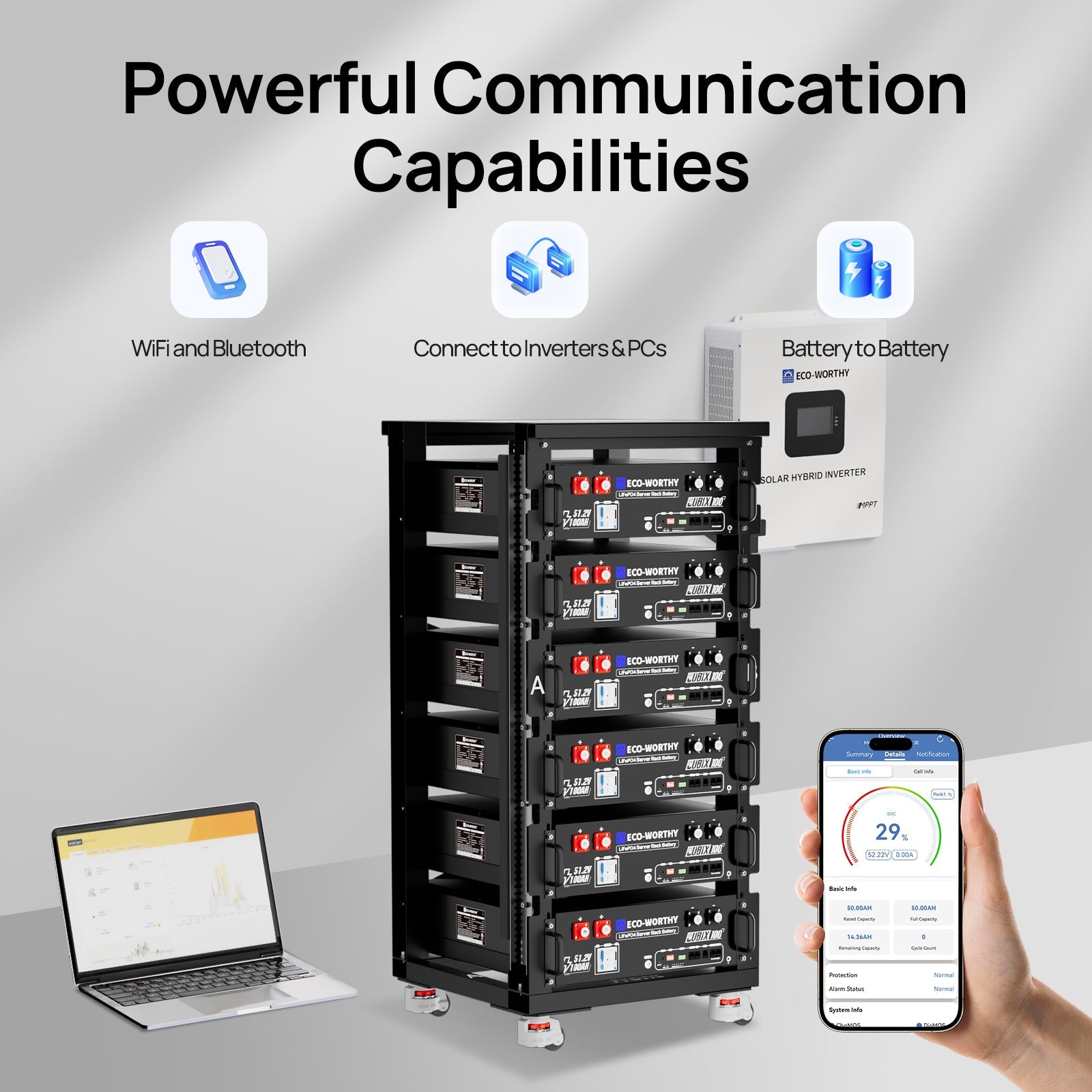

[Real-Time Monitoring & Broad Compatibility] Track real-time battery data via Bluetooth and WiFi app. Equipped with RS485, RS232, and CAN, compatible with leading inverters like EG4, Victron, Growatt, and Sol-Ark for seamless integration.
[Easy Installation, Long Lifespan & Proven Trust] Compact rack-mounted design with plug-and-play setup allows one-person installation. Grade A cells deliver 6000+ cycles at 80% DOD and 10+ years lifespan. Backed by a 10-year warranty, with 89.5% of users willing to repurchase or recommend.

Read more

⚒️Labor Day Sale: Save C$30 on C$1000+| Save C$50 on C$5000+. Don't miss out!

Style

Total price

C$1,189.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$297.49 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$1,189.99 C$2,199.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
The Best Home Energy Storage Solution

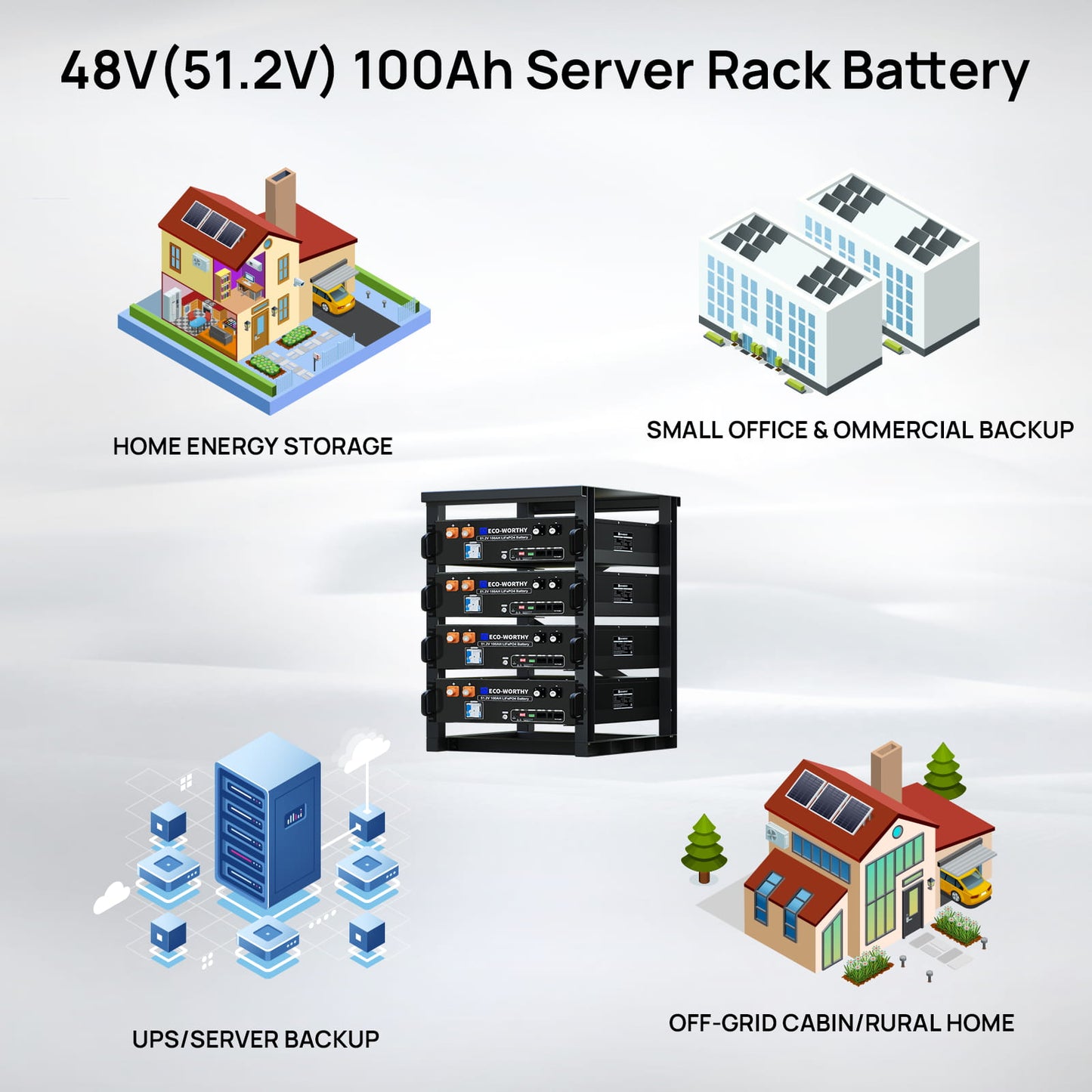

The Eco-Worthy Cubix100 LiFePO4 Server Rack Battery (5.12kWh) features Grade-A cells with a 10-year warranty and up to 6000 cycles at 80% Depth of Discharge. Ideal for off-grid solar, home energy storage and backup needs. Supports real-time monitoring via Bluetooth, WiFi, and CAN/RS485. Compatible with hybrid inverters like Victron, Growatt, etc. Equipped with a full metal enclosure, 100A BMS, and 125A circuit breaker for multi-layer safety protection. Supports up to 32 units (168.84kWh) in parallel for scalable capacity. Ships quickly from a Canadian warehouse with professional 24/5 customer service.

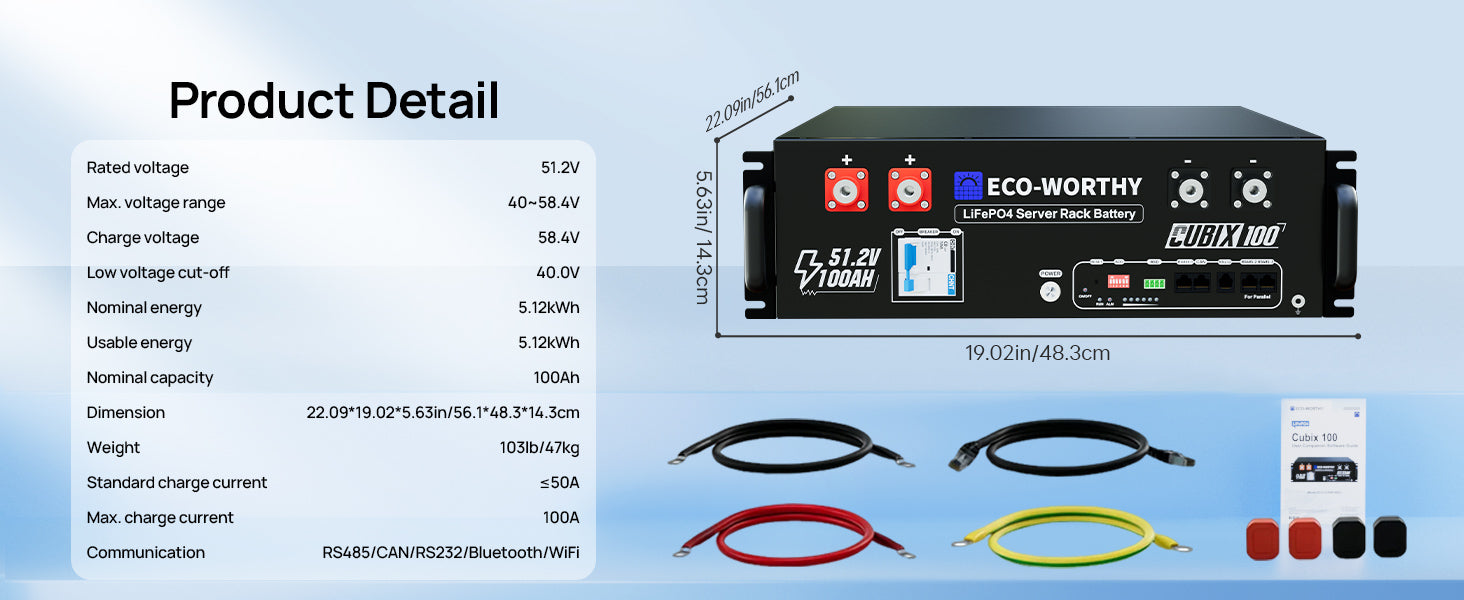

Technical Specifications

Cubix100 | 48V 100Ah Server Rack Battery

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Maximum Charge Voltage

58.4V

Cycle Life

≥6000 cycles @ 25℃, 0.5C charge / 0.5C discharge, ≥80% SOH

Battery Balancing Methods

Passive Balancing

Pre-Charge Resistor

Yes

Communication Port

CAN/RS485/RS232

Max. Parallel Number

32pcs

Bluetooth & Wi-Fi Signal Distance

≥49 feet/15m

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

47kg/103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10-Year Warranty

A promotional graphic for an ECO-WORTHY Cubix 100 48V 100Ah Server Rack Battery.A promotional graphic for an ECO-WORTHY Cubix 100 48V 100Ah Server Rack Battery.
Promotional infographic for the ECO-WORTHY Cubix 100 48V 100Ah Server Rack Battery, showing a 19-year brand history timeline with a blue line graph, customer and country statistics, and the battery unit on a light blue background.Promotional infographic for the ECO-WORTHY Cubix 100 48V 100Ah Server Rack Battery, showing a 19-year brand history timeline with a blue line graph, customer and country statistics, and the battery unit on a light blue background.

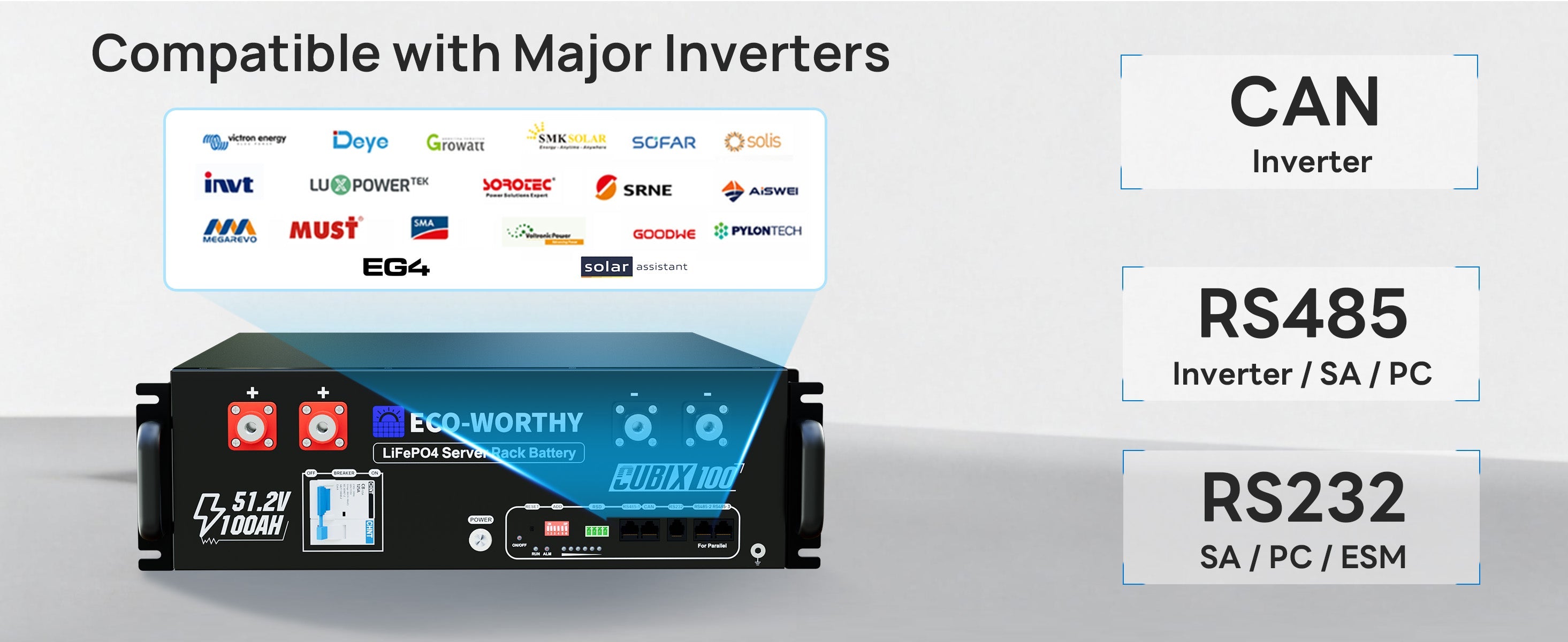

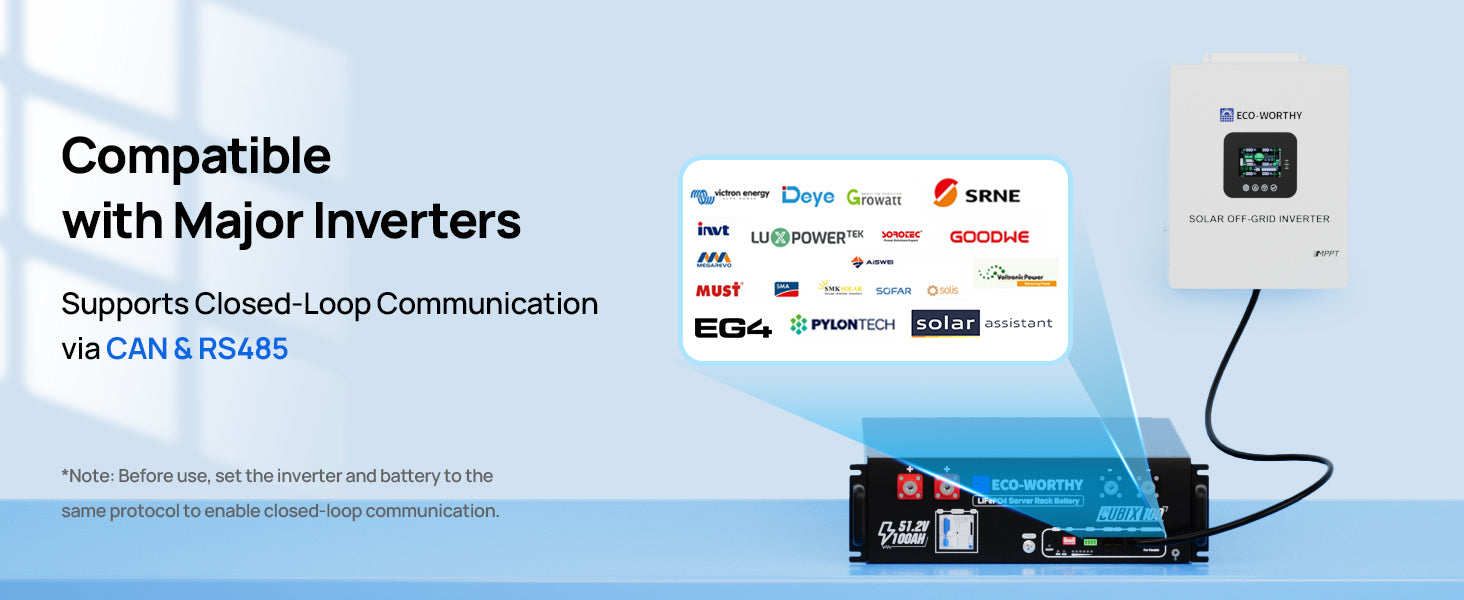

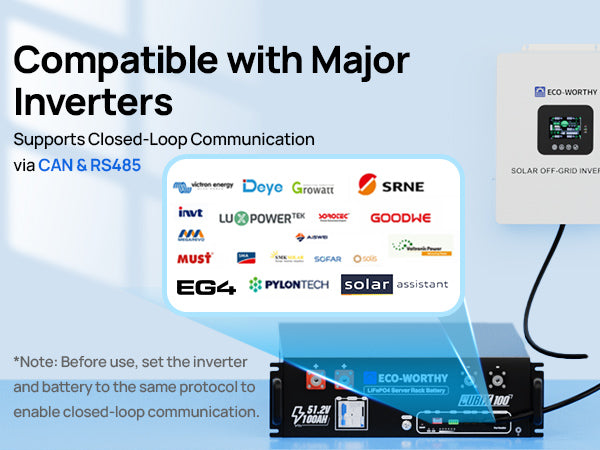

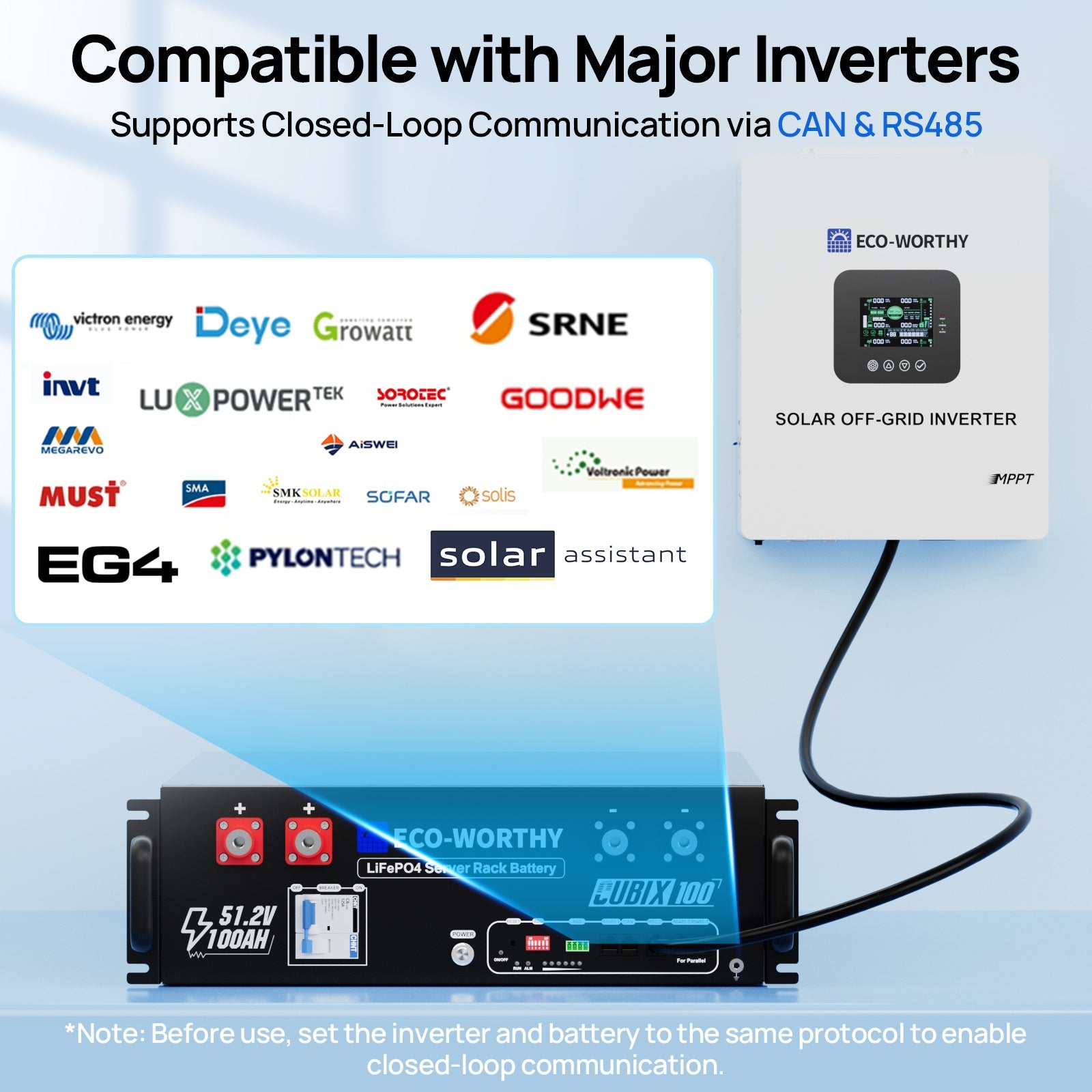

Product with compatibility logos for major inverters on a blue backgroundPromotional graphic for the ECO-WORTHY Cubix 100 48V 100Ah Server Rack Battery, showing compatibility with major inverters via CAN & RS485 protocol. The image features the white inverter unit on the right, a blue and black battery pack at the bottom, and a central white card displaying logos of compatible brands including Doyou, Growatt, SRNE, and Goodwe.

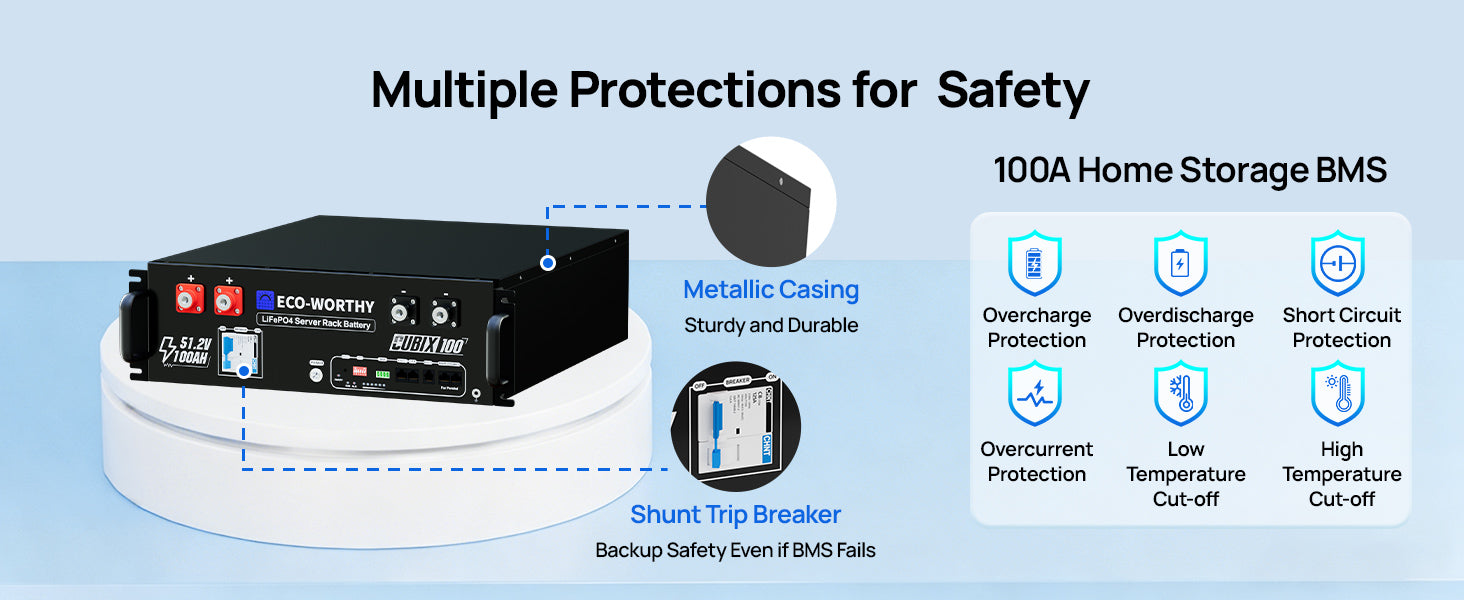

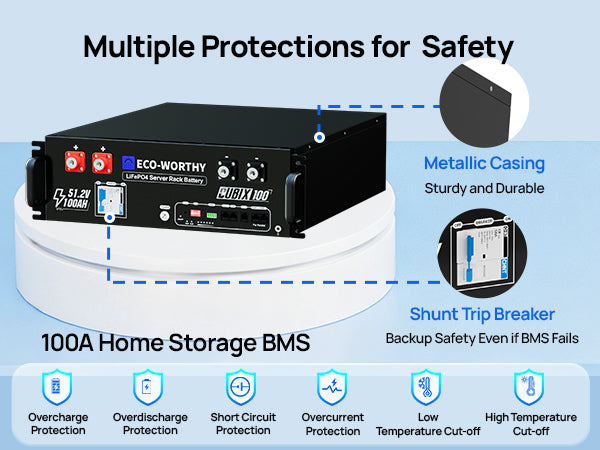

Home storage BMS system with safety features on a light blue backgroundAn infographic-style product graphic showing a black Eco-Worthy Lithium Iron Battery Pack on a white pedestal with callout labels and feature icons. The text reads 'Multiple Protections for Safety' and highlights metallic casing, shunt trip breaker, 100A home storage BMS, overcharge protection, overdischarge protection, short circuit protection, overcurrent protection, low temperature cut-off, and high temperature cut-off.

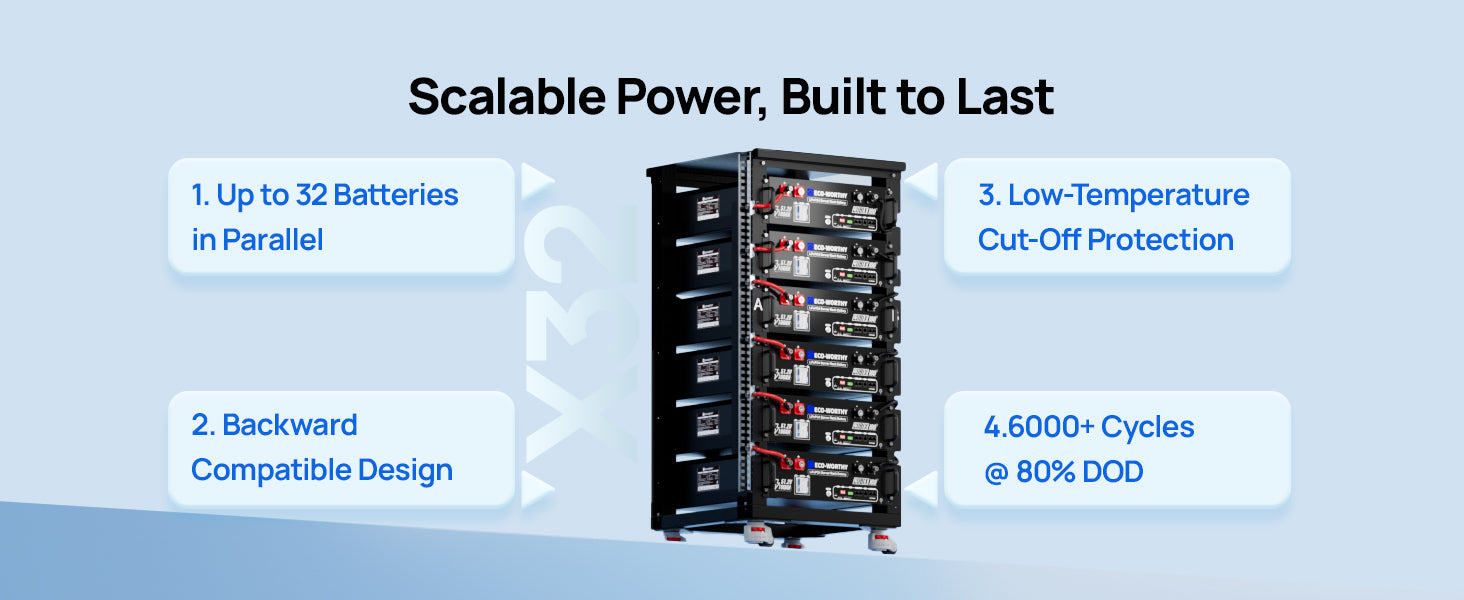

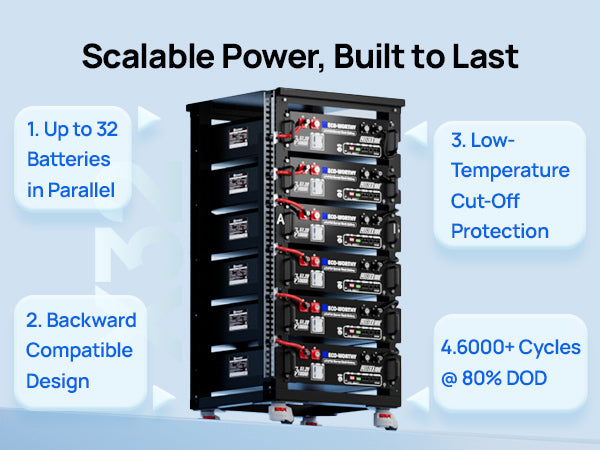

Battery system with features listed on a blue backgroundA black battery rack with multiple stacked battery modules, shown on a light blue background with four callout text boxes describing features such as up to 32 batteries in parallel, backward compatibility, low-temperature cut-off protection, and cycle life.

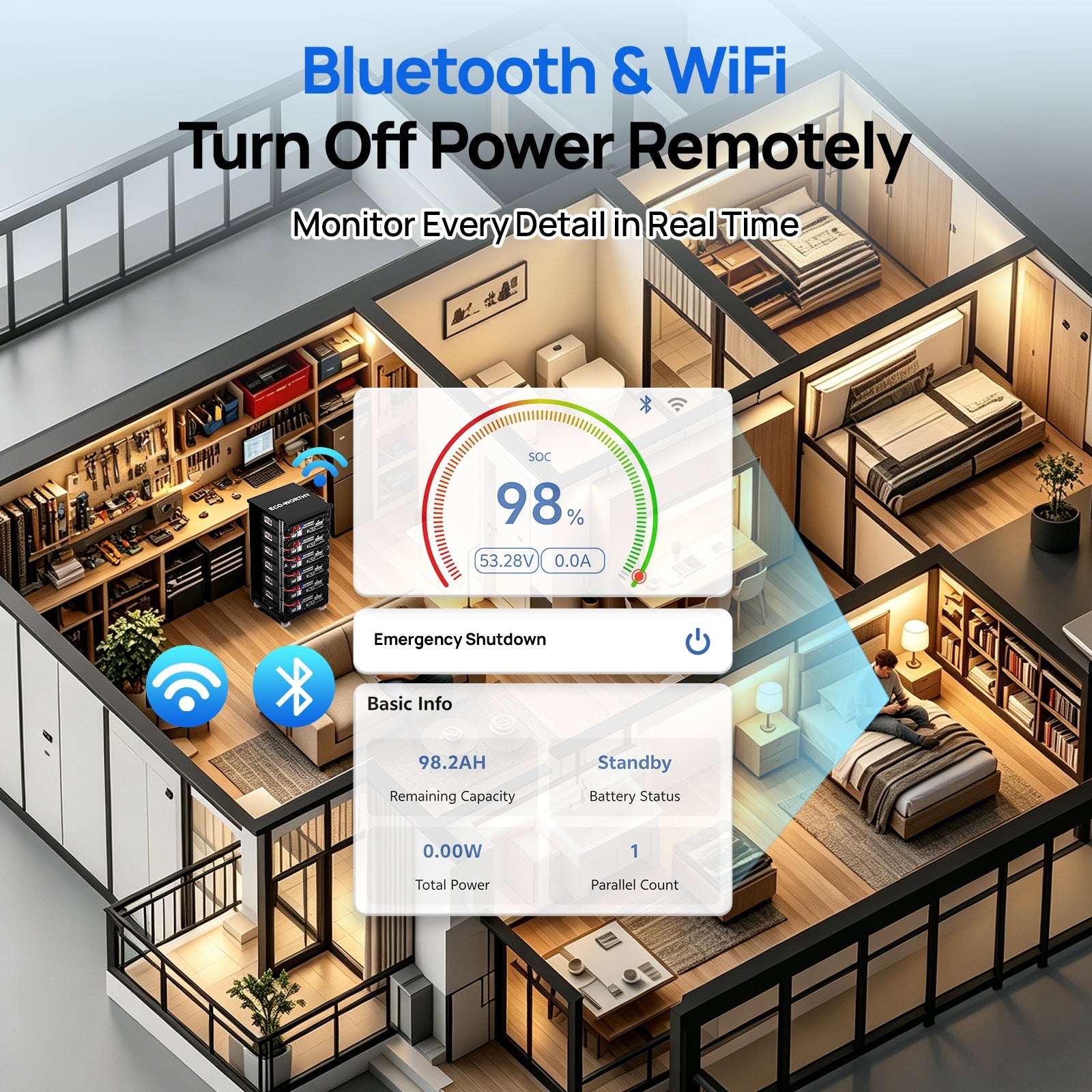

Promotional graphic for a Bluetooth and WiFi remote power-off app, showing a smartphone control interface with battery and status widgets over an interior room scene. Text on the left reads 'Bluetooth & WiFi Turn Off Power Remotely' and 'Monitor Every Detail in Real Time.Promotional graphic for a remote power management app, showing a blue gradient background with the text 'Bluetooth & WiFi Turn Off Power Remotely' and 'Monitor Every Detail in Real Time.' Large blue icons for Bluetooth and WiFi appear on the left, and a central inset shows a modern living room with overlaid smartphone-style battery status screens.

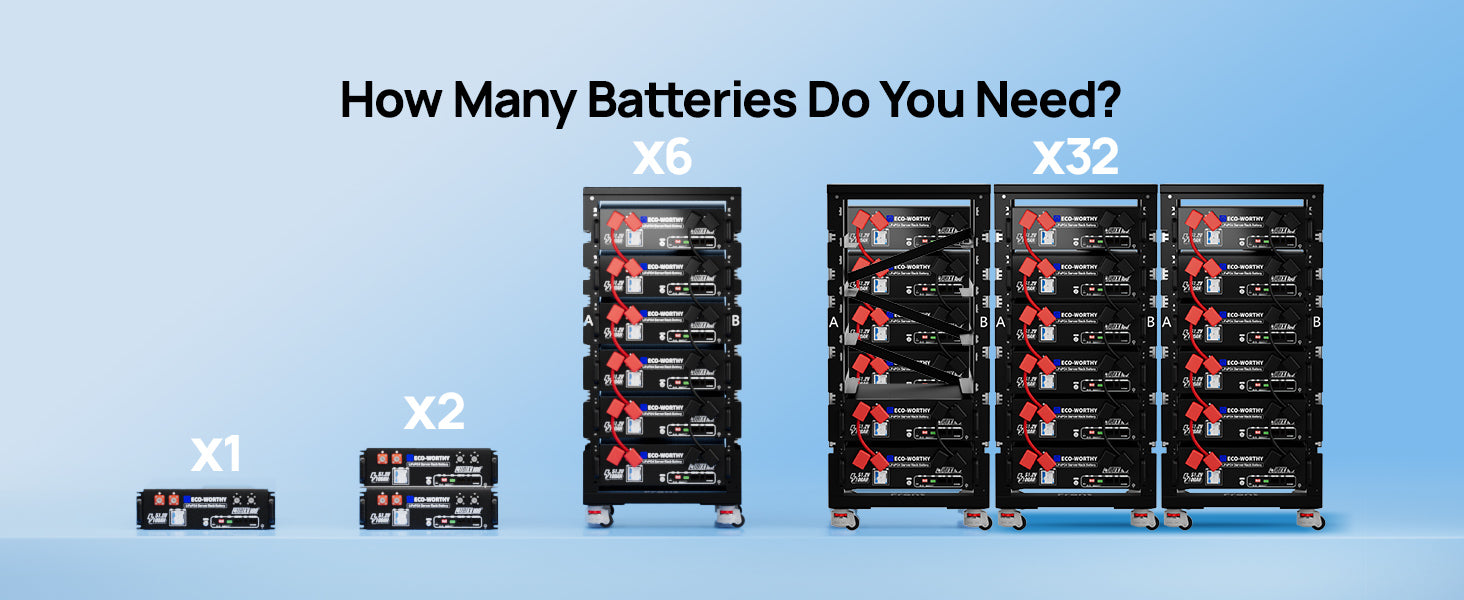

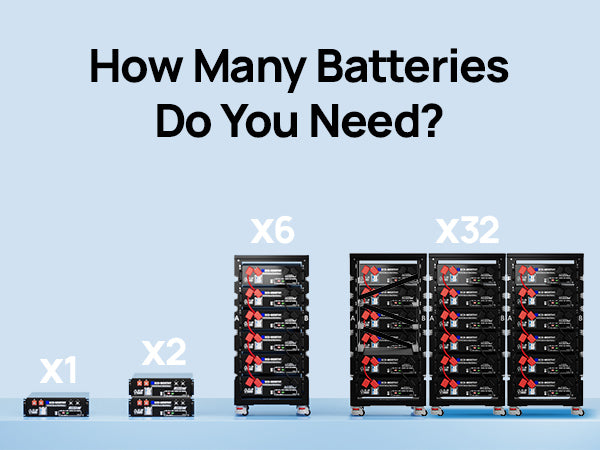

A blue promotional graphic showing battery rack configurations labeled x1, x2, x6, and x32, with the headline 'How Many Batteries Do You Need?' at the top.A blue promotional graphic showing battery rack configurations labeled x1, x2, x6, and x32, with the headline 'How Many Batteries Do You Need?' at the top.

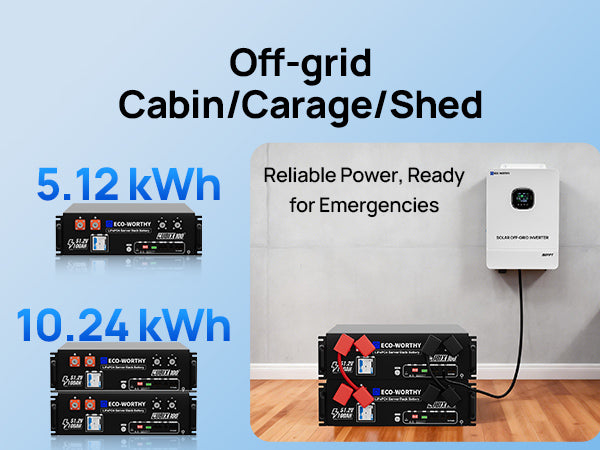

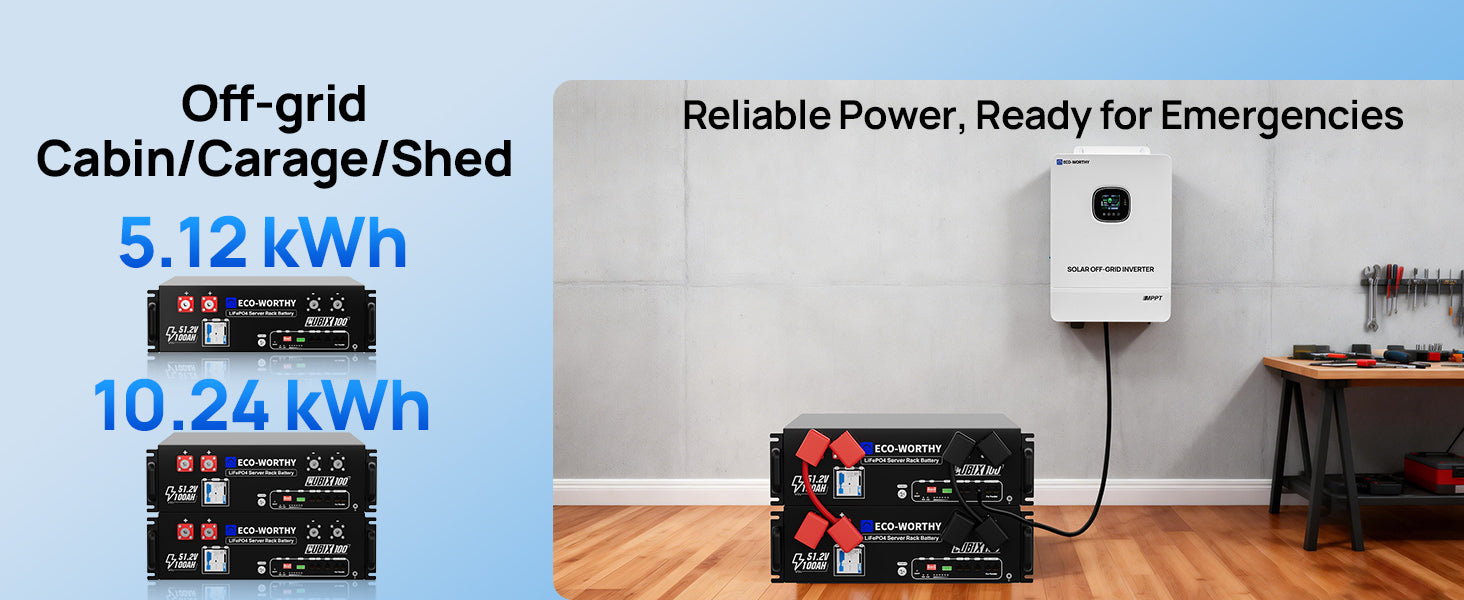

Off-grid cabin/carage/shed power systems shown in a home workshop setting. The image features two black Eco-Worth batteriesOff-grid cabin/carage/shed power systems shown in a home workshop setting. The image features two black Eco-Worth batteries
Residential backup solar energy storage system shown as a black rack of battery modules on the left, next to a house illustration on the right demonstrating power for a full day with 30.72 kWh capacity.Residential backup battery system advertisement showing a tall rack of stacked black batteries on wheels next to a house illustration with solar panels and home appliances, with text stating 30.72 kWh and Power Your Home for a Full Day.

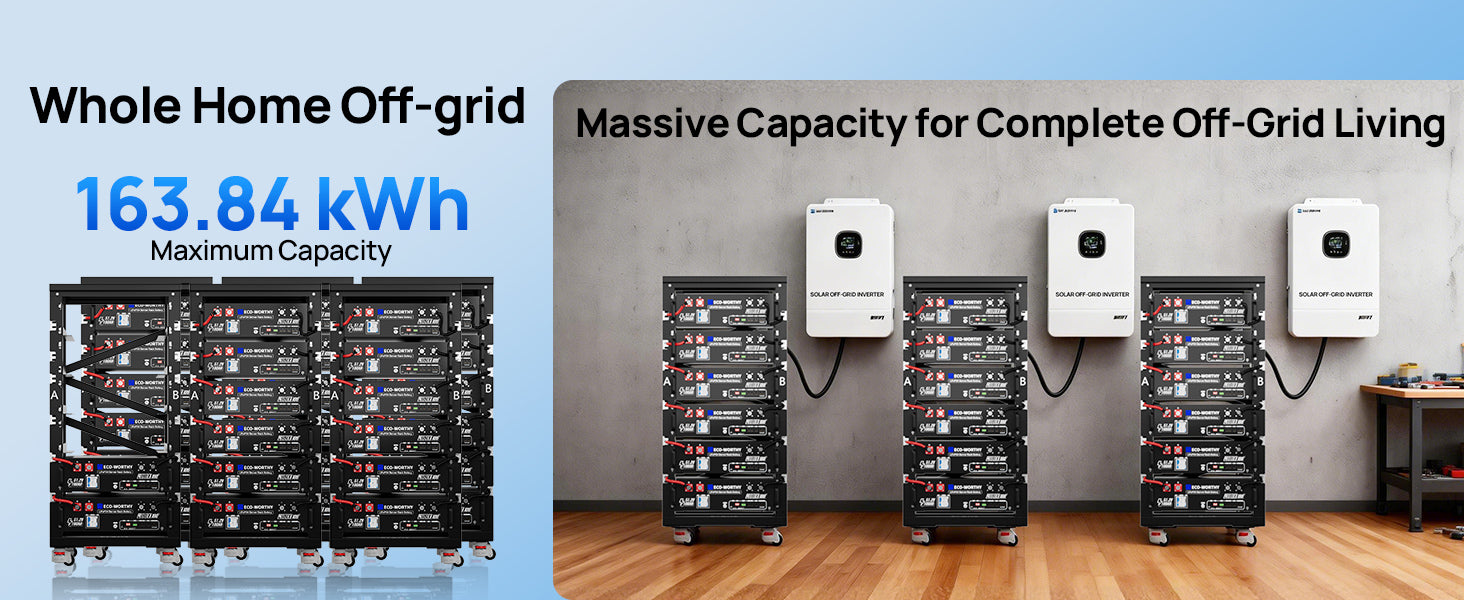

Promotional graphic for whole home off-grid battery systems, showing multiple black battery racks and three white wall-mounted inverters in two settings: a studio-style product display on the left and an interior room scene on the right. Text highlights 163.Promotional graphic for whole home off-grid battery systems, showing multiple black battery racks and three white wall-mounted inverters in two settings: a studio-style product display on the left and an interior room scene on the right. Text highlights 163.
Included in the Box

1 x 48V 100Ah Battery

1 x Battery User Manual

1 Pair of Parallel Cables

1 Set of Screws & Terminal Covers

1 x Grounding Wire

1 x Battery-Battery Communication Cable



2 x 48V 100Ah Batteries

Battery Accessories

Battery User Manual
1 x RSD Switch

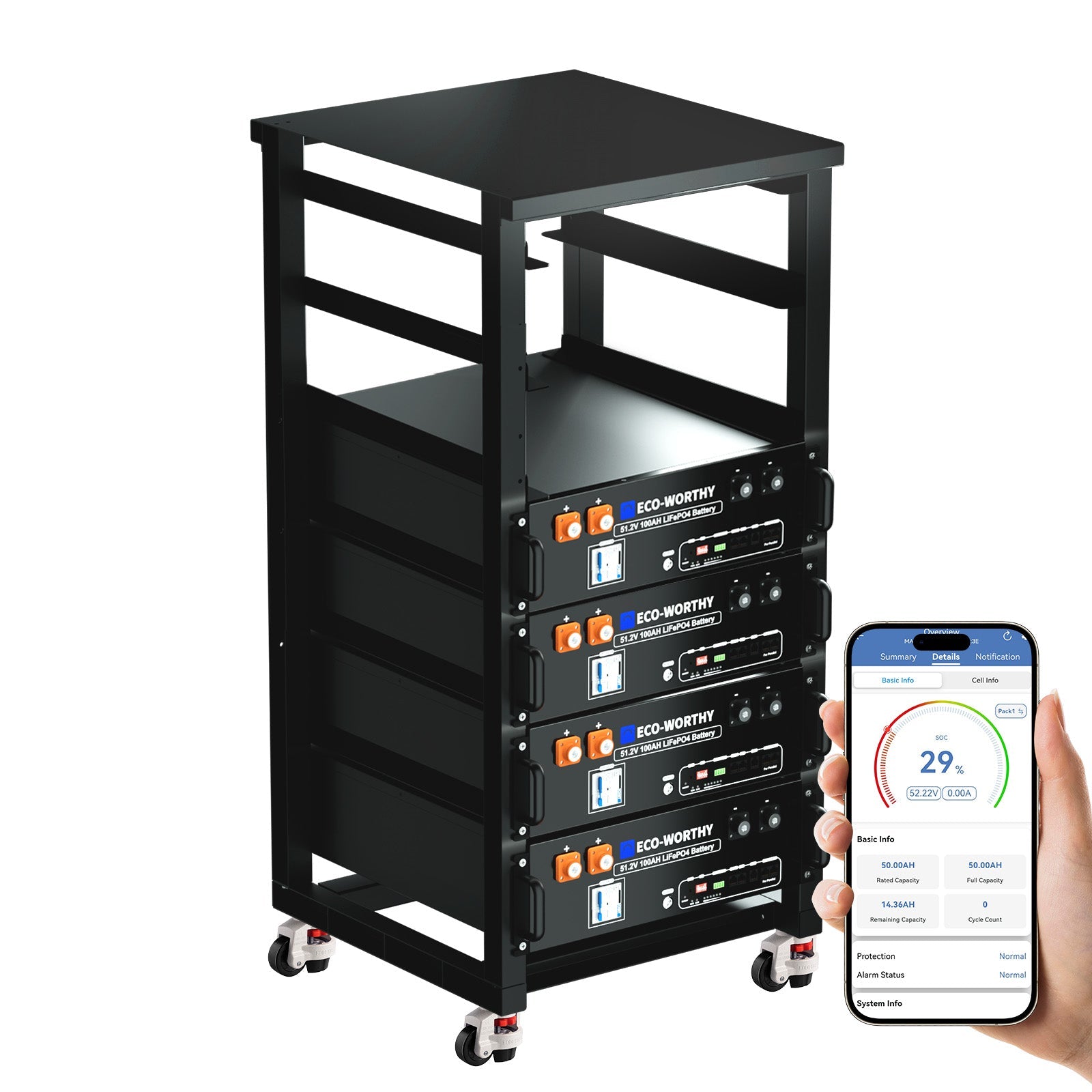

4 x 48V 100Ah Batteries

Battery Accessories

Battery User Manual
1 x RSD Switch

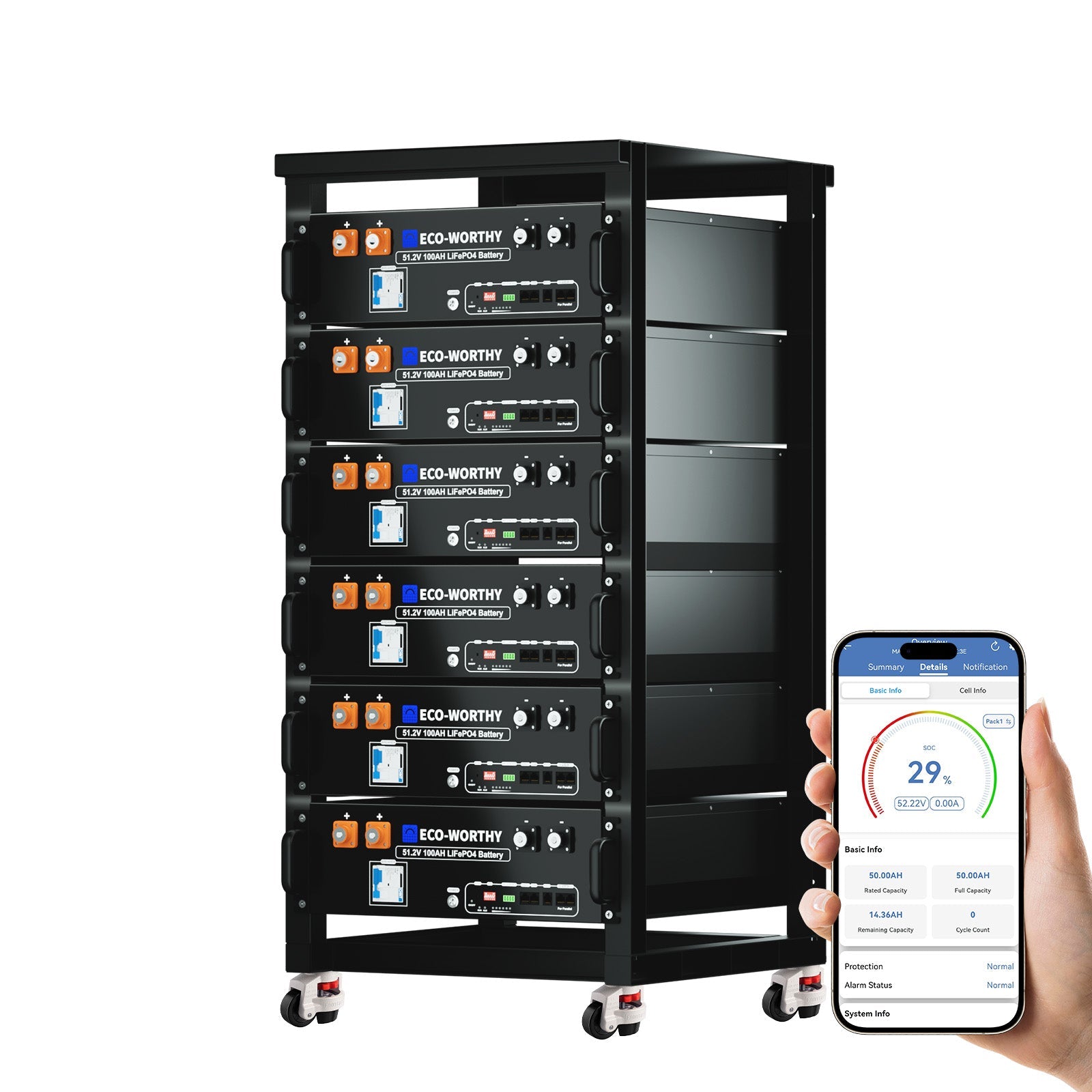

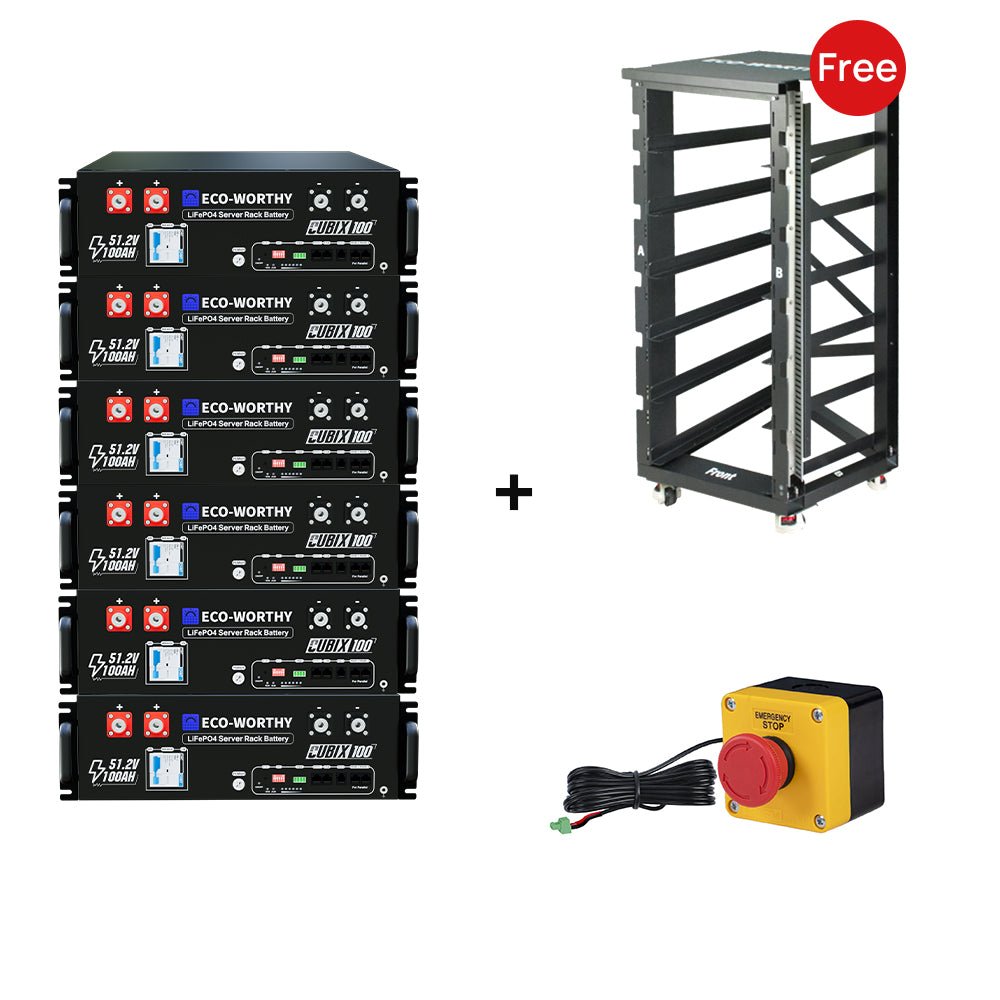

6 x 48V 100Ah Batteries

Battery Accessories

Battery User Manual
1 x RSD Switch

User manual

Eco-Worthy Cubix100 LiFePO4 Server Rack Battery Manual-20260317

Download

ATM for ECO-WORTHY UL9540 DC ESS

Download

ATM for ECO-WORTHY UL9540 AC ESS

Download

Eco-Worthy Cubix100 UL1973 Certification

Download

Eco-Worthy Cubix100 Software Manual Online-2026.3.17

Download

Eco-Worthy Cubix100 LiFePO4 Server Rack Battery 9540A VOC

Download

Eco-Worthy Cubix100 Firmware.13.5.1-260225 (V3 compatible)

Download

Eco-Worthy Server Rack Battery (V1/V2/V3) Q&A

Download

Eco-Worthy Server Rack Battery Troubleshooting Guide

Download

Frequently Asked Questions

What is the difference between the Cubix100 and the V3?

+
The Cubix100 and V3 are essentially the same in terms of product performance. The main difference is that Cubix100 has an additional physical RSD interface.

Can Cubix100 communicate in parallel with V2/V3?

+

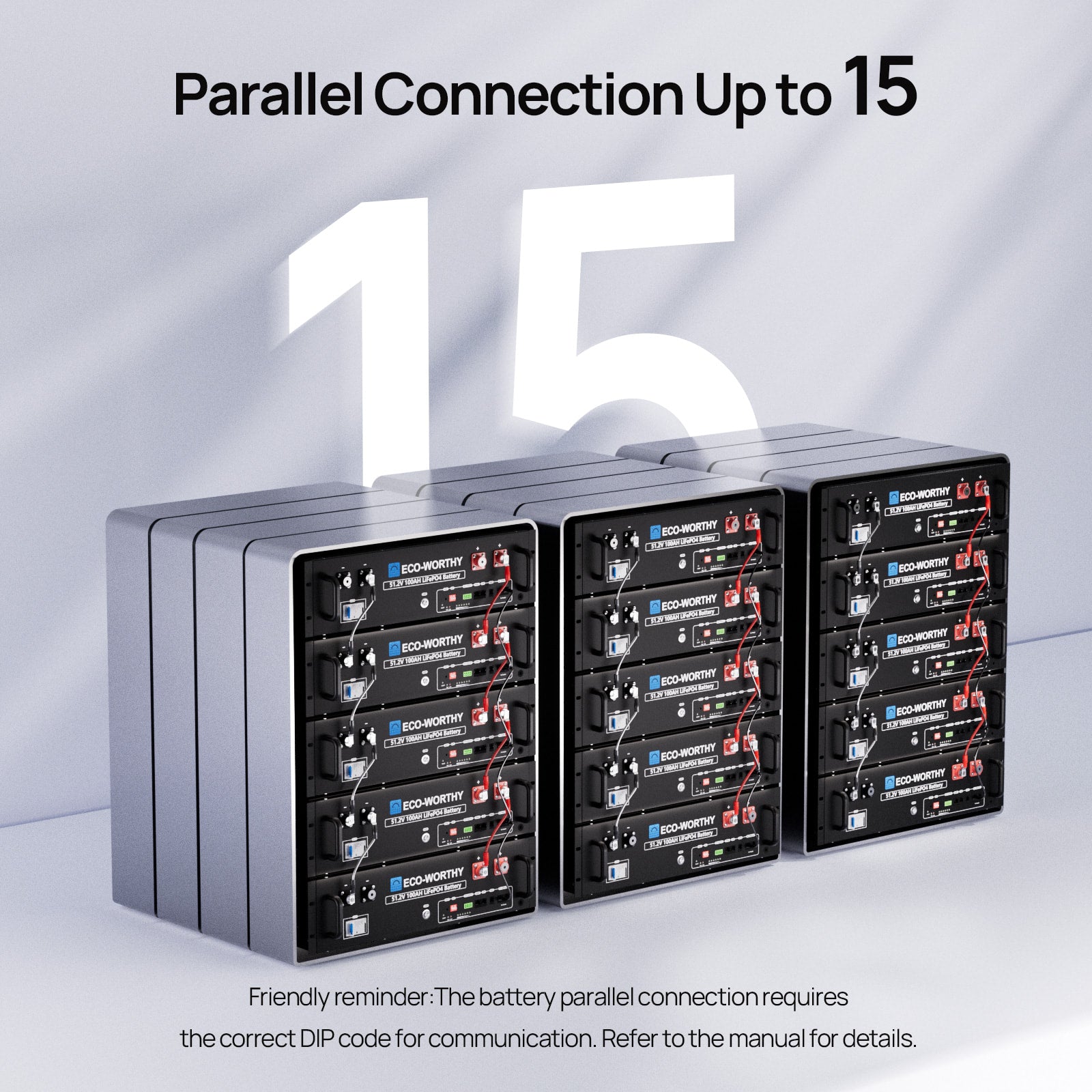

Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3/Cubix100 has no such limit.

What certifications does this battery hold?

+
Eco-Worthy Cubix100 is UL1973 certified and has completed the UL9540A test. Also, this battery has successfully undergone system-level UL 9540 testing conducted by Intertek, covering both DC and AC systems. Please contact our customer service team for further details.

What are the shipping and warranty policies for this battery?

+
We offer a 10-year warranty for this battery, covering non-human-induced failures, plus lifetime customer and technical support.

What kind of battery cells are used?

+
This Battery uses 100% Grade A prismatic cells from REPT, ensuring around 6000 cycles at 80% DOD.

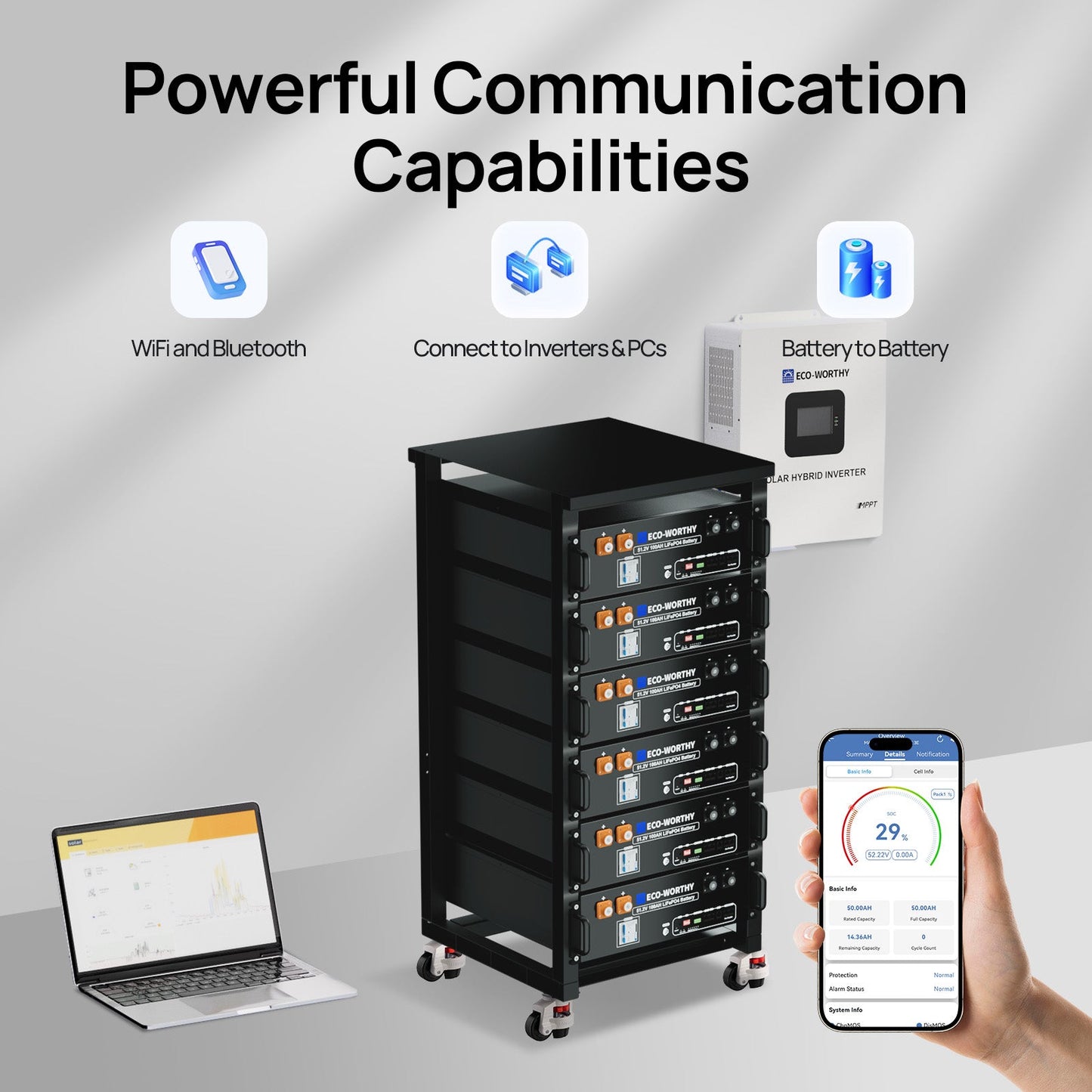

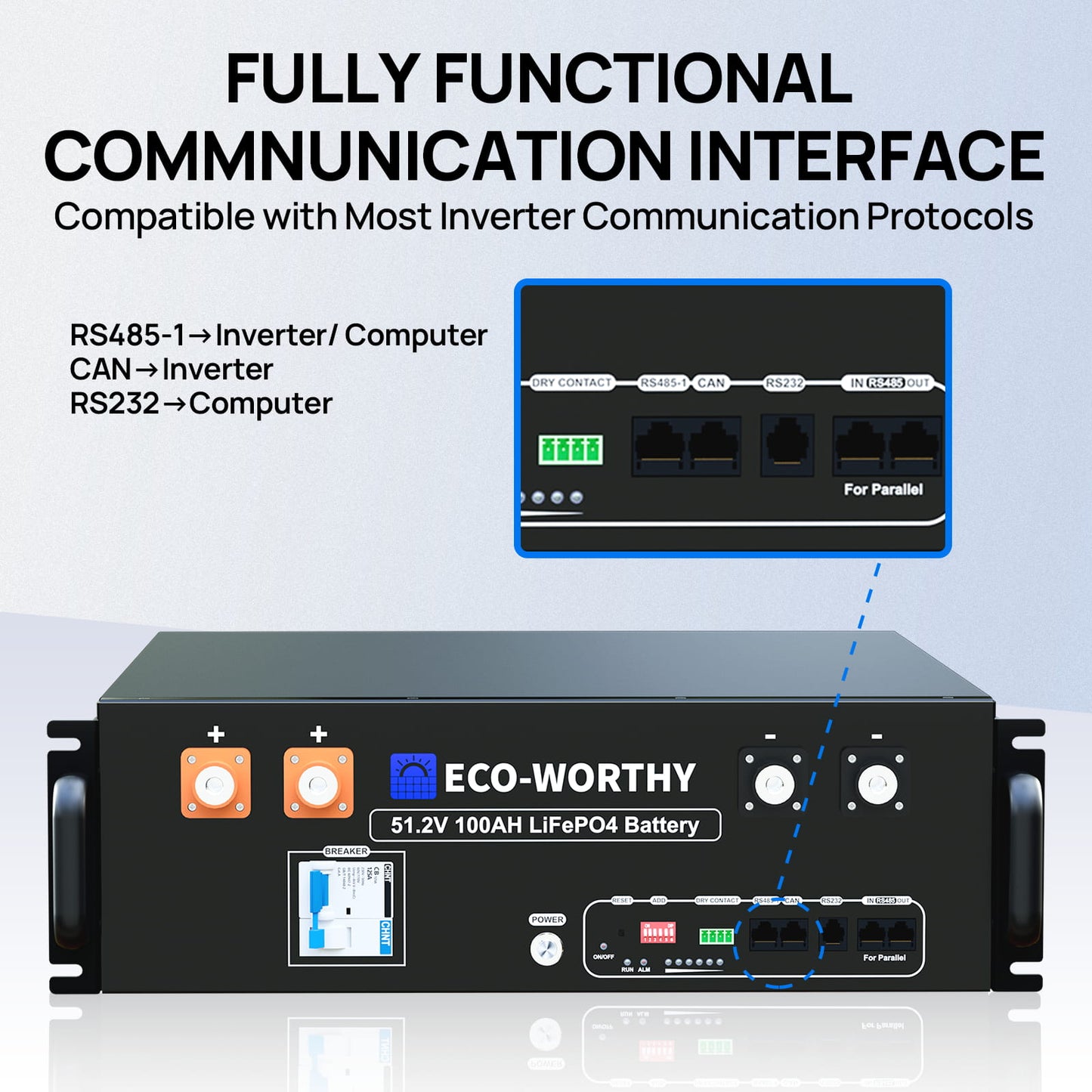

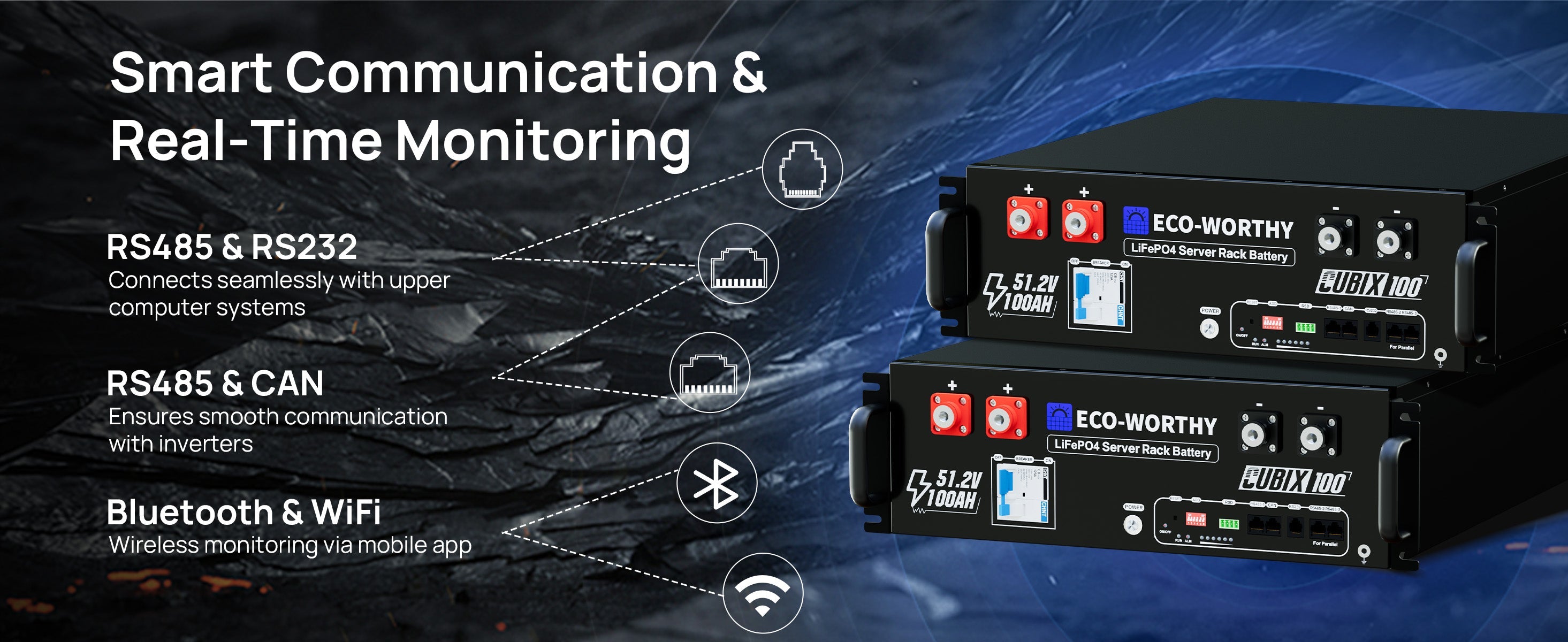

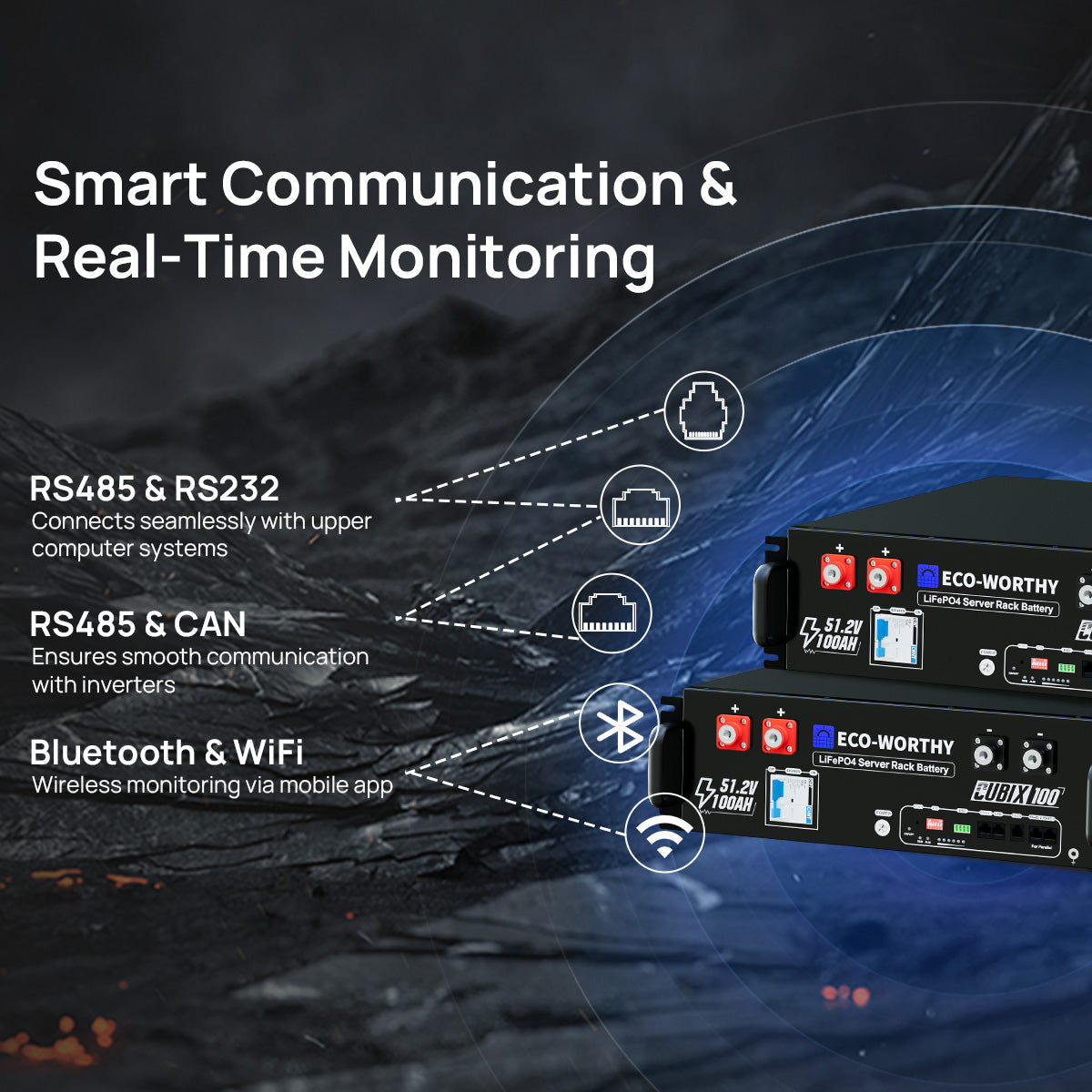

What communication methods are supported?

+

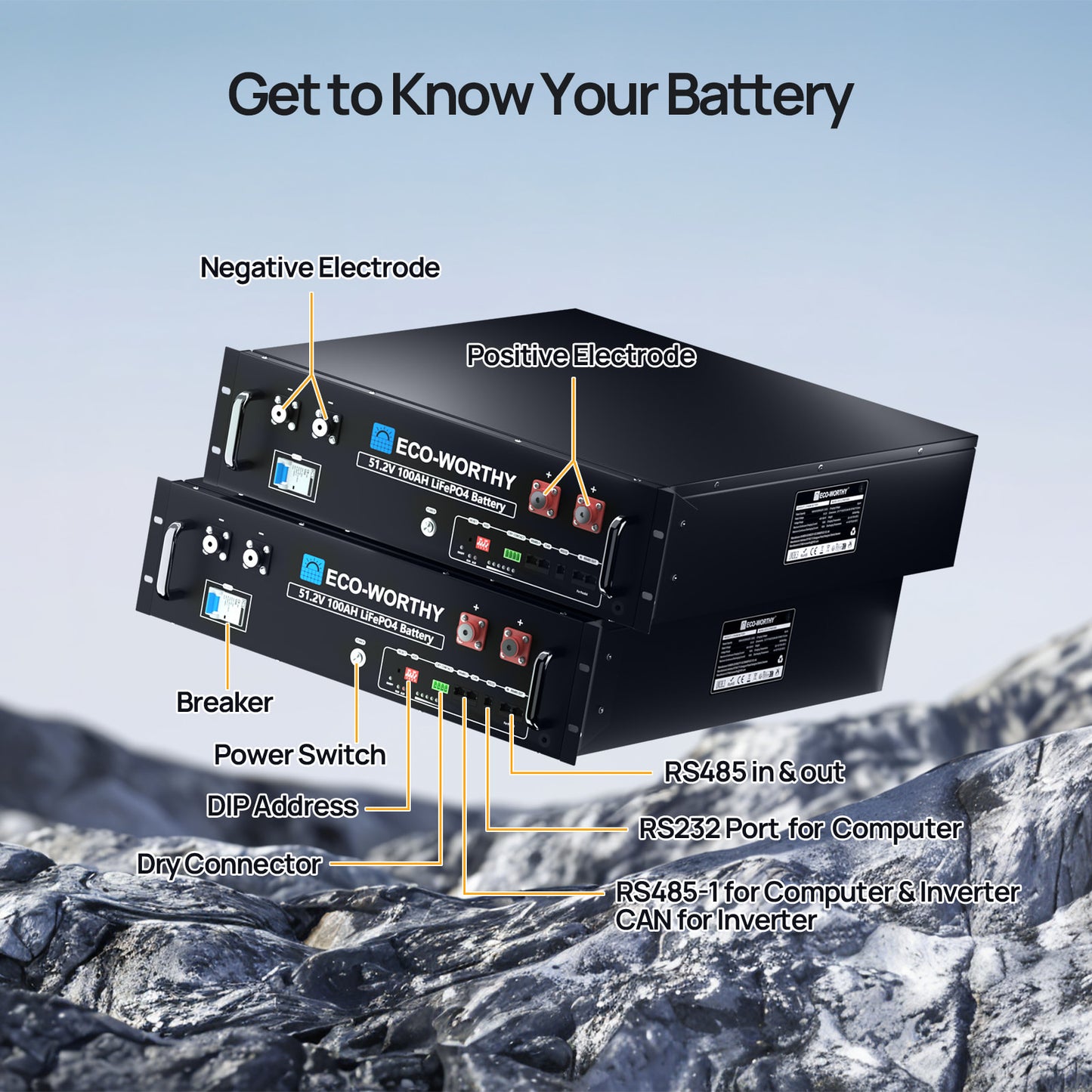

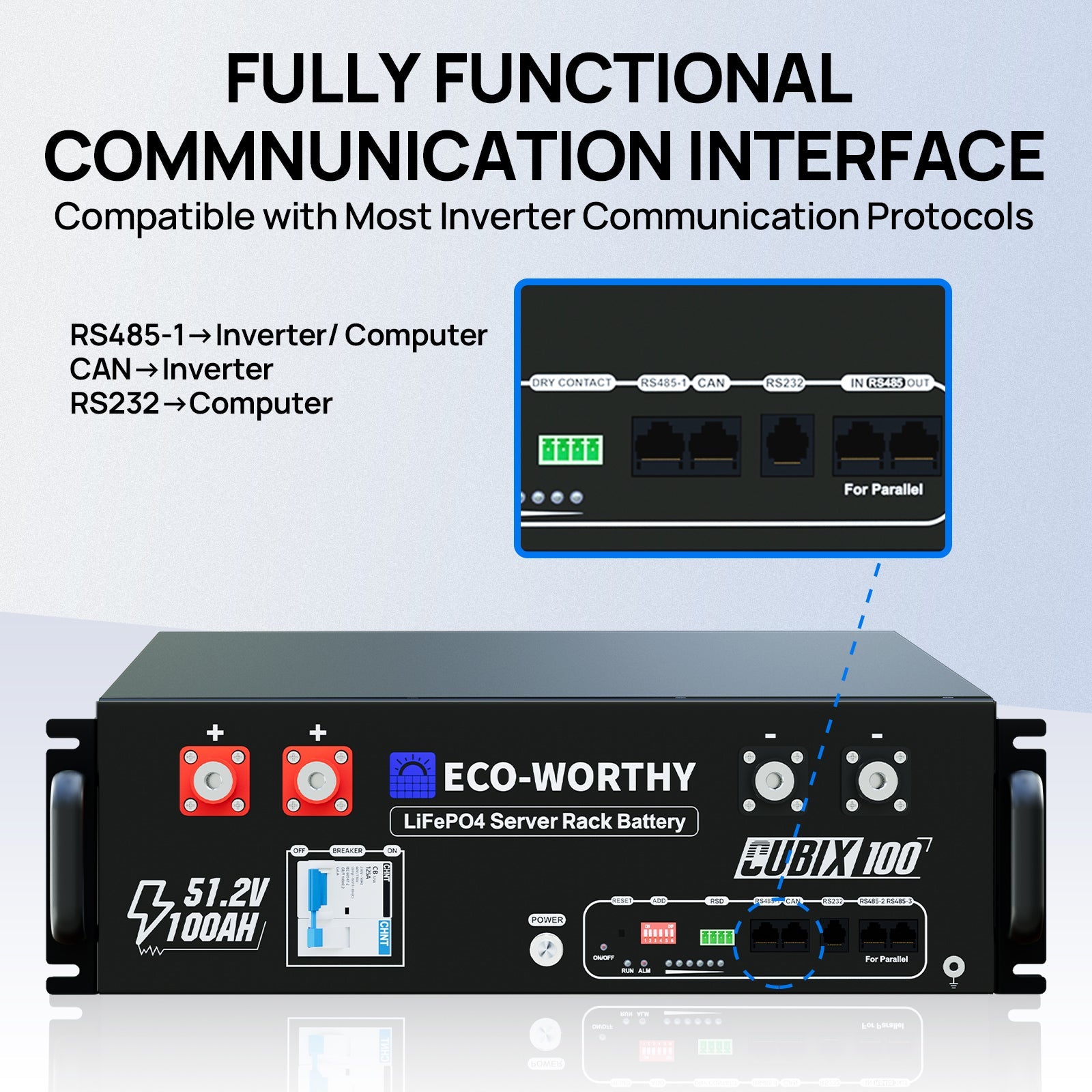

The battery supports built-in Bluetooth/WiFi for mobile apps, RS485-1 on the front panel for host software, mainstream inverters, and Solar Assistant, a CAN interface for inverter communication, and an RS232 interface for host computer software.

Which inverters can this battery communicate with?

+
It can communicate with most mainstream inverters, including Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, Solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, and EG4 3000.

What safety designs does this battery have?

+

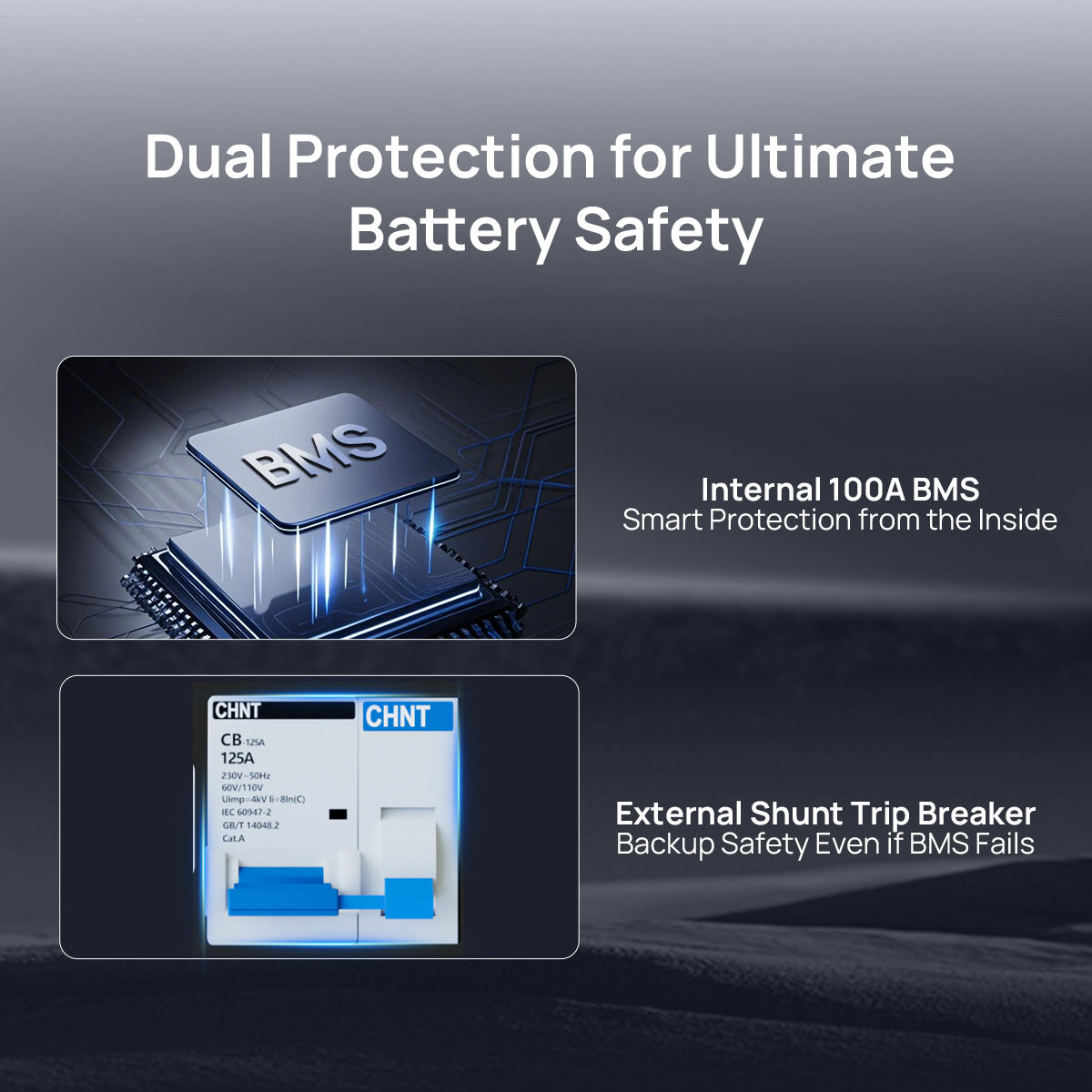

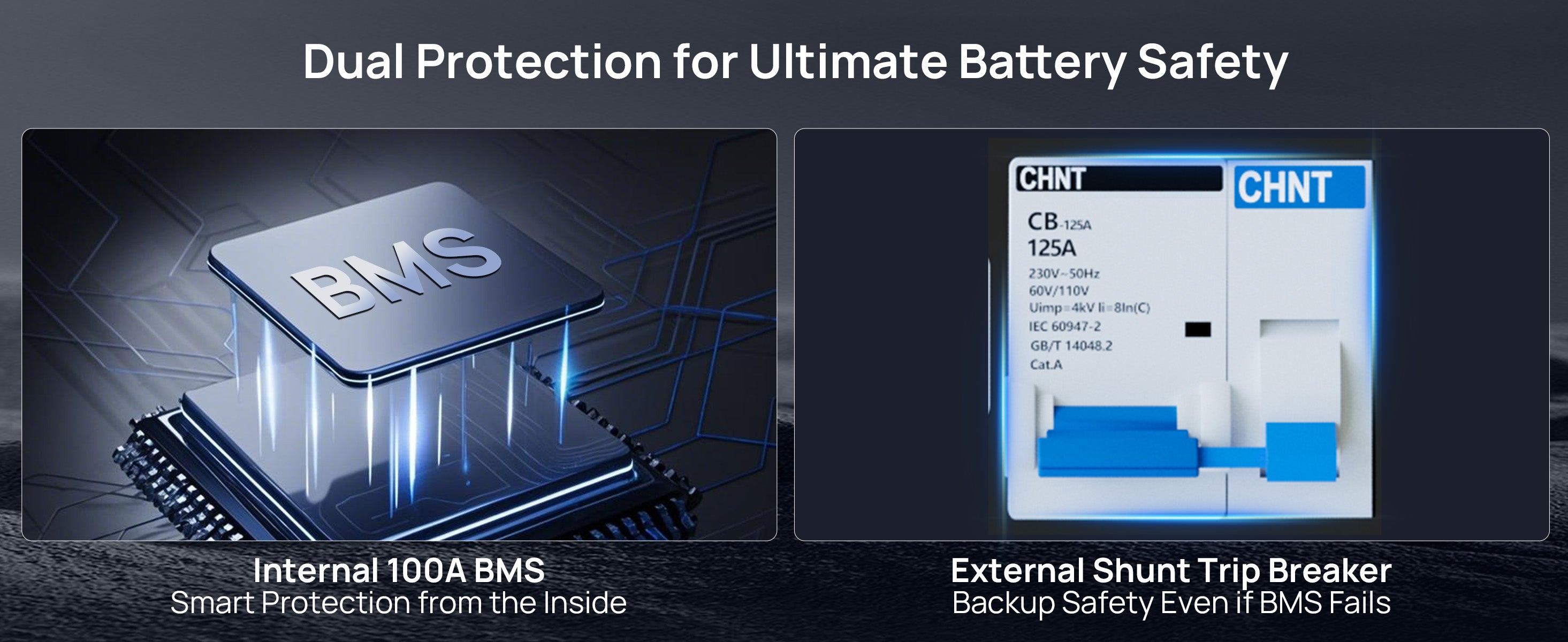

The battery is equipped with a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.
