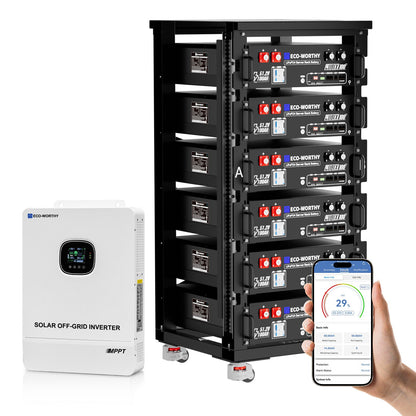

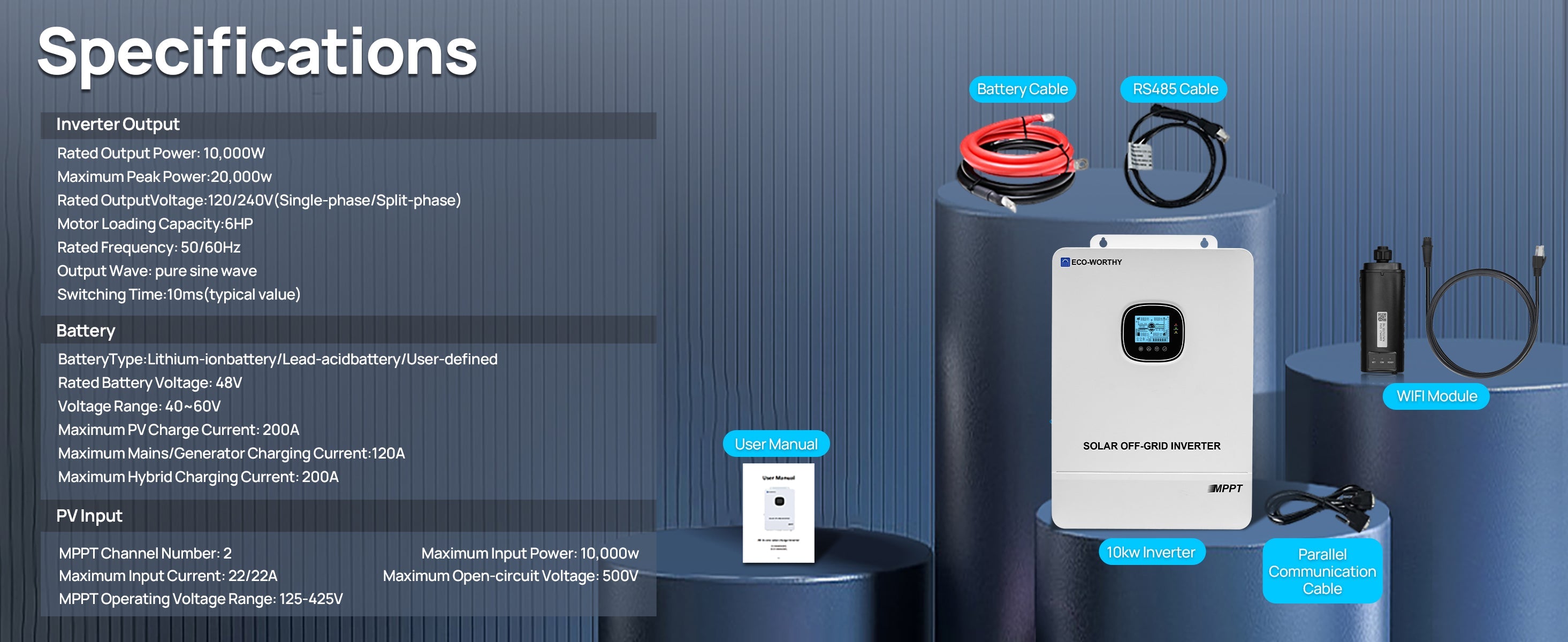

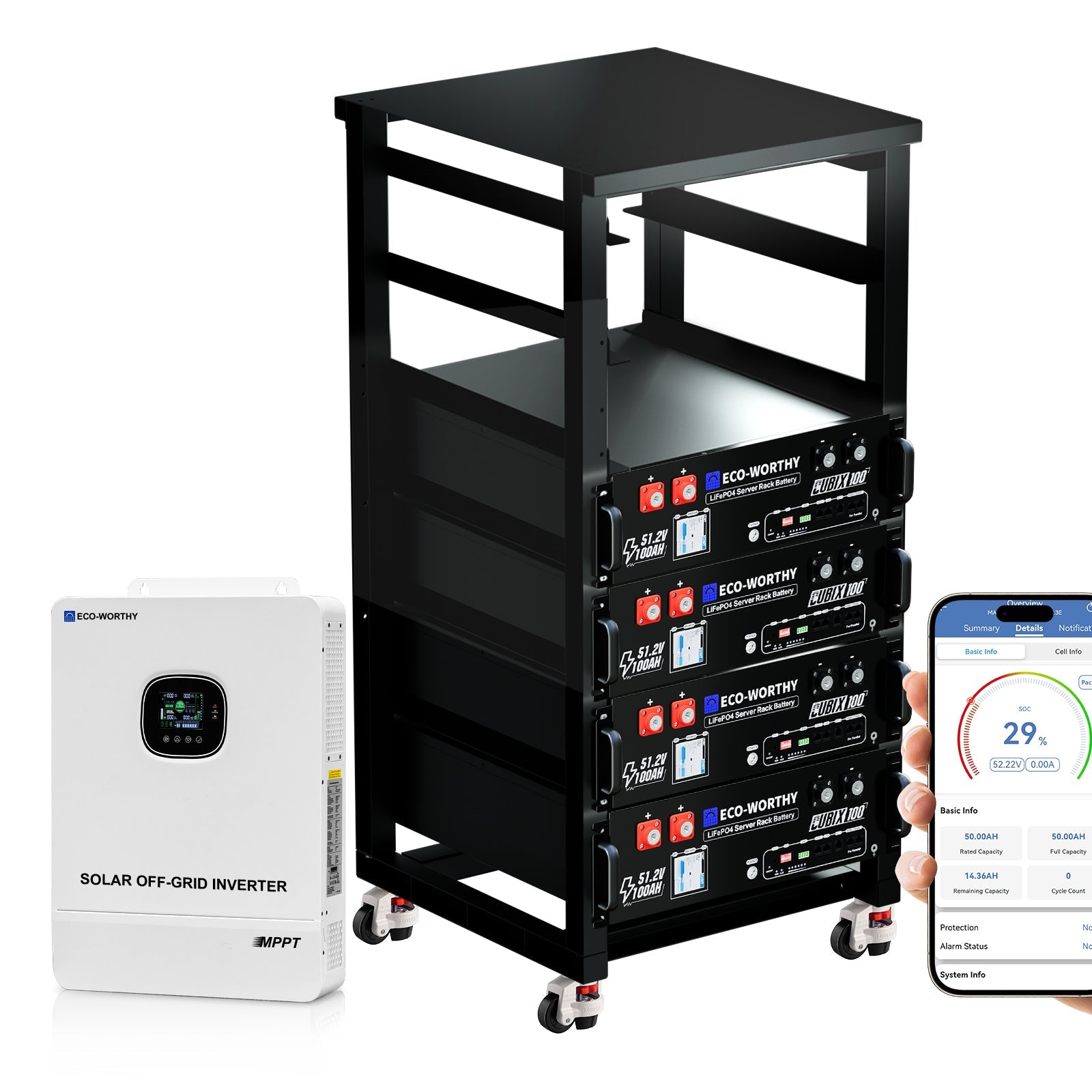

ECO-WORTHY 10KW Home Backup Power Bundle with 48V 100Ah LiFePO4 Battery and 10000W 48V All in One Off-grid Inverter

ECO-WORTHY 10KW Home Backup Power Bundle with 48V 100Ah LiFePO4 Battery and 10000W 48V All in One Off-grid Inverter

Regular price C$6,529.99
Sale price C$6,529.99 Regular price C$8,999.98
save 27% Sold out

SKU: CA-L13NK10KSR48100B-4

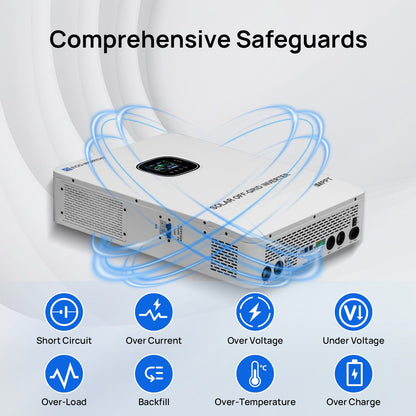

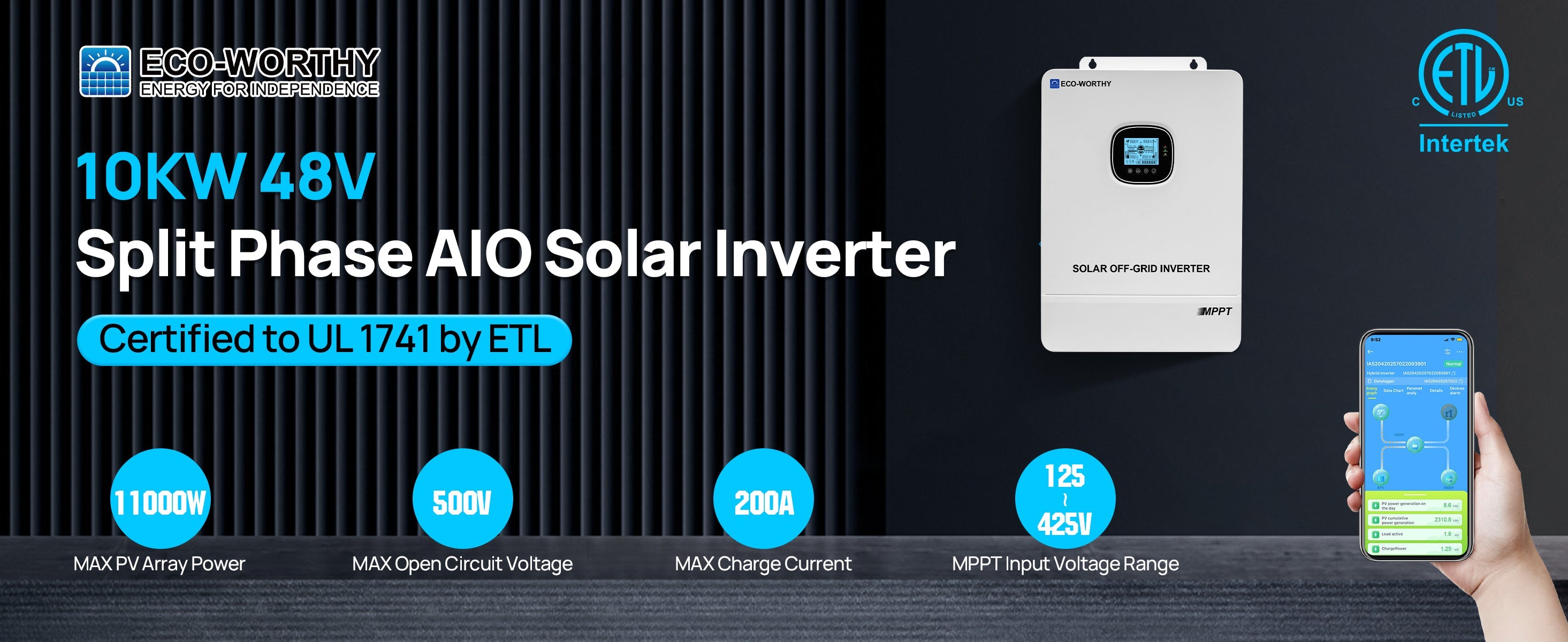

[Safety and reliability guarantee] The Battery has built-in 100A BMS and a 125A circuit breaker, and the inverter is certified by UL 1741 and has multiple protection functions (short circuit, overvoltage, undervoltage, overload, reverse connection protection).
[Capacity and power synergy] The 48V 100Ah LiFePO4 Server Rack Battery capacity provides sufficient energy storage for the system, and with the high power output of the 48V 10kW inverter.
[Intelligent monitoring complementarity] Both the battery and the inverter support WiFi and Bluetooth remote monitoring. Users can view the battery status and inverter operation status in real time through a mobile phone APP or a computer.
[Closed-Loop Communication]The inverter supports closed-loop communication with ECO-WORTHY and other batteries via the PYLON communication protocol, ensuring efficient system coordination. Multiple intelligent protection features ensure safe and stable operation.

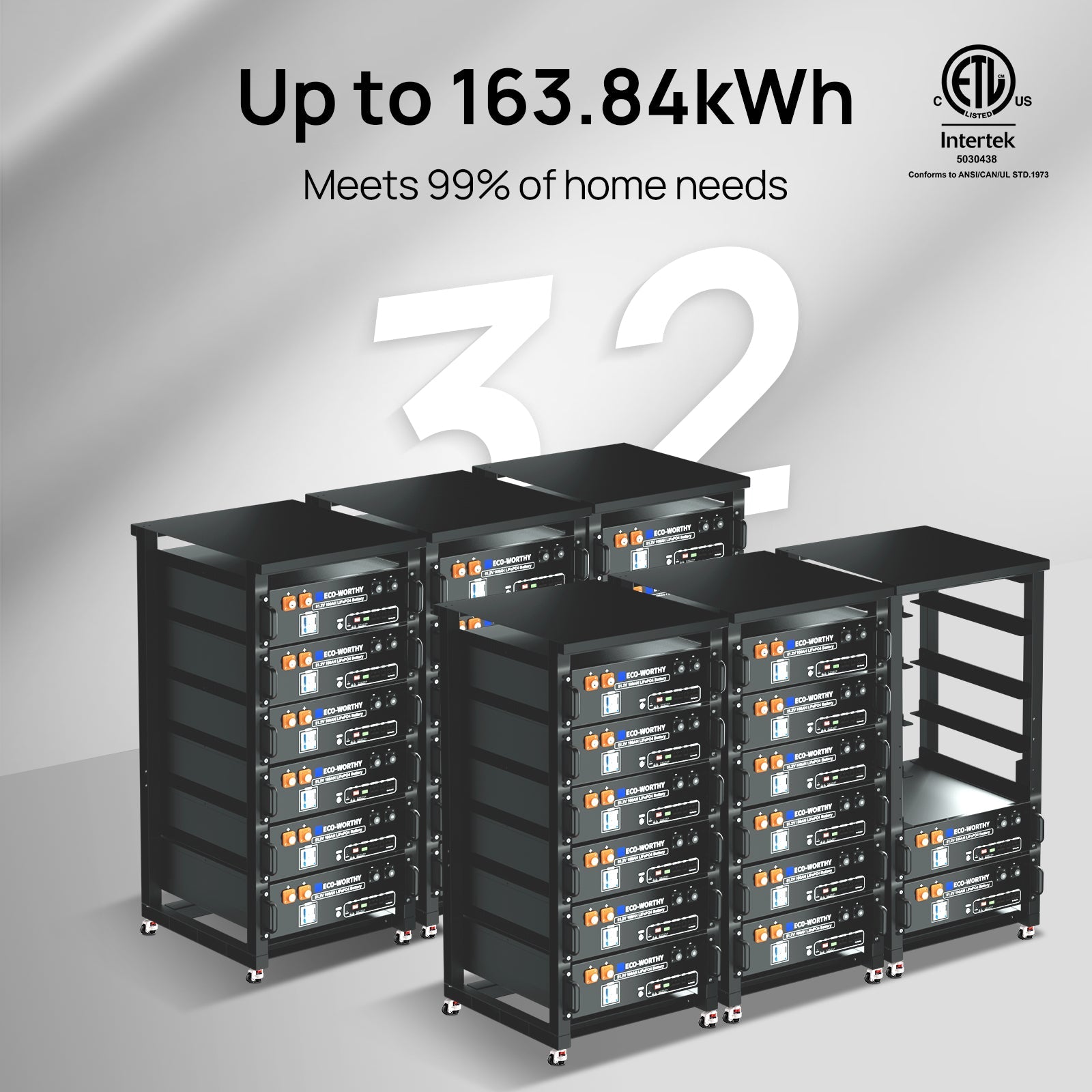

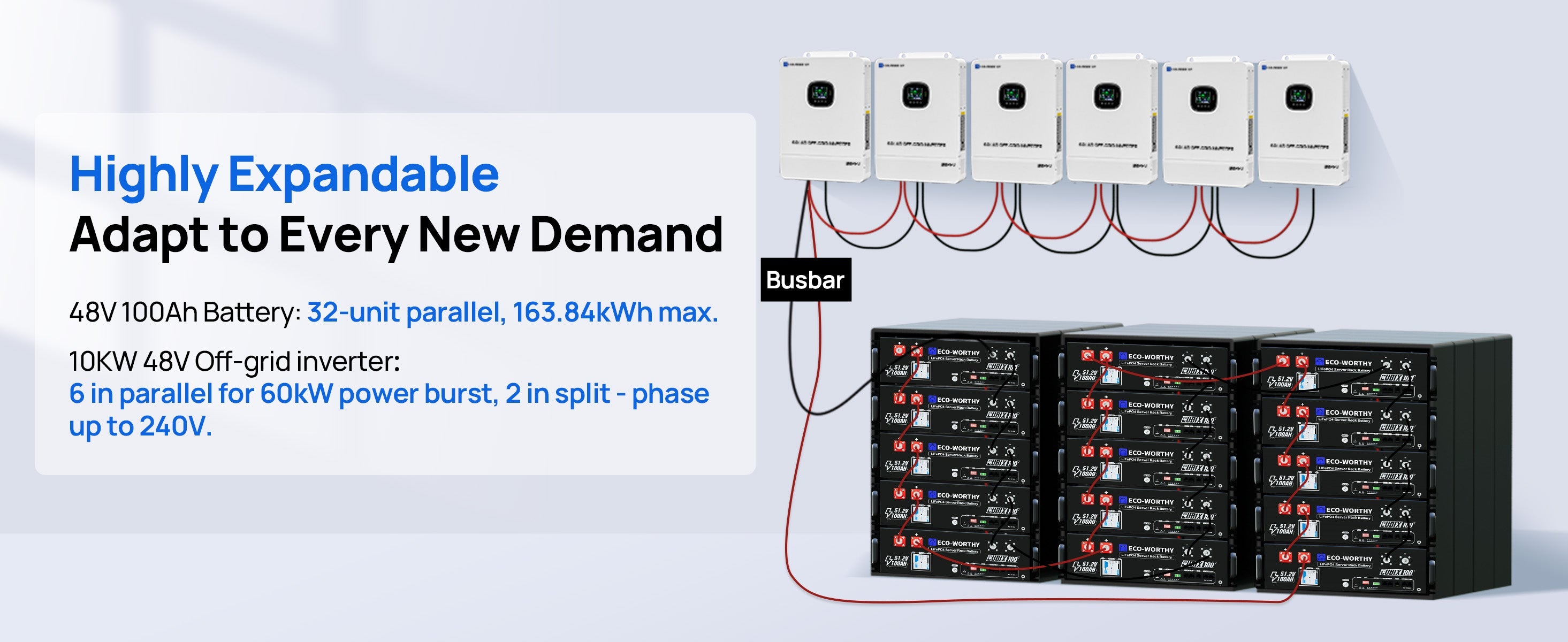

[Easy installation and flexible expansion]The Battery rack design is convenient for standard rack installation, the integrated design of the inverter reduces the complexity of wiring, and the battery supports up to 32 parallel expansions.
Learn More See Less
Style
View full details
Description Specification Downloads Shipping

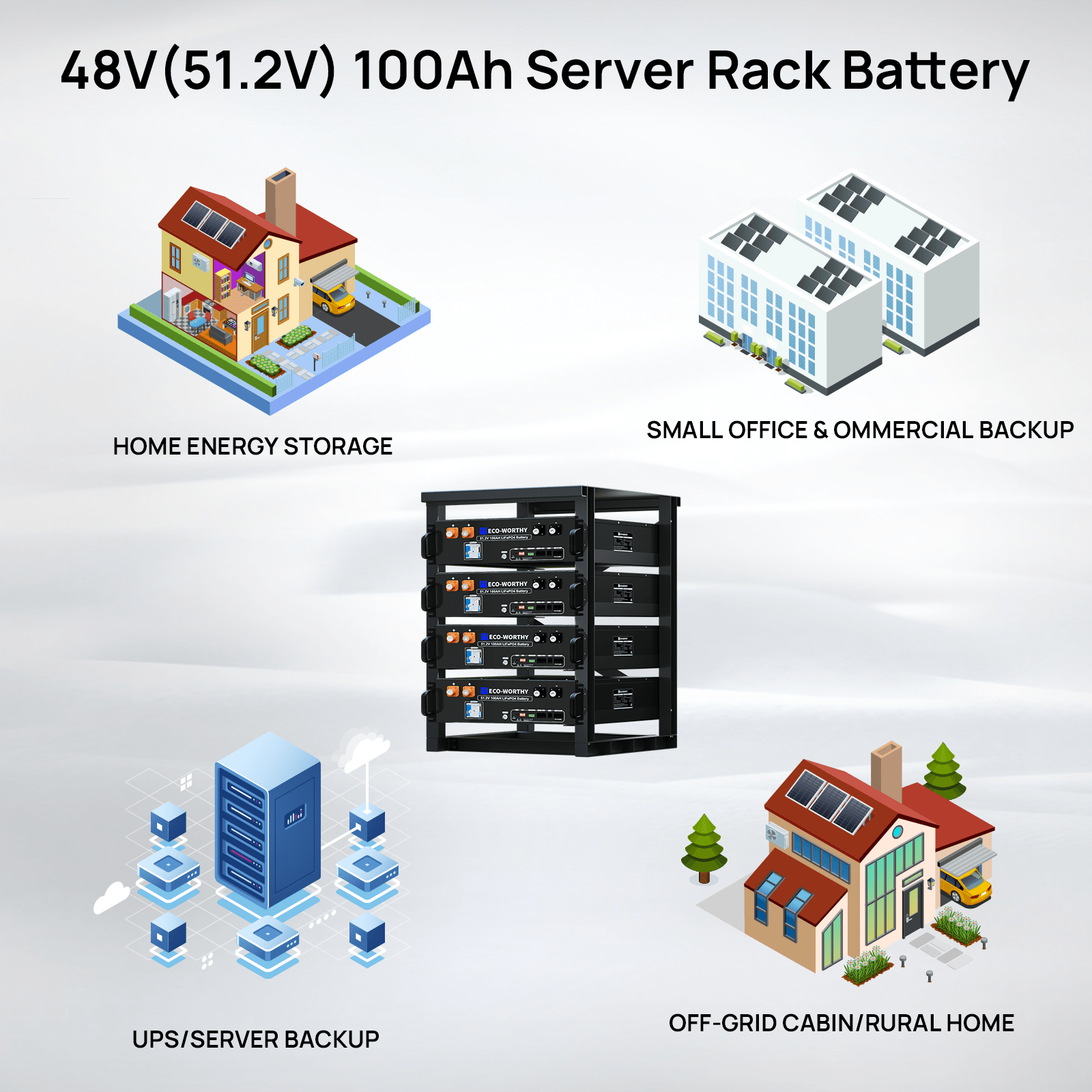

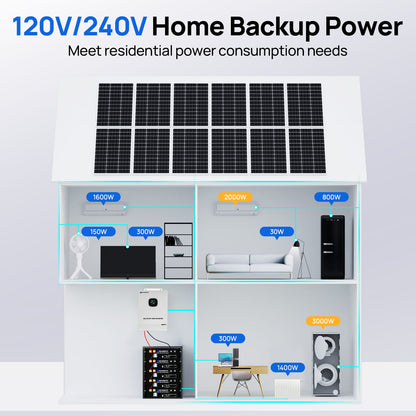

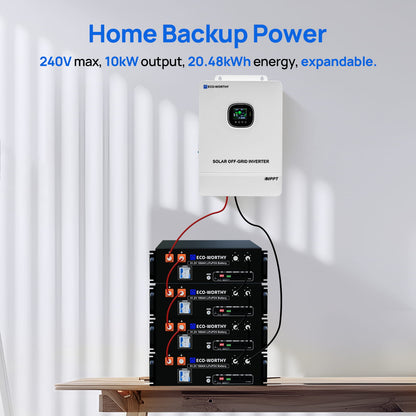

The system combines 48V 100Ah LiFePO4 server rack batteries and a UL1741-certified 48V 10kW inverter featuring multiple protection functions. Both battery and inverter support WiFi and Bluetooth remote monitoring, while closed-loop communication via the PYLON protocol ensures efficient and stable operation. The rack-mounted design allows for easy installation and supports up to 32 parallel battery expansions. Automatic UPS switching ensures uninterrupted power during outages, making it ideal for home off-grid and backup use.

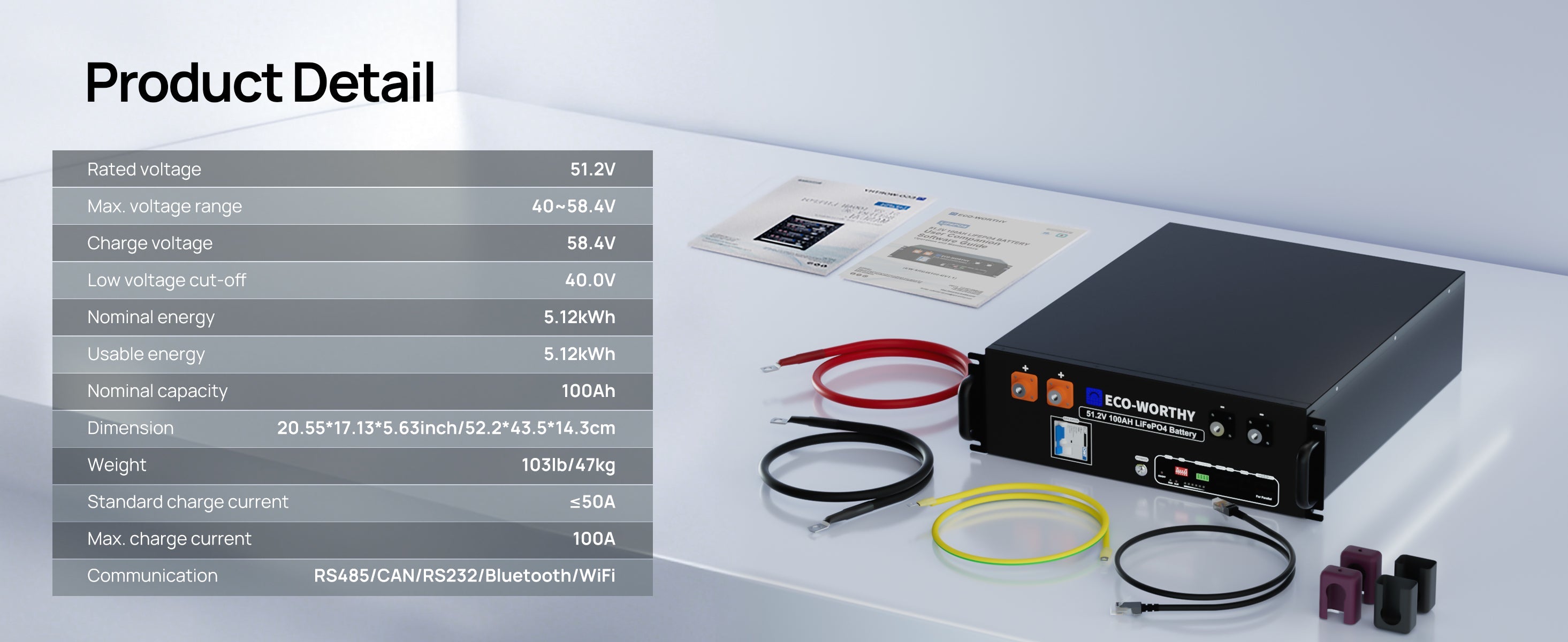

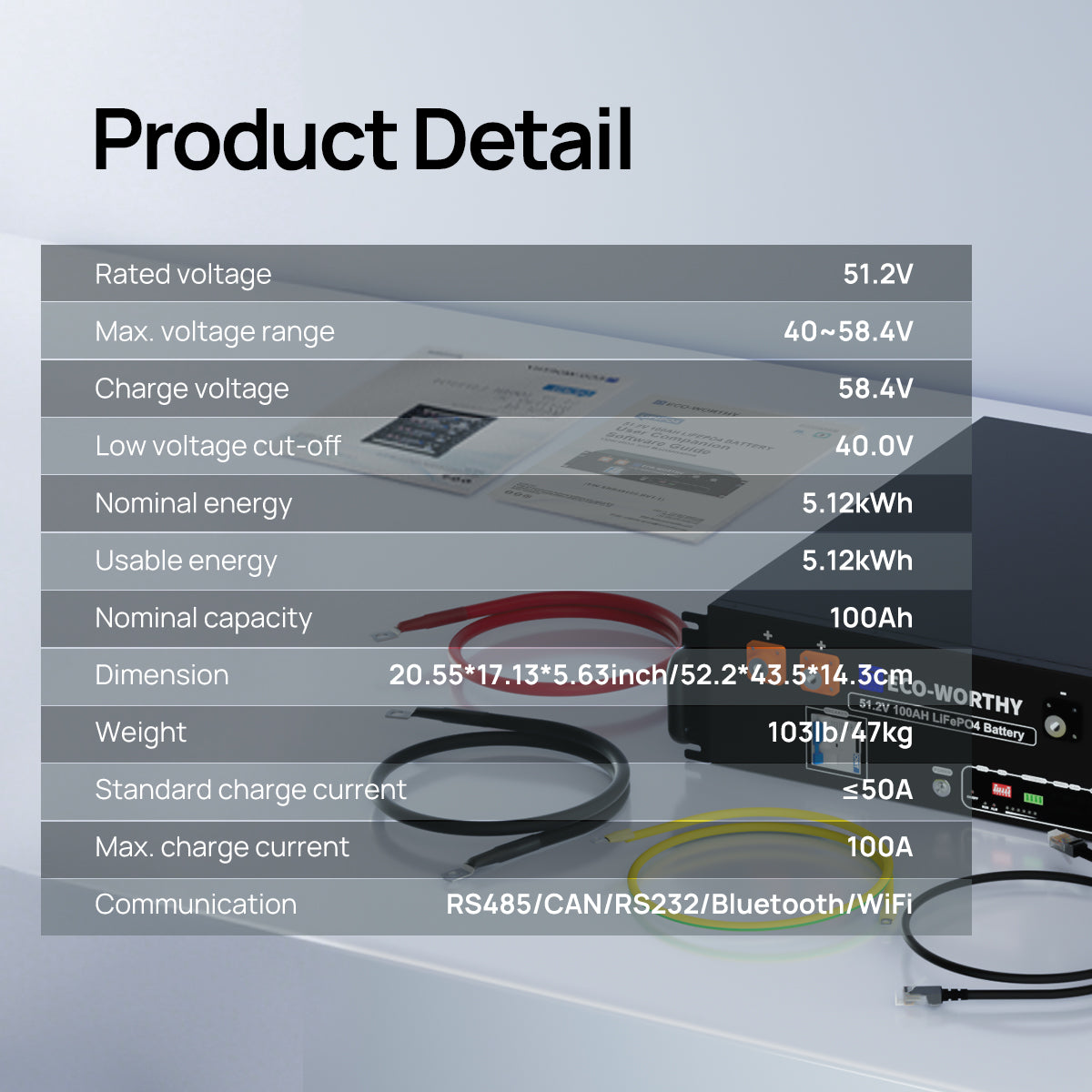

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

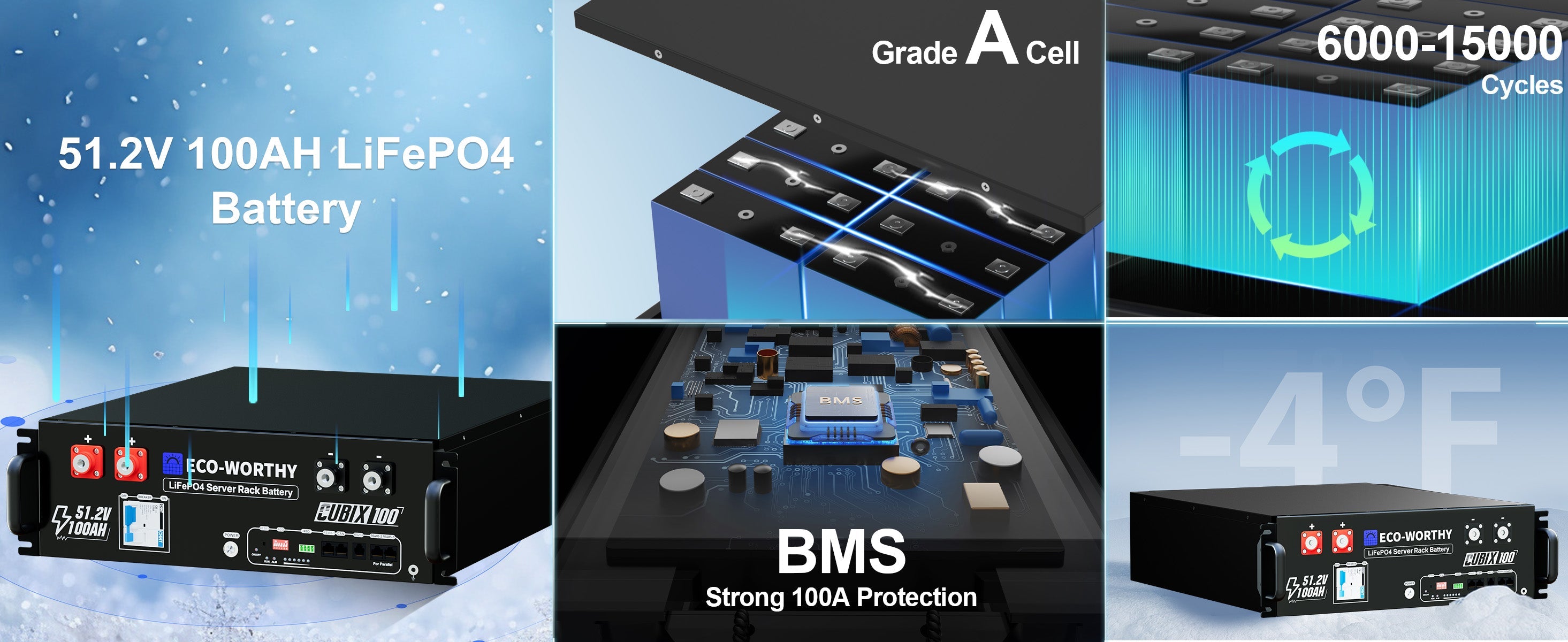

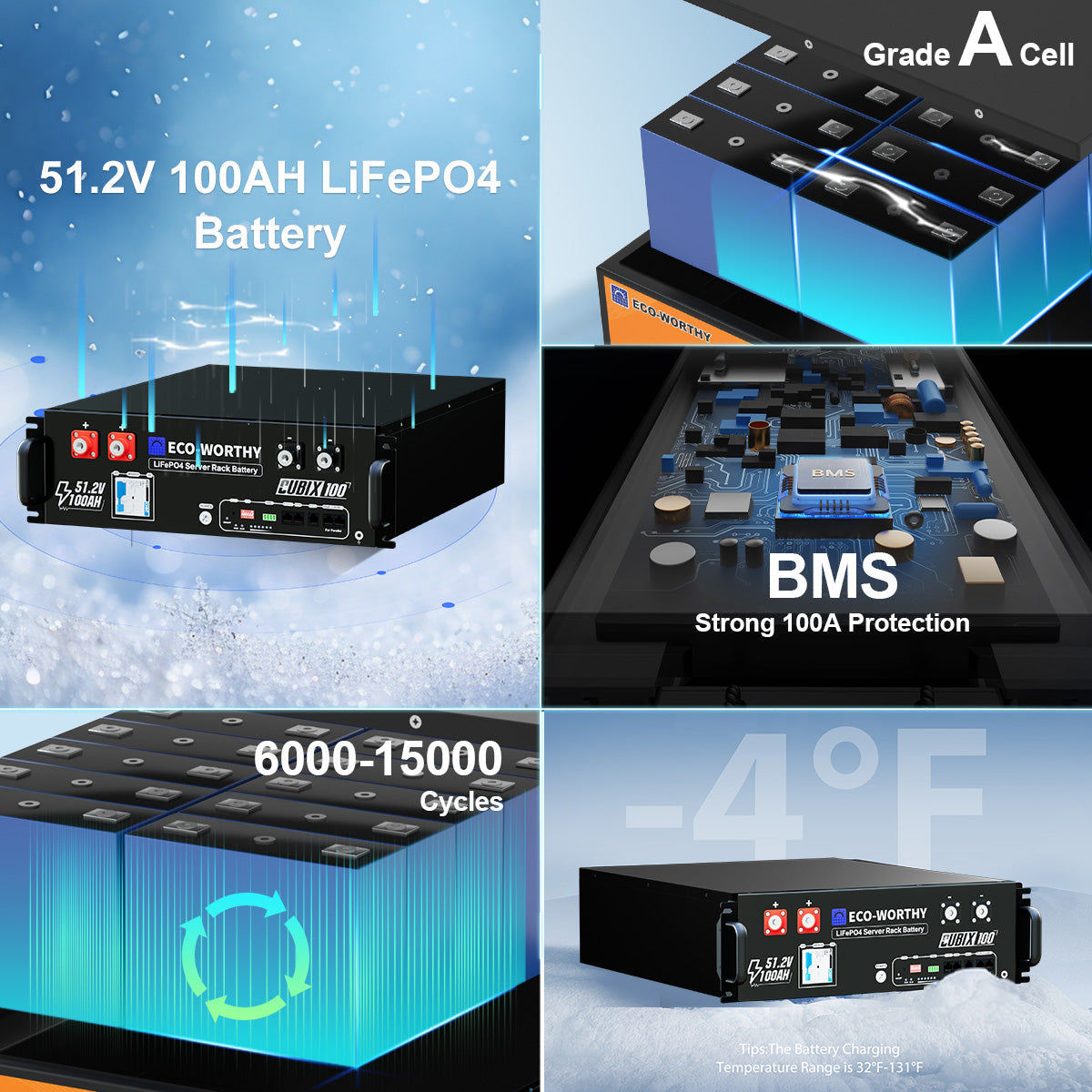

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

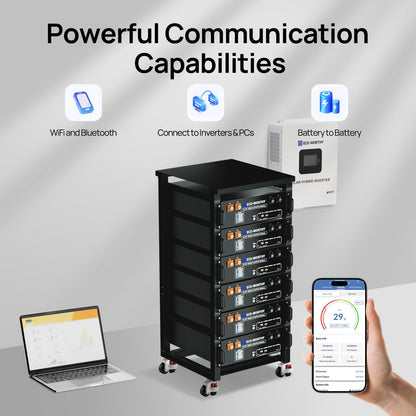

What communication methods are supported?

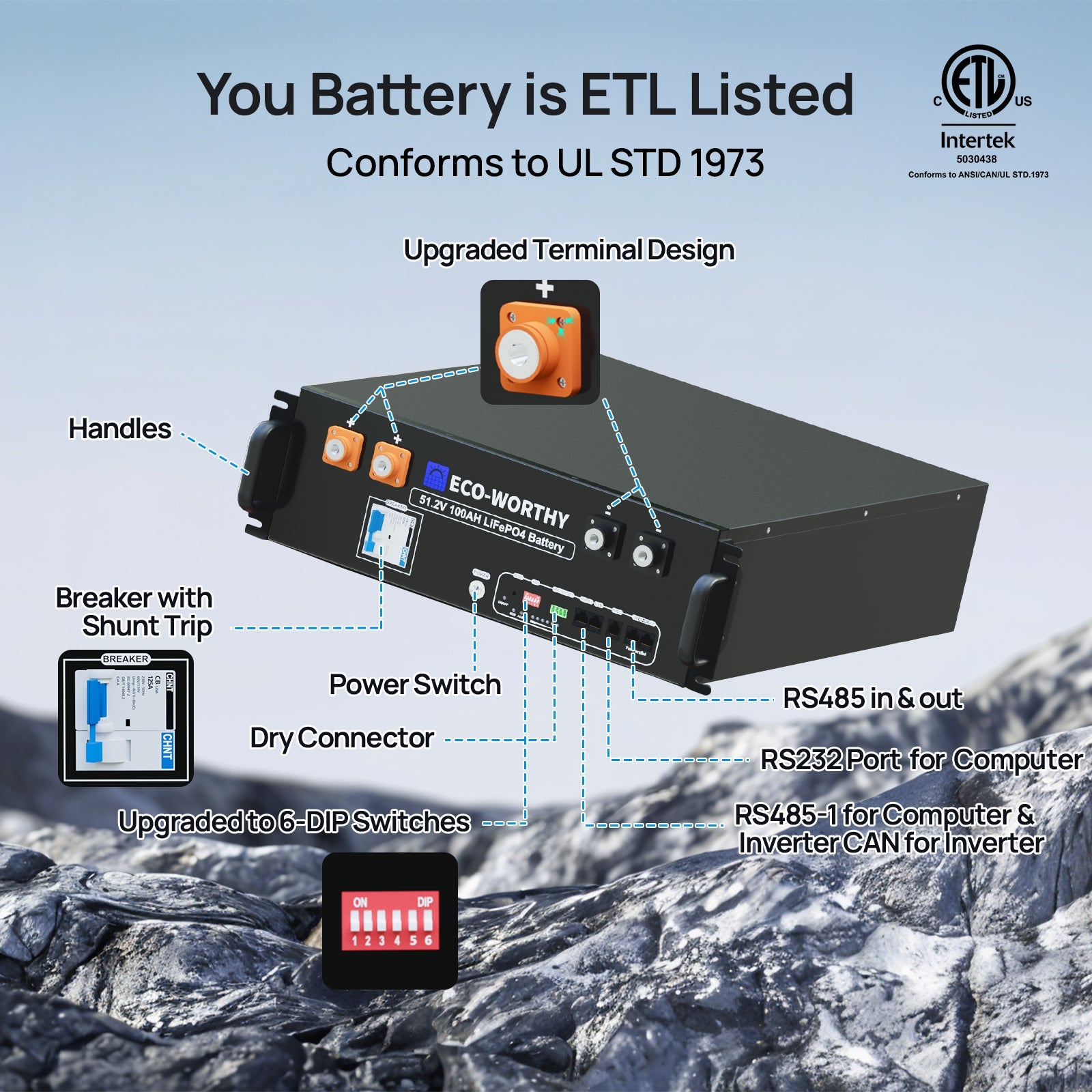

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
