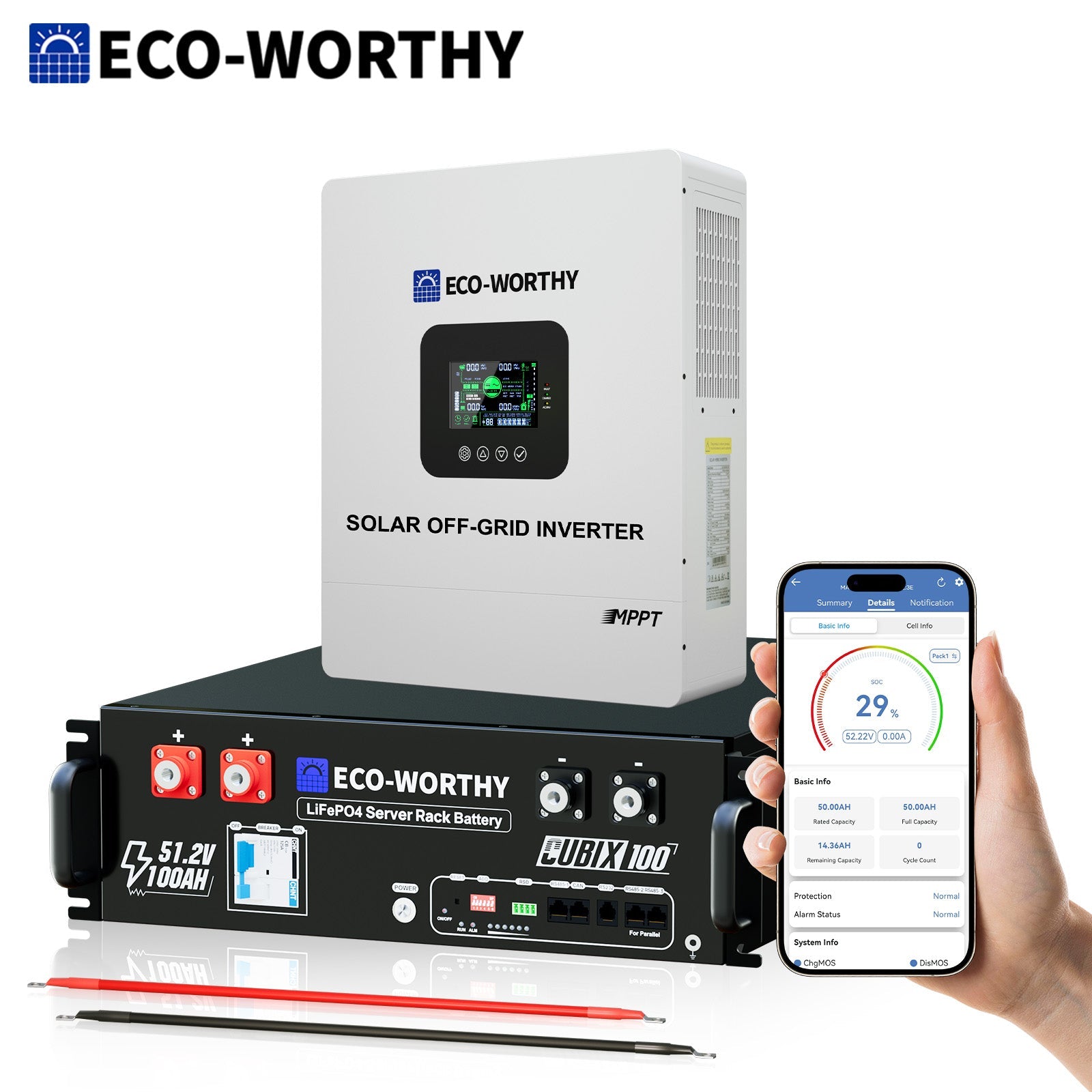

Home Collection ECO-WORTHY 5kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 5000W AIO Inverter
  • ECO-WORTHY 5kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 5000W AIO Inverter - BESS

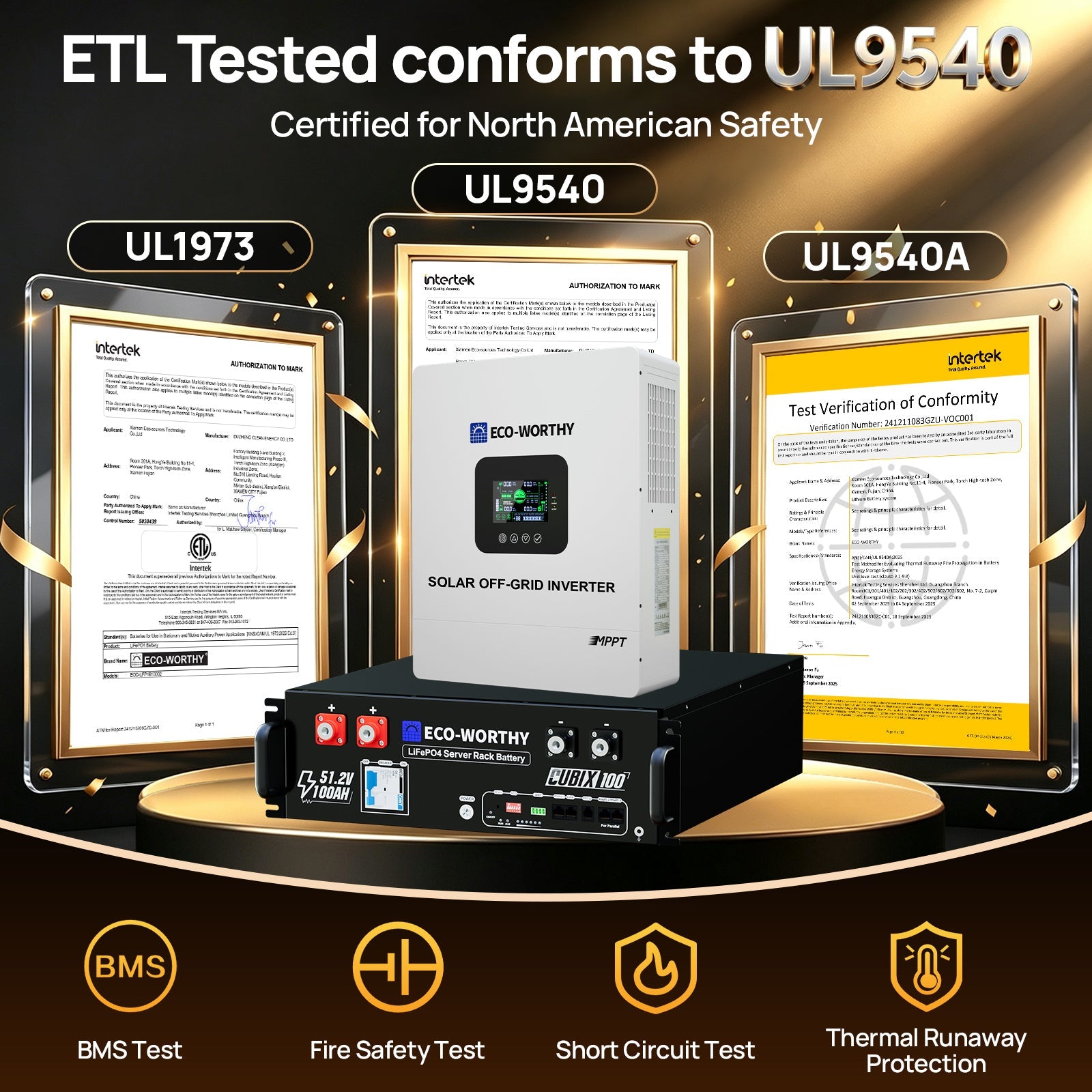

  • ECO-WORTHY solar off-grid inverters shown in a promotional graphic, including a black inverter unit in the foreground and white inverter boxes behind it inside framed certification documents labeled UL9540, UL1973, and UL9540A. Text at the top states ETL tested conforms to UL9540 and certified for North American safety.

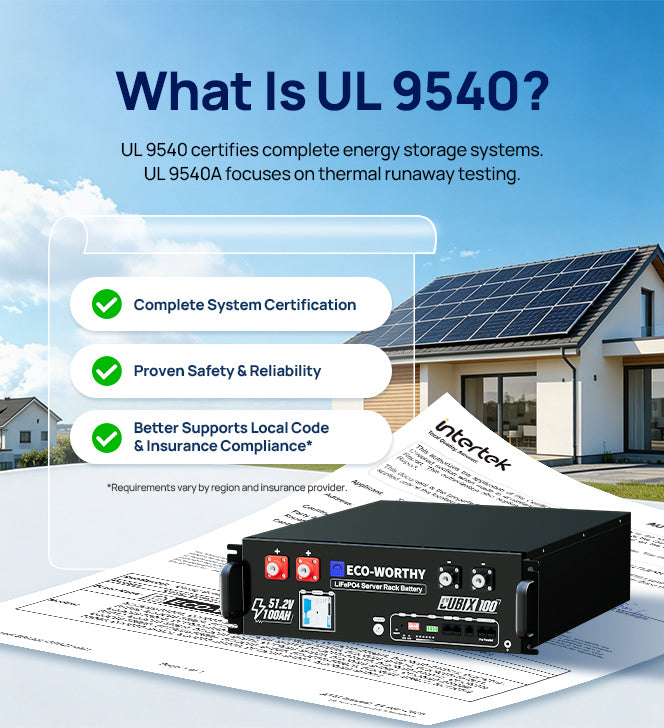

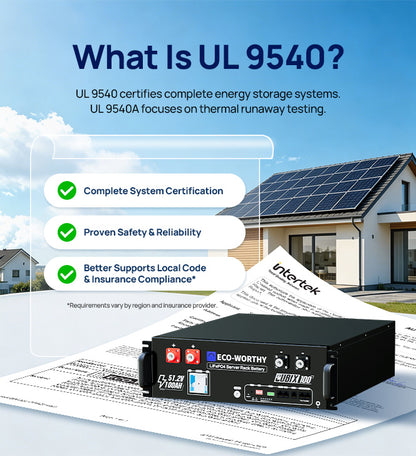

  • UL 9540 certified Eco-Worthy Solar Inverter Plus 12V/24V battery system shown in front of a house with solar panels, with text explaining UL 9540 certification and three feature callouts.

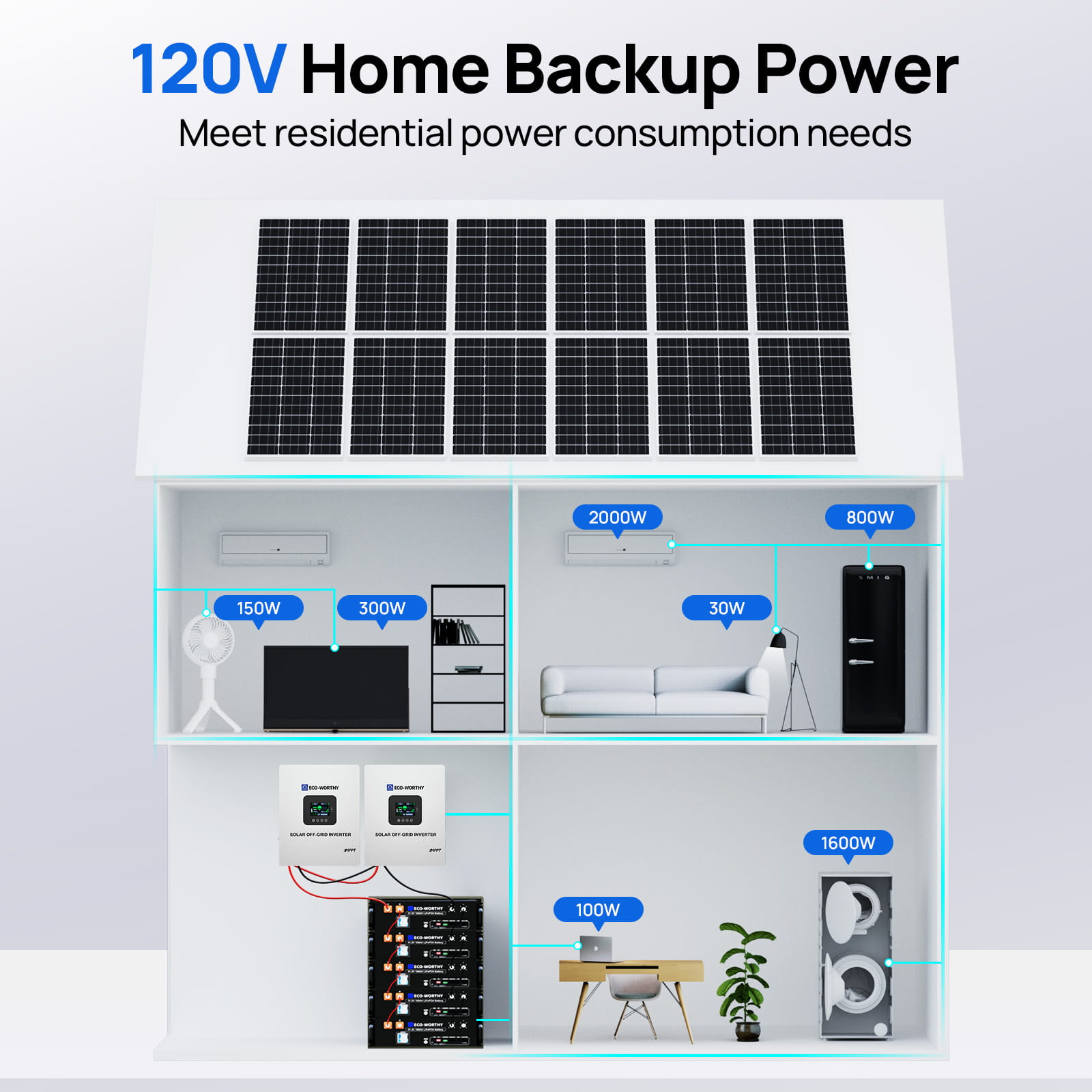

  • Solar panel system with power consumption diagram for home backup power.

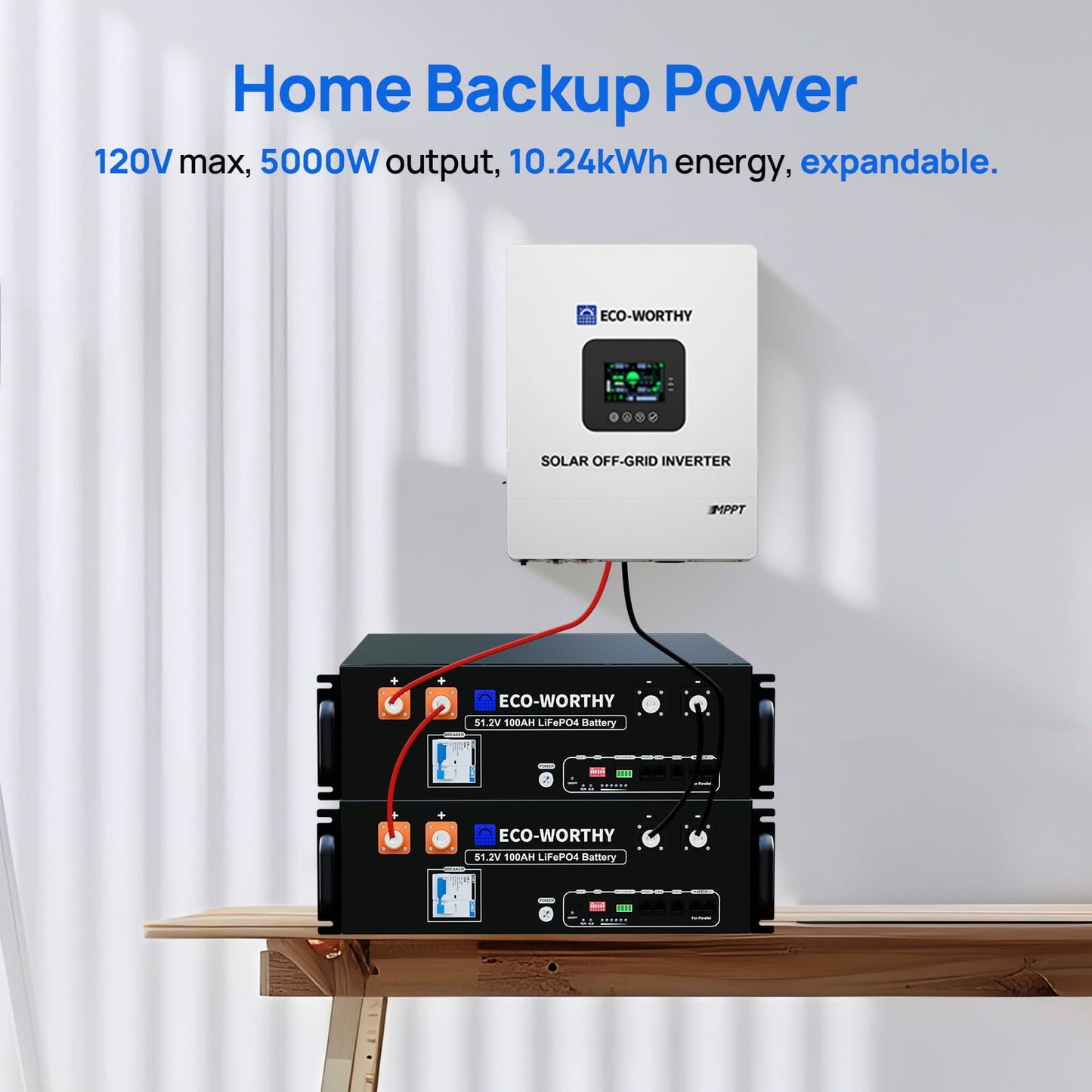

  • ECO-WORTHY home backup power system with inverter and battery on a wooden surface against a white curtain background.

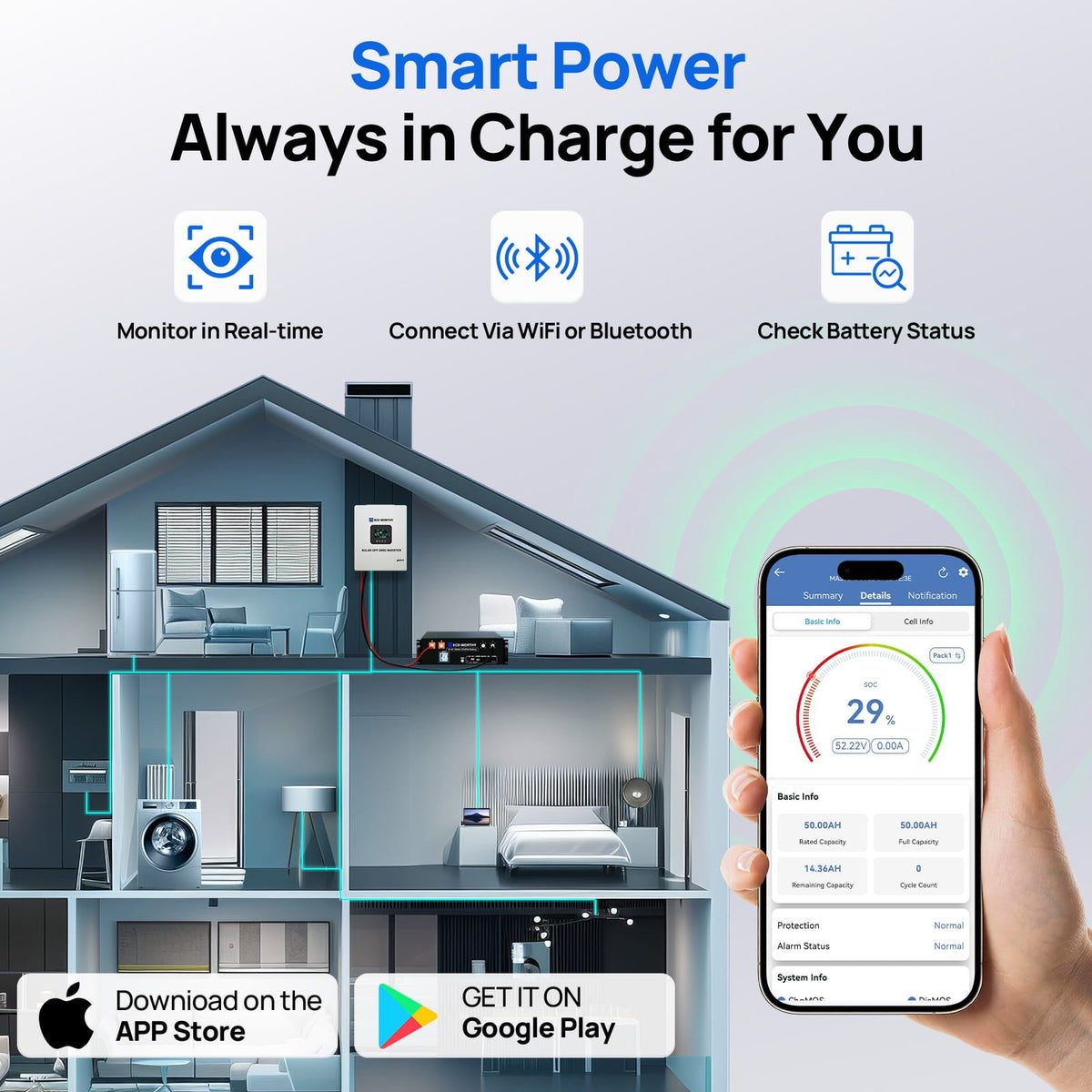

  • Smart home system with smartphone app displaying power monitoring features.

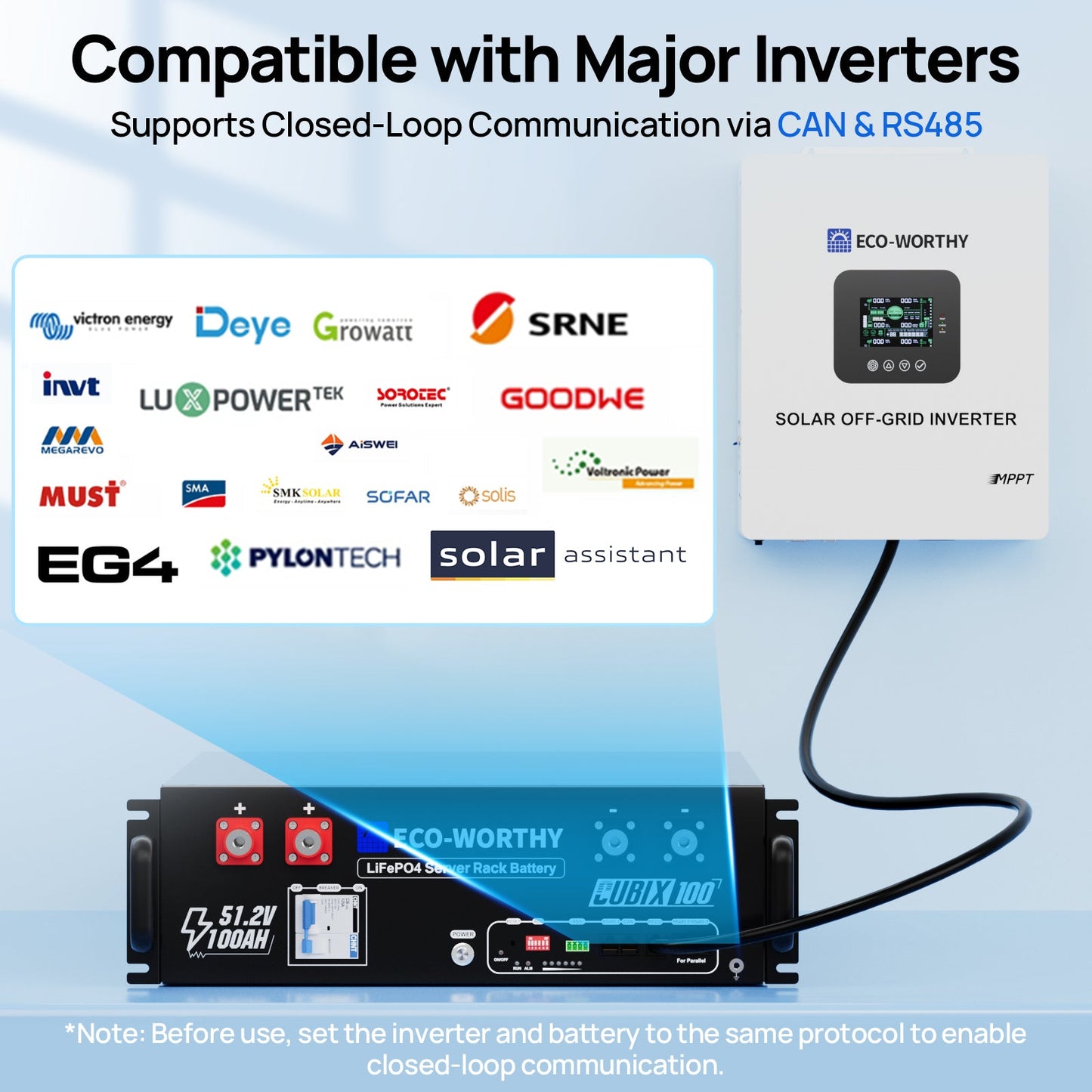

  • Solar off-grid inverter with compatibility logos on a blue background

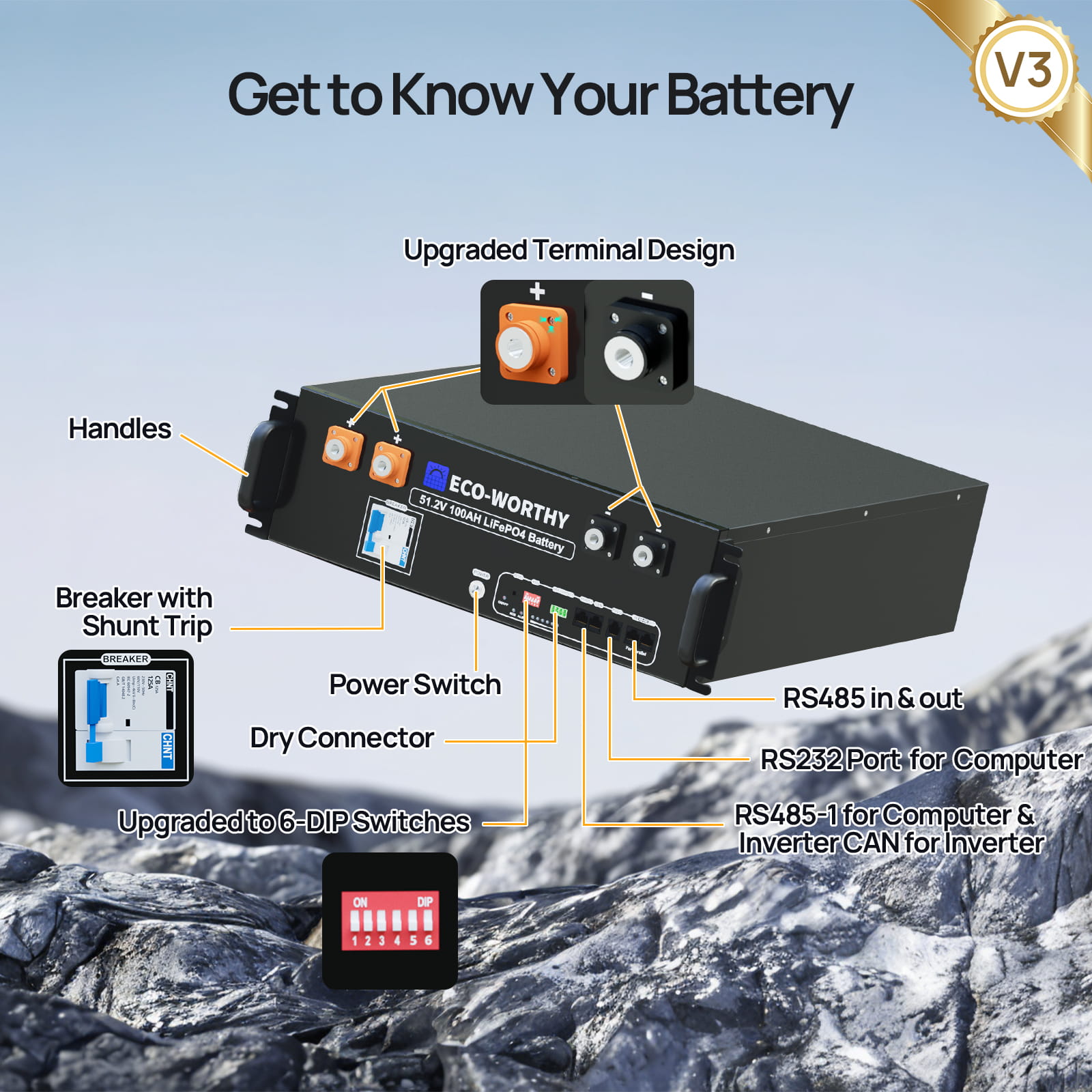

  • ECO-WORTHY 48V 100Ah LiFePO4 Home Backup Power with labeled features against a mountainous background

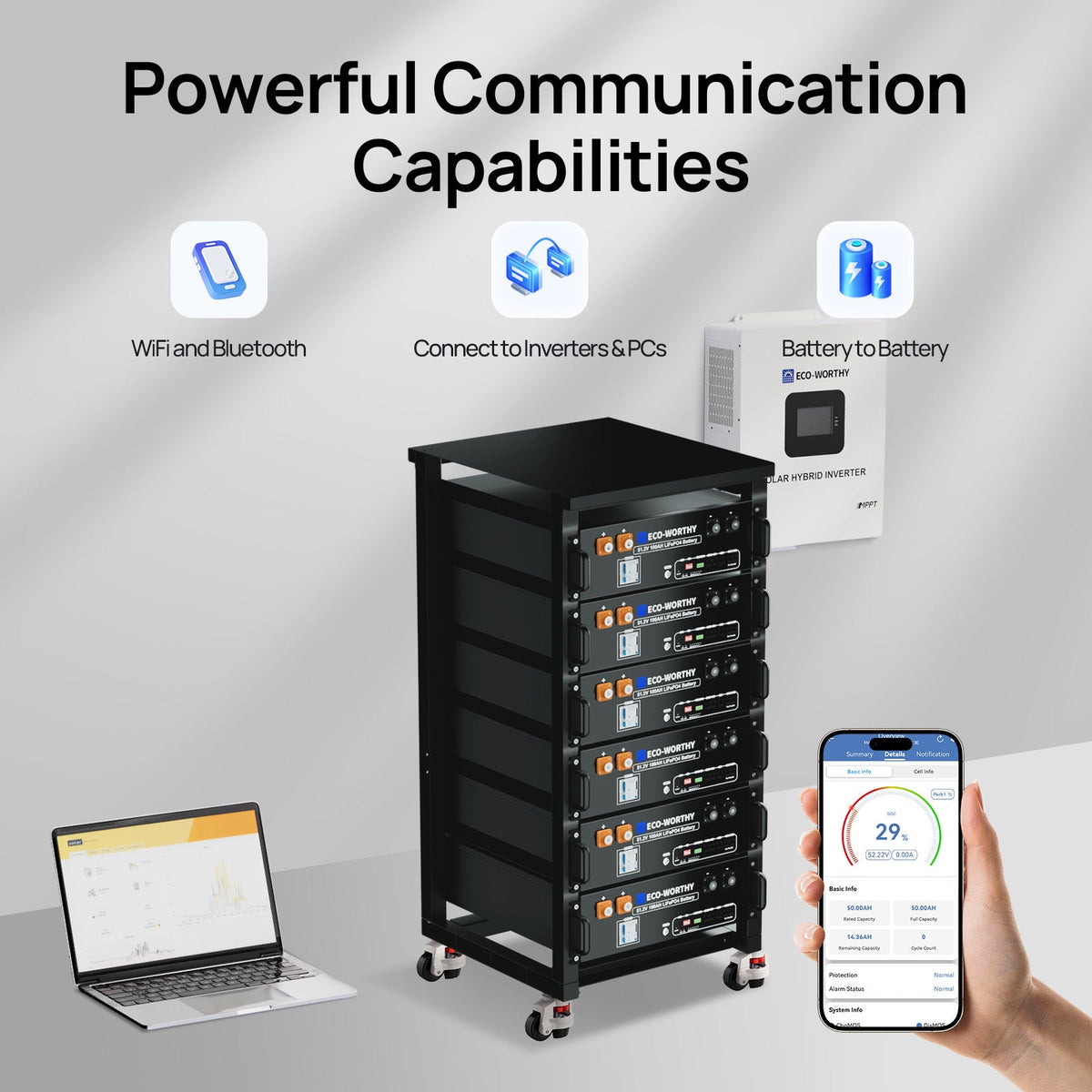

  • Storage unit with battery packs, laptop, and smartphone displaying communication capabilities on a gray background.

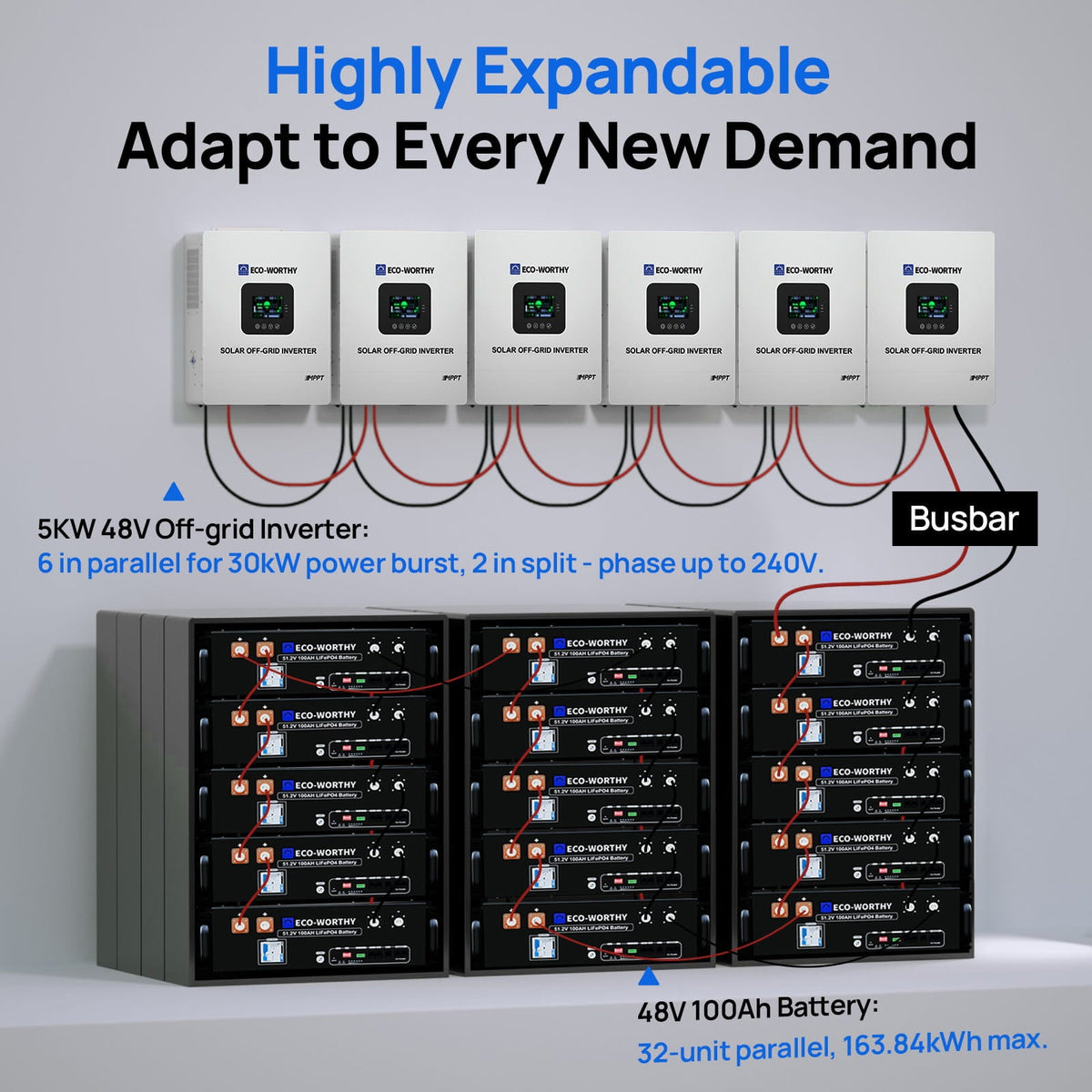

  • Highly expandable power system with inverters and batteries on a gray background

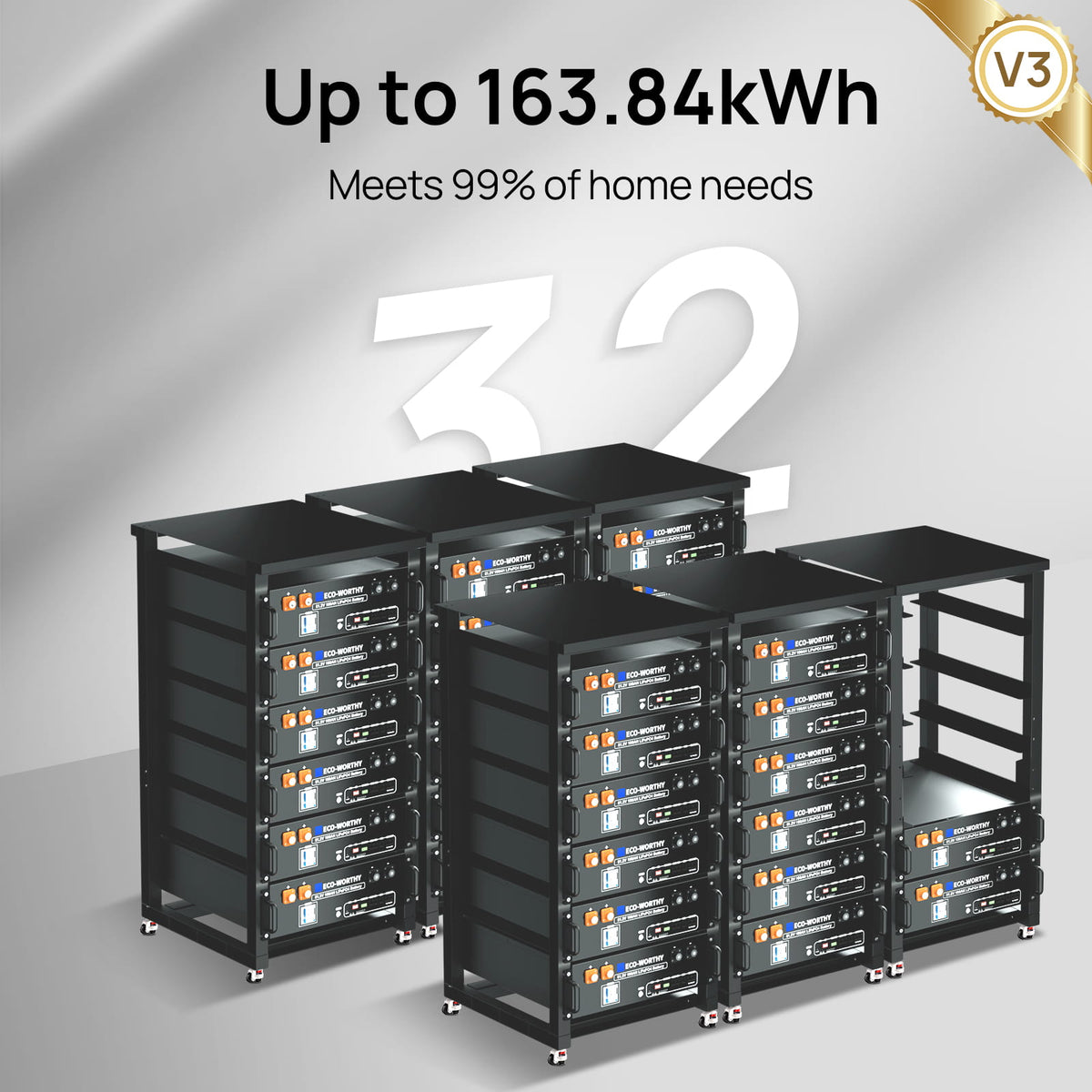

  • Stack of battery packs with text indicating capacity and meeting home energy needs

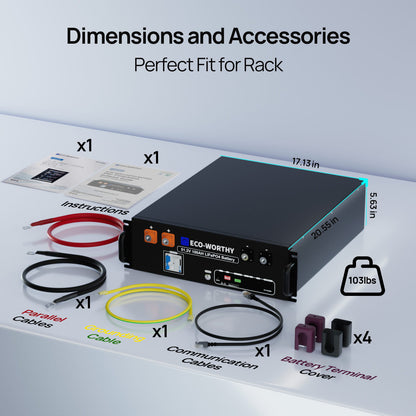

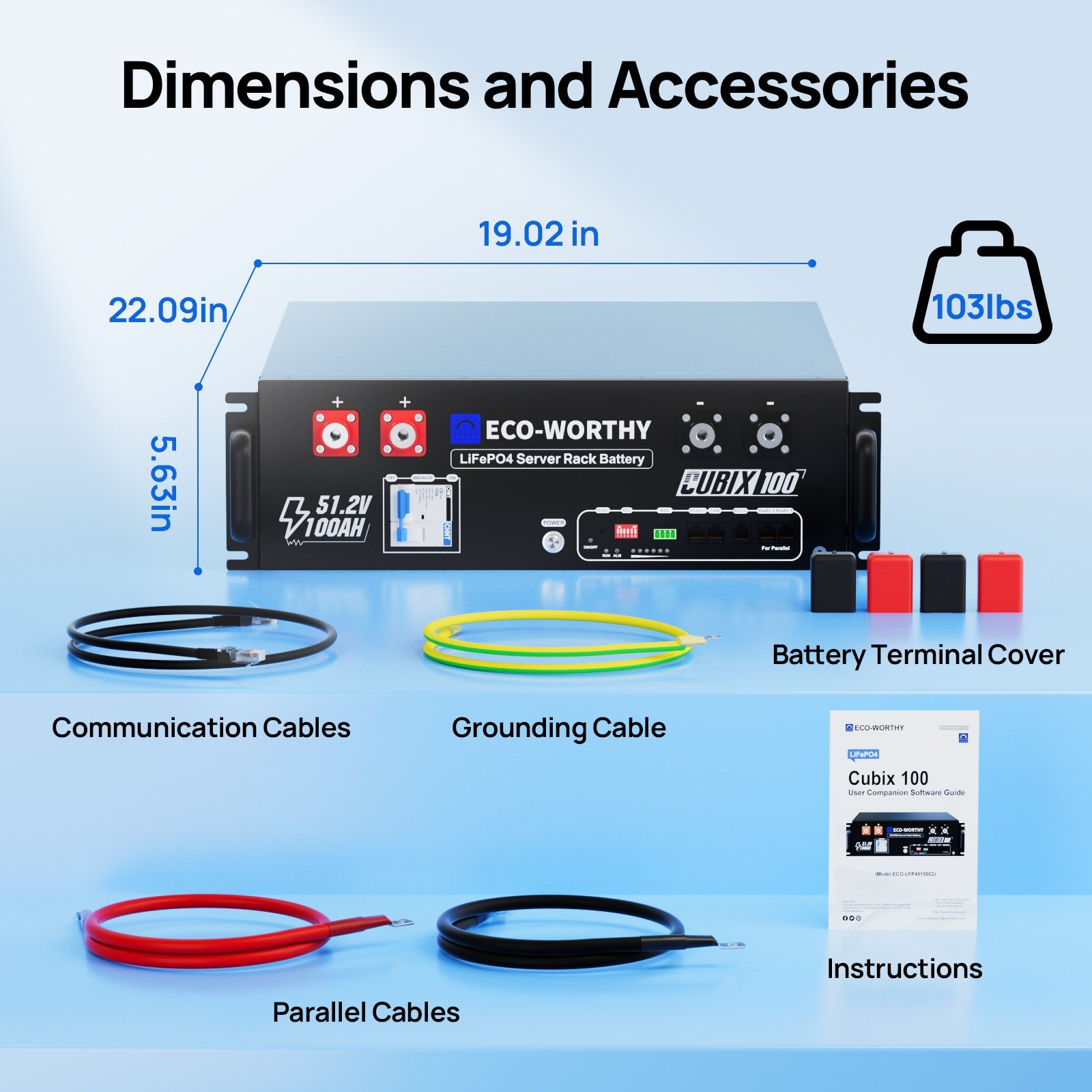

  • ECO-WORTHY server rack battery with dimensions, accessories, and packaging on a blue background

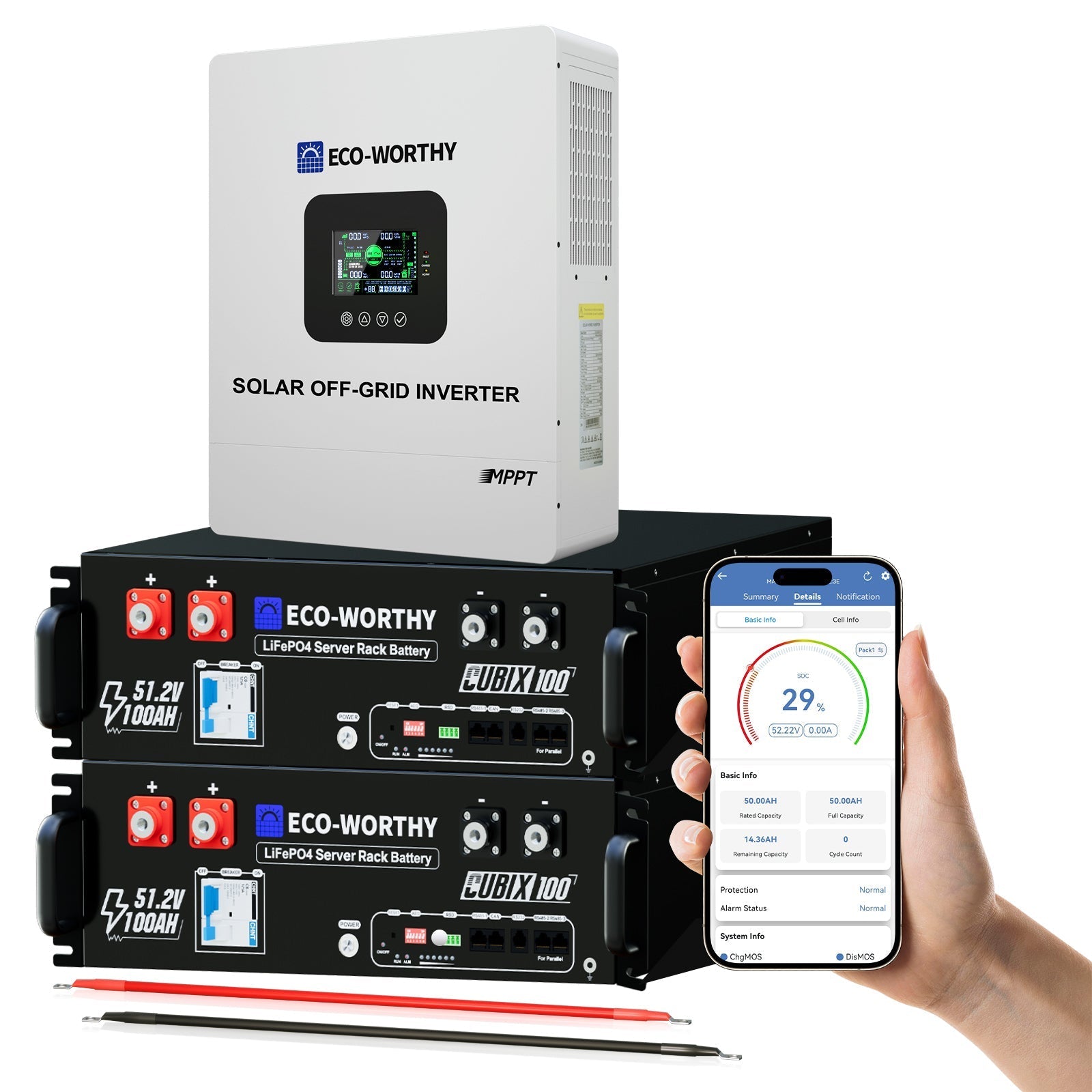

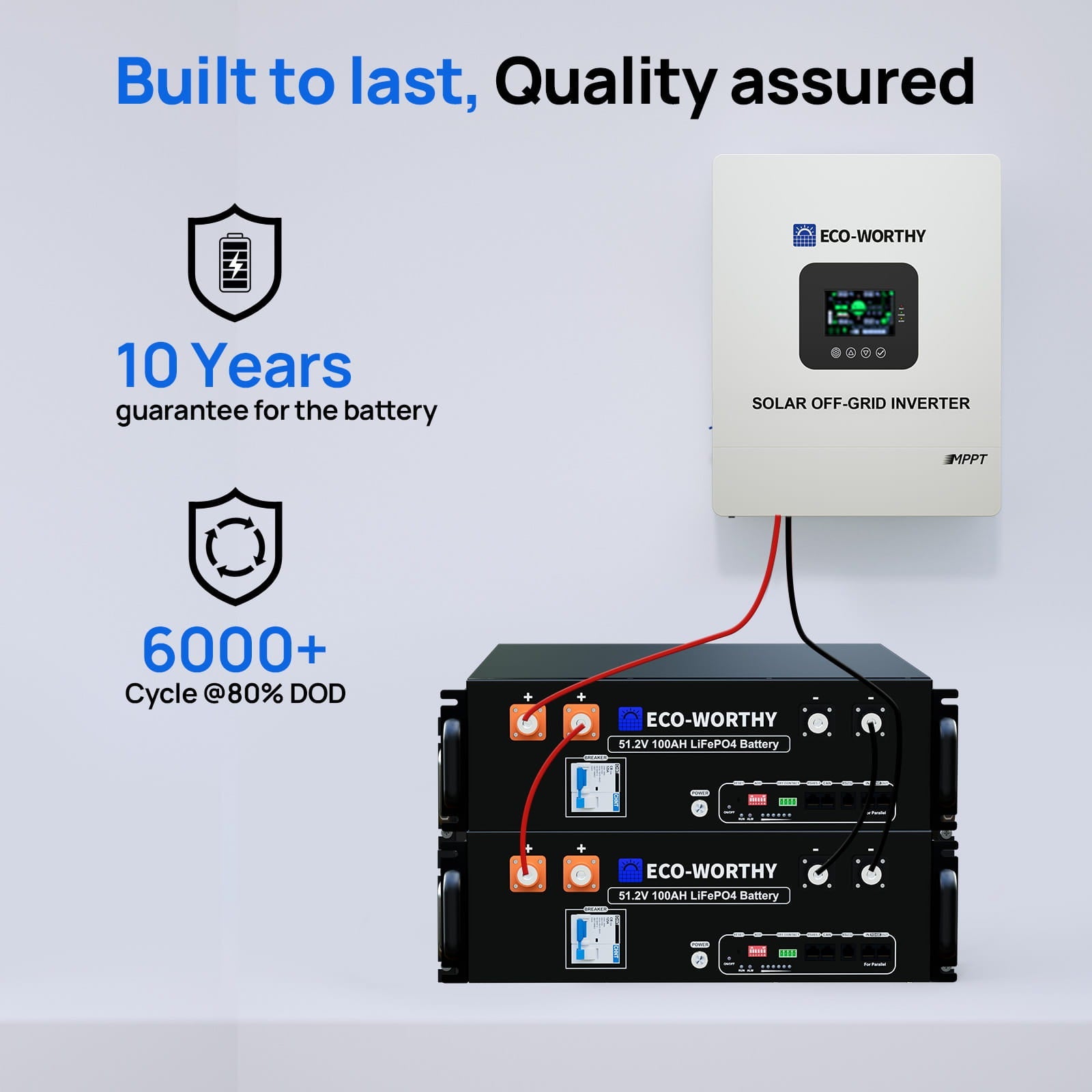

  • ECO-WORTHY solar off-grid inverter with batteries on a light gray background
Pictures
Videos
Monthly Sale

ECO-WORTHY 5kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 5000W AIO Inverter

ECO-WORTHY 5kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 5000W AIO Inverter

C$2,019.98
C$2,019.98 C$3,999.98
Sale Sold out

SKU:

CA-L03SRNK5KUS3U1U-1

[Reliable Quality and Support] This energy storage system is UL 9540 system-level certified by Intertek. For more information or to request compliance documentation, please contact our support team.
[Smart 48V 100Ah Battery | UL1973] Featuring a compact rack-mount design, it supports Bluetooth/Wi-Fi monitoring, a 125A circuit breaker, and low-temperature charging protection. It can be expanded to 32 units in parallel.
[Scalable 5kW Inverter | UL1741] This inverter features 5.5kW PV input, 5kW AC output (120Vac), and 10kW surge power, easily starting high-power devices such as water pumps and air conditioners. It has a built-in Wi-Fi module and can be expanded to 6 units in parallel.
[Easy DIY Installation] The inverter and battery use closed-loop communication, making installation simple and intuitive. No complex parameter configuration is required, allowing even beginners to easily install an off-grid system.
[Ready to Use Immediately] This system provides 5kWh/10kWh of energy storage capacity, making it an ideal backup power source for use during power outages (lighting, water pumps) or for powering cabins and workshops. Includes a complete installation guide and comes with a 30-day return policy.

Read more
Style

Total price

C$2,019.98
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$504.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$2,019.98 C$3,999.98
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
ECO-WORTHY 5kW Off-Grid Power Bundle: Reliable Energy Independence

This Energy Storage System is UL 9540 certified at the system level through Intertek. It combines a UL1741-certified 5kW off-grid AIO inverter with a UL1973-certified 48V 100Ah server rack battery, delivering 5.12kWh of expandable storage. Featuring plug-and-play setup with Bluetooth/Wi-Fi monitoring and compatibility with Victron, Growatt, and other major inverters, it's perfect for DIY home backup, cabins, or RV power. With 6000 cycles at 80% DOD, a 10-year warranty, and seamless parallel expansion up to 32 batteries, this bundle offers professional-grade performance with beginner-friendly operation.This kit is the best value-for-money UL 9540-certified AC ESS on the market.

Technical Specifications

5kW 48V All-in-one Inverter
Cubix100 | 48V 100Ah Server Rack Battery

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protection

Circuit breaker

Efficiency

>95%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

5000W

Rated Output Voltage

120VAC

Peak Power

10000W

Bypass Breaker

63A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode

Load ≤25W

Battery Type

Lead acid or lithium battery

Max Charge Current

60A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

Max Input Power

5500W

PV Charging Current Range

0-80A(can be set)

Max PV Open Circuit Voltage

500VDC

PV Operating Voltage Range

60-145VDC

MPPT Voltage Range

120-450VDC

Battery Voltage Range

40-60VDC

Charging Short Circuit Protection

Blown fuse

Certification

UL1741

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Maximum Charge Voltage

58.4V

Cycle Life

≥6000 cycles @ 25℃, 0.5C charge / 0.5C discharge, ≥80% SOH

Battery Balancing Methods

Passive Balancing

Pre-Charge Resistor

Yes

Communication Port

CAN/RS485/RS232

Max. Parallel Number

32pcs

Bluetooth & Wi-Fi Signal Distance

≥49 feet/15m

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

47kg/103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10-Year Warranty

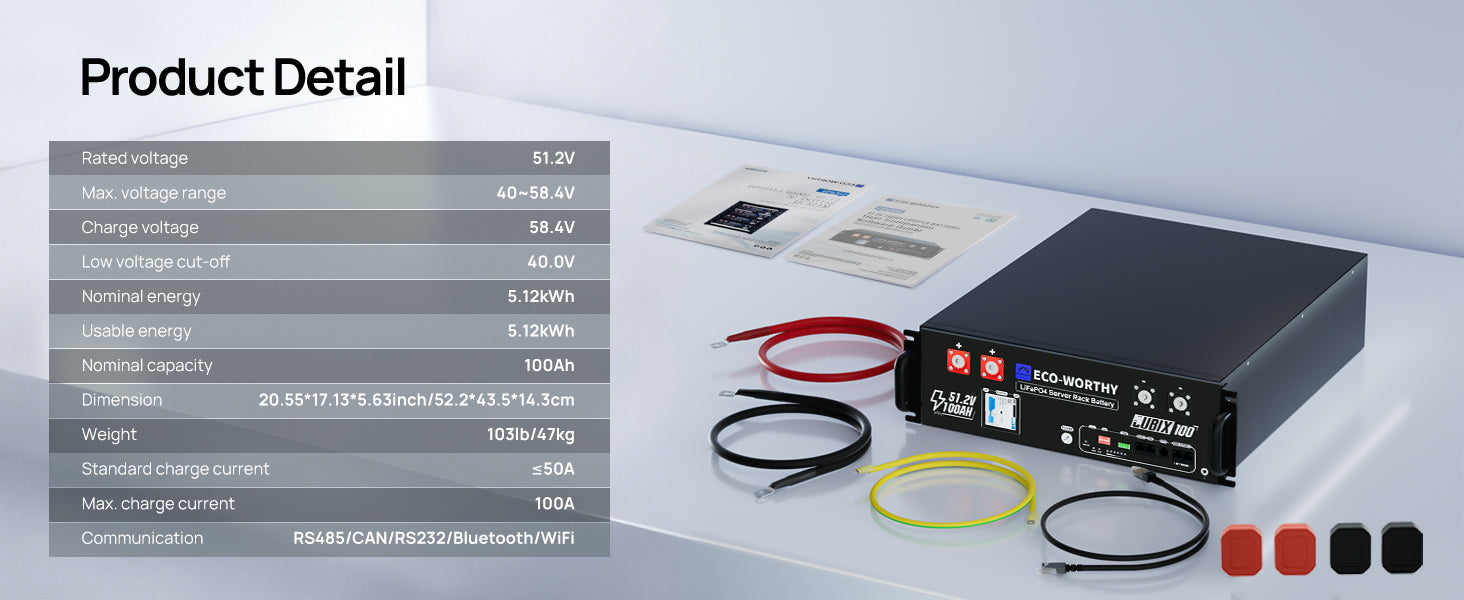

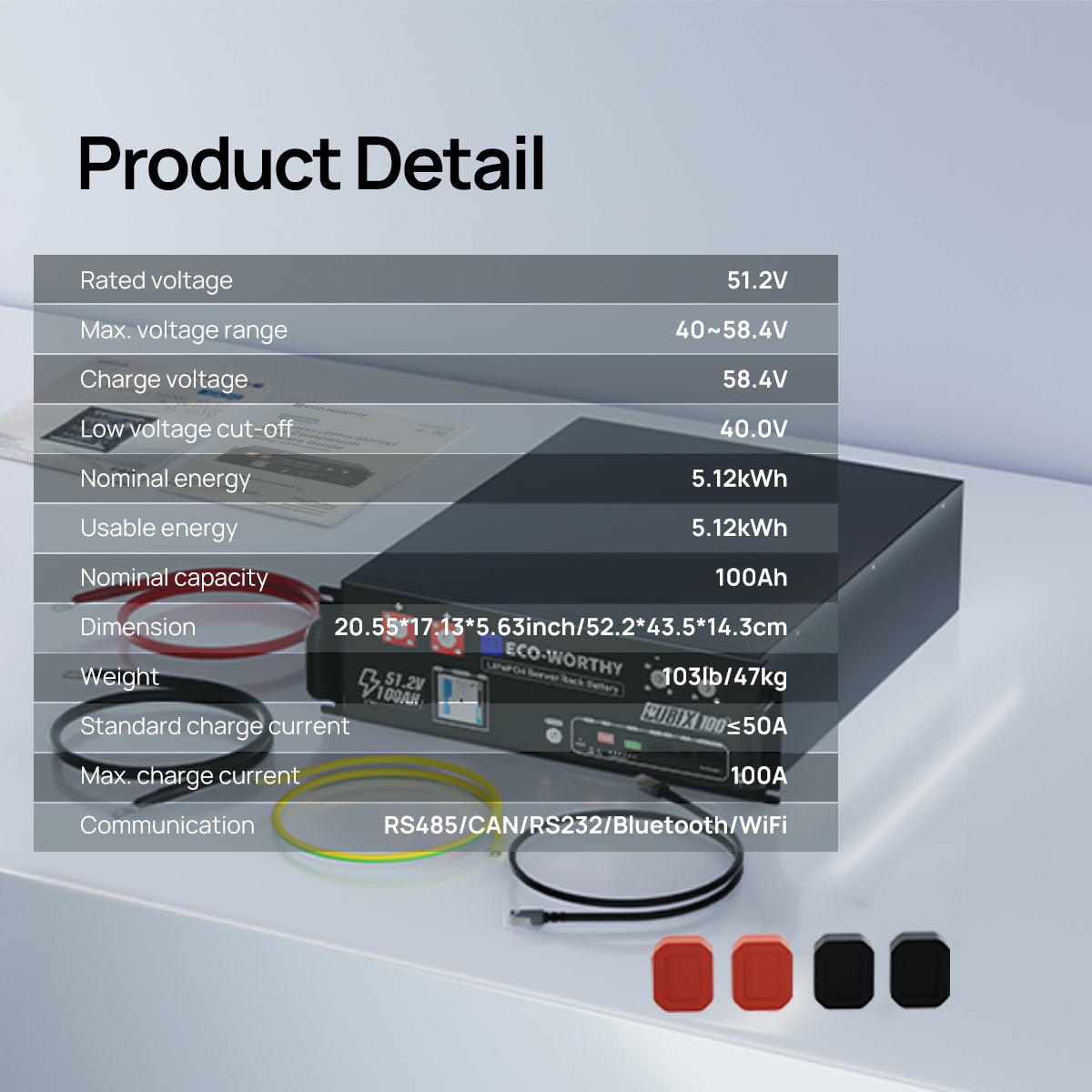

Power supply unit with cables and documentation on a white surface, featuring technical specifications.Product detail of a power supply unit with specifications on a gray background

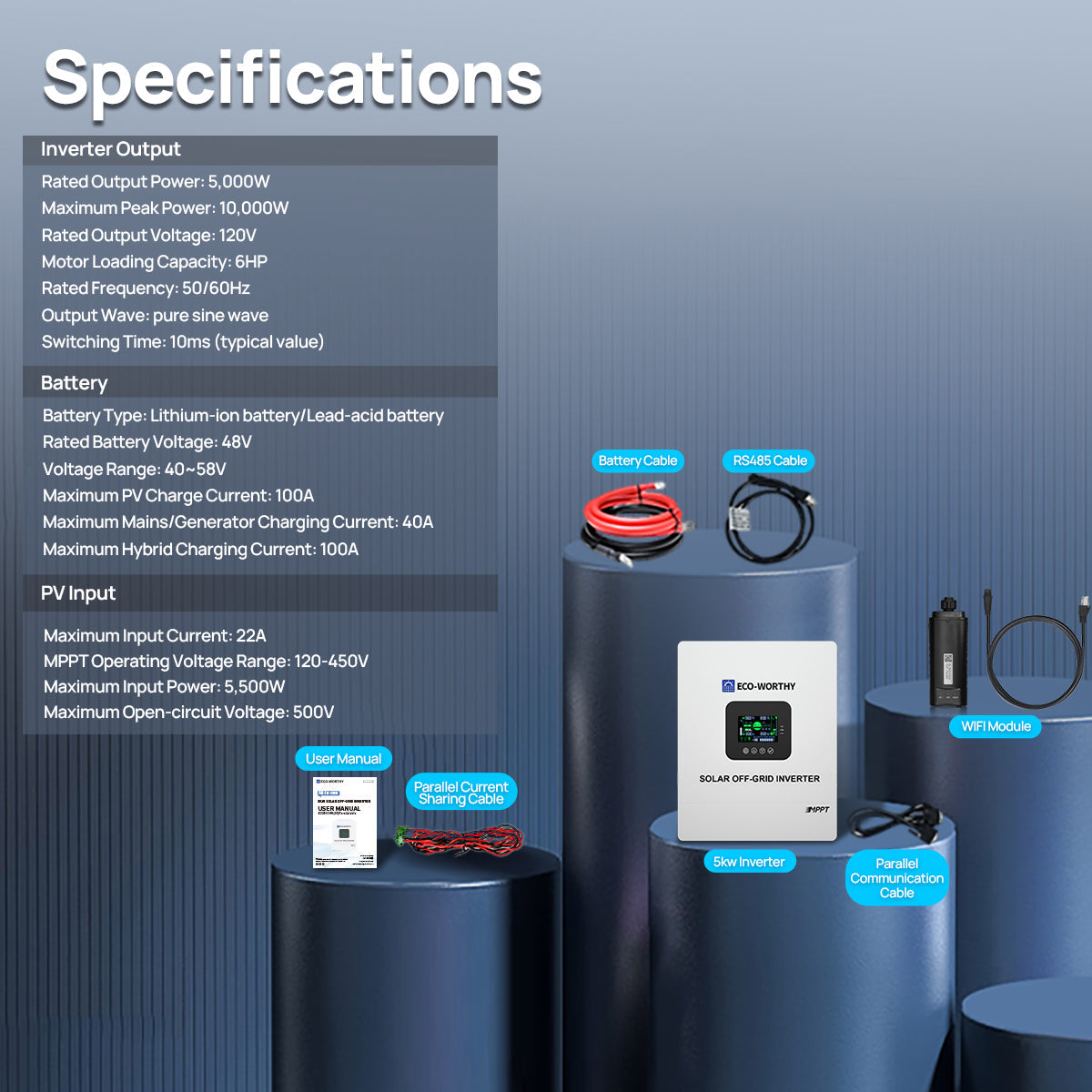

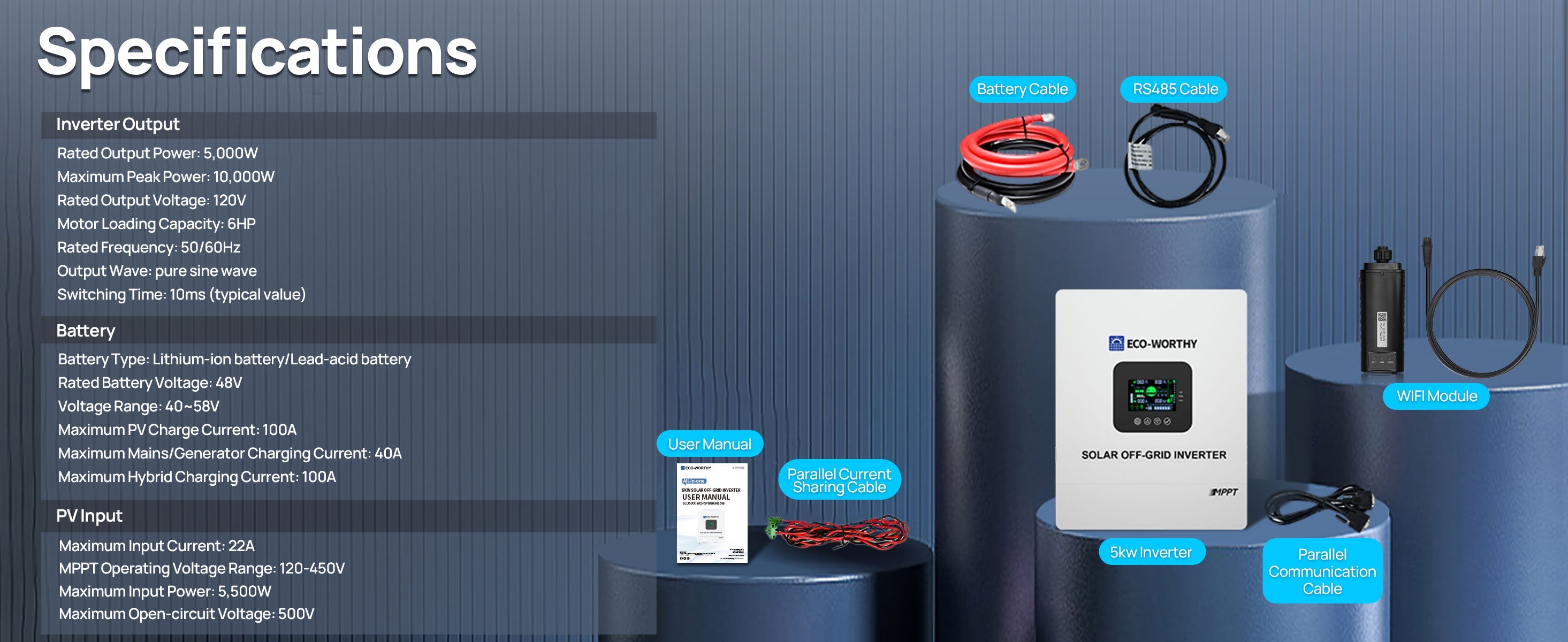

Inverter with labeled specifications on a blue background5kw Inverter with specifications displayed on a blue background
Promotional banner for building your own power system with various components and text.Advertisement for DIY power system with images of battery storage systems.

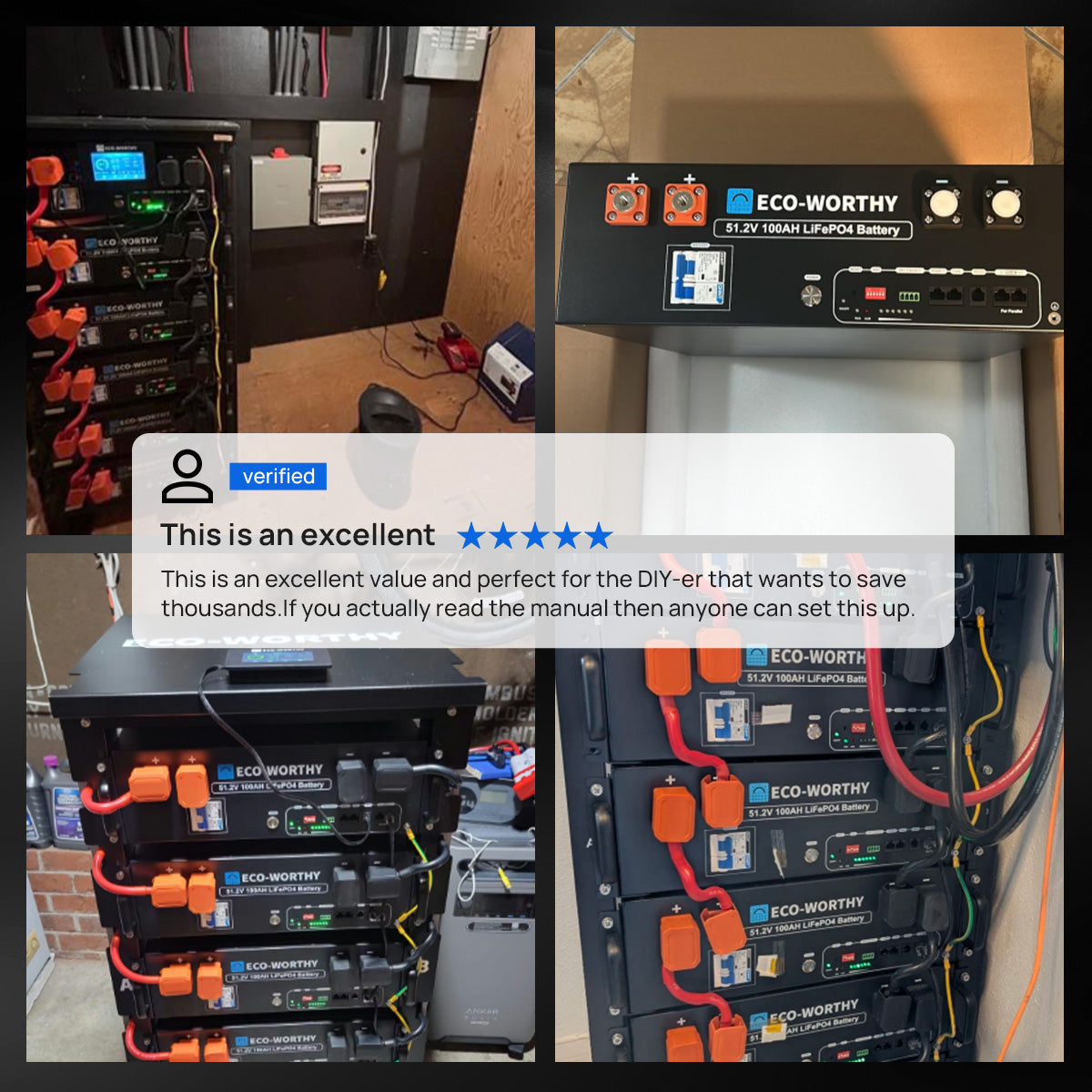

Promotional graphic for top KOL picks and real setup with Eco-Worthy products.Collage of images featuring a person with text 'Top KOL Picks' and 'Real Setup, Real Trust' with various setups and equipment.
Modern living room with home backup system features displayed on the right.Modern living room with home backup system features displayed on a white background
Modern office interior with tables and chairs, featuring energy consumption statistics.Modern office setup with furniture and equipment, featuring energy usage information on a white background.
Wall-mounted tool organizer with various tools and power consumption information displayed.Workbench with tools and energy usage information on a white background
Included in the Box

1 x 48V 100Ah Server Rack Battery

1 x 5kW AIO Inverter

1 x 48V 100Ah Server Rack Battery User Manual

1 x 5kW AIO Inverter User Manual

1 Pair of Battery Parallel Cables

1 x Screws Bag & Terminal Cover

1 x Grounding Wire

1 x Battery-Battery Communication Cable

1 Pair of Battery-to-Inverter Connection Cable

1 x WiFi Module

1 x RS485 Host Computer Cable

2 x 48V 100Ah Server Rack Batteries

1 x 5kW AIO Inverter

Battery Accessories

Inverter Accessories

Battery User Manual

Inverter User Manual

User manual

UL9540 ATM for ECO-WORTHY AC ESS

Download

ECO-WORTHY Cubix 100 LiFePO4 Server Rack Battery Manual-20260317

Download

ECO-WORTHY 5000W Solar Off-grid Inverter Manual

Download

ECO-WORTHY Cubix 100 UL1973 Certification

Download

ECO-WORTHY Cubix 100 Software Manual Online-2026.3.17

Download

ECO-WORTHY 5KW Solar Off-grid Inverter + Cubix 100 Server Rack Battery Installation Guide-251021

Download

ECO-WORTHY Cubix 100 BMS Tool&Drive for Windows

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
