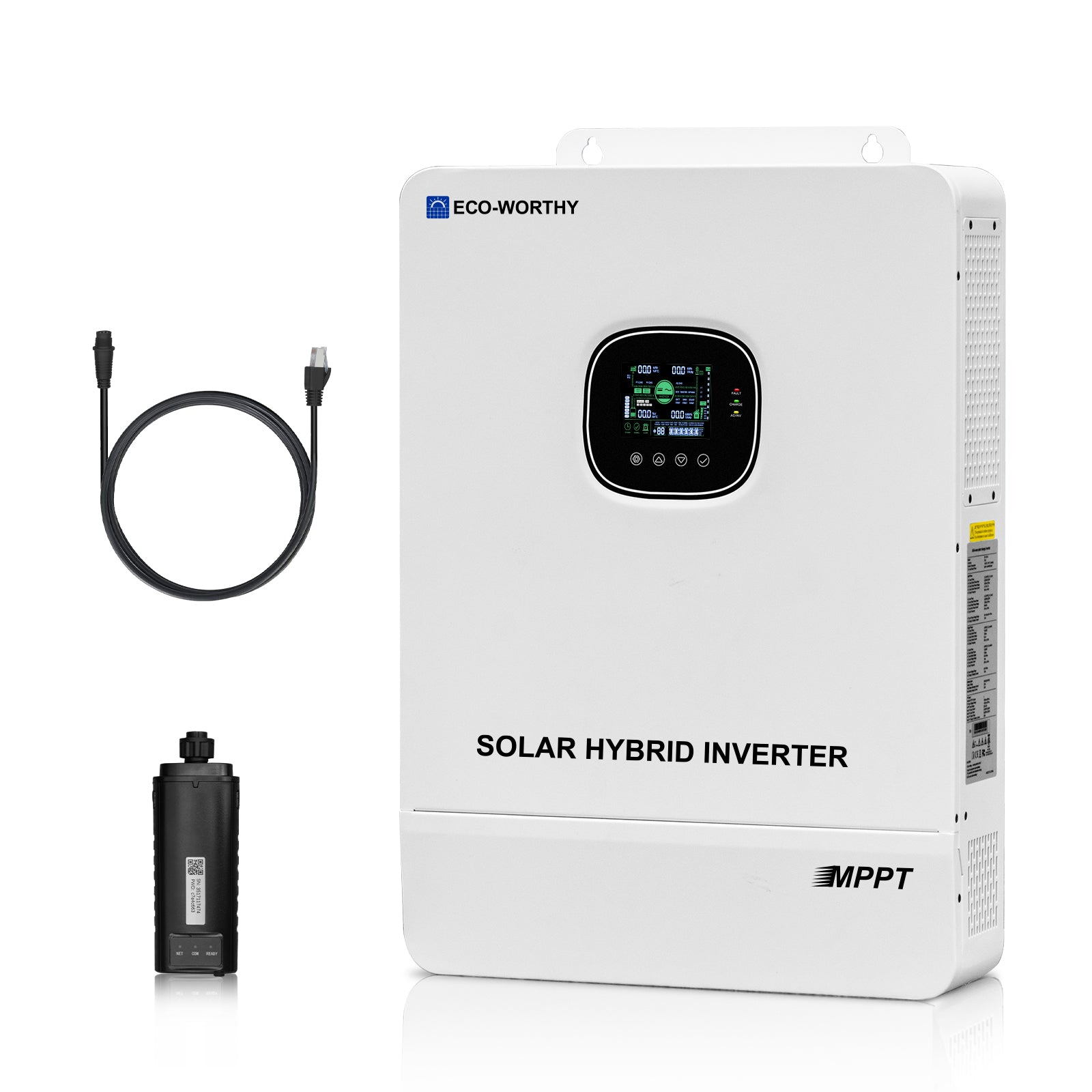

  • 10kW solar off-grid inverter with cable and battery on a white background

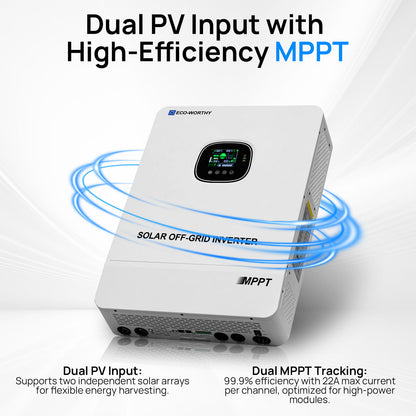

  • 10kW solar off-grid inverter with dual PV input and high-efficiency MPPT on a white background

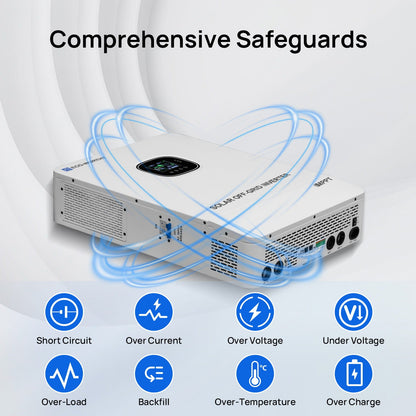

  • Power inverter with safety feature icons on a white background
  • 10kW solar off-grid inverter with compatibility text and battery types, person working at a desk.
  • Solar off-grid inverter with smartphone app for monitoring, featuring Eco-Weaver branding.
  • Modern house with solar panels and energy usage chart on a blue background

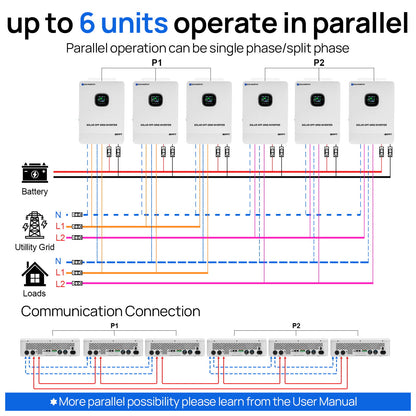

  • Diagram showing parallel operation of six units with battery, utility grid, and loads connections.
  • Solar panels with battery charging modes on a white background

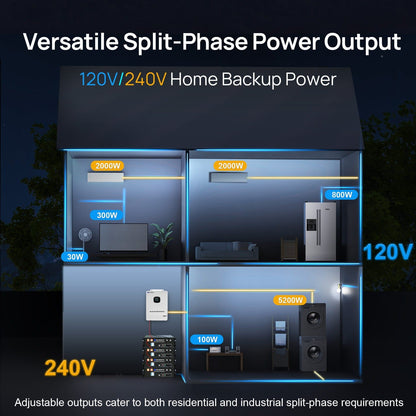

  • Diagram of a home backup power system with various power outputs on a dark background.
  • Person wearing a headset at a desk with text '1-on-1 Service' and '24 Hours' displayed.
Monthly Sale

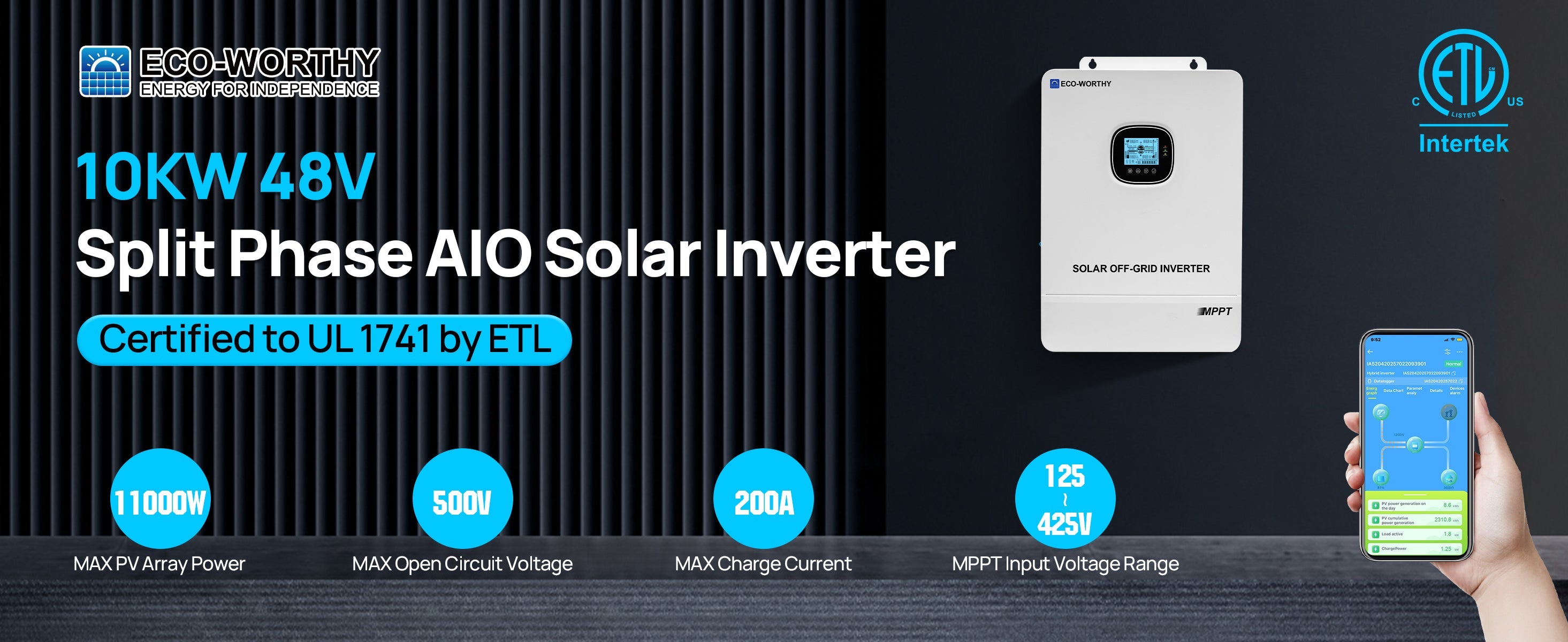

Eco-Worthy 10kW Solar Off-grid Split-phase AIO Inverter | 48Vdc to 120Vac/240Vac | 11000W@500V PV | UL1741

Eco-Worthy 10kW Solar Off-grid Split-phase AIO Inverter | 48Vdc to 120Vac/240Vac | 11000W@500V PV | UL1741

C$1,699.99
C$1,699.99 C$3,099.99
Sale Sold out

SKU:

L03SR10KWYTJ-1

[UL 1741 Certified] Tested and certified to UL 1741 standards, ensuring compliance with Canadian safety requirements.

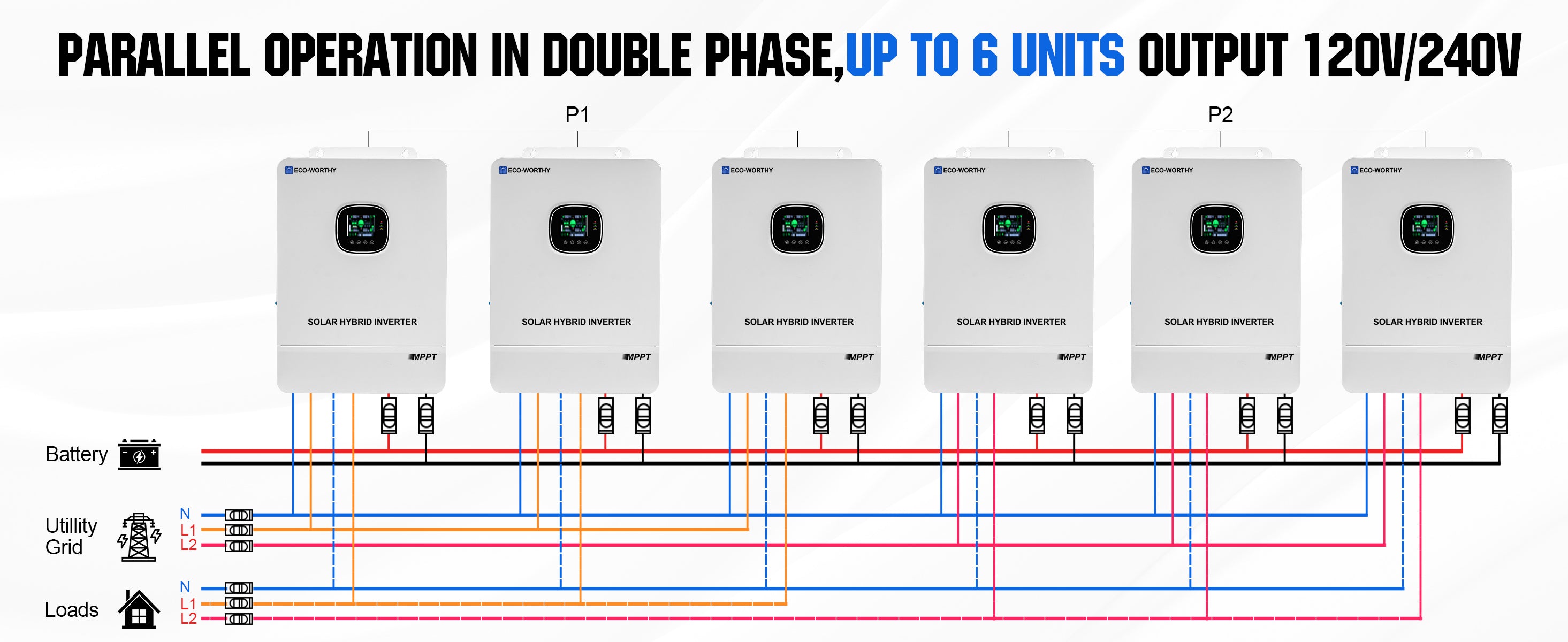

[Parallel Expansion Capability] Supports up to 6 units in parallel for a total output of up to 60kW. Compatible with single-phase and split-phase systems, each unit outputs 240V, while parallel configurations can deliver 120V or 240V to meet diverse power needs.
[Flexible Charging & Discharging Modes] Offers three output priority modes (Utility, Battery, PV) and four charging modes (Solar Only, Utility Priority, Solar Priority, and Hybrid Utility + Solar), allowing users to optimize energy usage based on local grid conditions and reduce electricity costs.
[High-Performance Specifications] Features up to 11kW PV input, 120–500V DC input range, 200A max MPPT charging current, 10kW rated output, and up to 20kW peak power, supporting 240V AC single-phase or split-phase output.
[Smart Monitoring & Closed-Loop Communication] Includes an LCD display and WiFi module for real-time and remote monitoring of PV input, battery SOC, and output performance. Supports closed-loop communication with ECO-WORTHY and other compatible batteries via the PYLON protocol, ensuring efficient system coordination and safe operation with multiple built-in protections.

Read more

Total price

C$1,699.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$424.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$1,699.99 C$3,099.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
High-Power Eco-Worthy 10kW Solar Off-grid Split-phase AIO Inverter for Reliable Energy Supply

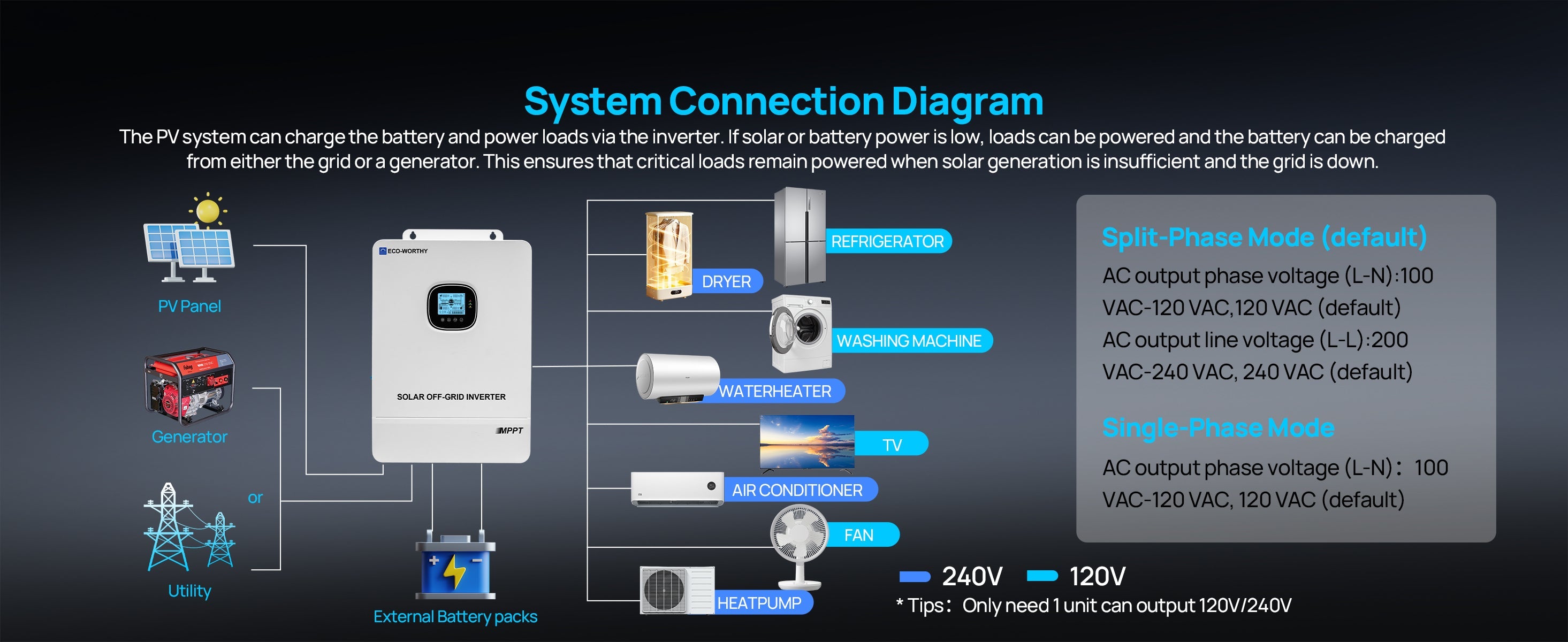

The Eco-Worthy 10kW Solar Off-grid Split-phase AIO Inverter efficiently converts 48V DC to 240V AC with split-phase capability, ensuring a reliable and powerful energy solution for your off-grid systems. Designed for both residential and commercial use, this inverter supports high loads and offers seamless charging with built-in protection features. Perfect for solar setups, RVs, and emergency backup applications, it provides a stable, long-lasting power supply for your appliances and devices.

Technical Specifications

10KW 48Vdc to 120V/240Vac Split Phase Off-grid Inverter

PV Charging Current Range

0-200A

MPPT Voltage Range

125-425VDC

Max Input Power

11000W

Battery Voltage Range

40-60VDC

Output Waveform

Pure Sine Wave

Rated Output Power

10000W

Rated Output

120VAC/240VAC 50Hz/60Hz

Rated Battery Input Voltage

48V

Peak Power

20000W

Rated Input

90VAC-140VAC 50Hz/60Hz(auto detect)

Certification

UL1741

Warranty

2-Year Warranty

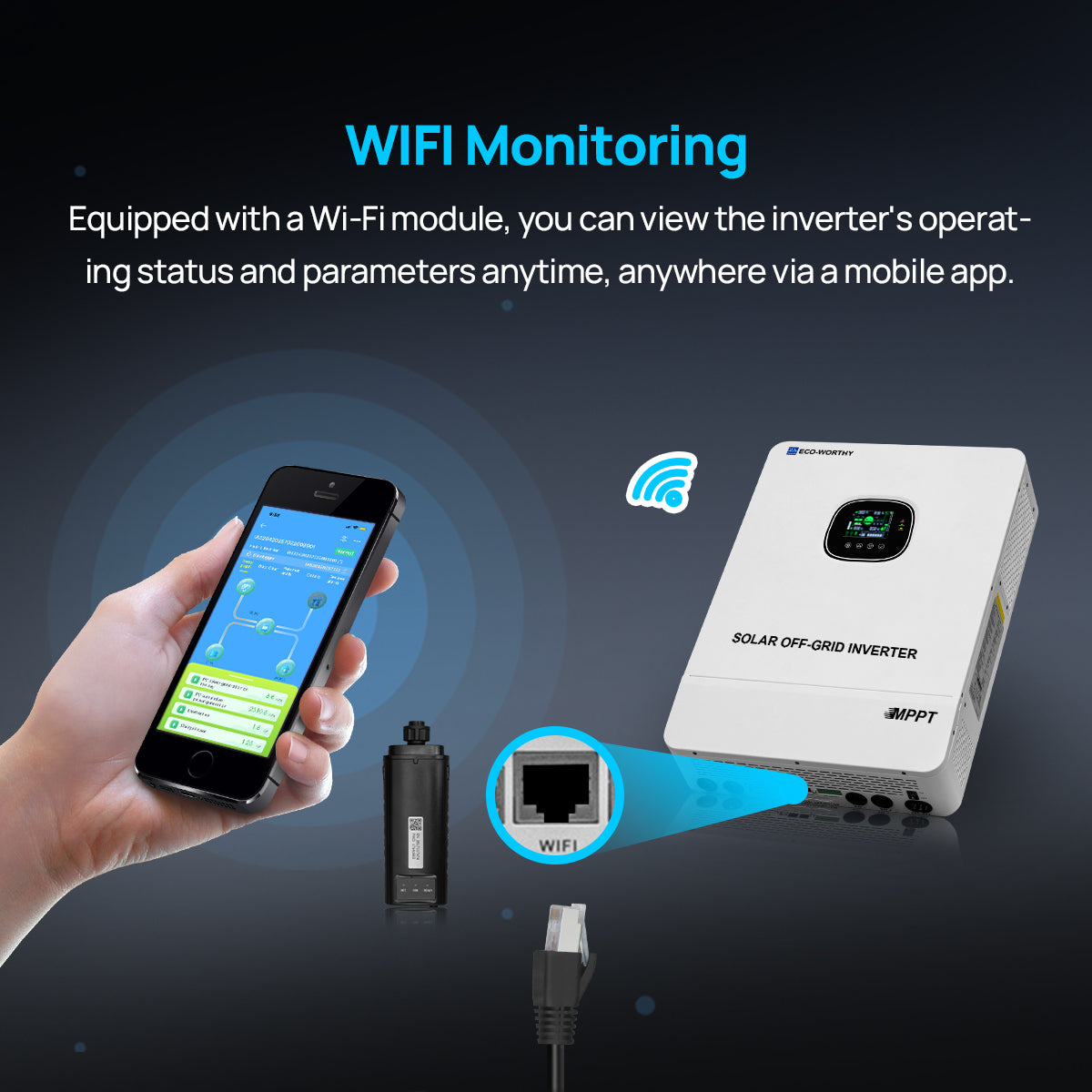

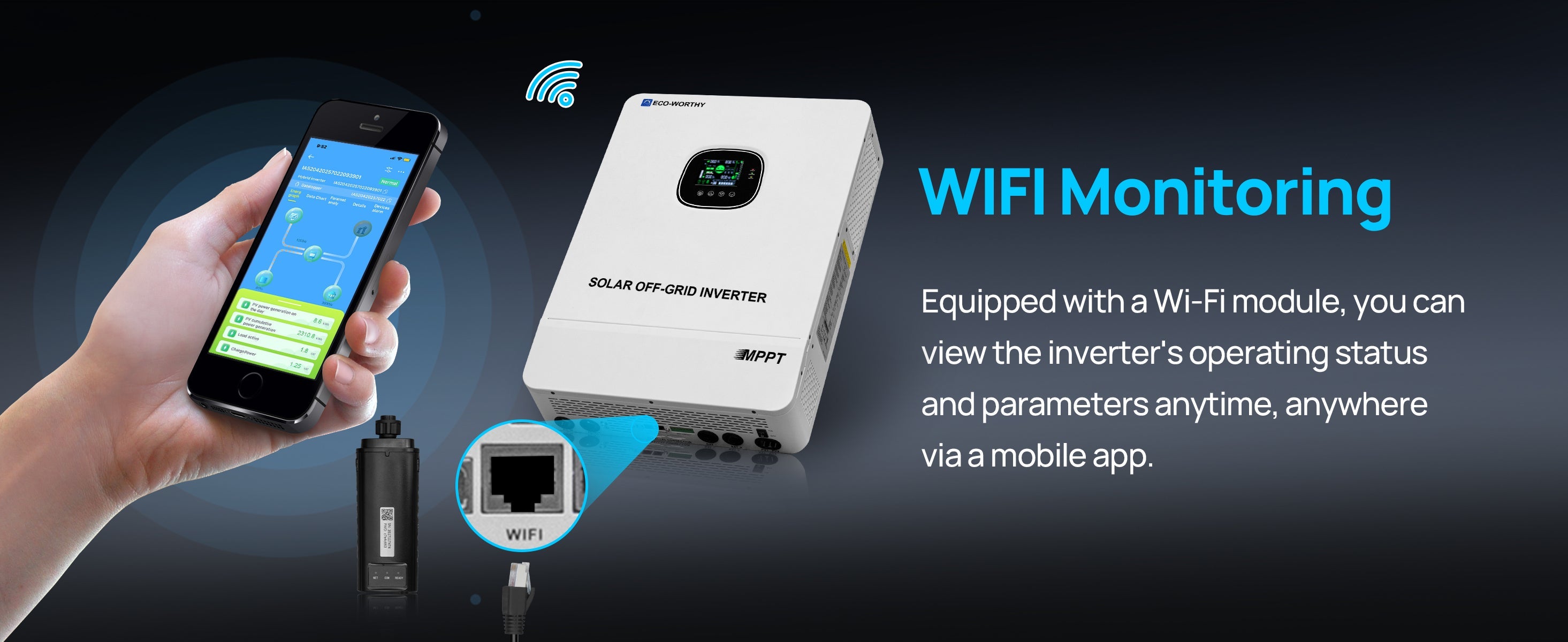

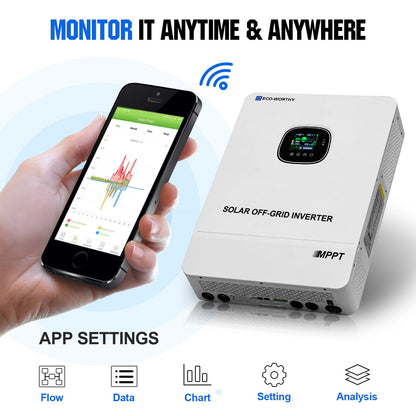

Hand holding a smartphone with a Wi-Fi monitoring app, connected to an inverter with a Wi-Fi module.Solar off-grid inverter with Wi-Fi module and smartphone app for monitoring on a dark background

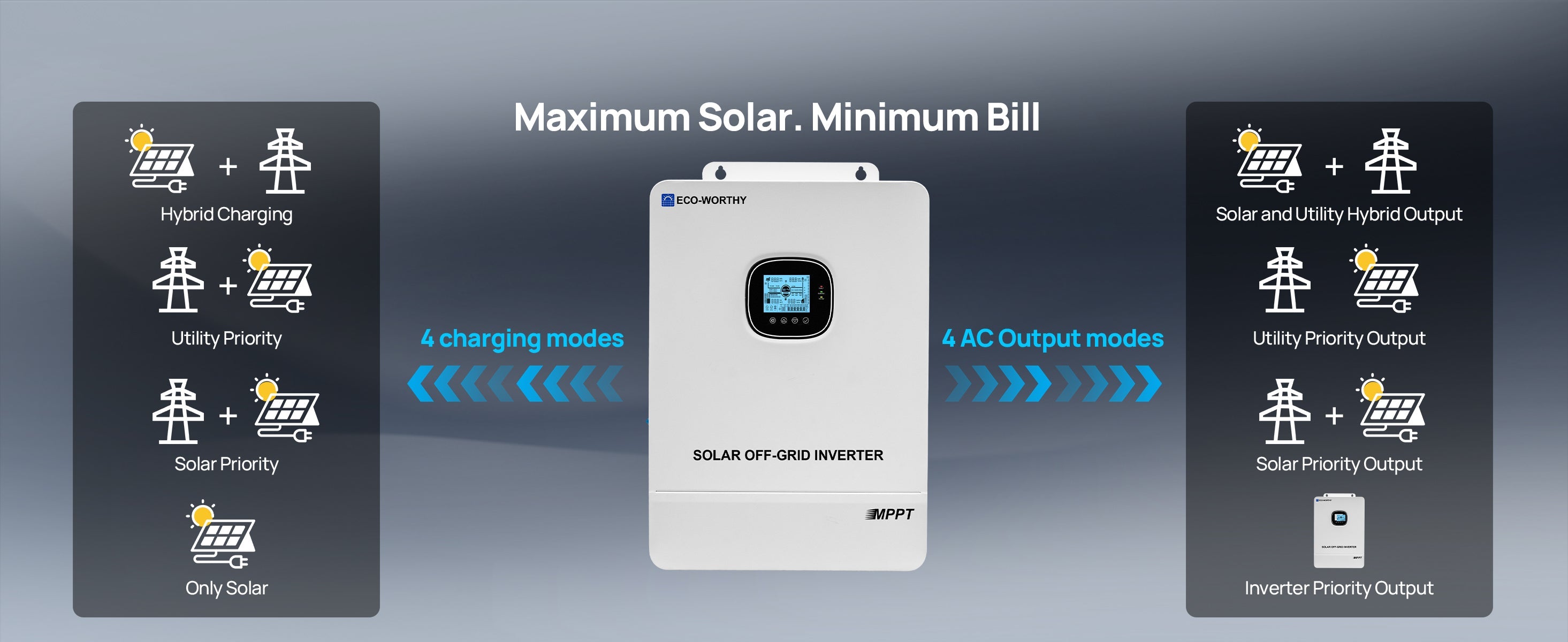

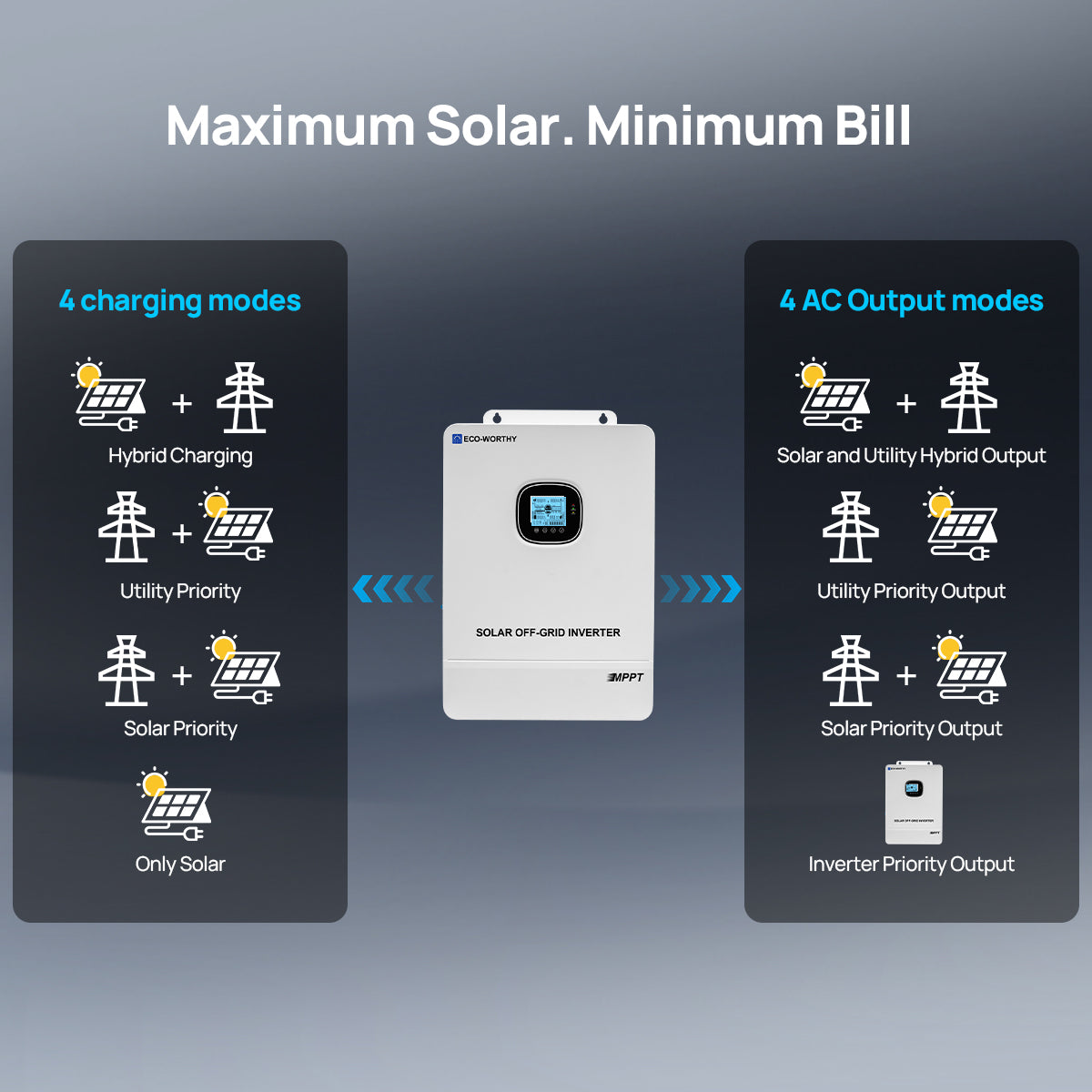

Solar inverter with charging and output modes on a gray backgroundSolar inverter with charging and output modes on a dark background
Product with UL1741 certification for North American safety, featuring icons and a tablet displaying a certificate.Product with UL1741 certification for North American safety, featuring Intertek logo.

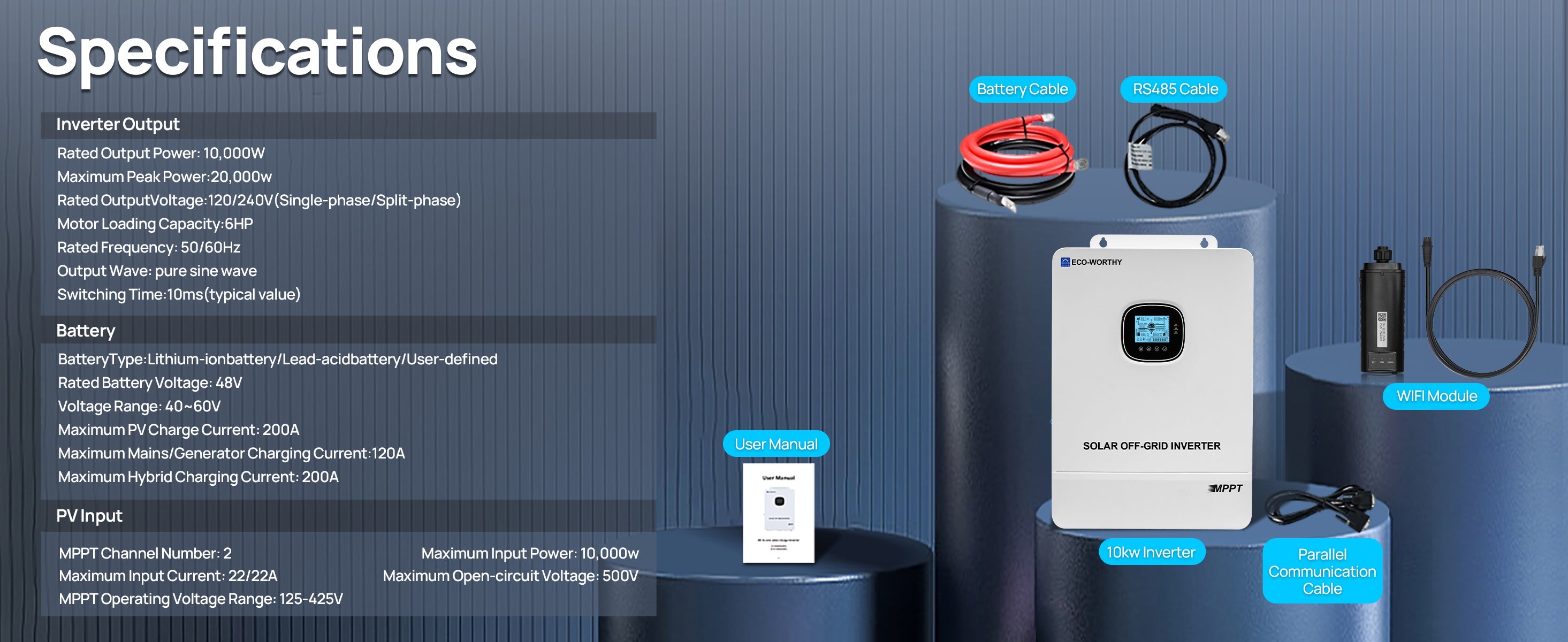

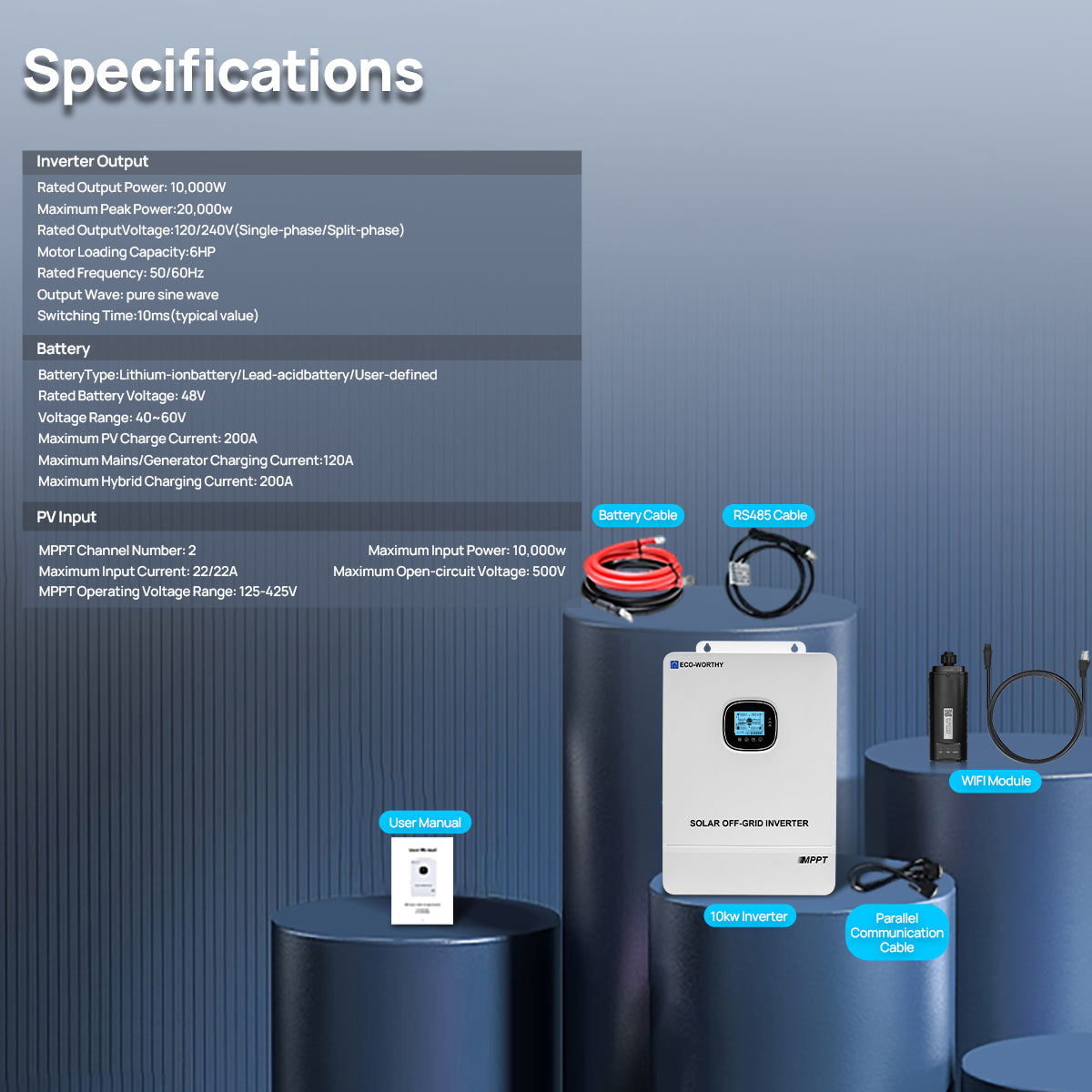

Technical specifications and components of a solar power system on a blue backgroundSolar 10kw inverter with labeled components and specifications on a blue background
Included in the Box

1 x 48V 10000W AIO Inverter

1 x WIFI Module

1 x Parallel Communication Cable

1 x RS485 Cable

1 pair of Battery Cables

1 x User Manual

User manual

Eco-Worthy 10000W 48V Solar Off-grid Split-phase AIO Inverter Manual

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
