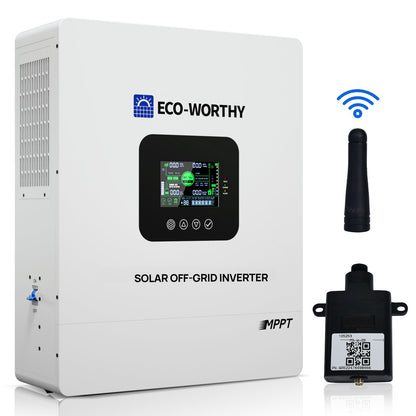

  • Eco-Worthy 5000W solar off-grid inverter with a small black device on a white background
  • Solar off-grid inverter with compatibility text and battery types on a white background

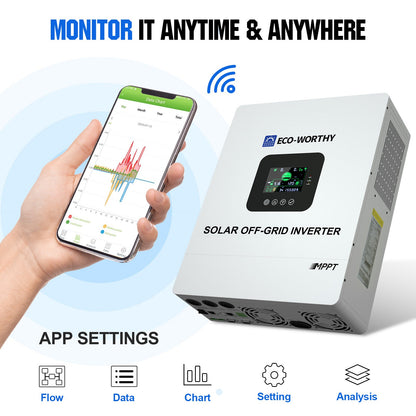

  • Solar off-grid inverter with smartphone app showing monitoring capabilities

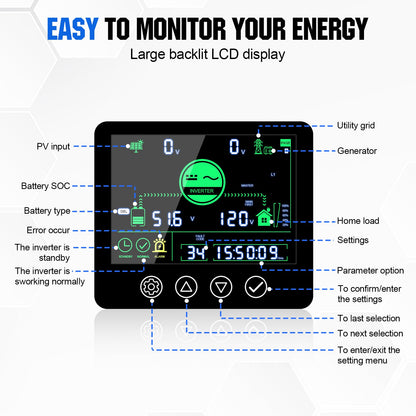

  • Large backlit LCD display for monitoring energy with labeled functions on a white background.

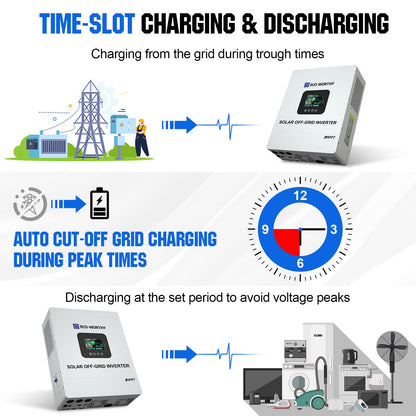

  • Diagram of time-slot charging and discharging with solar off-grid inverters and a clock.

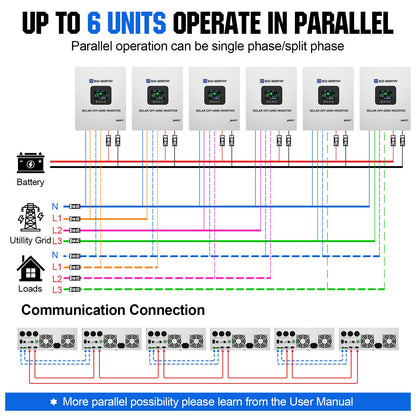

  • Diagram showing parallel operation of six solar off-grid inverters with electrical connections.

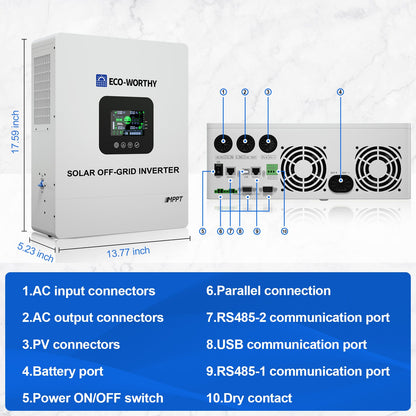

  • Eco-Worthy solar off-grid inverter with features and specifications on a white background
  • Modern kitchen with a refrigerator, air conditioner, water heater, and electric drill, showcasing power consumption with a solar inverter.
Pictures
Videos
Prime Day Sale

Eco-Worthy 5000W Solar Off-grid AIO inverter | 48Vdc to 120Vac | 5500W@500V PV Input | UL1741

Eco-Worthy 5000W Solar Off-grid AIO inverter | 48Vdc to 120Vac | 5500W@500V PV Input | UL1741

C$859.99
C$859.99 C$1,599.99
Sale Sold out

SKU:

L03YTJUSKBJ5000W-1

[Parallel Capability] Supports parallel connection of up to 6 units (maximum 30 kW). Compatible with both single-phase and split-phase configurations. A single inverter outputs 120V, while two or more units in parallel can deliver 120V/208V/240V. (A minimum of two units is required to achieve 220V output.)
[Battery-Free Operation] Capable of running without battery input. The system can continuously power loads using PV DC energy even in battery-free mode.
[Flexible Charging & Discharging] Offers three output modes—Utility Priority, Battery Priority, and PV Priority—for uninterrupted power supply. Includes four charging modes: Solar Only, Utility Priority, Solar Priority, and Hybrid (Utility + Solar). Charging and discharging schedules can be customized based on local grid conditions to optimize energy savings.
[Technical Specifications] Max PV input power: 5500W; PV input voltage range: 120–500V DC; Max MPPT charging current: 80A; Rated output power: 5000W; Peak power: 10000W; Rated output voltage: 120/240Vac (split-phase/single-phase).
[User-Friendly & Safe] Equipped with an LCD display for real-time monitoring. Features multiple intelligent protections, including PV input current/power limiting, over-voltage protection, night reverse current protection, and multi-fan cooling to prevent overheating.

Read more

Lowest Price of the Year Ends In

💥Limited-Time Offer:💥 Lock in the lowest price during prime day

Total price

C$859.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$214.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$859.99 C$1,599.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

The Eco-Worthy 5000W solar off-grid AIO inverter supports up to 6 units in parallel (max 30kW) with flexible single or split-phase output (120V/240V). It can operate battery-free, directly using solar power to supply loads. Featuring multiple charging modes and output priorities, it optimizes energy use and reduces costs. With high PV input specs, intelligent protections, an LCD display, and remote app monitoring, it ensures safe, stable, and convenient operation.

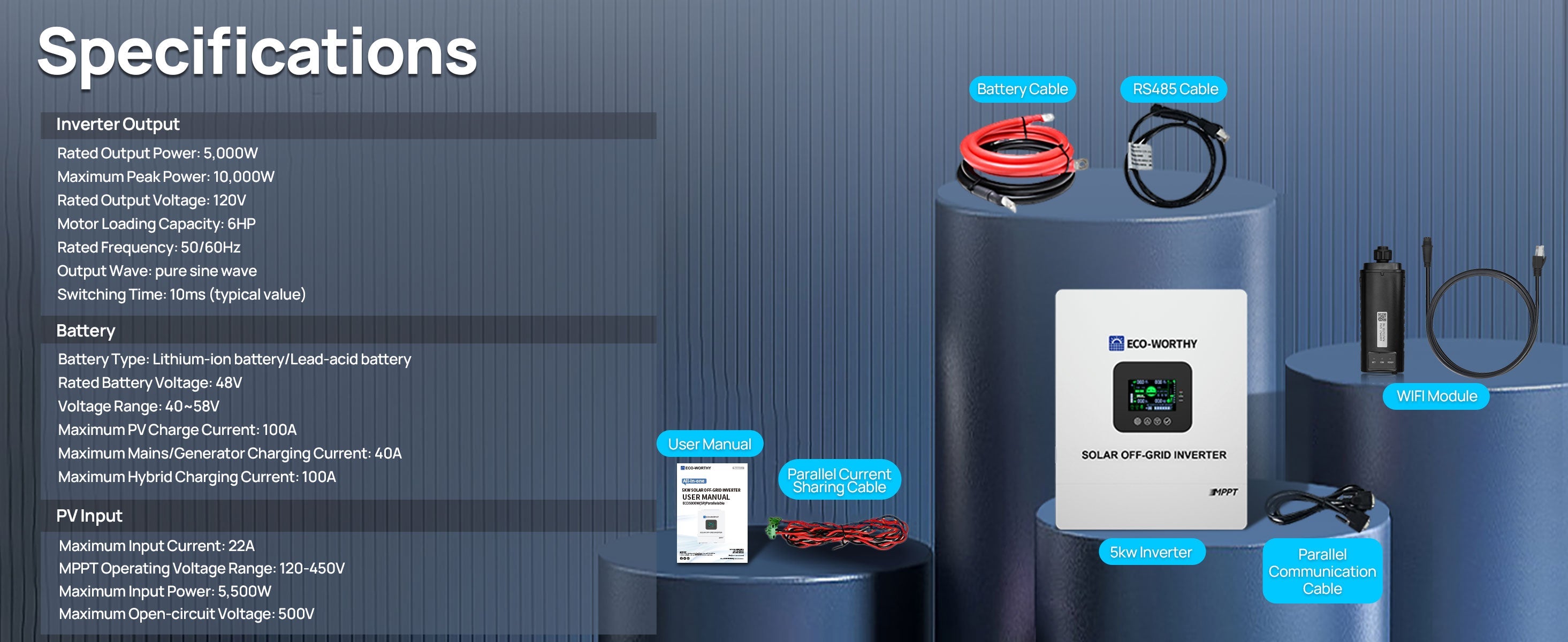

Technical Specifications

48V 5000W Inverter- AC Input Mode
48V 5000W Inverter-PV Charging Mode
48V 5000W Inverter-AC Charging Mode
48V 5000W Inverter-Invert Mode

Rated Input Voltage

110/120VAC

Frequency

50Hz/60Hz(auto detect)

Efficiency

>95%

Max Bypass Overload Current

40A

Input Voltage Range

90V-140VAC

Overload/Short Circuit Protection

Circuit breaker

AC Reverse Protection

Available

Max Input Power

5000W

Max PV Open Circuit Voltage

500VDC

MPPT Voltage Range

120-450VDC

Max Output Power

5000W

PV Charging Current Range

0-80A(can be set)

PV Operating Voltage Range

120-450VDC

Battery Voltage Range

40-60VDC

Charging Short Circuit Protection

Blown fuse

Battery Type

Lead acid or lithium battery

Charge Voltage Range

40-60VDC

Max Charge Current

60A

Overcharge Protection

Alarm and turn off charging after 1 minute

Output Voltage Waveform

Pure Sine Wave

Rated Output Voltage

120VAC

Bypass Breaker

63A

Min Starting Voltage

44V

Rated Output Power

5000W

Peak Power

10000W

Rated Battery Input Voltage

48V

Power Saving Mode

Load ≤25W

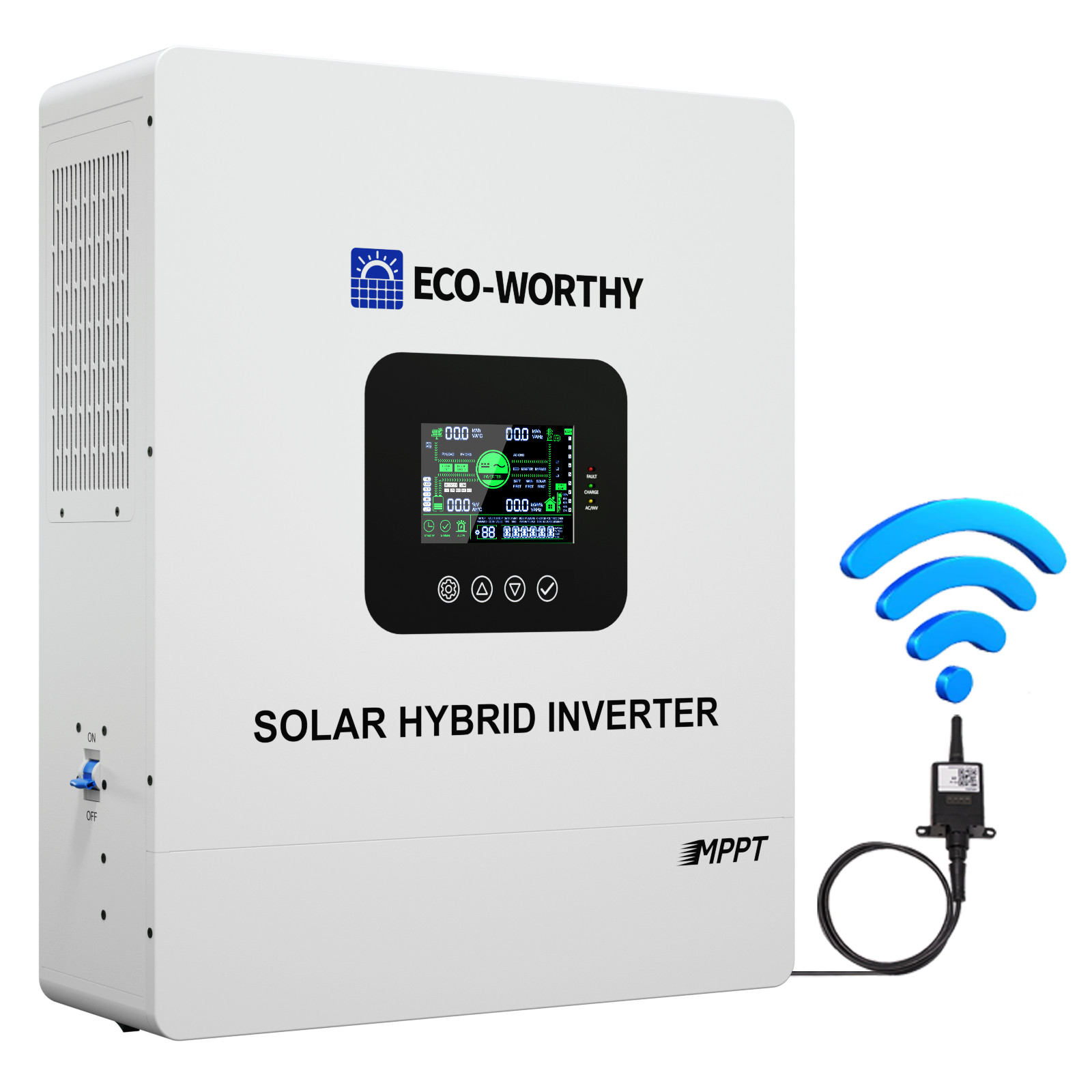

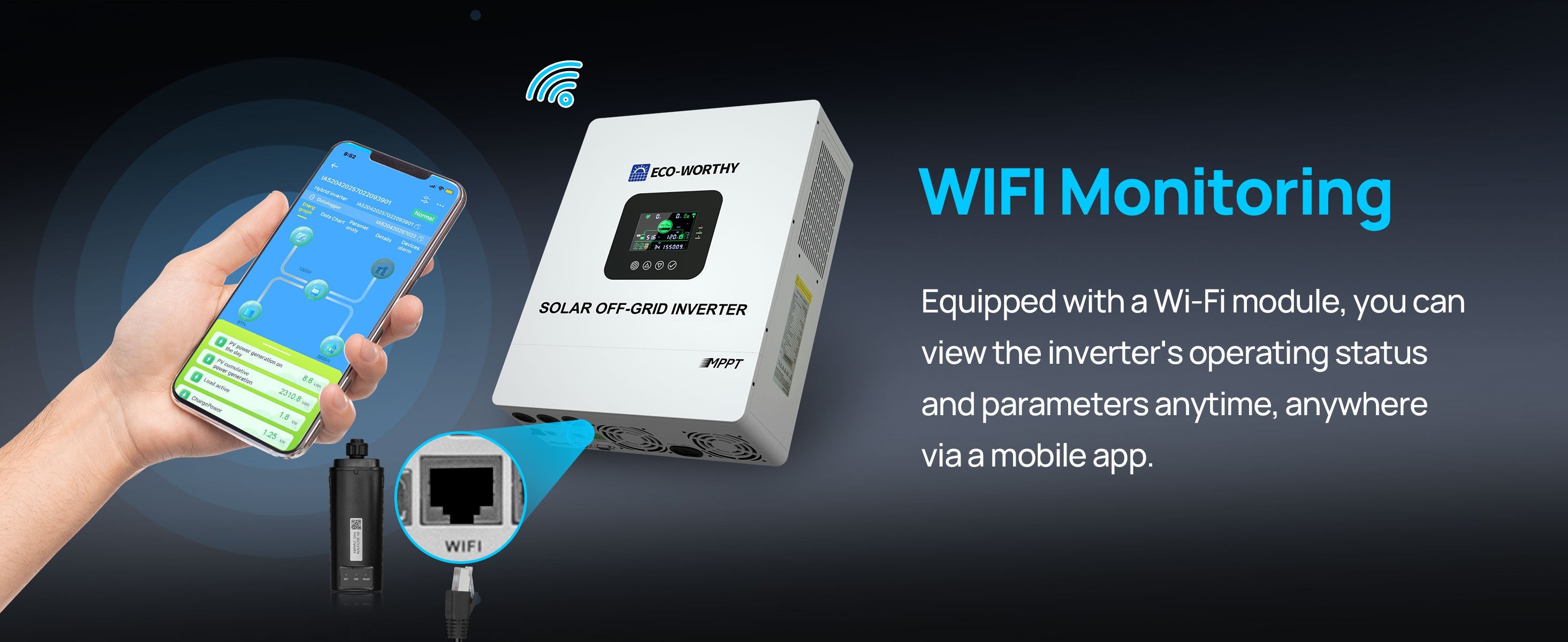

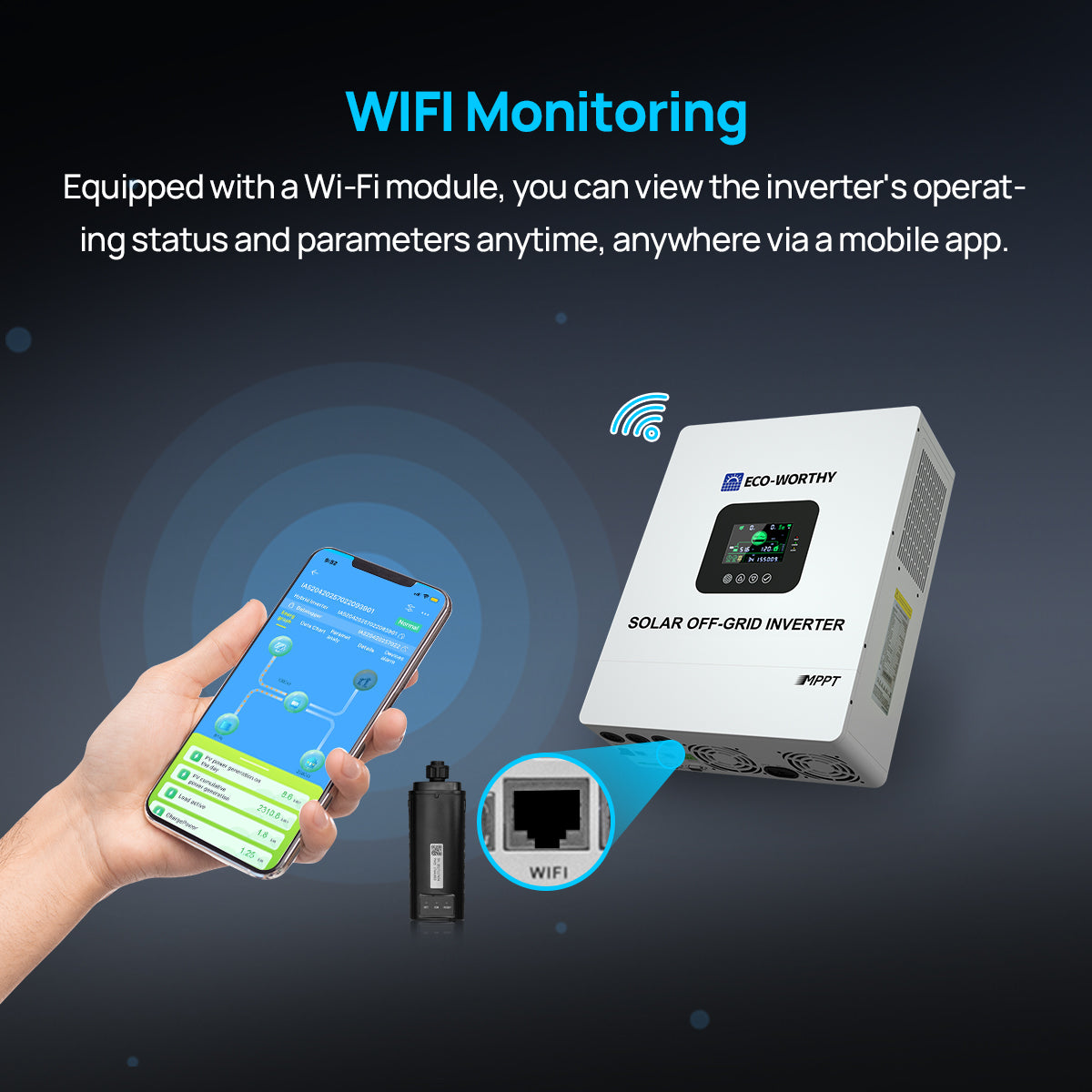

Solar inverter with WiFi monitoring feature, displayed with a smartphone app and network module on a dark background.Solar off-grid inverter with Wi-Fi module and smartphone app for monitoring on a dark background

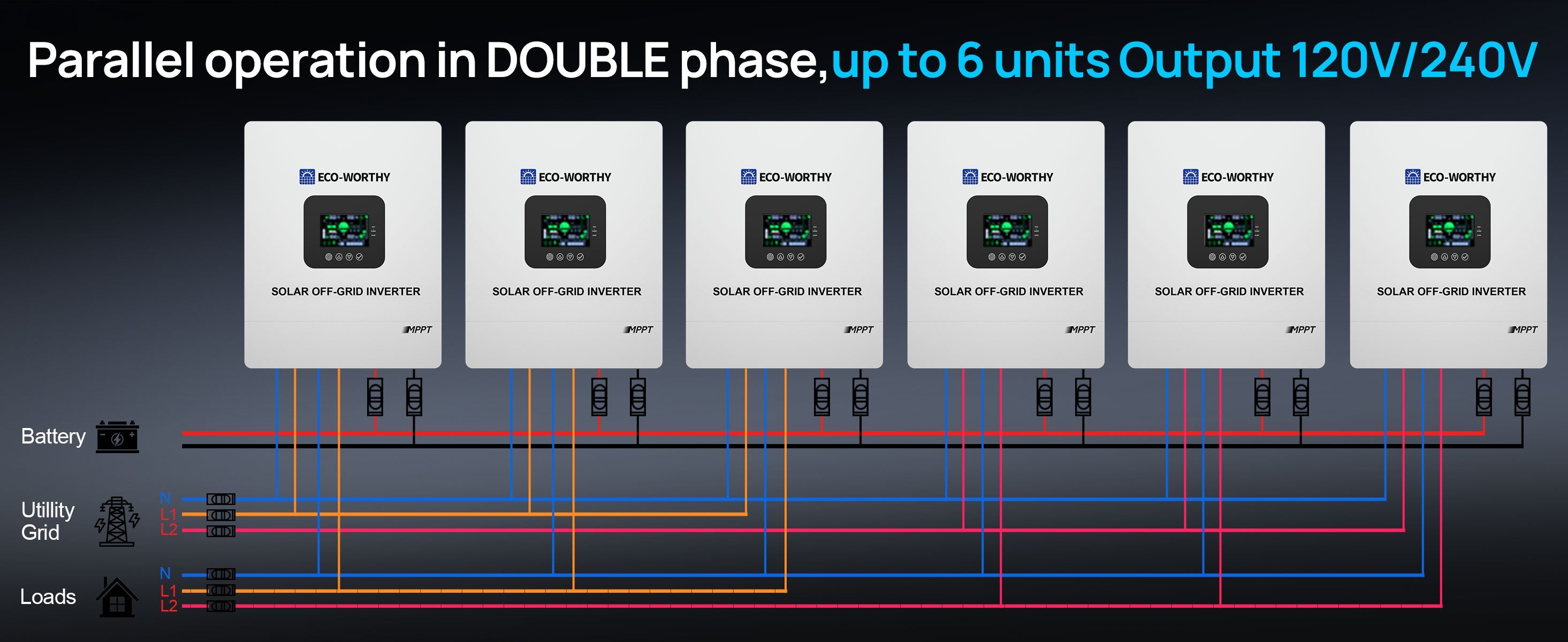

Solar panel system with multiple inverters connected in parallel, showing a diagram of power flow.Diagram of parallel operation with six solar inverters on a dark background

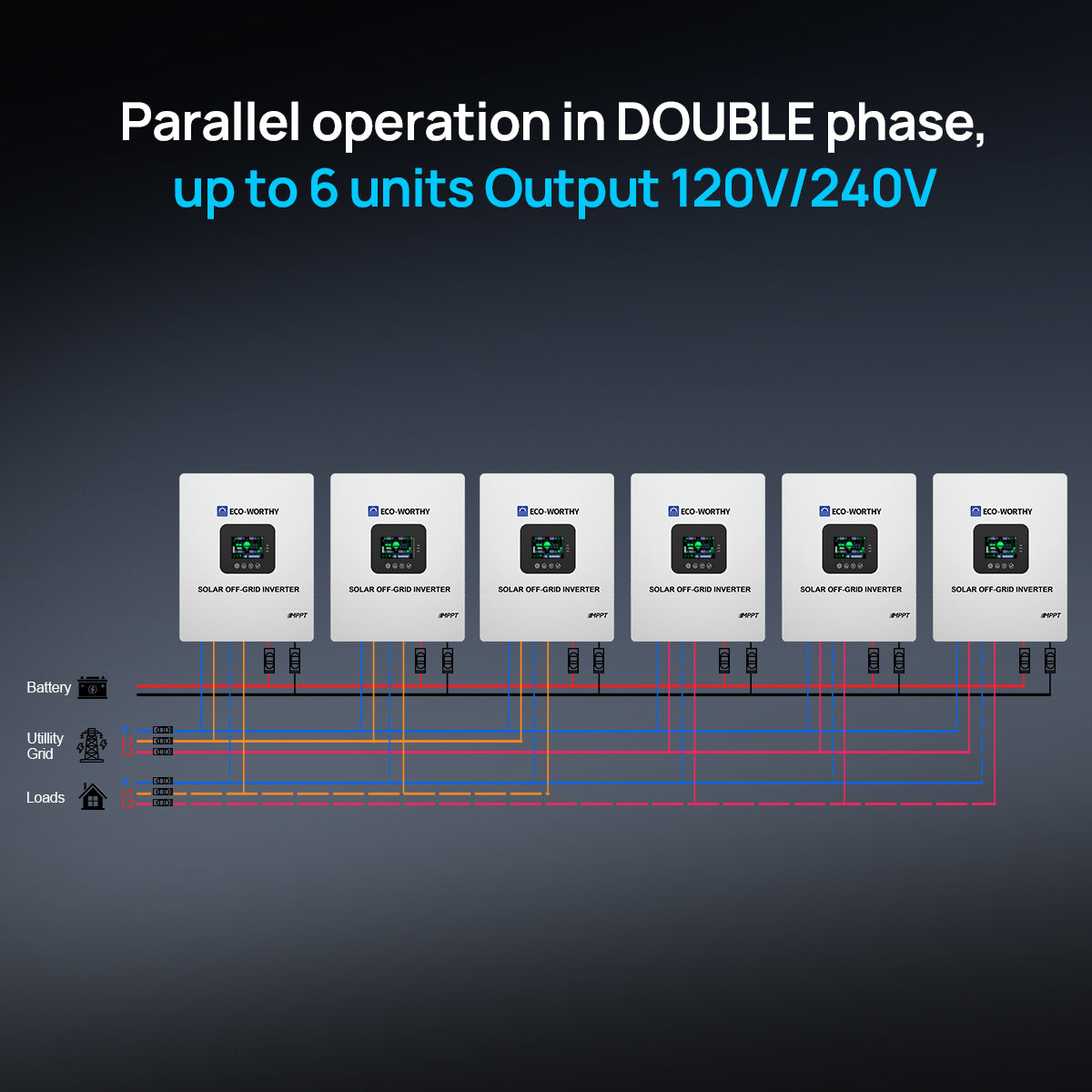

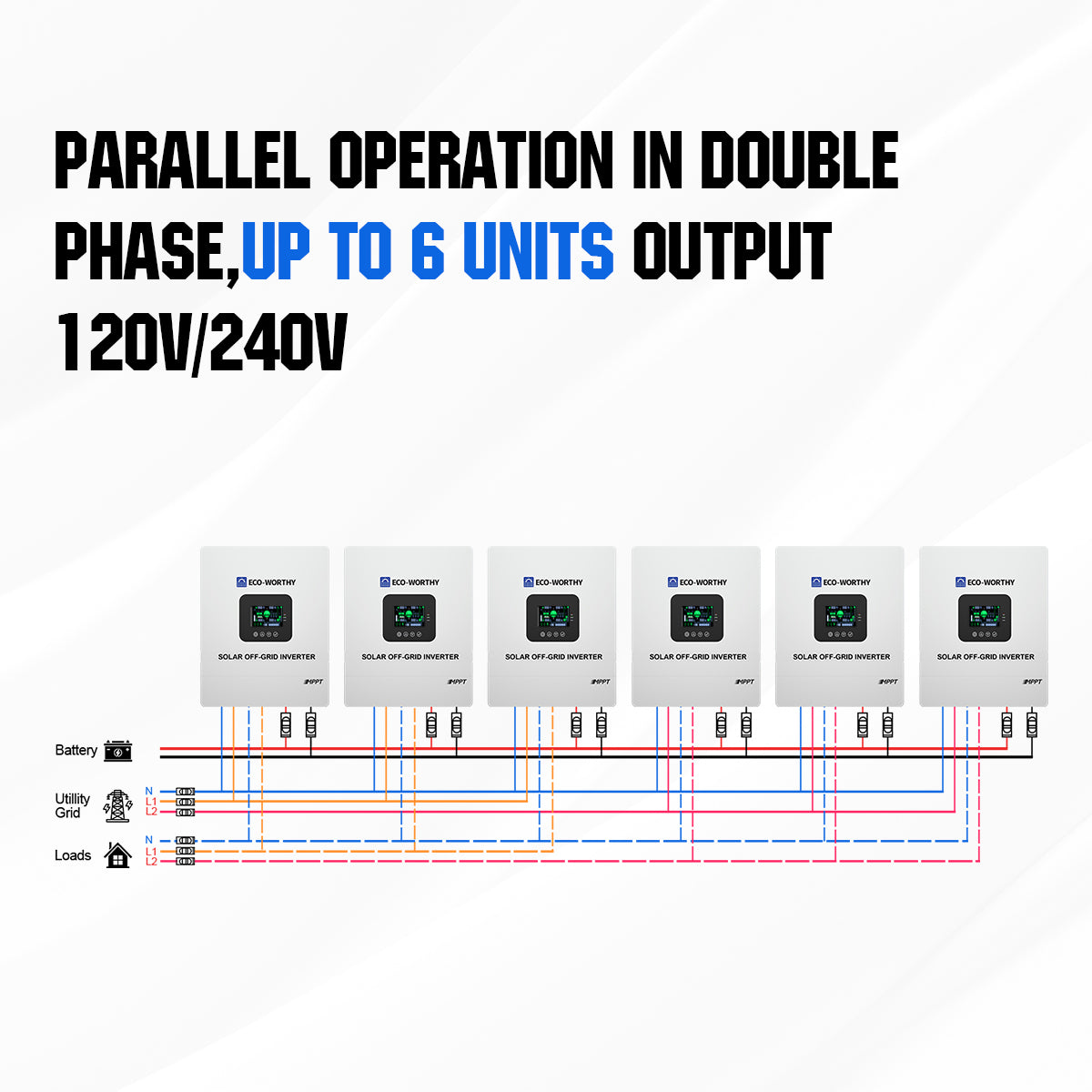

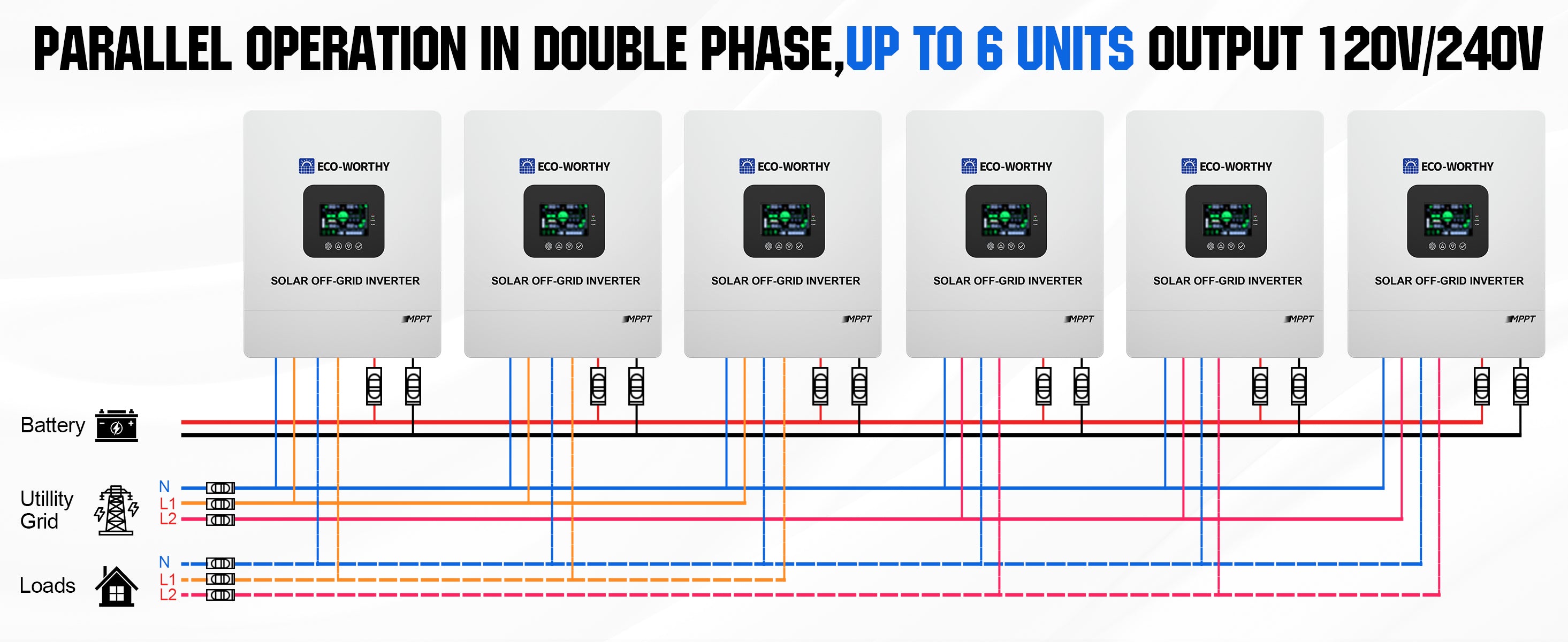

Diagram of parallel operation in double phase with up to 6 units, outputting 120V/240V.Solar power system with six units connected in parallel on a white background

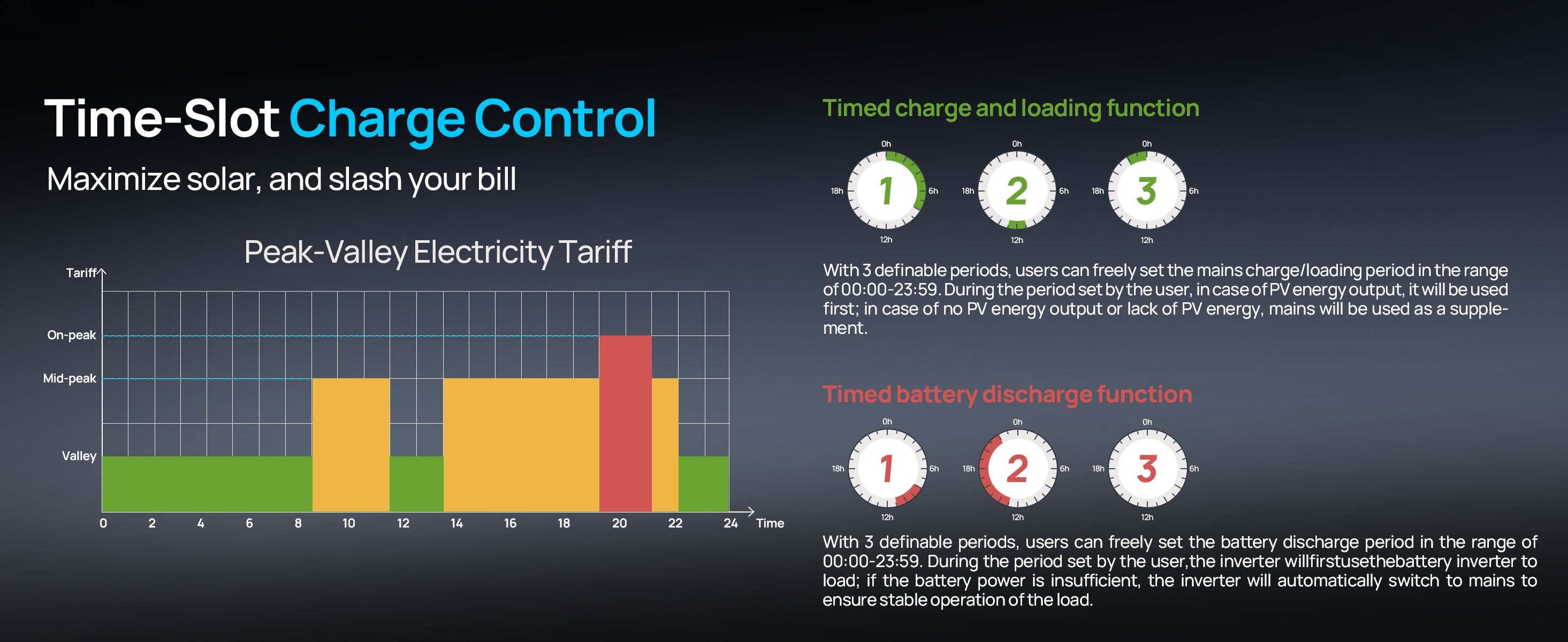

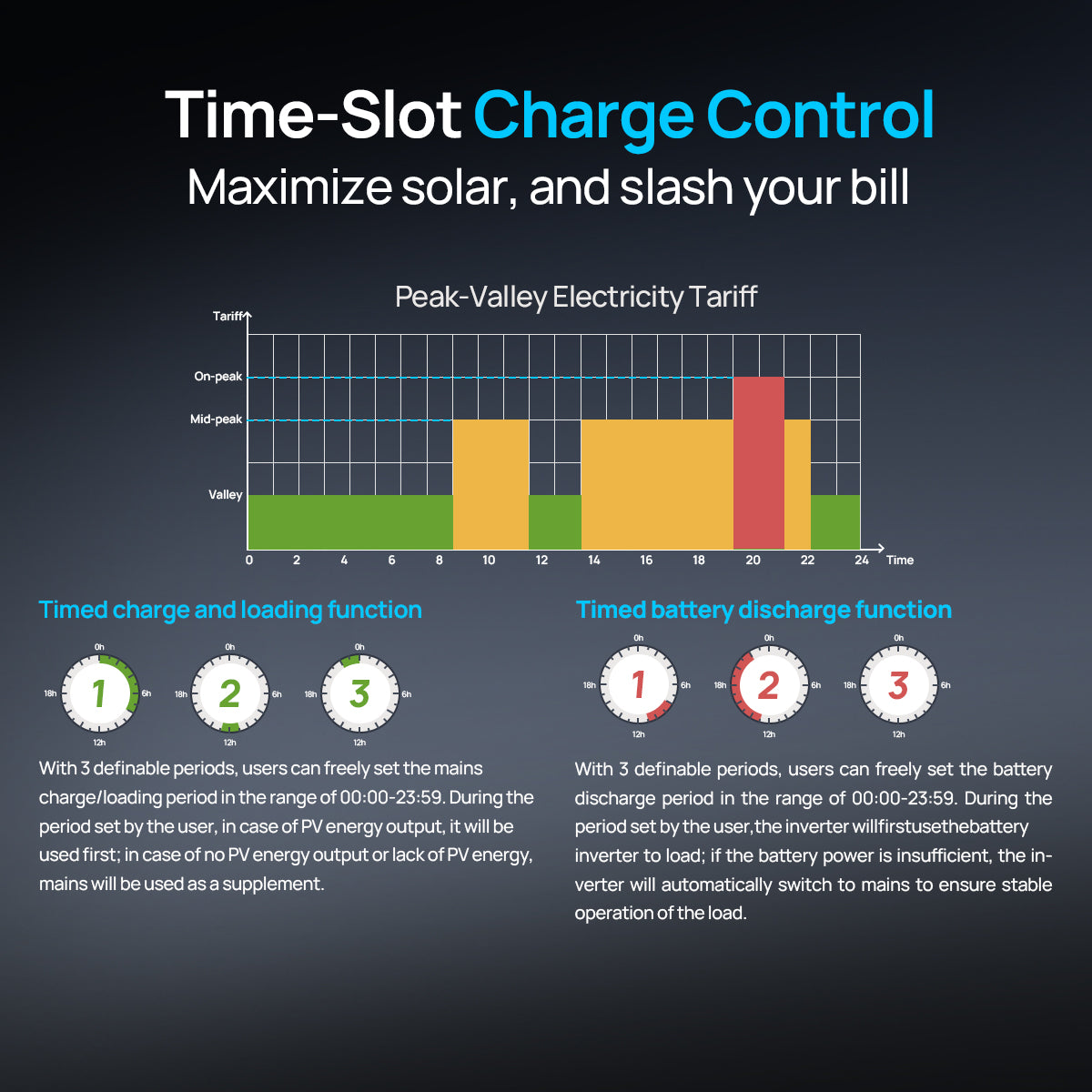

Diagram of time-slot charge control system with bar graph and text on a dark backgroundInfographic on time-slot charge control for maximizing solar energy use and reducing electricity bills.
Electrical safety certification with UL1741 and Intertek branding on a dark background.Product with UL1741 certification and Intertek logo on a dark background
Included in the Box

1 x 5000W 48V Off-grid Inverter

1 x WIFI Module

1 x Parallel Communication Cable

1 pair of Parallel Current Sharing Cable

1 pair of Battery Cable

1 x RS485 Cable

User manual

Eco-Worthy 5000W 48V Solar Off-grid AIO Inverter Manual

Download

Eco-Worthy 5000W 48V Solar Off-grid AIO Inverter Q&A

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
