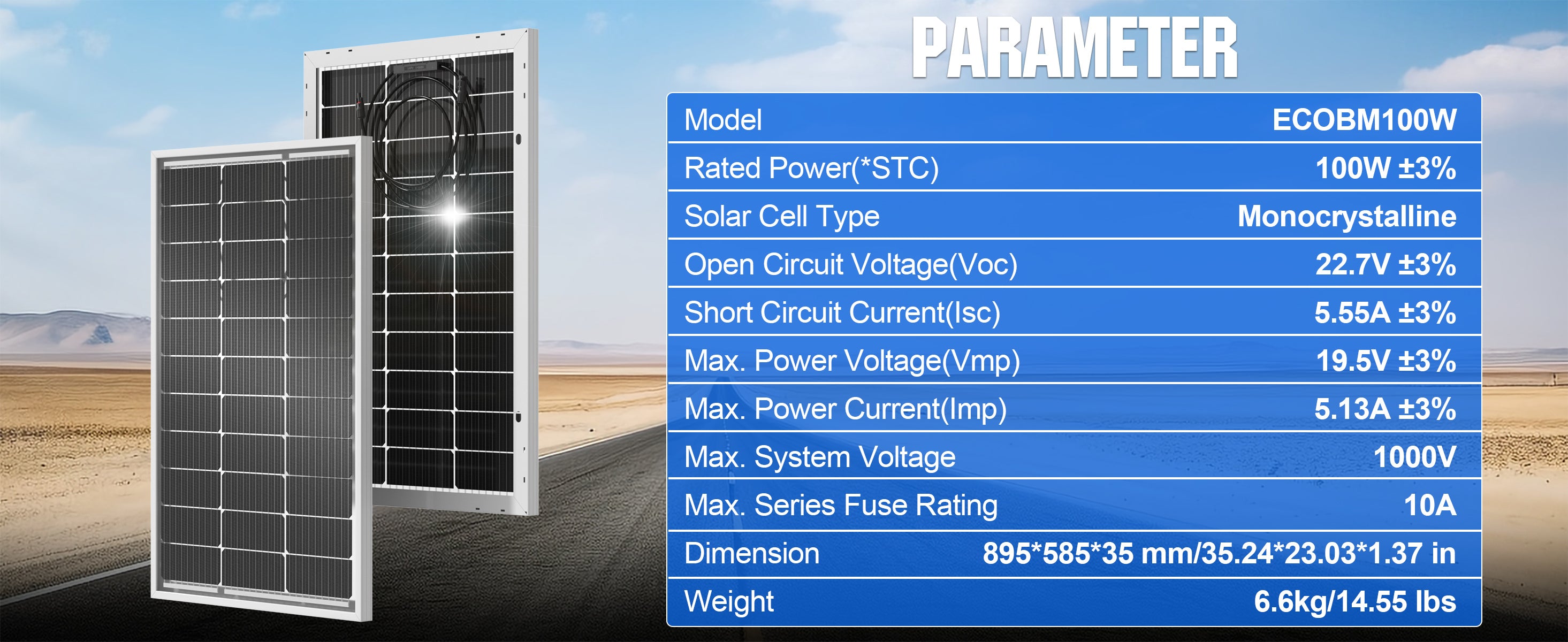

Technical Specifications
Rated Power
100W
Solar Cell
Monocrystalline
Maximum/Peak Voltage(Vmp)
19.5V±3%
Open Circuit Voltage(Voc)
22.7V±3%
Short circuit current
5.55A±3%
Maximum current
5.13A±3%
Output Tolerance
±3%
Temperate coefficient of Isc
(010+/-0.01)%/℃
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Temperature range
-40℃~ +85℃
Frame
Aluminum alloy frame
Length of extension cable
90cm(2.95ft)
Size of extension cable
4mm²(11AWG)/MC4 Connector
Weight
14.55 lbs(6.6 kg)

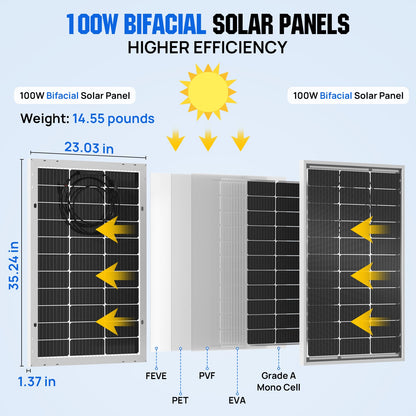

Size
895*585*35mm/35.24*23.03*1.37in
Included in the Box
User manual

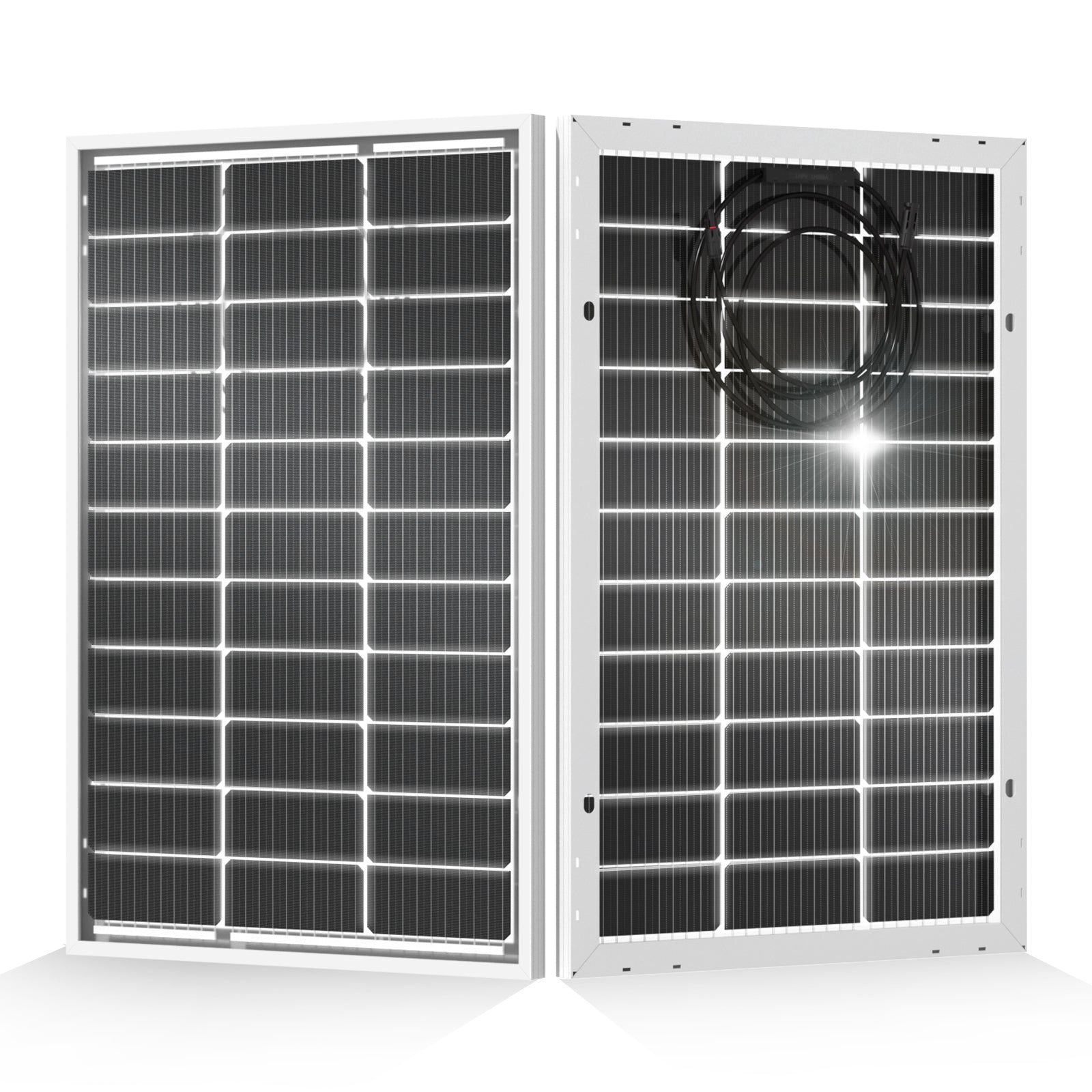

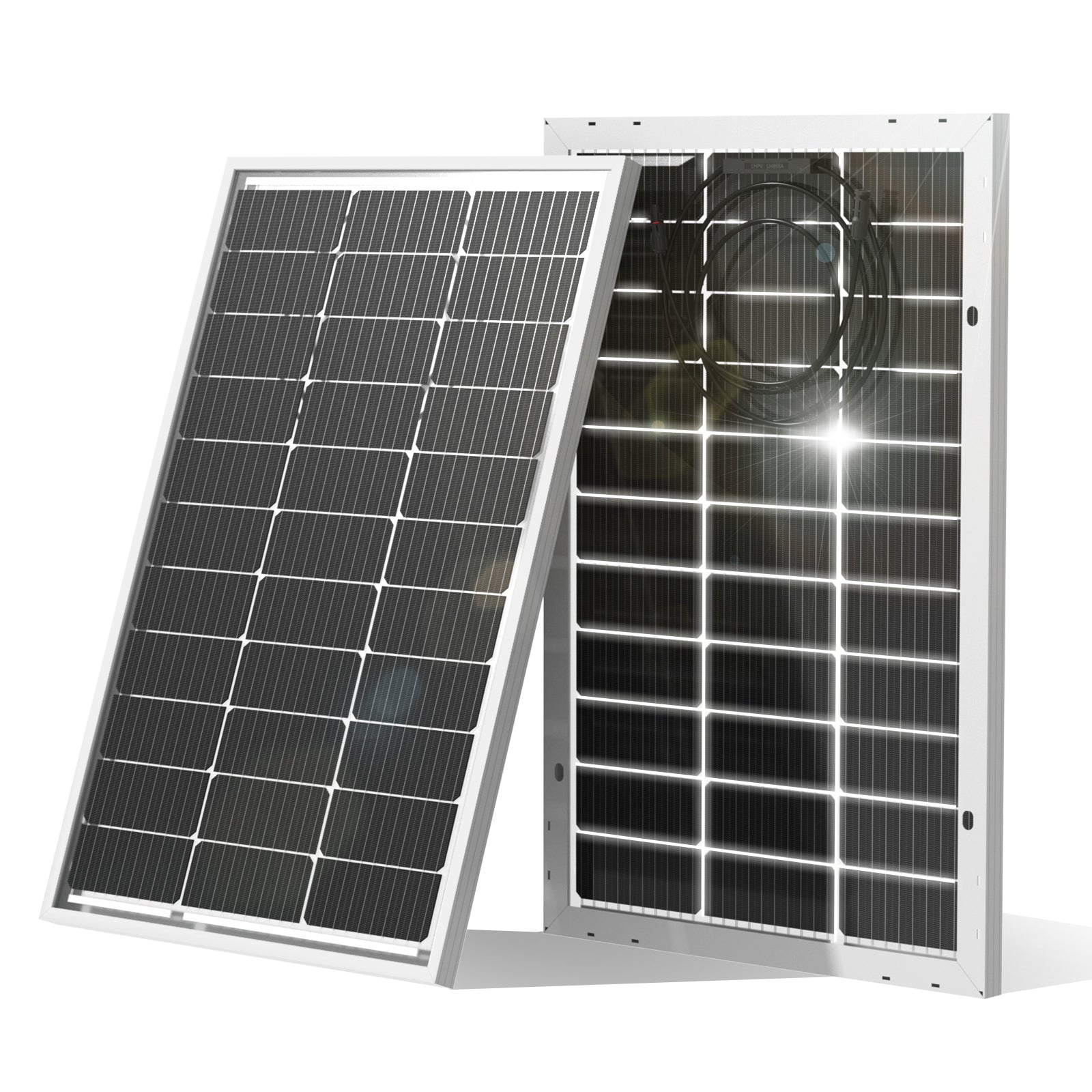

Eco-Worthy Bifacial 100W 18V Monocrystalline Solar Panel Manual
Download
