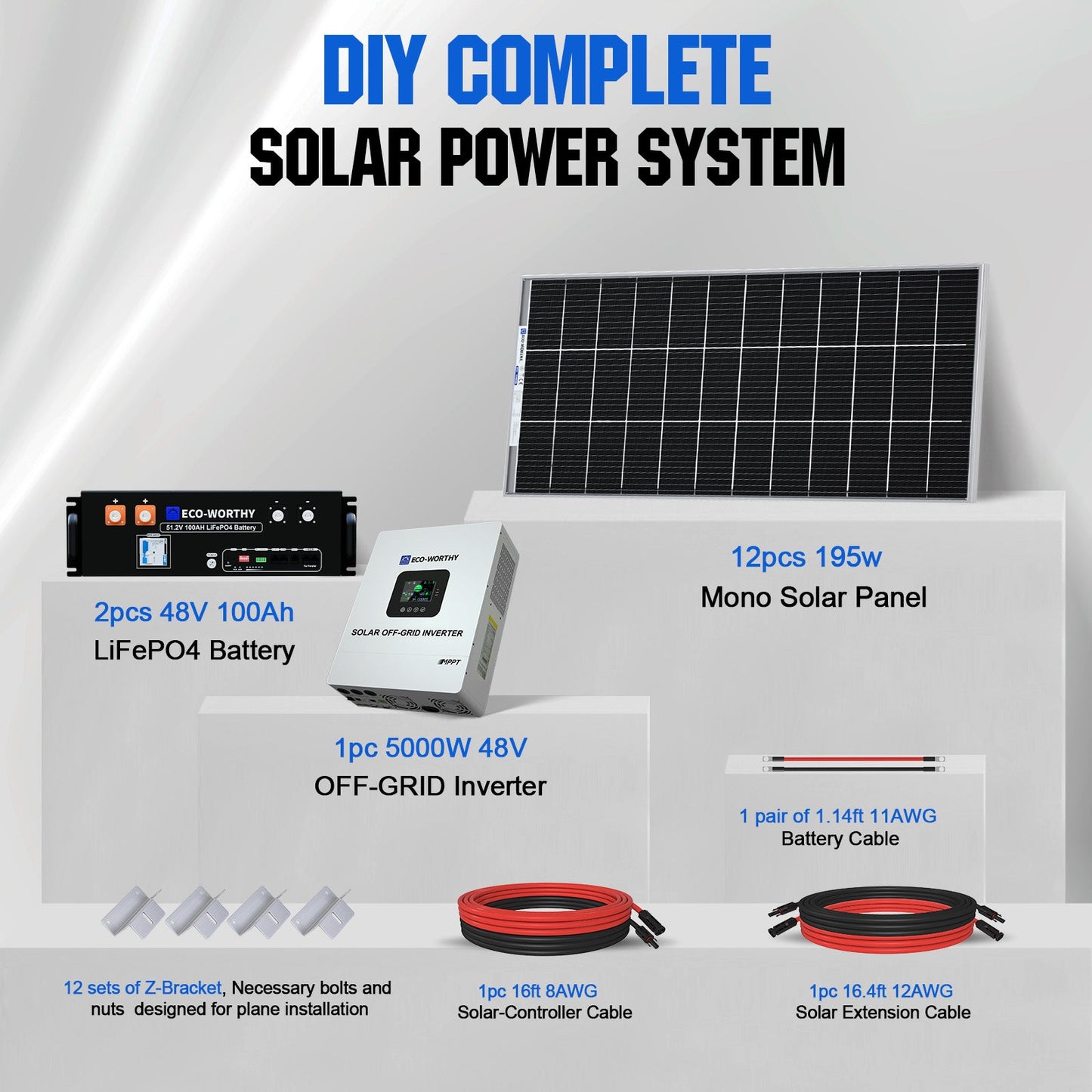

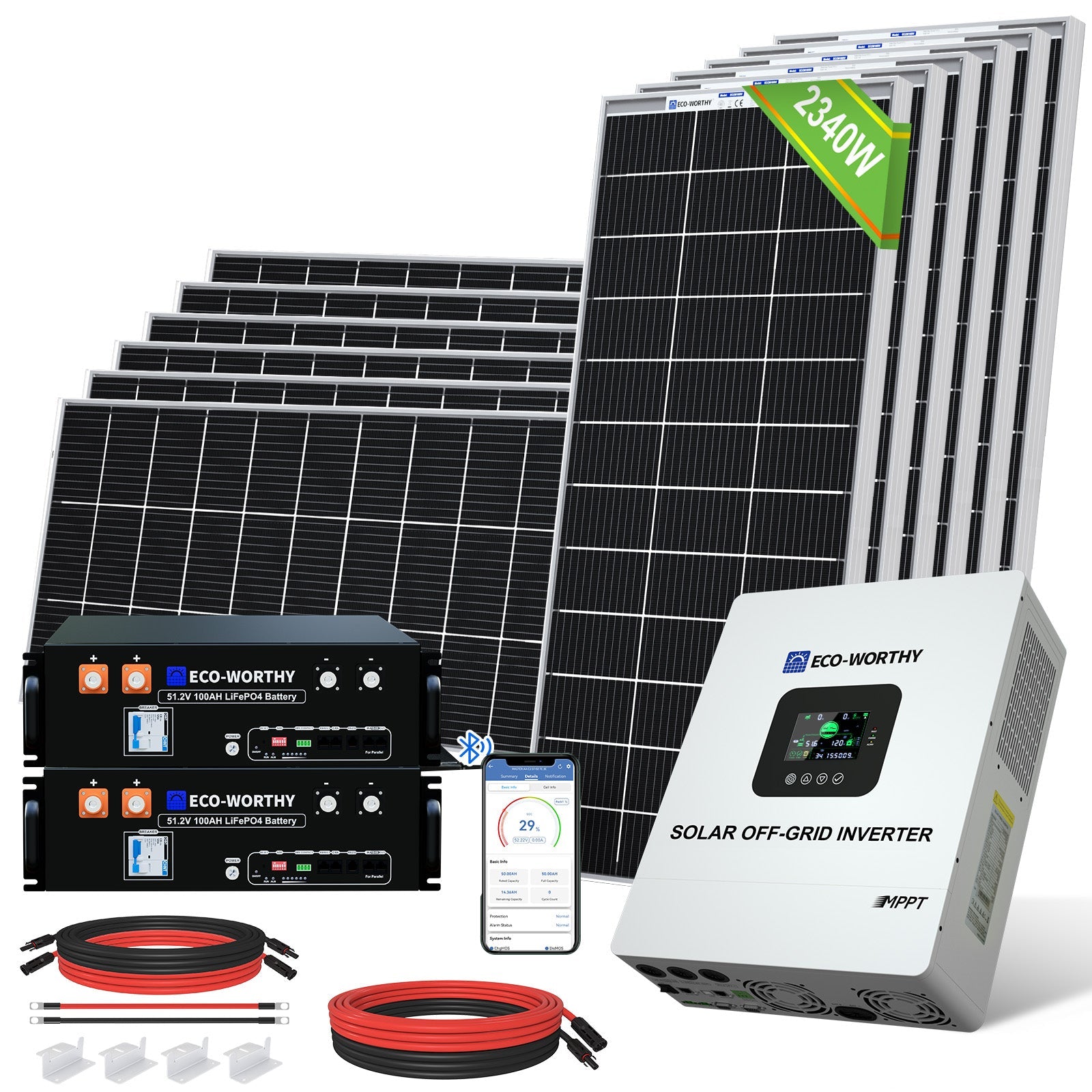

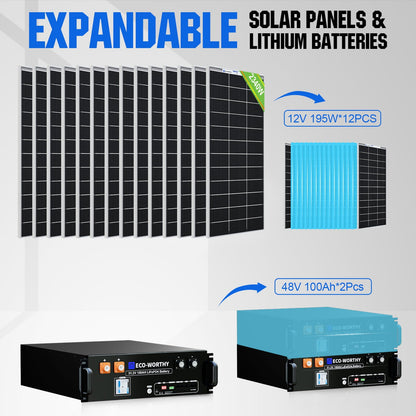

The Eco-Worthy 2340W 48V Off-Grid Solar Kit includes 12x 195W bifacial solar panels, a 5000W 48V-120V all-in-one inverter, two 5.12kWh server rack batteries, 12 sets of Z-brackets, and a complete professional wiring kit. Perfectly suited for long-term off-grid cabins, remote farms, and residential emergency backup, this system achieves energy independence and significantly reduces monthly electricity bills by providing stable, grid-quality power. The bifacial PERC technology ensures continuous charging under various light conditions, while the 5000W output supports standard household appliances for daily use. Additionally, the system features real-time Bluetooth/WiFi App monitoring and a modular design, allowing for easy expansion of battery capacity or inverter power as your energy needs grow.
Eco-Worthy 5000W Complete Off-grid Solar Power Kit | 2340W PV Input | 120V AC Single Phase Output | 5.12kWh Battery Capacity
Eco-Worthy 5000W Complete Off-grid Solar Power Kit | 2340W PV Input | 120V AC Single Phase Output | 5.12kWh Battery Capacity
SKU:
SKU:CA-L02M195-L100AHJJMC5ZZJNKUS5KW-12
Total price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of C$1,449.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

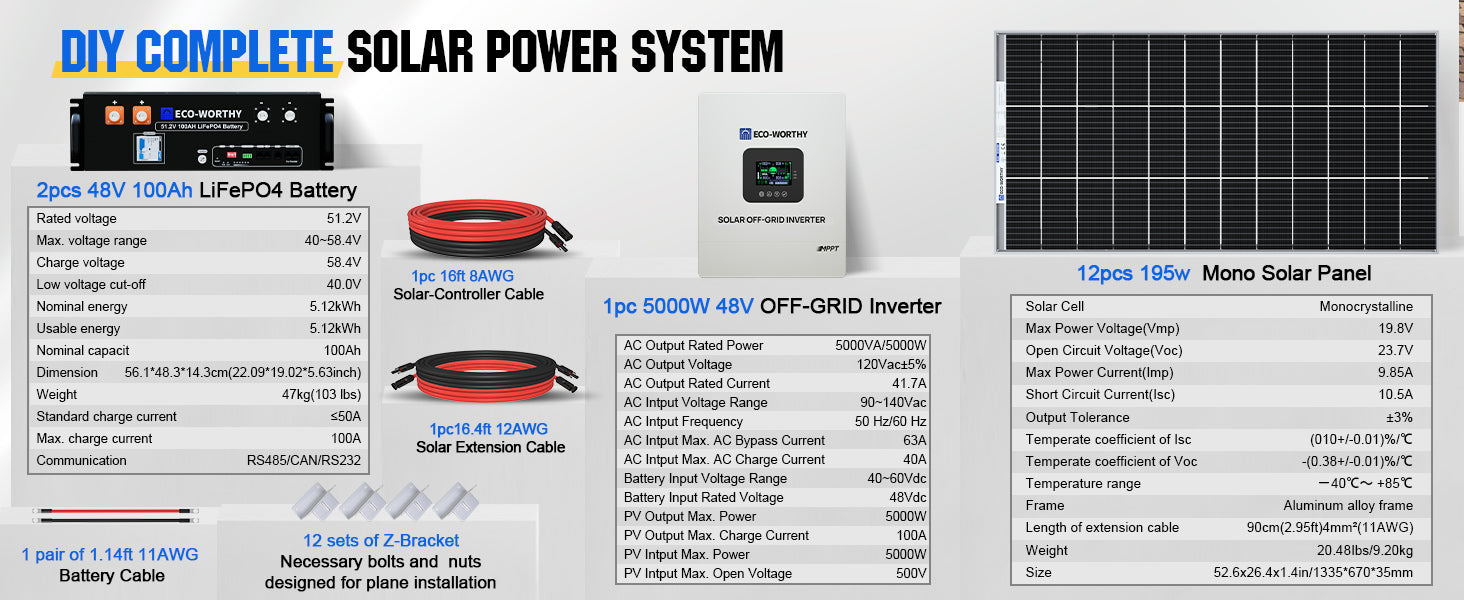

Technical Specifications
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
51.2V
Voltage Range
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Disharge Temperature Range
-20-55°C
Maximum Charge Voltage
58.4V
Cycle Life
≥6000 cycles @ 25℃, 0.5C charge / 0.5C discharge, ≥80% SOH

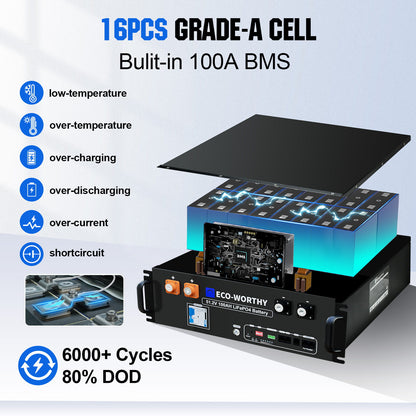

Battery Balancing Methods
Passive Balancing
Pre-Charge Resistor
Yes

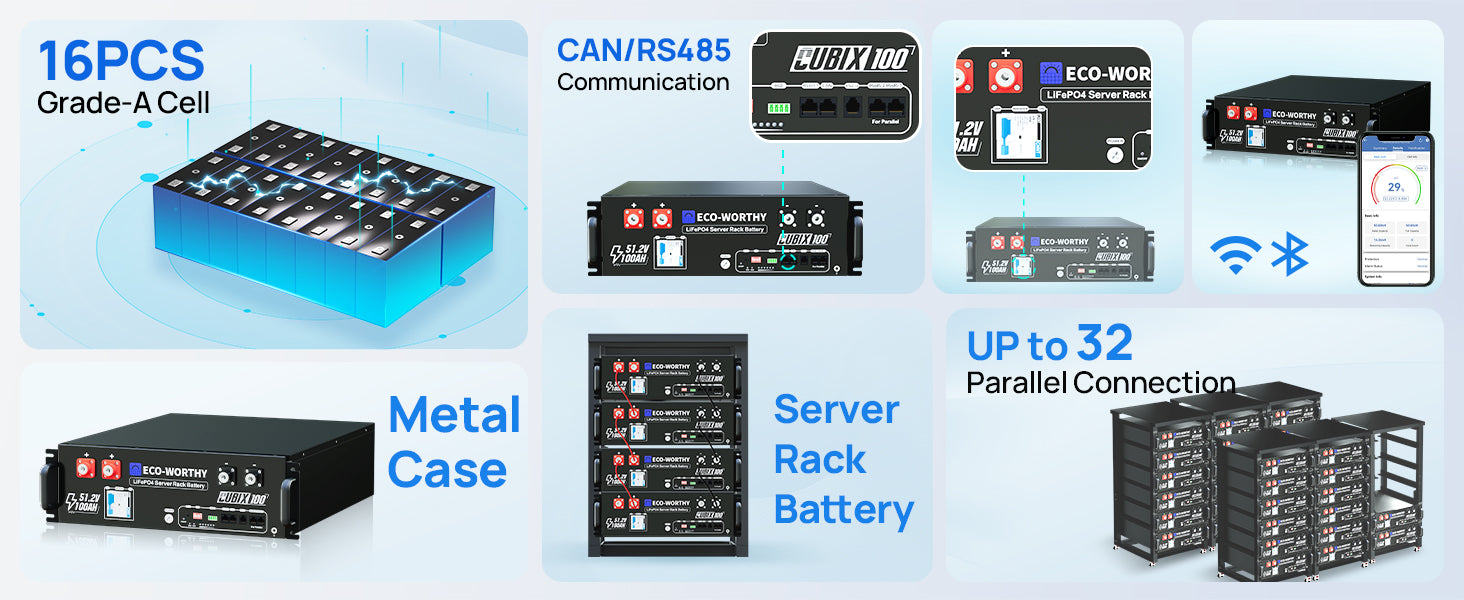

Communication Port
CAN/RS485/RS232
Max. Parallel Number
32pcs
Bluetooth & Wi-Fi Signal Distance
≥49 feet/15m
Screw size
M8
Battery Size
22.55*17.13*5.63inch
Battery Weight
47kg/103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10-Year Warranty
AC Input Mode
:
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
>95%
AC Reverse Protection
Available
Max Bypass Overload Current
40A

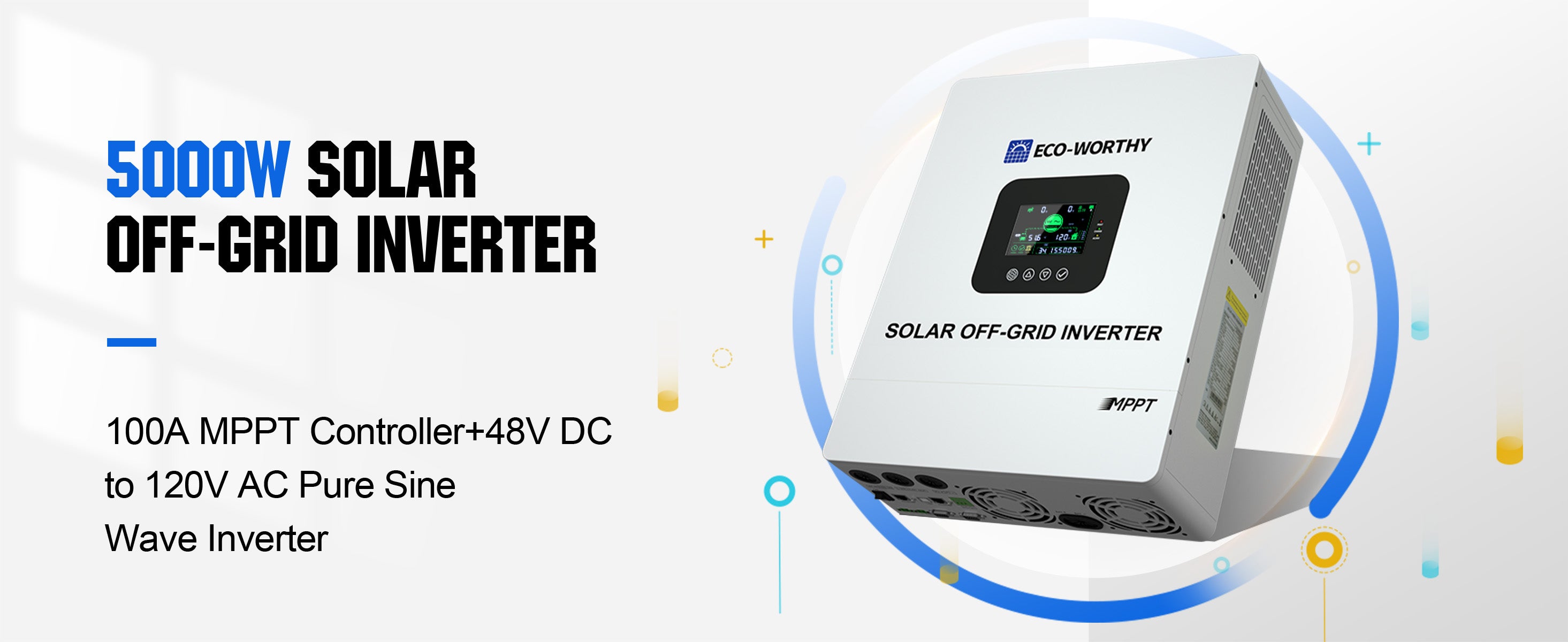

Invert Mode
:
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
5000W
Rated Output Voltage
120VAC
Peak Power
10000W
Bypass Breaker
63A
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
Load ≤25W
AC Charging Mode
:
Battery Type
Lead acid or lithium battery
Max Charge Current
60A
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
PV Charging Mode
:
Max Input Power
5000W
PV Charging Current Range
0-80A(can be set)
Max PV Open Circuit Voltage
500VDC
PV Operating Voltage Range
120-450VDC
MPPT Voltage Range
120-450VDC
Battery Voltage Range
40-60VDC
Max Output Power
5000W
Charging Short Circuit Protection
Blown fuse
Certification
UL1741
Warranty
1 Year Warranty
Rated Power
195W
Solar Cell
Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp)
20.2V
Open Circuit Voltage(Voc)
21.2V±3%
Short circuit current
11.60A±3%
Maximum current
9.65A
Connector Type
MC4
Module Efficiency STC[%]
19.60%
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Temperature range
－40℃～ +80℃
Frame
Aluminum alloy frame
Weight
10.5kg/23.15lbs
Size
58.86x26.18x1.37in (1495*665*35)
Included in the Box
