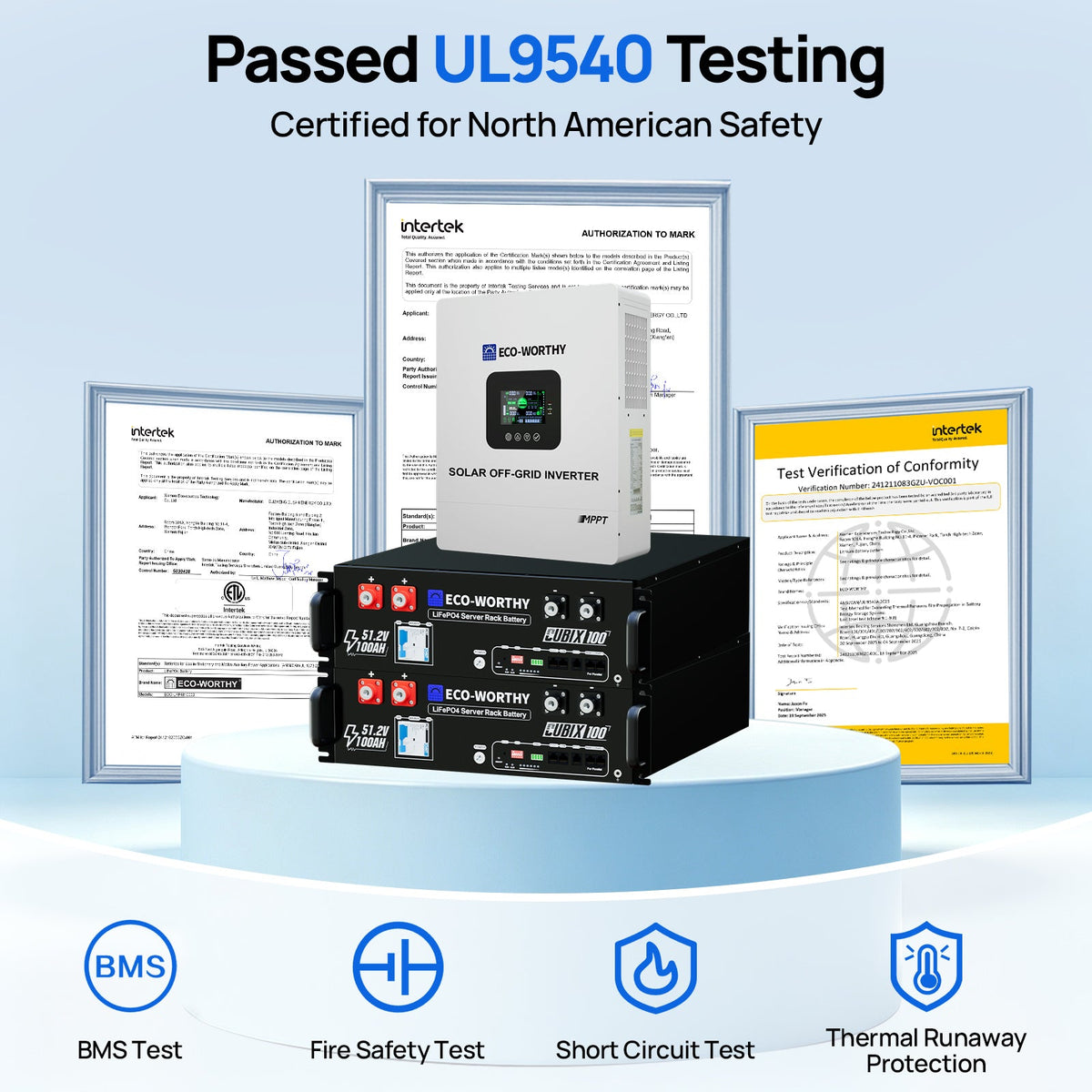

  • A black Eco-Worthy Lifepo4 100 server back battery shown on a light blue pedestal, with certification documents behind it and text stating ETL Tested conforms to UL9540. The image includes BMS, Fire Safety Test, Short Circuit Test, and Thermal Runaway Protection icons at the bottom.
  • A black Eco-Worthy UL 9540 home storage battery displayed on a white pedestal with promotional text, a blue performance line chart, coin graphics, and feature icons below.
  • Electrical panel with text indicating UL 9540A testing on a dark background
  • 12 x 420W Mono Solar Panels with specifications and features on a white background
  • Forklift with a pallet of boxes in a warehouse, labeled 'Whole Pallet Transportation'.
  • 48V 5000W Solar Split Phase inverter with smartphone app showing monitoring capabilities
  • Diagram of time-slot charging and discharging with a 48V 5000W solar AIO Split Phase inverter on a white background.
  • 48V 5000W AIO Split Phase Solar inverter with compatibility text and battery types, shown on a house roof.
  • ECO-WORTHY 10kW(5kW×2) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 10000W 120VAC/240VAC Output | 5040W PV(12×420W) - 2KW-5KW solar panel kit
  • ECO-WORTHY 10kW(5kW×2) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 10000W 120VAC/240VAC Output | 5040W PV(12×420W) - 2KW-5KW solar panel kit
  • ECO-WORTHY 10kW(5kW×2) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 10000W 120VAC/240VAC Output | 5040W PV(12×420W) - 2KW-5KW solar panel kit
Pictures
Videos
👻 Halloween Meets Thanksgiving 🦃

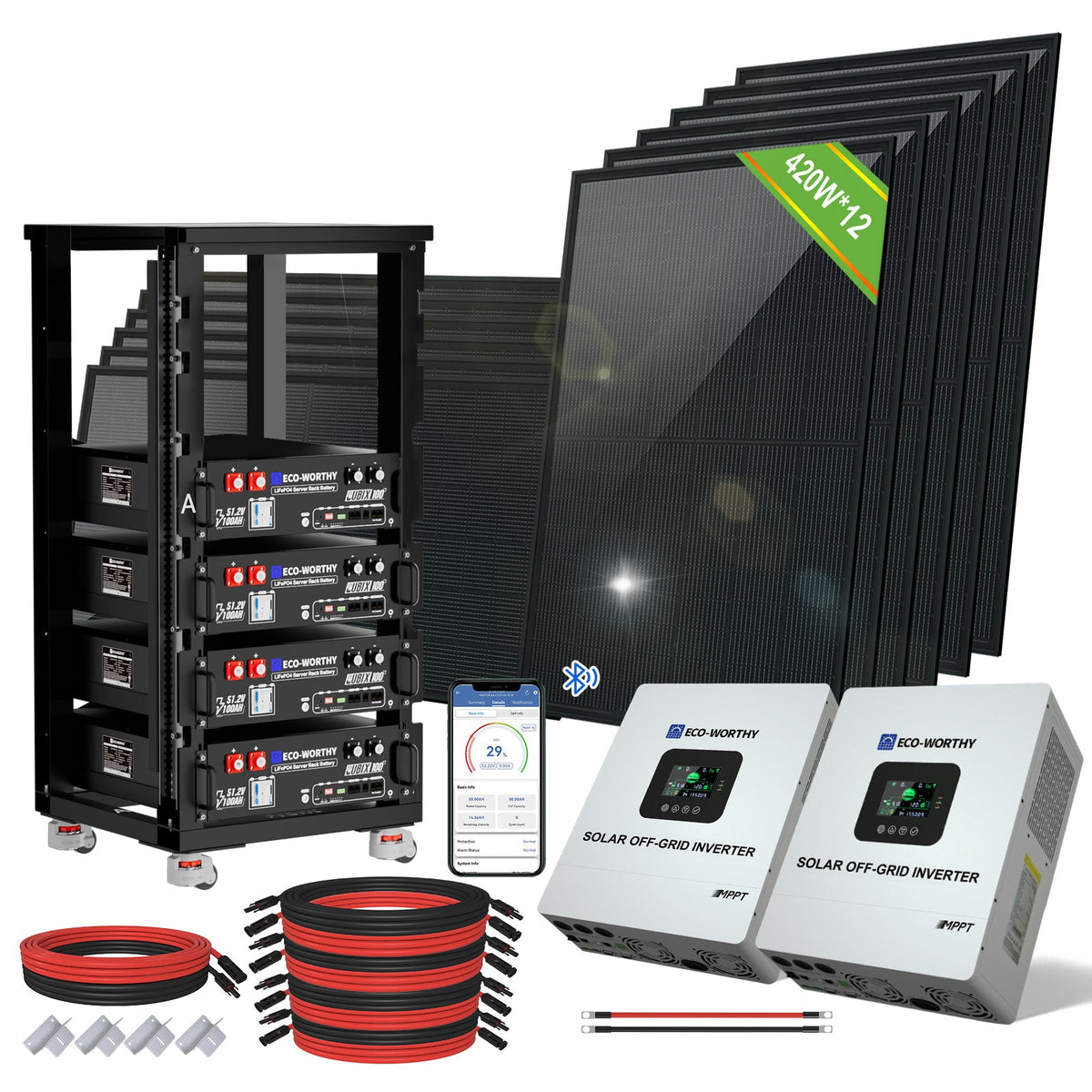

ECO-WORTHY 10kW(5kW×2) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 10000W 120VAC/240VAC Output | 5040W PV(12×420W)

ECO-WORTHY 10kW(5kW×2) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 10000W 120VAC/240VAC Output | 5040W PV(12×420W)

C$11,999.99
C$11,999.99 C$20,999.99
Sale Sold out

SKU:

CA-GW-L02M420-SRNK10KUSL100U3U4-12

[High-Efficiency N-Type Solar Panels] High-efficiency N-type monocrystalline panels deliver reliable power with lower degradation. TÜV Rheinland certified for salt-mist and ammonia resistance, with 2400Pa wind and 5400Pa snow-load ratings. Durable aluminum frames and IP68 junction boxes support long-term outdoor use.
[20.48kWh Storage + Dual 5kW Inverters] Four 51.2V 100Ah LiFePO4 batteries provide 20.48kWh of storage, paired with dual 5kW 48V off-grid inverters for up to 10kW output. Supports 120/240V split-phase power, 90% DOD, 6,000+ cycles, 100A BMS protection, and built-in 100A MPPT charging.

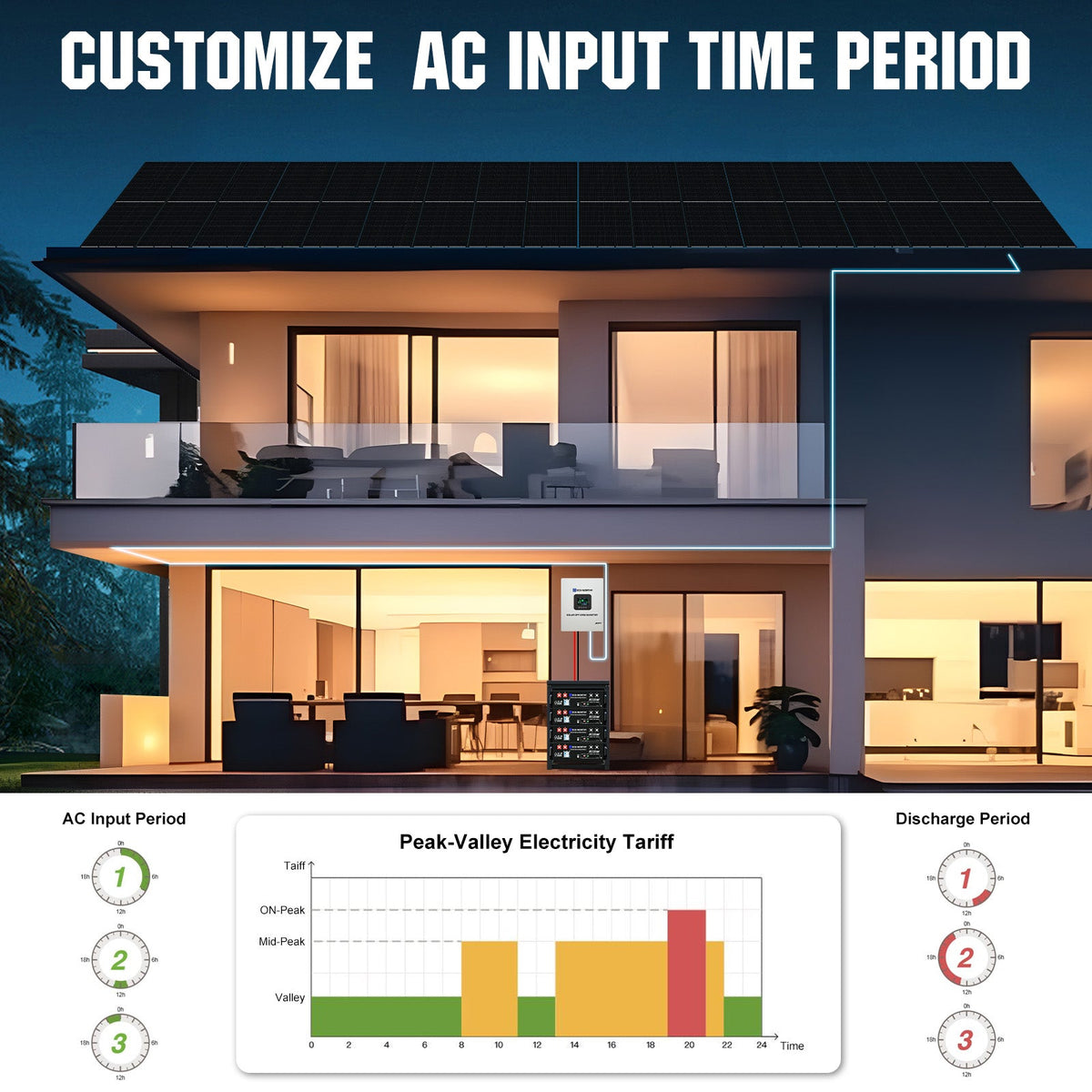

[Flexible Energy Management] Manage solar, battery, utility, or generator power with multiple charging and output priority modes—ideal for off-grid and backup power systems.
[Smart Monitoring & Expansion] Monitor battery status via Bluetooth and WiFi. Expand up to 32 batteries in parallel to meet growing energy-storage needs.
[Complete Installation Kit] Includes 12 sets of Z-brackets, 5 m MC4 extension cables, and four battery cable sets for easier installation, maintenance, and future upgrades.

Shipping Notice
420W solar panels ship on pallets and must be returned on pallets. Inspect for damage at delivery, take photos if needed, and contact customer service. Please provide a valid phone number for delivery coordination.

Read more
Option

Total price

C$11,999.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$2,999.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Cartes Bancaires
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$11,999.99 C$20,999.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
Built for Off-Grid, Home Backup & Custom Power Systems

This solar energy storage kit is designed for off-grid power, home backup, and customized energy-storage applications. Combining high-efficiency N-type monocrystalline solar panels with a 20.48kWh ECO-WORTHY LiFePO4 battery bank, it delivers reliable solar generation and long-lasting energy storage.

Key advantages include high-efficiency, low-degradation PV panels, durable performance in harsh environments, 6,000+ cycle life, 90% depth of discharge, 100A smart BMS protection, and Bluetooth/WiFi remote monitoring. The battery system supports up to 32 units in parallel, allowing flexible capacity expansion for homes, farms, cabins, RVs, and backup-power applications.

The kit also includes mounting brackets, MC4 extension cables, and battery connection cables to reduce installation preparation, simplify system wiring, and make maintenance and future upgrades easier.

Technical Specifications

Cubix100 | 48V 100Ah Server Rack Battery

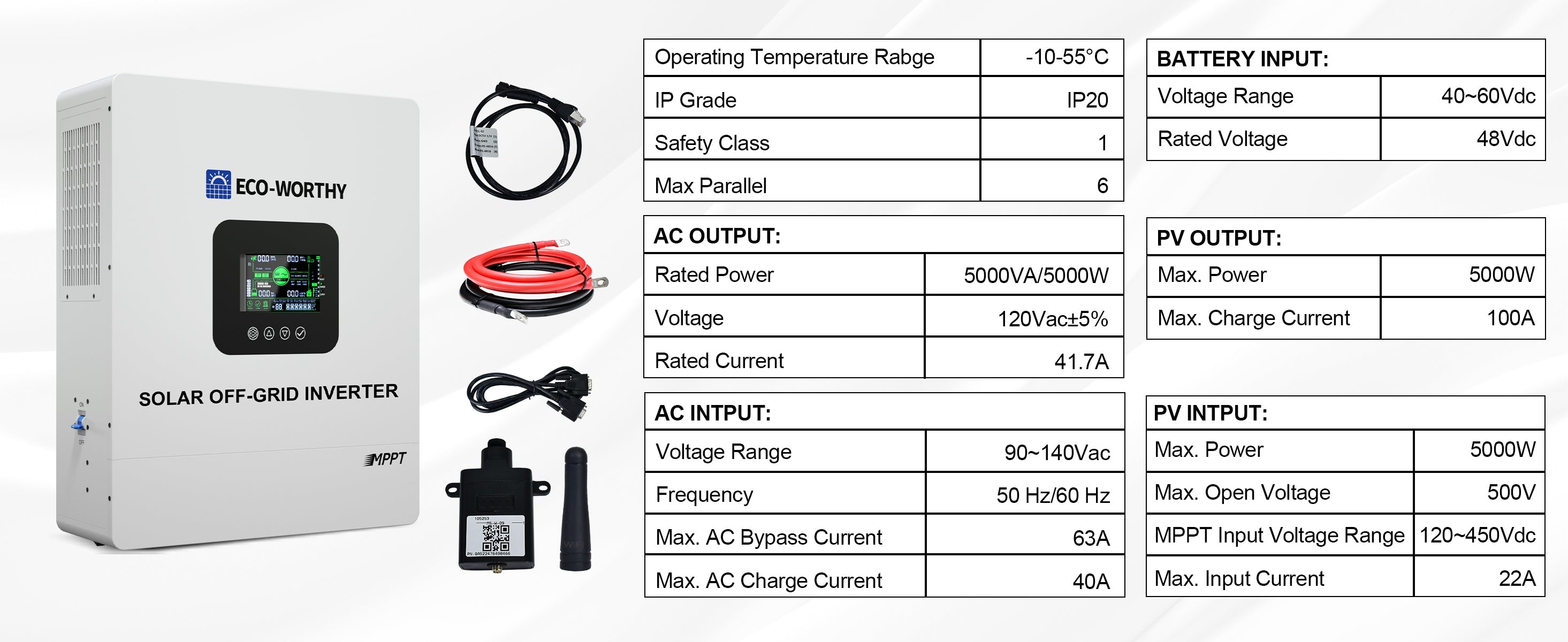

5kW 48V All-in-one Inverter

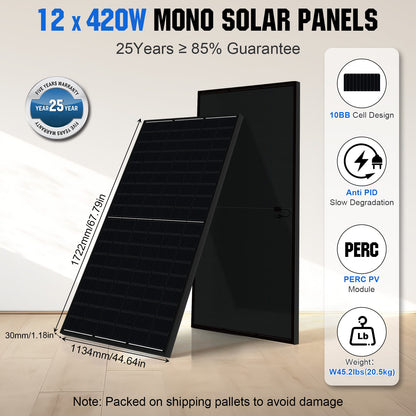

420W N-Type Monocrystalline Solar Panel

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Maximum Charge Voltage

58.4V

Cycle Life

≥6000 cycles @ 25℃, 0.5C charge / 0.5C discharge, ≥80% SOH

Battery Balancing Methods

Passive Balancing

Pre-Charge Resistor

Yes

Communication Port

CAN/RS485/RS232

Max. Parallel Number

32pcs

Bluetooth & Wi-Fi Signal Distance

≥49 feet/15m

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

47kg/103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10-Year Warranty

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protection

Circuit breaker

Efficiency

>95%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

5000W

Rated Output Voltage

120VAC

Peak Power

10000W

Bypass Breaker

63A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode

Load ≤25W

Battery Type

Lead acid or lithium battery

Max Charge Current

60A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

Max Input Power

5500W

PV Charging Current Range

0-80A(can be set)

Max PV Open Circuit Voltage

500VDC

PV Operating Voltage Range

60-145VDC

MPPT Voltage Range

120-450VDC

Battery Voltage Range

40-60VDC

Charging Short Circuit Protection

Blown fuse

Certification

UL1741

Rated Power

420W

Maximum/Peak Voltage(Vmp)

32.44V

Short circuit current

14.01A

Output Tolerance

+3%

Temperate coefficient of Voc

-0.29%/°C

Frame

Aluminum alloy frame

Solar Cell

Monocrystalline

Open Circuit Voltage(Voc)

38.73V

Maximum current

12.95A

Temperate coefficient of Isc

0.05%/°C

Temperature range

-40°C~ +85°C

Weight

45.3 lbs(20.5 kg)

Size

67.79x44.64x1.18in (1722*1134*30mm)

A promotional graphic for an Eco-Worthy UL9540 battery backup inverter, showing the black rectangular inverter unit, compliance documents, feature callouts, and a house illustration on a blue gradient background.Eco-Worthy UL9540 5kW inverter shown on a blue promotional graphic with compliance documents, a UL Intek shield icon, and feature callouts.
Promotional banner for the Eco-Worthy Cubix100 Server Back Battery. The image features the black and silver battery unit in the center, surrounded by multiple small photos of men using a laptop to demonstrate its use, along with mockup screenshots of positive customer reviews on the right, all set against a blue gradient background with the headline 'Blogger Approved, User Loved'.Promotional banner for the Eco-Worthy Cubix100 Server Back Battery. The image features the black and silver battery unit in the center, surrounded by multiple small photos of men using a laptop to demonstrate its use, along with mockup screenshots of positive customer reviews on the right, all set against a blue gradient background with the headline 'Blogger Approved, User Loved'.

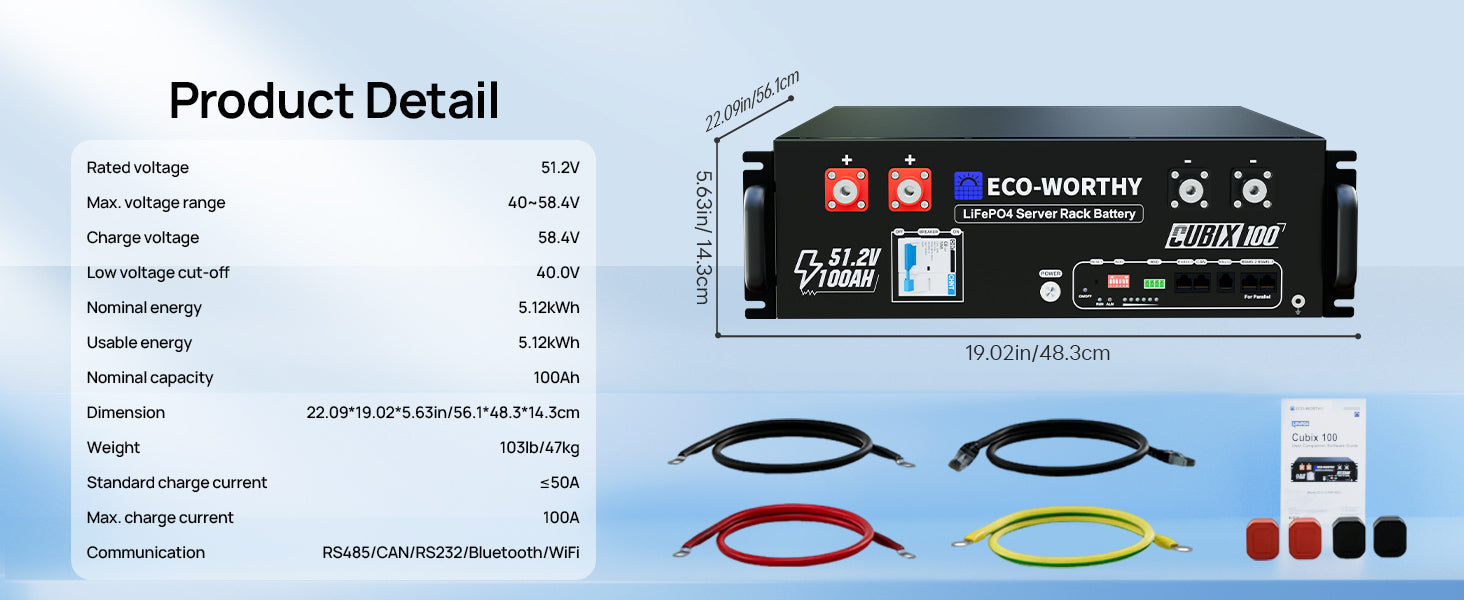

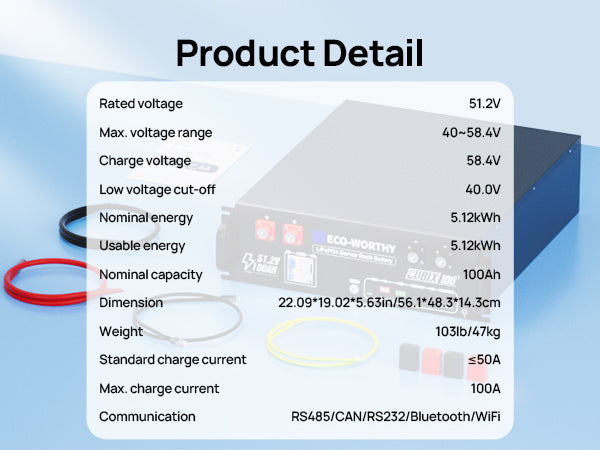

Product detail graphic for an ECO-WORTHY 48V backup battery with dimensions, technical specifications, and included accessories such as cables and a remote on a blue gradient background.Product detail graphic showing a battery power supply with a list of technical specifications overlaid on a light blue gradient background.

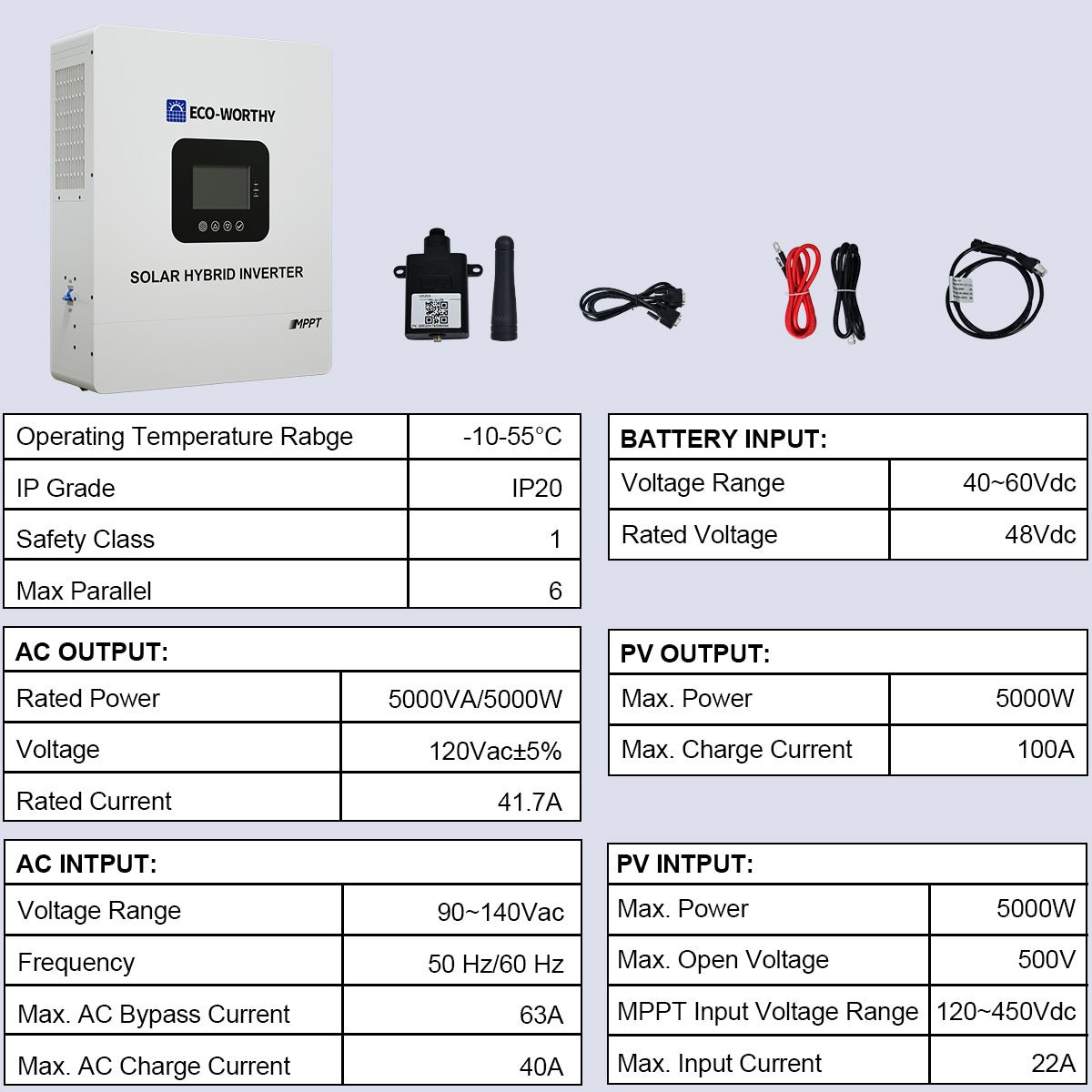

Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery - ECO - WORTHY

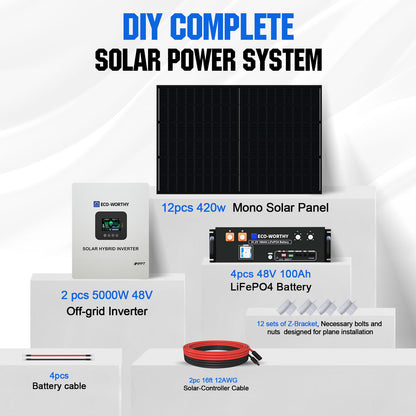

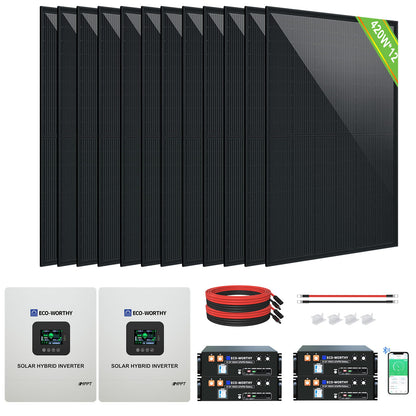

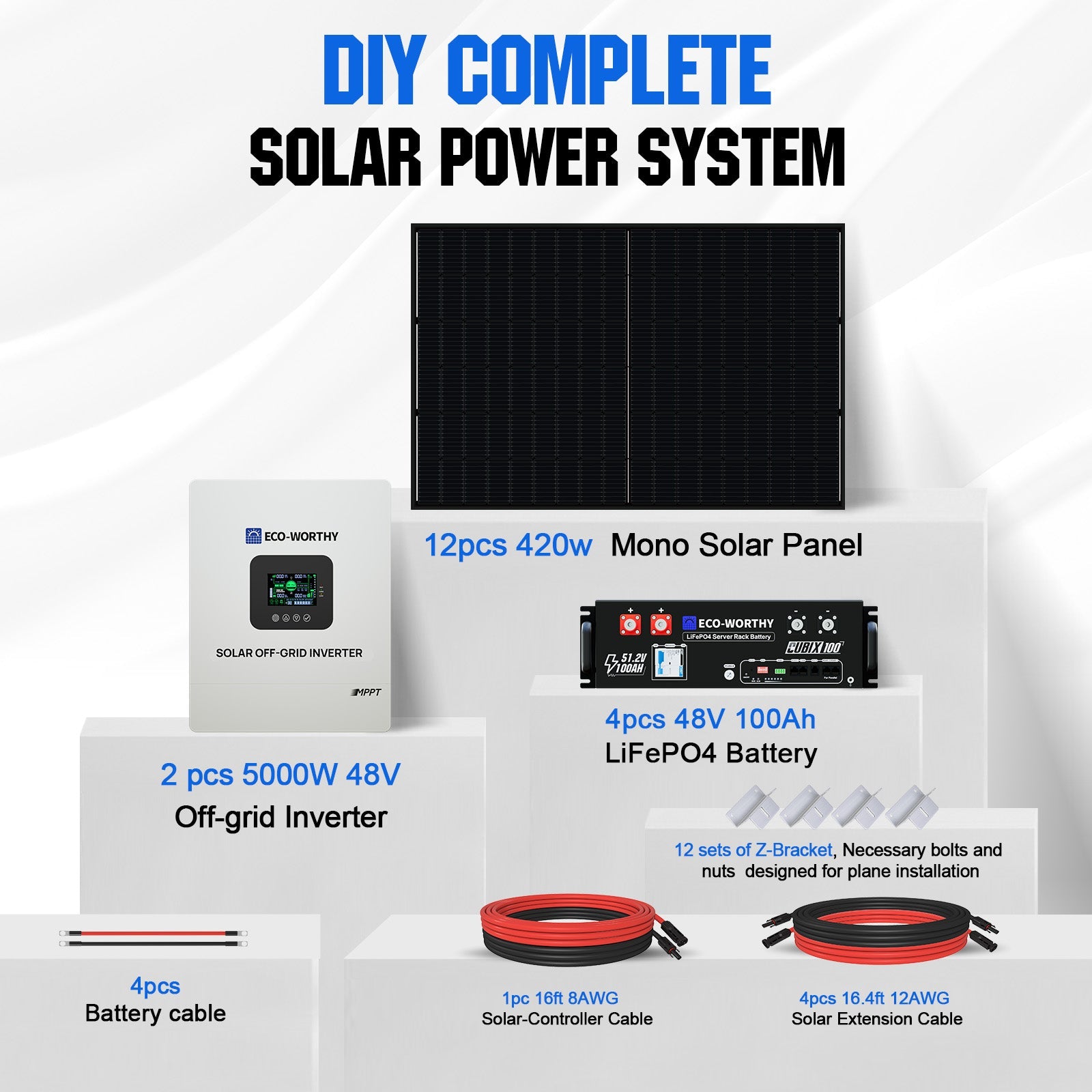

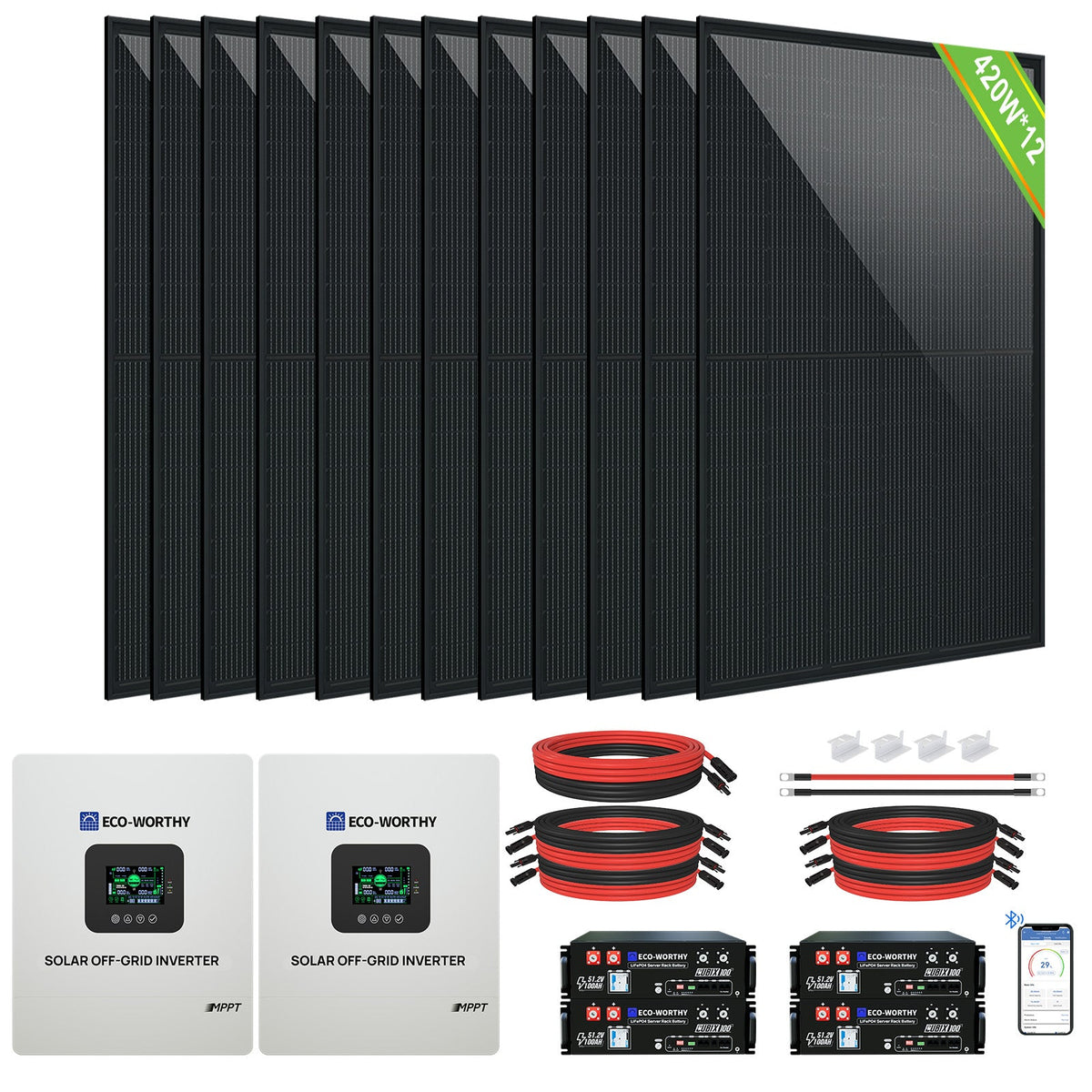

Included in the Box

12 x 420W Mono Solar Panels

2 x 5000W Off-grid Inverters

1 x 5M 8AWG Extension Cable with MC4
4 x 5M 12AWG Solar Cables with MC4

12 xZ Mounting Brackets

4 x 48V 100Ah Server Rack LiFePO4 Lithium Batteries
Battery Accessories

Battery Manual

Inverter Accessories

Inverter Manual
1x 6-Layer Battery Rack

User manual

UL9540 ATM for ECO-WORTHY AC ESS

Download

ECO-WORTHY Cubix100 LiFePO4 Server Rack Battery Manual-20260317

Download

ECO-WORTHY 5000W Solar Off-grid Inverter Manual

Download

ECO-WORTHY 420W N-Type Mono Solar Panel Specification

Download

ECO-WORTHY Cubix 100 UL1973 Certification

Download

ECO-WORTHY Cubix100 Software Manual Online-2026.3.17

Download

ECO-WORTHY 5KW Solar Off-grid Inverter + Cubix 100 Server Rack Battery Installation Guide-251021

Download

ECO-WORTHY Cubix100 BMS Tool&Drive for Windows

Download

Frequently Asked Questions

Are ECO-WORTHY batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
ECO-WORTHY offers 1–10 years of warranty coverage depending on the product. Most standard products come with a 1–3 year warranty, while select products, including certain server rack batteries, PowerMega batteries, and 420W solar panel, are covered for up to 10 years. The warranty covers eligible defects in materials and workmanship under normal use; damage caused by misuse, improper installation, unauthorized modification, or external factors is generally excluded.
