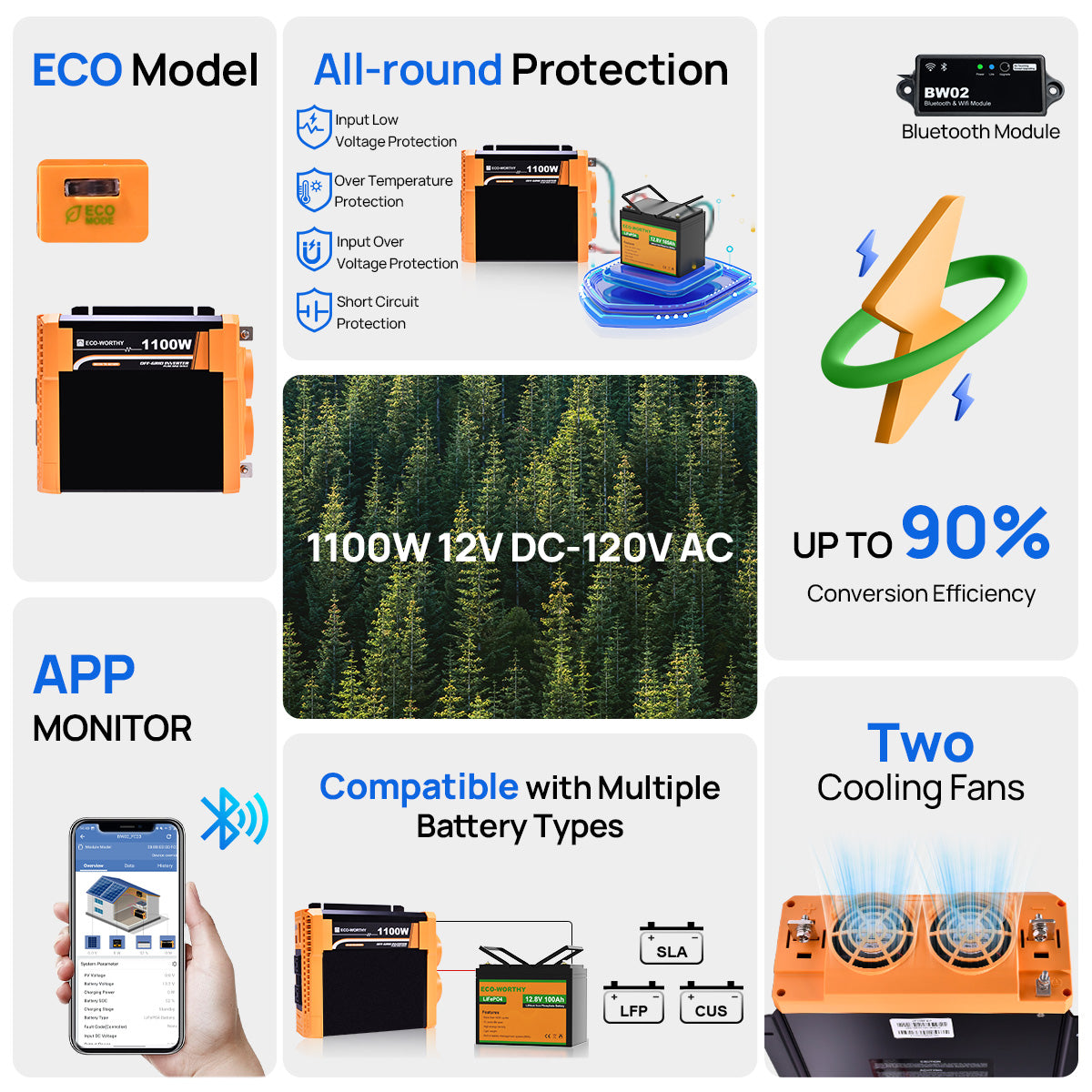

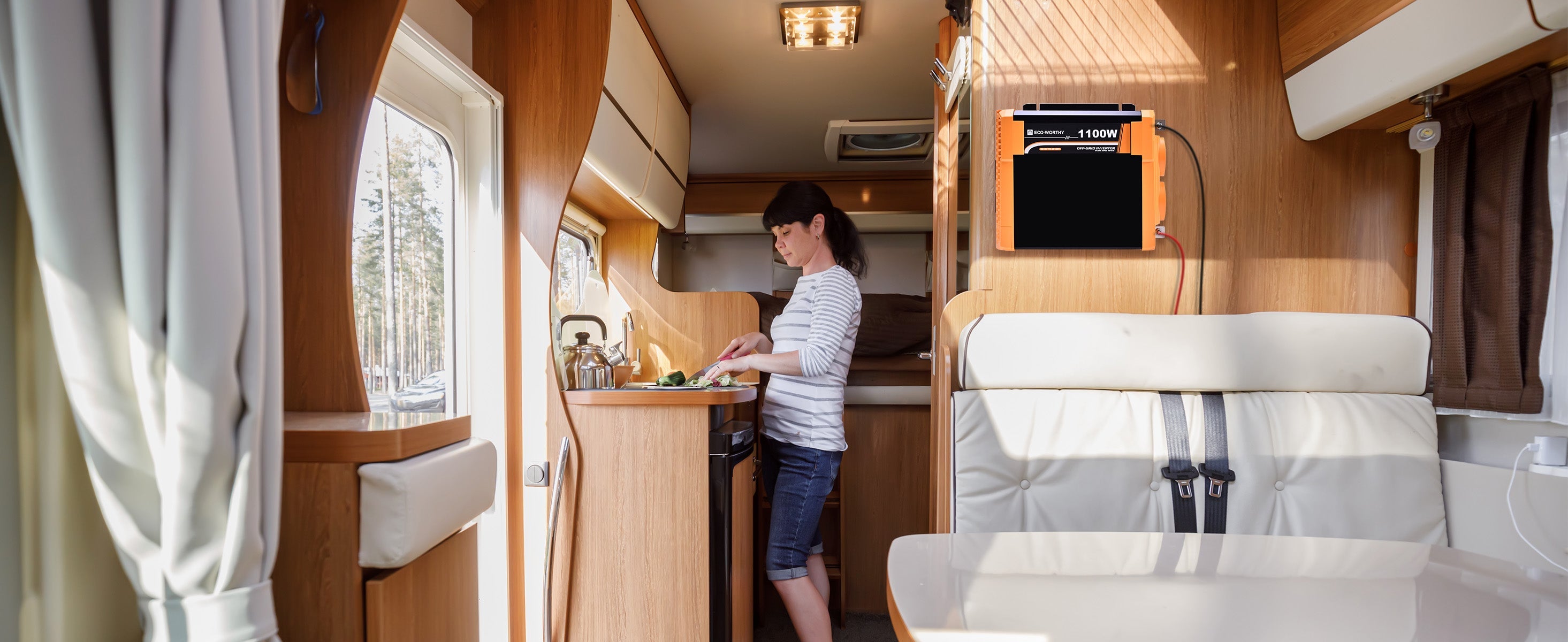

Eco-Worthy 1100W Off Grid Pure Sine Wave Inverter 12V to 110V is a high-quality solar accessory that is perfect for off-grid systems, including cabins and tiny homes. A power inverter is an electrical device that transforms the DC power stored in batteries into standard household AC power for consumer electronic needs. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics without interference.

Provides DC 12V to AC 120V Continuous Power
Technical Specifications
1100W Off Grid Pure Sine Wave Inverter 12V to 110V
Output Continuous Watts(W)
1100W+18W USB

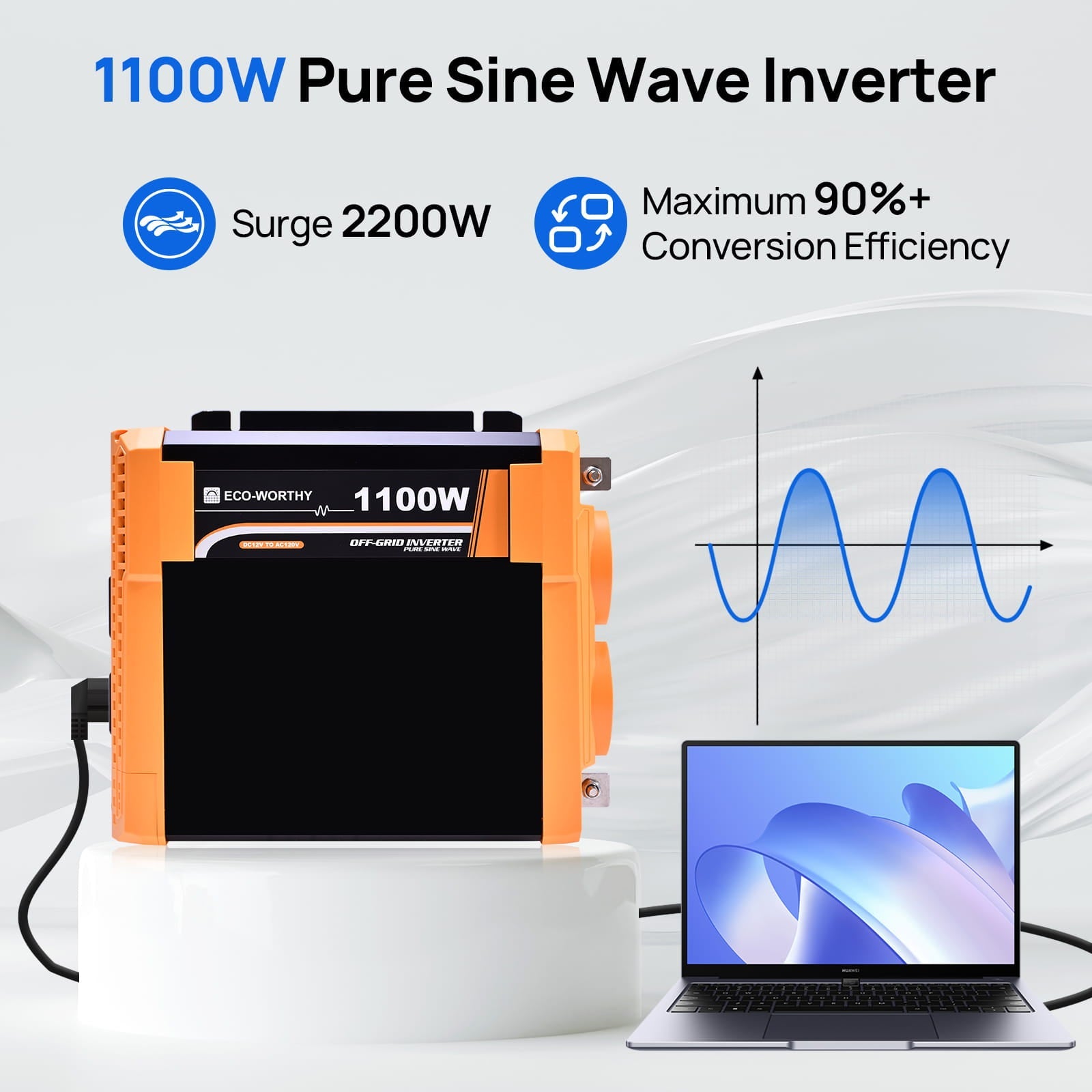

Surge Capacity (PeakPower)
2200W
Rated Input DC (V,A)
12V Battery, 100A
Input Voltage Range
10.5-16Vdc±0.3V
Rated Frequency (Hz)
60Hz±1
Rated Output AC (V,A)
115Vac±10%, 9.5A

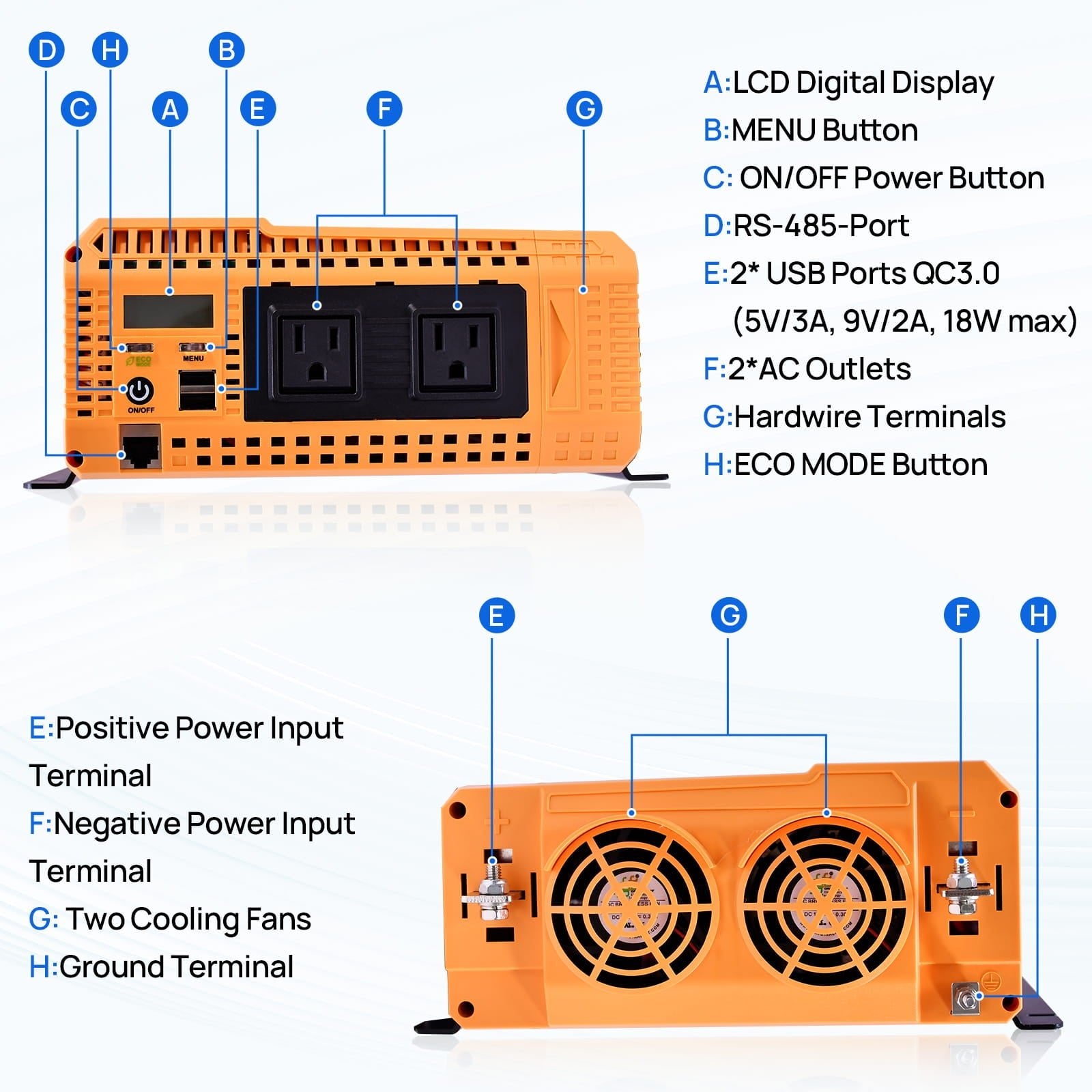

Rated Output USB (V,A)
2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)
No Load Current
<1A
Optimum Efficiency
85% min
Fuse (A)
30A*4
FuseType
Internal Blade
Output Wave Form
Pure Sine Wave
Touch Temperature
65℃(149℉)max
Operating Temperature
-20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH
5~95%
Cooling System
Thermo Fan

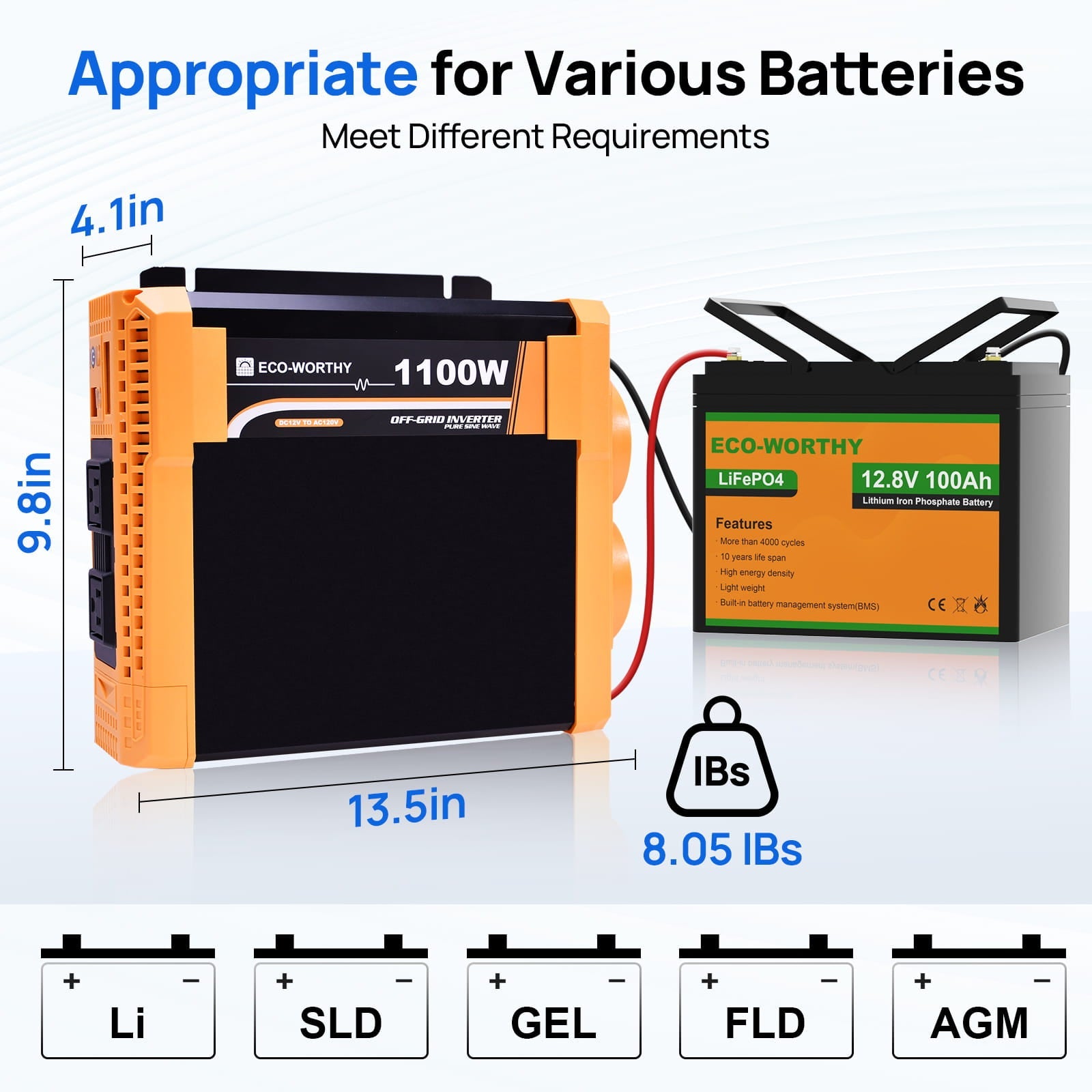

Dimensions (L*W*H)
10.6*9.8*4.1 in
Assembled Weight (kg)
3.65kg
External Fuse (Max Load Current)
120A

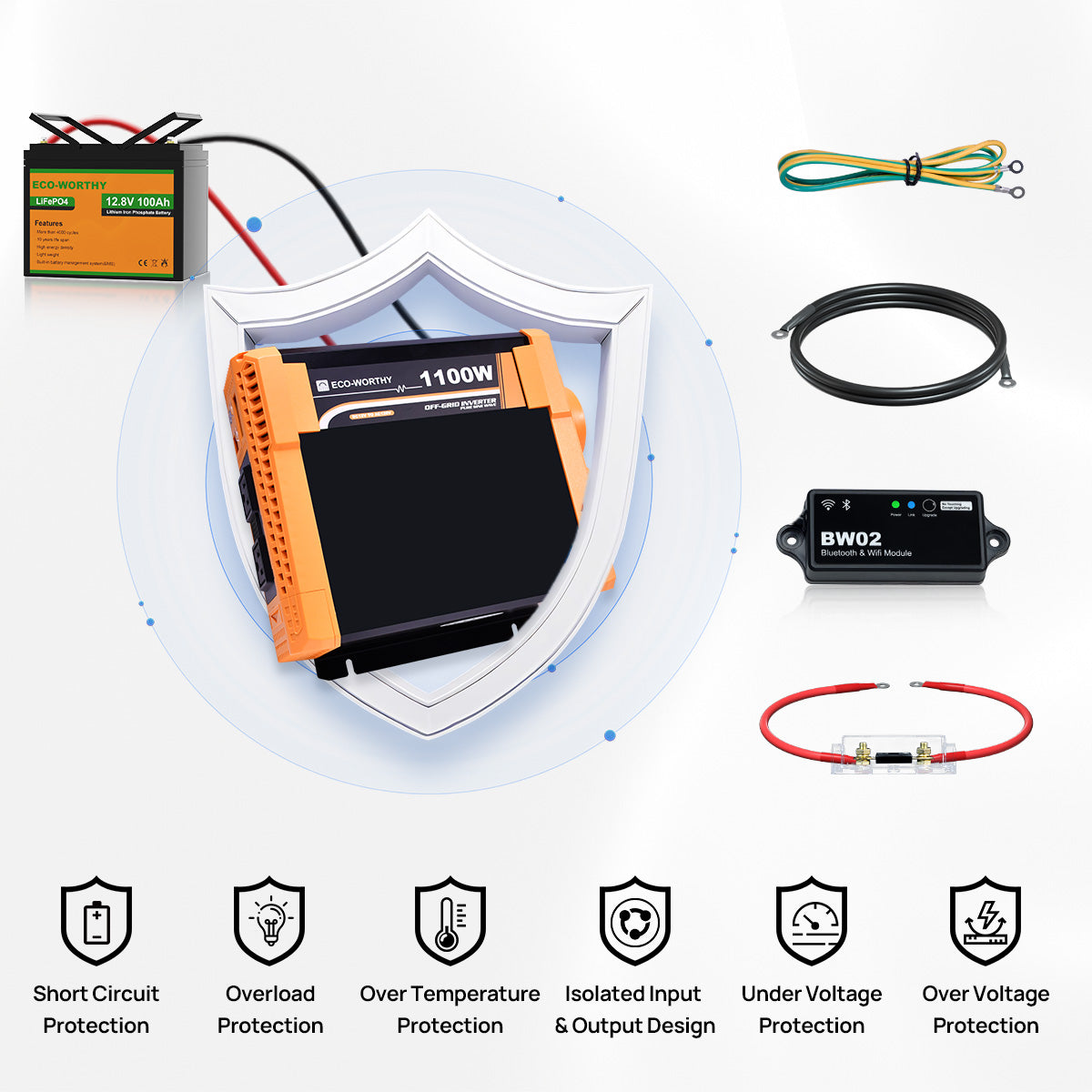

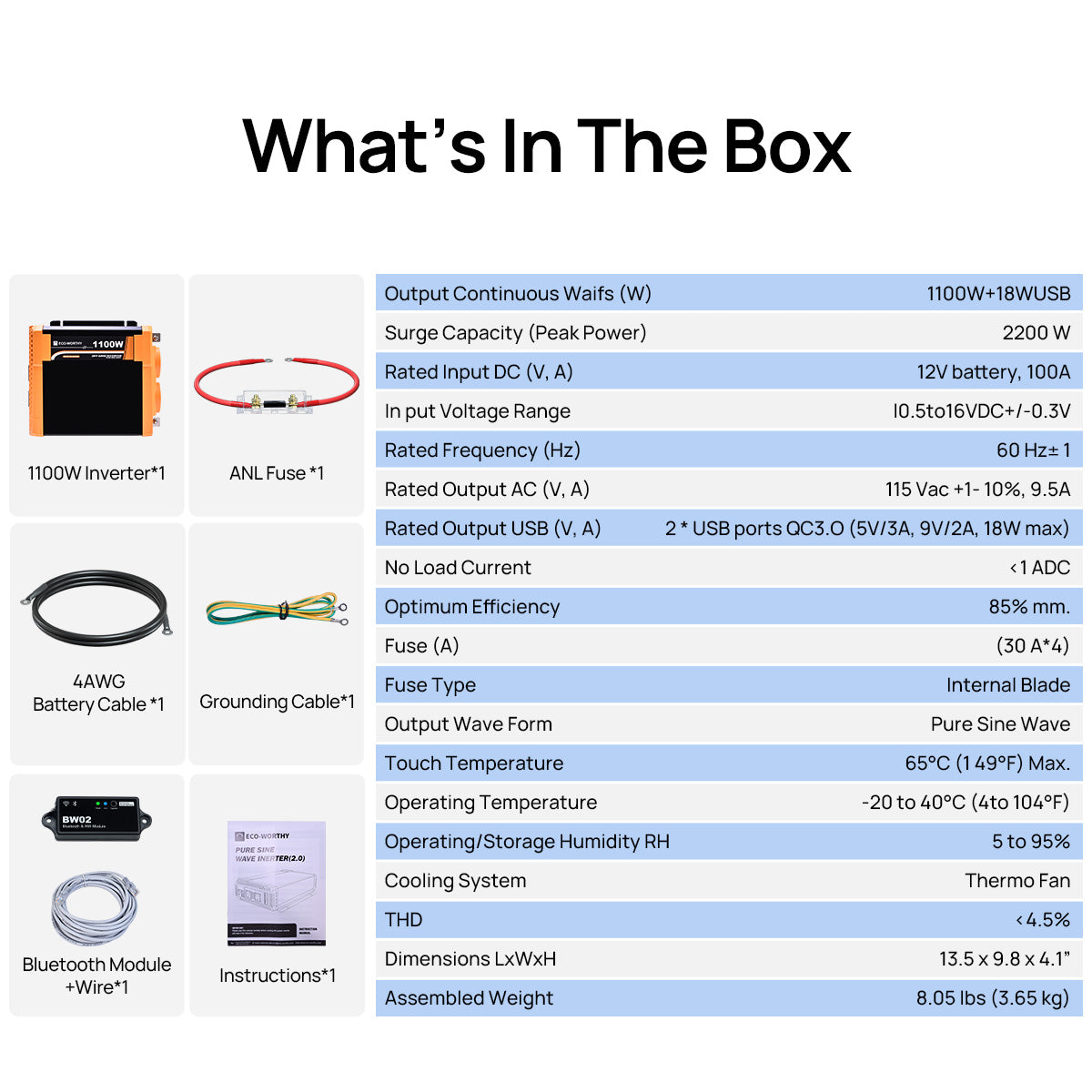

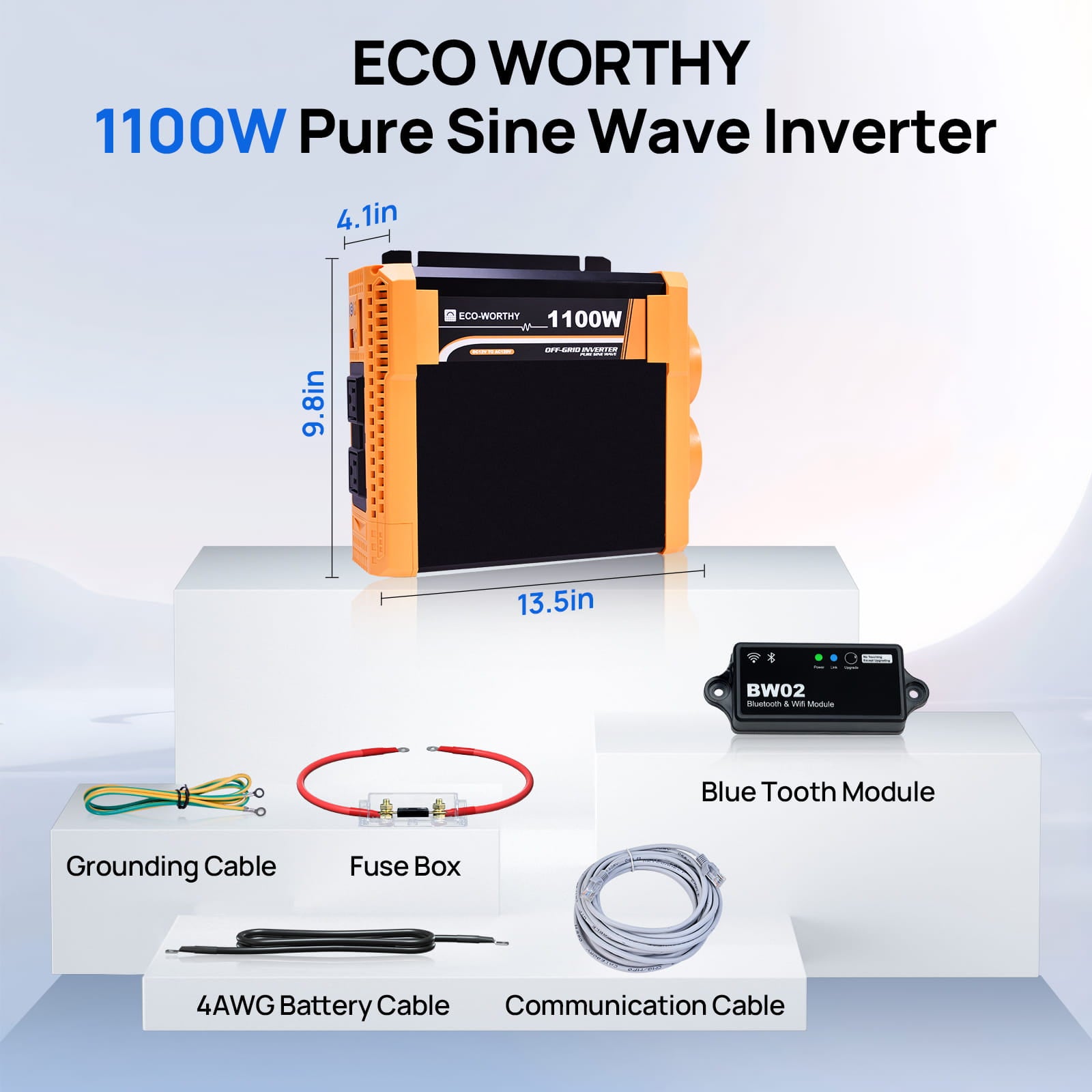

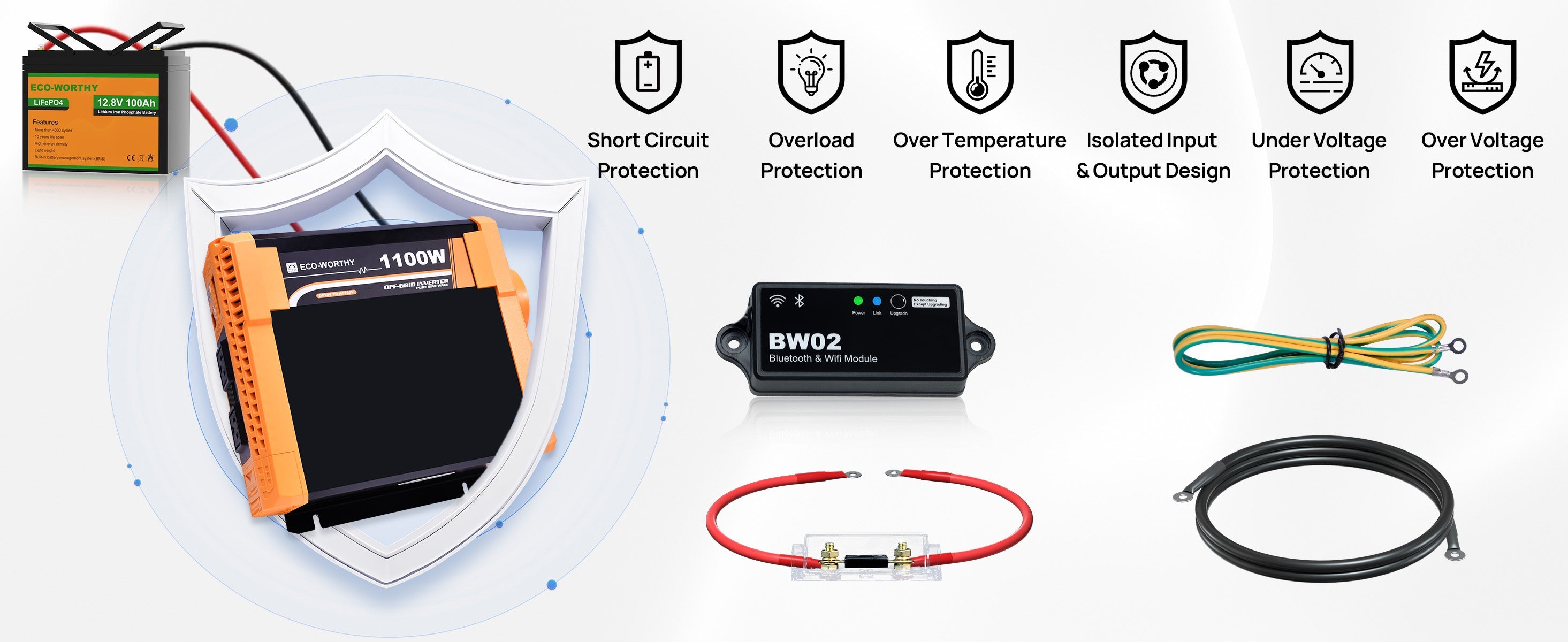

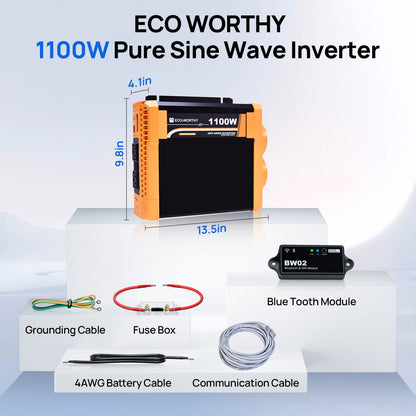

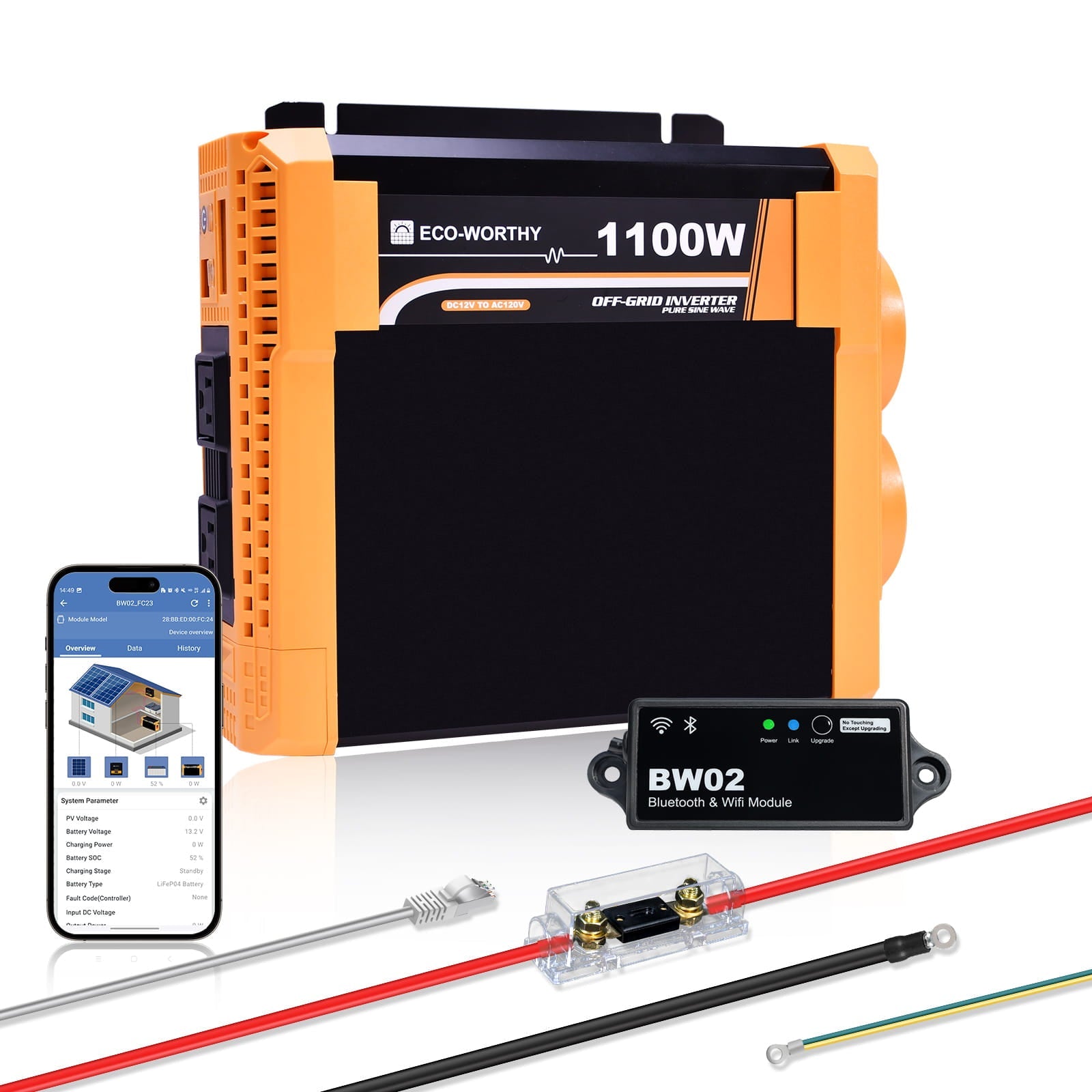

Included in the Box
