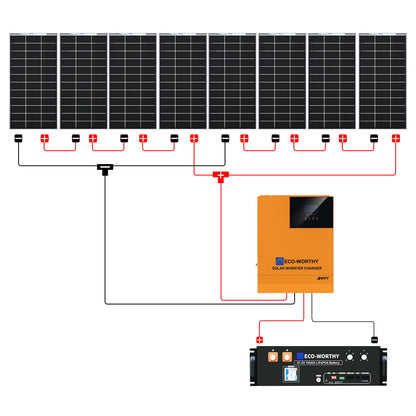

  • Diagram of solar panel system with Eco-Worthy solar inverter and battery on a white background
  • 5.12kWh 100ah Battery Capacity

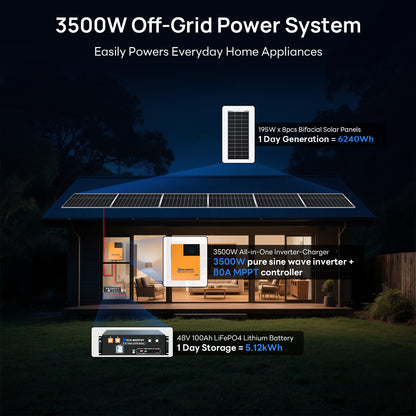

  • 3500W Off-Grid Power System with solar panels and battery storage on a house exterior.
  • Electrical panel with text indicating UL 9540A testing on a dark background
  • A person is checking the refrigerator in a dark room with an uninterruptible power supply system on the wall.

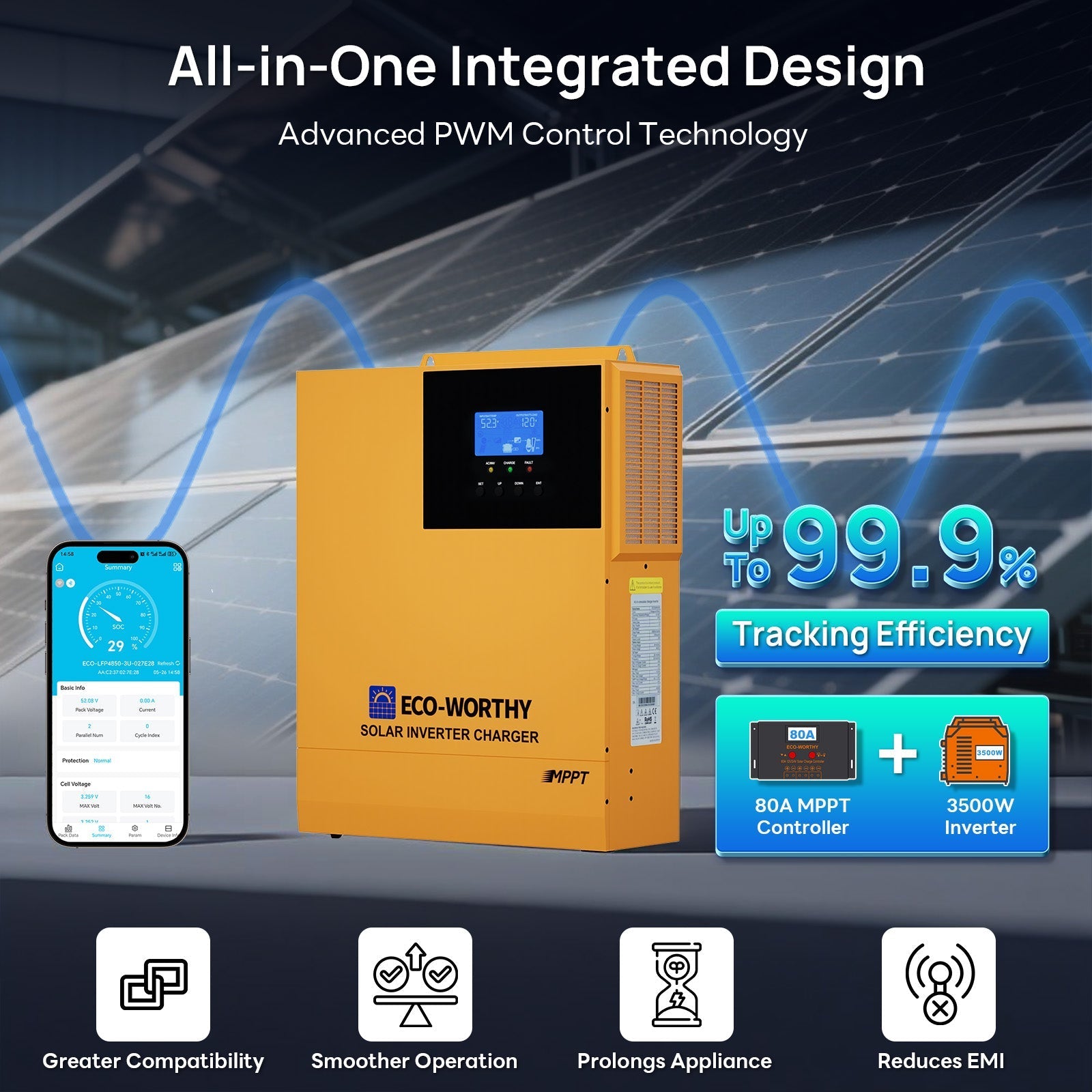

  • Eco-Worthy solar inverter charger with smartphone app and efficiency stats on a dark background

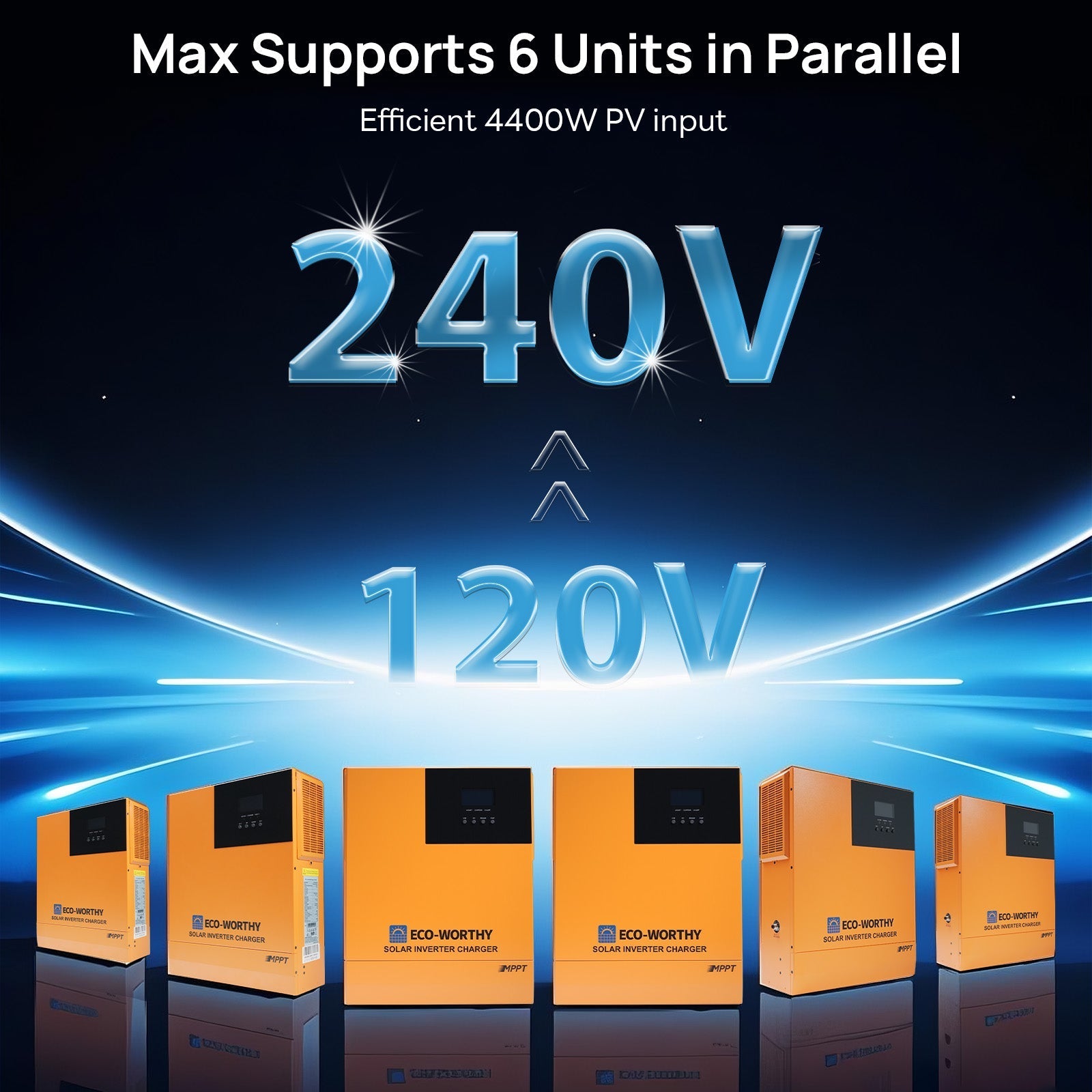

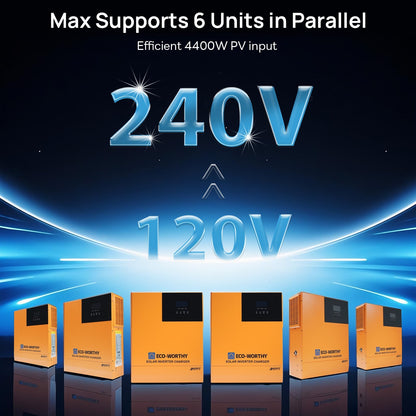

  • Orange power inverters with voltage specifications on a dark background

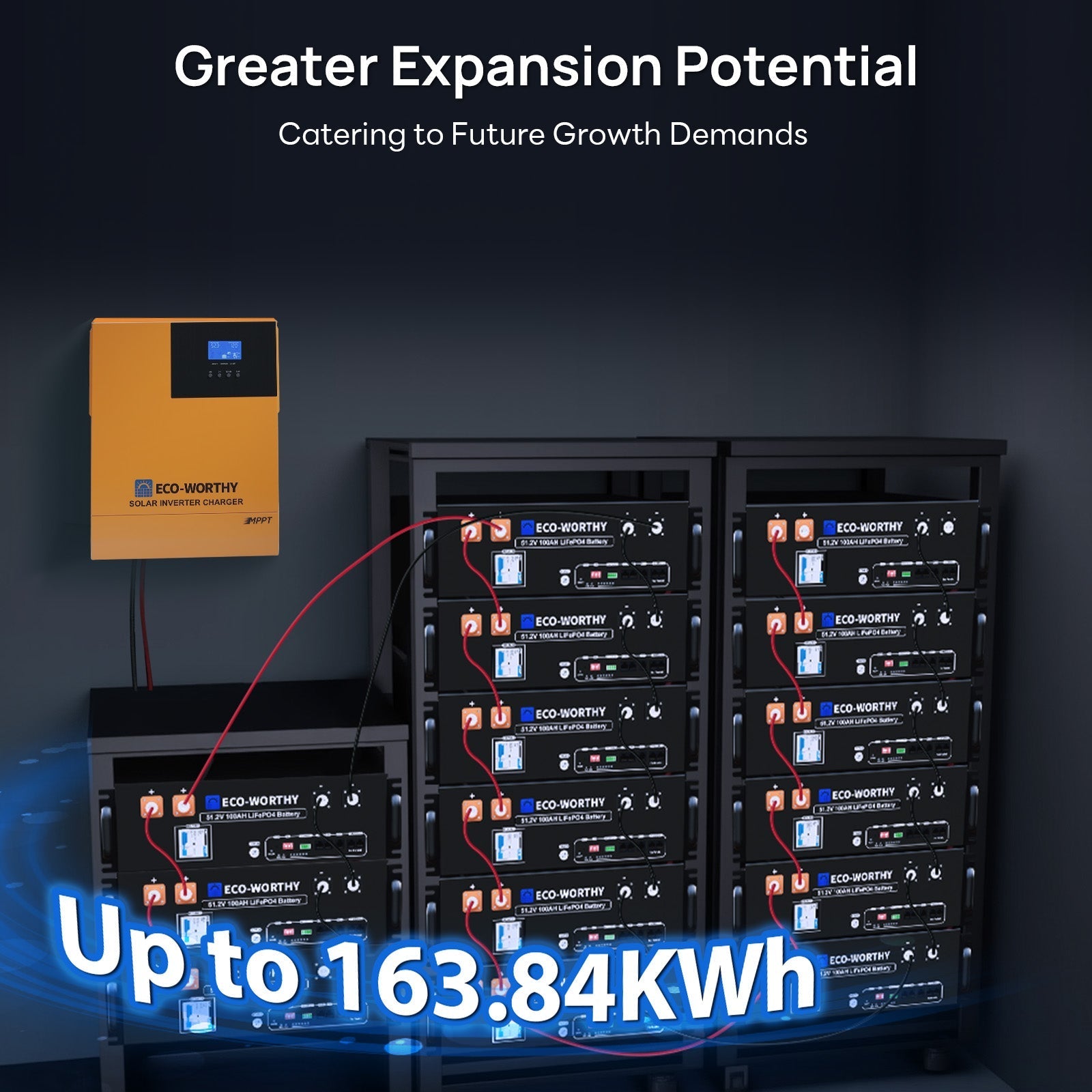

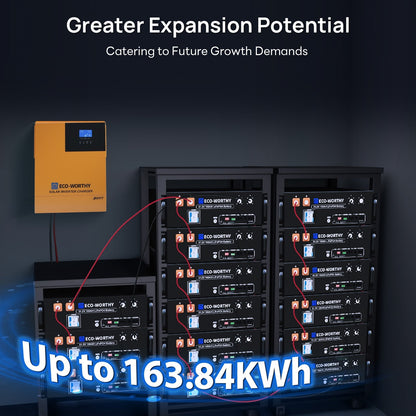

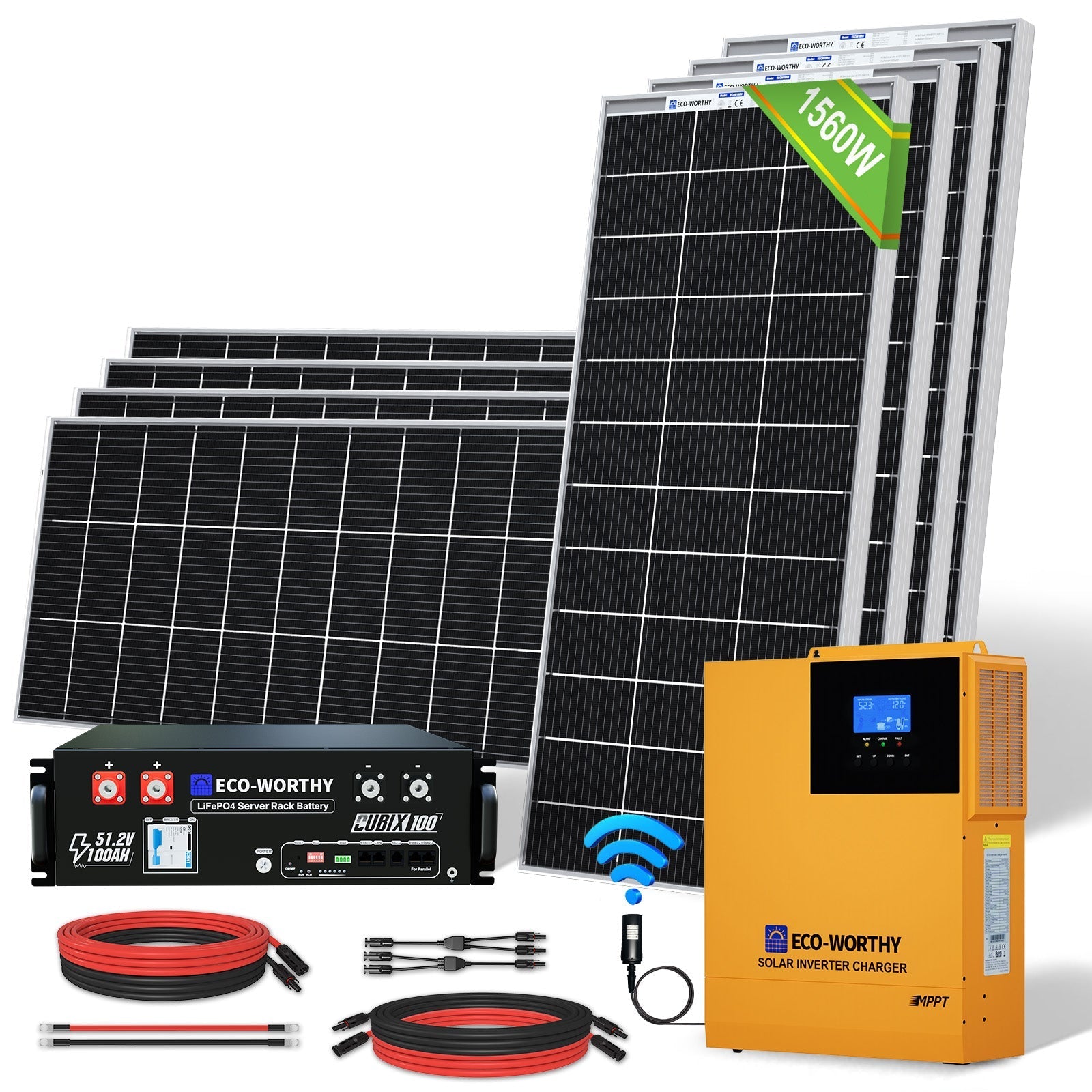

  • 1560W 48V (8x195W) Complete Off-Grid Solar Kit with 'Eco-Worthy' branding, showcasing expansion potential and capacity.
  • ECO-WORTHY 1560W 48V (8x195W) Complete Off-Grid Solar Kit with dual monitoring options on a dark background

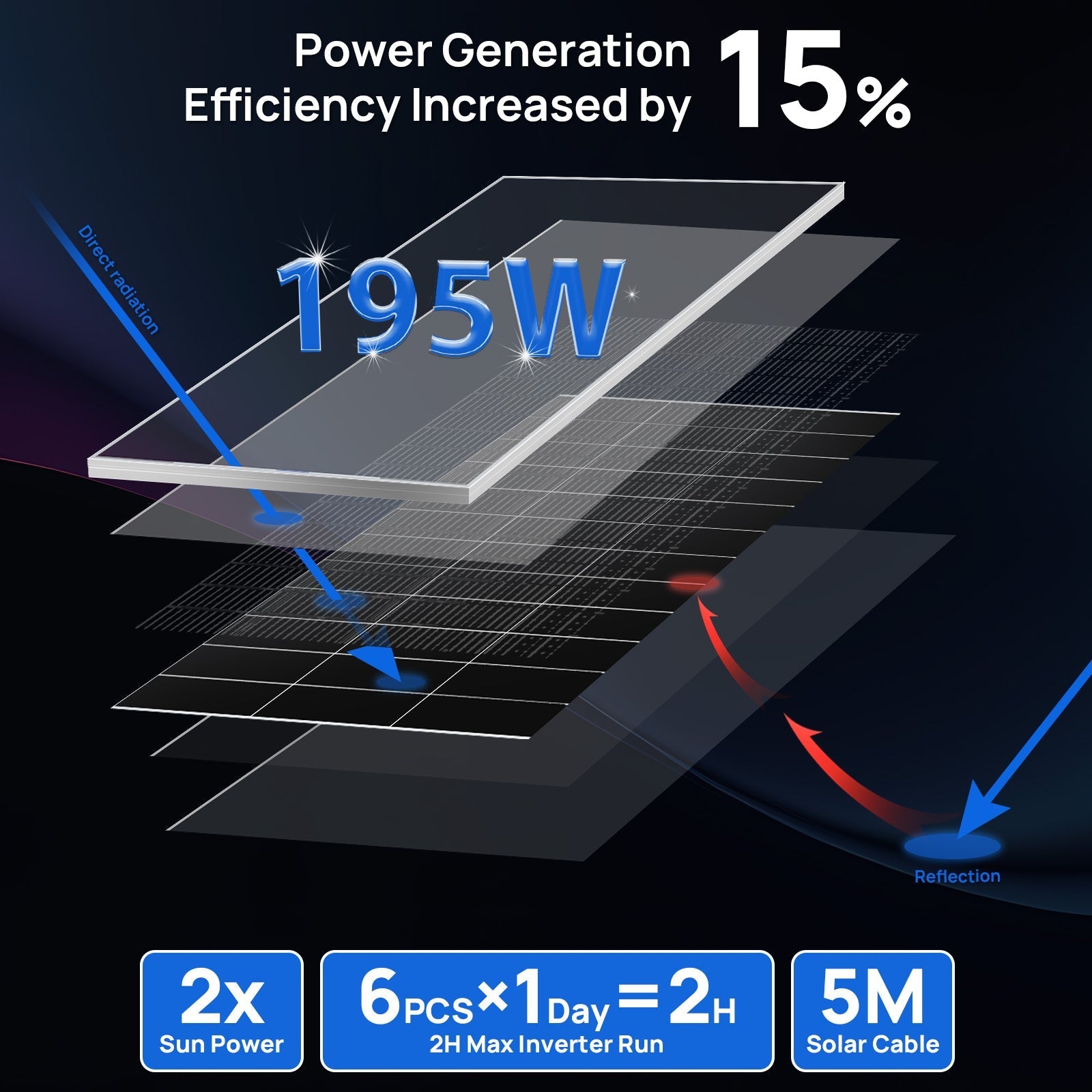

  • Solar panel illustration with power generation efficiency increase and specifications on a dark background

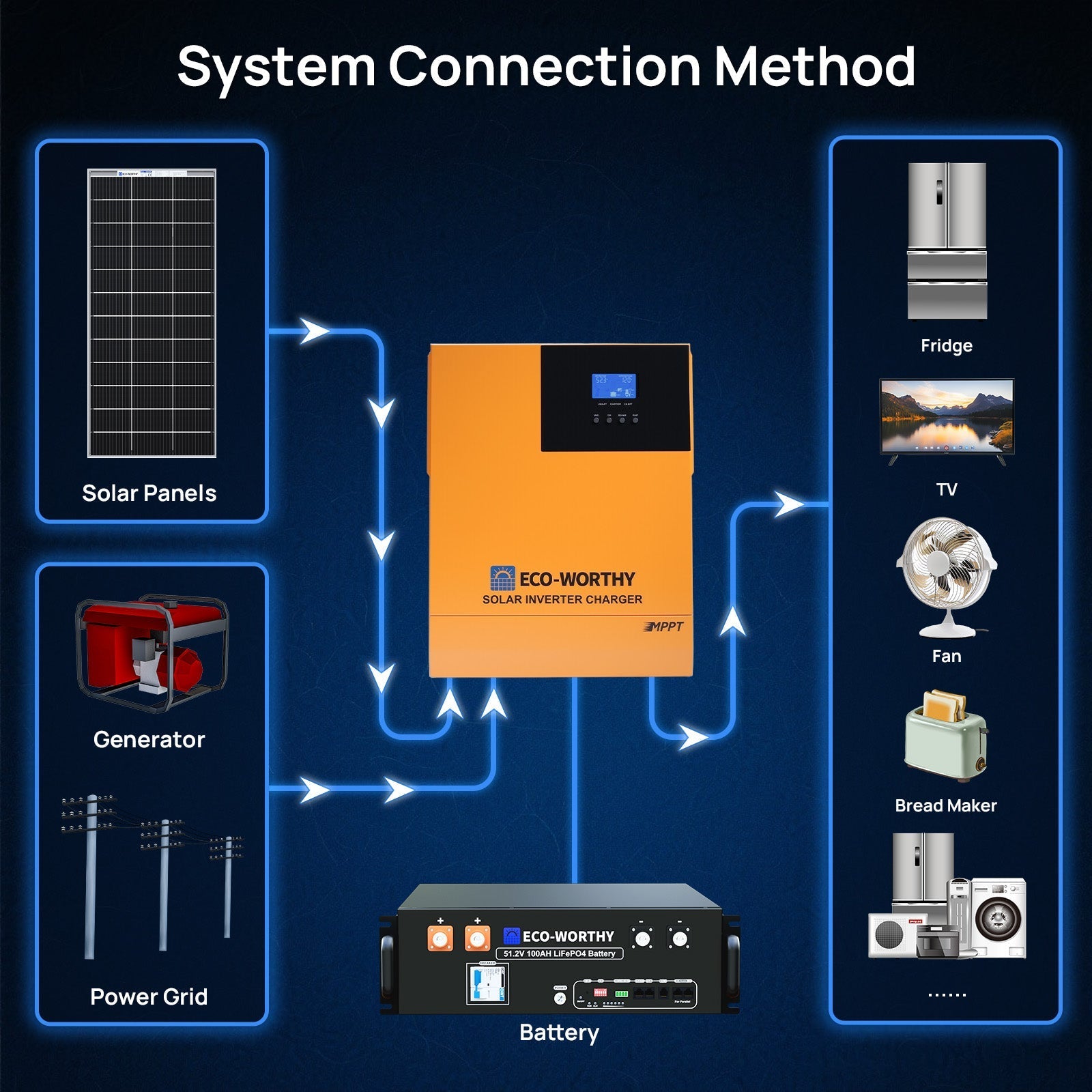

  • Diagram of a solar system connection method with Eco-Worthy inverters and power grid on a blue background.

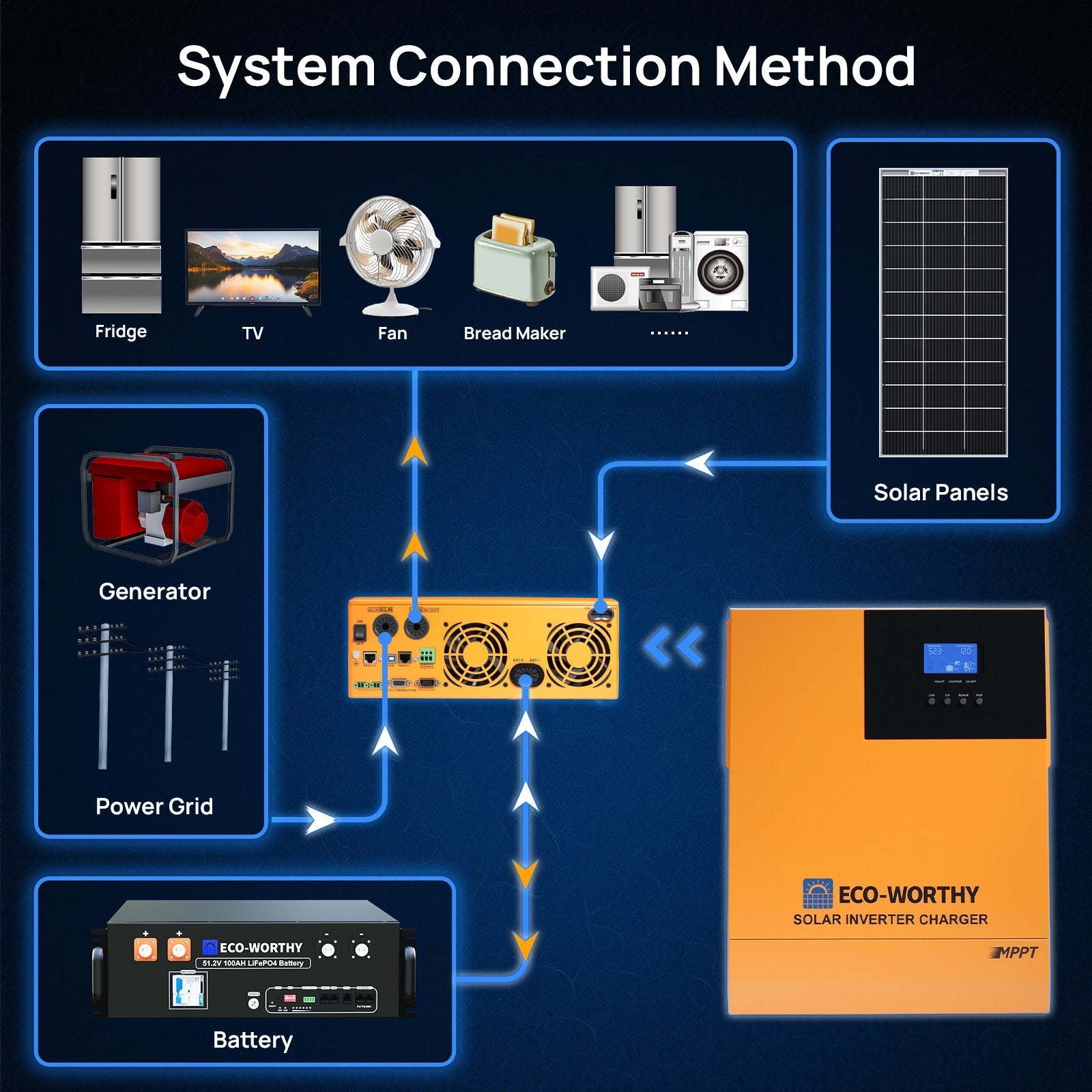

  • Diagram of system connection method with Eco-Worthy solar inverter charger on a blue background
  • Collection of solar power system components including panels, inverters, and cables on a white background.
Pictures
Videos
Early Prime Day Sale

Eco-Worthy 3500W Complete Off-grid Solar Power Kit | 1560W PV | 120V AC Output | 5.12kWh Capacity

Eco-Worthy 3500W Complete Off-grid Solar Power Kit | 1560W PV | 120V AC Output | 5.12kWh Capacity

C$3,799.99
C$3,799.99 C$5,699.99
Sale Sold out

SKU:

L02M195-CWIUSNK3500L4800-4

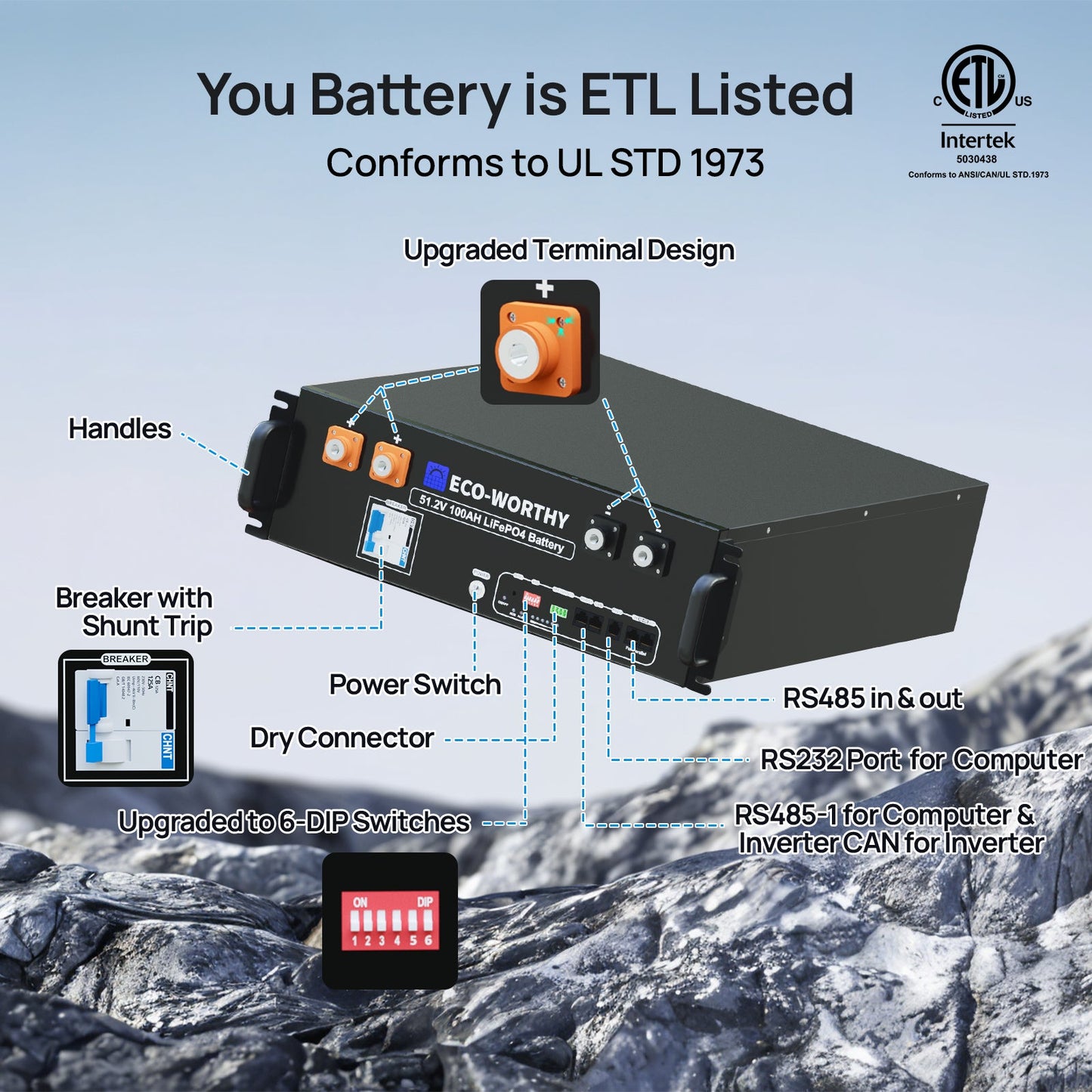

[Safe and durable rack battery] The 48V 100Ah LiFePO4 rack battery offers 5.12kWh capacity, UL1973 certification, UL9540A thermal runaway testing, 6000+ cycles, and a 10-year warranty.
[High-efficiency energy output] Built with 8×195W high-efficiency transparent bifacial solar panels, each panel can produce up to 1560Wh per day, with total system output exceeding 6.24kWh.
[All-in-one inverter system] Includes a 3500W 48V off-grid inverter charger with 120V AC output, ideal for home and small business loads.

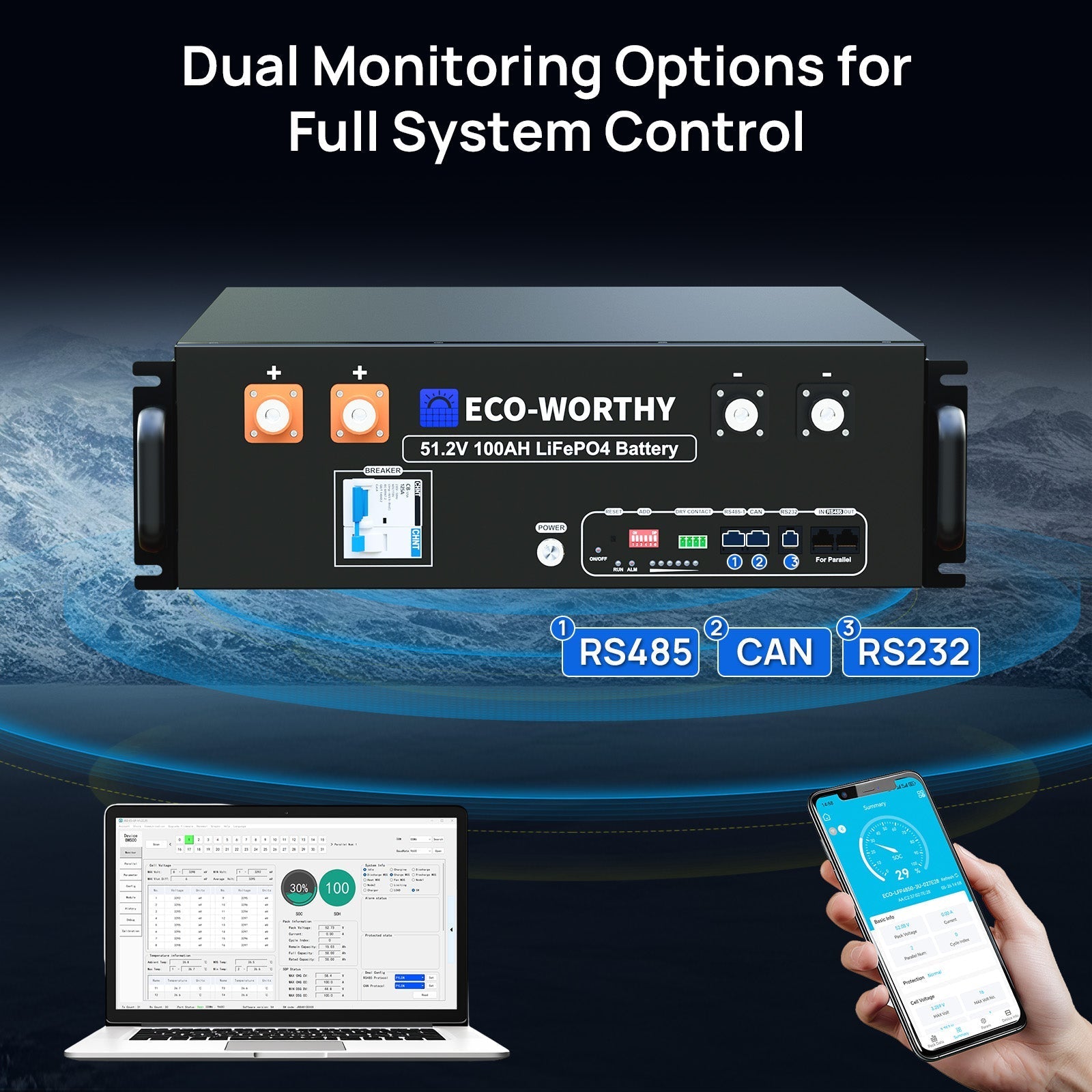

[Smart communication and remote monitoring] Supports CAN/RS485 protocols for compatibility with mainstream inverters, plus Bluetooth and Wi-Fi app monitoring for real-time system status.
[Modular and flexible installation] The rack-mounted battery saves space, the panels are lightweight and easy to install, and the system is suitable for homes and cabins.

Read More
Inverter & Battery Bank Options

Total Price

C$3,799.99
Sold out

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of C$949.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Venmo
  • Visa

Trusted delivery

View full details
X
C$3,799.99 C$5,699.99
Learn More
Sold out
Feature
Included in the box
Reviews
FAQs

The Eco-Worthy 1560W 48V Off-Grid Solar Kit features 8x 195W bifacial monocrystalline panels, a 3500W all-in-one inverter, and a UL1973-certified Server Rack Battery (5.12kWh) with UL 9540A thermal runaway testing and a 10-year warranty. Utilizing 12BB bifacial technology, the array generates approximately 6.2kWh - 7.8kWh daily, maximizing energy efficiency. The system integrates CAN/RS485 smart communication and Bluetooth/WiFi remote monitoring for effortless management. With a 3500W output capable of running essential appliances like ACs and refrigerators, this kit is the perfect solution for cabins, farms, and residential backup to achieve energy independence and significant cost savings.

Technical Specifications

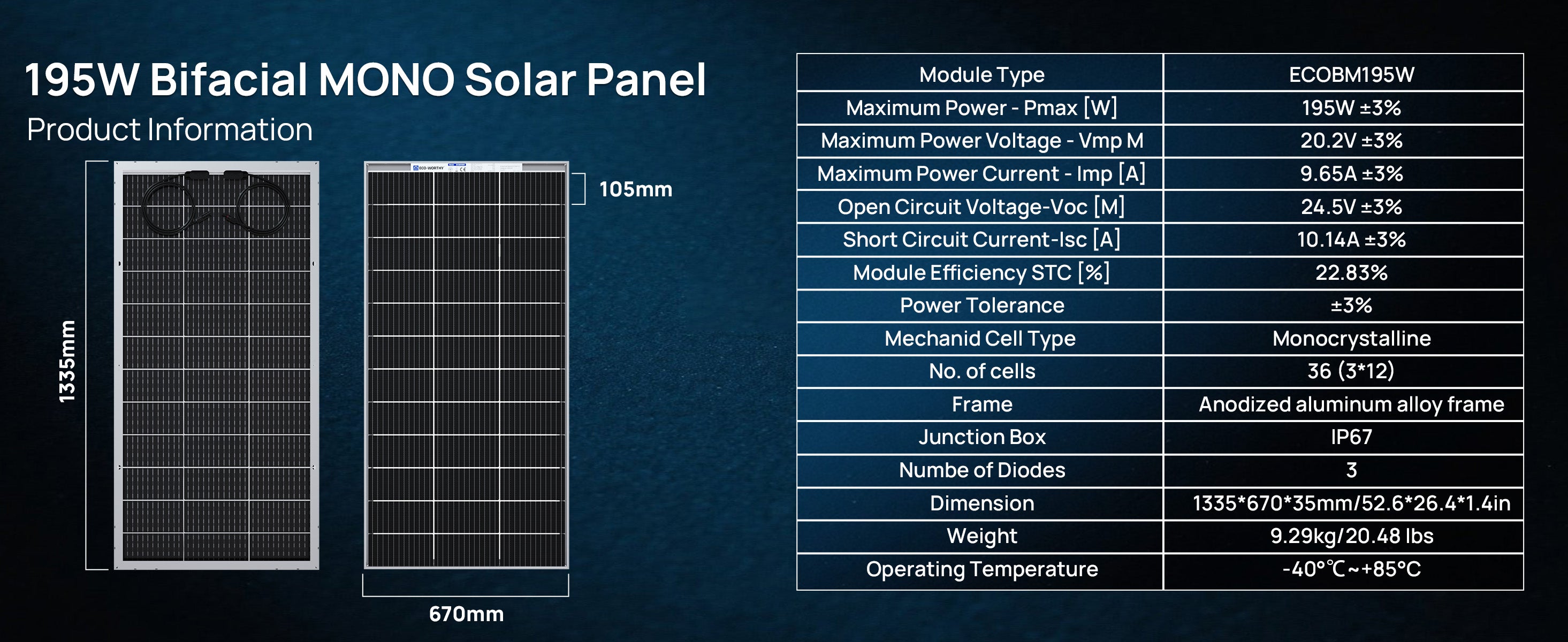

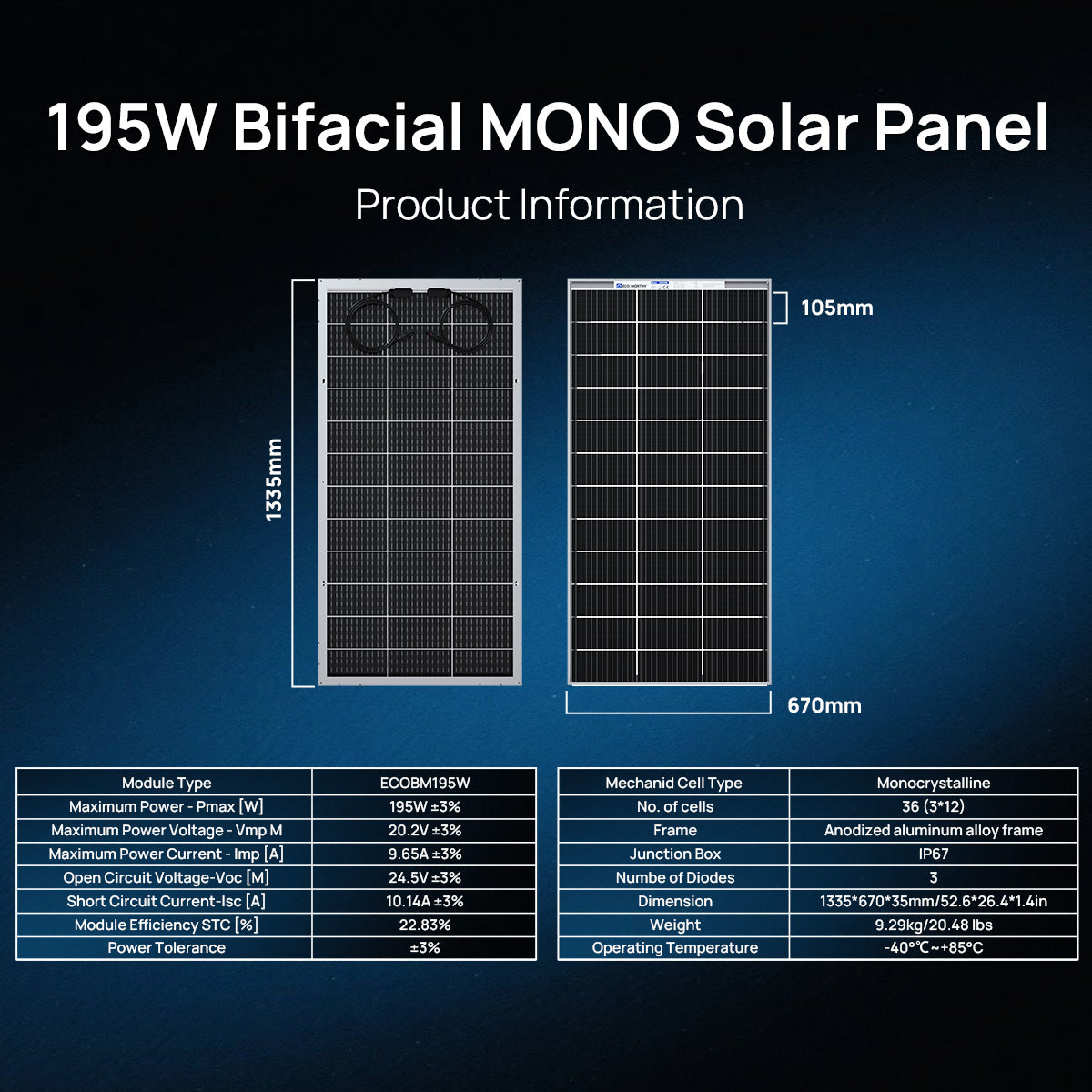

195W N-Type 18BB Bifacial Solar Panel
Cubix100 | 48V 100Ah Server Rack Battery
3500W 48V Off-Grid Inverter

Rated Power

195W

Solar Cell

Monocrystalline Silicon N-Type

Maximum/Peak Voltage(Vmp)

20.2V

Open Circuit Voltage(Voc)

21.2V±3%

Short circuit current

11.60A±3%

Maximum current

9.65A

Connector Type

MC4

Module Efficiency STC[%]

19.60%

Temperate coefficient of Voc

-(0.38+/-0.01)%/℃

Temperature range

－40℃～ +80℃

Frame

Aluminum alloy frame

Weight

10.5kg/23.15lbs

Size

58.86x26.18x1.37in (1495*665*35)

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

51.2V

Voltage Range

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Maximum Charge Voltage

58.4V

Cycle Life

≥6000 cycles @ 25℃, 0.5C charge / 0.5C discharge, ≥80% SOH

Battery Balancing Methods

Passive Balancing

Pre-Charge Resistor

Yes

Communication Port

CAN/RS485/RS232

Max. Parallel Number

32pcs

Bluetooth & Wi-Fi Signal Distance

≥49 feet/15m

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

47kg/103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10-Year Warranty

AC Input Mode

:

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protectio

Circuit breaker

Efficiency

92%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Invert Mode

:

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

3500W

Rated Output Voltage

120VAC

Peak Power

6000W

Bypass Breaker

40A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode: Load

Load ≤50W

AC Charging Mode

:

Battery Type

Lead acid or lithium battery

Max Charge Current

40A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

PV Charging Mode

:

Max Input Power

4400W

PV Charging Current Range

0-80A

Max PV Open Circuit Voltage

145VDC

PV Operating Voltage Range:

60-145VDC

MPPT Voltage Range

60-115VDC

Battery Voltage Range

40-60VDC

Max Output Power

4200W

Charging Short Circuit Protection

Blown fuse

Warranty

2-Year Warranty

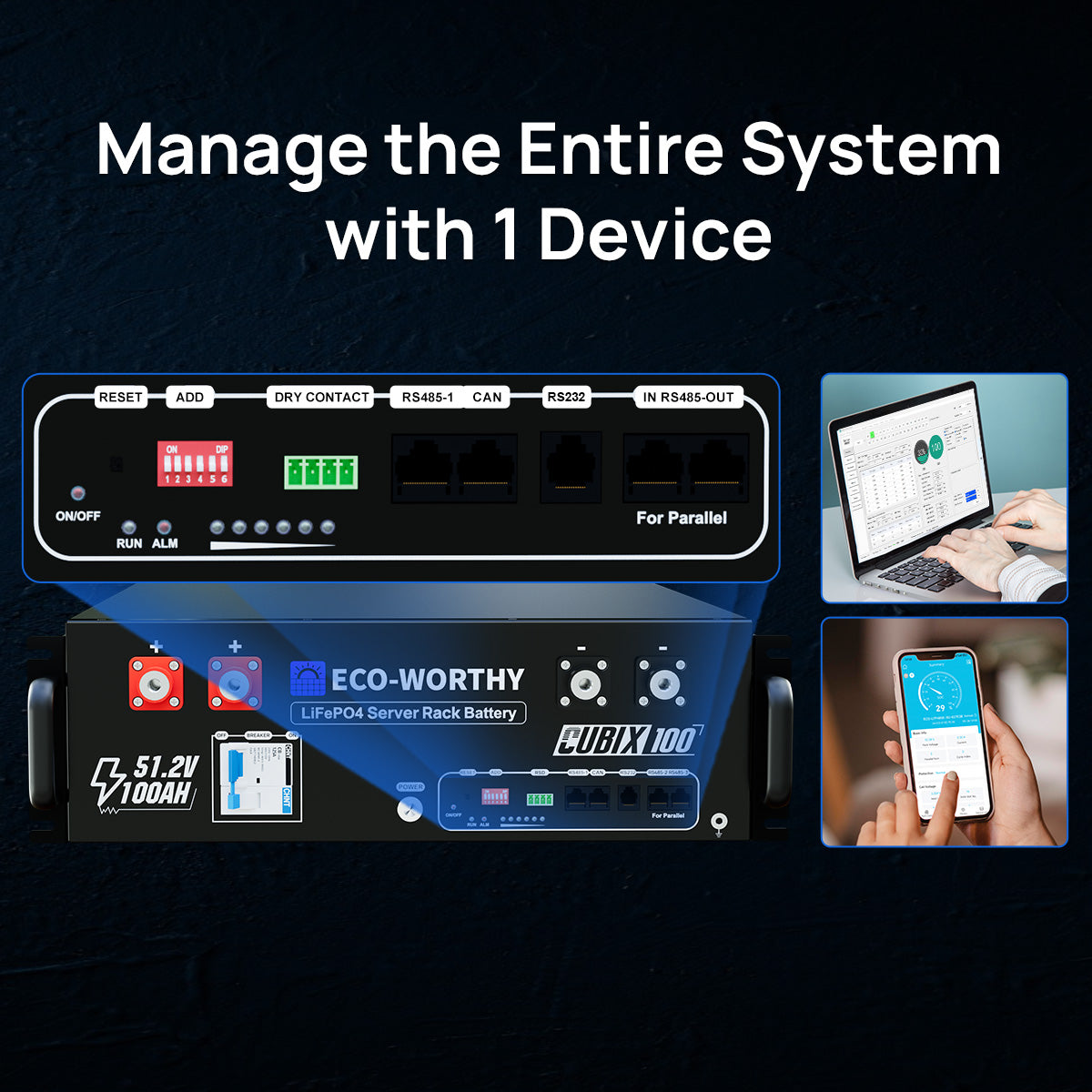

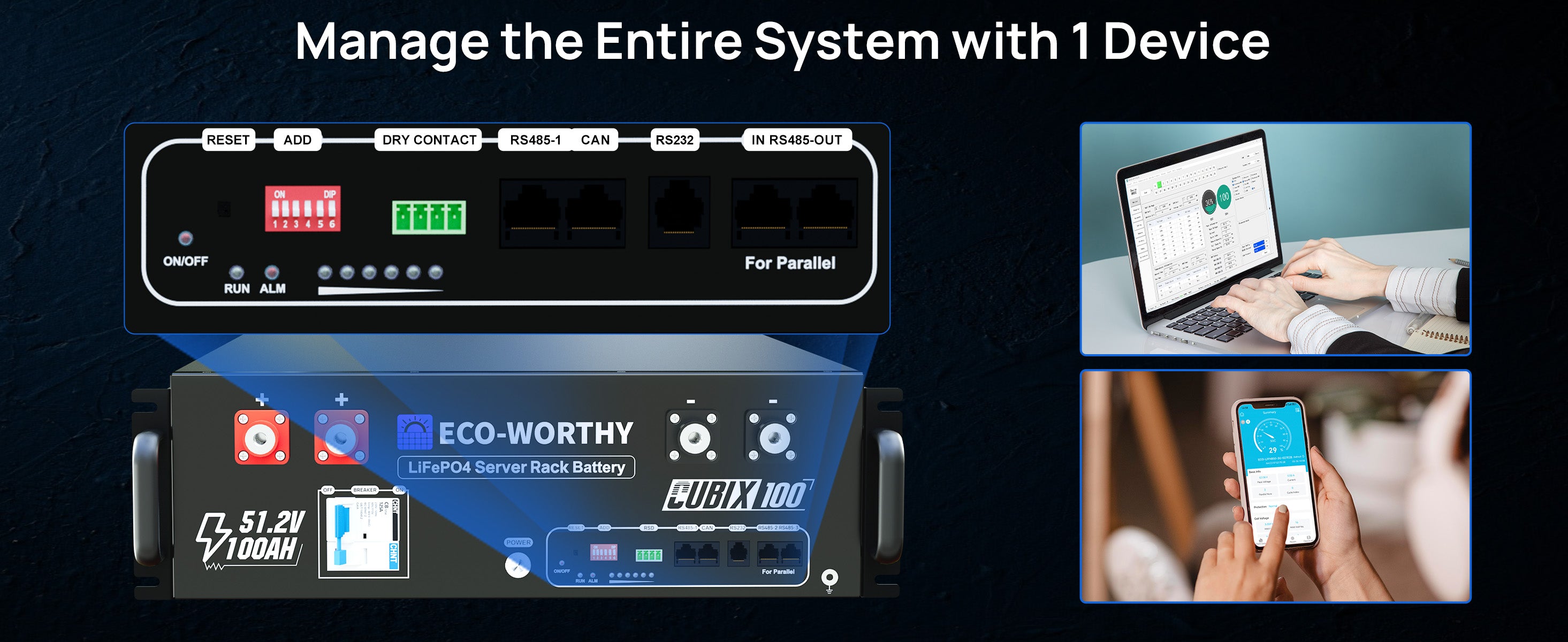

Control panel with digital display and interface on a dark backgroundEco-Worthy battery management system with digital display and smartphone app on a dark background

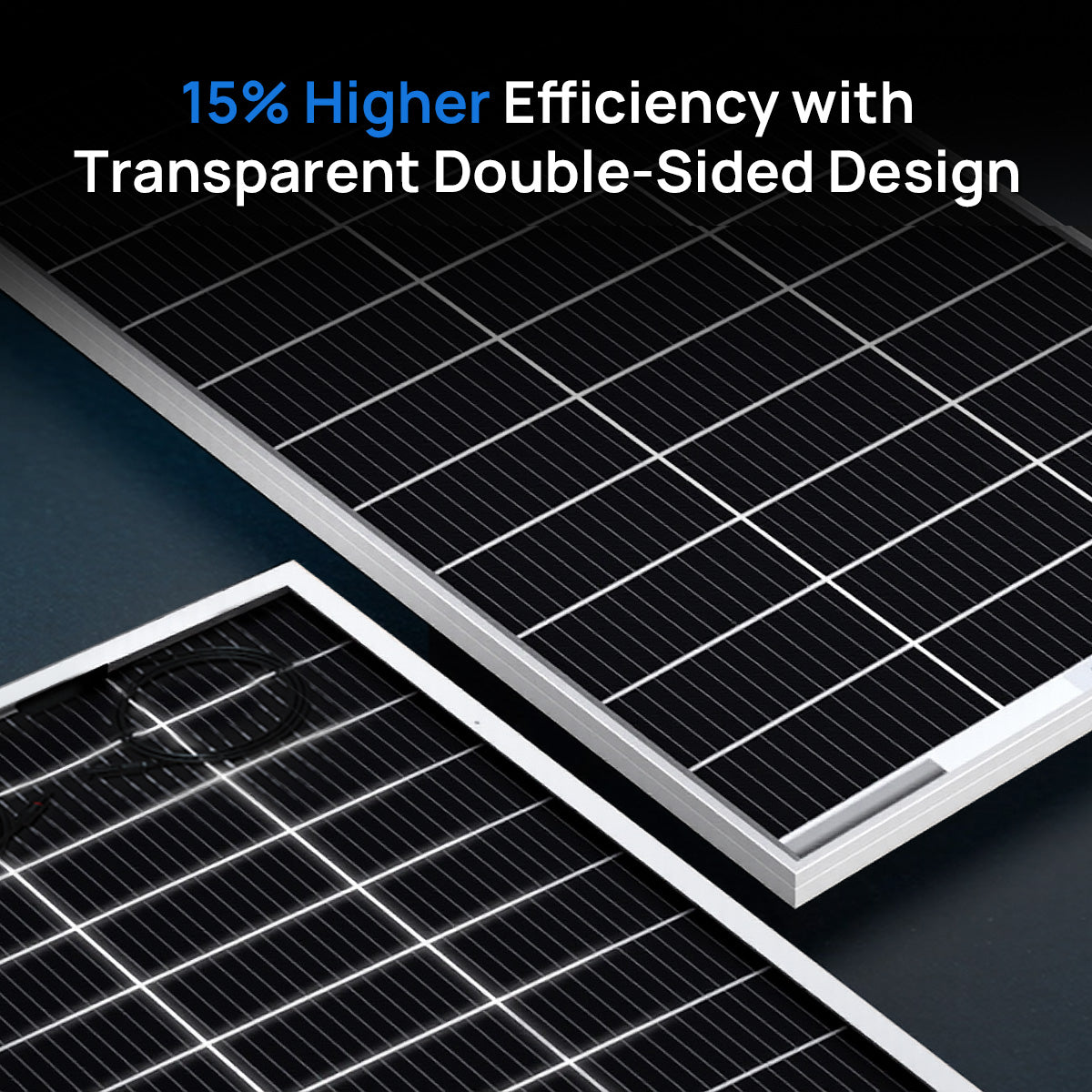

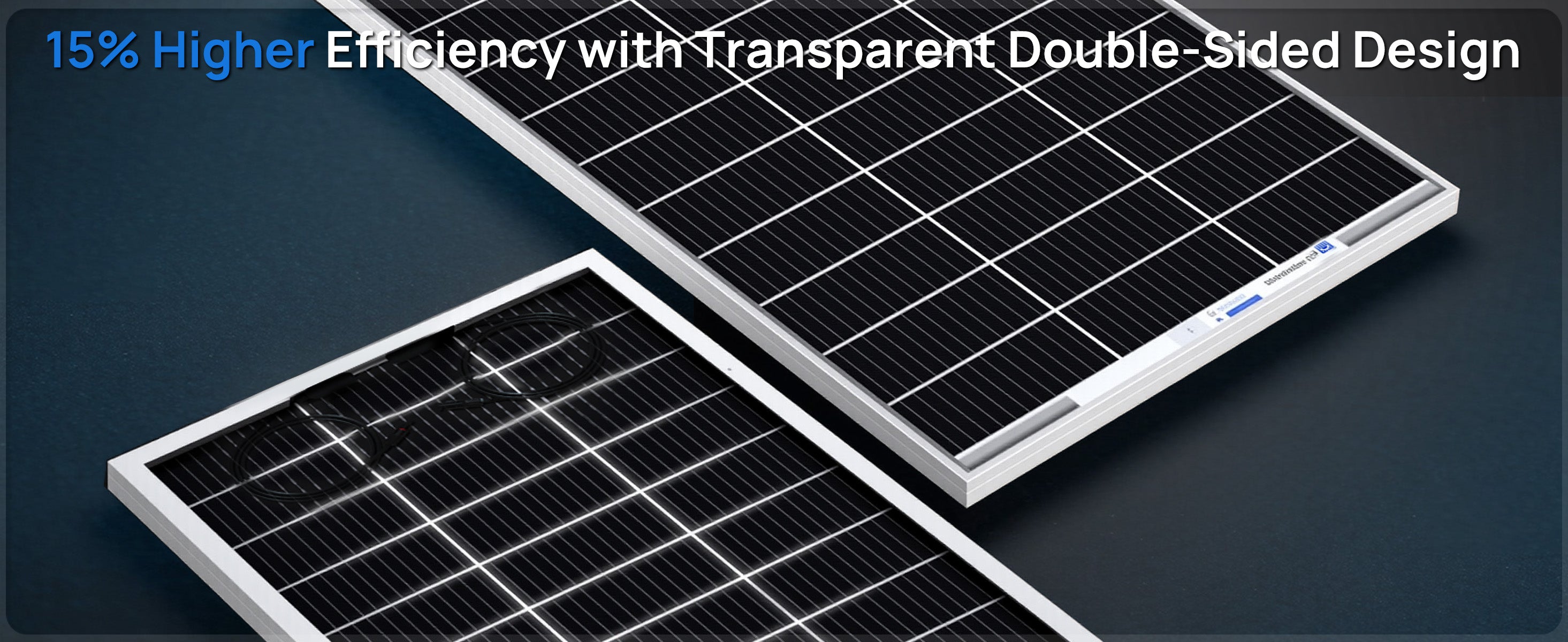

Two solar panels with transparent double-sided design on a dark backgroundSolar panels with transparent double-sided design on a dark background

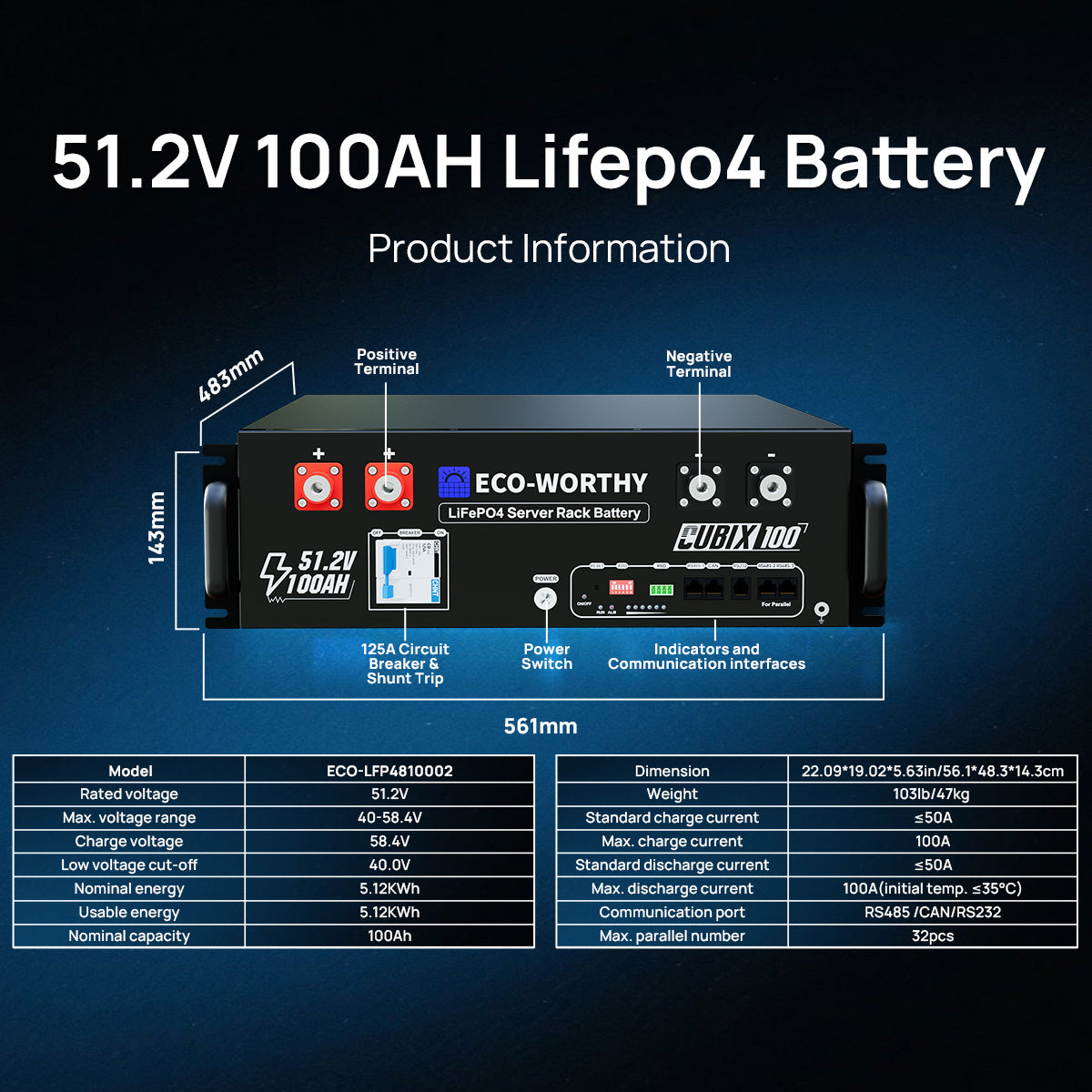

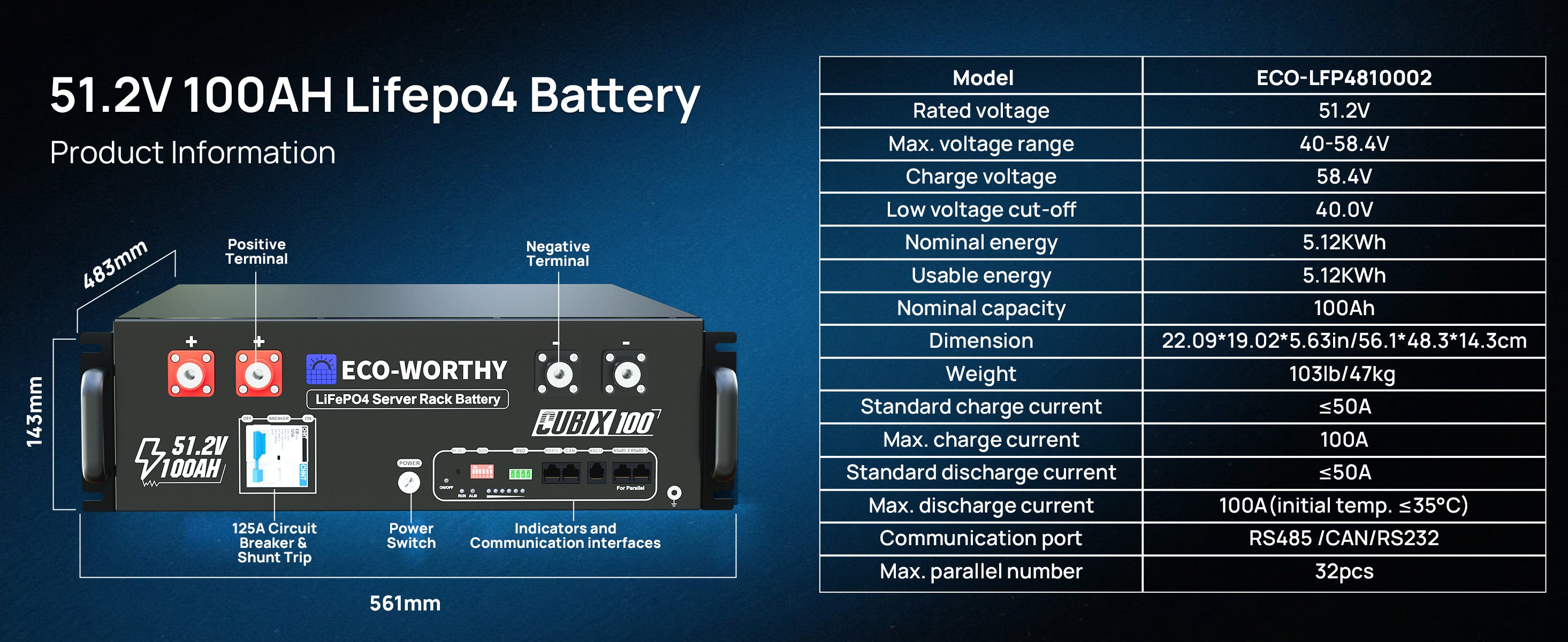

Product information for a 51.2V 100AH Lifepo4 battery with specifications on a blue background.ECO-WORTHY 51.2V 100AH Lifepo4 Battery with product information on a dark background

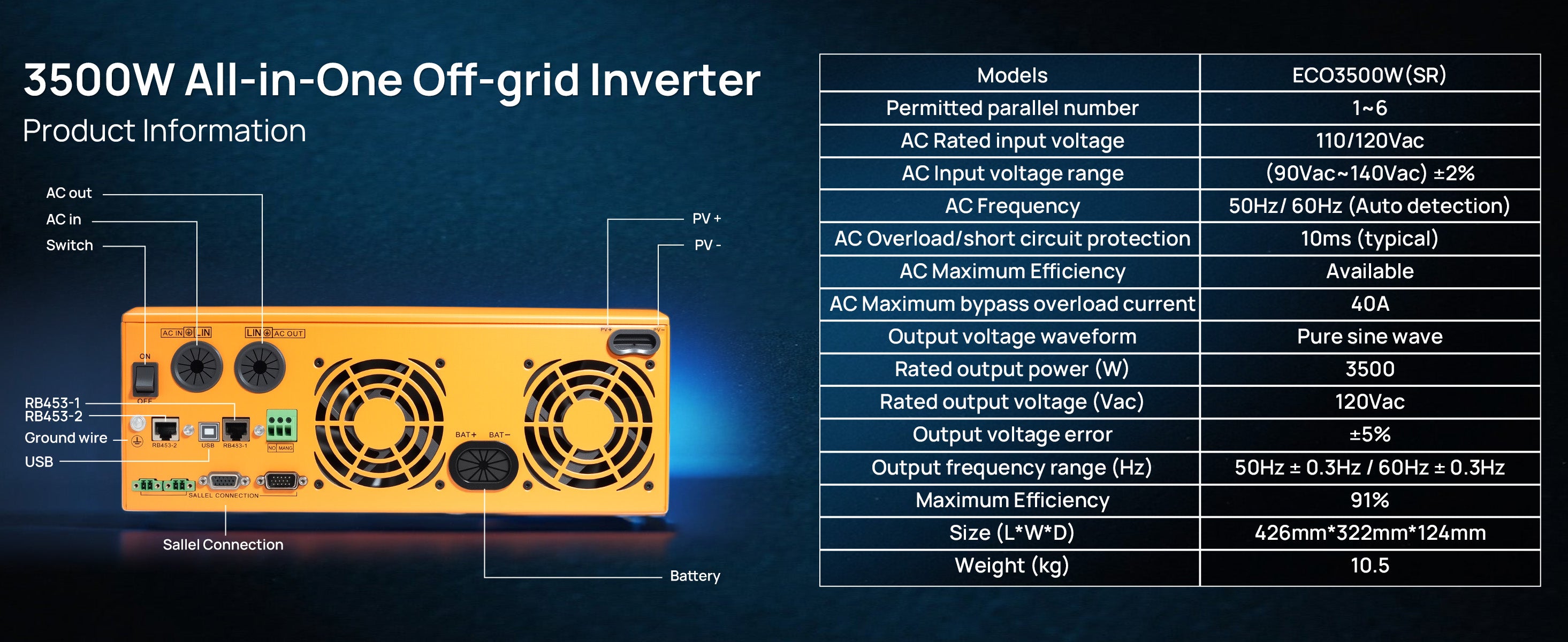

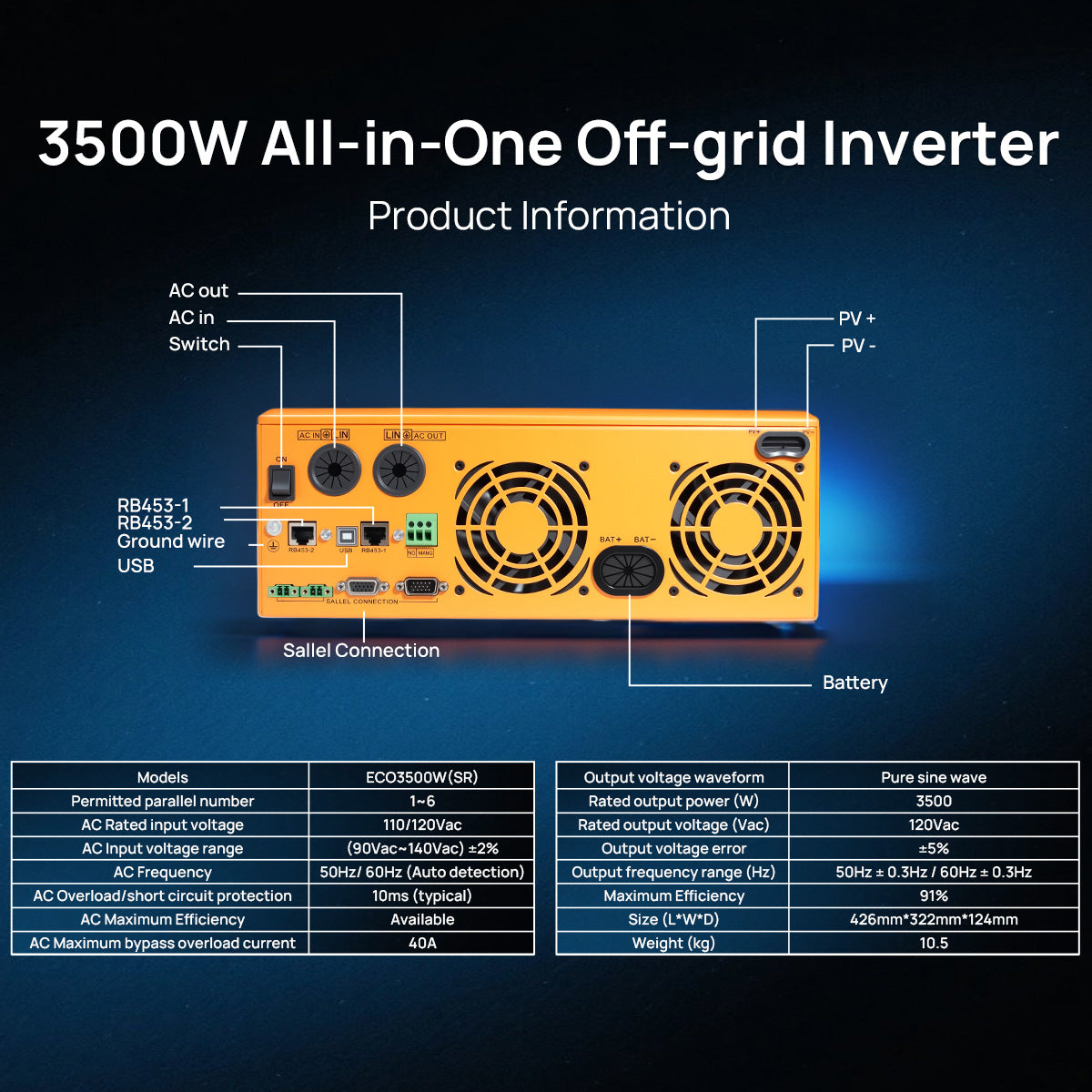

3500W All-in-One Off-grid Inverter with product information on a dark blue background3500W All-in-One Off-grid Inverter with product information on a dark background

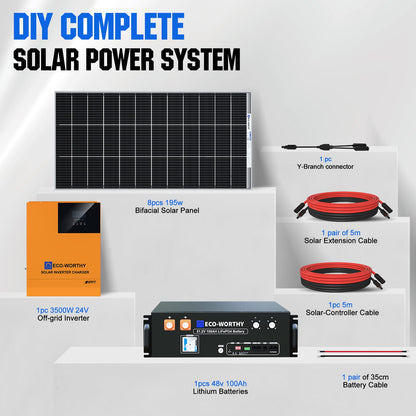

Included in the Box

1x 100Ah 48V(51.2V) 100Ah Server Rack Battery

8x Bifacial 195W Mono Solar Panel
1x 3500W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
1x Y MC4 Connector




User manual

Eco-Worthy Cubix100 LiFePO4 Server Rack Battery Manual-20260317

Download

Eco-Worthy Cubix100 UL1973 Certification

Download

Eco-Worthy 3500W Solar Off-grid Inverter Manual

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy batteries use LiFePO4 chemistry, one of the safest lithium technologies available. Our Cubix 100 batteries are UL1973 & UL9540A listed and meet CEC standards, Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+

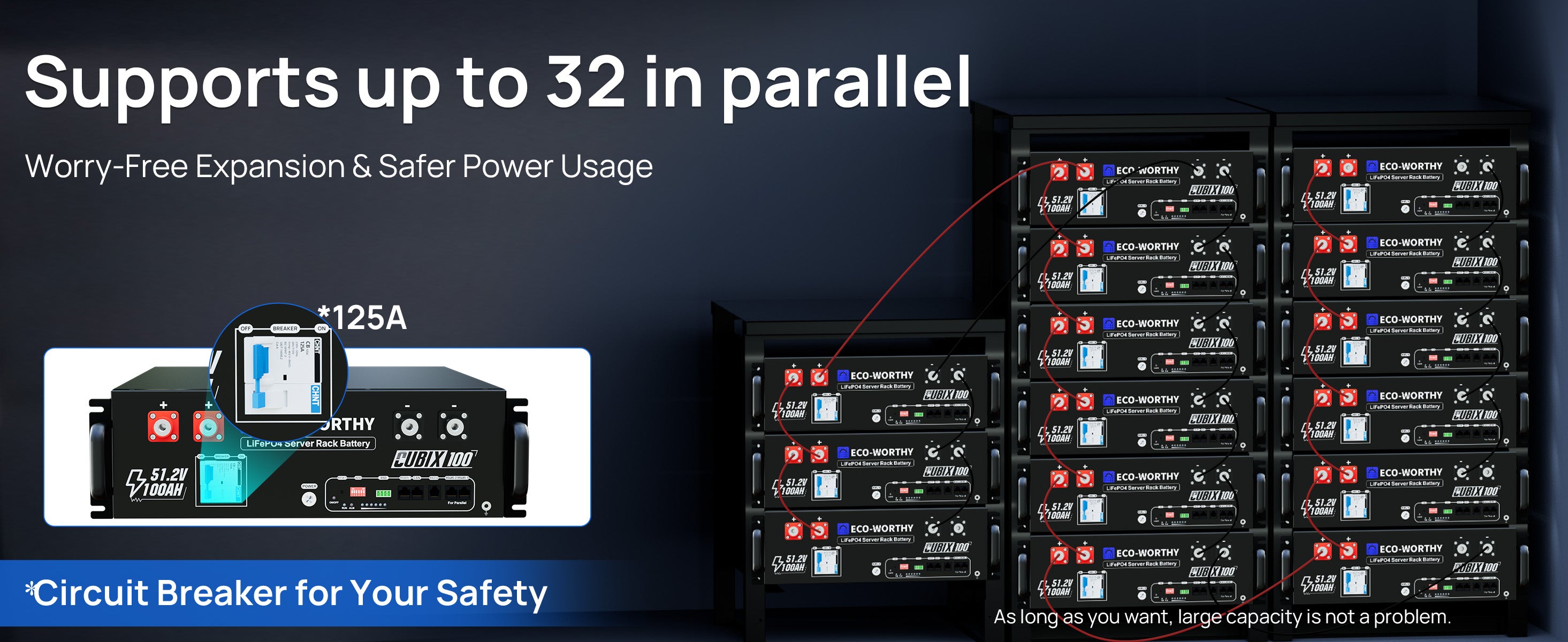

Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
