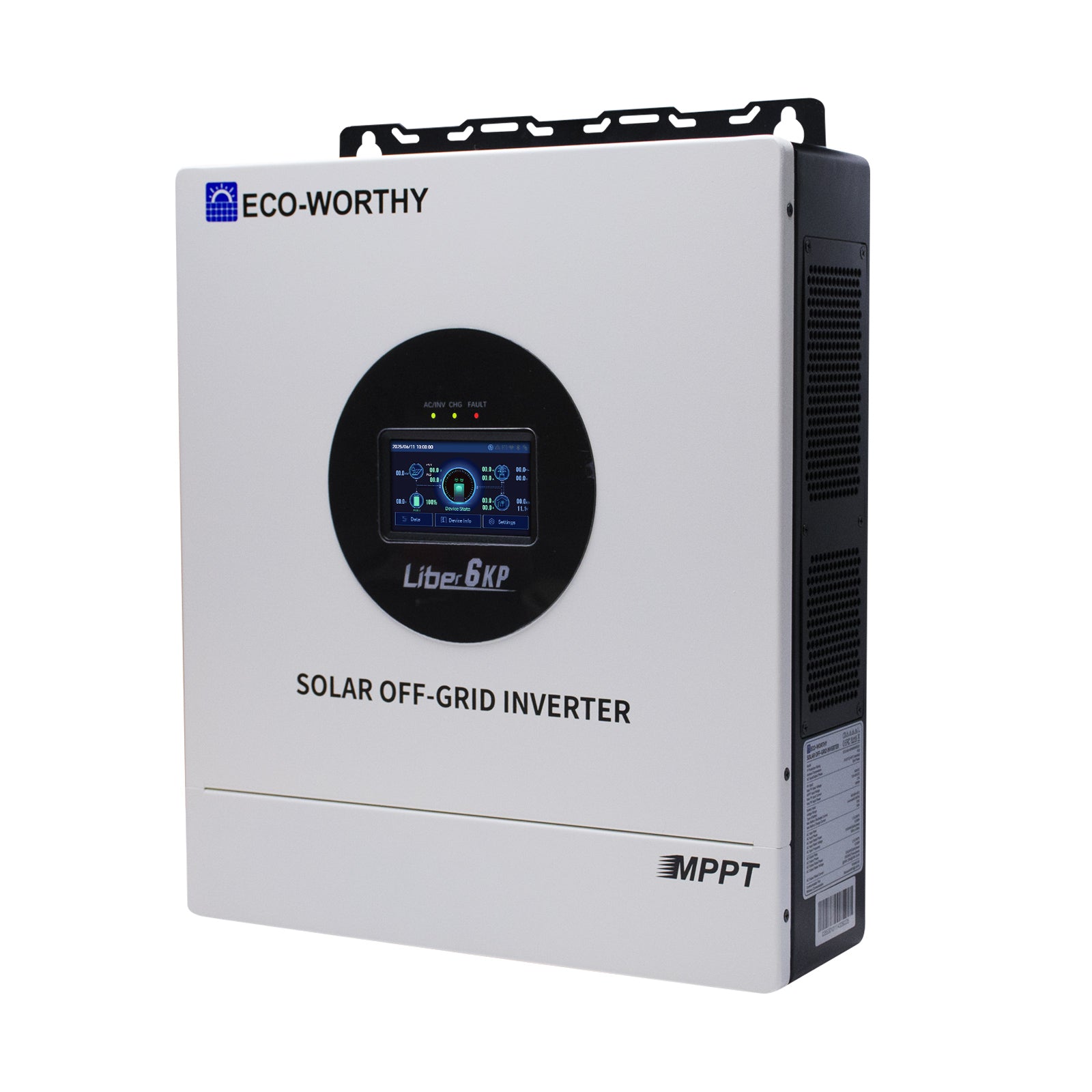

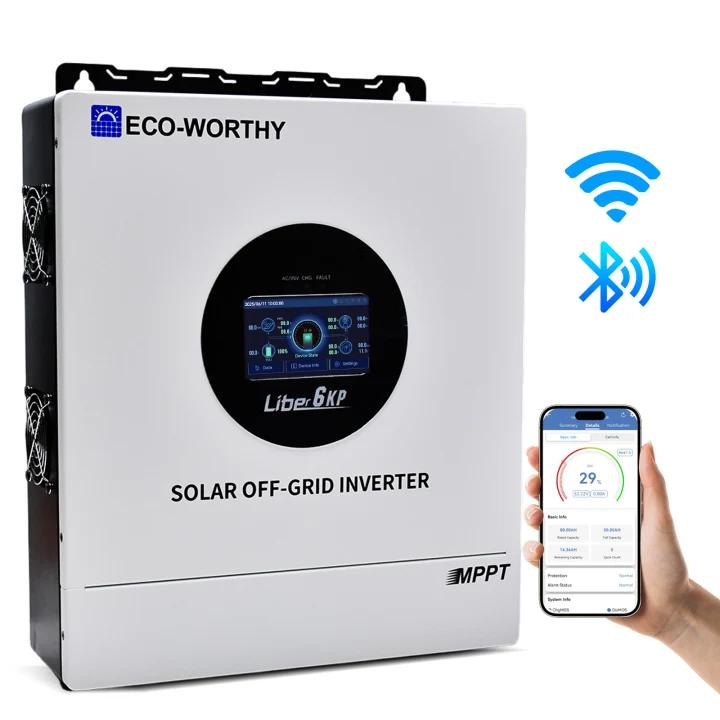

[Pre-Sale] ECO-WORTHY 6KW Solar Off-grid Split-phase AIO Inverter |48Vdc to 120Vac/240Vac, 9kW@500V PV Input

[Pre-Sale] ECO-WORTHY 6KW Solar Off-grid Split-phase AIO Inverter |48Vdc to 120Vac/240Vac, 9kW@500V PV Input

Regular price C$1,309.99
Sale price C$1,309.99 Regular price C$1,699.99
save 23% Sold out

SKU: L03NK6000US-1

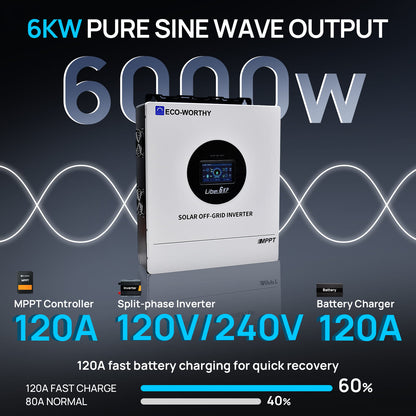

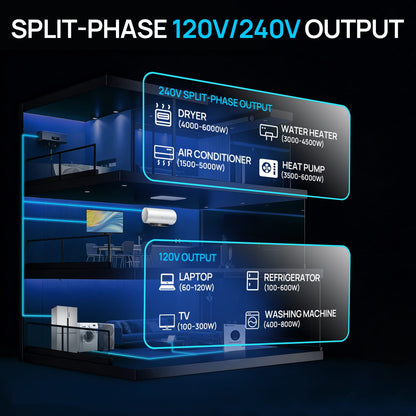

【6000W 120V/240V Split-Phase】6kW high-power pure sine wave output with 120/240V split-phase support, allowing one unit to run the common 120V loads and 240V heavy appliances at the same time, ideal for North American home/Shed/Cabin.

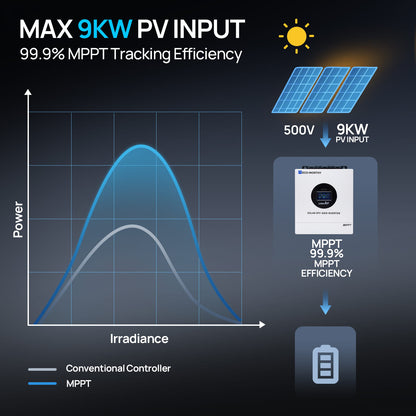

【Max 9kW PV Input】High‑voltage PV input design with up to 9kW and 500V max PV voltage supports more series‑connected panels, reducing cable current and line loss, cutting PV-side material and labor costs, and improving overall system efficiency.

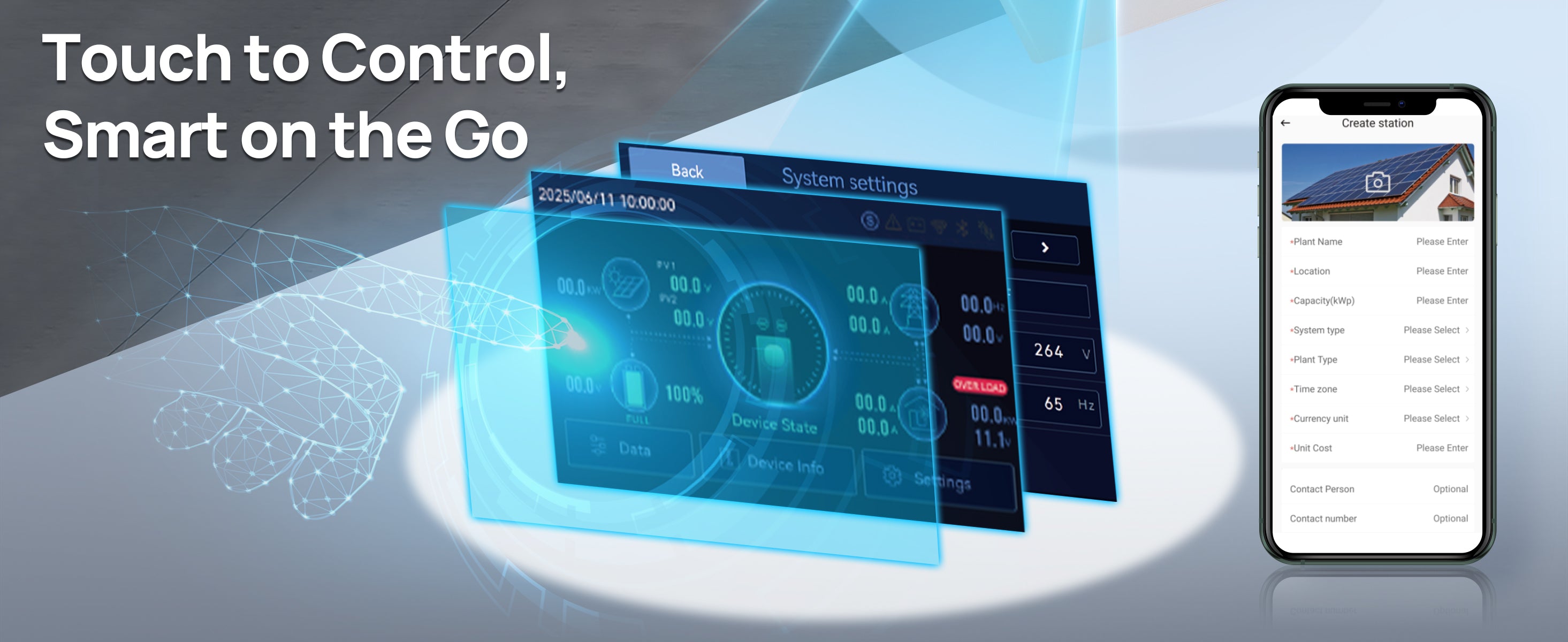

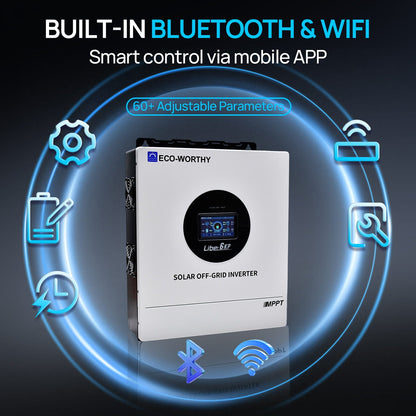

【Support Closed Loop Communication】Compatible with 48V lithium batteries, allowing flexible configuration with server rack batteries or other batteries using the PylonTech communication protocol to provide stable energy storage for off‑grid use, backup power, and high night‑time loads. Built-in WiFi module supports remote inverter monitoring.

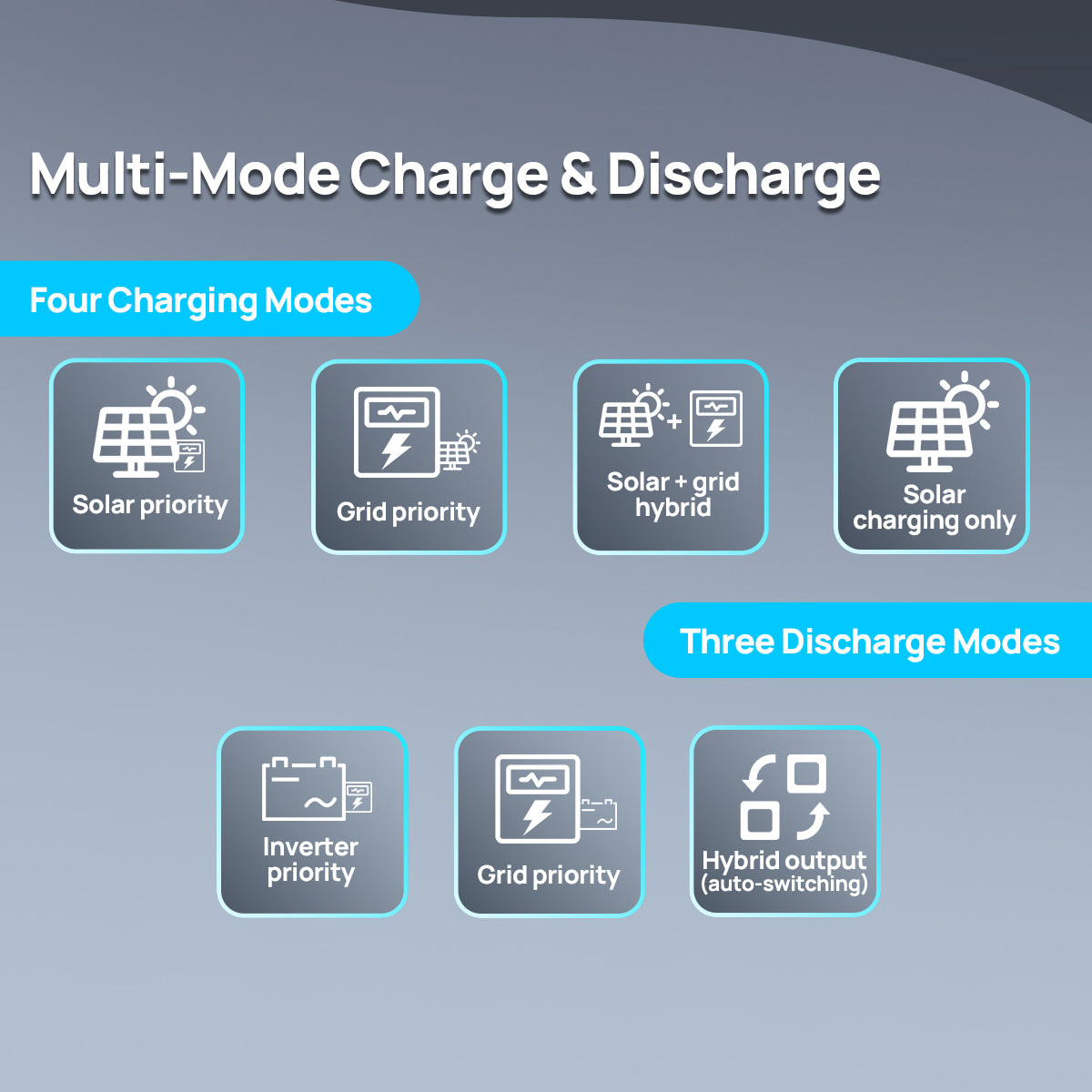

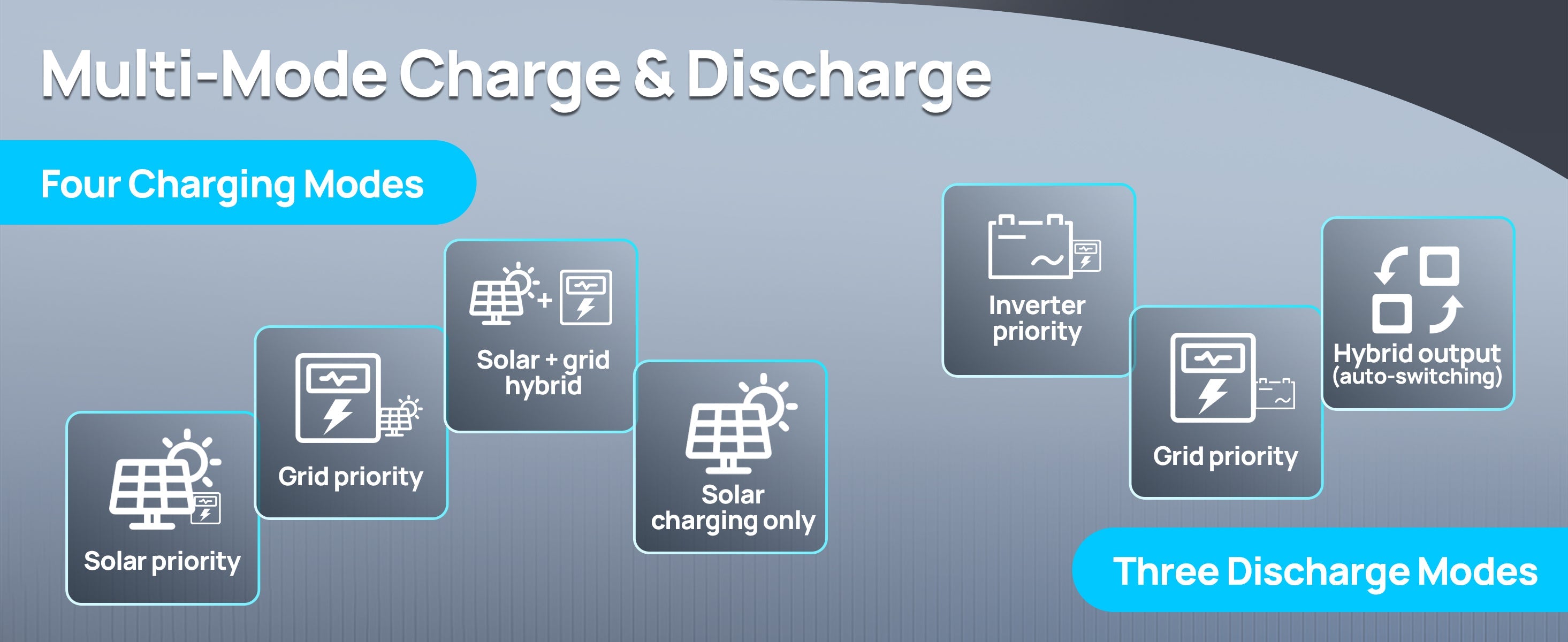

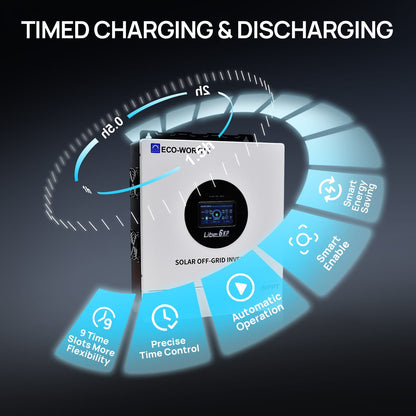

【Multiple Output Modes】Offers multiple operating and priority modes, supporting solar‑first, grid‑first, and battery‑first strategies, and works with smart management to prioritize solar in the daytime and batteries at night, with configurable time‑of‑use charging and discharging functions to help reduce electricity bills and increase energy independence.
【All-in-One Integrate】Integrates inverter, solar charge controller, and battery charger in one unit to handle power generation, energy storage, and power supply together, simplifying wiring and saving installation time for DIY users
Learn More See Less

Pre-sale: This product will be shipped in early December.

View full details
Description Specification Downloads Shipping

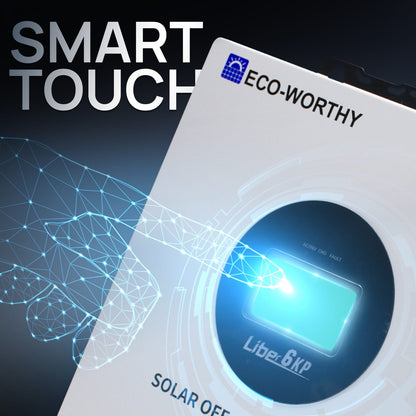

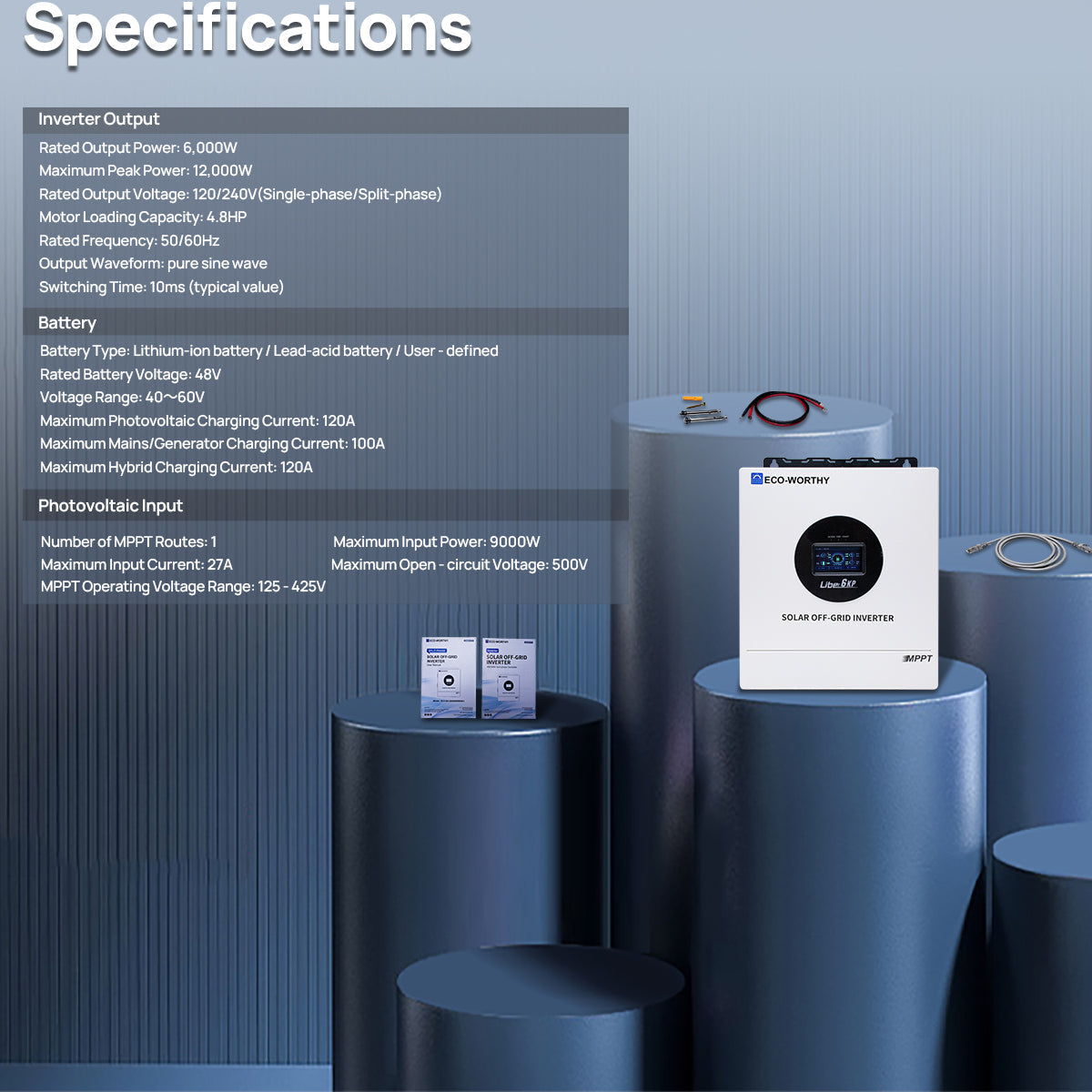

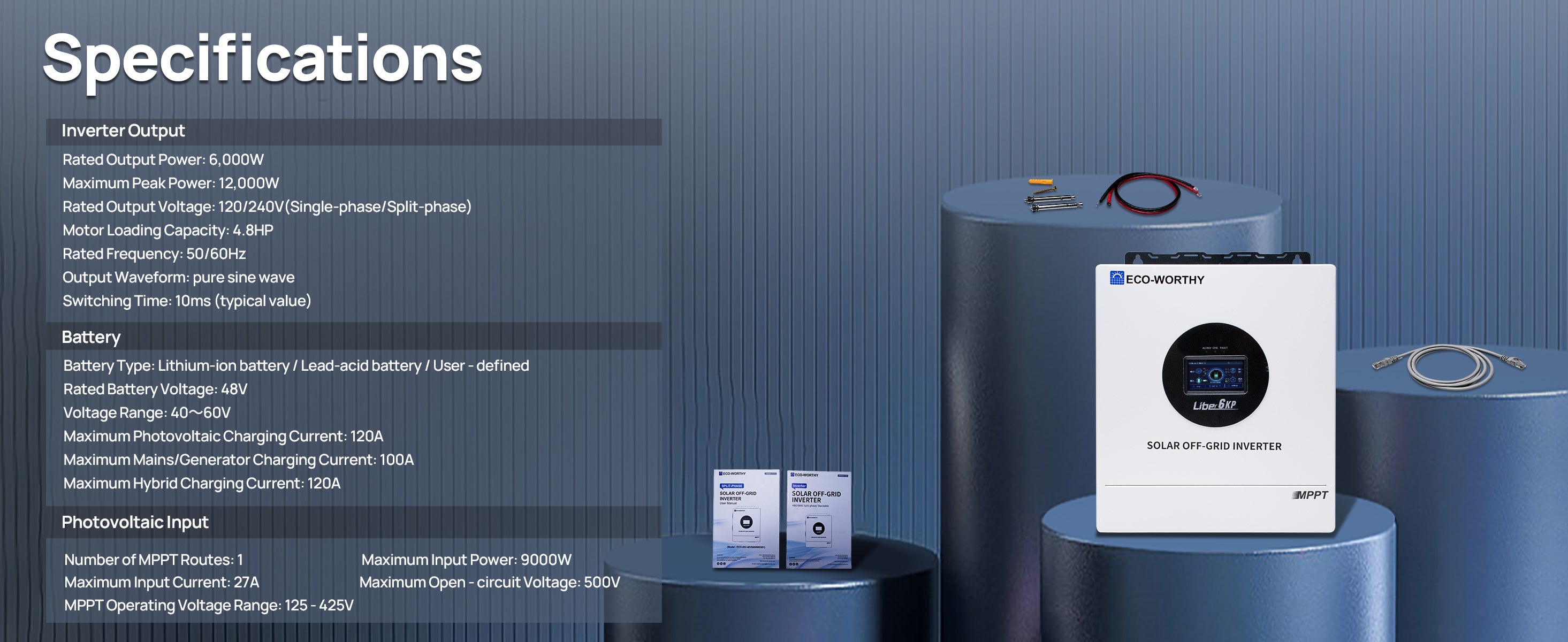

The 6000W Split-Phase All-in-One Inverter converts 48V DC to 120V AC or split-phase 240V AC and integrates a 9000W MPPT solar charge controller with a 500VDC open-circuit voltage and 125-425VDC MPPT range. It supports multiple operation modes (UTL, SOL, SBU, and SUB), offering flexible power management between solar, battery, and grid sources. With three charging options—hybrid, limited solar, and pure solar—the inverter ensures safe and efficient charging through comprehensive protection features and BMS communication for server rack batteries. Its LED capacitive touchscreen enables easy setup, real-time monitoring, and quick fault diagnosis, complemented by dynamic LED indicators. Ideal for home backup systems and off-grid cabins, it can reliably power large split-phase appliances such as air conditioners, water heaters, and washing machines.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
