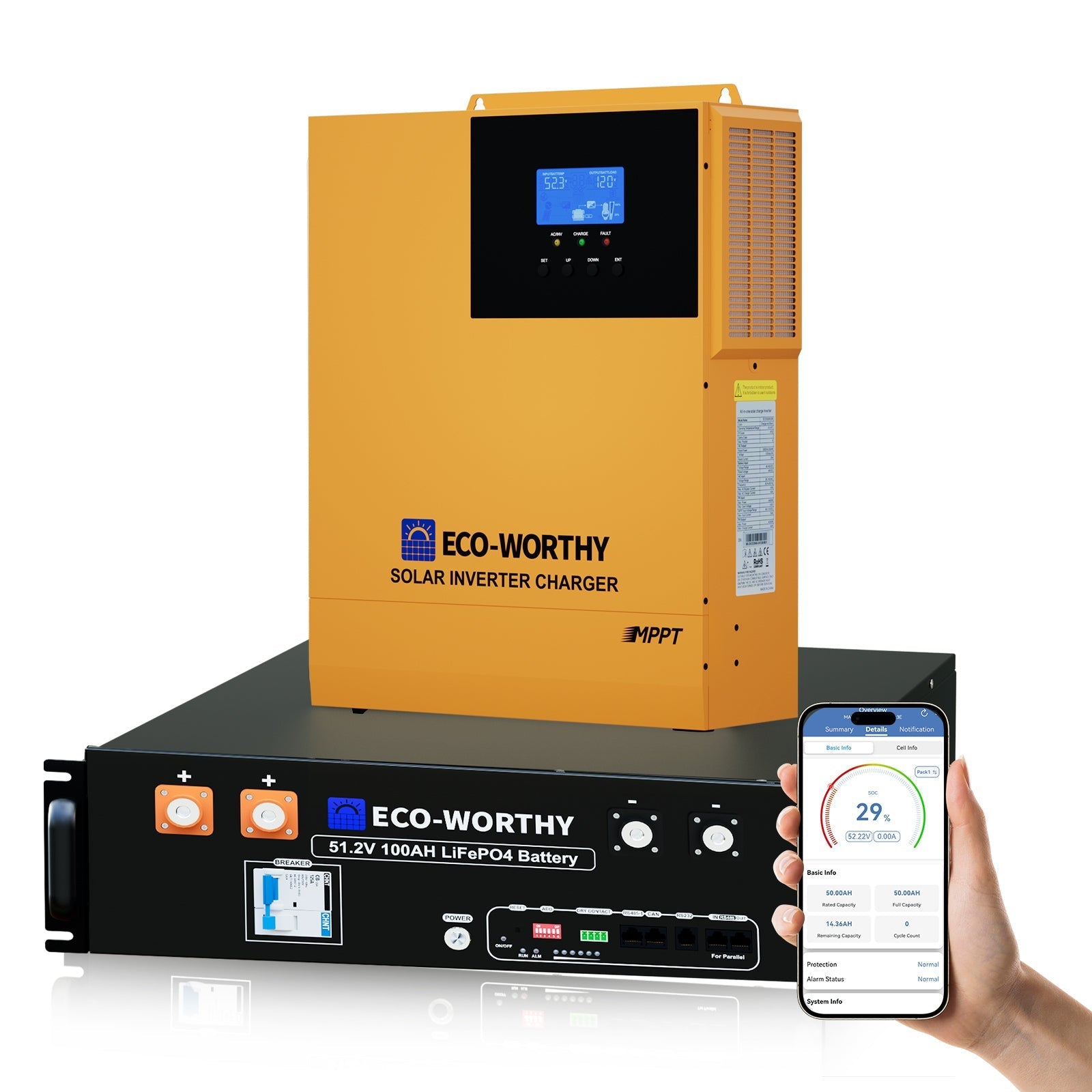

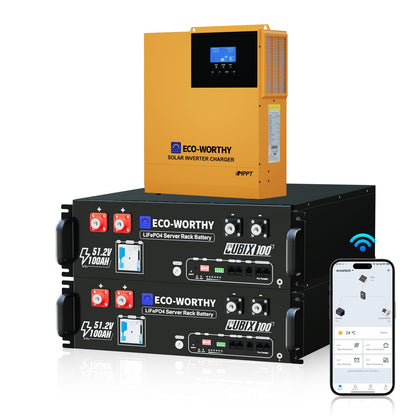

ECO-WORTHY 5.12kWh Home Backup Power with 48V 100Ah LiFePO4 Battery and 3500W 48V Off-Grid Inverter

ECO-WORTHY 5.12kWh Home Backup Power with 48V 100Ah LiFePO4 Battery and 3500W 48V Off-Grid Inverter

Regular price C$2,029.98
Sale price C$2,029.98 Regular price C$3,599.98
save 44% Sold out

SKU: CA-L03SRNK3.5KUSL1003U1U-1

[Capacity and power synergy] The 48V 100Ah LiFePO4 Server Rack Battery capacity provides sufficient energy storage for the system, and with the high power output of the 48V 3500W off-grid inverter, it can support household power needs.

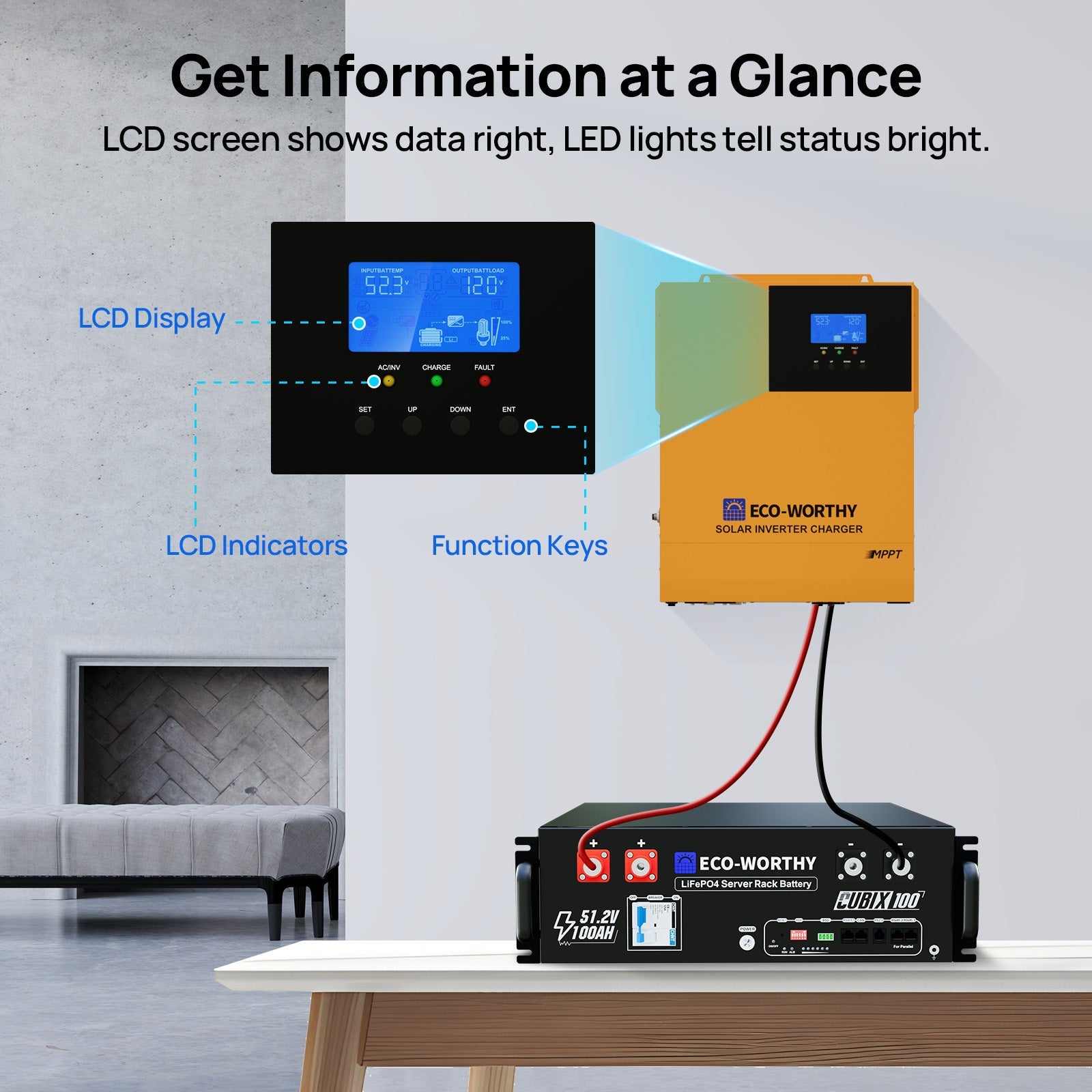

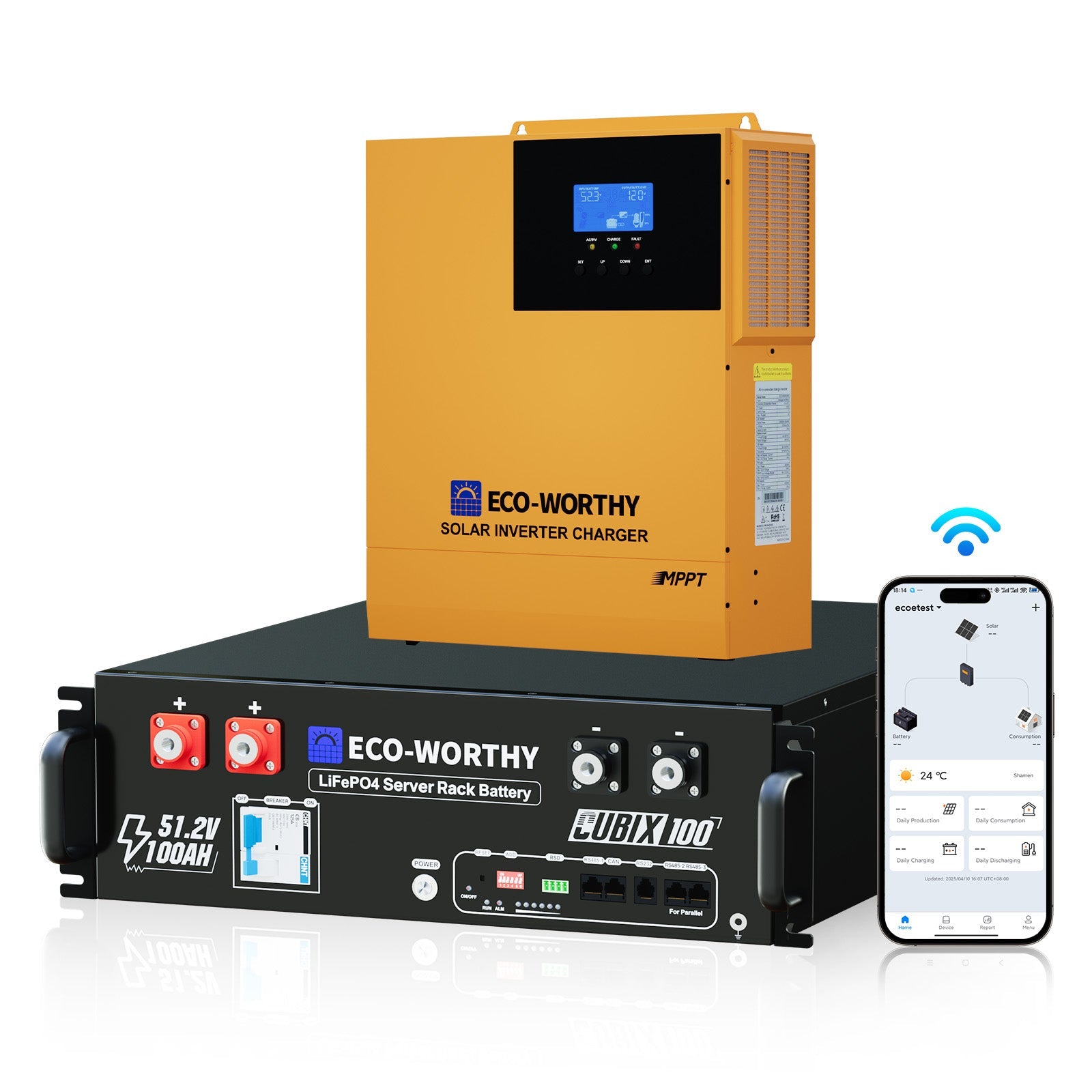

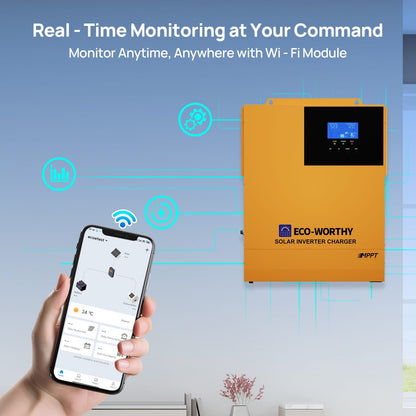

[Intelligent monitoring complementarity] Both the battery and the inverter have Integrated Bluetooth, WiFi, and RS485/CAN communication protocols enabling remote monitoring and control for enhanced system management and troubleshooting.

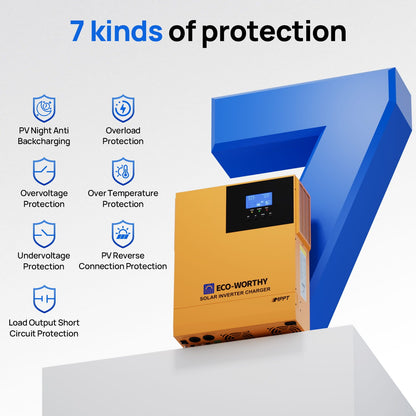

[Safety and reliability guarantee] The 48V 100Ah LiFePO4 Server Rack Battery has built-in 100A BMS and a 125A circuit breaker, and the inverter has multiple protection functions (short circuit, overvoltage, undervoltage, overload, reverse connection protection). The combined use ensures the safety and stability of the system.

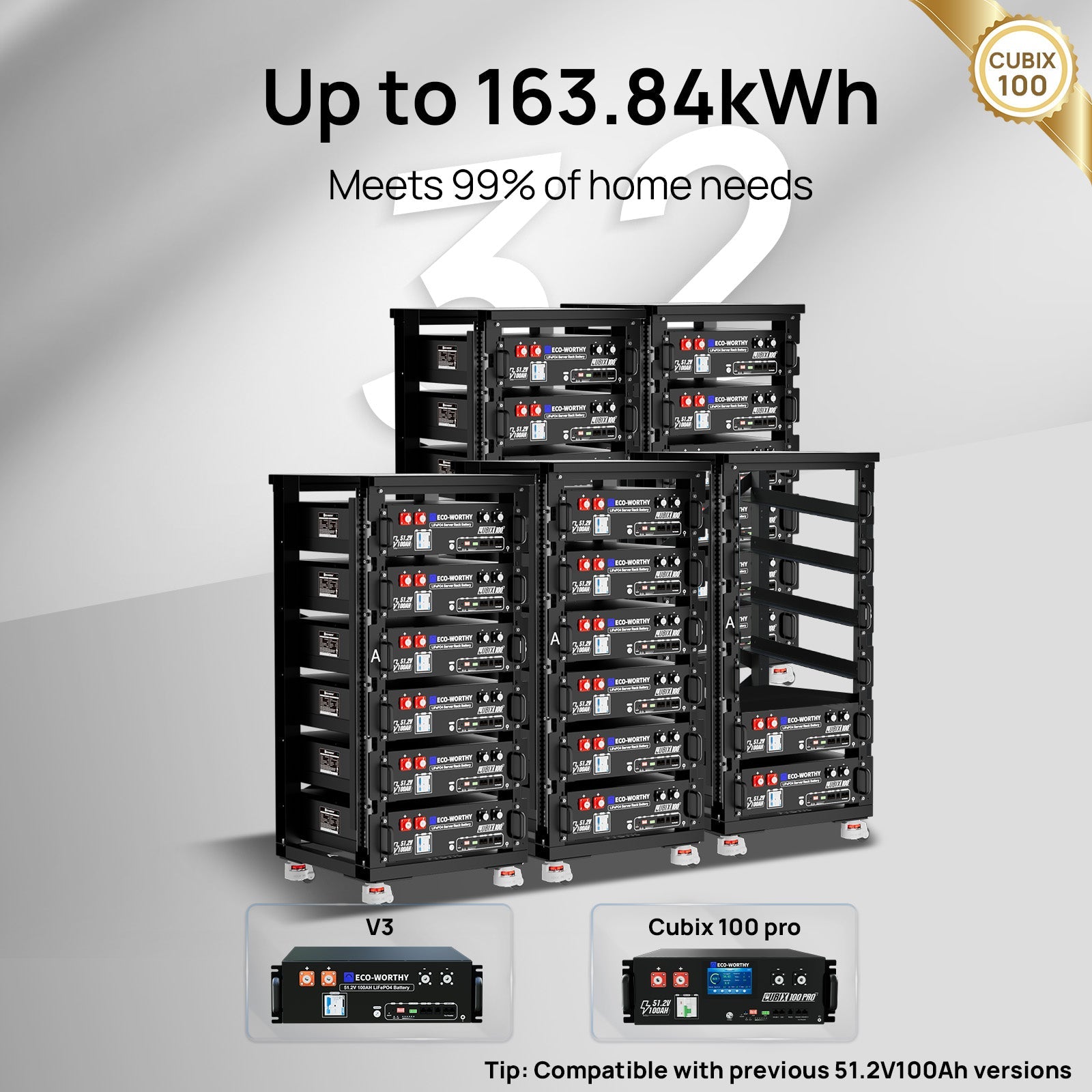

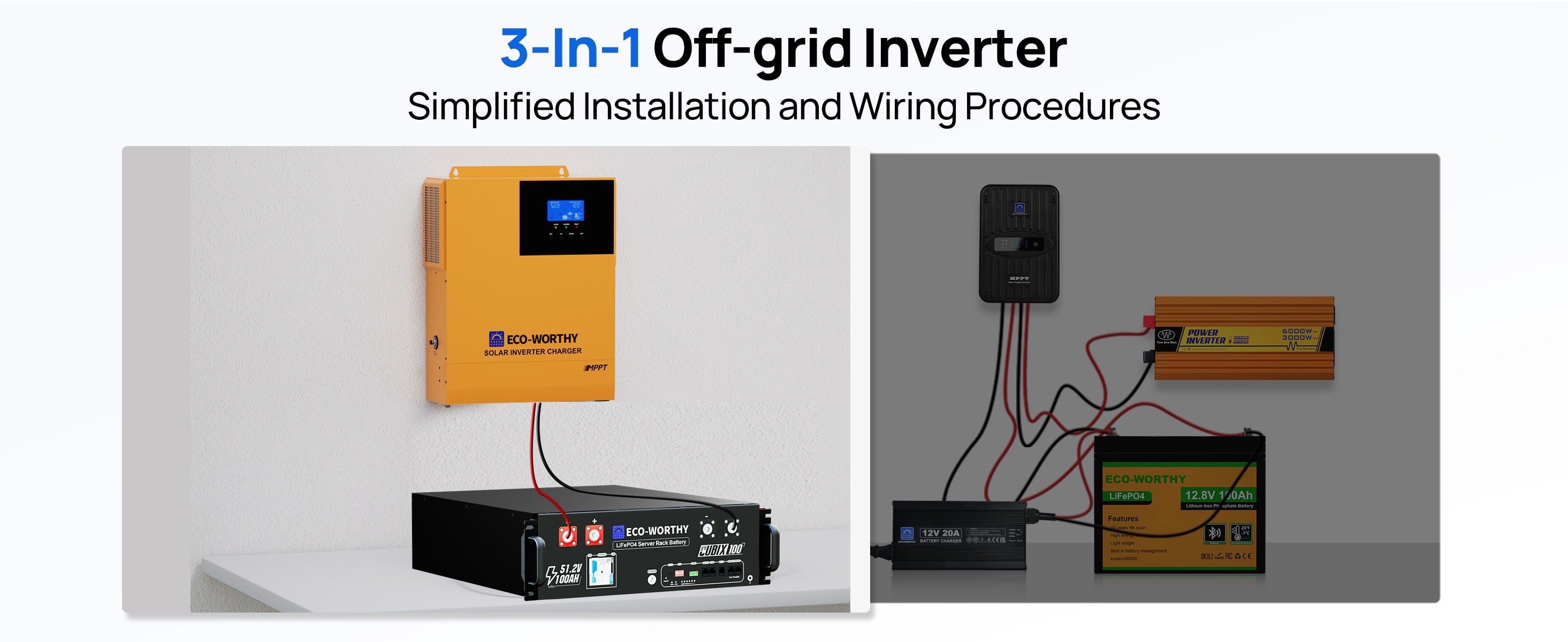

[Scalable Modular System]The 48V 100Ah LiFePO4 Server Rack Battery rack design is convenient for standard rack installation. The integrated design of the inverter reduces the complexity of wiring, and the battery supports up to 32 units in parallel expansions to meet future expansion needs.

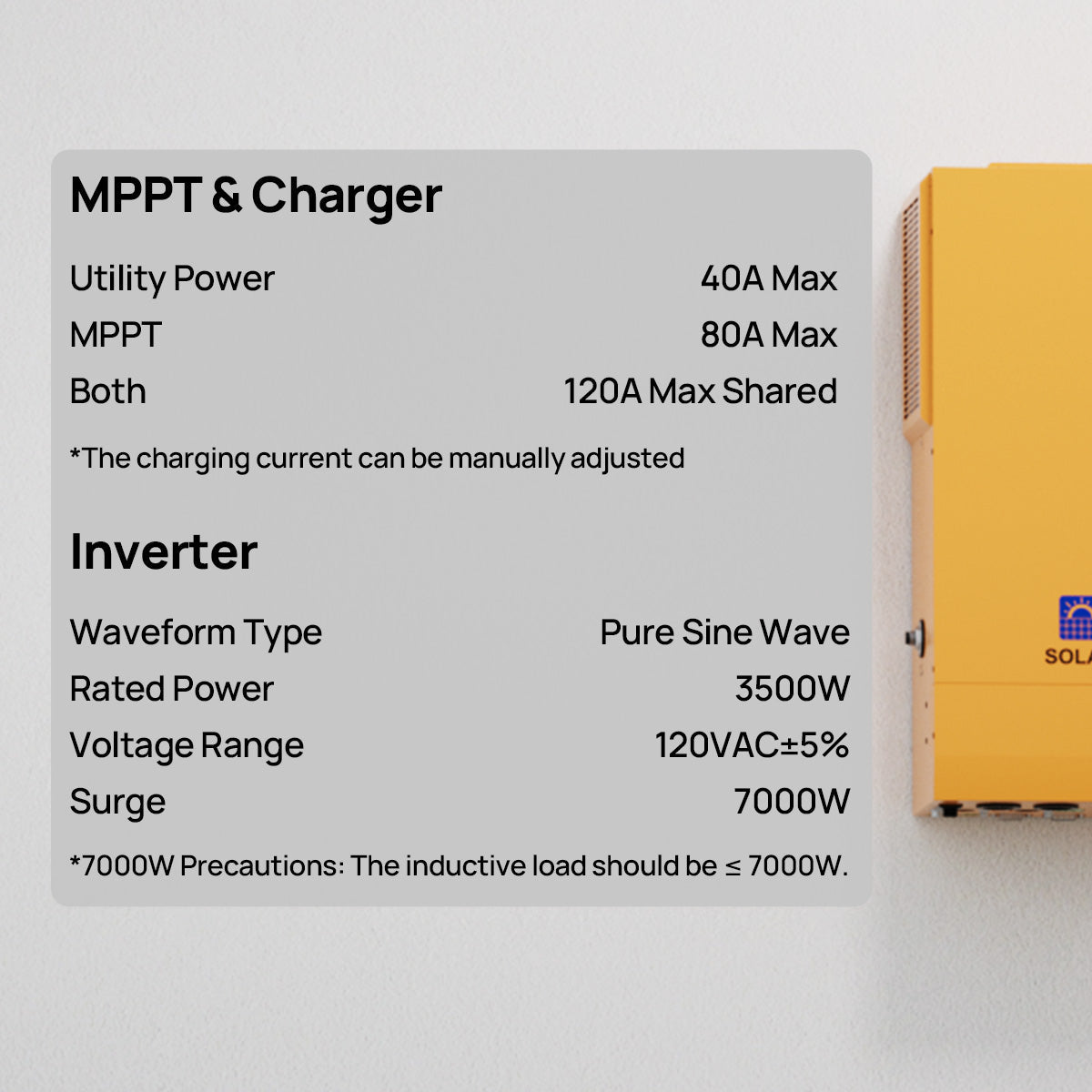

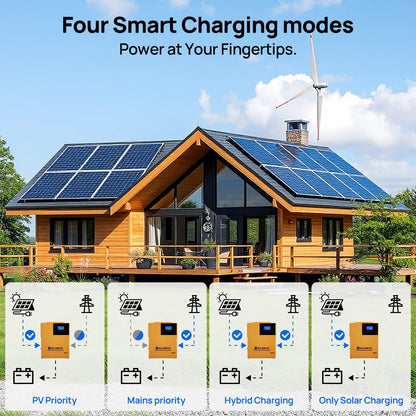

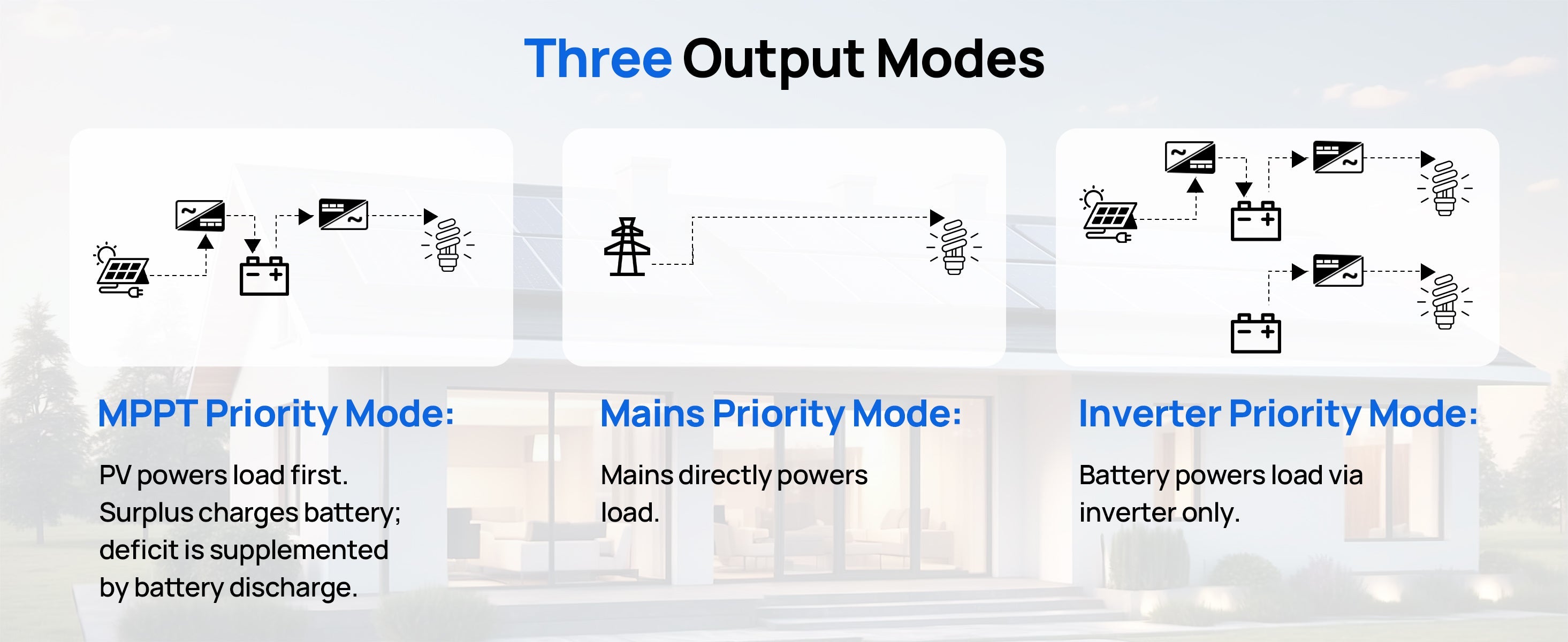

[Applicable to multiple power inputs]The inverter supports multiple inputs of solar energy, generators and city power. Combined with battery energy storage, it builds a flexible off-grid or hybrid power system to improve energy efficiency and power supply reliability.
Learn More See Less
Style
View full details
Description Specification Downloads Shipping

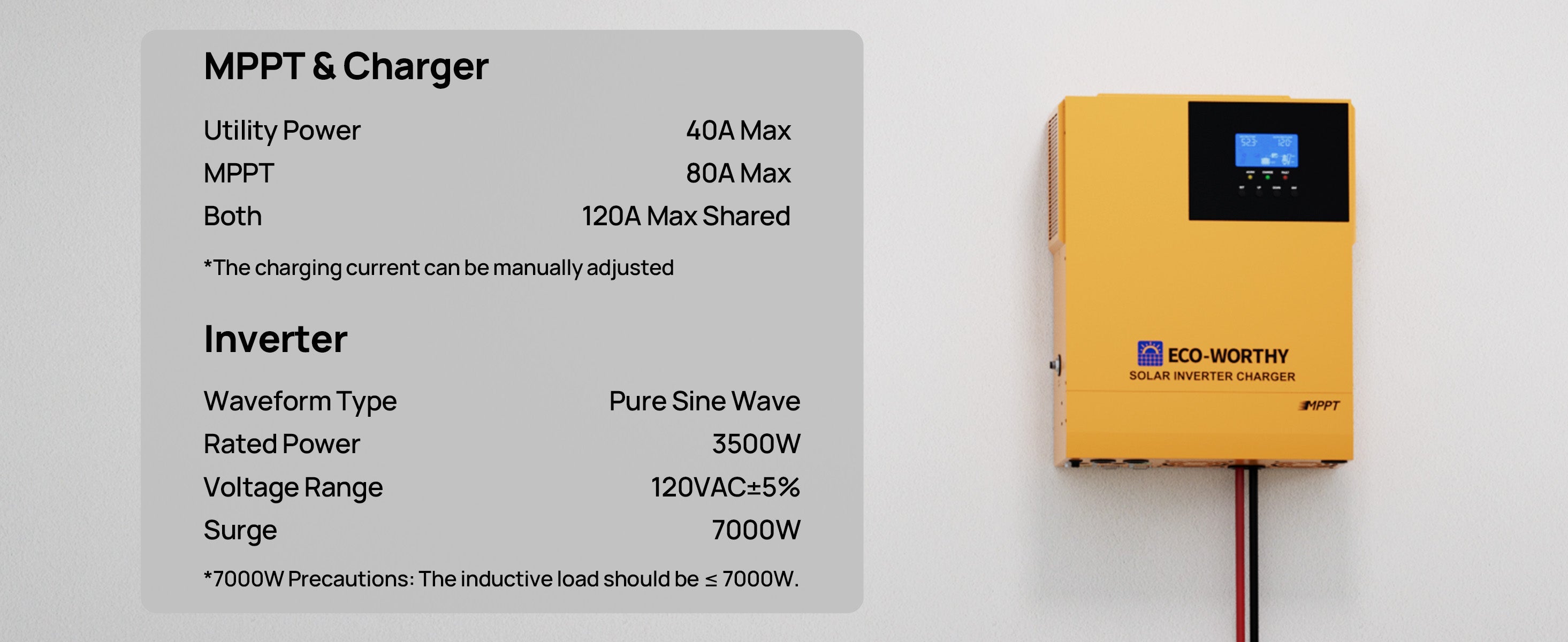

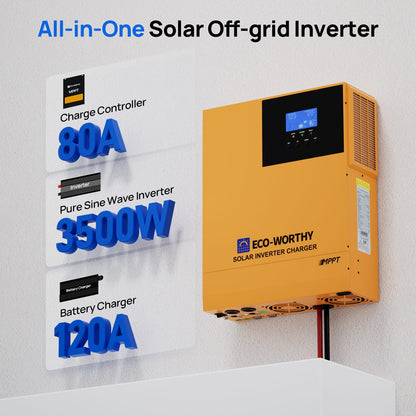

ECO-WORTHY 5.12kWh home backup power system features a 48V 100Ah LiFePO4 battery and a 3500W All-in-one split-phase solar inverter with 120V/240V output. It supports expandable battery capacity up to 163.84kWh. Equipped with advanced BMS, multiple charging options (solar and grid), and smart remote monitoring via Bluetooth/Wi-Fi. Automatic UPS switching ensures uninterrupted power during outages, making it ideal for home off-grid and backup use.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
