1170W 24V (6x195W) Complete Off Grid Solar Kit with 3kW Inverter + 2.4kWh Lithium

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 1170W 24V expandable Solar Kit is an ideal choice. This system could generate approximately 4.8kWh per day.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
3000W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 1170W 24V Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

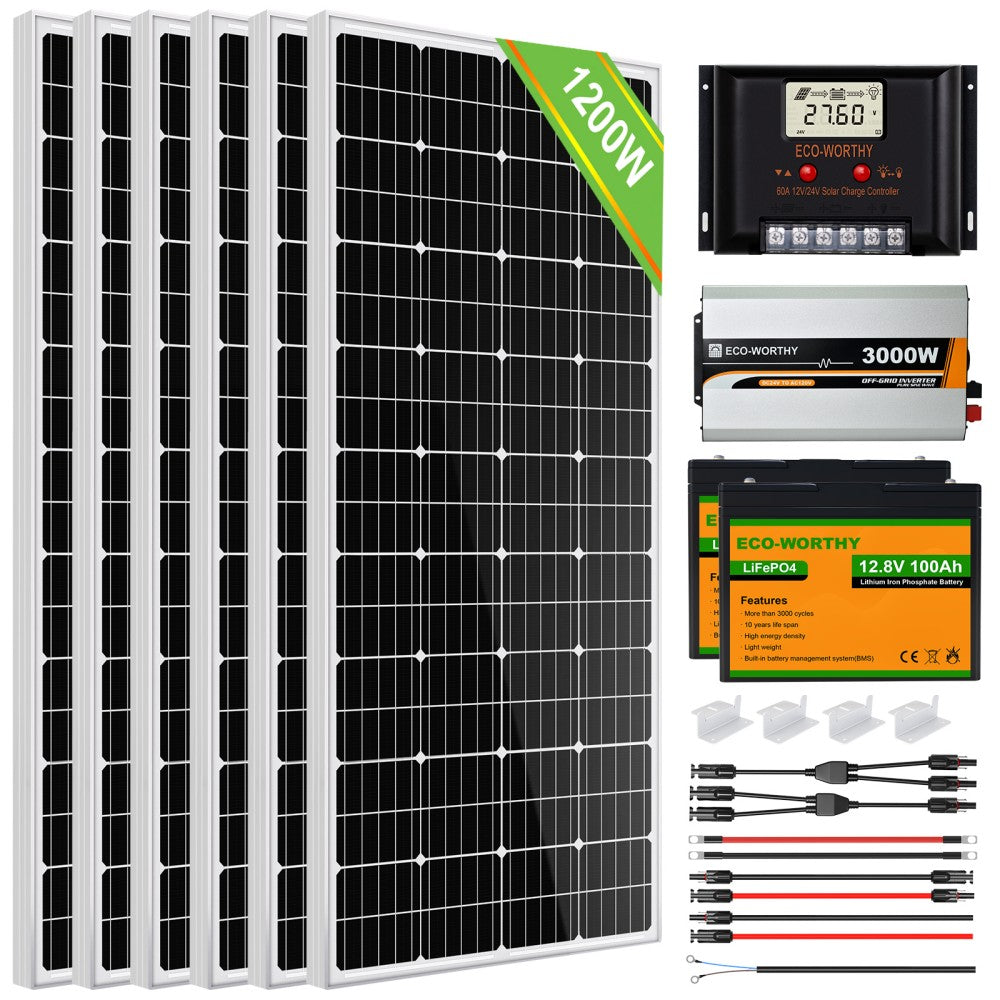

Package Includes
6x 195W Mono Solar Panel
1x 60A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
6x Z Mounting Bracket
2x Y MC4 Connector
Inverter & Battery Bank Options-
Inverter & 2.4kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
1x 3000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable

195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 10.14A	Maximum current: 9.65A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

60A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Battey Type: AGM,SLA,GEL,Li	Max Charge current: 60A
Discharge current : 60A	Max.PV Open-Circuit Voltage: <55V
Max Battery Voltage : <34V	Equalizing charge voltage: 14.6V/29.2V
Floating charge voltage: 13.8V/27.6V	Charging return voltage: 13.2V/26.4V
Over-dischage return voltage: 12.5V/25V(Adjustable)	Over-dischage voltage 1: 1.0V/22.0V(Adjustable)
Size: 189*127*54mm	Weight: 650g

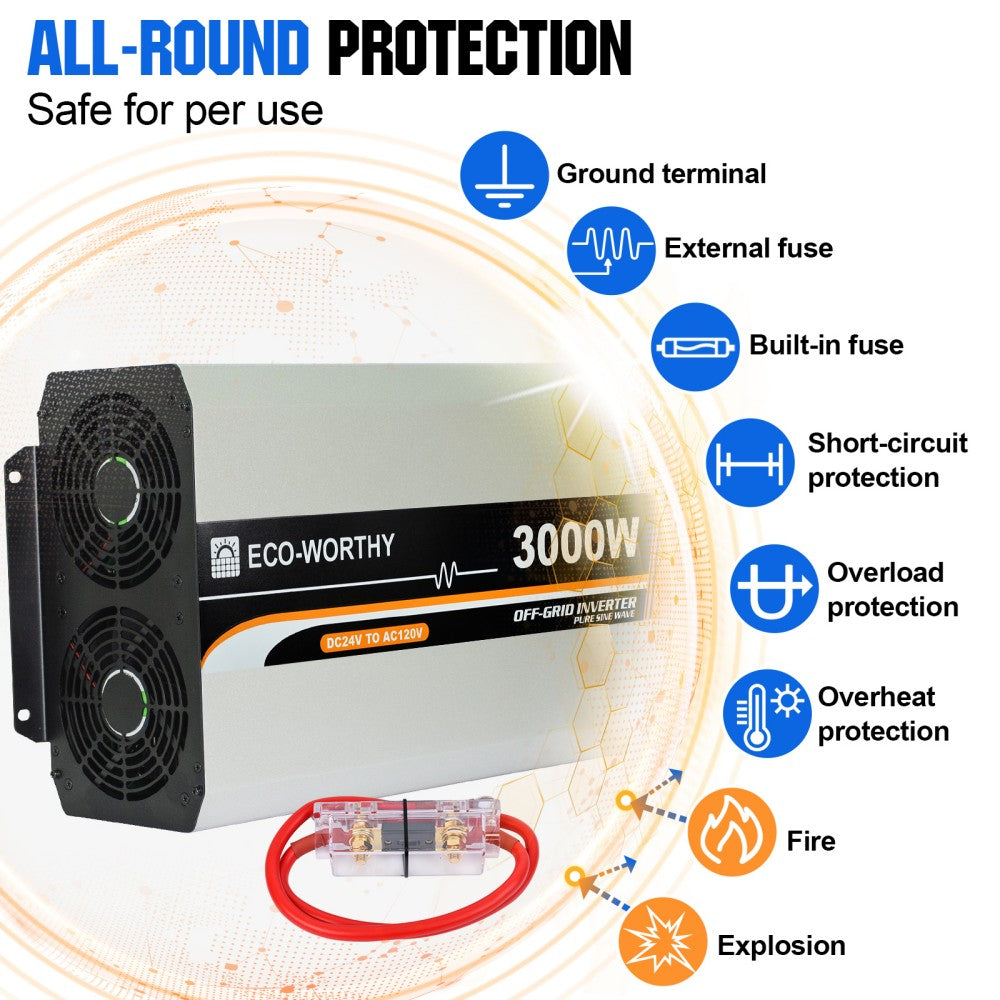

3000W 24V Off Grid Inverter

Continuous output power: 3000W	Surge power: 6000W
Surge current when power on: < 100A	Output voltage: 110VAC (±3%); 120VAC (-6%~+3%);240VAC (-9%~+3%)
Output frequency: 50/60Hz ± 0.2%	Output wave: Pure Sine Wave
Output distortion THD: THD≤3% (Resistive Load)	Rated input voltage: 24VDC
Input voltage range: 21.6 ~ 32.0VDC	Rated output efficiency: > 90.0%
Max. output efficiency: > 94.0% (30% loads)	Idle current: < 0.15A
No-load current: < 1A	Input terminal: M6
Dimension (L x W x H): 521 × 270 × 143mm	Mounting size: 495 × 145mm
Mounting hole size: Φ6mm	Net Weight: 8.5kg

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1200Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 80A/100A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*209mm（10.2*6.6*8.2inch）
Battery Weight: 9.55kg/21 lbs

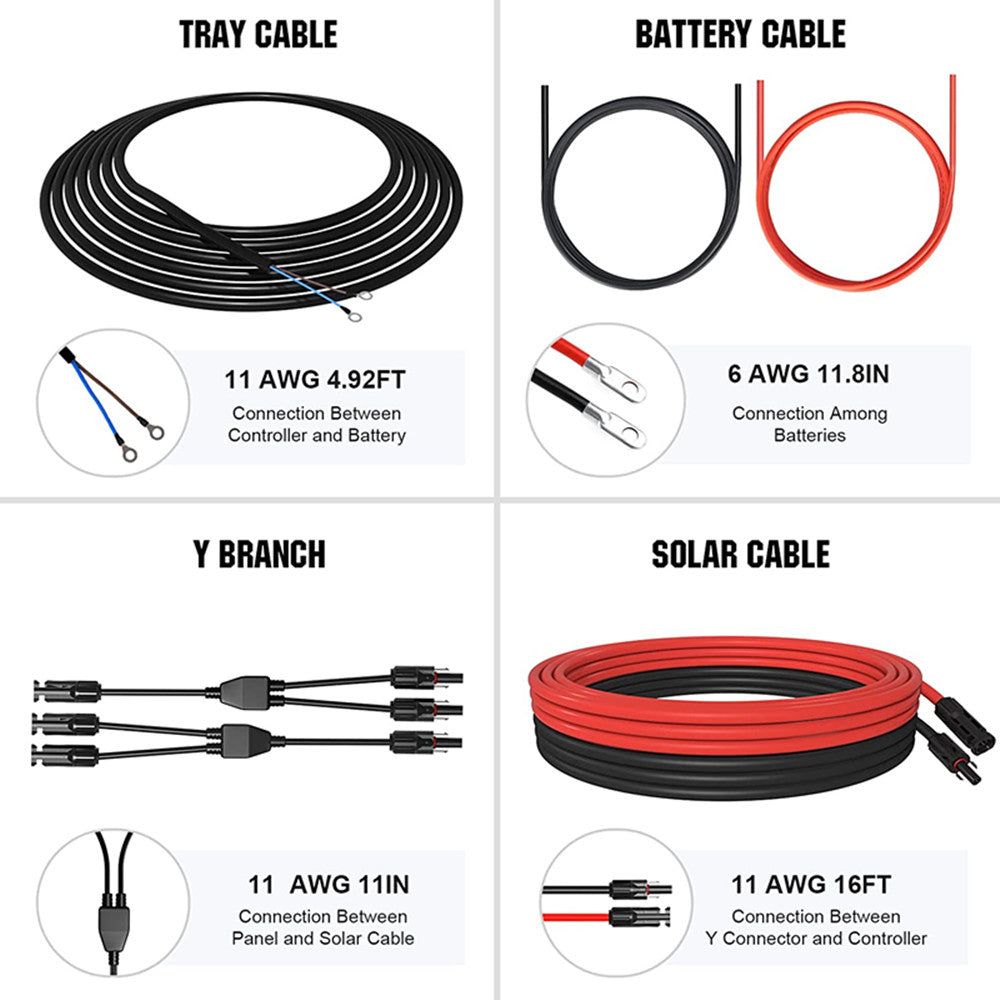

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
