400W 12V (4x100W) Complete Off Grid Solar Kit

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 400W 12V expandable Solar Kit is an ideal choice. This system could generate approximately 1.6kWh per day.
ECO-WORTHY 100 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
1100W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 400W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small efficient refrigerator, stereo, computer, lights and TV. This size system needs conscious conservation of energy, but if you time your activities for daylight, you can also use a washing machine or even power tools. If you have any questions regarding this product, please contact us info@eco-worthy.com.

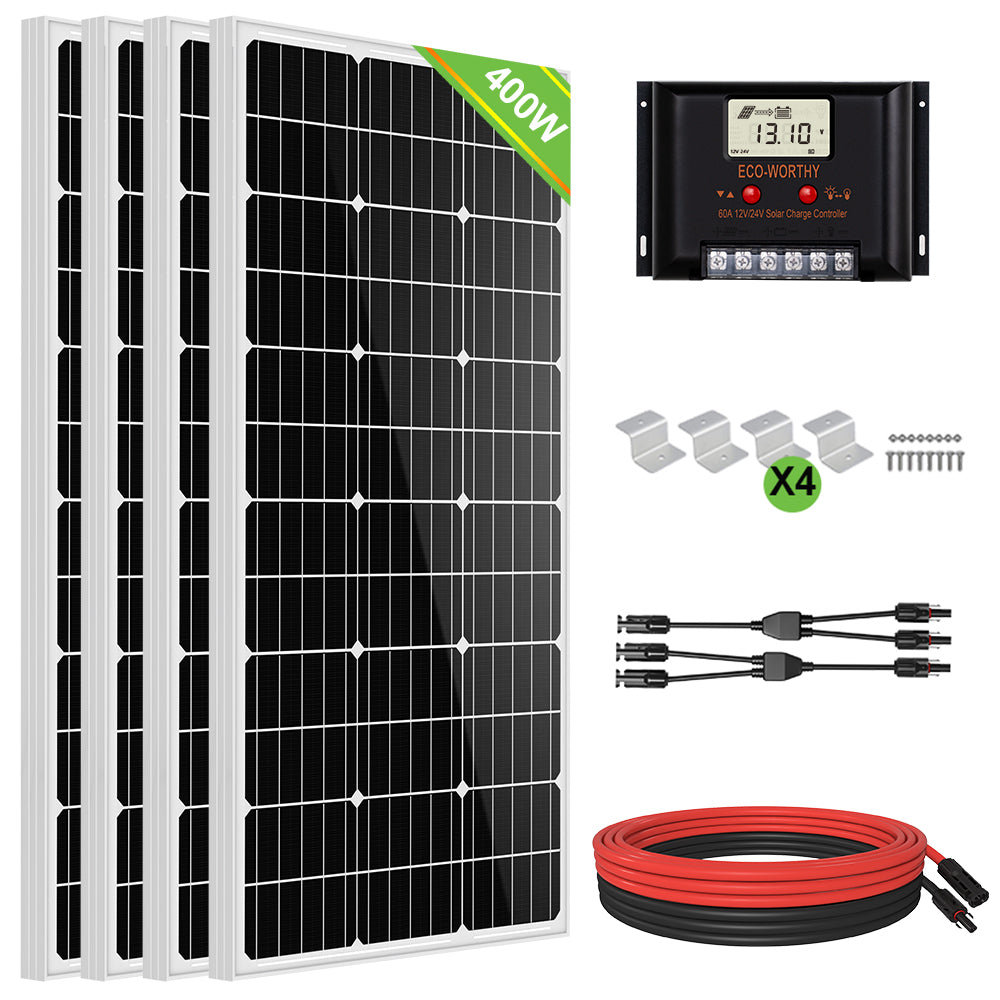

Package Includes
4x 100W Mono Solar Panel
1x 60A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector

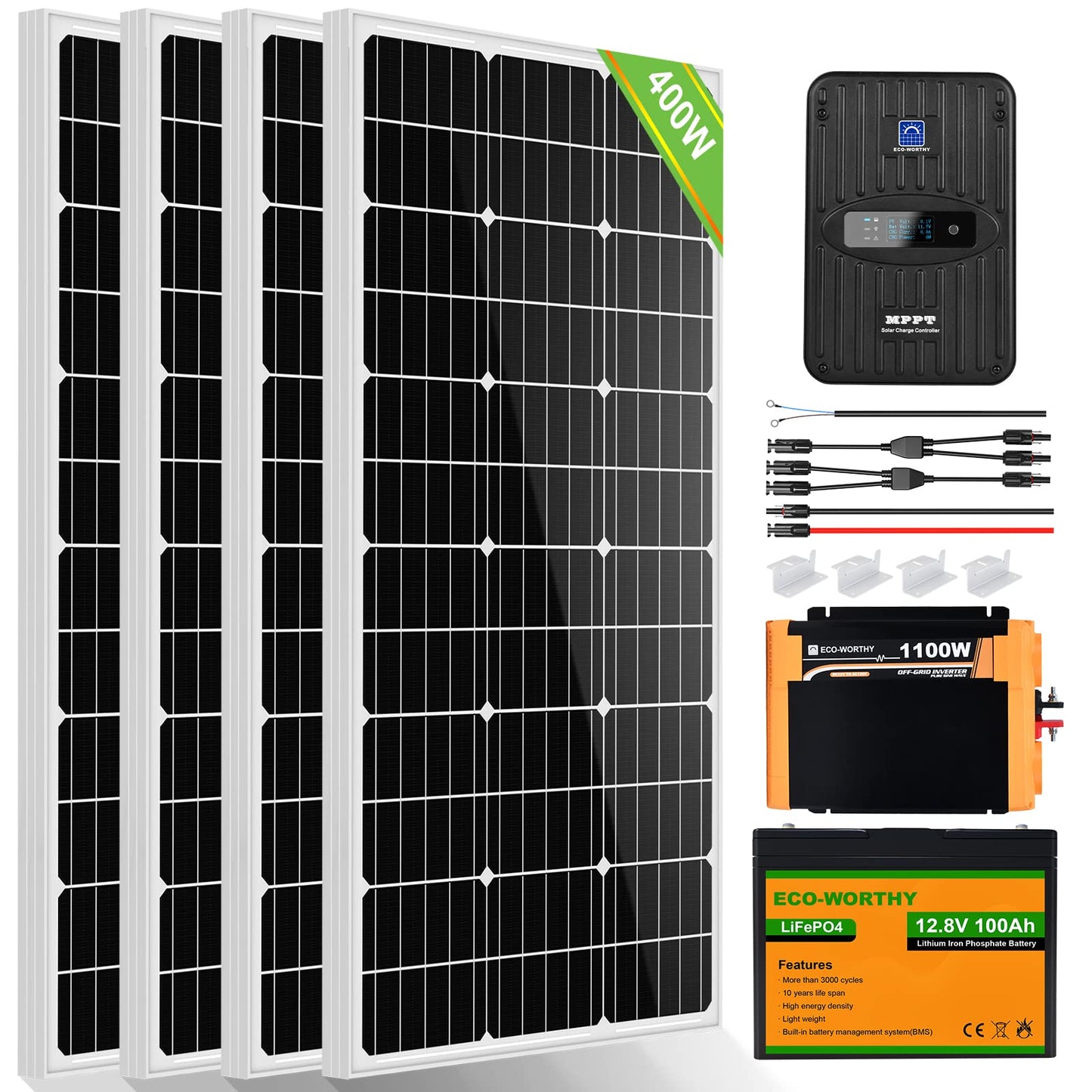

Inverter & Battery Bank Options-
Inverter & 1.2kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
1x 1100W 12V-110V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery

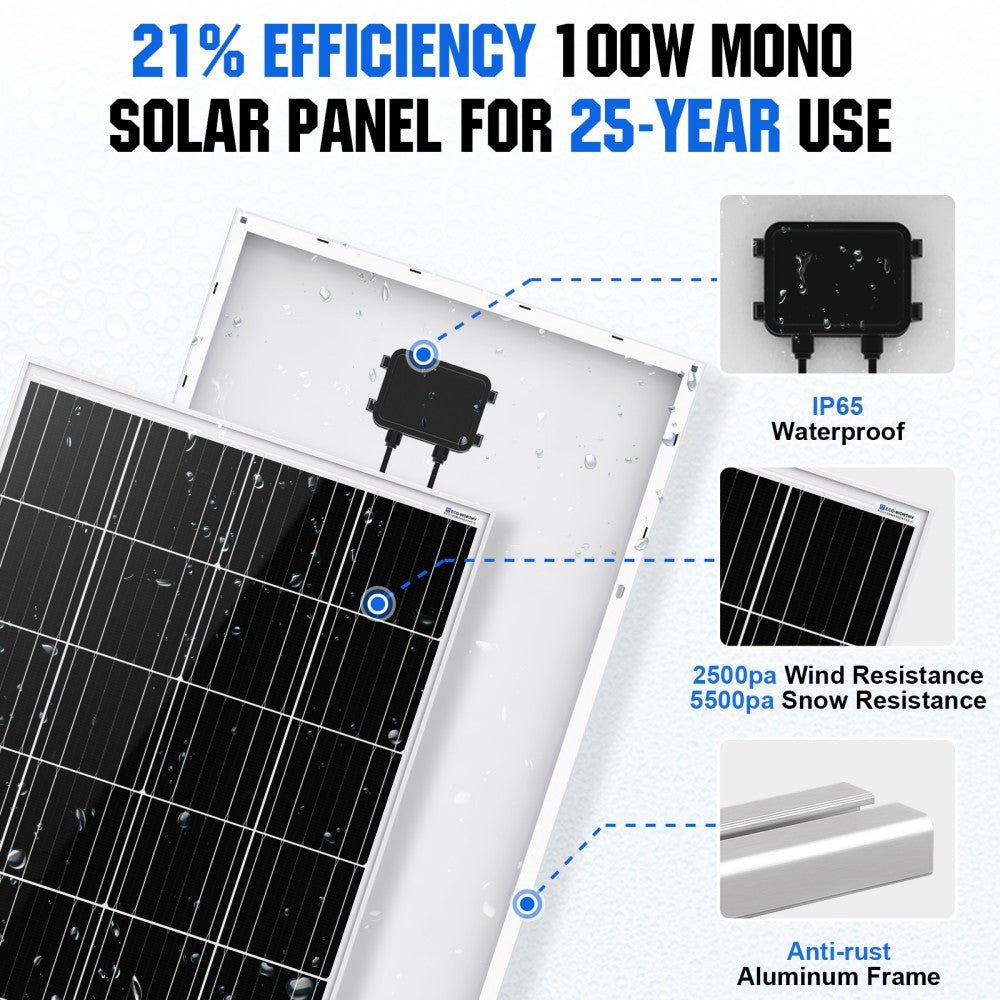

100W Monocrystalline Solar Panel

Rated Power: 100W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 5.20A	Maximum current: 4.95A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Weight: 11.46 lbs(5.20 kg)
Size: 1010mm*460mm*35mm

60A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Battey Type: AGM,SLA,GEL,Li	Max Charge current: 60A
Discharge current : 60A	Max.PV Open-Circuit Voltage: <55V
Max Battery Voltage : <34V	Equalizing charge voltage: 14.6V/29.2V
Floating charge voltage: 13.8V/27.6V	Charging return voltage: 13.2V/26.4V
Over-dischage return voltage: 12.5V/25V(Adjustable)	Over-dischage voltage 1: 1.0V/22.0V(Adjustable)
Size: 189*127*54mm	Weight: 650g

1100W 12V Off Grid Inverter

Output Continuous Watts(W): 1100W+18W USB	Surge Capacity (PeakPower): 2200W
Rated Input DC (V,A): 12V Battery, 100A	Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1	Rated Output AC (V,A): 115Vac±10%, 9.5A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)	No Load Current: <1A
Optimum Efficiency: 85% min	Fuse (A): 30A*4
FuseType: Internal Blade	Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max	Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95%	Cooling System: Thermo Fan
THD: <4.5%	Dimensions (L*W*H): 13.5*9.8*4.1 in
Assembled Weight (kg): 8.05 lbs

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1200Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 100A/100A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*214mm（10.2*6.6*8.43inch）
Battery Weight: 10kg/22 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
