1000W 24V (400W Wind+6x100W Solar) Solar Wind Hybrid Kit

If you are looking for a hybrid kit, ECO-WORTHY 1000W 24V expandable hybrid kit is an ideal choice. This system certainly can be adapted to small homes in off-grid systems. A 400W wind generator produces about 60kWh per month in 10.5m/s average winds. ECO-WORTHY 100 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
For people looking to go off-grid, 1000W 24V hybrid kits allow you to produce energy around the clock. This way, you can decrease the size of the battery system needed to power your home during the night. If you have any questions regarding this product, please contact us info@eco-worthy.com.

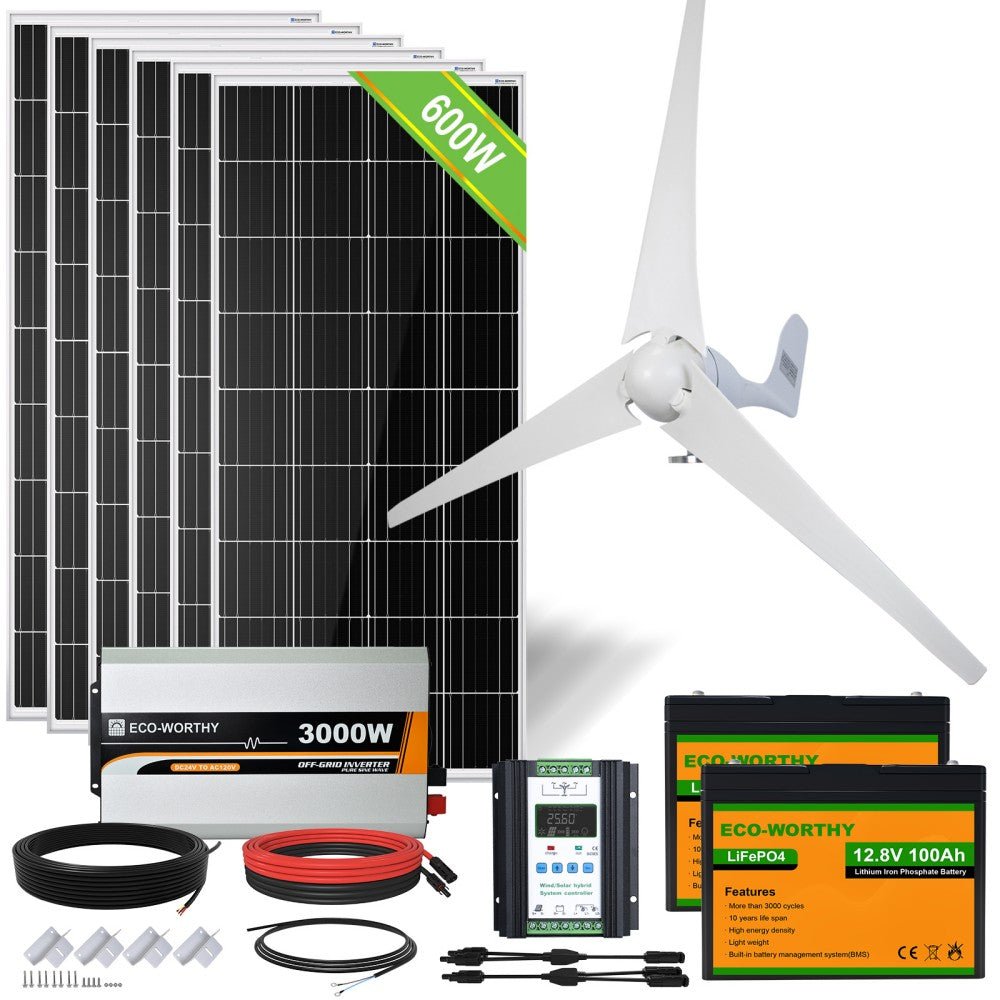

Package Includes
1x 400W Wind Turbine Generator
6x 100W Mono Solar Panel
1x 40A Hybrid Controller
1x 3000W 24V-110V Pure Sine Wave Inverter
1x 5M 12AWG Extension Cable with MC4
1x 9M 13AWG Wind Turbine Extension Cable
6x Z Mounting Bracket
2x Y MC4 Connector
2x 100Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable

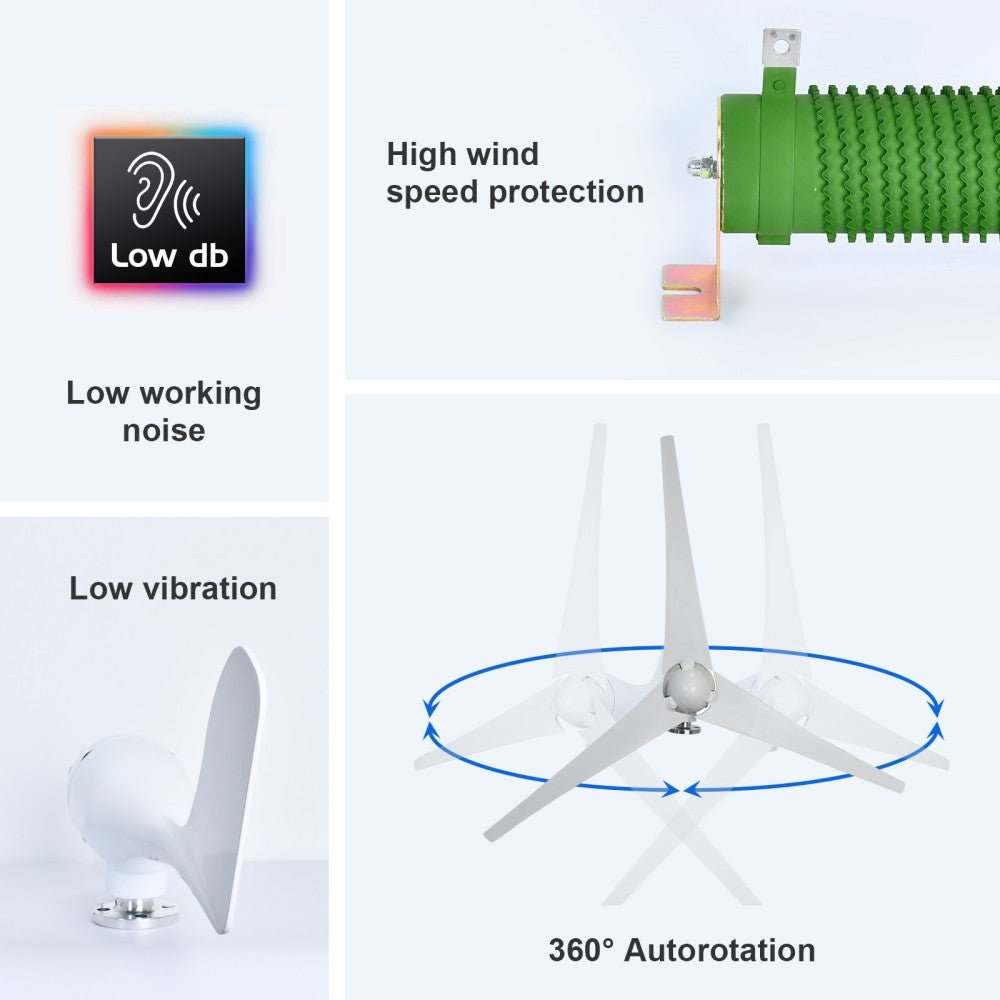

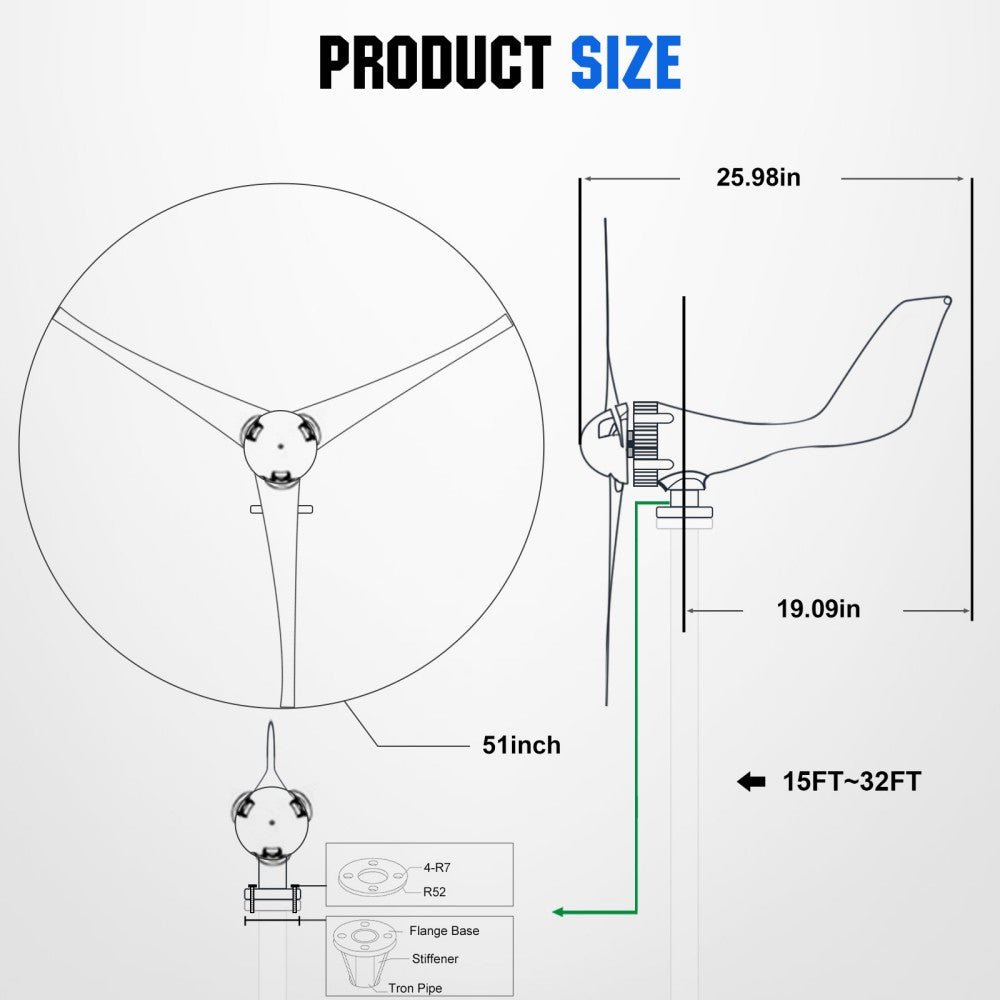

400W Wind Turbine Generator

Rated voltage: 24V	Rated wind speed: 13M/S
Starting wind speed: 2.0M/S	Maximum wind speed: 50M/S
Blade diameter: 1.3M	Rated power: 400W
Net weight: 5kg

40A Hybrid Controller

Battery system voltage level: 24V	PV array maximum open circuit voltage: 55.2V
Recovery Voltage after PV array maximum open circuit voltage: 52.8V	PV array minimum operating voltage: >Vbat+1V
Photovolinic rated current rating: 40A	PV module power: ≤1000W
Fan rated voltage level: 24V	Fan array maximum open circuit voltage: 51.2V
Fan rated current: 33A	Wind Turbine Power: ≤800W
Voltage of restriction charging: Vbat>BCV+0.4V	DC load output rated current: 30A

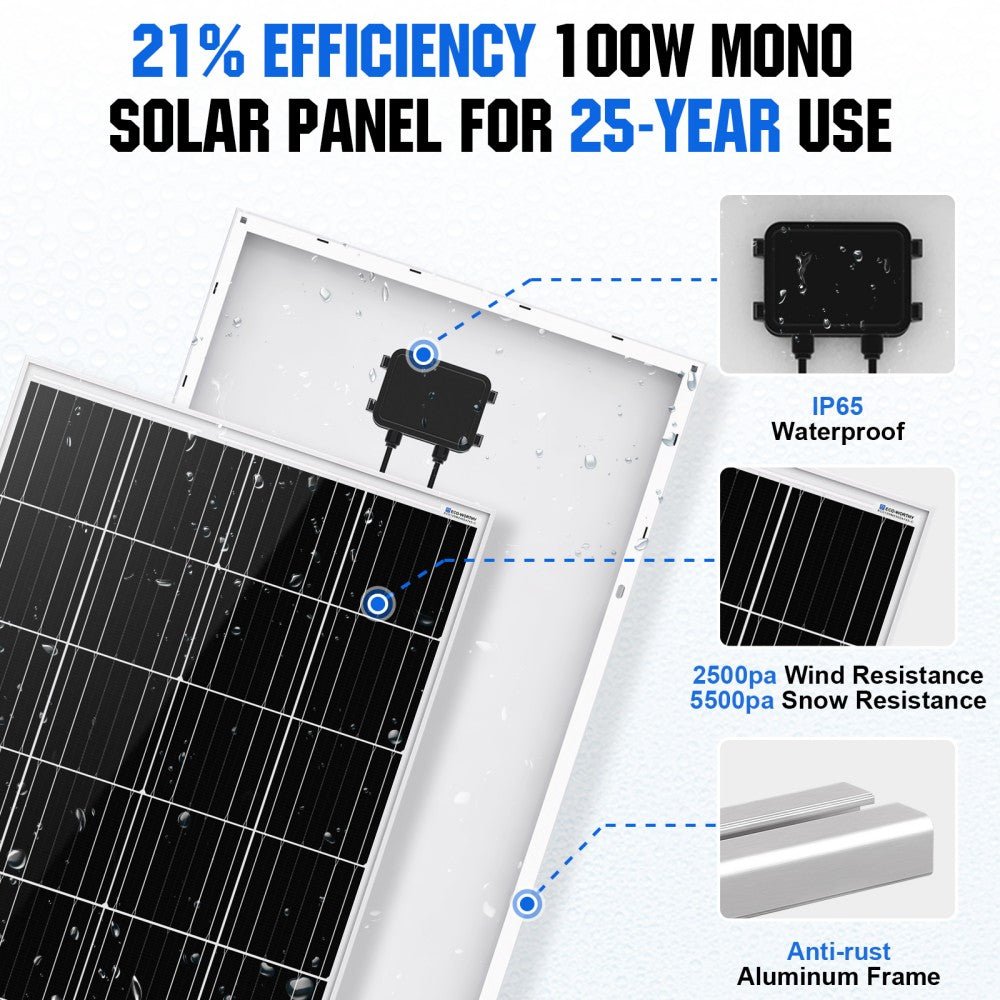

100W Monocrystalline Solar Panel

Rated Power: 100W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 5.20A	Maximum current: 4.95A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Weight: 11.46 lbs(5.20 kg)
Size: 1010mm*460mm*35mm

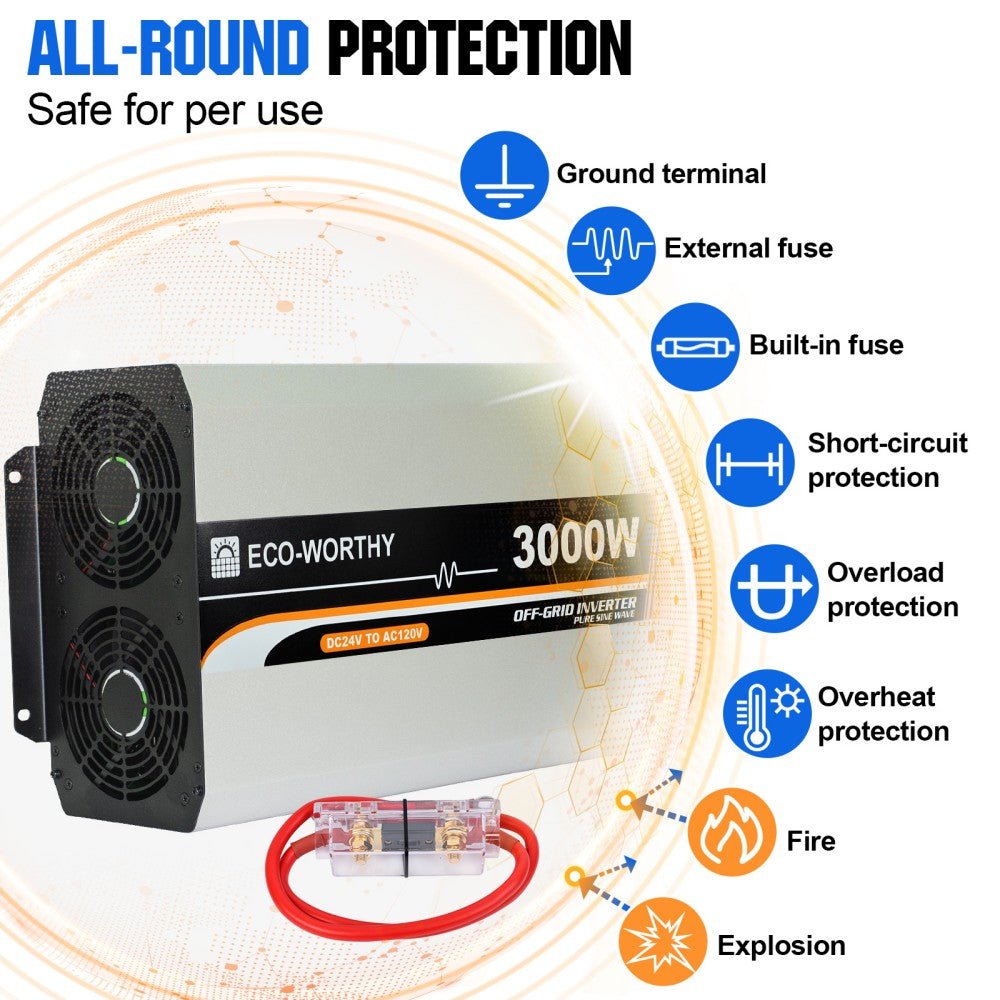

3000W 24V Off Grid Inverter

Continuous output power: 3000W	Surge power: 6000W
Surge current when power on: < 100A	Output voltage: 110VAC (±3%); 120VAC (-6%~+3%);240VAC (-9%~+3%)
Output frequency: 50/60Hz ± 0.2%	Output wave: Pure Sine Wave
Output distortion THD: THD≤3% (Resistive Load)	Rated input voltage: 24VDC
Input voltage range: 21.6 ~ 32.0VDC	Rated output efficiency: > 90.0%
Max. output efficiency: > 94.0% (30% loads)	Idle current: < 0.15A
No-load current: < 1A	Input terminal: M6
Dimension (L x W x H): 521 × 270 × 143mm	Mounting size: 495 × 145mm
Mounting hole size: Φ6mm	Net Weight: 8.5kg

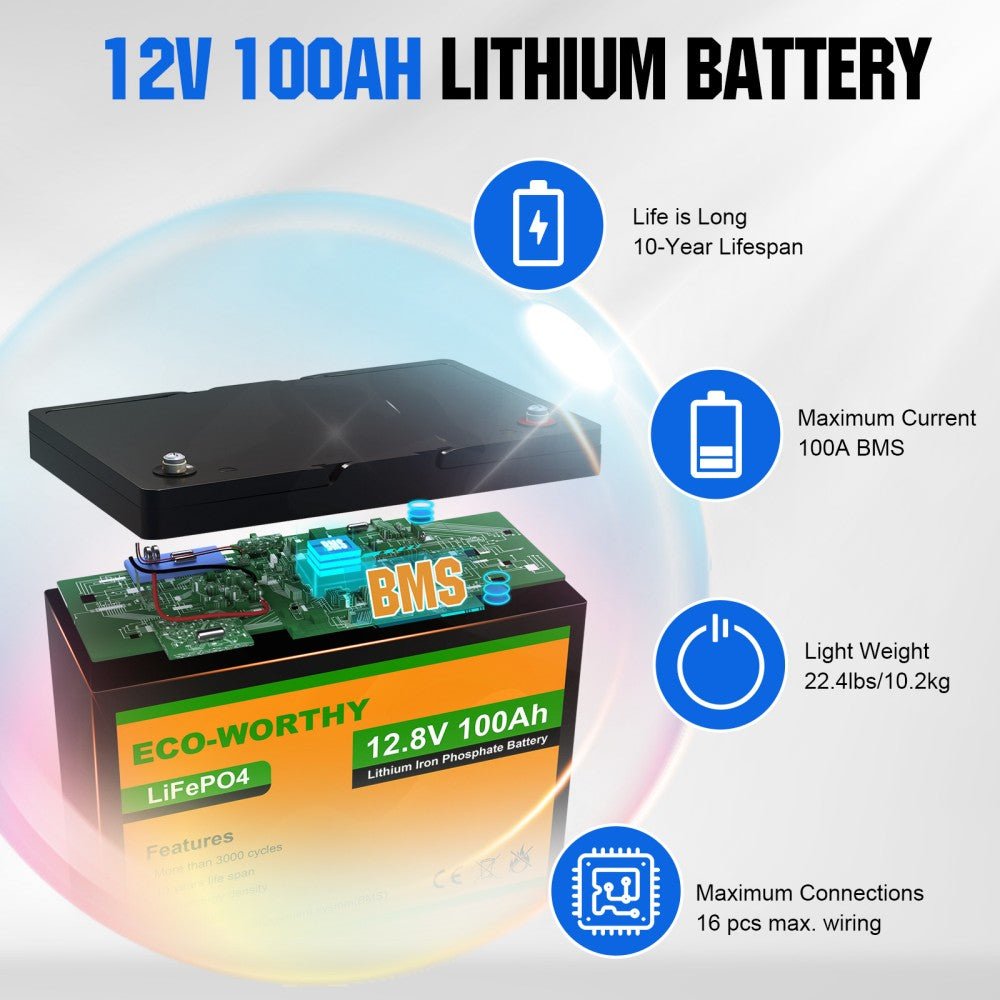

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1200Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 100A/100A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*214mm（10.2*6.6*8.43inch）
Battery Weight: 10kg/22 lbs

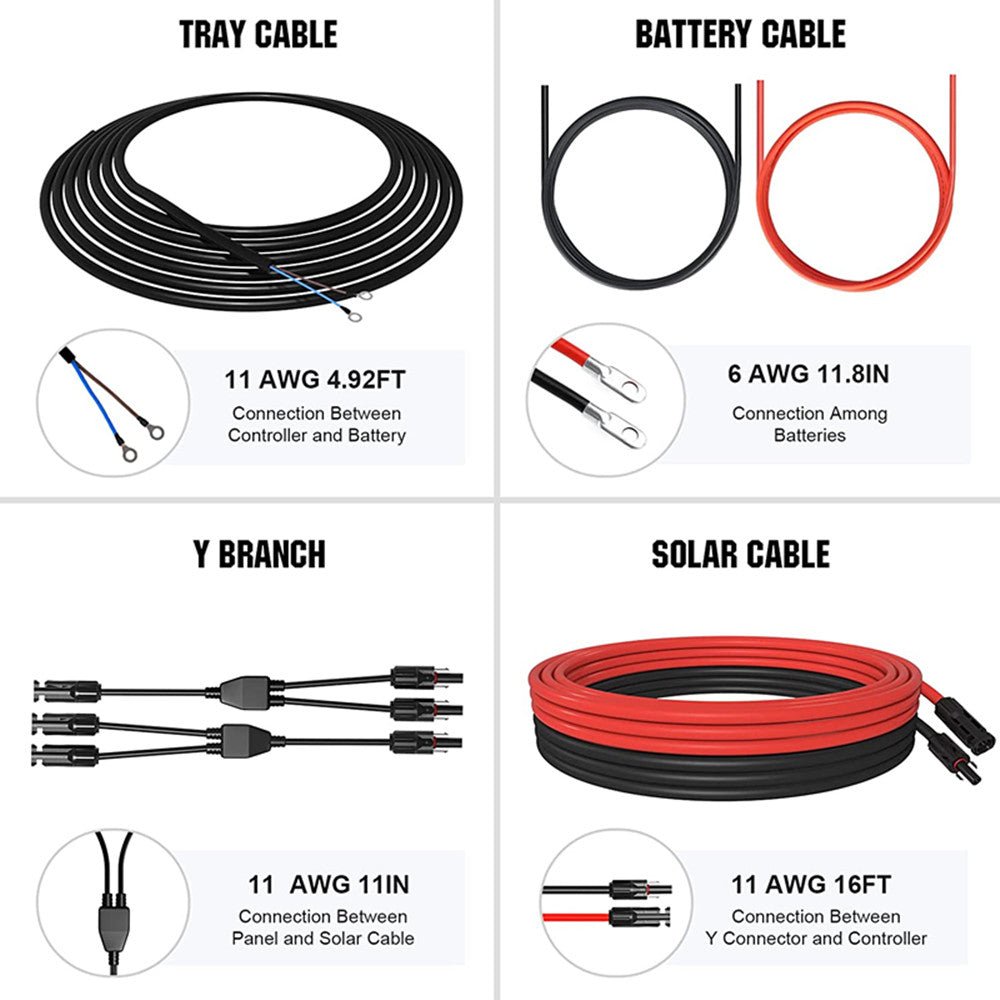

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
