5040W 48V (12x N-Type 420W) Complete Off Grid Solar Kit | 20.48kWh Battery Capacity | 120VAC/240VAC Split Phase Output

Eco-Worthy 4800W 48V off-grid solar kit features 12 N-Type 420W monocrystalline solar panels (total 5040W), two 5000W 48V Split Phase Solar Hybrid Inverters, and four 51.2V 100Ah LiFePO4 server rack batteries (20.48 kWh) with smart BMS, Bluetooth/WiFi monitoring, and 10-year warranty. The system supports solar, grid, and generator input, offers UPS backup, and includes all mounting accessories for easy installation. The energy storage part is four integrated Eco-Worthy 48V(51.2V) 100Ah lithium iron phosphate server rack batteries, with a capacity of 20.48kWh, using A-grade battery cells, supporting 90% deep discharge, cycle life of more than 6000 times, built-in 100A smart BMS,enhanced external safety with a 125A circuit breaker and shunt trip, metal casing is safer, and supports Bluetooth and WiFi remote monitoring and up to 32 units in parallel expansion, with a 10-year warranty. The installation accessories are complete, including 12 sets of Z-shaped brackets, 5-meter MC4 extension cables, and 4 sets of battery cables. The overall solution has high integration, flexible expansion, and easy installation and maintenance. It is suitable for a variety of off-grid and backup power application scenarios.

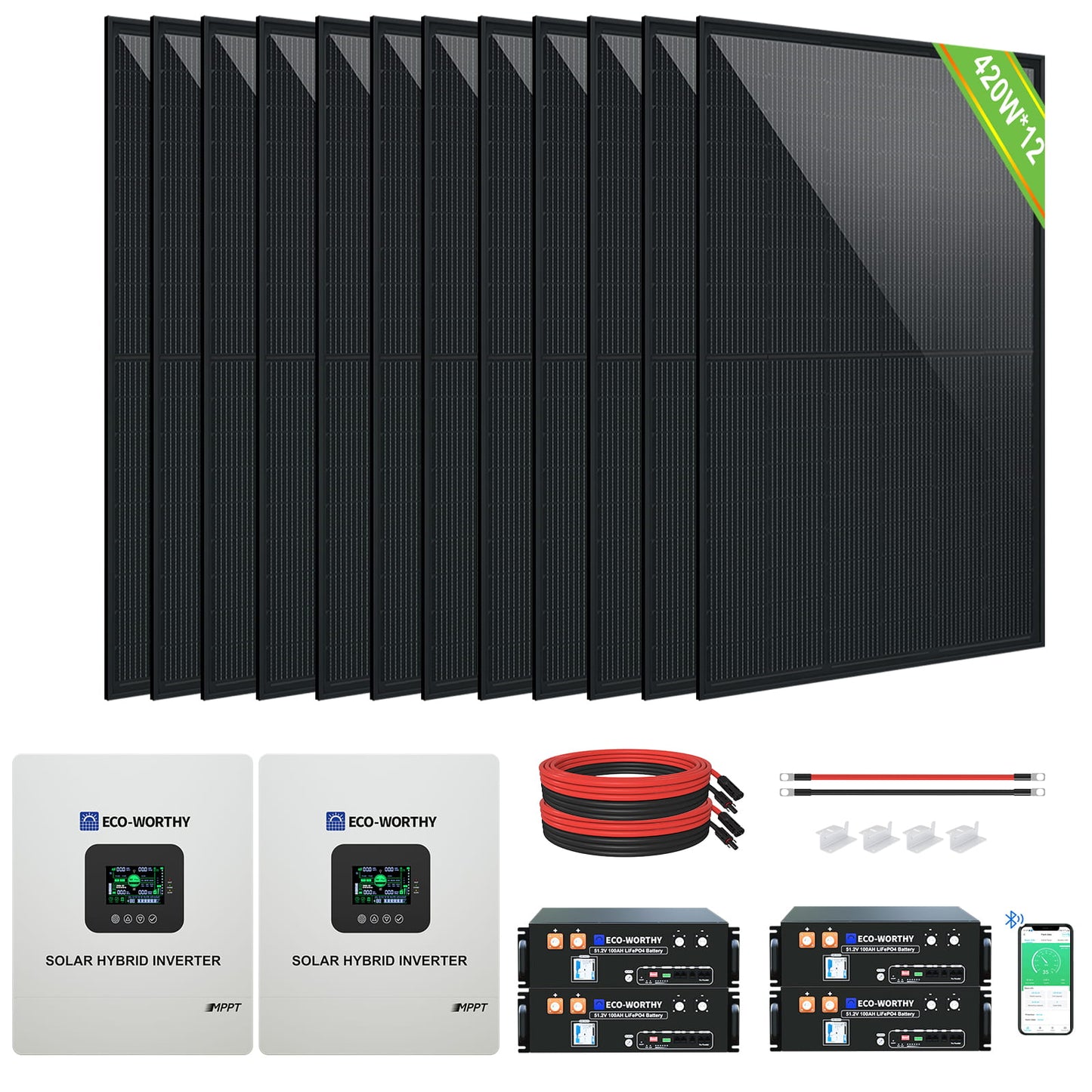

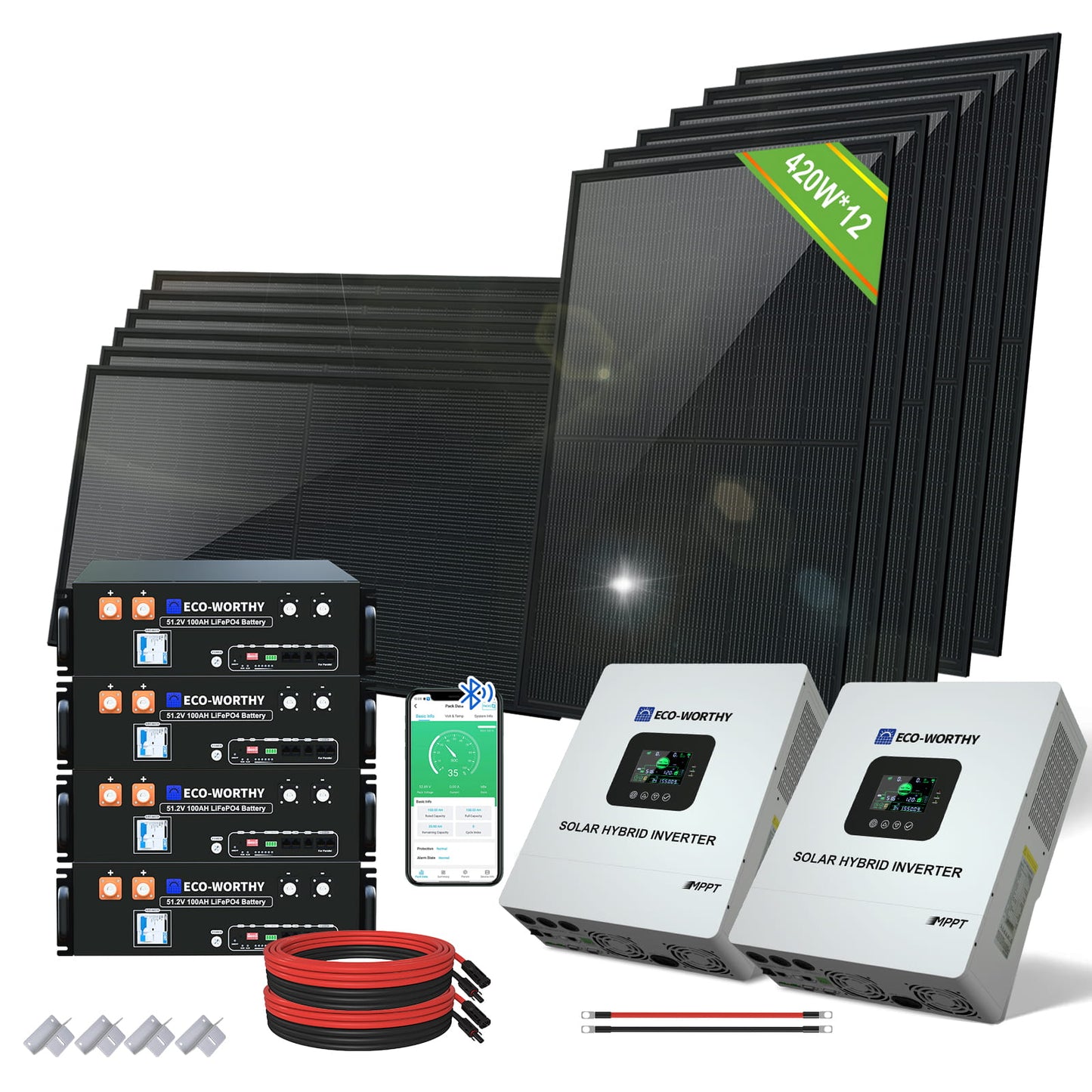

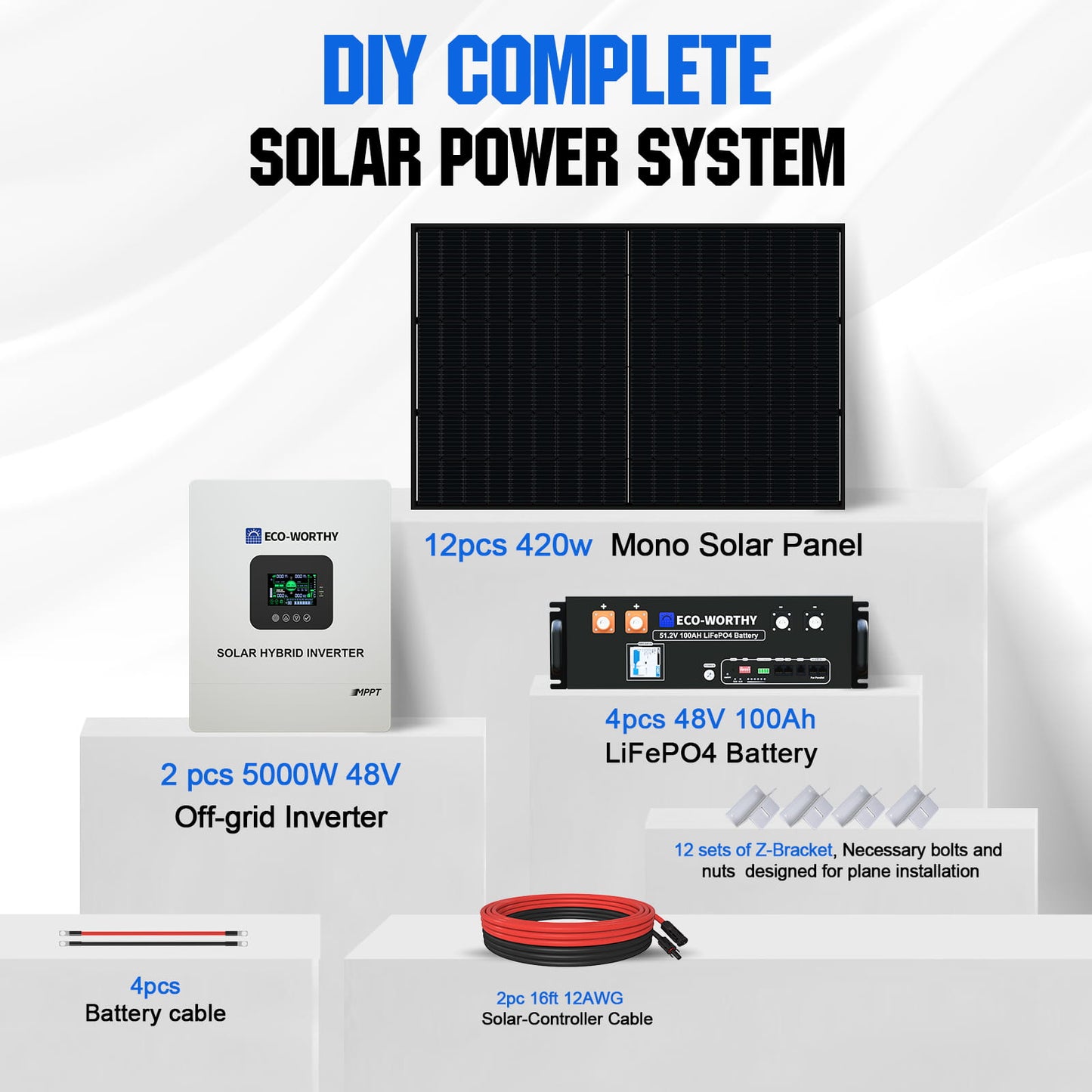

Package Includes:

5040W PV &20.48kWh Battery
12x 420W N-Type Mono Solar Panels
2x 5000W 48V Split Phase Solar Hybrid Inverter Charger
2x 5M 12AWG Extension Cable with MC4
4x 48V 100Ah Server Rack LiFePO4 Lithium Batteries

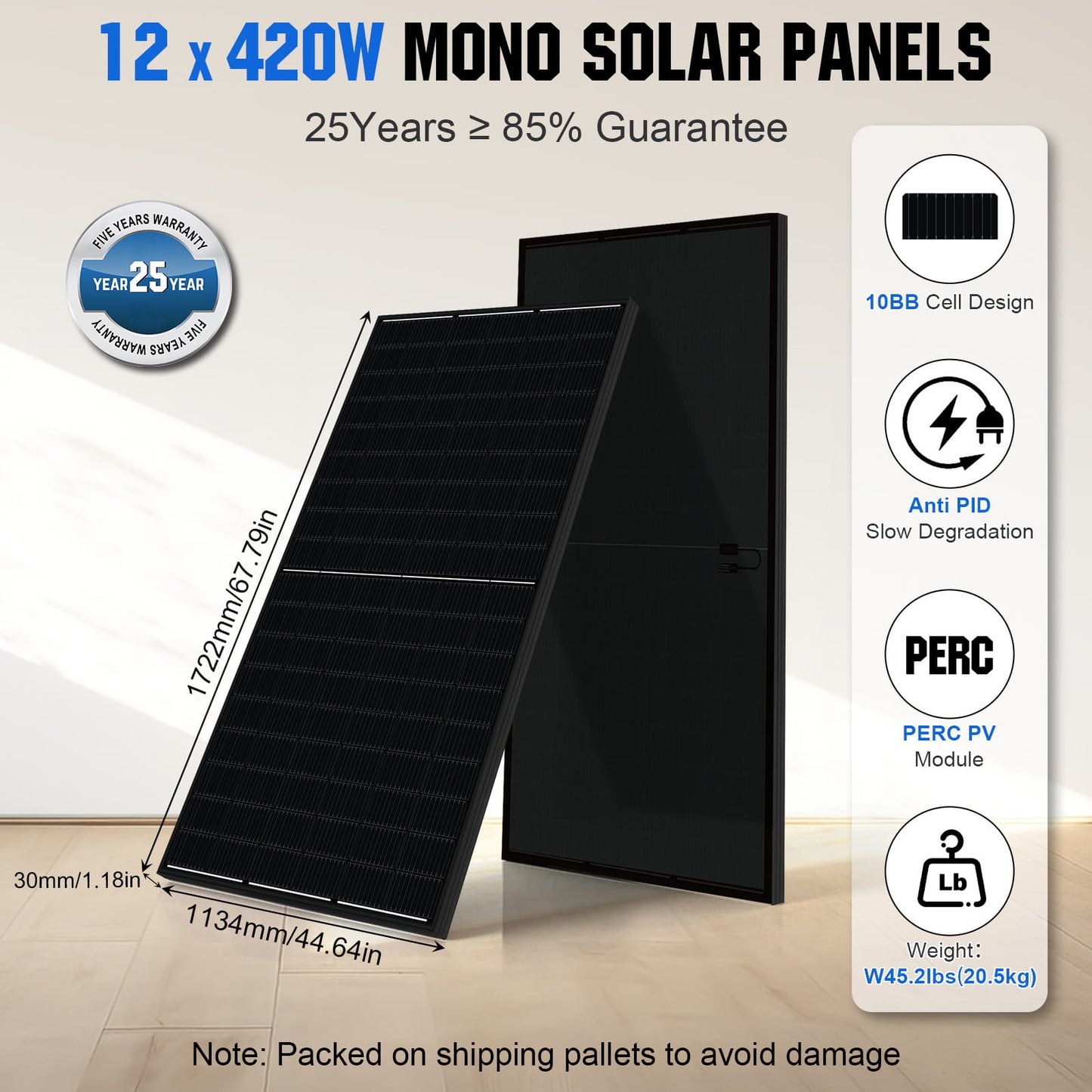

420W N-Type Monocrystalline Solar Panel

Rated Power: 420W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 32.44V	Open Circuit Voltage(Voc): 38.73V
Short circuit current: 14.01A	Maximum current: 12.95A
Output Tolerance: ±3%	Temperate coefficient of Isc:0.05%/℃
Temperate coefficient of Voc: --0.29%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 45.3 lbs(20.5 kg)
Size: 67.79x44.64x1.18in (1722*1134*30mm)



5000W 48V Split Phase Solar Hybrid Inverter Charger

Solar Charging Mode
PV Charging Current Range: 100A	MPPT Voltage Range: 120-450VDC
Max Input Power: 5500W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output: 110V/120VAC 50Hz/60Hz	Rated Battery Input Voltage: 48V
Peak Power: 10000W

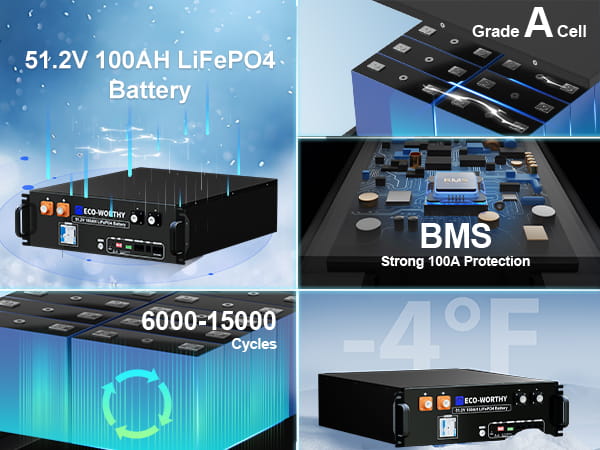

48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch)
Battery Weight: 47kg(103 lbs)	Each battery comes with a pair of battery parallel cables

5M 12AWG  Solar Cable Wires with MC4

Cable Type: Connecting Solar Panels to Charge Controllers	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

Z Mounting Brackerts

24 pieces of Z-shaped solar panel brackets
