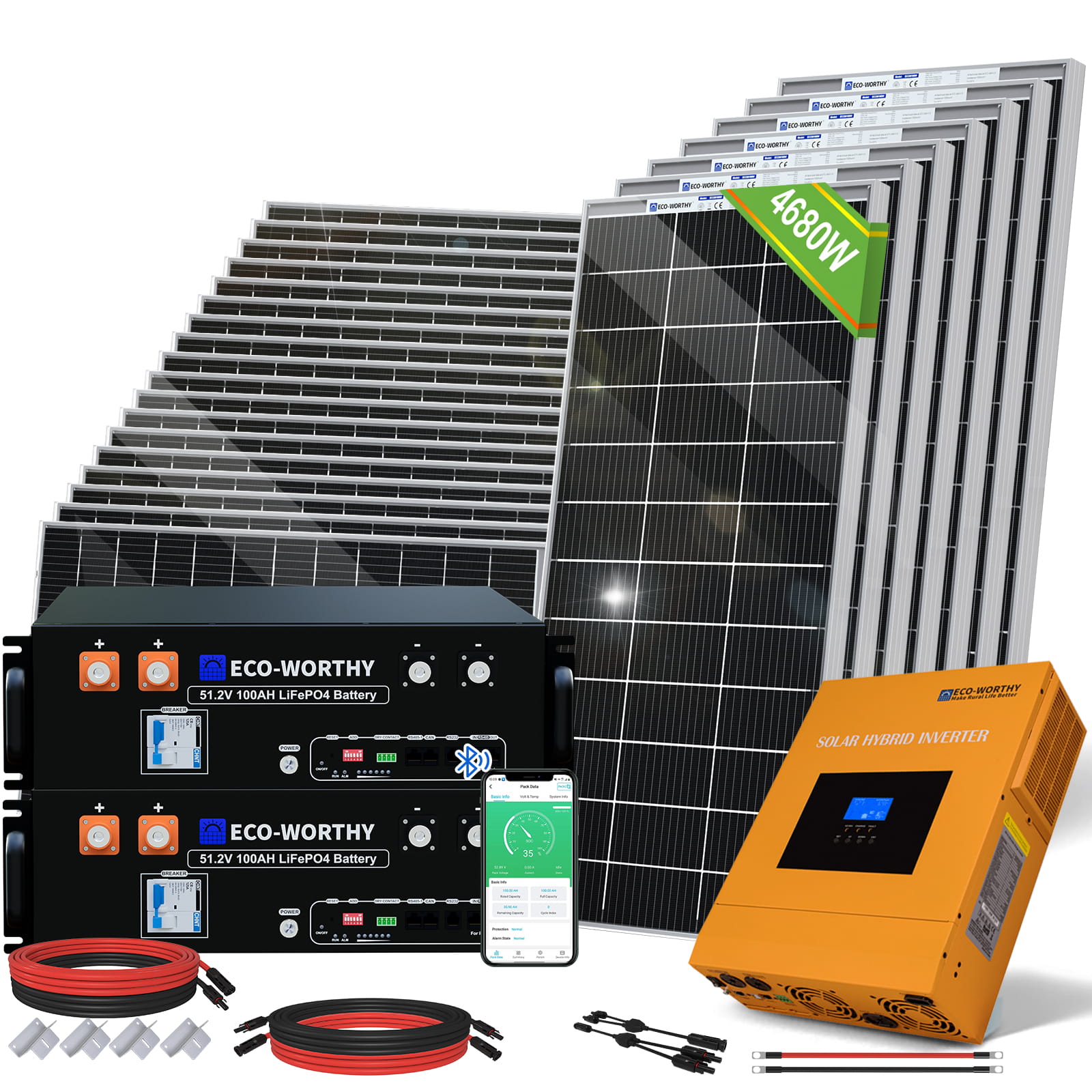

4800W 48V (24x Bifacial 195W) Complete MPPT Off Grid Solar Kit

This Eco-Worthy 4800W 48V off-grid solar system includes 24*195W bifacial monocrystalline silicon solar panels (total power 4680W), with bifacial power generation and a high-strength aluminum alloy frame, which improves energy output and has a long service life. The core of the system uses a 5000W 48V pure sine wave hybrid inverter with a built-in 80A MPPT controller, supports three-way input of solar energy, mains power, and generator, and has intelligent switching, remote WiFi monitoring, UPS function and multiple electrical protections. The energy storage part is two integrated Eco-Worthy 51.2V 100Ah lithium iron phosphate server rack batteries(3U standard), with a capacity of 10.24kWh, using A-grade battery cells, supporting 90% deep discharge, cycle life of more than 6000 times, built-in 100A smart BMS and 125A circuit breaker, metal casing is safer, and supports Bluetooth and WiFi remote monitoring and up to 15 units in parallel expansion, with a 10-year warranty. The installation accessories are complete, including 24 sets of Z-shaped brackets, 5-meter MC4 extension cables, and 2 sets of battery cables. The overall solution has high integration, flexible expansion, and easy installation and maintenance. It is suitable for a variety of off-grid and backup power application scenarios.

Package Includes:

4800W PV &10.24kWh Battery
12x Bifacial 195W Mono Solar Panels
1x 5000W 48V hybrid solar charger inverter
1x 5M 8AWG Extension Cable with MC4
2x 5M 12AWG Solar Cables with MC4
1x Y MC4 Connector
24x Z Mounting Brackets
2x 48V 100AhRack LiFePO4 Lithium Batteries

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

5000W 48V  Solar Hybrid Inverter Charger

Solar Charging Mode
PV Charging Current Range: 0-80A(can be set)	MPPT Voltage Range: 120-450VDC
Max Input Power: 5500W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output: 120VAC	Rated Battery Input Voltage: 48V
Peak Power: 10000W

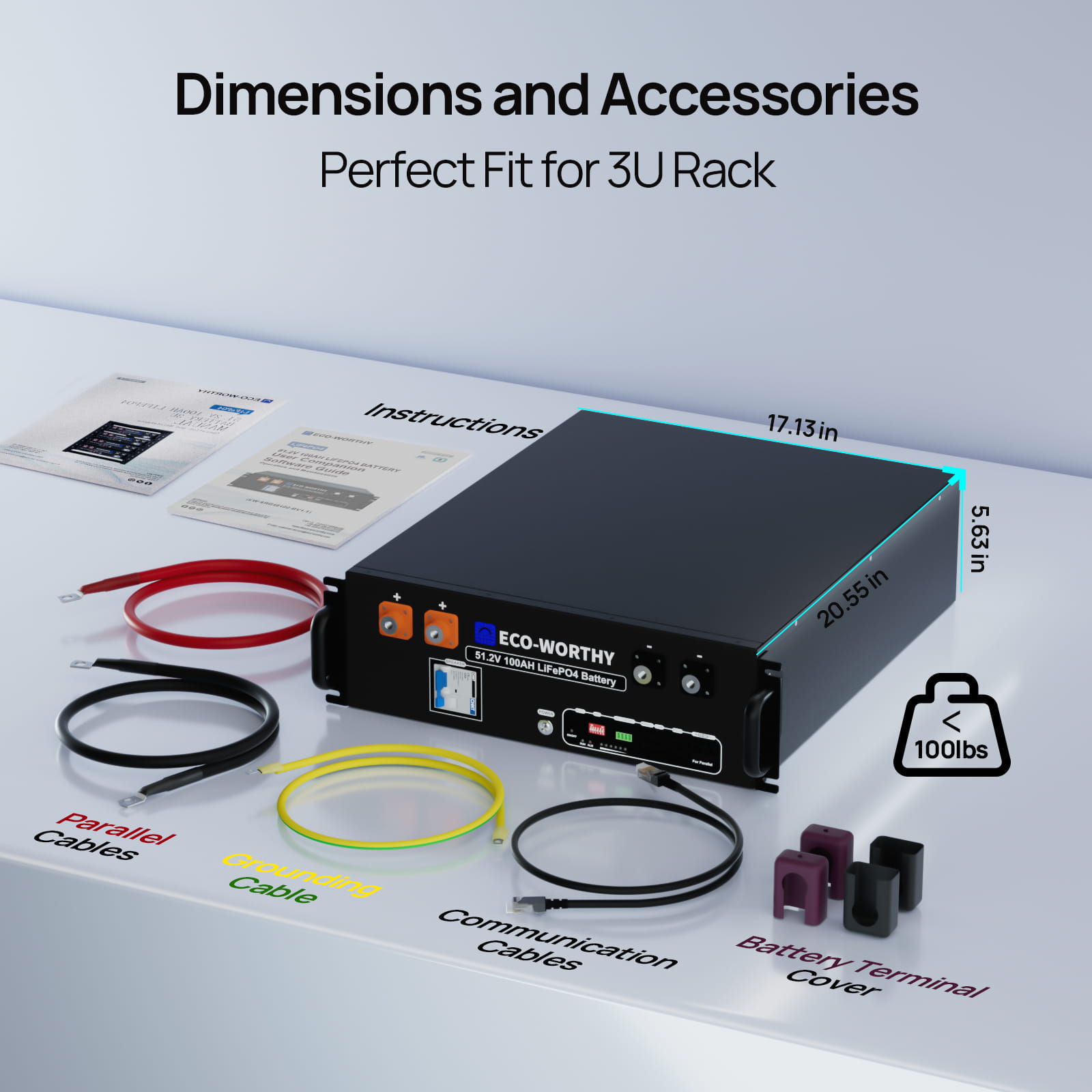

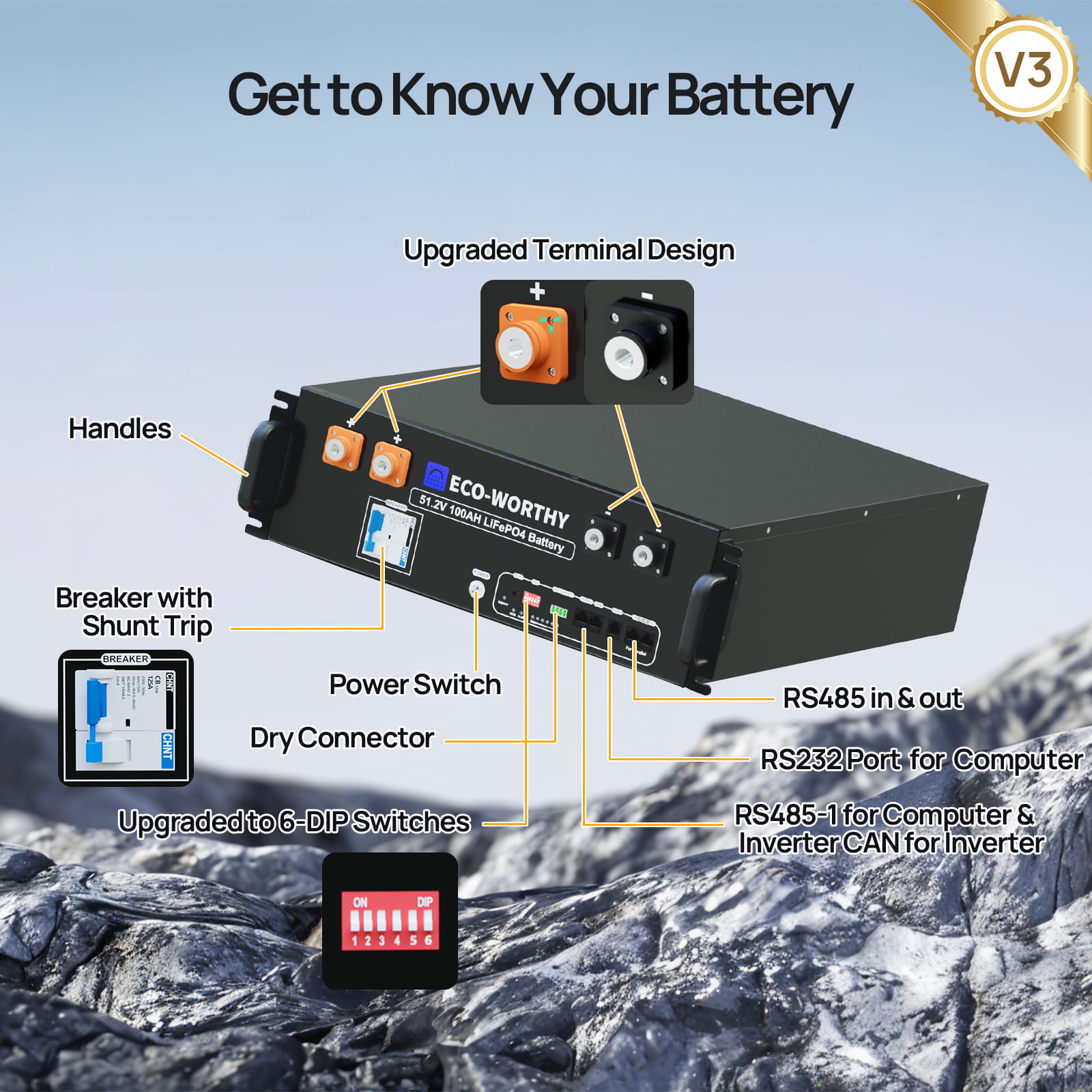

48V 100Ah Rack LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V

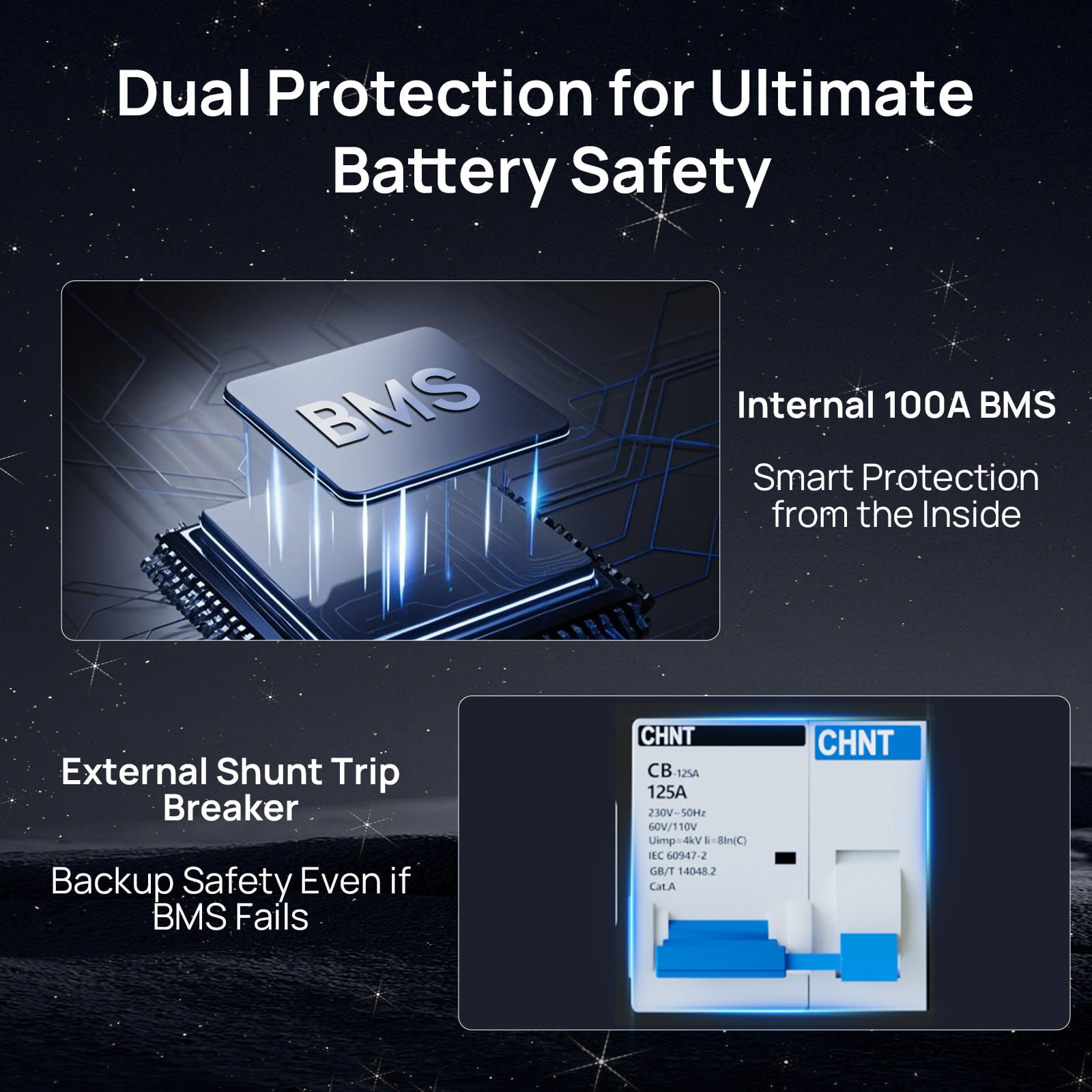

Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 52.27*43.51*14.3cm (22.55*17.13*5.63inch)
Battery Weight: 44kg(97 lbs)	Each battery comes with a pair of battery parallel cables

5M 12AWG  Solar Cable Wires with MC4

Cable Type: Connecting Solar Panels to Charge Controllers	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

5M 8AWG Solar Extension Cable Wires with MC4-MC4

Cable Type: Connecting Solar Panel to Solar Panel In Parallel	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

Z Mounting Brackets

24 pieces of Z-shaped solar panel brackets

Y Parallel Branch Connectors

Model: 12AWG	Rated Current: 30A
Test Voltage: 6000V
