ECO-WORTHY RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)

Name: ECO-WORTHY RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)
Brand: eco-worthy-ca
SKU: L03SWJTXXRS232-1
Price: 33.99 CAD
Availability: InStock

C$33.99

C$33.99 ~~C$99.99~~

save 66% Sold out

SKU: L03SWJTXXRS232-1

Functionality: RS232 to USB Cable: Used to connect devices with an RS232 interface (such as certain industrial equipment or battery management systems) to computers with USB ports. It converts signal levels and communication protocols, enabling data communication and collection. RS485 to USB Cable: Converts data between RS485 and USB protocols, allowing devices that support RS485 (such as 48V 100AH Lithium Iron Phosphate batteries) to interface with computers via USB. This supports bidirectional communication for battery status monitoring, data reading, and firmware updates. Typical Applications: Connecting a computer to a 48V 100AH LiFePO4 battery for BMS communication. Real-time monitoring of battery parameters like voltage, current, temperature, and state of charge through PC software such as Solar Assistant. Firmware upgrades and configuration of battery management systems to ensure stable operation. Cable and Hardware Features: Chipset and Modules: Equipped with an FTDI-FT232R chip and a SP485 module for reliable and efficient signal conversion between USB and RS485/RS232 interfaces. Cable Design: 8-core 28AWG flat copper conductors with black PVC insulation; slim flat profile (2.5mm × 8.5mm) provides durability and easy routing. Connectors: USB-A male and RJ45 8P8C male connectors; 2 meters in length; plug-and-play functionality for versatile connectivity. Reliability and Safety: Fully tested for open circuit, short circuit, and miswiring conditions. Electrical specs include conductor resistance ~20Ω, insulation resistance 10MΩ, and withstand testing at 300V DC. RoHS compliant, ensuring environmental safety and user protection.

Learn More See Less

Battery Communication Cable RS232 RS485

Product variants

Quantity

View full details

Description Specification Downloads Shipping

RS232 to USB Cable: Used to connect devices with an RS232 interface (such as certain industrial equipment or battery management systems) to computers with USB ports. It converts signal levels and communication protocols, enabling data communication and collection. RS485 to USB Cable: Converts data between RS485 and USB protocols, allowing devices that support RS485 (such as 48V 100AH Lithium Iron Phosphate batteries) to interface with computers via USB. This supports bidirectional communication for battery status monitoring, data reading, and firmware updates.

Function Description

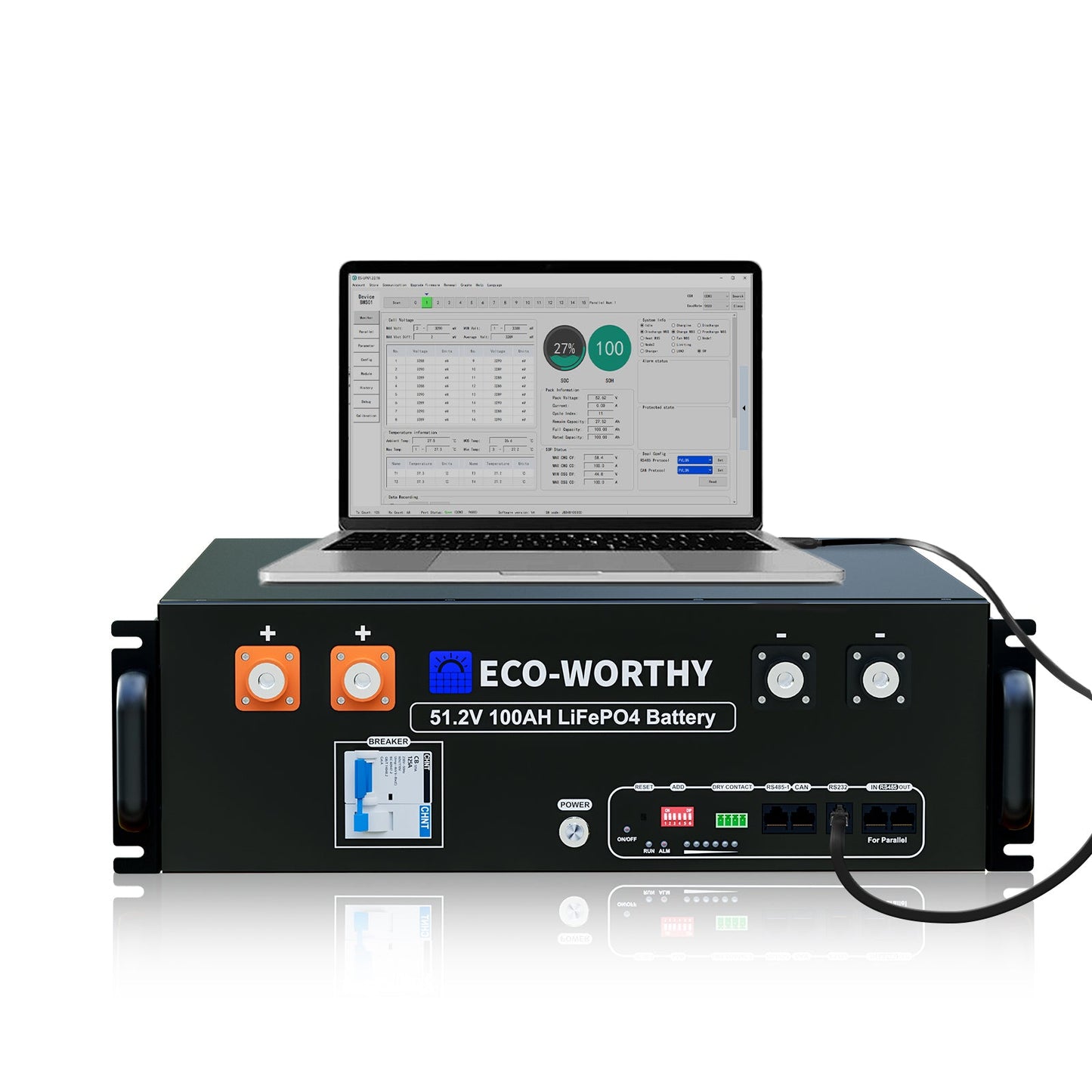

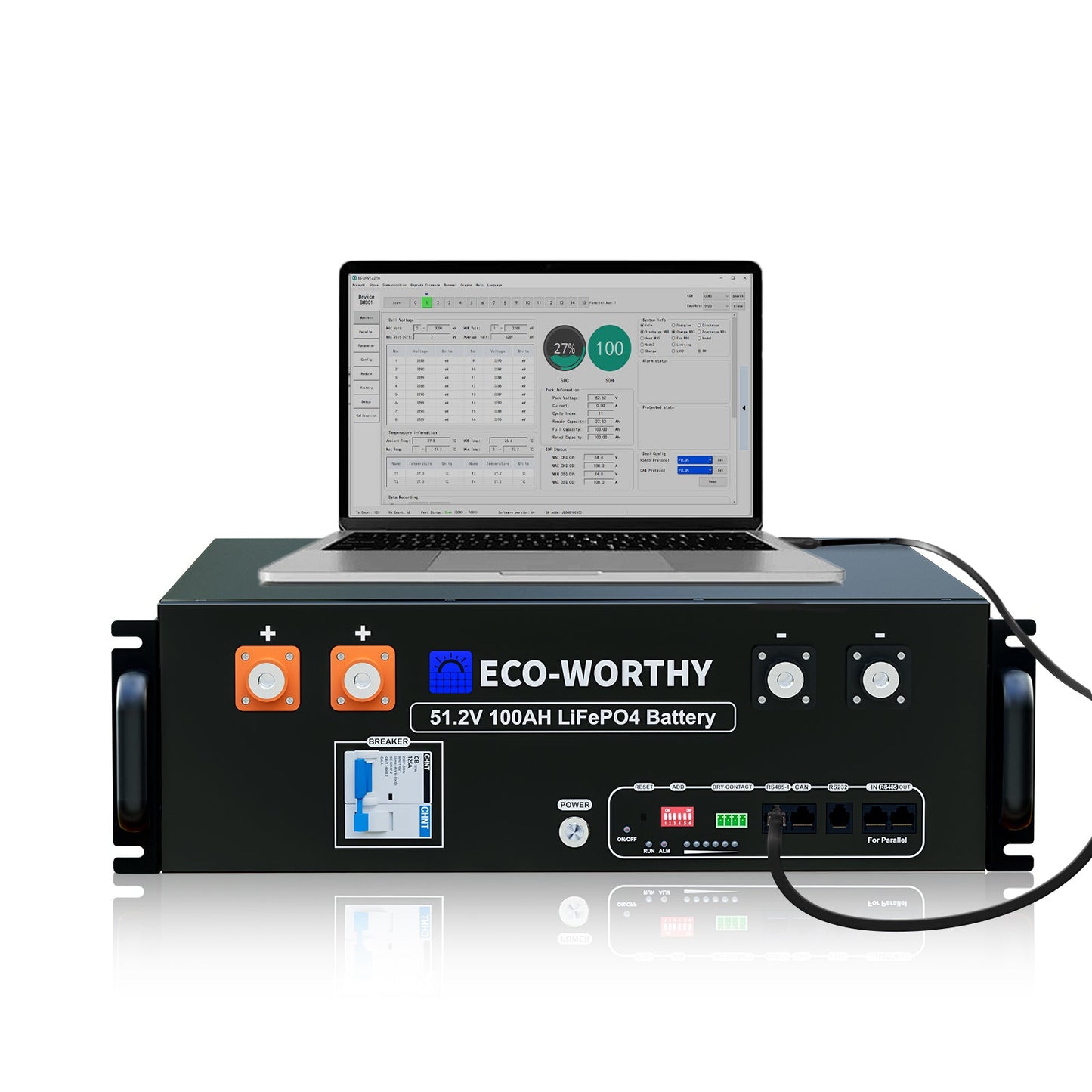

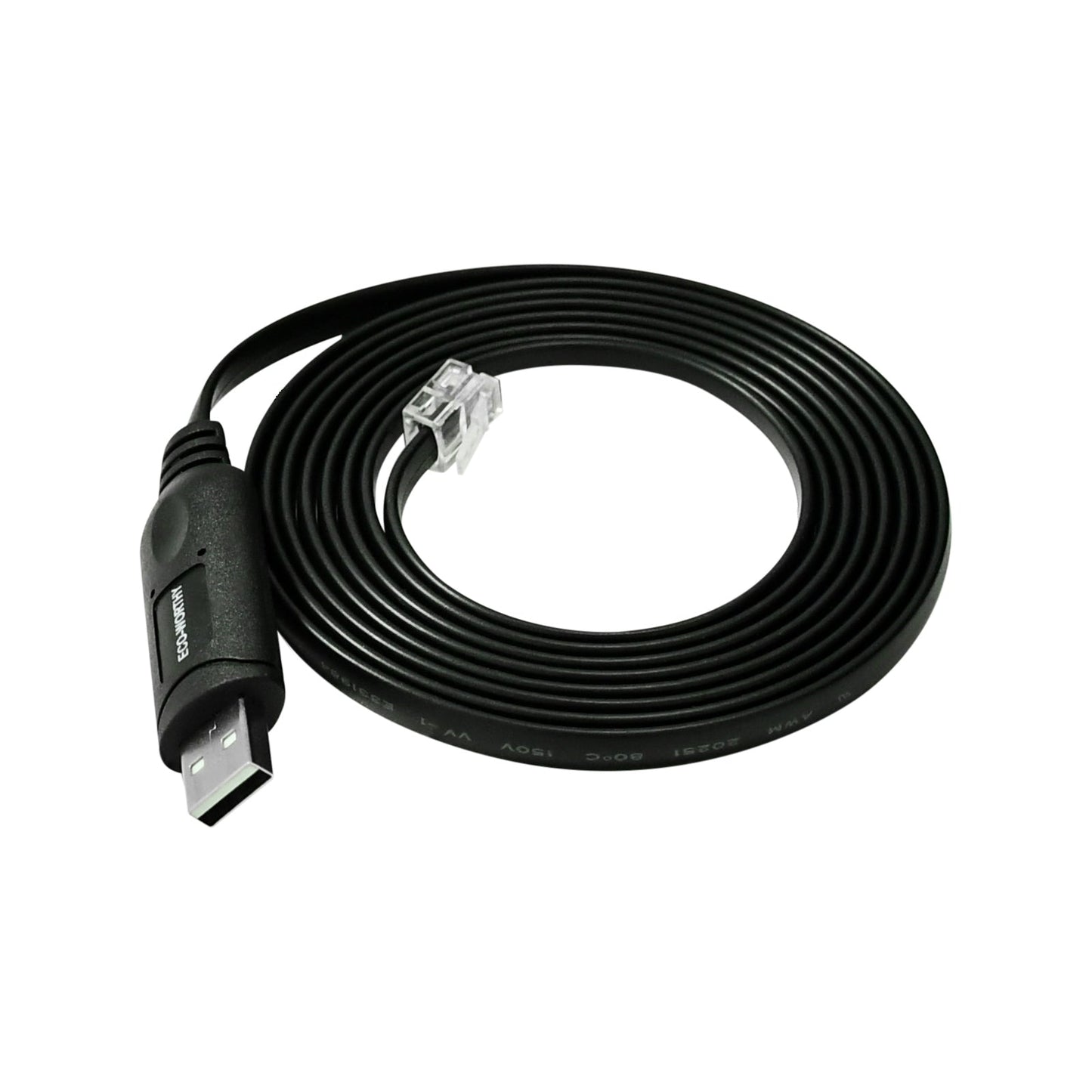

The RS232 to USB cable is primarily used to connect devices with an RS232 interface to those with a USB interface (for example, a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery) to enable communication and data transfer. It can convert signal levels and communication protocols, allowing these two different types of interfaces to be compatible. For example, it can be used to connect a computer to a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery for communication and reading battery data.

RS232 to USB Specification

RS232 to USB
Chip	FTDI-FT232R
Cable Spec	UL20251 28AWG (7/0.12BC) 6C, PVC jacket, black
Outer Diameter	2.5mm × 7.0mm ± 0.2mm
Length	2000mm ± 10mm
USB Connector	FTDI-FT232R + SP213 PCB, USB A male connector, white
RS232 Connector	RJ12 6P6C male

RS232 Pin Description

Port	RS232	USB
Pin Description	1, 2, 6 = NC	1 = VCC
	4 = TXD	2 = D+
	3 = RXD	3 = D-
	5 = GND	4 = GND

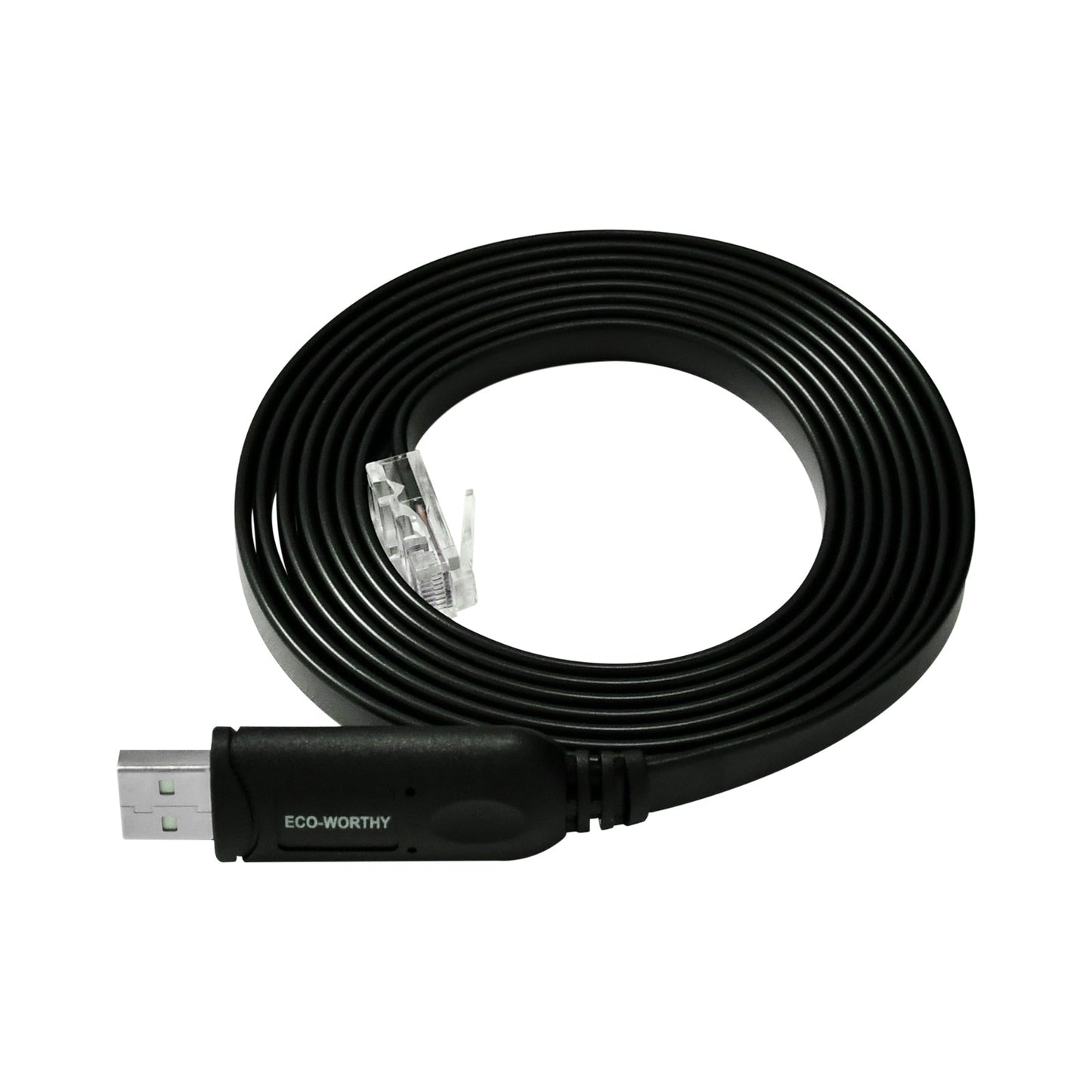

The RS485 to USB communication cable is a device for interface conversion. It can convert data from the RS485 protocol to the USB protocol, and vice versa. In this way, a computer can communicate with devices that support the RS485 protocol, such as a 51.2V 100AH Lithium Iron Phosphate (LiFePO4) battery 3U, via the USB interface. This allows for operations like connecting to a host computer or SolarAssistant, reading battery data, and updating battery firmware.

RS485 to USB Specification

RS485 to USB
Chip	FTDI-FT232R
Cable Spec	28AWG (7/0.12BC) 8C, PVC jacket, black
Outer Diameter	2.5mm × 8.5mm ± 0.2mm
Length	2000mm ± 10mm
USB Connector	FTDI-FT232R + SP485 PCB, USB A male connector, white
RS485 Connector	RJ45 8P8C male

RS485 Pin Description

Port	RS485	USB
Pin Description	2, 7 = A+	1 = VCC
	1, 8 = B-	2 = D+
	4, 5 = NC	3 = D-
	3, 6 = GND	4 = GND

Information on Security Testing

100% Electrical Test: open, short & miswire test
Conductor Resistance: 20Ω, Insulator Resistance: 10MΩ
High Voltage: DC 300V 0.01sec
Must be RoHS compliant

We hope you have enjoyed your online shopping experience with ECO-WORTHY.We are proud to announce that all products on this site feature free fast shipping (2 to 5 business days) from our Canada warehouses.

SHIPPING

We offer a free shipping service for most place of Ontario,Alberta,Quebec,British Columbia(Other provinces are not available for delivery at the moment due to expensive delivery charges.Hope you could understand)

Please note : All orders must have a valid street address; some items cannot be delivered to PO Boxes due to shipping restrictions.

You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel.

ORDER PROCESSING
Procession time can take between 1-2 business days.
The time it takes to prepare your item(s) to ship from our warehouse. This includes preparing your items, performing quality checks, and packing for shipment.
SHIPPING TIME
All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days.
If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.

Shipping from	Shipping to	Shipping time	tracking information
CA warehourse	CA	3-5 business days	tracked

For Ecoworthy products, we may require customers to pay extra cost to cover the remote delivery fee if the shipping address is marked as remote or mine zone in our third-party carrier's shipment network, if customers are reluctant to pay the extra shipping cost, Ecoworthy is at liberty to cancel this order.

Shipments cannot be rerouted once a package has been shipped, please kindly note.

We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Ecoworthy products.

While we strive to provide the best quality products and expect a high level of service from our third-party carriers, we recognize that at times a product or particular delivery method does not meet our standards or quoted delivery date. Due to unforeseen issues potentially occurring, we strongly suggest that you wait until you receive and verify your products as we cannot be held responsible for delays in scheduled work.

If you have any questions about tracking your order, please log into your account to look for the tracking details. For further assistance, please email us at service@eco-worthy.com

GUARANTEES & RETURN POLICY

14 Days DOA Product Guarantee
If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted.
30 Days No Reason Return
Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit.
Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense.
Please be prepared with your invoice or the following information:
Order number
Proof of purchase
Video or photo of the faulty product (if applicable)
Mailing address
Contact telephone number
Please carefully follow our warranty process to minimize any delays:
1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number).
2. Tell us what steps you have already taken to resolve the issue.
3. Provide the item code indicated on the outer packaging.
4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
