ECO-WORTHY 6-Layer Rack for 48V 100AH Server Rack Battery(19 Inch)

ECO-WORTHY 6-Layer Rack for 48V 100AH Server Rack Battery(19 Inch)

Regular price C$399.99
Sale price C$399.99 Regular price C$599.99
save 33% Sold out

SKU: L03SR06-1

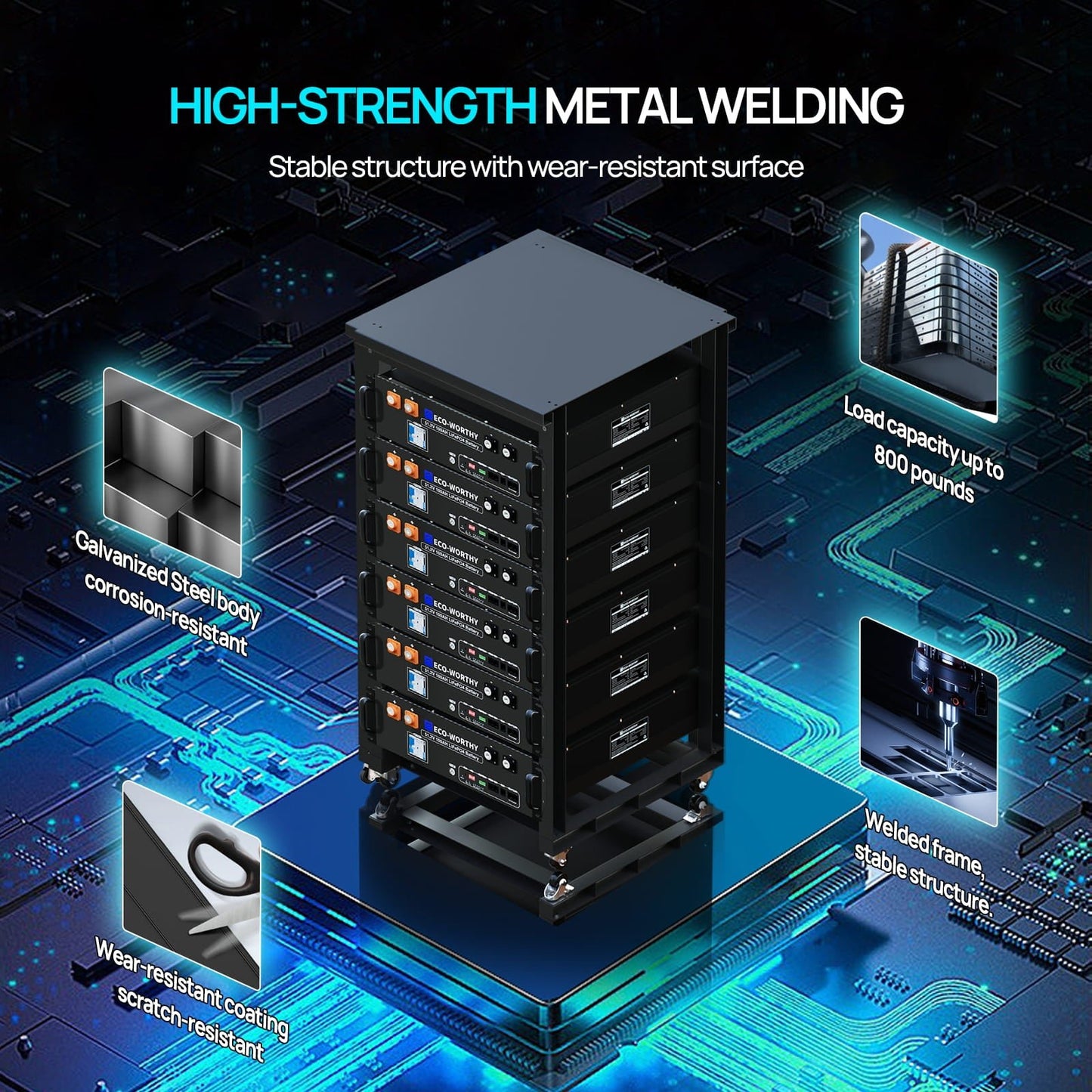

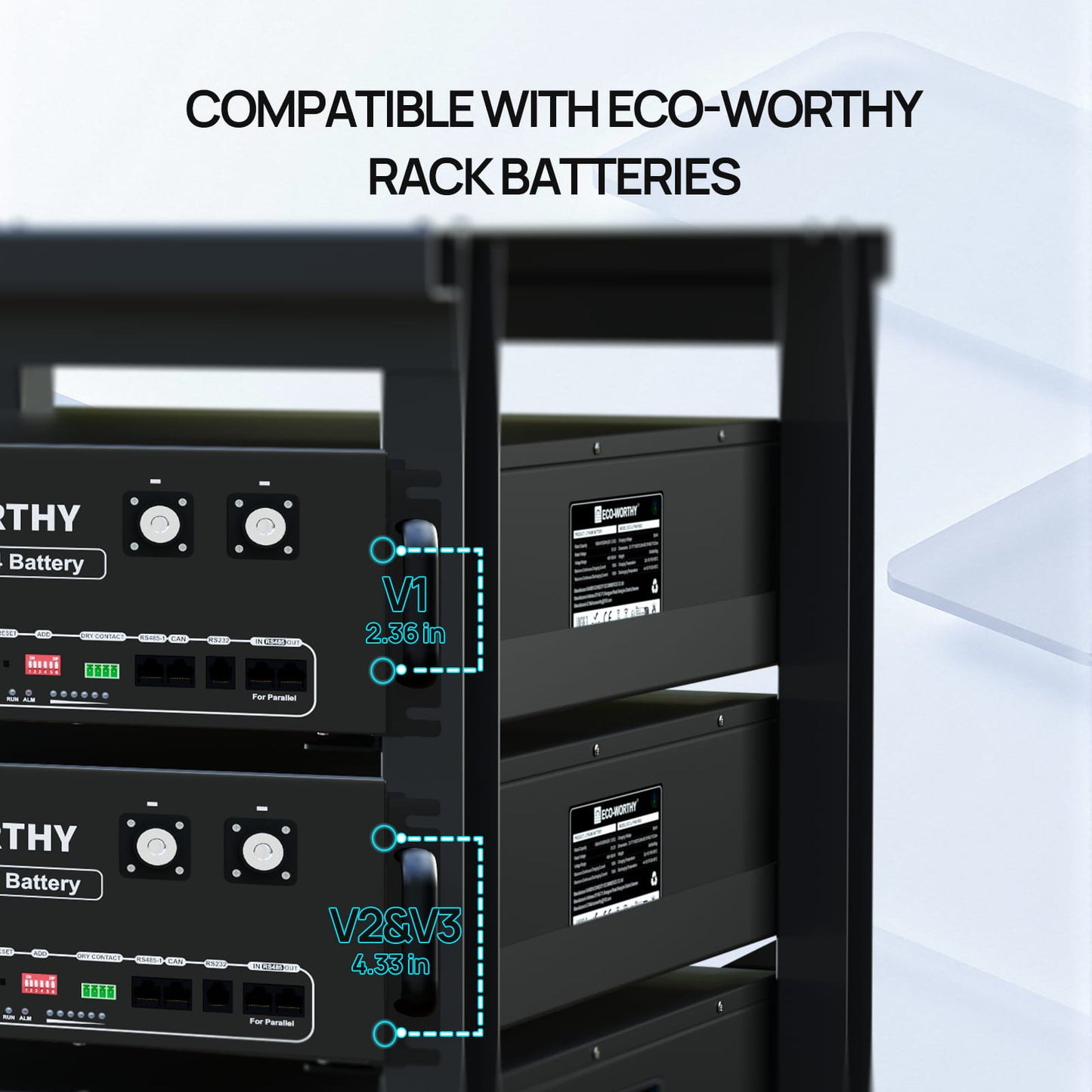

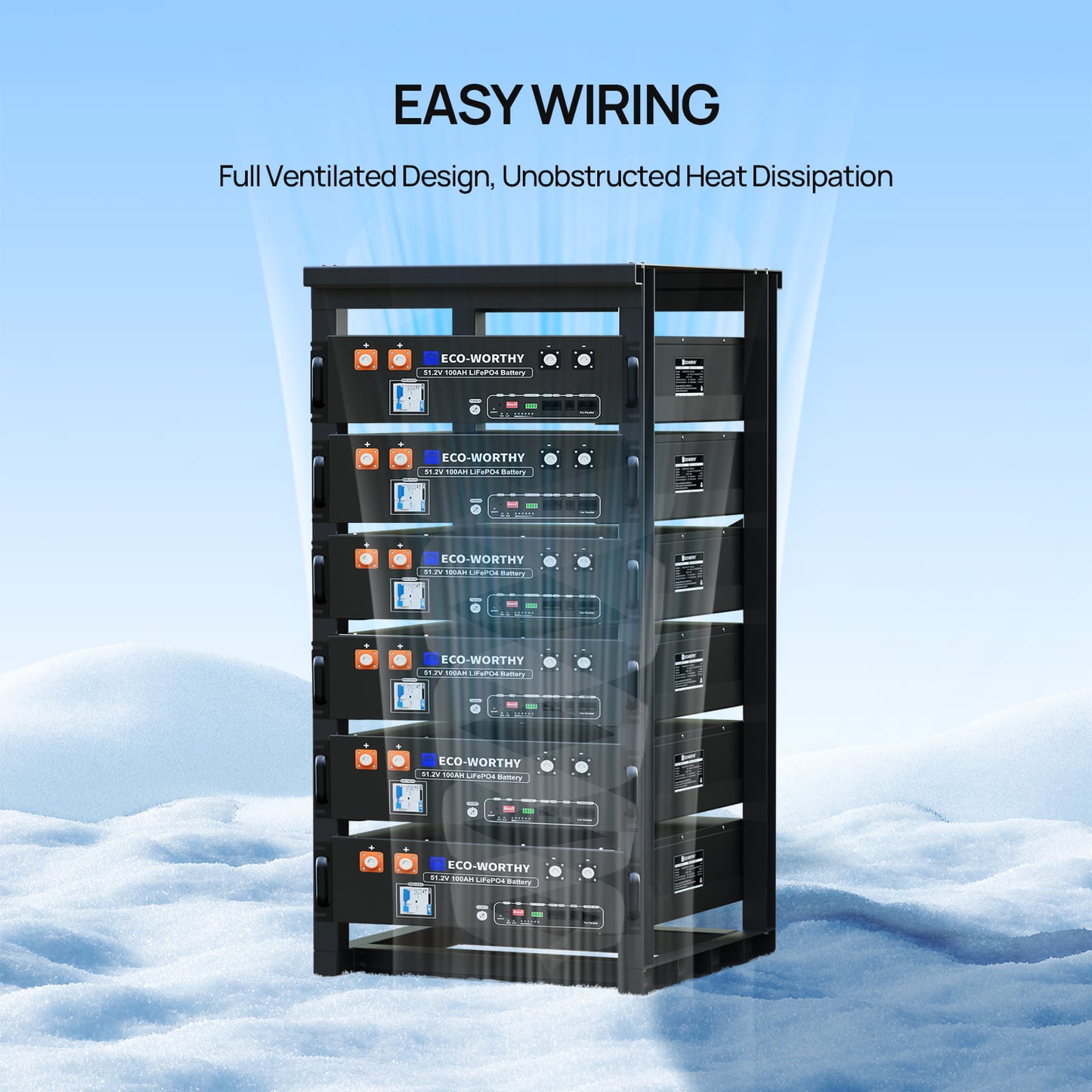

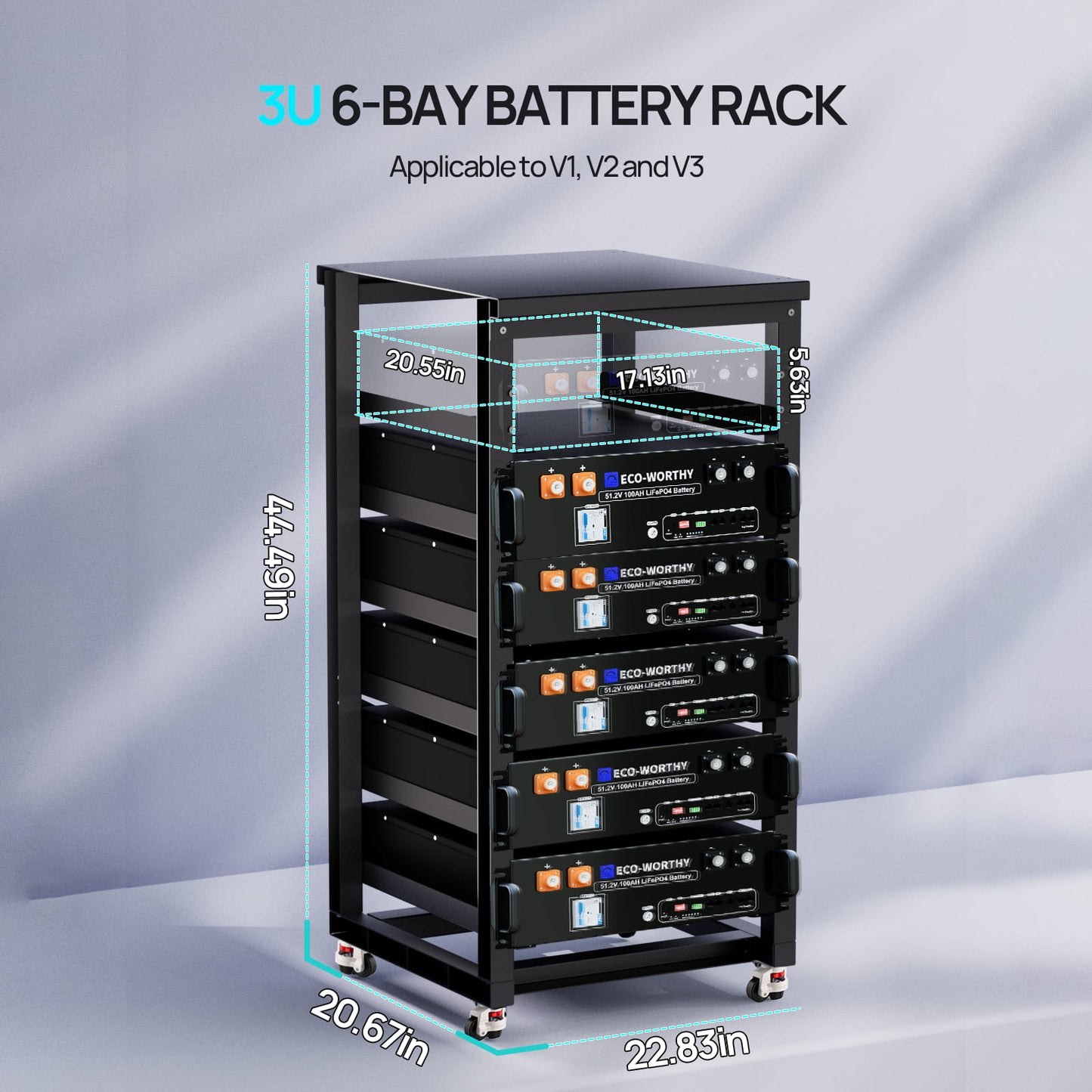

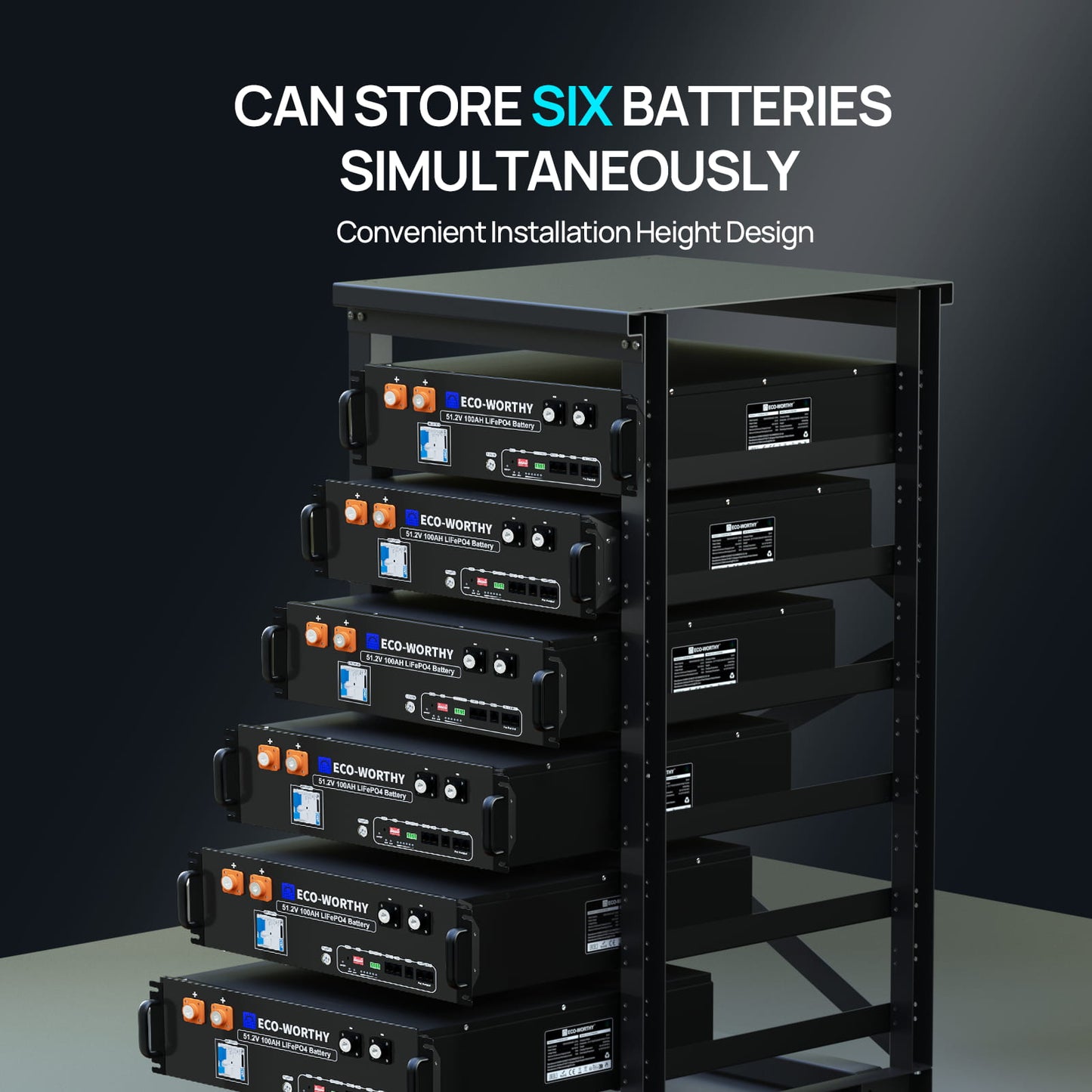

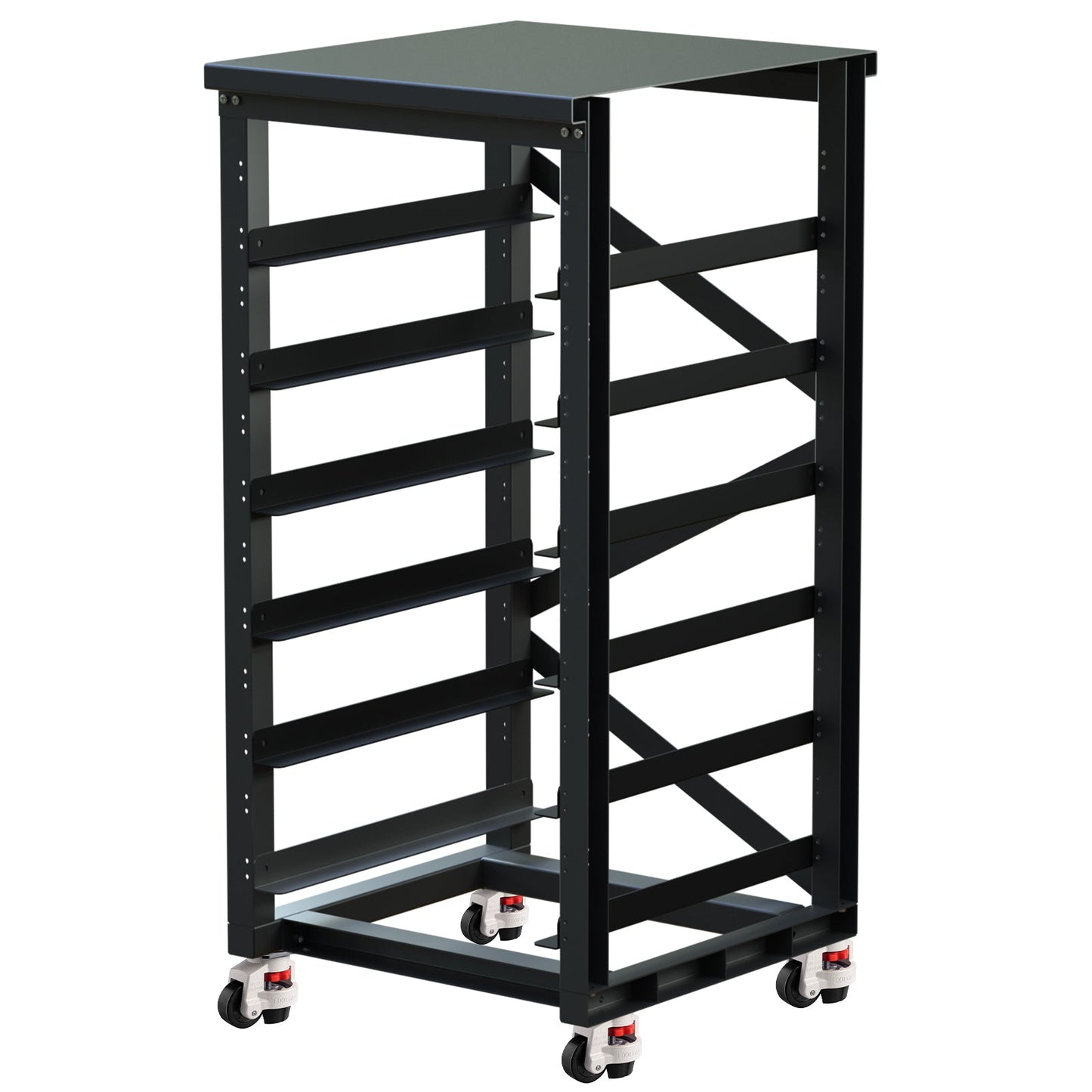

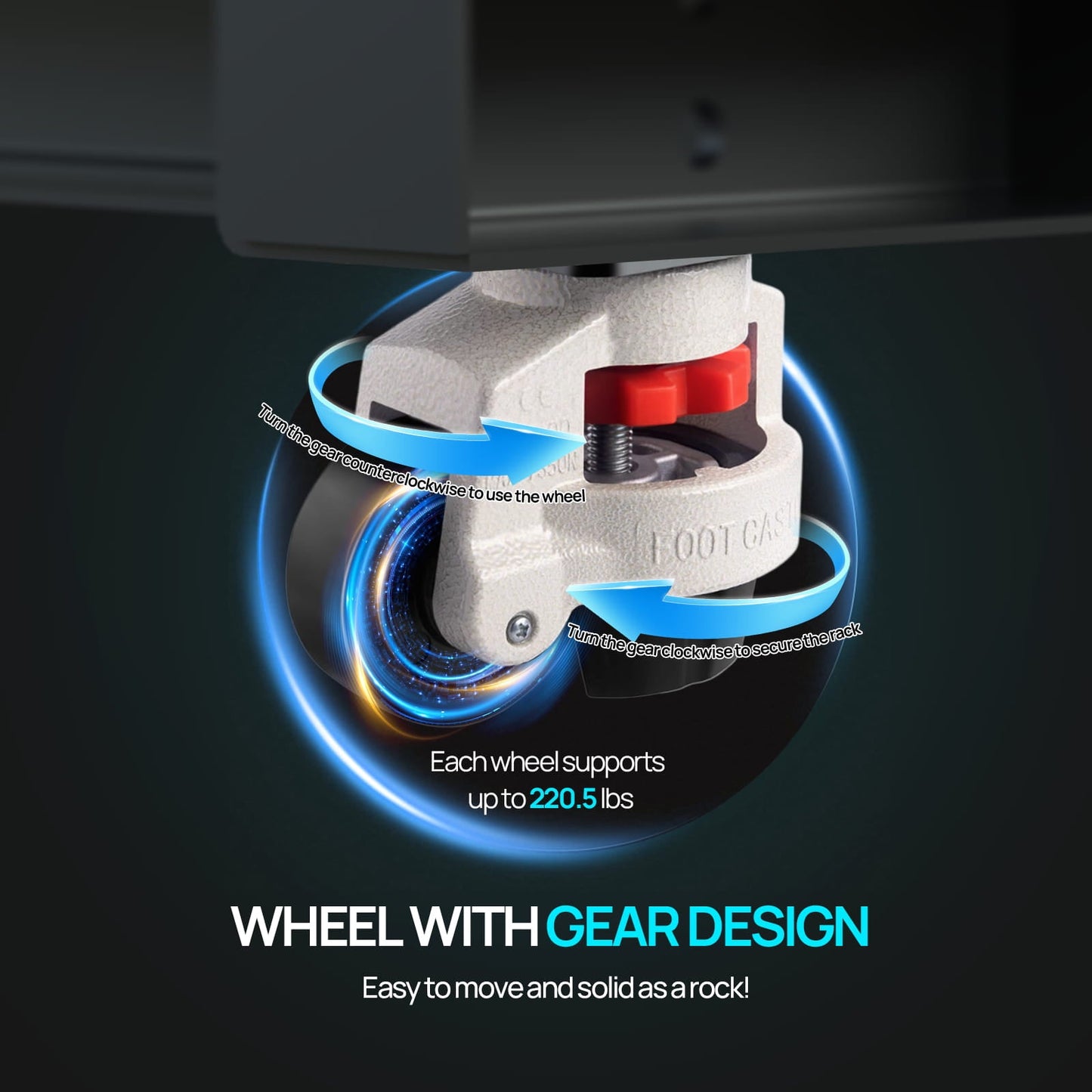

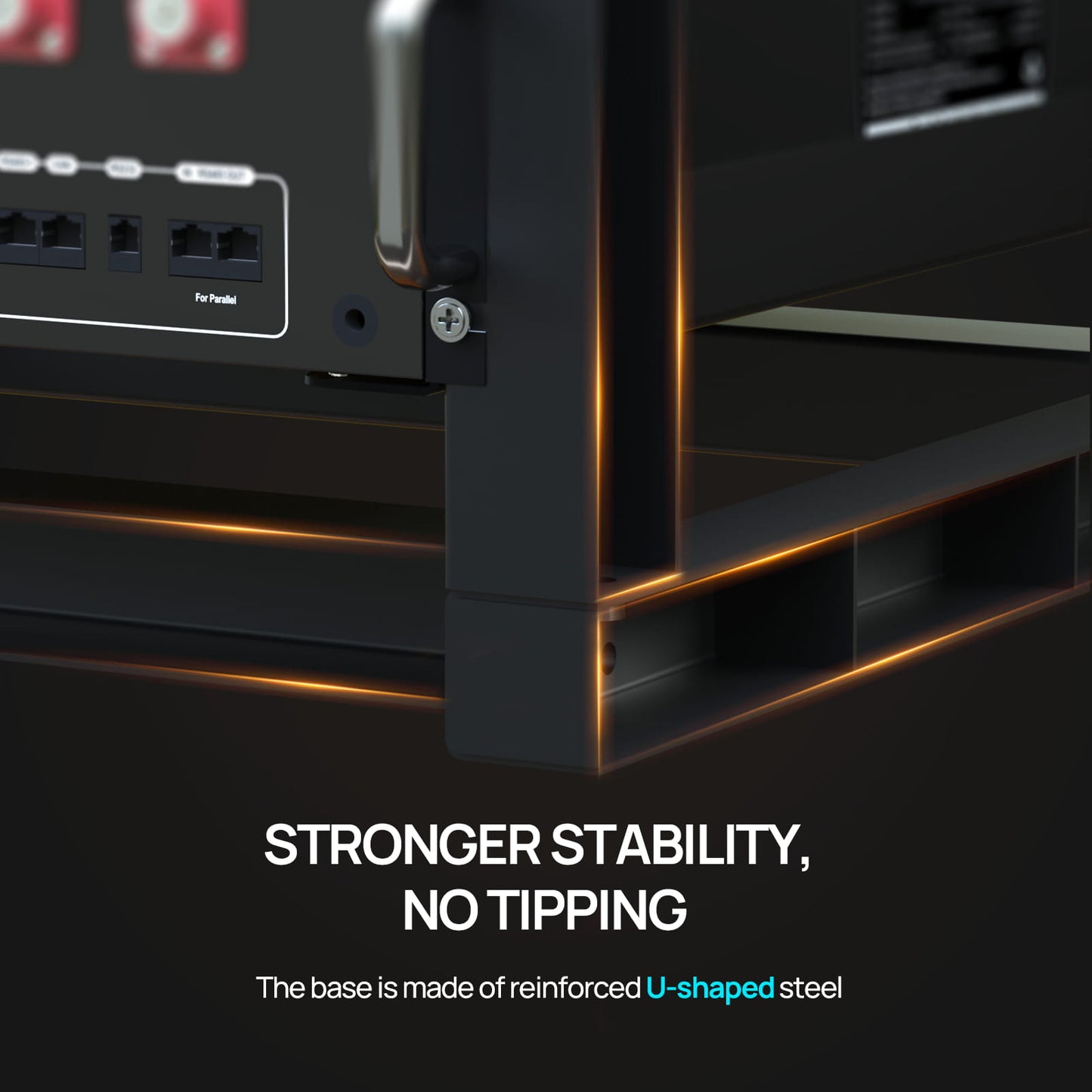

High Load Capacity & Durable Structure: Built with a high-strength welded metal frame, this rack supports up to 800 lbs. Made from corrosion-resistant galvanized steel with a scratch-resistant coating, it maintains its shape even after long-term use. Large Capacity Design: Holds up to 6 batteries simultaneously. Optimized for home energy storage systems with ergonomic installation height and convenient wiring, supporting future expansion needs. Efficient Heat Dissipation & Mobility: Fully ventilated design ensures effective battery cooling. Equipped with gear-type universal wheels, each supports 220.5 lbs, making movement easy and stable. Wheels lock securely to keep the rack firmly in place. Reinforced Anti-Tip Base: Features a U-shaped reinforced steel base with a low center of gravity to prevent tipping during transport or under full load, enhancing safety and stability. Compatibility: Perfectly designed to fit ECO-WORTHY 48V 100AH server rack batteries.
Learn More See Less
Pack
View full details
Description Specification Downloads Shipping
High-strength galvanized steel battery rack supports up to 800 lbs and stores 6*ECO-WORTHY 48V 100AH LiFePO4 batteries. Features ventilated design, an anti-tip base, and lockable universal wheels for safe, stable, and easy mobility.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
