If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 1.56KW 24V expandable Solar Kit is an ideal choice. This system could generate approximately 6.4kWh per day.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
3500W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 1560W 24V Solar Kit can be used for several different purposes, including homes, cabins, etc. This system allows you the conveniences of a utility-fed home, such as: Refrigerator, Stereo, Computer, Lights, TV, Washing machine, Power tools. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us firstname.lastname@example.org.

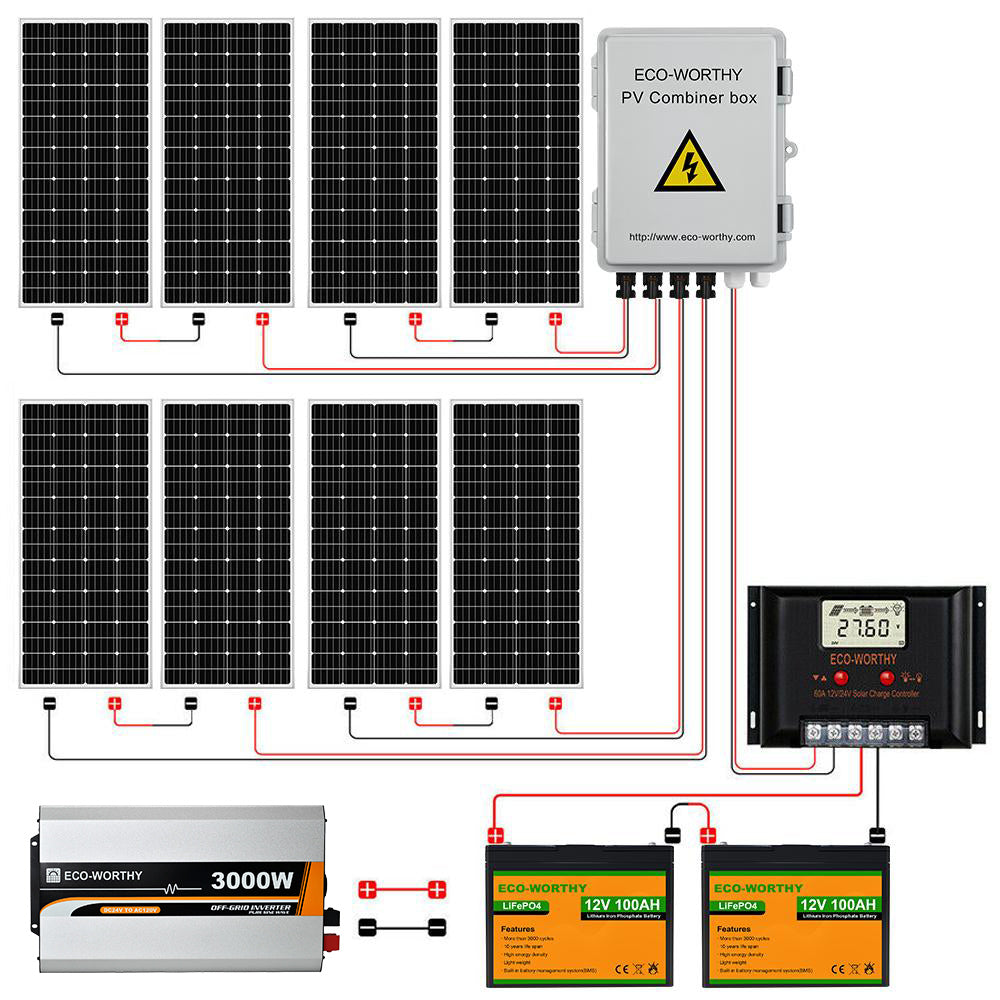

8x 195W Mono Solar Panel
4 String PV Combiner Box*1
1x 60A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4(Combiner Box to Controller)
4x 5M 12AWG Solar Cable with MC4(Panel to Combiner Box)
8x Z Mounting Bracket
1x 1.5M Tray Cable
Inverter & Battery Bank Options-
Inverter & 2.4kWh Lithium Battery Bank (optional)
1x 3500W 24V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable
195W Monocrystalline Solar Panel
|Rated Power: 195W
||Solar Cell: Monocrystalline
|Maximum/Peak Voltage(Vmp): 18V
||Open Circuit Voltage(Voc): 21.6V
|Short circuit current: 10.83A
||Maximum current: 11.89A
|Output Tolerance: ±3%
||Temperate coefficient of Isc: (010+/-0.01)%/℃
|Temperate coefficient of Voc: -(0.38+/-0.01)%/℃
||Temperature range: －40℃～ +85℃
|Frame: Aluminum alloy frame
||Weight: 21.47 lbs(9.74 kg)
|Size: 58.2x26.3x1.3in (1480*668*35mm)
60A PWM Solar Charge Controller
|Battery voltage: 12V/24V
||Charging mode: PWM
|Battey Type: AGM,SLA,GEL,Li
||Max Charge current: 60A
|Discharge current : 60A
||Max.PV Open-Circuit Voltage: <55V
|Max Battery Voltage : <34V
||Equalizing charge voltage: 14.6V/29.2V
|Floating charge voltage: 13.8V/27.6V
||Charging return voltage: 13.2V/26.4V
|Over-dischage return voltage: 12.5V/25V(Adjustable)
||Over-dischage voltage 1: 1.0V/22.0V(Adjustable)
3500W 24V Off Grid Inverter
|Continuous Power: 3500W
||Output Volt: 110V AC
|Output Waveform: Pure Sine Wave
||Surge Power: 7000W
||Input Range: 21-30V DC
|Working Input: 24V/48V DC
||Non-load Consumption: <25W
|Over Heating Shut Down: >75℃
||Over Load Shut Down: 3600W Over 10 Second
|Over Thermal: Shut Down The Output
100Ah LiFePO4 Lithium Battery
|Battery Capacity: 100Ah
||Battery Power: 1200Wh
|Battery Voltage: 12.8V
||Maximum Charge/ Discharge Current: 80A/100A
|Charge Temperature Range: 0-55℃
||Disharge Temperature Range:﹣20－55℃
|Maximum Charge Voltage: 14.5V
||Discharge Cut-Off Voltage: 10V
|Screw size: M8
||Battery Size: 260*168*209mm（10.2*6.6*8.2inch）
|Battery Weight: 9.55kg/21 lbs
4 String PV Combiner Box
|Number of Max. connection solar array: 4
||Max Input Voltage of single soalr array: 250V
|Max input current of single solar array:10A
||Max Output Voltage: 250V
|Total input current of solar array: 40A
||Number of circut breaker poles: 2
|Max input solar system wattage(12/24/48V): 720/1440/2880W
||Circut breaker rated current: 63A
|Product Weight: 2kg
||Product Size: 220*170*110mm
16.4 feet 12AWG Cables
|Cable Type: Connecting Solar Panels to Charge
||Rating Voltage: 600/1000V
|Length: 5 meters（16 ft）
||Conductor: Tinned copper wire
||Normal Cross Sectional Area of the Conductor (mm2): 4
|Waterproof: IP 65 Protection
||Temperature: -40°F to +185°F
Z Mounting Brackets
|4 pieces of Z shape solar panel brackets
||8 pieces of stainless steel nuts and cap bolts
