If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 1.95KW 24V expandable Solar Kit is an ideal choice. This system could generate approximately 8kWh per day.
ECO-WORTHY 195 Watt 12V Mono solar panel is fully weather proof and professionally made with high quality components. 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.

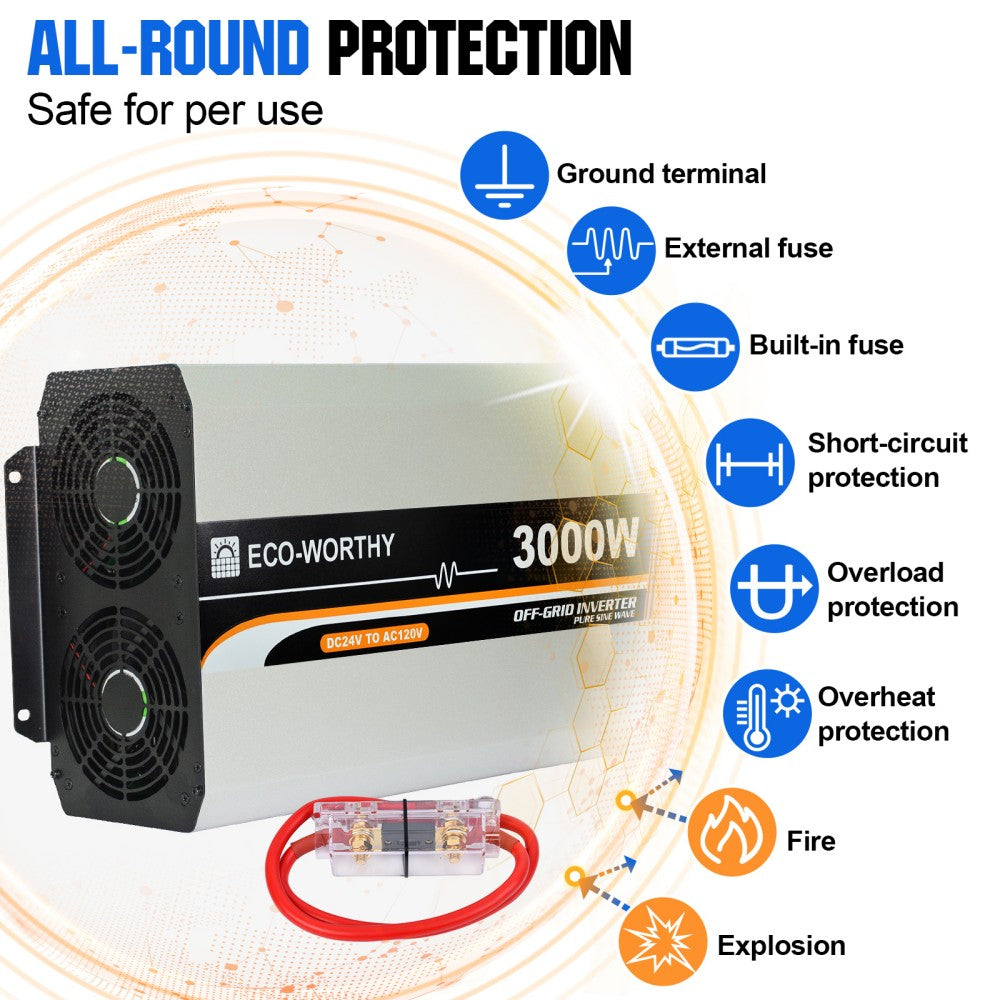

3000W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
6 strings PV Combiner box is greatly simplify input wiring of DC power distribution cabinet and controller. Providing lightning protection, short circuit protection and grounding protection and supervision for the performance of the photovoltaic system.
ECO-WORTHY 1.95KW 24V Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Package Includes
10x 195W Mono Solar Panel
1x 3000W 24V-110V Pure Sine Wave Inverter
1x 6 String PV Combiner Box
1x 60A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4(Combiner Box to Controller)
5x 5M 12AWG MC4-MC4 Extension Cable(Panel to Combiner Box)
10x Z Mounting Bracket
Battery Bank Options-
4.8kWh Lithium Battery Bank (optional)
with
4x 100Ah 12V LiFePO4 Lithium Battery
4x 6AWG Battery Interconnect Cable
195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V |
Open Circuit Voltage(Voc): 24.5V |
| Short circuit current: 10.14A |
Maximum current: 9.65A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 21.47 lbs(9.74 kg) |
| Size: 58.26x26.3x1.38in (1480*668*35mm) |
|
60A PWM Solar Charge Controller
| Battery voltage: 12V/24V
|
Charging mode: PWM |
| Battey Type: AGM,SLA,GEL,Li |
Max Charge current: 60A |
| Discharge current : 60A |
Max.PV Open-Circuit Voltage: <55V |
| Max Battery Voltage : <34V |
Equalizing charge voltage: 14.6V/29.2V |
| Floating charge voltage: 13.8V/27.6V |
Charging return voltage: 13.2V/26.4V |
| Over-dischage return voltage: 12.5V/25V(Adjustable) |
Over-dischage voltage 1: 1.0V/22.0V(Adjustable) |
| Size: 189*127*54mm |
Weight: 650g |
3000W 24V Off Grid Inverter
| Continuous output power: 3000W |
Surge power: 6000W |
| Surge current when power on: < 100A |
Output voltage: 110VAC (±3%); 120VAC (-6%~+3%);240VAC (-9%~+3%) |
| Output frequency: 50/60Hz ± 0.2% |
Output wave: Pure Sine Wave |
| Output distortion THD: THD≤3% (Resistive Load) |
Rated input voltage: 24VDC |
| Input voltage range: 21.6 ~ 32.0VDC |
Rated output efficiency: > 90.0% |
| Max. output efficiency: > 94.0% (30% loads) |
Idle current: < 0.15A |
| No-load current: < 1A |
Input terminal: M6 |
| Dimension (L x W x H): 521 × 270 × 143mm |
Mounting size: 495 × 145mm |
| Mounting hole size: Φ6mm |
Net Weight: 8.5kg |
100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah |
Battery Power: 1200Wh |
| Battery Voltage: 12.8V |
Maximum Charge/ Discharge Current: 100A/100A |
| Charge Temperature Range: 0-55℃ |
Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.5V |
Discharge Cut-Off Voltage: 10V |
| Screw size: M8 |
Battery Size: 260*168*214mm（10.2*6.6*8.43inch） |
| Battery Weight: 10kg/22 lbs |
|
6 String PV Combiner Box
| Number of Max. connection solar array: 6 |
Max input current of single solar array: 10A |
| Total input current of solar array: 60A |
Max input solar system wattage (12/24/48V): 1080/2160/4320W |
| Max Input Voltage of single solar array: 250V |
Max Output Voltage: 250V |
| Number of circuit breaker poles: 2 |
Circut breaker rated current: 63A |
| Product Weight: 4.9kg |
Product Size: 260*320*115mm |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
