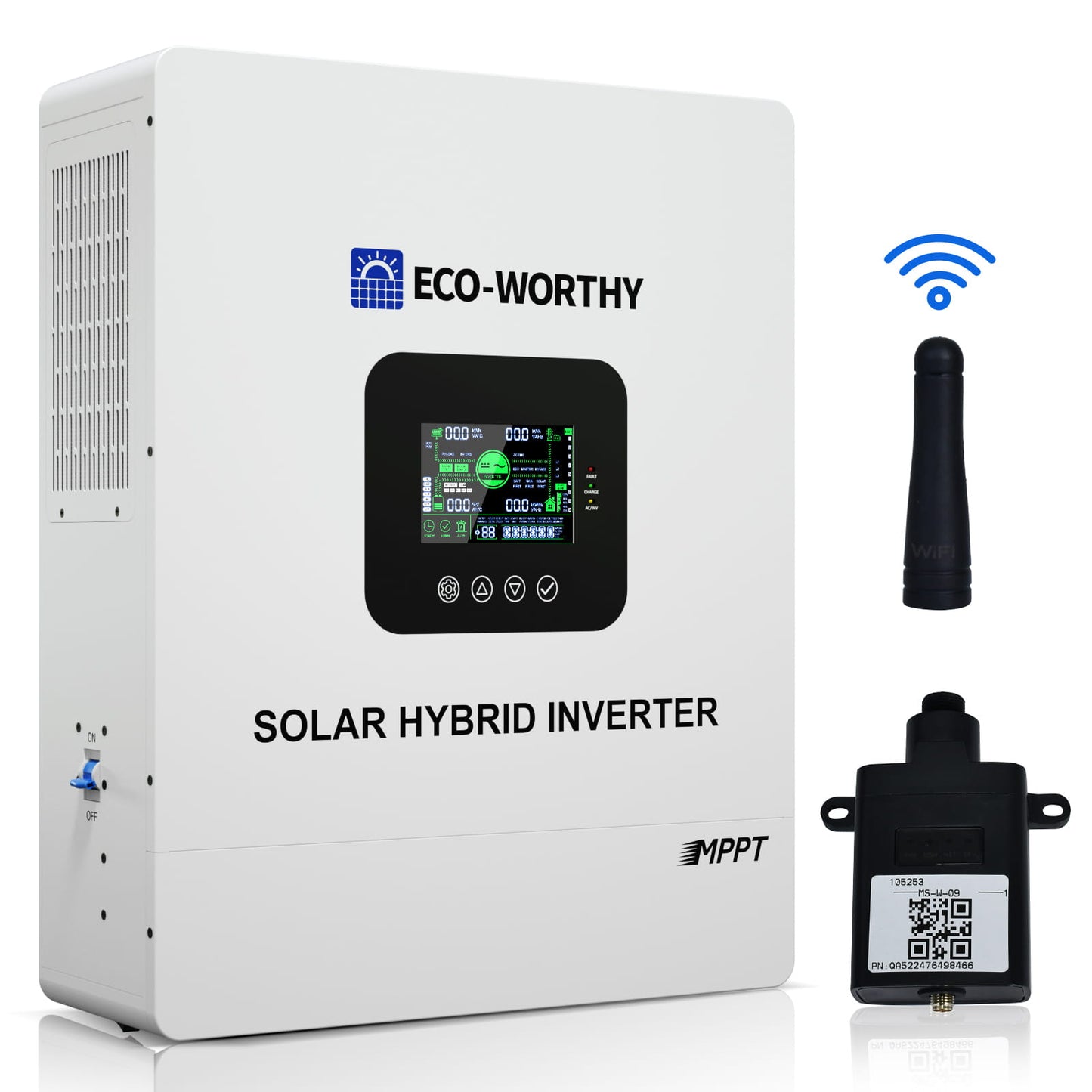

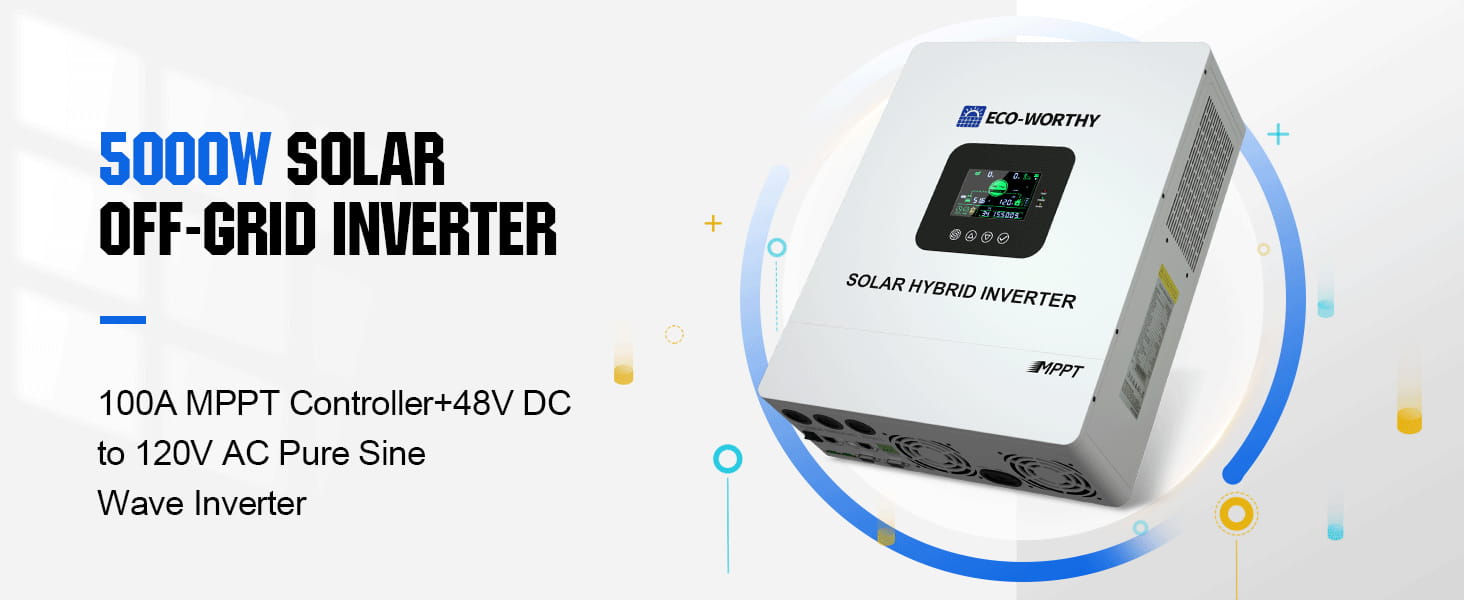

ECO-WORTHY All-In-One 5000W 48V Split Phase Solar Power Inverter for Off Grid System| 100A MPPT Controller and 48V DC to 120V AC Pure Sine Wave

ECO-WORTHY All-In-One 5000W 48V Split Phase Solar Power Inverter for Off Grid System| 100A MPPT Controller and 48V DC to 120V AC Pure Sine Wave

Regular price C$929.99
Sale price C$929.99 Regular price C$1,599.99
save 42% Sold out

SKU: L03YTJUSKBJ5000W-1

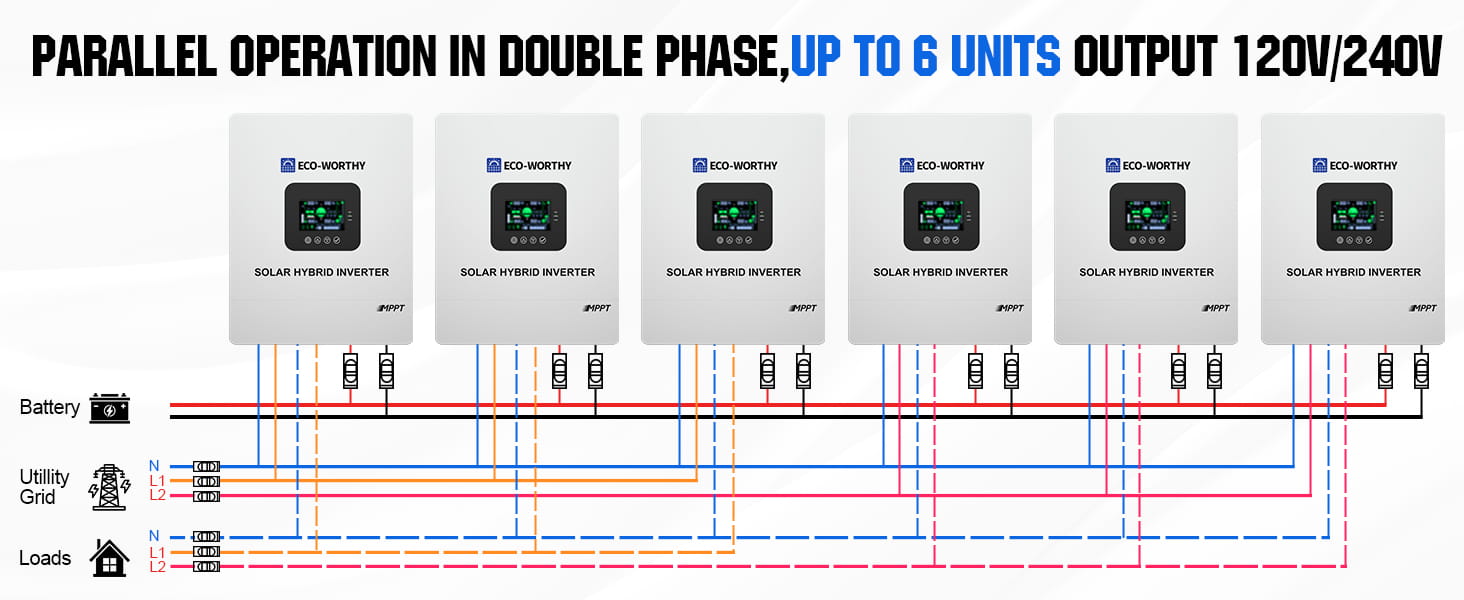

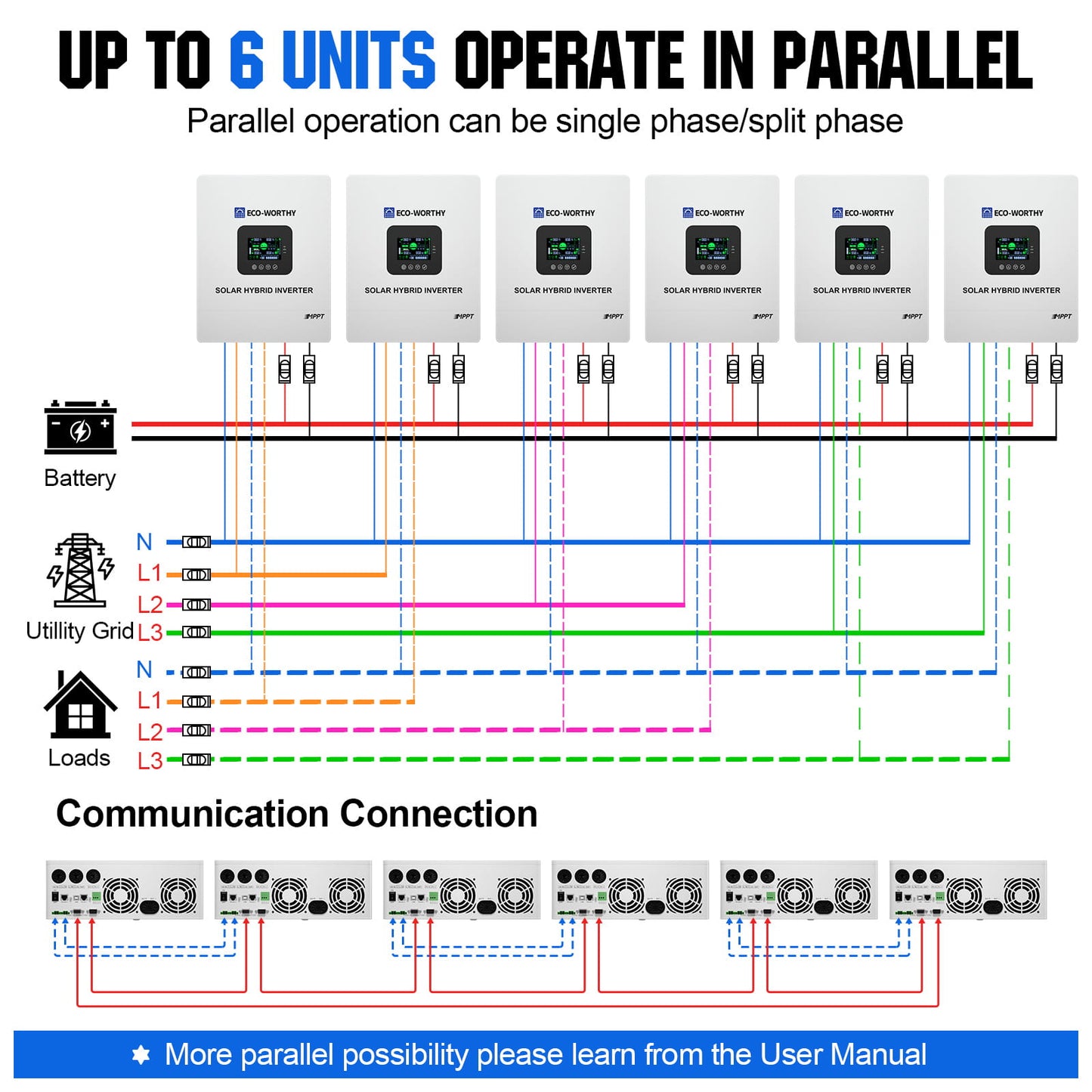

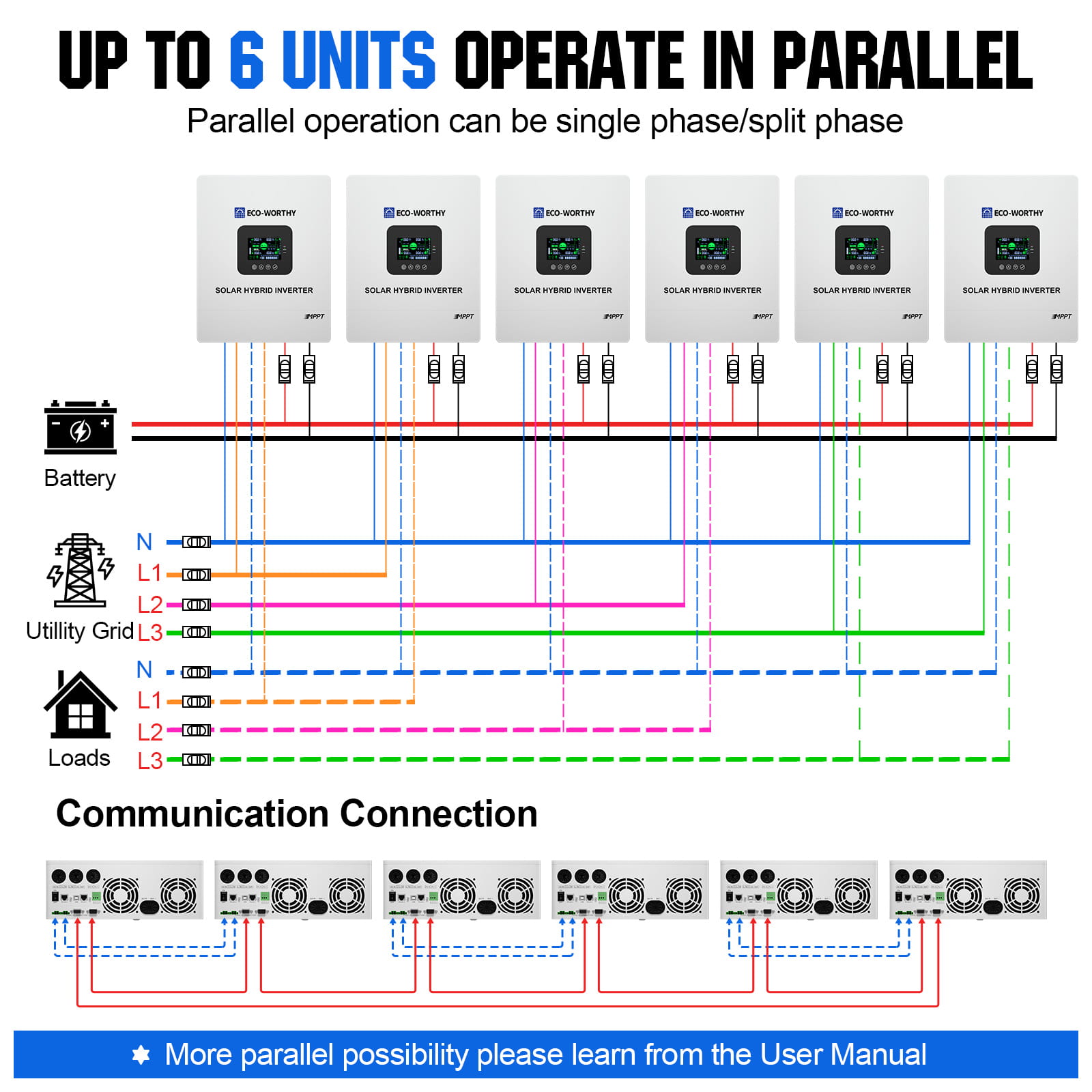

·Supports Parallel Connection of Multiple Units: Up to 6 units can be paralleled for a total maximum output power of 30kW. It supports single-phase or split-phase parallel systems. A single inverter outputs 120V, while multiple units in parallel can provide 120V, 208V, or 240V output to meet different power needs.

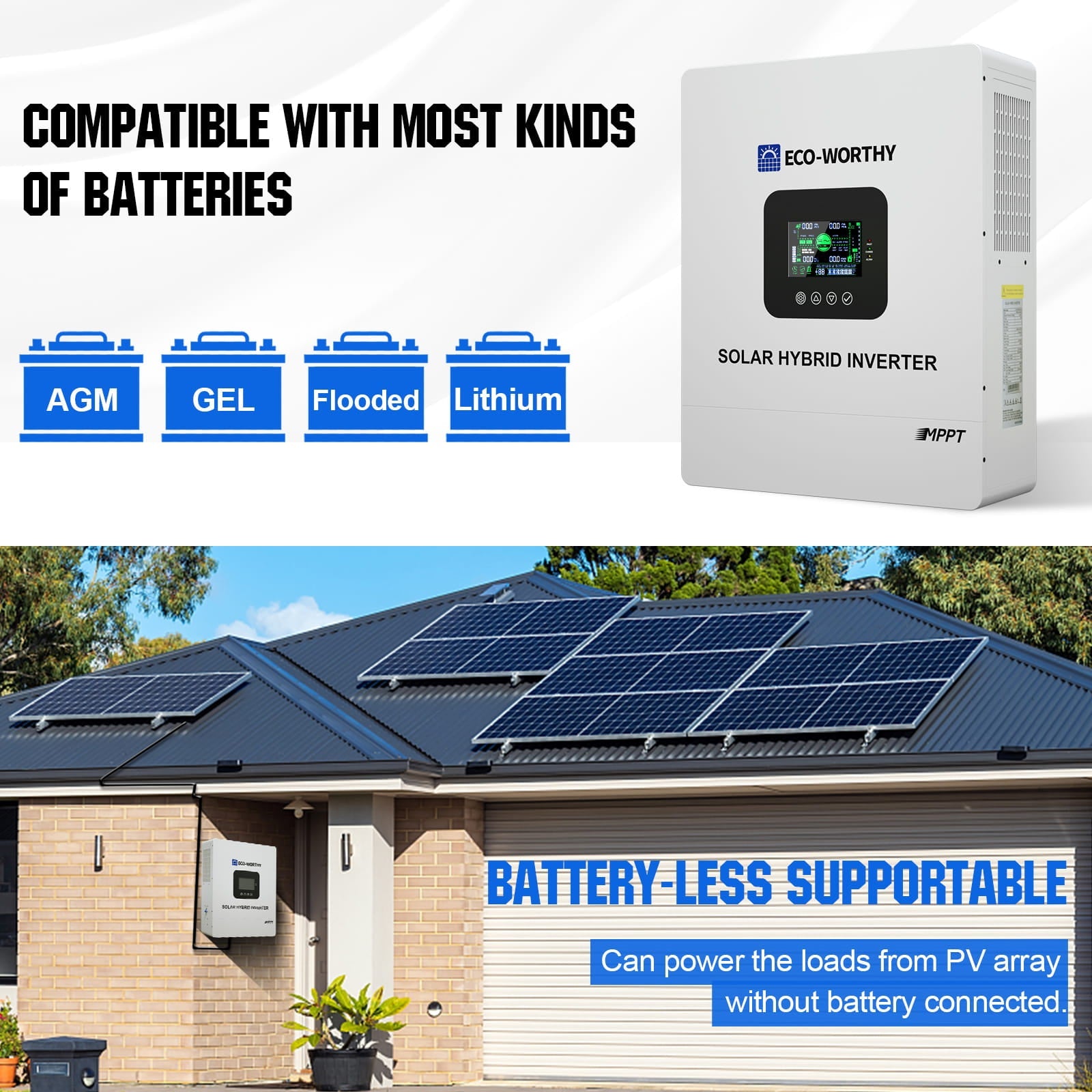

·Battery-Free Operation Capability: The inverter can continuously run without battery input, directly powering the load from photovoltaic (solar) DC current, reducing reliance on batteries and lowering maintenance burdens.

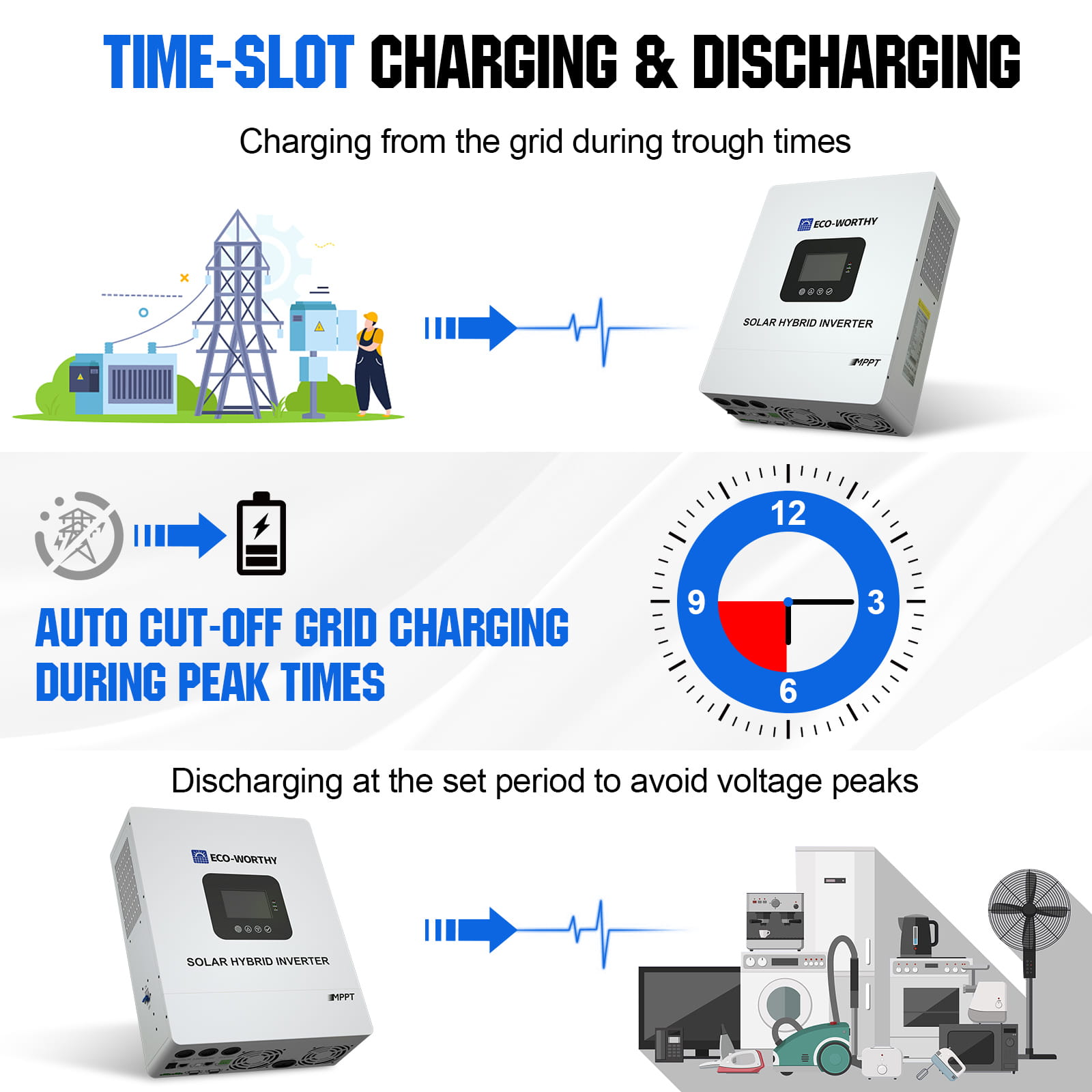

·Flexible Charging and Discharging Modes: It features three output priority modes—mains priority, battery priority, and PV priority—and four charging modes: only solar, mains priority, solar priority, and mains & solar hybrid. This allows flexible scheduling of charging and discharging periods according to local grid conditions, optimizing energy usage and saving electricity costs.

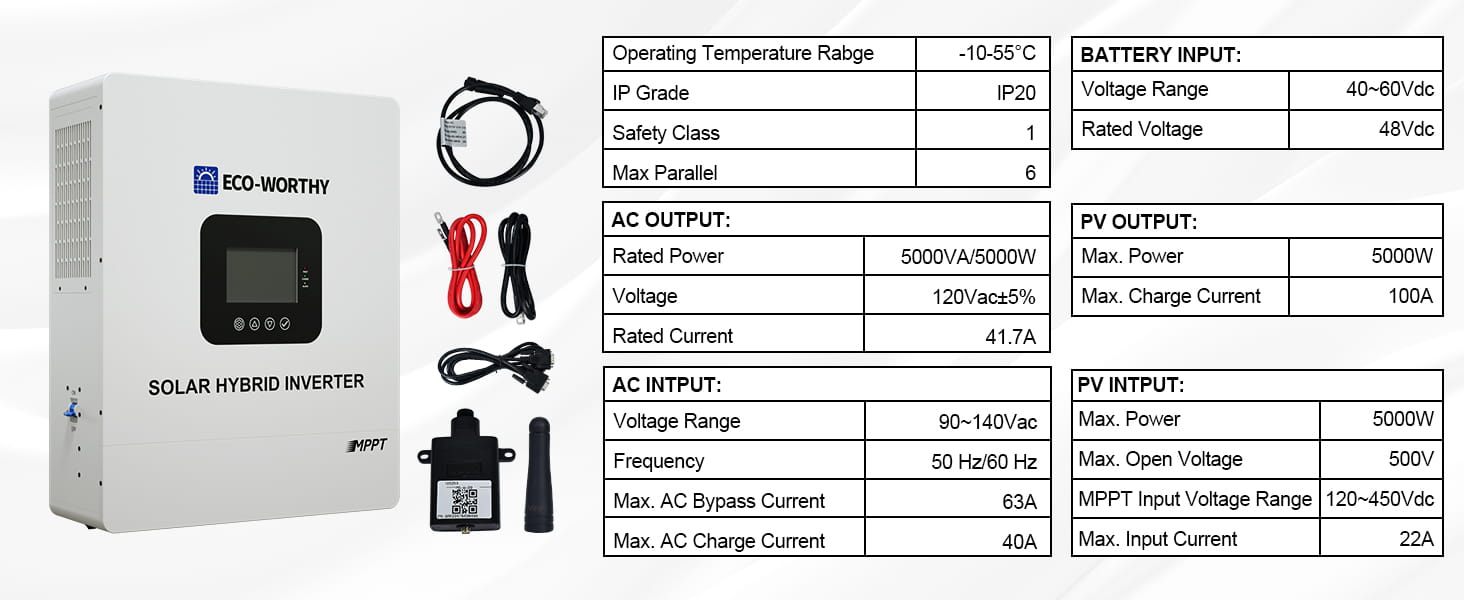

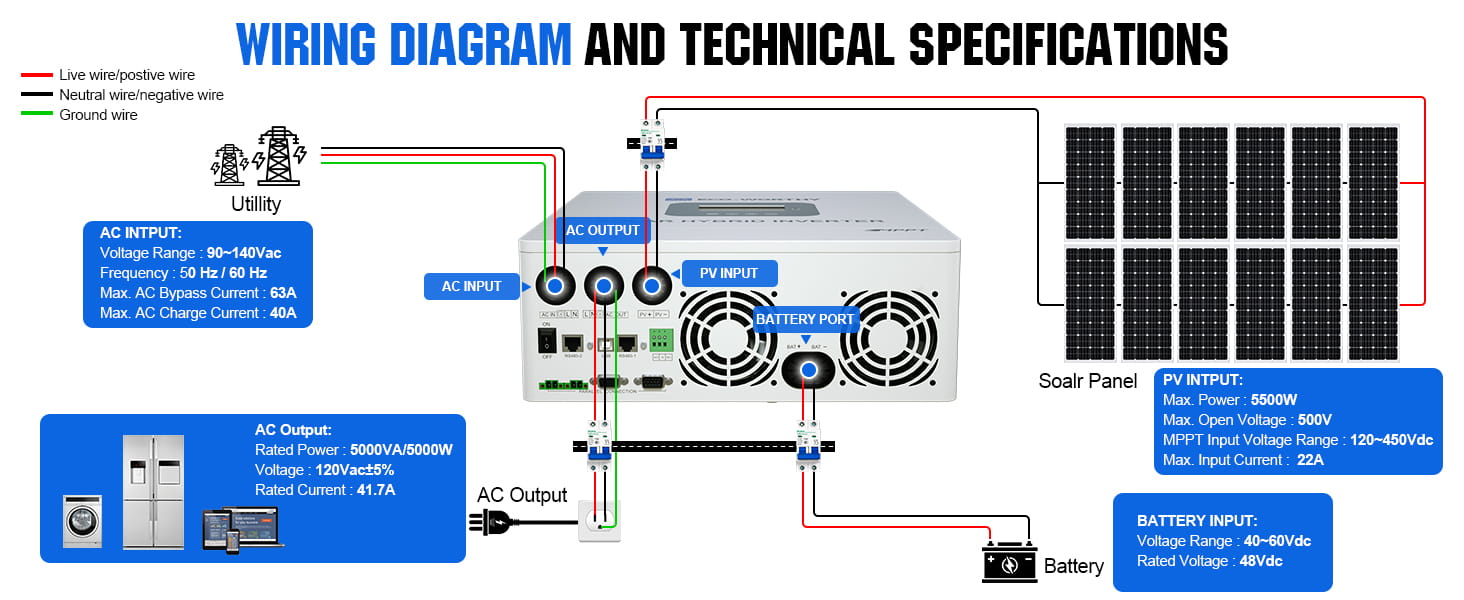

·High-Performance Technical Specifications: Maximum PV input power is 5500W, PV input voltage range is 120-500V DC, maximum MPPT charging current is 100A, rated output power is 5000W, peak output power up to 10,000W, and it supports 120/240V AC single-phase or split-phase output.

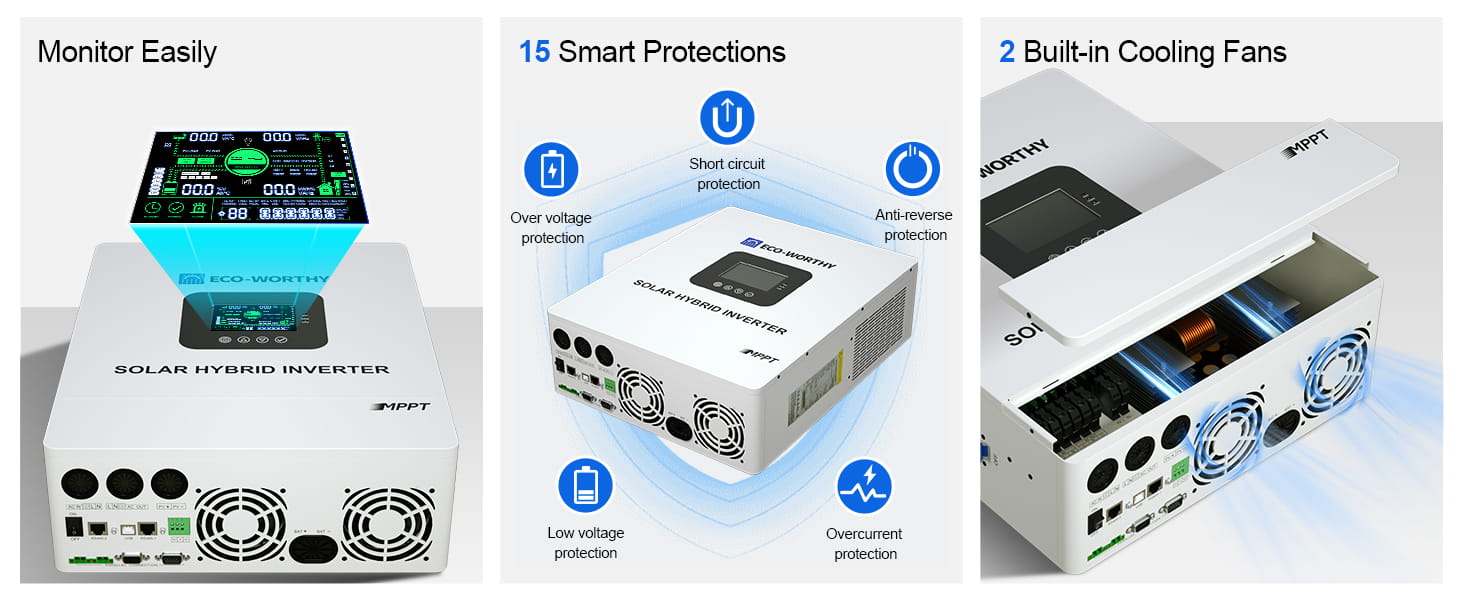

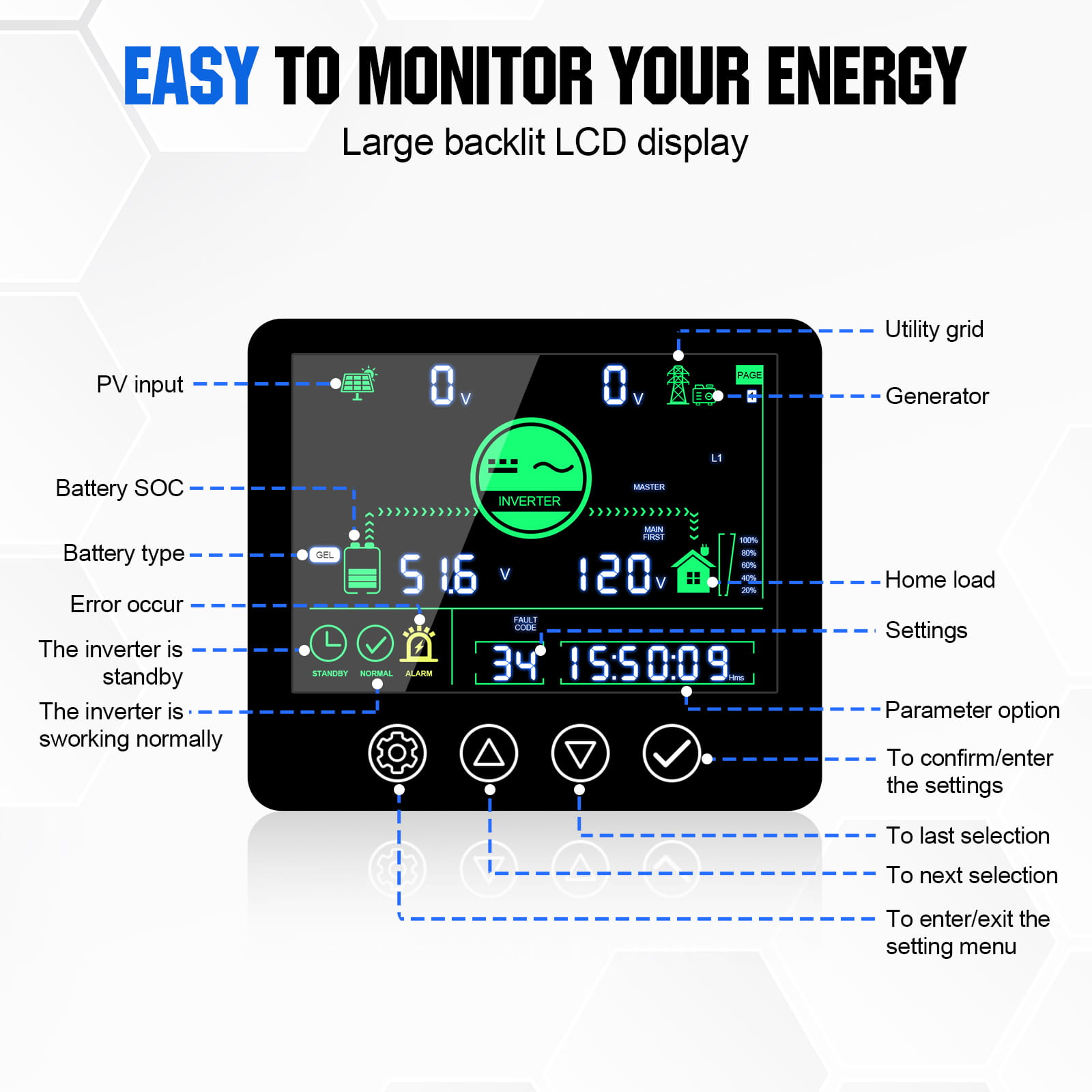

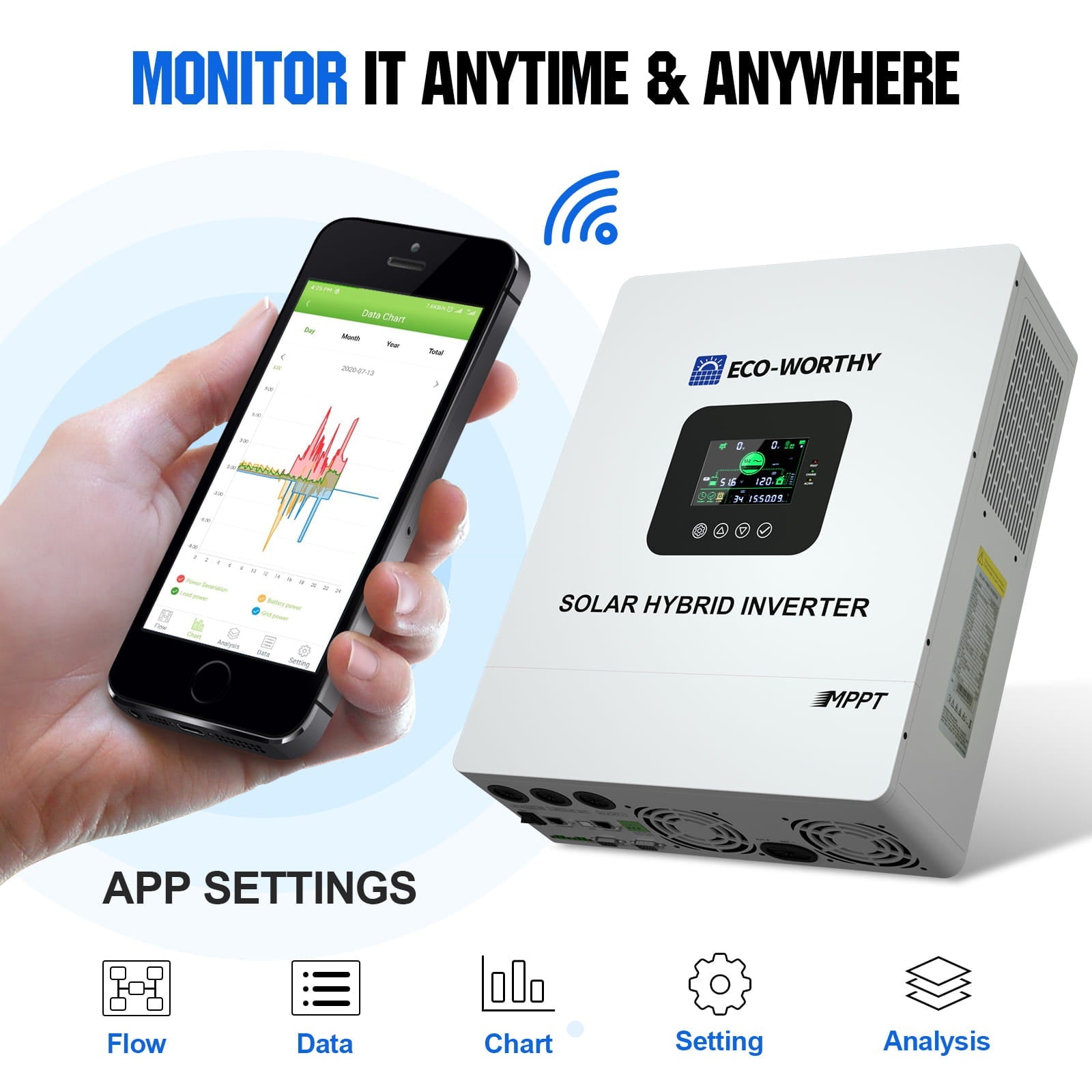

·Intelligent Monitoring and Multiple Protections: Equipped with an LCD display for real-time system status monitoring and supports remote monitoring and management via a dedicated mobile app. It also features multiple intelligent protection functions such as PV input current and power limiting, over-voltage protection, night reverse current prevention, and multiple cooling fans to ensure safe and stable operation while enhancing user convenience.
Learn More See Less
View full details
Description Specification Downloads Shipping
ECO-WORTHY All-In-One 5000W 48V Split Phase Power Solar Power Inverter supports up to 6 units in parallel (max 30kW) with flexible single or split-phase output (120V/240V). It can operate battery-free, directly using solar power to supply loads. Featuring multiple charging modes and output priorities, it optimizes energy use and reduces costs. With high PV input specs, intelligent protections, an LCD display, and remote app monitoring, it ensures safe, stable, and convenient operation.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
