1170W 48V (6x195W) Complete Off Grid Solar Kit | 5.12kWh Battery Capacity
1170W 48V (6x195W) Complete Off Grid Solar Kit | 5.12kWh Battery Capacity
SKU: L02M195TM-SRNK3.5KUSL100U3U1-6

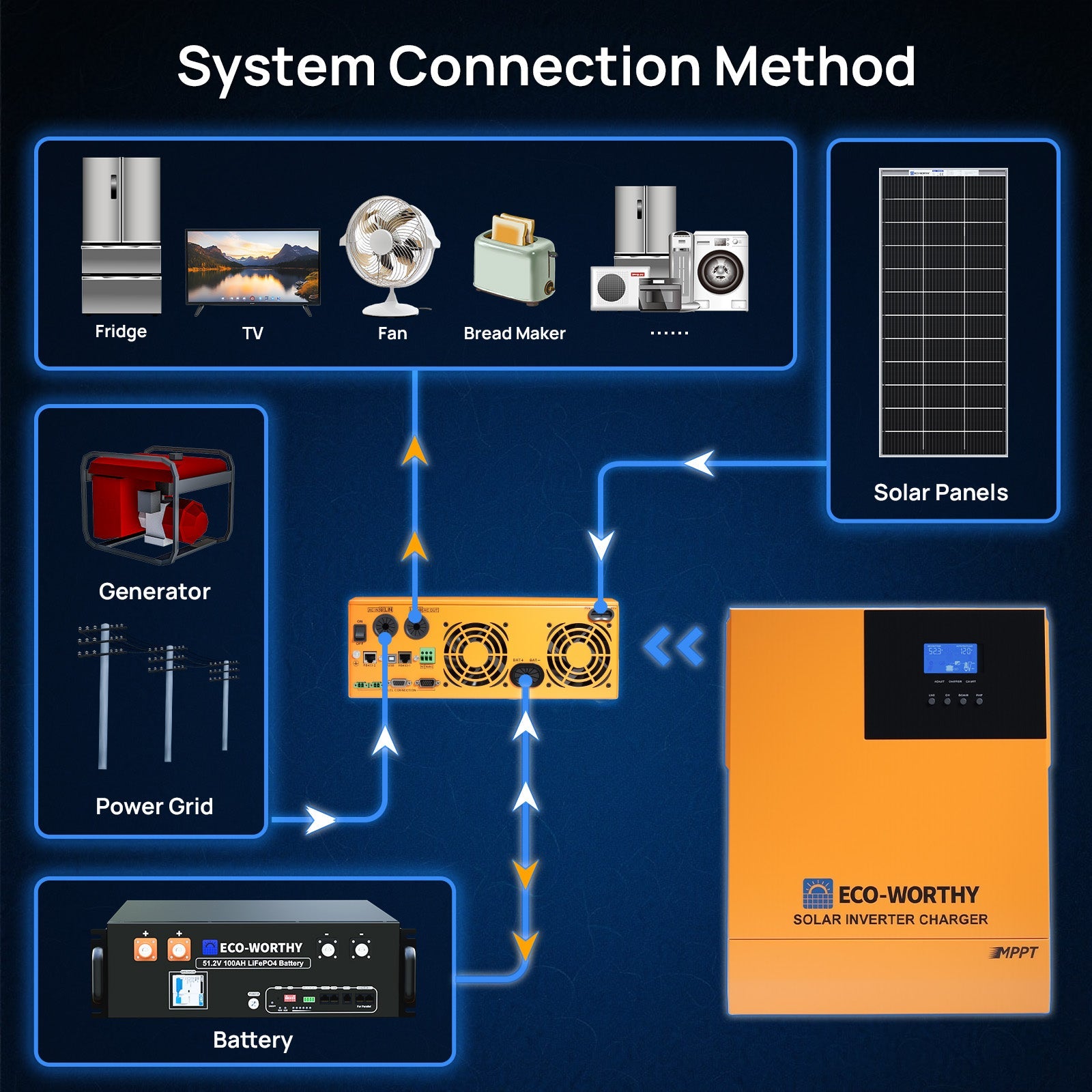

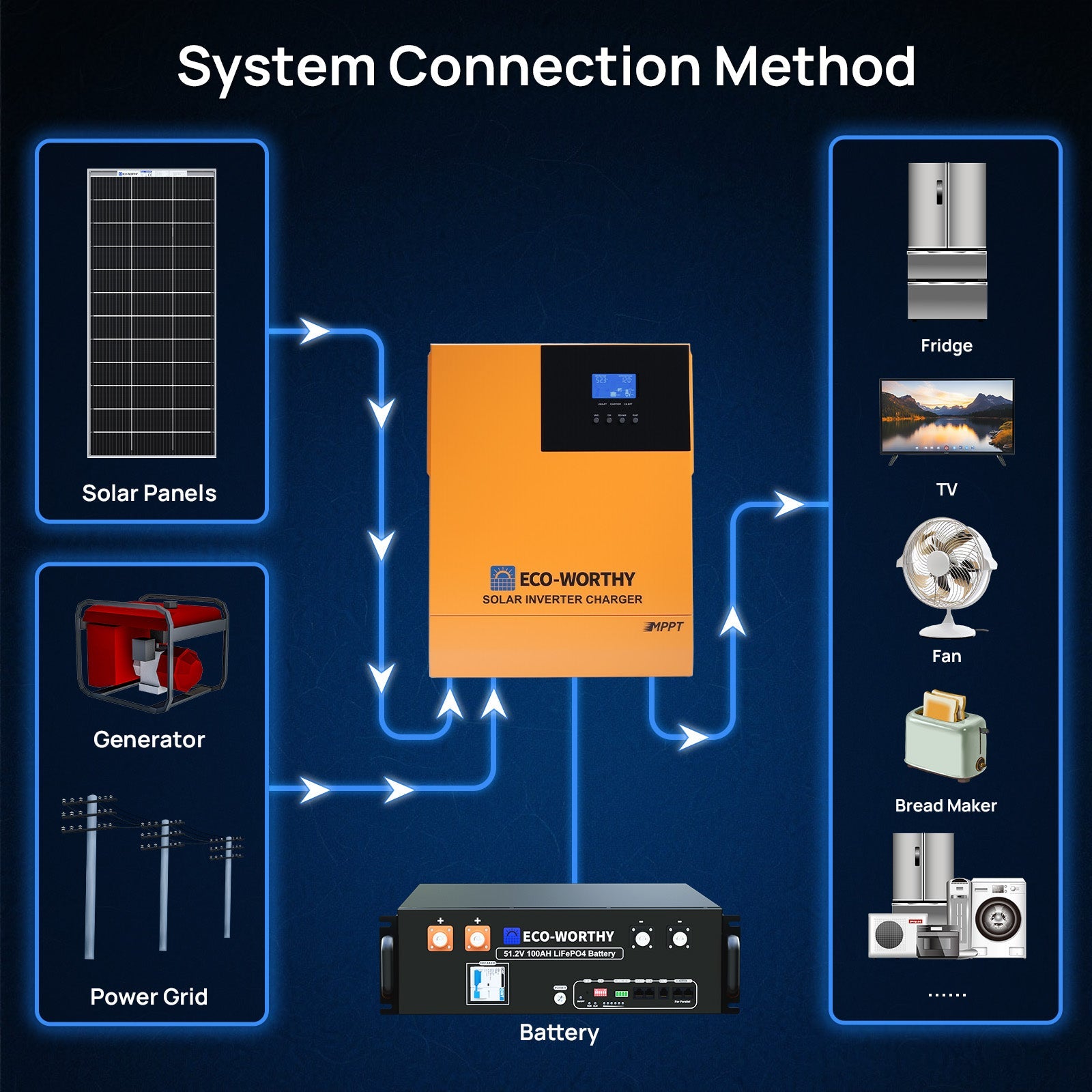

[All in One Inverter ,Multi-Use]: Equipped with a 3500W 48V All-in-one Solar Off-grid Inverter Charger, the system provides 120V AC output for powering home and small business appliances. The LCD and button interface offers easy setting adjustments.
[Smart Communication & Remote Monitoring]: Smart monitoring capabilities support CAN/RS485 protocols, ensuring compatibility with mainstream inverters. The mobile app (Bluetooth and Wi-Fi) provides real-time remote system and battery status monitoring.
[Safe & Durable Rack-Mounted Battery]: The system includes a 48V 100Ah LiFePO4 server rack battery (5.12kWh), offering long life and enhanced safety. Dual protection via circuit breaker and BMS, plus a 10-year warranty ensure worry-free operation.

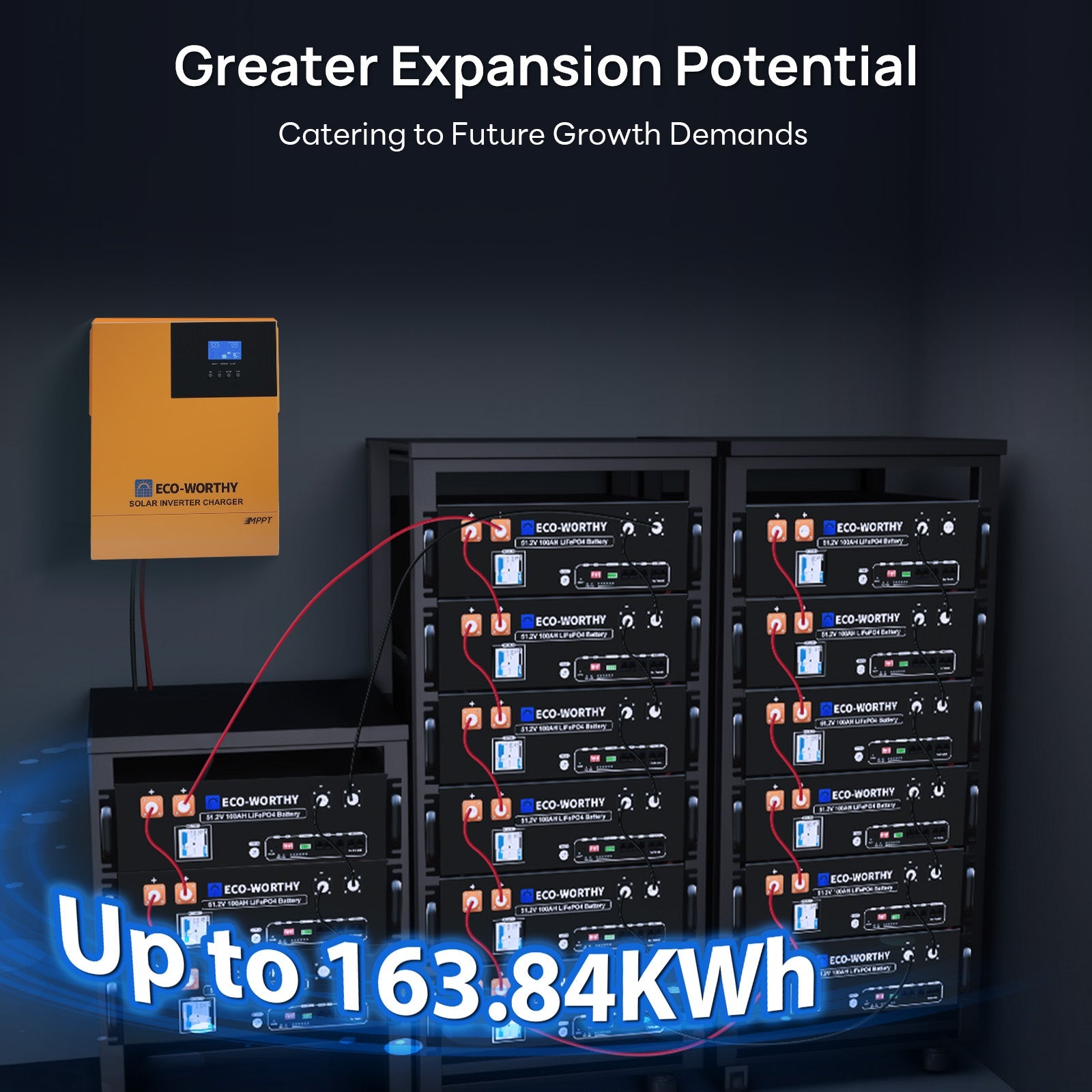

[Modular Design, Flexible Installation]: Modular rack-mount battery saves space, and lightweight panels make installation easy. Suitable for homes, cabins or mobile applications; panels and batteries can be expanded as needed for scalability.
Enjoy Extra C$500 OFF
Code: SOLAR500
Copy Code
Couldn't load pickup availability

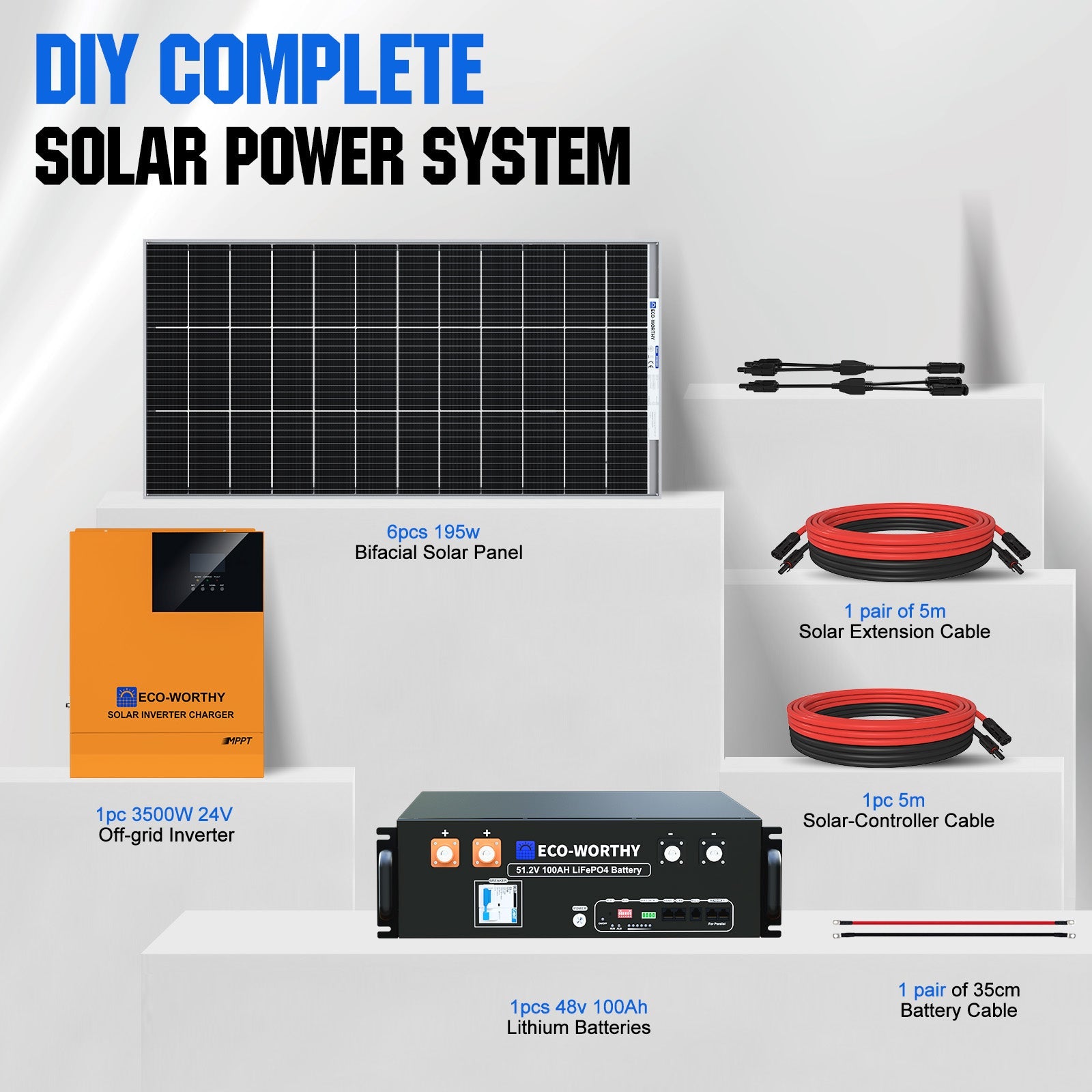

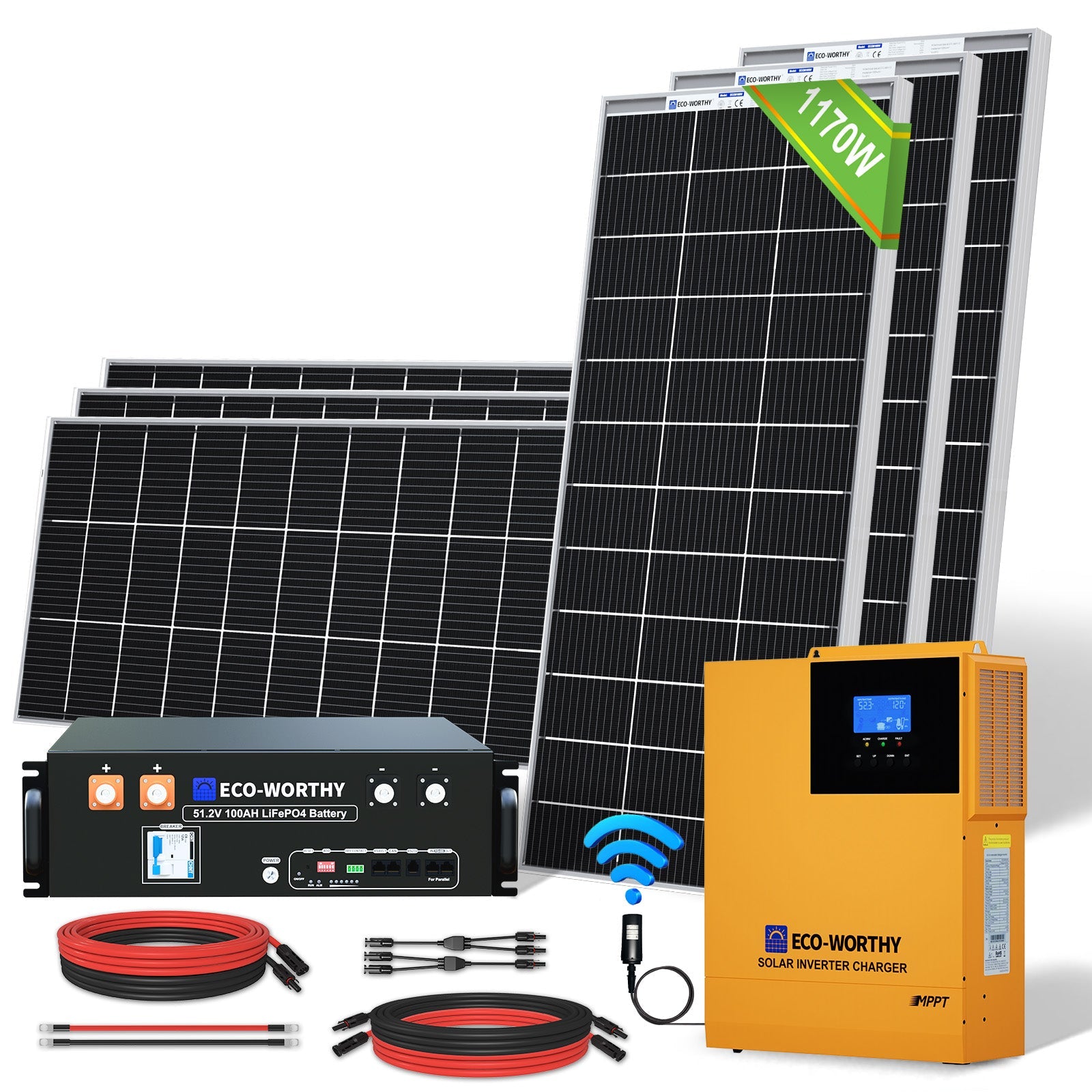

Package Includes
6x Bifacial 195W Mono Solar Panel
1x 3500W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
1x Y MC4 Connector
1x 100Ah 48V(51.2V) 100Ah Server Rack Battery
Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W | Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 24.5V |
Short circuit current: 10.14A | Maximum current: 9.65A |
Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame | Weight: 21.47 lbs(9.74 kg) |
Size: 58.26x26.3x1.38in (1480*668*35mm) |
48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Battery
Battery Capacity: 100Ah | Battery Power: 5120Wh |
Rated Voltage: 51.2V | Voltage Range: 40~58V |
Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
Discharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
Screw size: M8 | Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch) |
Battery Weight: 47kg(103 lbs) | Each battery comes with a pair of battery parallel cables |

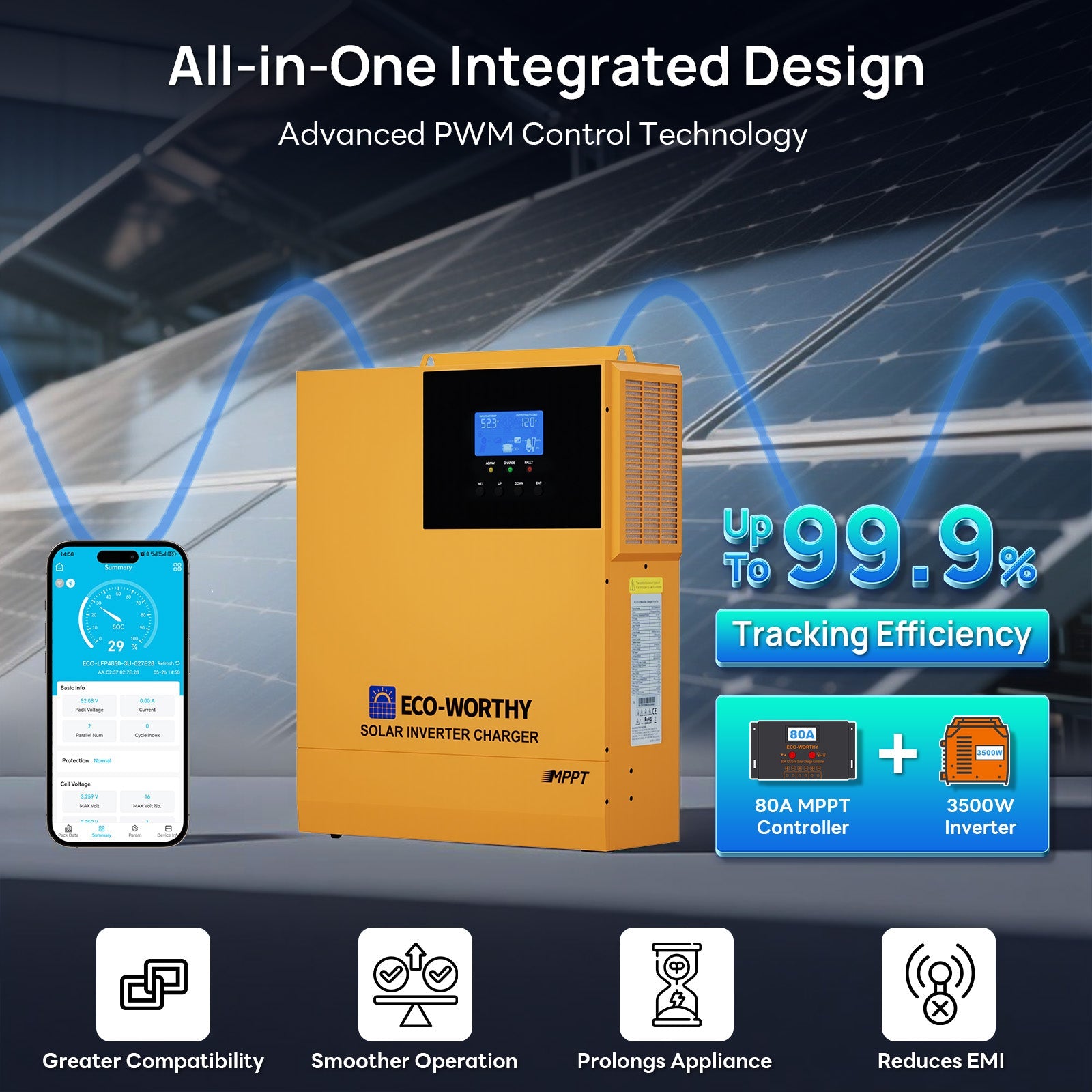

3500W 48V Inverter All-in-one Inverter
AC Input Mode | |
Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
Efficiency: 92% | AC Reverse Protection: Available |
Max Bypass Overload Current: 40A | |
Invert Mode | |
Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
Rated Output Voltage: 120VAC | Peak Power: 6000W |
Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
AC Charging Mode | |
Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
PV Charging Mode | |
Max Input Power: 5000W | PV Charging Current Range:0-80A(can be set) |
Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
Max Output Power: 4400W | Charging Short Circuit Protection: Blown fuse |
5M 12WG Solar Cable Wires with MC4
Cable Type: Connecting Solar Panels to Charge Controllers | Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
AWG: 12 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
Connector: MC4 |
5M 12AWG Solar Extension Cable Wires with MC4-MC4

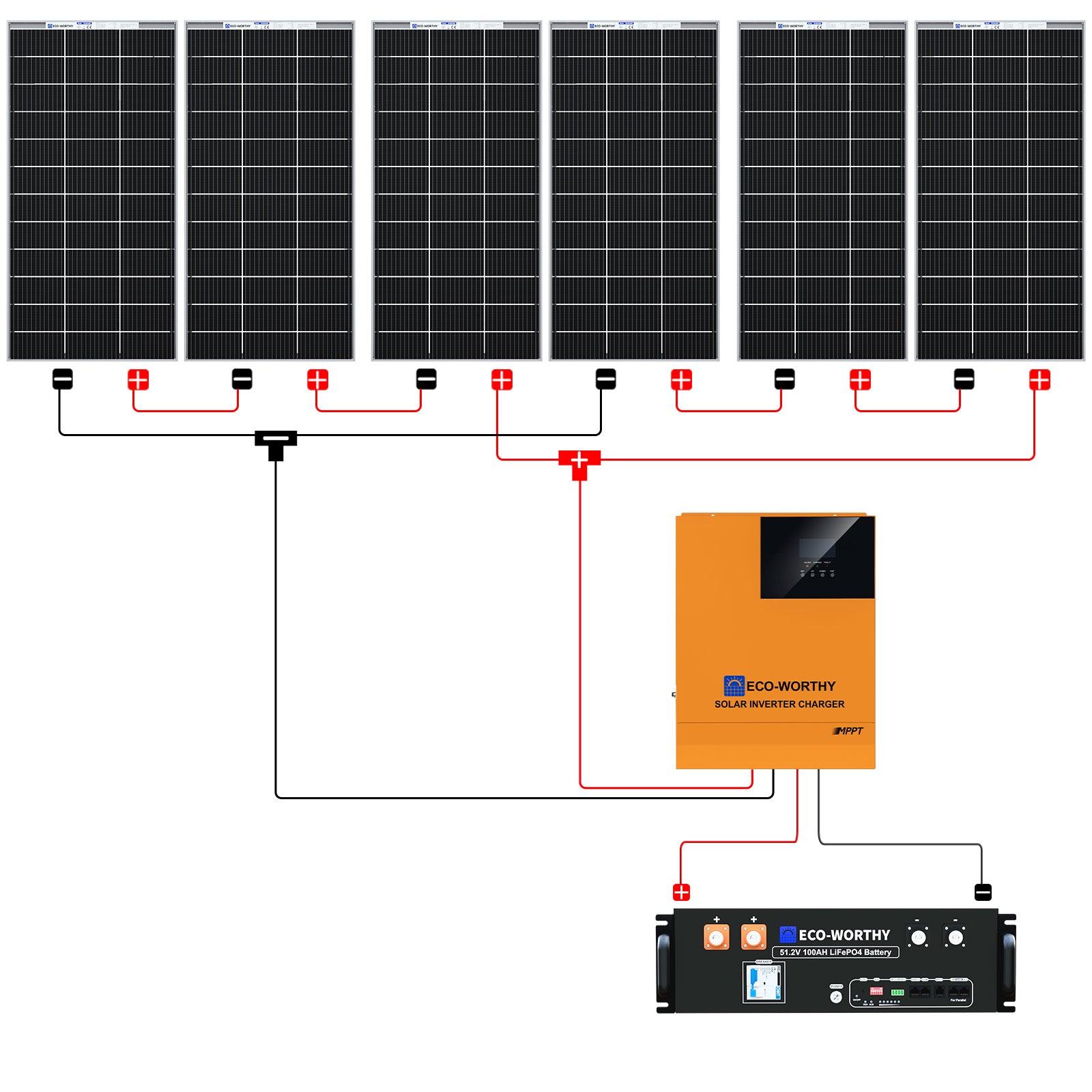

Cable Type: Connecting Solar Panel to Solar Panel In Parallel | Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
AWG: 12 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
Connector: MC4 |
We hope you have enjoyed your online shopping experience with ECO-WORTHY.We are proud to announce that all products on this site feature free fast shipping (2 to 5 business days) from our Canada warehouses.
SHIPPING
We offer a free shipping service for most place of Ontario,Alberta,Quebec,British Columbia(Other provinces are not available for delivery at the moment due to expensive delivery charges.Hope you could understand)
Please note : All orders must have a valid street address; some items cannot be delivered to PO Boxes due to shipping restrictions.
You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel.
ORDER PROCESSING
Procession time can take between 1-2 business days.
The time it takes to prepare your item(s) to ship from our warehouse. This includes preparing your items, performing quality checks, and packing for shipment.
SHIPPING TIME
All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days.
If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.
Shipping from | Shipping to | Shipping time | tracking information |
CA warehourse | CA | 3-5 business days | tracked |
For Ecoworthy products, we may require customers to pay extra cost to cover the remote delivery fee if the shipping address is marked as remote or mine zone in our third-party carrier's shipment network, if customers are reluctant to pay the extra shipping cost, Ecoworthy is at liberty to cancel this order.
Shipments cannot be rerouted once a package has been shipped, please kindly note.
We understand that professional installation is often desired. However, we strongly suggest that you wait until receiving your complete order and verifying the condition of the products before scheduling any work to commence with your new Ecoworthy products.
While we strive to provide the best quality products and expect a high level of service from our third-party carriers, we recognize that at times a product or particular delivery method does not meet our standards or quoted delivery date. Due to unforeseen issues potentially occurring, we strongly suggest that you wait until you receive and verify your products as we cannot be held responsible for delays in scheduled work.
If you have any questions about tracking your order, please log into your account to look for the tracking details. For further assistance, please email us at service@eco-worthy.com
GUARANTEES & RETURN POLICY
14 Days DOA Product Guarantee
If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted.
30 Days No Reason Return
Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit.
Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense.
Please be prepared with your invoice or the following information:
Order number
Proof of purchase
Video or photo of the faulty product (if applicable)
Mailing address
Contact telephone number
Please carefully follow our warranty process to minimize any delays:
1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number).
2. Tell us what steps you have already taken to resolve the issue.
3. Provide the item code indicated on the outer packaging.
4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.
Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery
FAQ
What are the shipping and warranty policies for this battery?
We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.
What kind of battery cells are used?
This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.
What communication methods are supported?

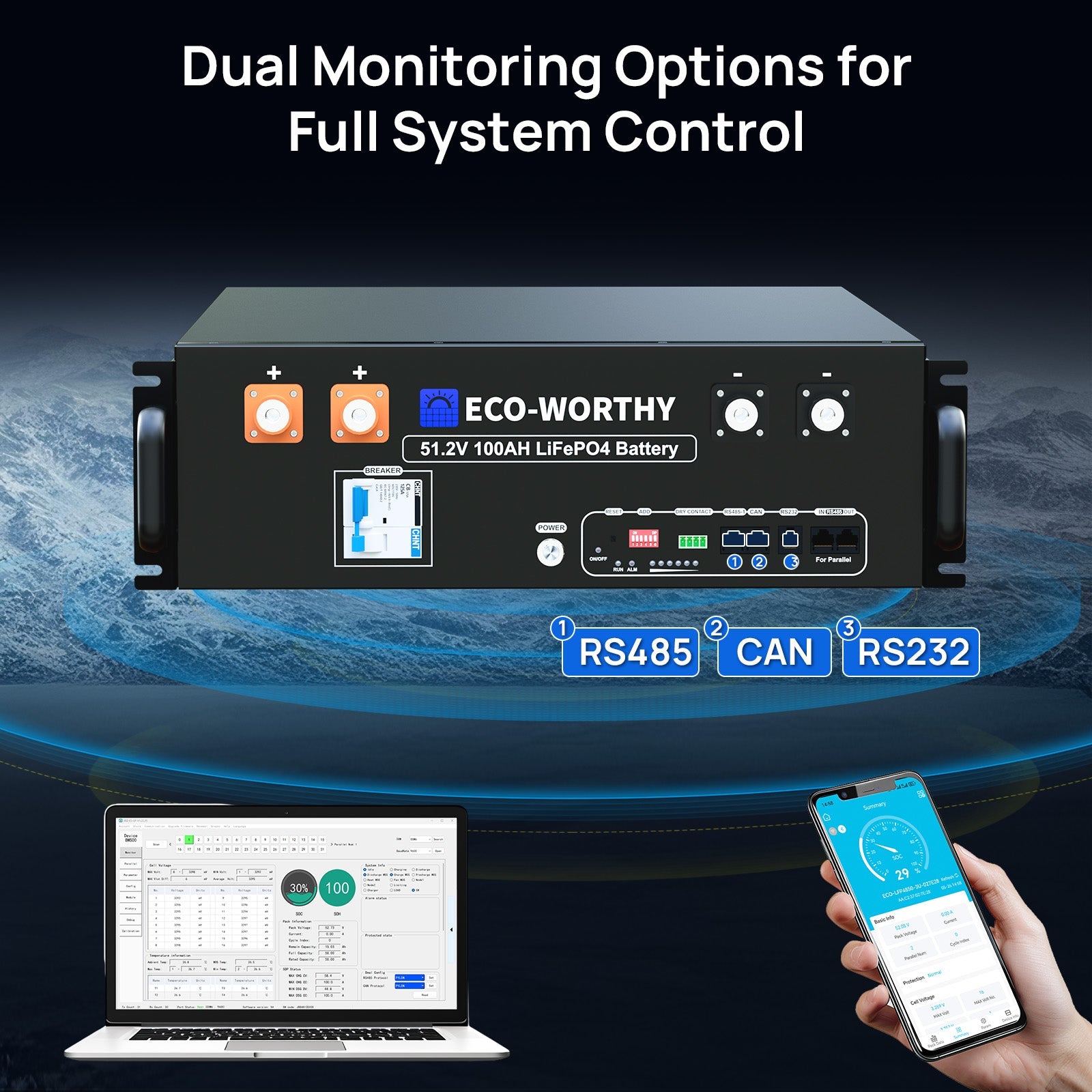

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.
Which inverters can this battery communicate with?
All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000
What safety designs does this battery have?
This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.
Can V3 communicate in parallel with V2?
Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.
Precautions for V3 and V2 in parallel?
1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.
Does the JBD host computer software need to be updated to support 32 parallel quantities?
Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip
Does the mobile app need to be updated to support 32 parallel quantities?
Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.
Does the V3 version have a handle?
It has a handle, which comes with the package, but you need to install it yourself.
What are the changes in the overall size and weight of V3?
The height increased by 1cm and the weight increased by 4kg.
