Battery Monitor
The Invisible Guardian of Energy Efficiency

Battery monitors play a vital role in modern energy management systems. Not only do they ensure that the system is running efficiently, but they also directly impact battery life and overall cost-effectiveness. You can upgrade your battery system in a variety of ways, but one of the simplest and most useful is to add a battery monitor.

What is a Battery Monitor?

Why do You Need a Battery Monitor?

When and Where to Use Battery Monitor?

How to Use a Battery Monitor?

What is a Battery Monitor?

A battery monitor ensures the safe and efficient operation of a battery system by monitoring key parameters such as voltage, current, temperature, and battery health status. It provides information on battery status, supporting intelligent management and maintenance decisions.

Monitoring Types & Pros and Cons

Shunt Monitoring

High accuracy but may introduce additional energy consumption and heat generation.

Hall Effect Monitoring

Non-contact, reducing energy loss, but susceptible to external magnetic field interference.

Working principles/algorithms

Voltage-based Monitoring

Simple and intuitive, but unable to reflect the actual capacity and health status of the battery.

Coulomb Counting

Estimates remaining charge by accumulating the charge flowing into or out of the battery, providing higher accuracy but requiring calibration and potential for long-term accumulation errors.

Battery Impedance Tracking

Assesses the SOH (State of Health) by analyzing impedance changes during charging and discharging, providing a more comprehensive reflection of battery status but with complex implementation.

Why do You Need a Battery Monitor?

It allows you to understand the remaining battery charge in real-time, helping you arrange power consumption and charging plans reasonably. It can also detect and prevent issues such as over-discharge, over-charge, and over-current, protecting the battery from damage. In the long run, the monitor extends battery life through effective management, reducing replacement costs and increasing return on investment.

When and Where to Use Battery Monitor?

Battery monitoring is widely used in various electrical systems and environments:

Marine/RV Battery Monitoring: Accurate battery charge information is crucial for maintaining living facilities in these mobile living spaces.

Off-grid Photovoltaic System Battery Monitoring: Ensures optimal charging and discharging states of storage batteries, optimizing energy utilization efficiency.

Small DC Systems: For batteries powering fishing boat motors, amateur radio equipment, or automatic door openers, monitoring helps extend battery life.

Low-speed Electric Vehicles: Including golf carts, electric wheelchairs, etc., monitoring prevents unexpected shutdowns, ensuring user safety.

How to Use a Battery Monitor?

Taking the ECO-WORTHY Third-generation Battery Monitor as an example:

1.Select a single-hall or dual-hall battery monitoring system based on your system configuration and budget.

2. Connect the monitor according to the wiring diagram.

Taking the ECO-WORTHY Third-generation Battery Monitor as an example:

1.Select a single-hall or dual-hall battery monitoring system based on your system configuration and budget.

2. Connect the monitor according to the wiring diagram.

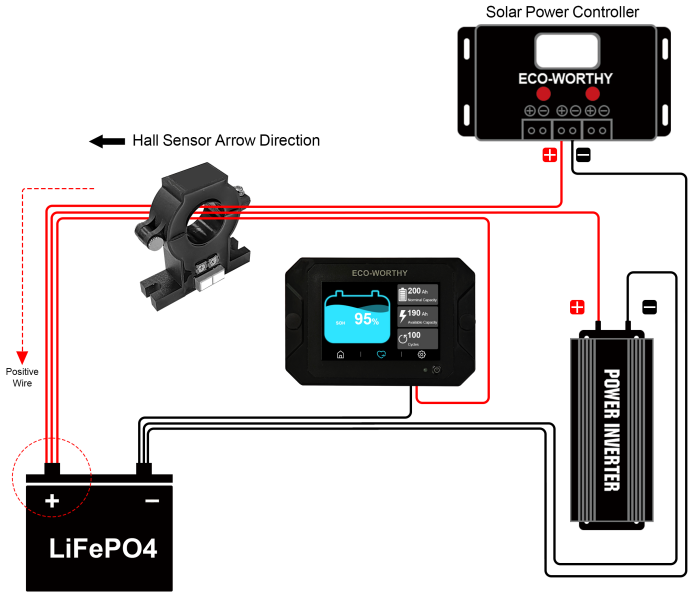

Single Hall

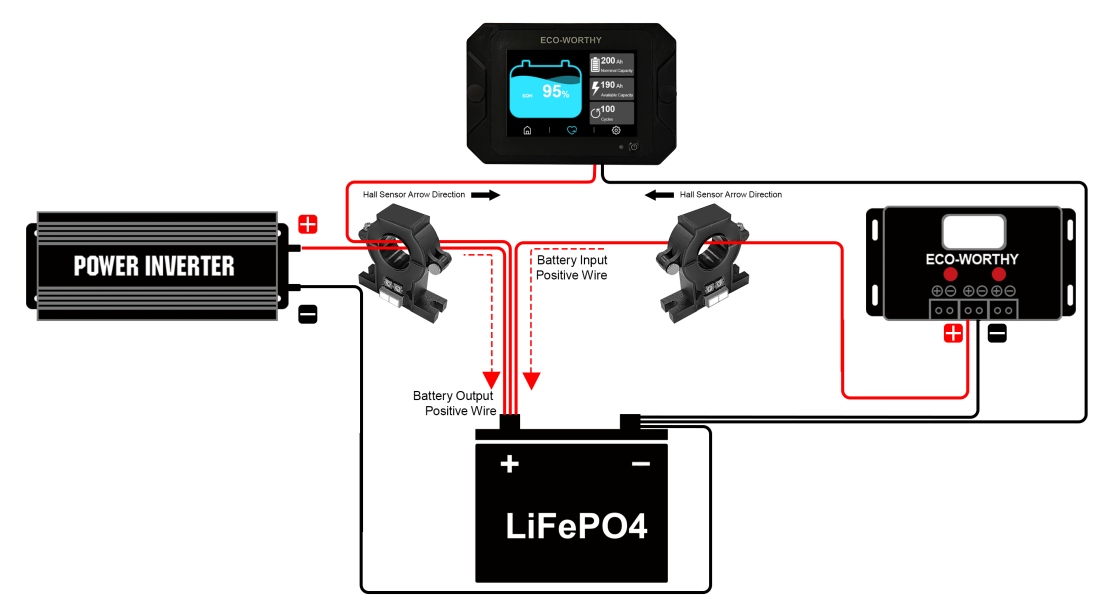

Double Hall

3. Fix the position of the monitor, with options for surface mounting and flush mounting.

4. The monitor has two different interfaces for single-hall and dual-hall, requiring selection based on specific conditions.

5. Set parameters such as battery capacity and maximum charging voltage.



Through these steps, both professional engineers and ordinary users can effectively deploy and utilize a battery monitor, ensuring the stability and economy of battery systems in various application scenarios. With technological advancements, battery monitoring systems are becoming increasingly intelligent, providing robust support for the green energy transition and efficient energy management.
