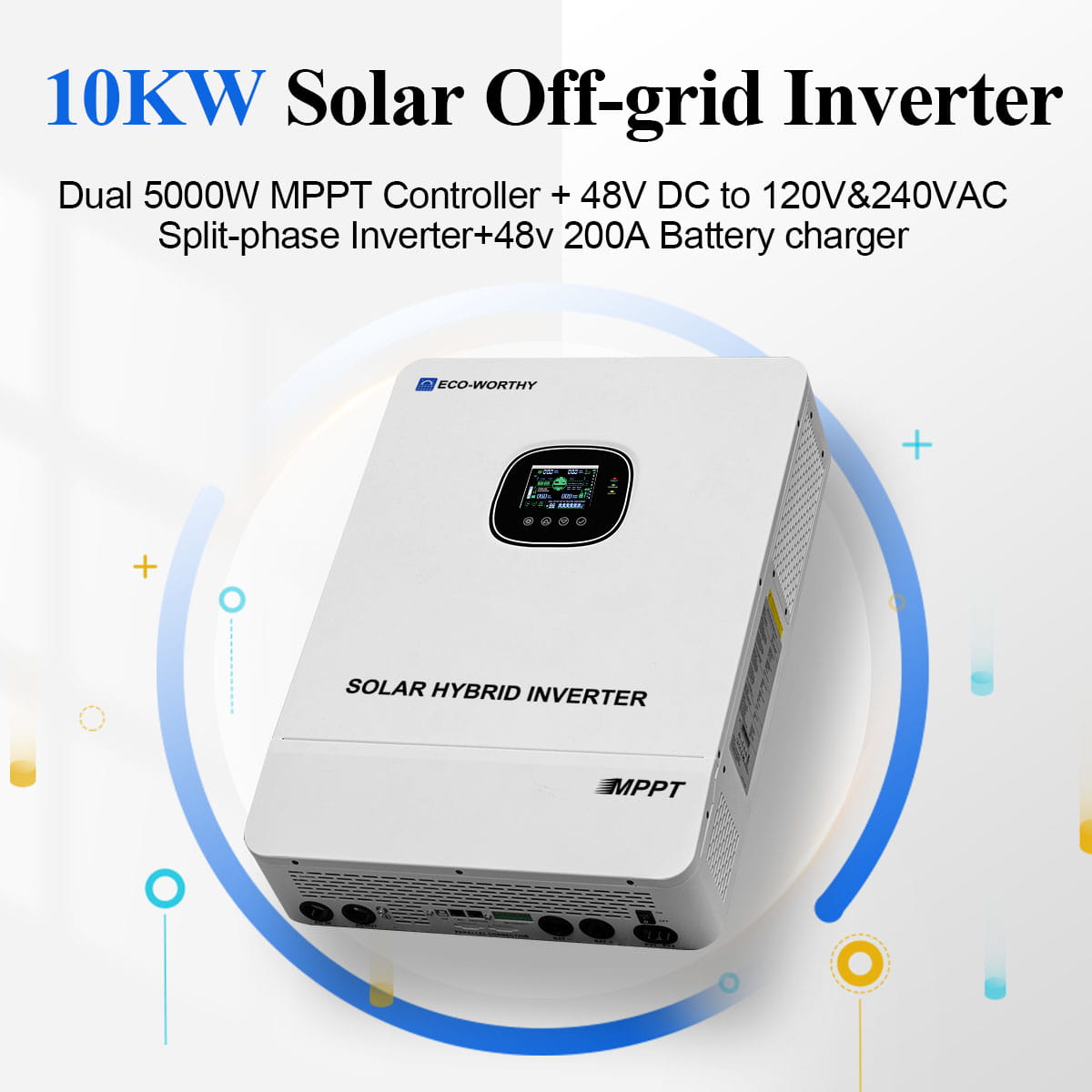

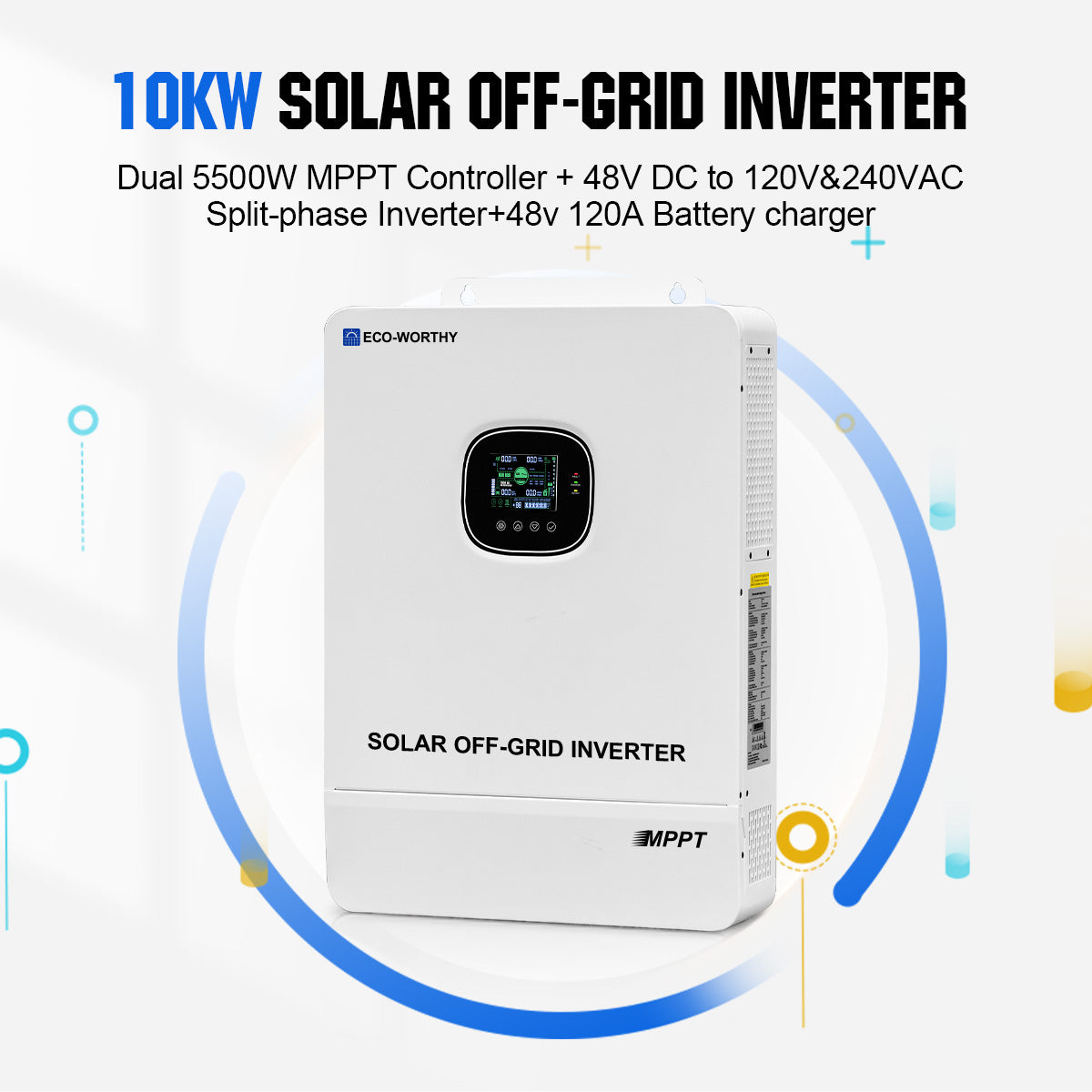

ECO-WORTHY All-In-One 10kW 48V Split Phase Solar Power Inverter for Off Grid System

ECO-WORTHY All-In-One 10kW 48V Split Phase Solar Power Inverter for Off Grid System

Regular price C$1,929.99
Sale price C$1,929.99 Regular price C$3,099.99
save 38% Sold out

SKU: L03SR10KWYTJ-1

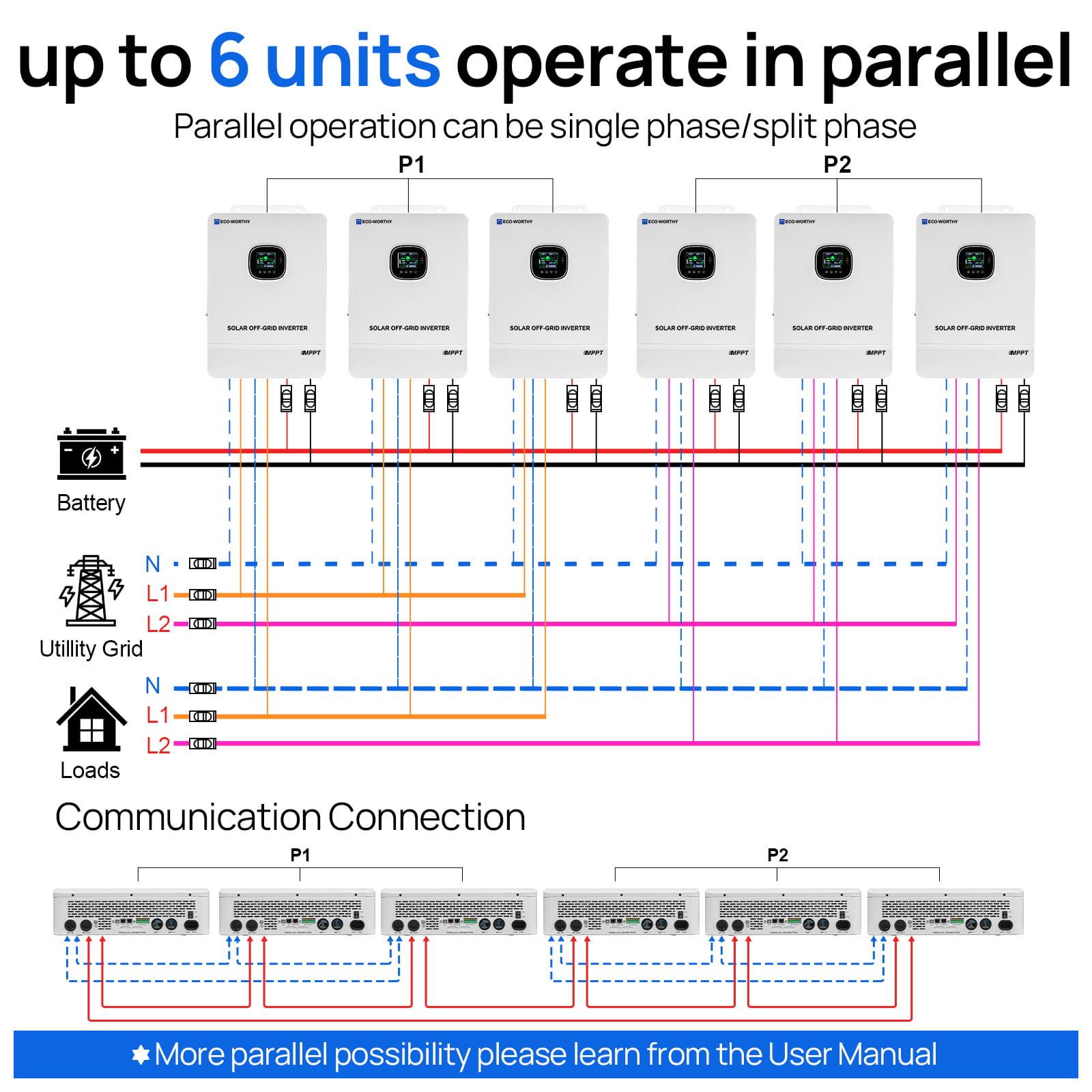

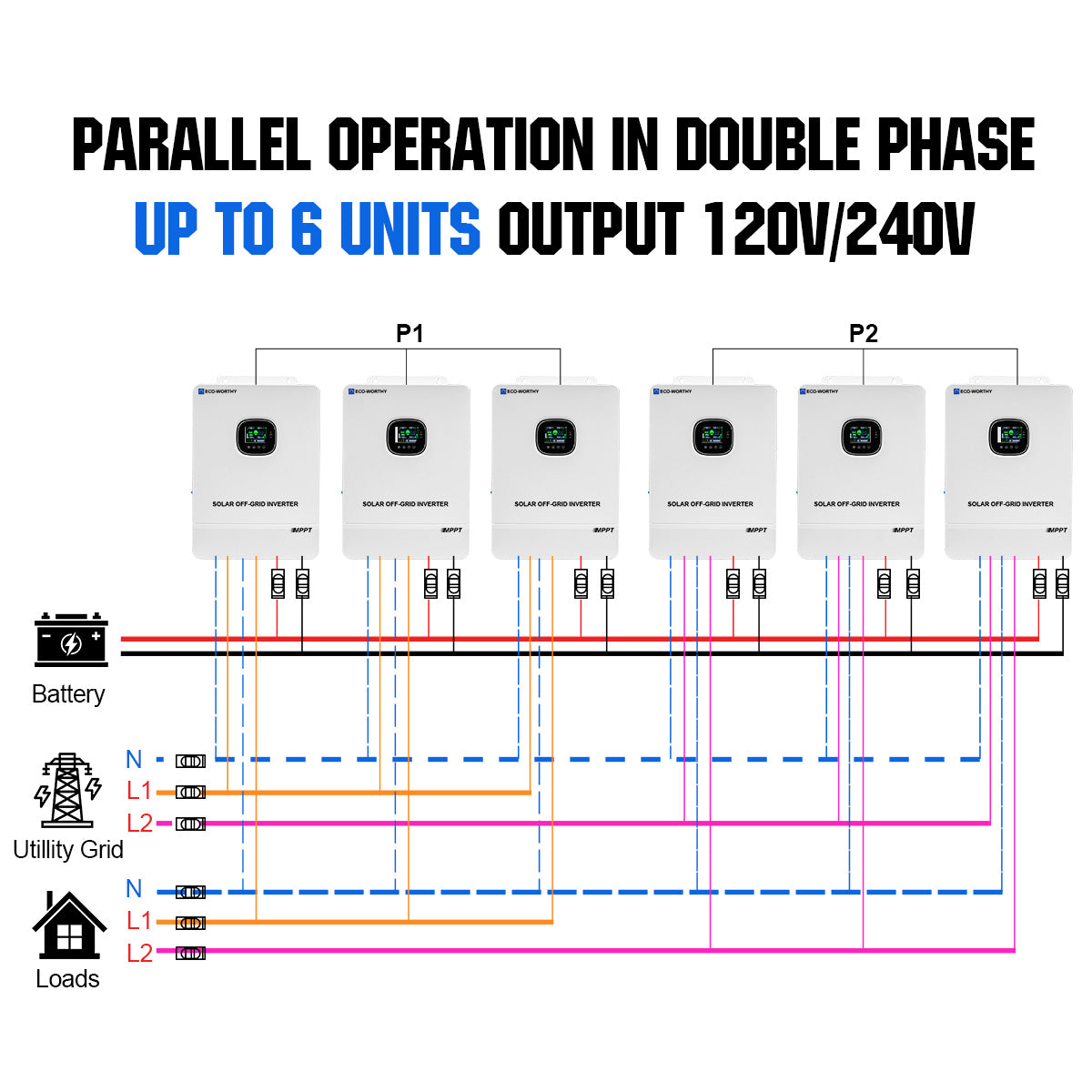

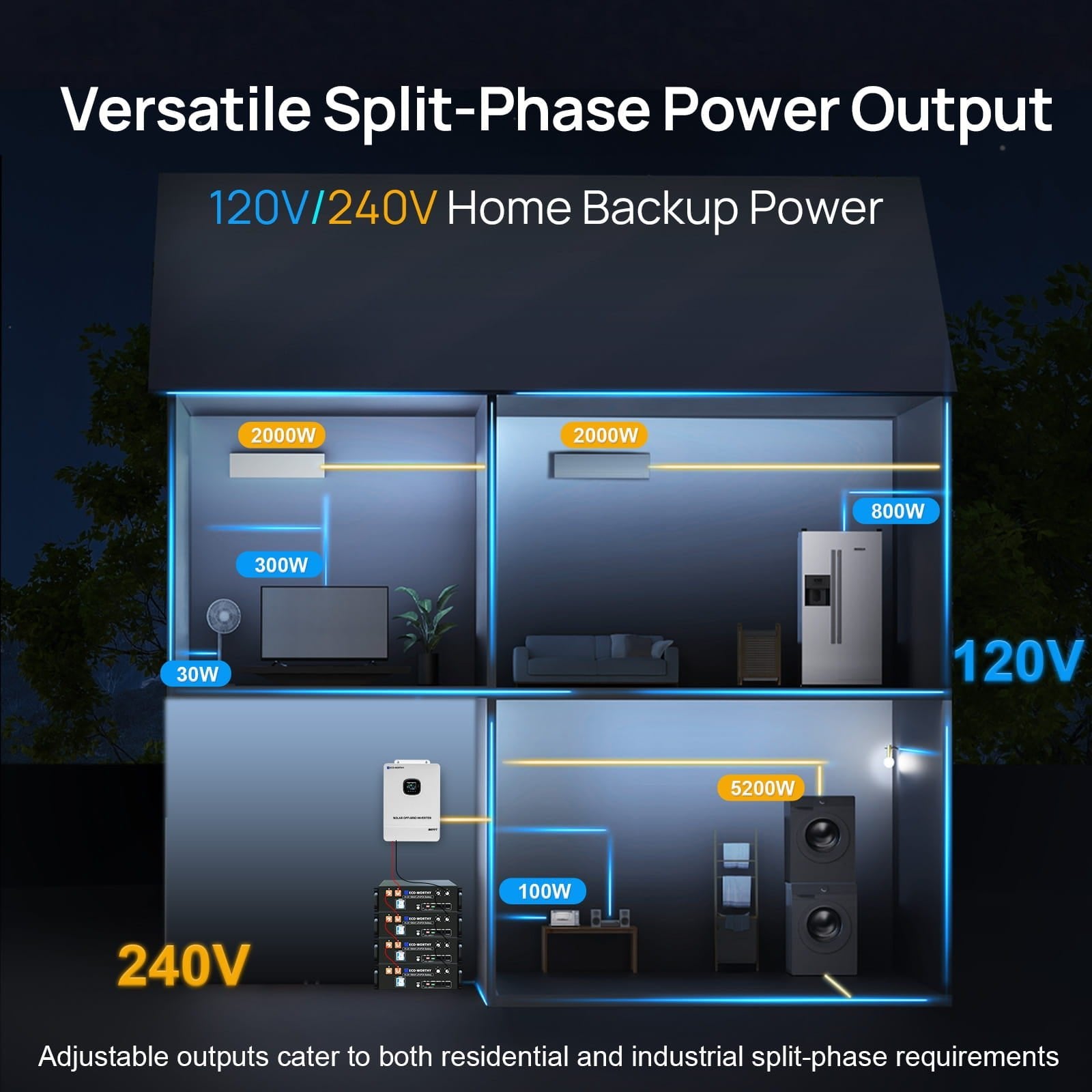

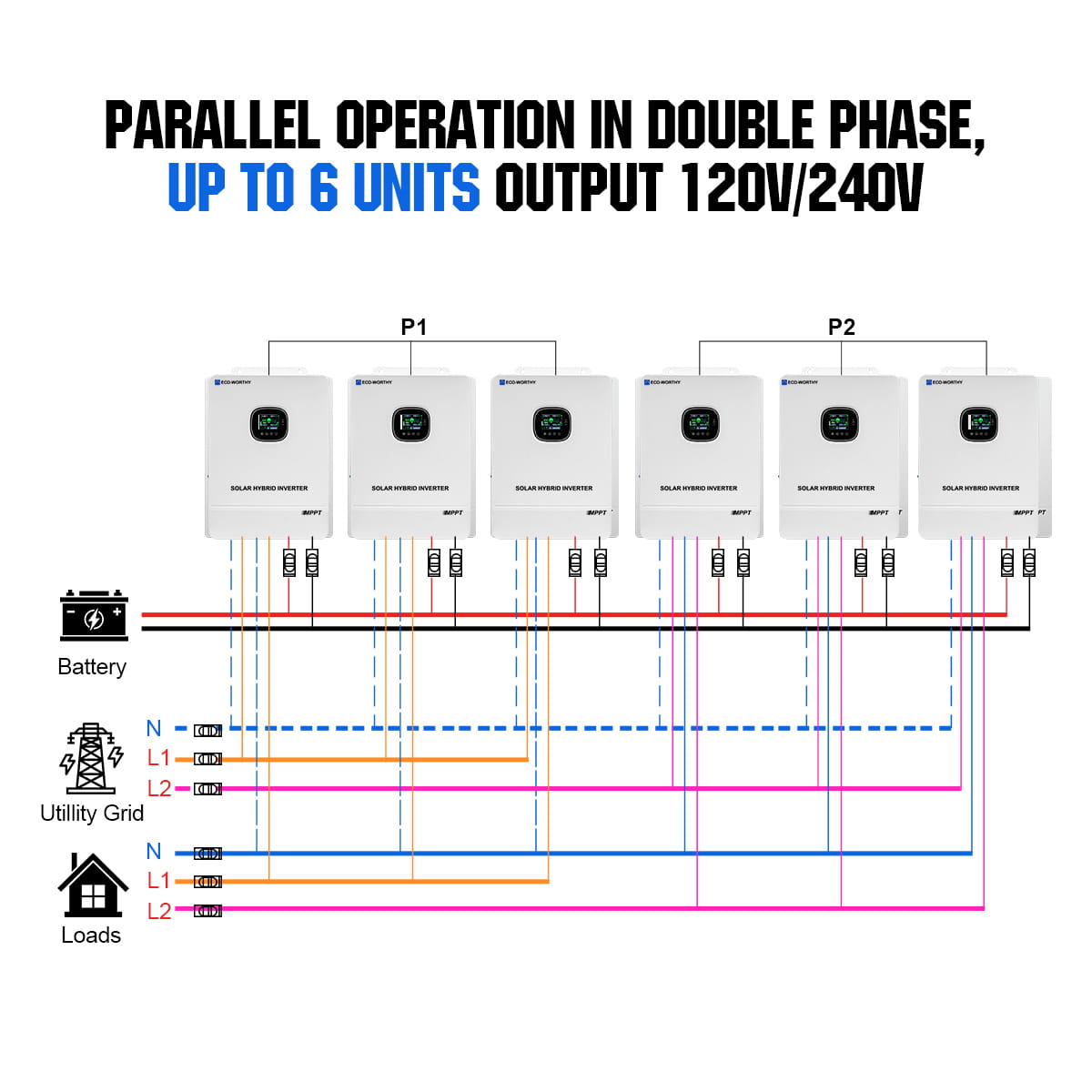

[Supports Parallel Connection] Up to 6 units can be connected in parallel for a maximum total output of 60kW. Supports single-phase or split-phase systems, with each unit outputting 240V; parallel units can provide 120V or 240V to meet various power needs.

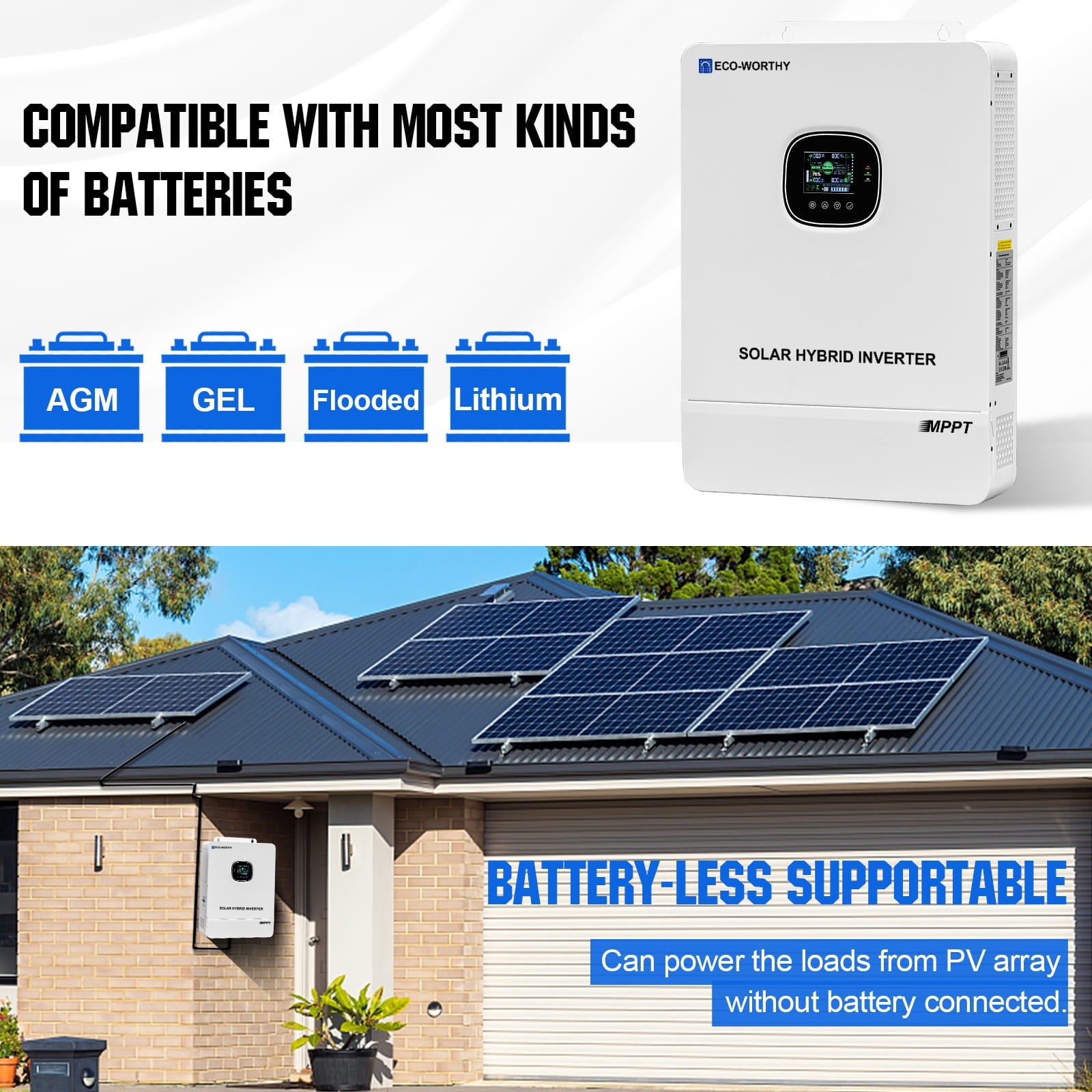

[Battery-Free Operation] The inverter can continuously power loads directly from photovoltaic (PV) DC input without relying on batteries, reducing maintenance requirements.

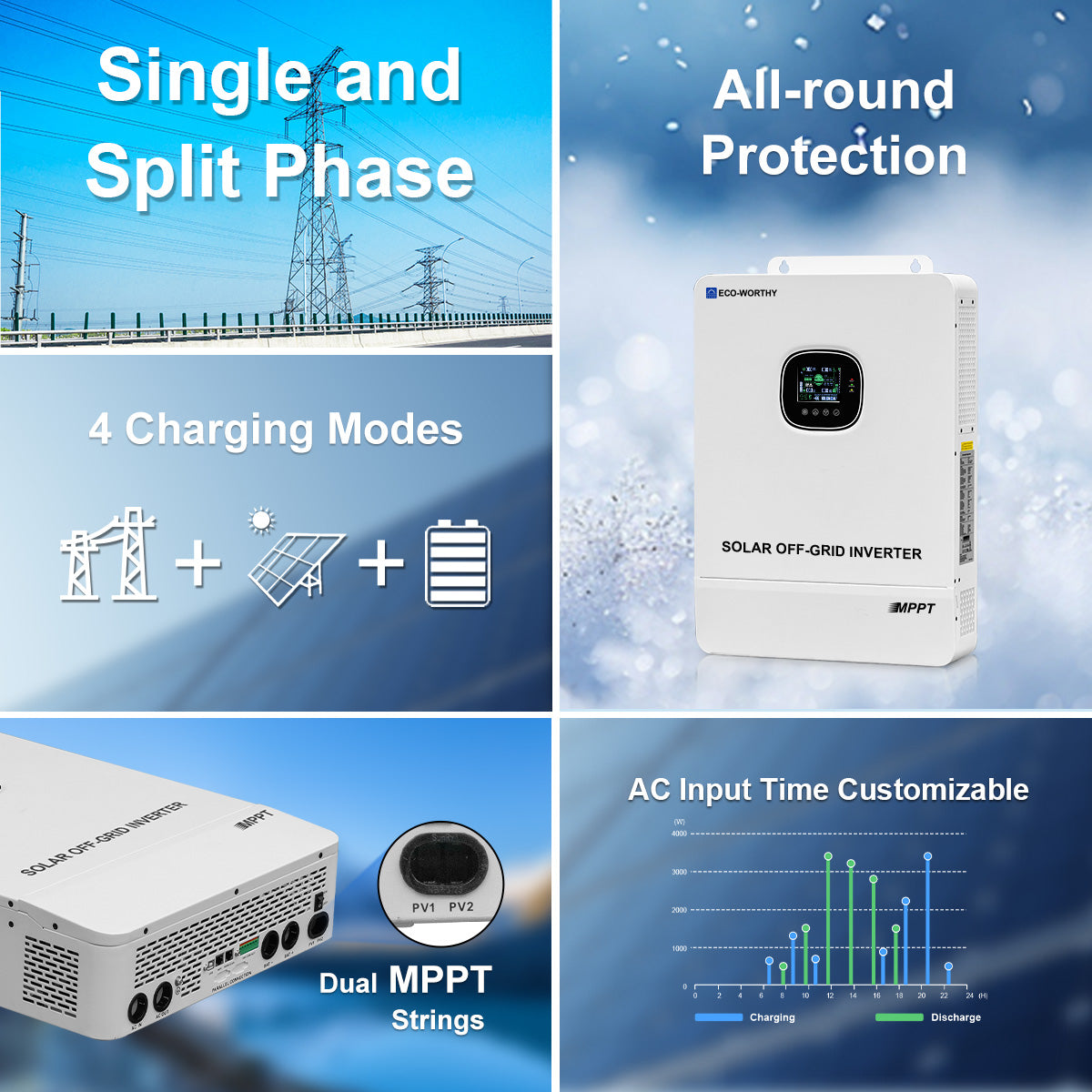

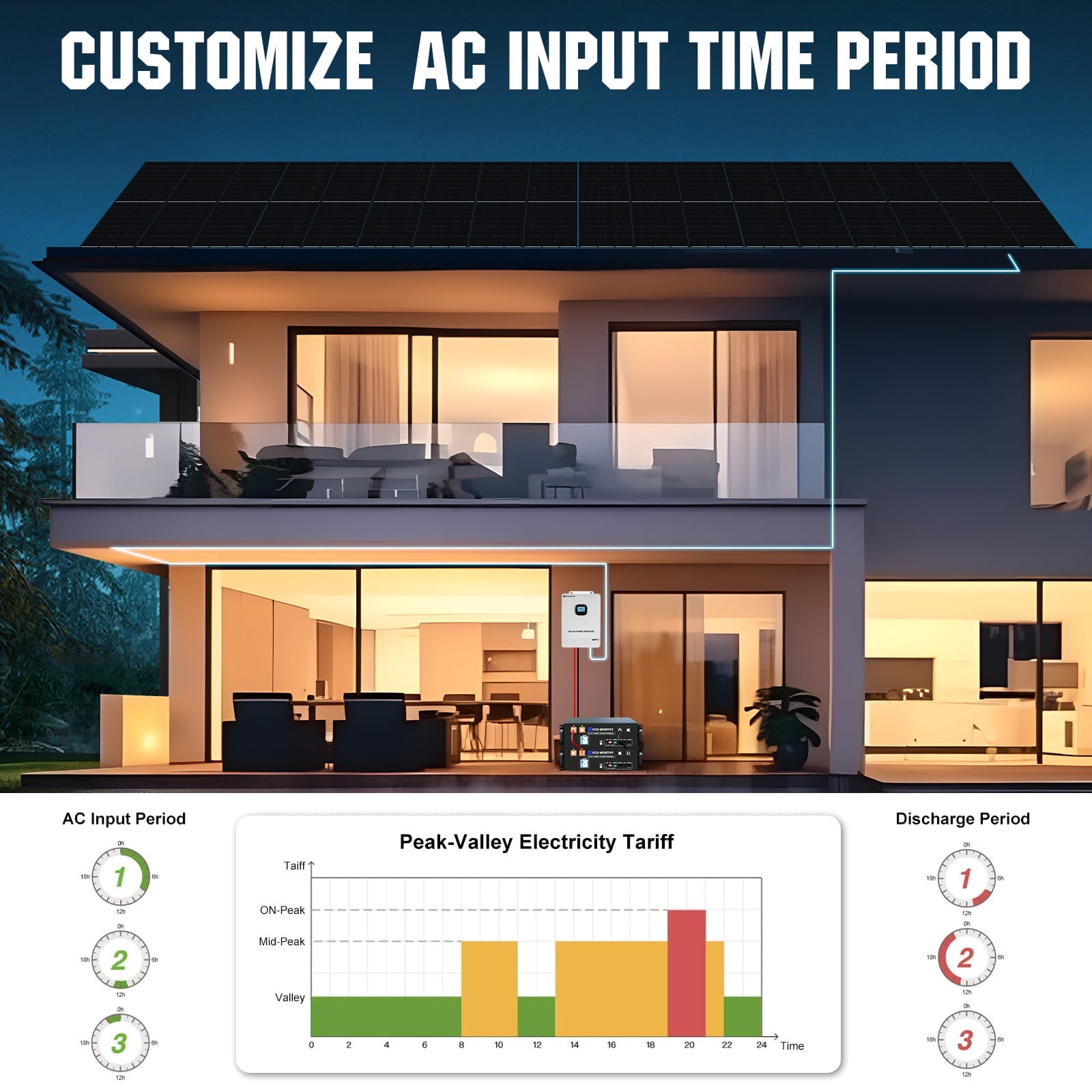

[Flexible Charging and Discharging Modes] Features three output priority modes (mains priority, battery priority, PV priority) and four charging modes (solar only, mains priority, solar priority, and hybrid mains & solar), allowing optimization of charging and discharging based on local grid conditions to save on electricity costs.

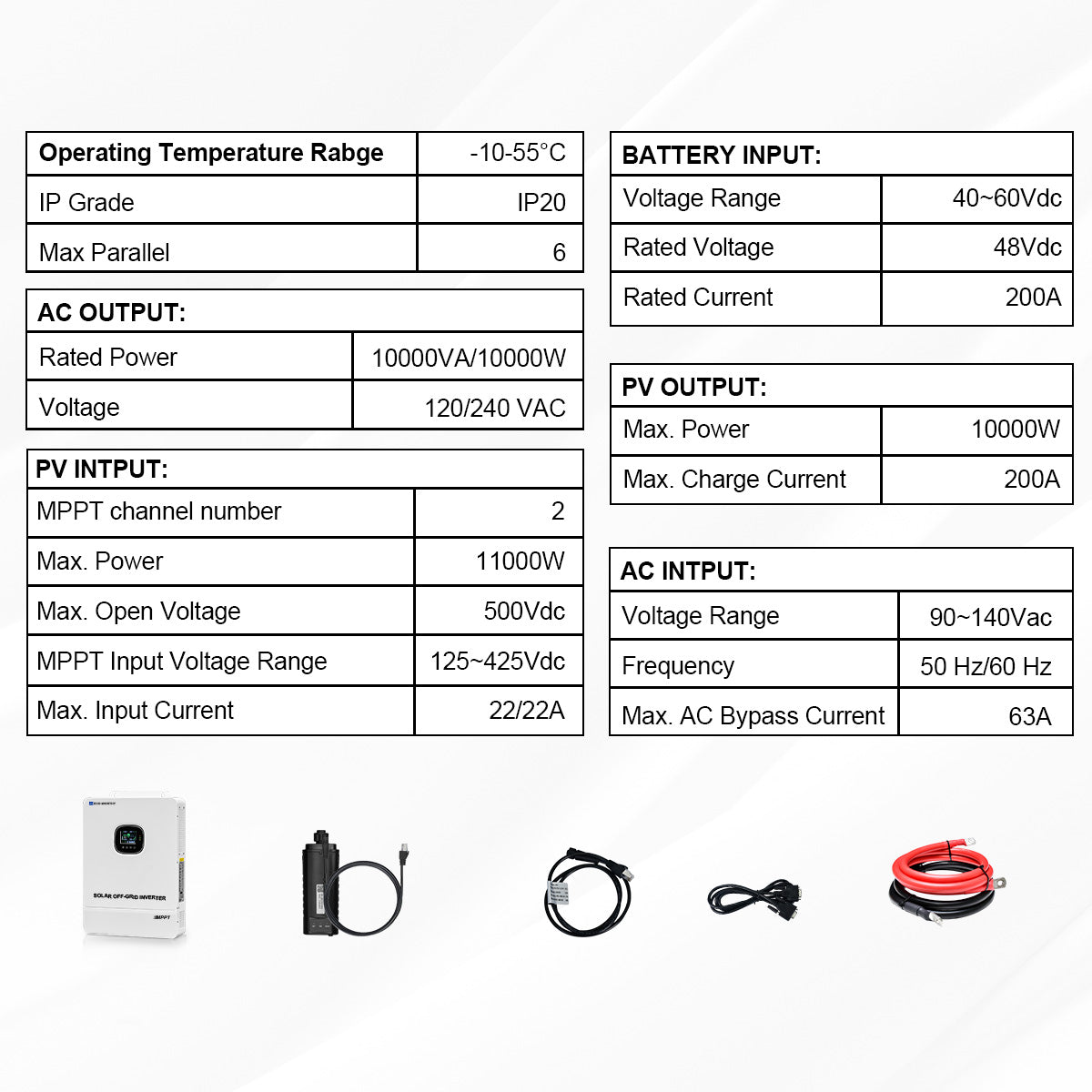

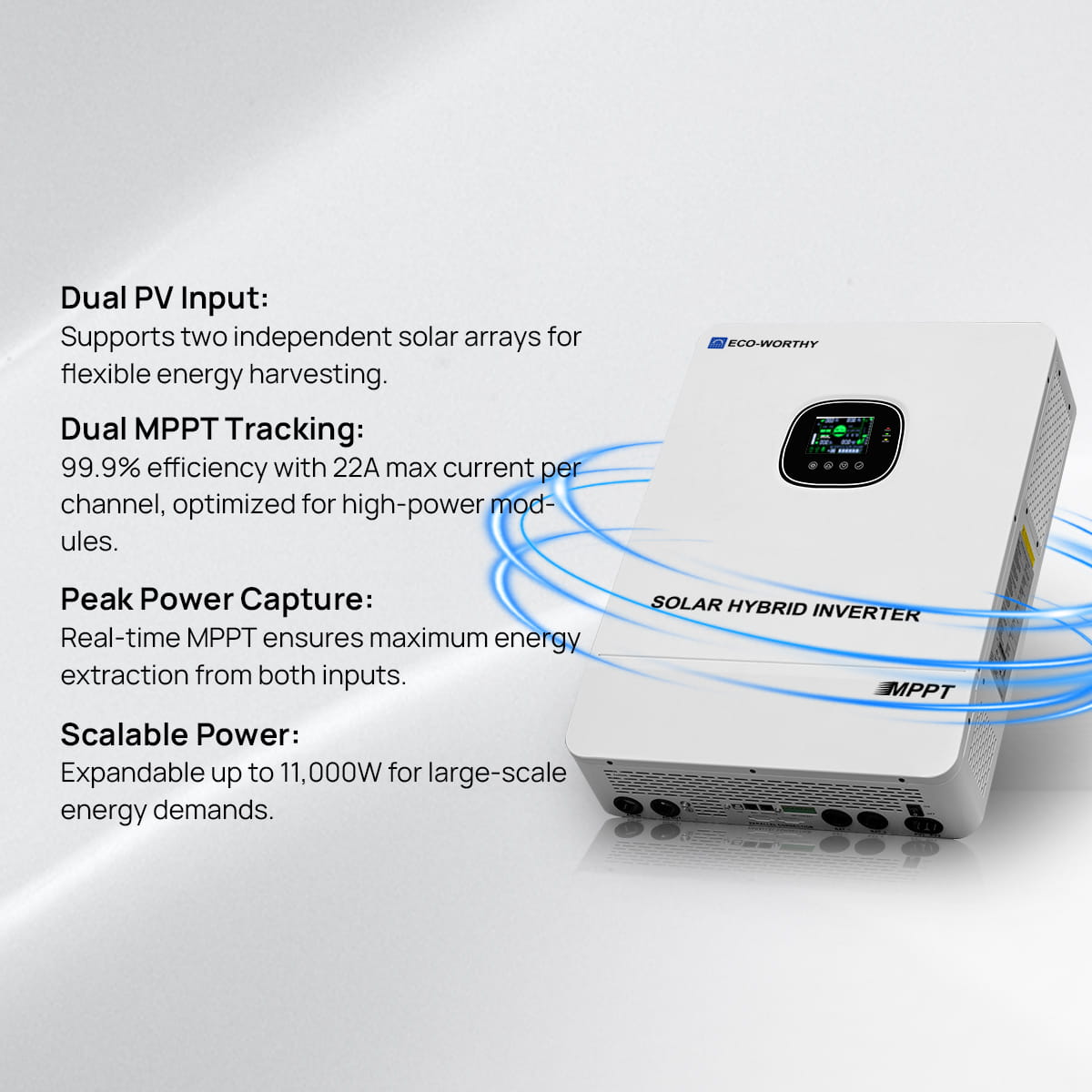

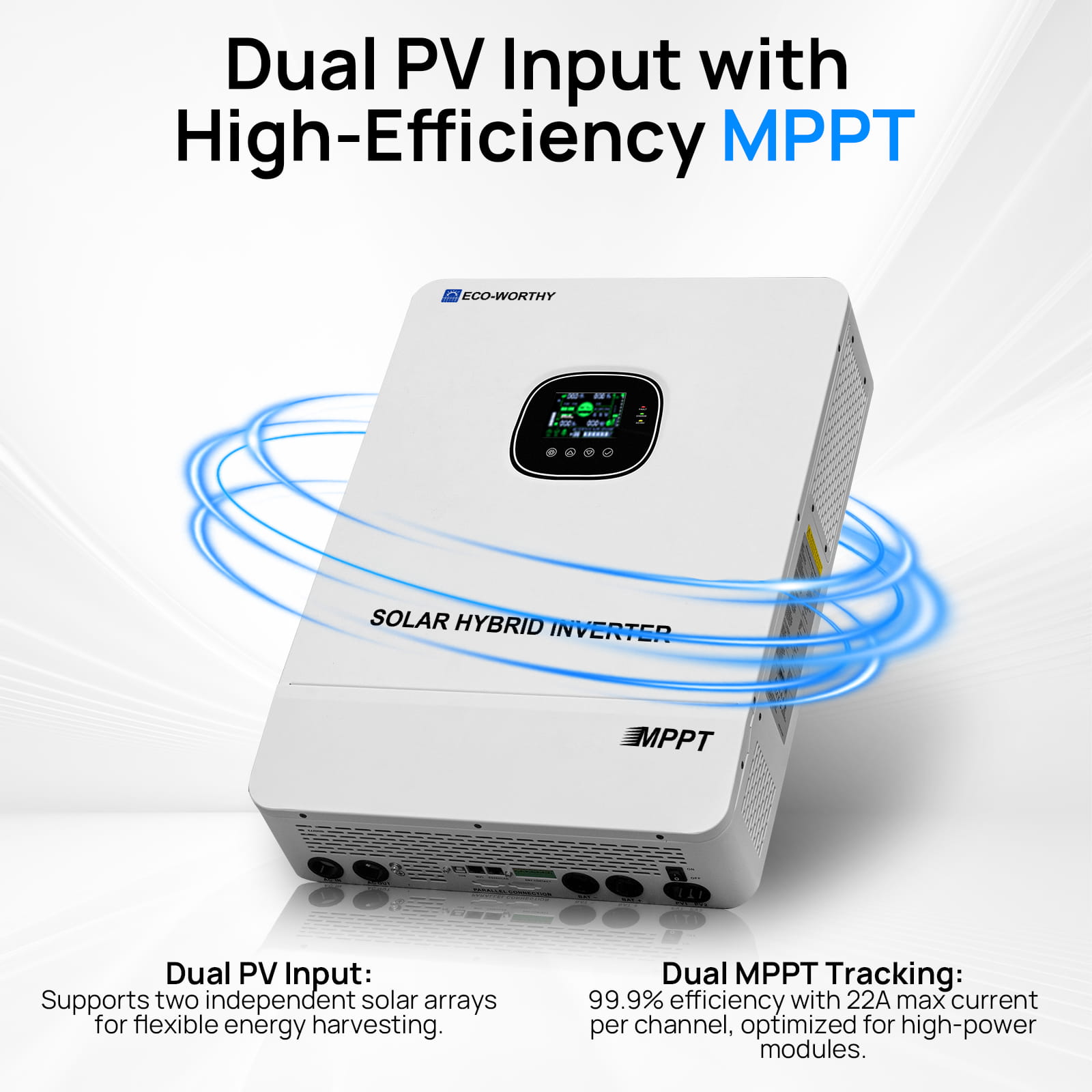

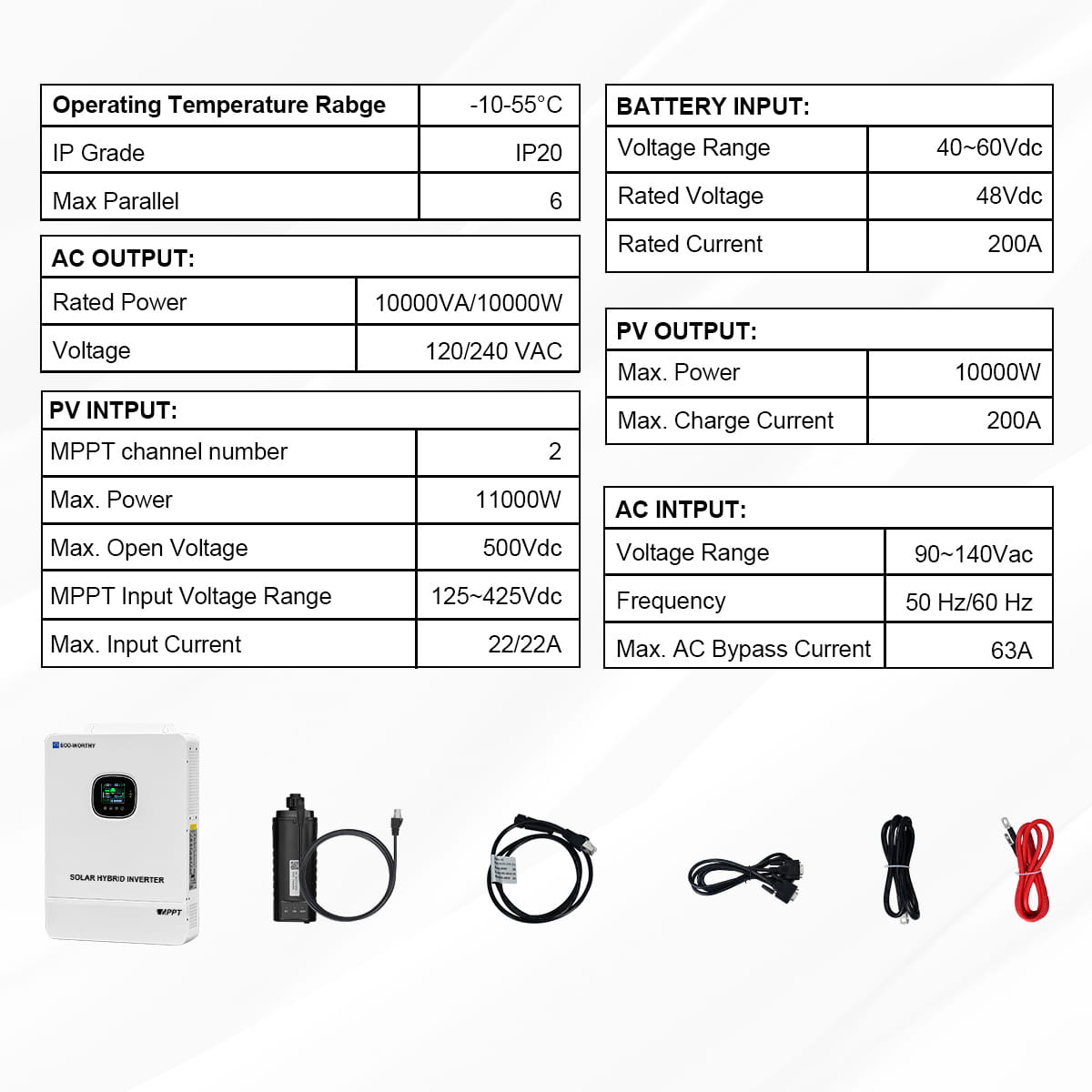

[High-Performance Specifications] Maximum PV input power of 11kW, input voltage range of 120-500V DC, max MPPT charging current of 200A, rated output power of 10kW, peak output power up to 20kW, supporting 240V AC single-phase or split-phase output.

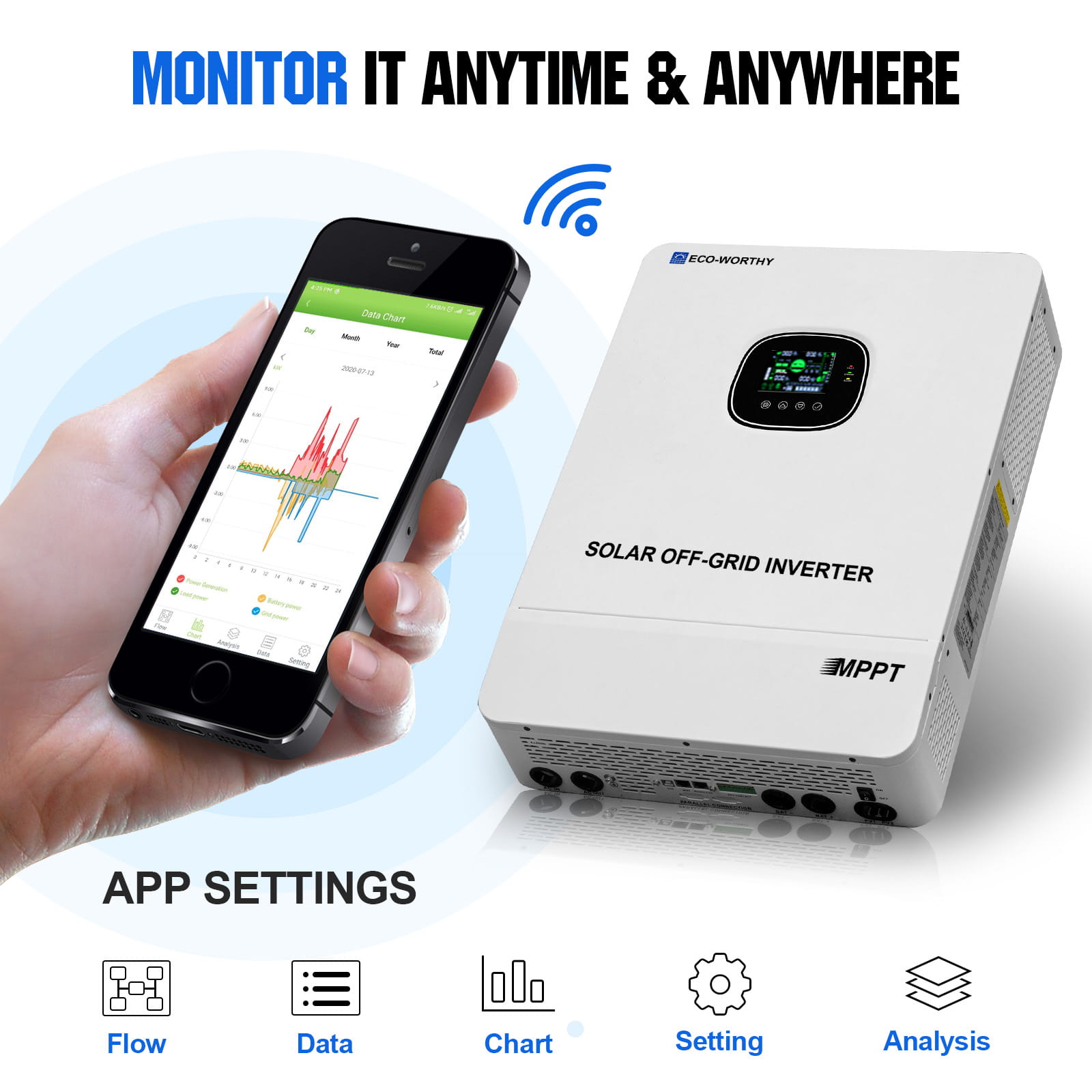

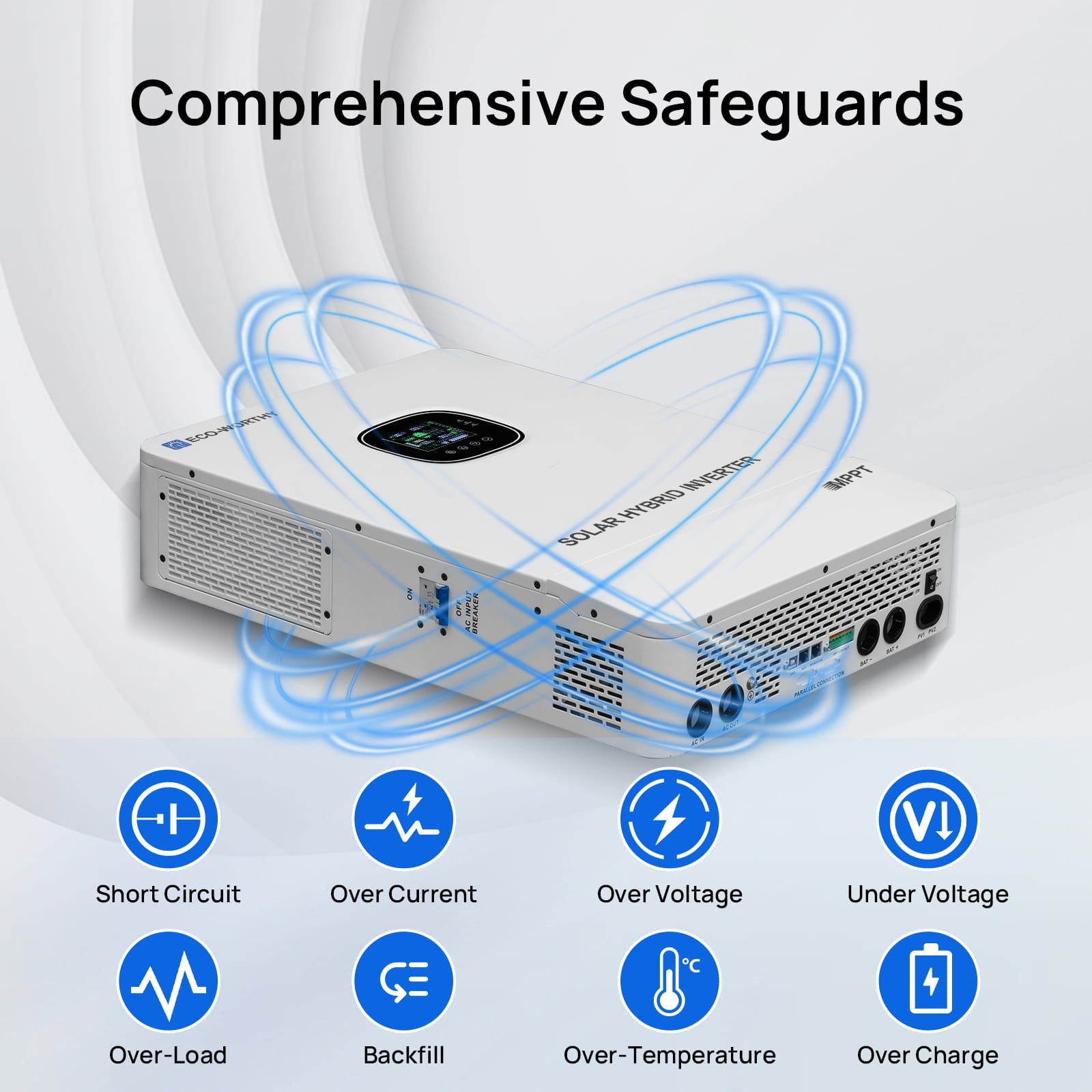

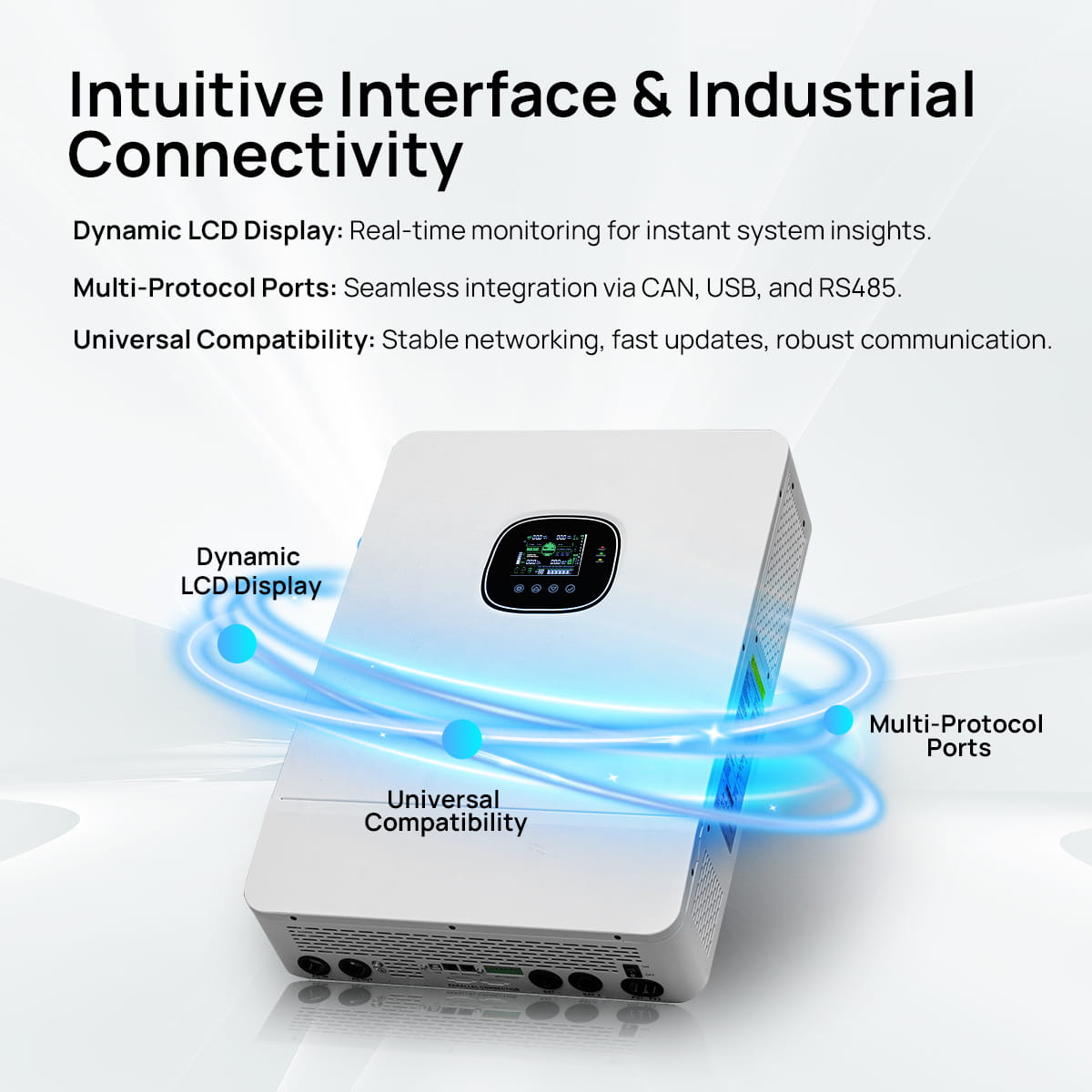

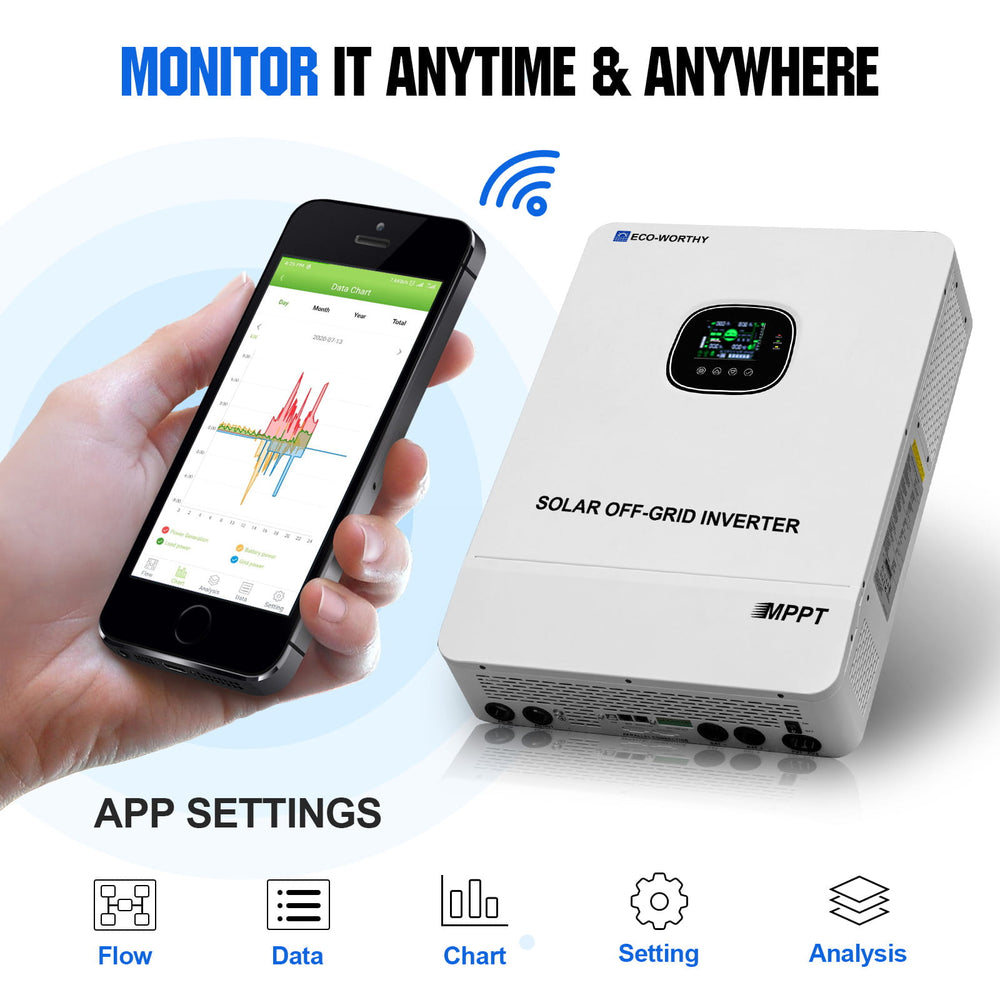

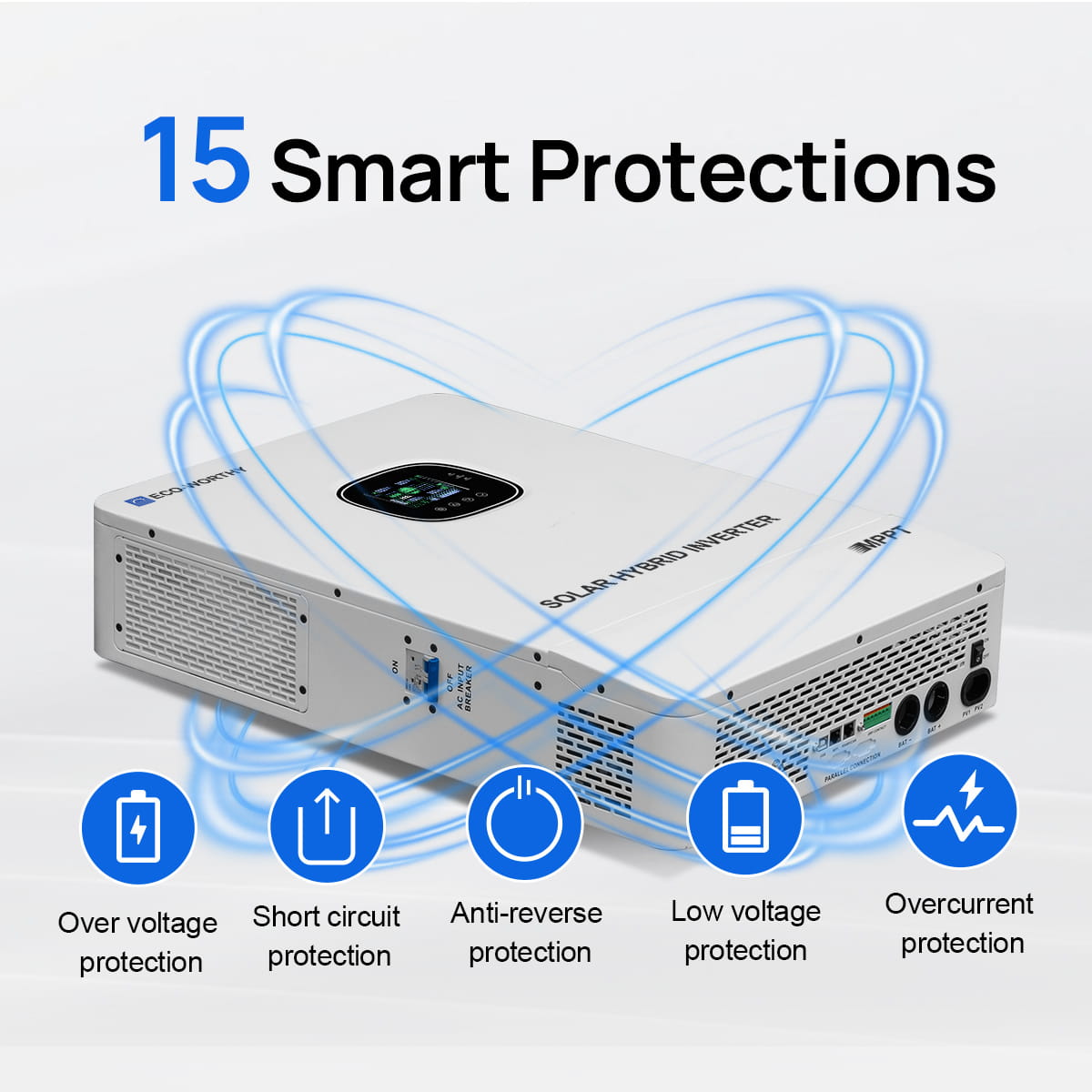

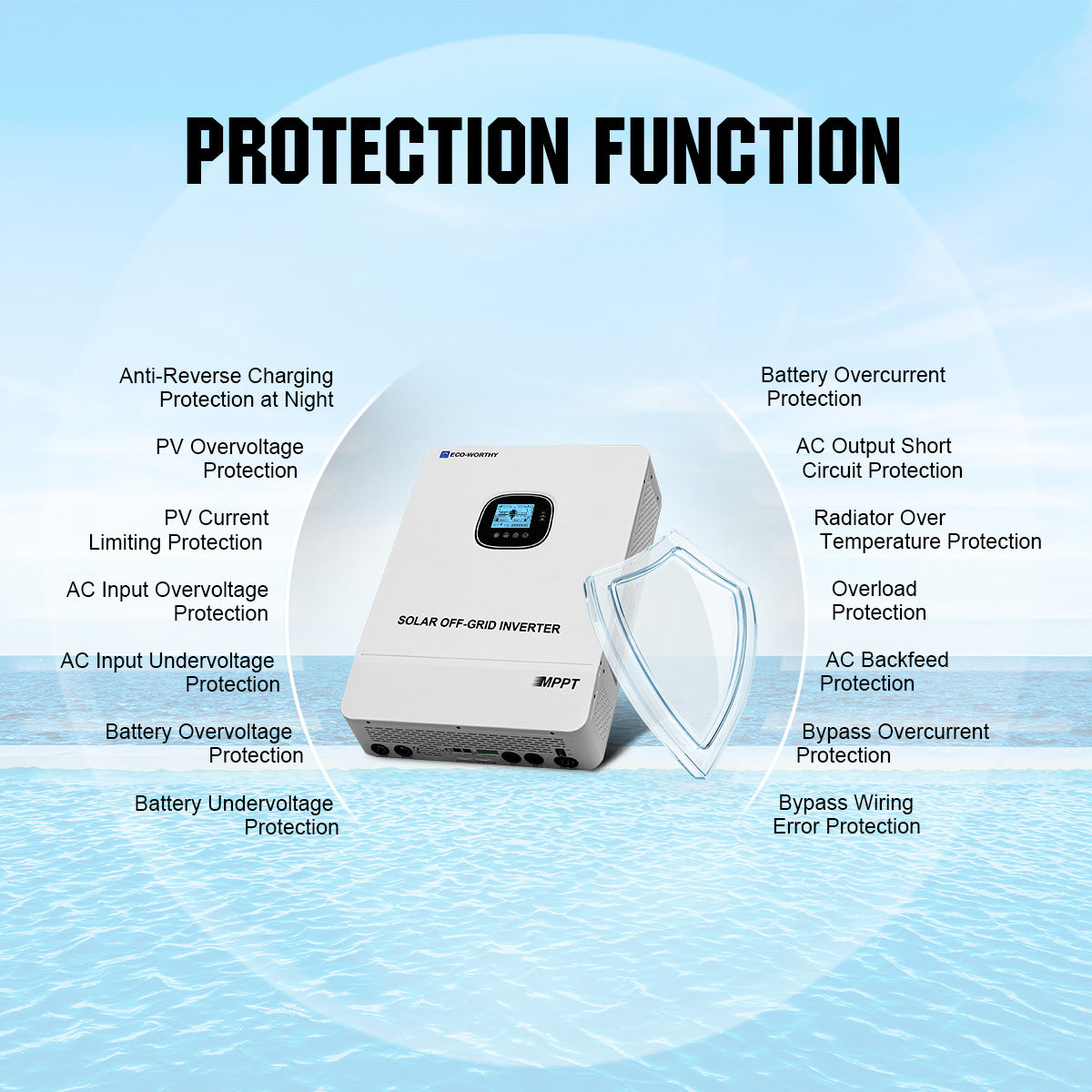

[Intelligent Monitoring and Closed-Loop Communication] Equipped with an LCD display and WiFi module for remote monitoring of PV input, battery state of charge (SOC), and inverter output power. Supports closed-loop communication with ECO-WORTHY and other batteries via the PYLON communication protocol, ensuring efficient system coordination. Multiple intelligent protection features ensure safe and stable operation.
Learn More See Less

Limited Stock

View full details
Description Specification Downloads Shipping
ECO-WORTHY all-in-one 48V 10kW inverter supports up to 6 units in parallel. It offers 120V/240V split-phase outputs. It features an intelligent LCD and WiFi monitoring, closed-loop PYLON communication with ECO-WORTHY and other batteries, and multiple protections for safe, stable operation.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
