300A 3.5" Touchable Display Battery Monitor with Hall Sensor for AGM and Lithium (LiFePO4) Batteries

300A 3.5" Touchable Display Battery Monitor with Hall Sensor for AGM and Lithium (LiFePO4) Batteries

Regular price C$109.99
Sale price C$109.99 Regular price C$169.99
save 35% Sold out

SKU: CA-L03BM100V3-1

·High-Precision Hall Monitor: Real-time monitoring of battery percentage, voltage, current, capacity, etc., with an accuracy of 99%, ensuring a comprehensive understanding of the battery status.

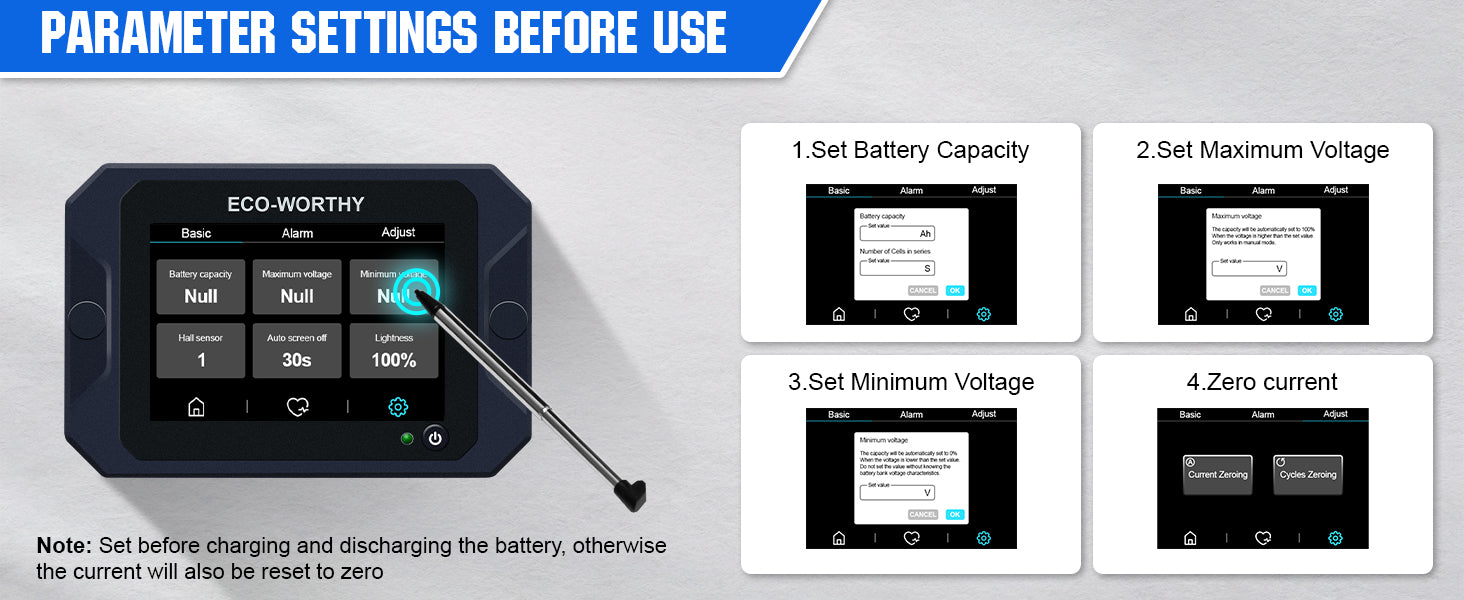

·Touch Screen: 3.5-inch touch screen display, equipped with a resistance pen, clear and intuitive operation, providing a comprehensive information view.

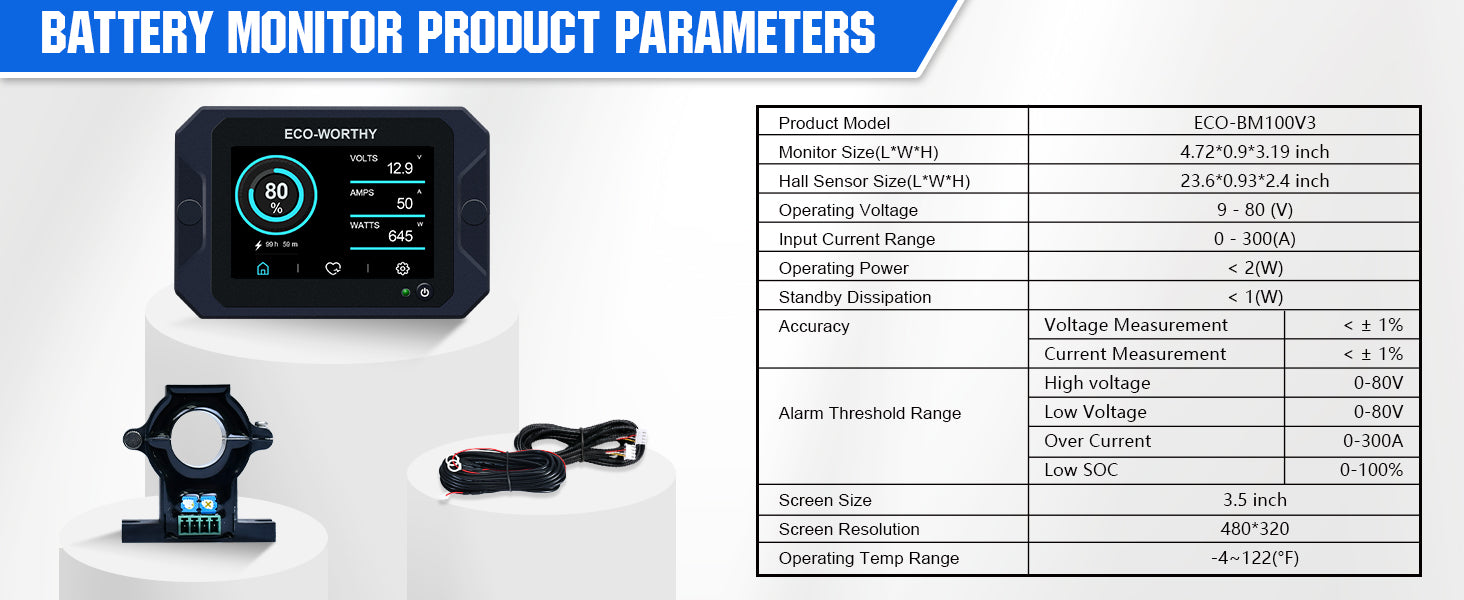

·Unlimited Battery Types: Compatible with various battery types, suitable for 9-80V 300A battery packs, widely monitored mainstream batteries on the market. Suitable for lithium batteries, lithium iron phosphate batteries, AGM, lead-acid batteries, etc.
·Real-Time Alarm: Built-in buzzer, real-time alarm, protect the battery from possible damage caused by abnormalities.

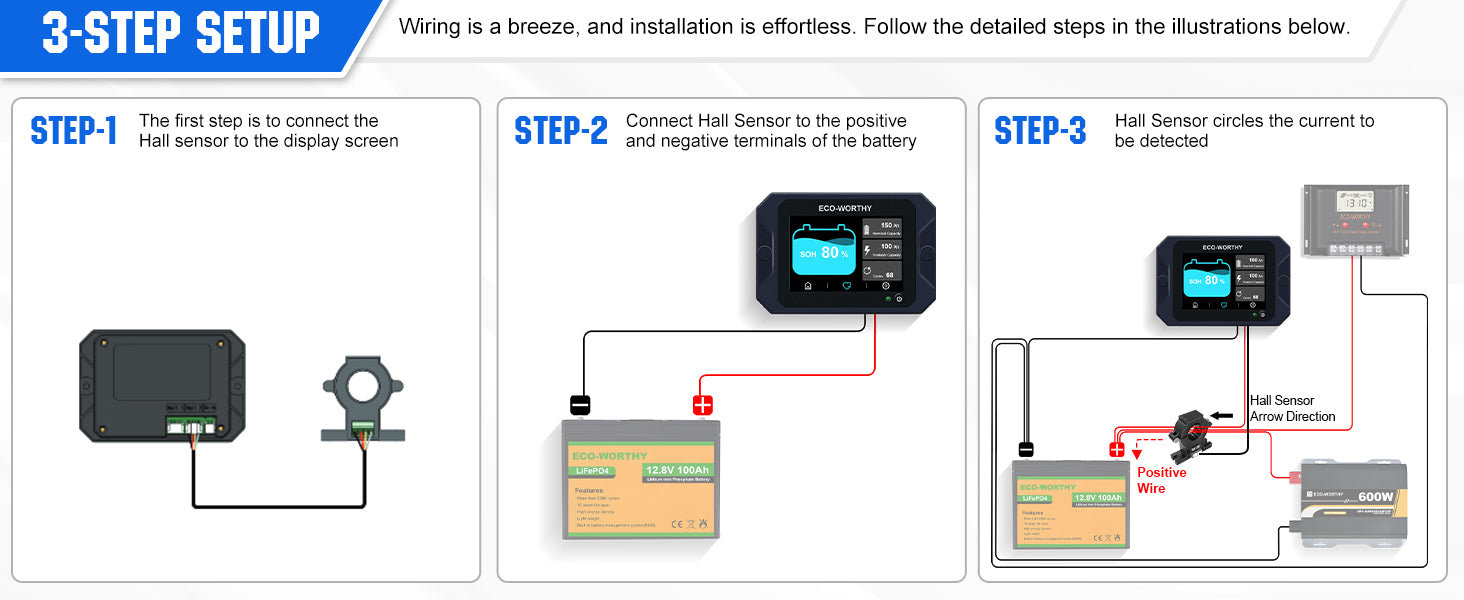

·Easy to Install: Using Hall sensors, simple installation, no complicated wiring or shunts, fast installation, easy to measure.
Learn More See Less
Style
View full details
Description Specification Downloads Shipping
The ECO-WORTHY 300A Battery Monitor with Hall Sensor is the perfect addition to any solar system and takes the guesswork out of battery usage. The unit monitors the amperage of your battery bank and displays the accurate state of charge on the LCD screen. Improves the overall performance and life of your battery bank. Compatible with a wide range of battery types, works with 9-80V 300A battery banks.

Frequently asked Questions about 48V(51.2v) 100AH Server Rack Battery

FAQ

What are the shipping and warranty policies for this battery?

We offer 10-year warranty for this 48V(51.2v) 100AH server rack lithium battery,covering non-human-induced battery failure issues. Plus, you’ll receive our lifetime customer and technical support.

What kind of battery cells are used?

This 48v 100Ah server rack lithium battery uses 100% Grade A prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What communication methods are supported?

This 48V(51.2v) 100AH server rack lithium battery communicates via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

Which inverters can this battery communicate with?

All the mainstream inverters on the market can communicate with this 48V(51.2v) 100AH server rack battery: Victron, Deye, Growatt, invt, LUX POWER, MEGAREVO, Must, AMK SOLAR, Sol-Ark, SOFAR, solist, SOFCEC, SRNE, AiSWEi, Voltronic Power, GOODWE, PYLONTECH, Powmr, Sungoldpower, EG4 3000

What safety designs does this battery have?

This 48V(51.2v) 100AH server rack lithium battery is equipped with a built-in 100A BMS and pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Can V3 communicate in parallel with V2?

Yes. The DIP switch setting principles of the two versions of batteries are the same. Due to the limitation of the number of DIP bits, V2 should be arranged in the first 15 batteries, but V3 is not limited.

Precautions for V3 and V2 in parallel?

1. The positive and negative terminals of the two versions of batteries are opposite, please pay attention to the selection and connection of wires; 2. Refer to the above QA to set the battery address.

Does the JBD host computer software need to be updated to support 32 parallel quantities?

Yes. Please visit: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated to support 32 parallel quantities?

Yes. Please upgrade the "Lithium Battery IoT Cloud" App to version 1.6.6.

Does the V3 version have a handle?

It has a handle, which comes with the package, but you need to install it yourself.

What are the changes in the overall size and weight of V3?

The height increased by 1cm and the weight increased by 4kg.
