How to Configure the Battery for Closed-Loop Communication with an Inverter?

October 11, 2025

I. How to set up the battery for closed-loop communication?

Closed-loop communication configuration usually involves two parts: battery setup and inverter setup.

Take the communication between the SRNE series inverter and the Server Rack series battery as an example:

1. Identify the pinout for the communication port on both the inverter and the battery, then select the correct communication cable and connect them.

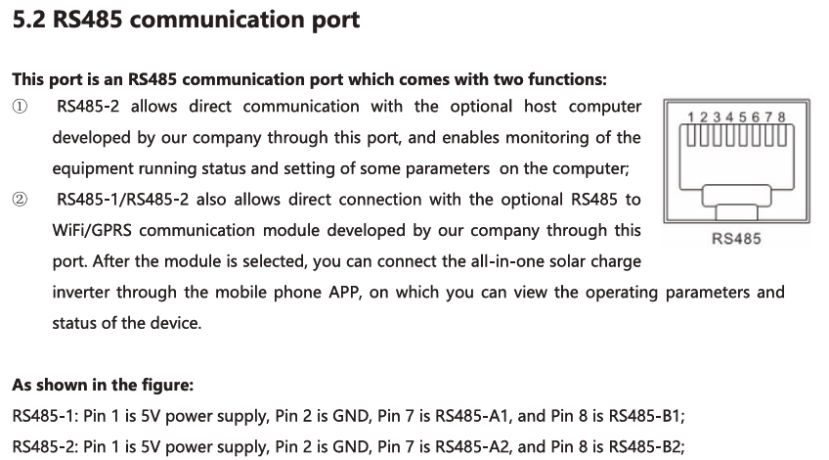

Pin description of the inverter:

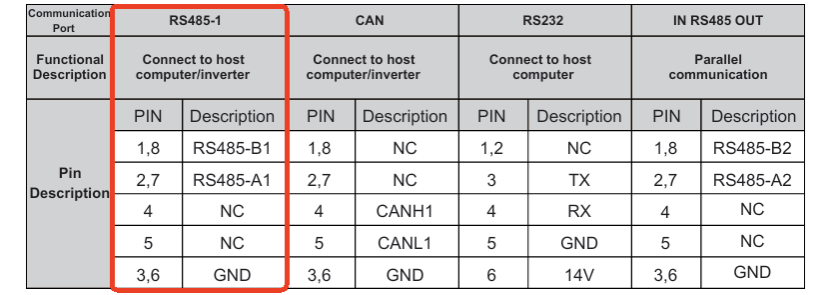

Battery pin description:

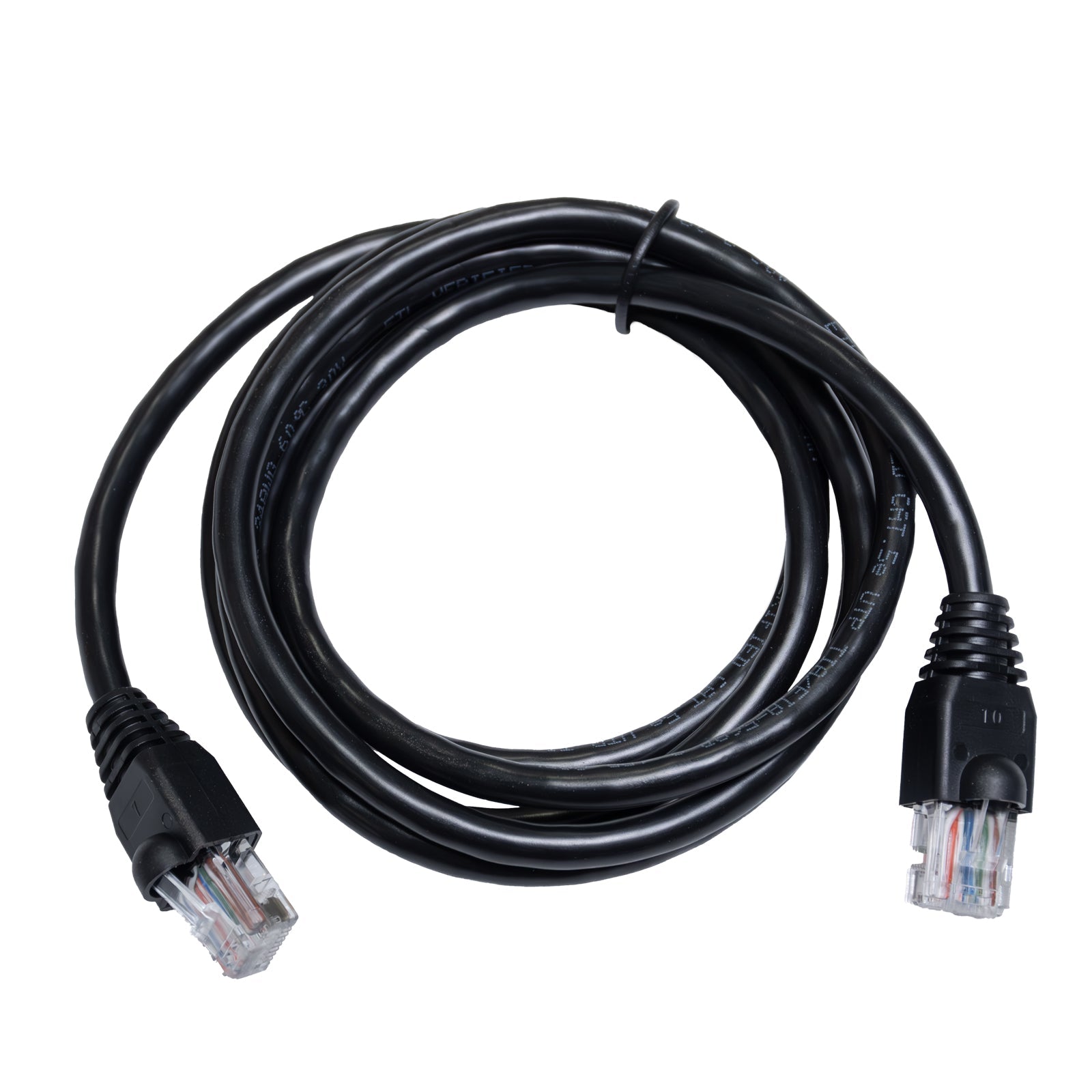

Select the appropriate communication cable

ECO - WORTHY 5.12kWh Home Backup Power with 48V 100Ah LiFePO4 Battery and 3500W 48V Off - Grid Inverter - BESS

ECO-WORTHY 5.12kWh Home Backup Power with 48V 100Ah LiFePO4 Battery and 3500W 48V Off-Grid Inverter

C$2,029.98

Complete the battery-side setup by referring to "How to Set Up Master-Slave Communication for the Battery".  Then follow the inverter’s user manual to configure the inverter side (example given for SRNE series inverters).

II. Troubleshooting & Tips

Q: Inverter shows “Communication Failed”

A: The reverse control setting is wrong, the wiring is wrong , or the protocol /pin does not match . Check the reverse control terminal settings, check whether the battery protocol is set correctly, check whether the wiring is correct, and check the manual to check whether the pins match.

Q: Multi-battery communication is unstable

A: Absence of a master/slave hierarchy or wiring crosstalk—ensure DIP-switch addresses are correctly set (one master, multiple slaves), use shielded cables, and route the wiring according to best-practice standards.

Q: Communication intermittently drops or fails

A: Interference in the environment or the wiring is aging /damaged. Use shielded wire instead , check for loose or oxidized terminals , and check if the communication line is damaged.

Closed-loop communication not only improves the efficiency and safety of energy storage systems, but also enables intelligent control, remote scheduling, and system linkage. To achieve reliable closed-loop control, it is recommended to use cables and protocols recommended by ECO-WORTHY to maintain battery and inverter firmware updates. Prioritize brands with verified compatibility.
